2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-12
Opening the liftgate
Non-power liftgate
To unlock and open the liftgate:
1.
Make sure you have the smart key in
your possession.
2. Press either the liftgate handle release switch on the vehicle for more than
one second. The hazard warning lights
will blink two times and the liftgate
latch will unlock.
3. Once the liftgate is opened and then closed, the liftgate will automatically
re-lock after 30 seconds.
Information
The liftgate handle switch will only
operate when the smart key is within 28
inches (0.7 m) from the liftgate handle.
Power liftgate
To unlock and open the liftgate:
1.

Make sure you have the smart key in
your possession.
2. Press either the liftgate handle release switch on the vehicle or press and
hold the Liftgate Unlock button P
on the smart key for more than one
second. The hazard warning lights will
blink two times and the liftgate latch
will open.
3. Once the liftgate is opened and then closed, the liftgate will automatically
re-lock after 30 seconds.
Information
The liftgate handle switch will only
operate when the smart key is within 28
inches (0.7 m) from the liftgate handle.
Remotely starting vehicle
(if equipped)
You can start the vehicle using the
Remote Start button on the smart key.
To start the vehicle remotely:
1. Before you can use remote start your vehicle, the door lock button must be
pressed. Press the door lock button
on the Smart Key. You must be within
about 32 feet (10m) from your vehicle.
2. Press and hold the remote start button on your Smart Key. You must
press the button within 4 seconds
from when you pressed the door lock
button to activate the remote start.
3. The hazard warning lights will blink and the engine will start.
4. To turn off the remote start function, press the Remote Start button once.

05
5-13
Information

[Laws in your country may restrict the
use of remote start. You should check
country regulations before using this
remote starting system.

[ The vehicle must be in P (Park) for the
remote start function to start.

[ The engine turns off if you get on the
vehicle without a registered smart key.

[ The engine turns off if you do not get
on the vehicle within 10 minutes after
remotely starting the vehicle.

[ The Remote Start button may not
operate if the smart key is not within 32
feet (10 m).

[ The vehicle will not remotely start if the
engine hood or liftgate is opened.

[ Do not idle the engine for a long period.

[ The Remote start function works the
same as Blue Link remote start. For
further caution information, refer to
the separately supplied “Blue Link
(Infotainment system) manual”.
Remote Smart Parking Assist
Feature (if equipped)
Some models are equipped with Remote
Smart Parking Assist Feature. With the
Smart Key, the vehicle can be moved
forward or backward remotely to enter or
exit a tight parking space.
For more details, refer to “Remote Smart
Parking Assist (RSPA)” section in chapter
7.
Panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button is pressed for more than 1 second
To stop the horn and lights, press any
button on the transmitter.

Convenience Features5-14
Start-up (if equipped)
Some models are equipped with a push
button start instead of a key cylinder.
You can leave your Smart Key in your
pocket or purse when you start your
vehicle.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
Preventing the doors/liftgate from locking/
unlocking

[ Activating the feature
With the engine off, press the
lock button on the smart key and
immediately press the unlock button
along with the lock button for more
than 4 seconds. When the feature is
activated, the hazard warning lights
will blink four times.

[ How the feature works
When the feature is activated, the
doors or liftgate will not lock or unlock
even though the outside door handle
button or liftgate handle release switch
is pressed with the smart key in your
possession. Also, Welcome System
(if equipped) and Smart Liftgate (if
equipped) will not operate even though
you approach the vehicle with the
smart key.

[ Deactivating the feature
Press the door lock or unlock button
on the smart key, the feature will
deactivate.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[ Avoid dropping or throwing the
smart key.

[ Protect the smart key from extreme
temperatures.

05
5-15

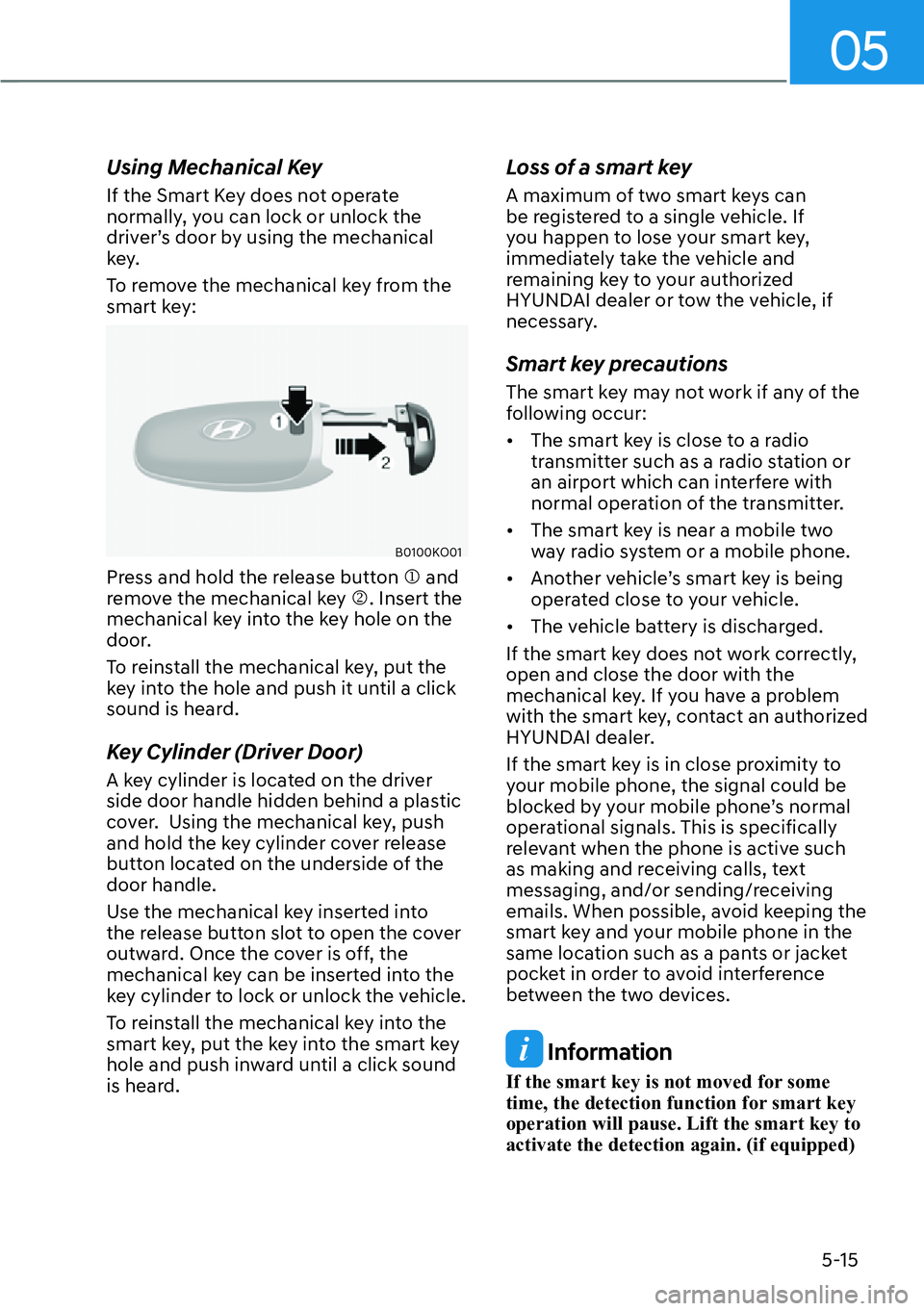

Using Mechanical Key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
To remove the mechanical key from the
smart key:
B0100KO01
Press and hold the release button M and
remove the mechanical key N. Insert the
mechanical key into the key hole on the
door.
To reinstall the mechanical key, put the
key into the hole and push it until a click
sound is heard.
Key Cylinder (Driver Door)
A key cylinder is located on the driver
side door handle hidden behind a plastic
cover. Using the mechanical key, push
and hold the key cylinder cover release
button located on the underside of the
door handle.
Use the mechanical key inserted into
the release button slot to open the cover
outward. Once the cover is off, the
mechanical key can be inserted into the
key cylinder to lock or unlock the vehicle.
To reinstall the mechanical key into the
smart key, put the key into the smart key
hole and push inward until a click sound
is heard.
Loss of a smart key
A maximum of two smart keys can
be registered to a single vehicle. If
you happen to lose your smart key,
immediately take the vehicle and
remaining key to your authorized
HYUNDAI dealer or tow the vehicle, if
necessary.
Smart key precautions
The smart key may not work if any of the
following occur:

[ The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.

[ The smart key is near a mobile two
way radio system or a mobile phone.

[ Another vehicle’s smart key is being
operated close to your vehicle.

[ The vehicle battery is discharged.
If the smart key does not work correctly,
open and close the door with the
mechanical key. If you have a problem
with the smart key, contact an authorized
HYUNDAI dealer.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such
as making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping the
smart key and your mobile phone in the
same location such as a pants or jacket
pocket in order to avoid interference
between the two devices.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again. (if equipped)

Convenience Features5-16
NOTICE
To prevent damaging the smart key:

[ Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may causethe
internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[ Avoid dropping or throwing the
smart key.

[ Protect the smart key from extreme
temperatures.
NOTICE

[Keep the smart key away from
electromagnetic materials that
blocks electromagnetic waves to the
key surface.

[ Always have the smart key with
you when leaving the vehicle. If the
smart key is left near the vehicle, the
vehicle battery may be discharged.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

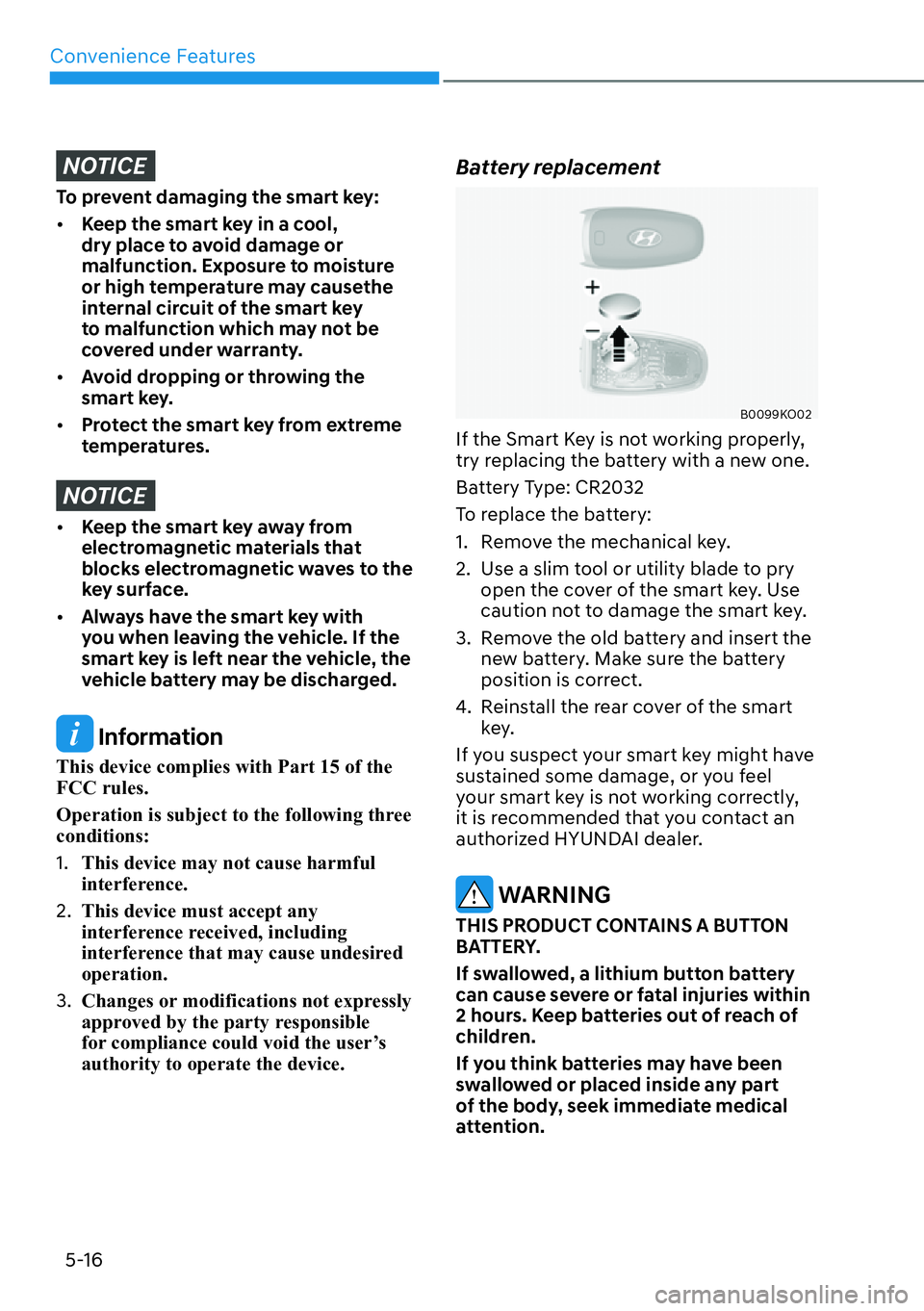

Battery replacement
B0099KO02
If the Smart Key is not working properly,
try replacing the battery with a new one.
Battery Type: CR2032
To replace the battery:
1. Remove the mechanical key.
2. Use a slim tool or utility blade to pry
open the cover of the smart key. Use
caution not to damage the smart key.
3. Remove the old battery and insert the new battery. Make sure the battery
position is correct.
4. Reinstall the rear cover of the smart key.
If you suspect your smart key might have
sustained some damage, or you feel
your smart key is not working correctly,
it is recommended that you contact an
authorized HYUNDAI dealer.
WARNING
THIS PRODUCT CONTAINS A BUTTON
BATTERY.
If swallowed, a lithium button battery
can cause severe or fatal injuries within
2 hours. Keep batteries out of reach of
children.
If you think batteries may have been
swallowed or placed inside any part
of the body, seek immediate medical
attention.

05
5-17
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
Immobilizer System
The immobilizer system helps protect
your vehicle from theft. If an improperly
coded key (or other device) is used, the
engine’s fuel system is disabled.
When the ignition switch is turned to
ON position (or the Engine Start/Stop
button is pressed to the ON position),
the immobilizer system indicator should
come on briefly, then go off. If the
indicator starts to blink, the system does
not recognize the coding of the key.
Turn the ignition switch to the Lock
position, then turn the ignition switch to
the ON position again. (For remote key)
Press the Engine Start/Stop button to
the OFF position, then press the Engine
Start/Stop button to the ON position
again. (For smart key)
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (for example,
key chain) is near the key. The engine
may not start because the metal may
interrupt the transponder signal from
transmitting normally.
If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a customer
unique password and should be kept
confidential.
NOTICE
The transponder in your key is an
important part of the immobilizer
system. It is designed to give years
of trouble-free service, however you
should avoid exposure to moisture,
static electricity and rough handling.
Immobilizer system malfunction could
occur.
Information
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

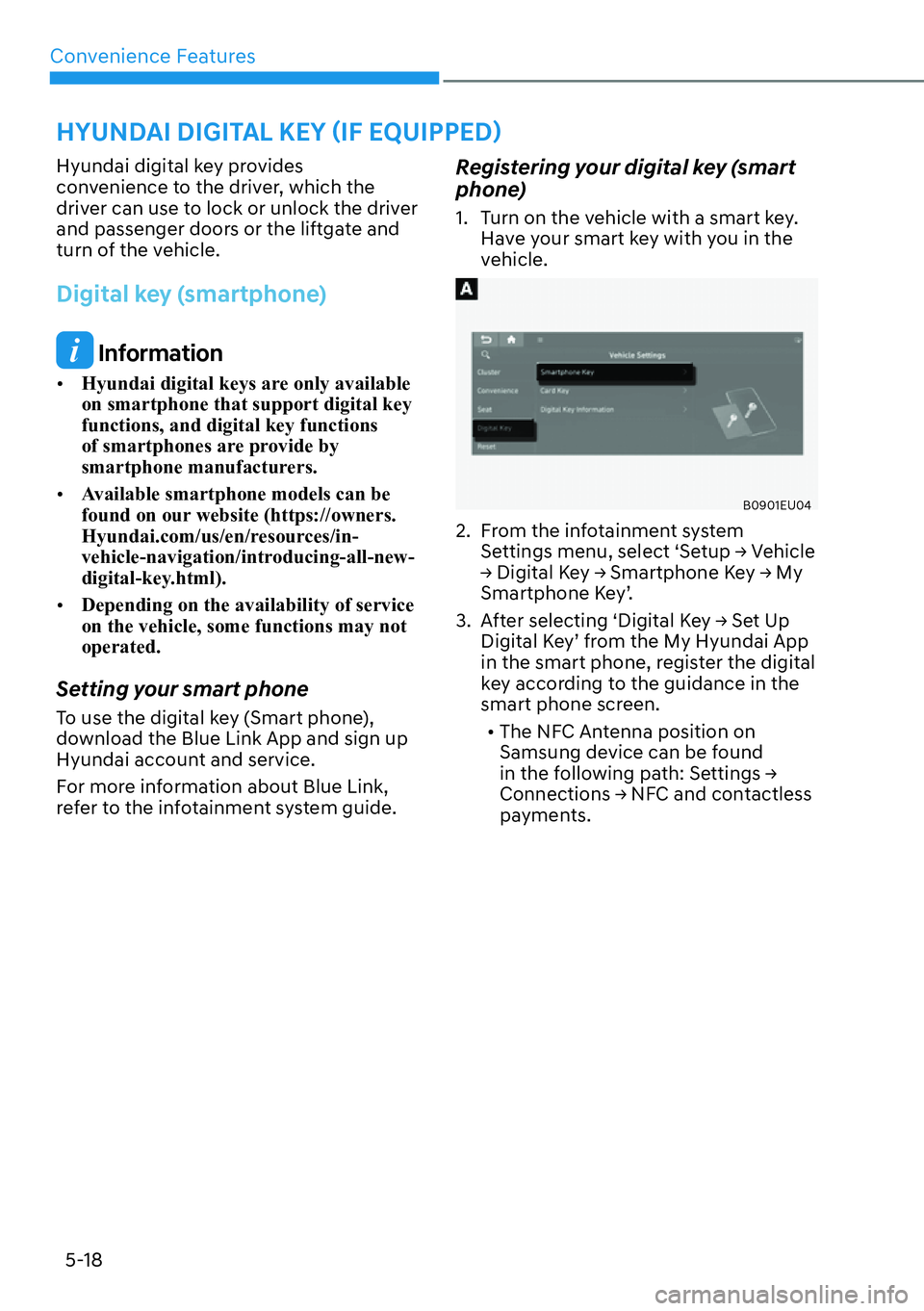

Convenience Features5-18
Hyundai digital key provides
convenience to the driver, which the
driver can use to lock or unlock the driver
and passenger doors or the liftgate and
turn of the vehicle.
Digital key (smartphone)
Information

[ Hyundai digital keys are only available
on smartphone that support digital key
functions, and digital key functions
of smartphones are provide by
smartphone manufacturers.

[ Available smartphone models can be
found on our website (https://owners.
Hyundai.com/us/en/resources/in-
vehicle-navigation/introducing-all-new-
digital-key.html).

[ Depending on the availability of service
on the vehicle, some functions may not
operated.
Setting your smart phone
To use the digital key (Smart phone),
download the Blue Link App and sign up
Hyundai account and service.
For more information about Blue Link,
refer to the infotainment system guide.
Registering your digital key (smart
phone)
1. Turn on the vehicle with a smart key.
Have your smart key with you in the
vehicle.
B0901EU04
2. From the infotainment system 6HWWLQJVPHQXVHOHFW
S6HWXS

05
5-19

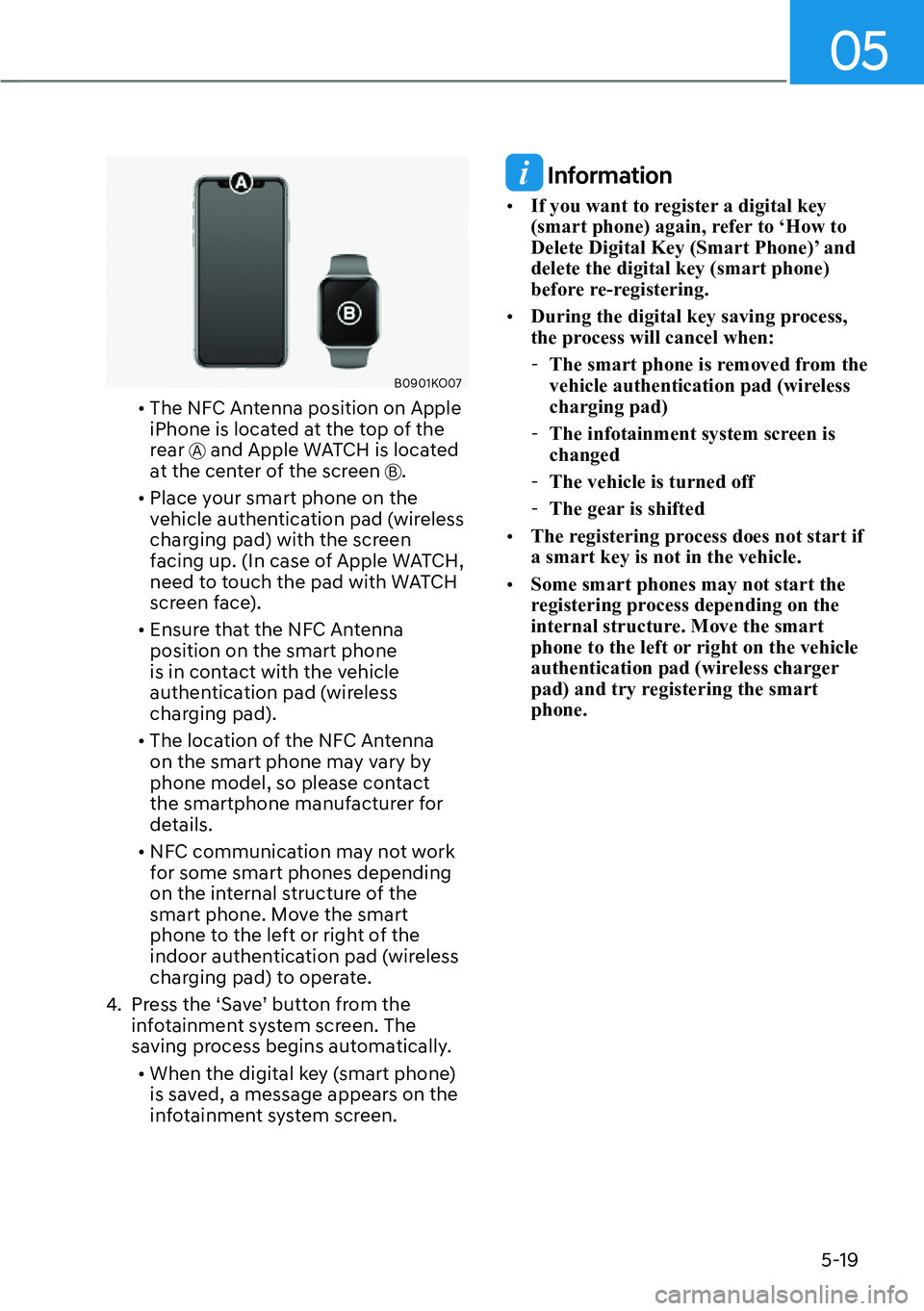

B0901KO07

[The NFC Antenna position on Apple
iPhone is located at the top of the
rear
A and Apple WATCH is located
at the center of the screen B.

[ Place your smart phone on the
vehicle authentication pad (wireless
charging pad) with the screen
facing up. (In case of Apple WATCH,
need to touch the pad with WATCH
screen face).

[ Ensure that the NFC Antenna
position on the smart phone
is in contact with the vehicle
authentication pad (wireless
charging pad).

[ The location of the NFC Antenna
on the smart phone may vary by
phone model, so please contact
the smartphone manufacturer for
details.

[ NFC communication may not work
for some smart phones depending
on the internal structure of the
smart phone. Move the smart
phone to the left or right of the
indoor authentication pad (wireless
charging pad) to operate.
4. Press the ‘Save’ button from the infotainment system screen. The
saving process begins automatically.

[ When the digital key (smart phone)
is saved, a message appears on the
infotainment system screen.
Information

[ If you want to register a digital key
(smart phone) again, refer to ‘How to
Delete Digital Key (Smart Phone)’ and
delete the digital key (smart phone)
before re-registering.

[ During the digital key saving process,
the process will cancel when:

- The smart phone is removed from the
vehicle authentication pad (wireless
charging pad)

- The infotainment system screen is
changed

- The vehicle is turned off

- The gear is shifted

[ The registering process does not start if
a smart key is not in the vehicle.

[ Some smart phones may not start the
registering process depending on the
internal structure. Move the smart
phone to the left or right on the vehicle
authentication pad (wireless charger
pad) and try registering the smart
phone.
