2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-76
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
B0903EU02
A: Front, B: Rear
The sunroof can only be operated when
the ignition switch or Engine Start/Stop
button is in the ON or START position.
The sunroof can be operated for
approximately 30 seconds after the
ignition switch or Engine Start/Stop
button is in the ACC or LOCK/OFF
position.
However, if the front door is open, the
sunroof cannot be operated even within
the 3 minute period.
WARNING

[Adjust the sunroof or sunshade when
your vehicle stops. This could result
in loss of control and an accident
that may cause injury, or property
damage.

[ Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.

[ Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
Information
When the rear power window switches
are disabled using the power window lock
button, the rear sunroof operation switch
is also disabled. If you need to operate the
rear seat sunroof, operate the rear seat
sunroof with the front sunroof operation
switch.
'8$/681522)

05
5-77

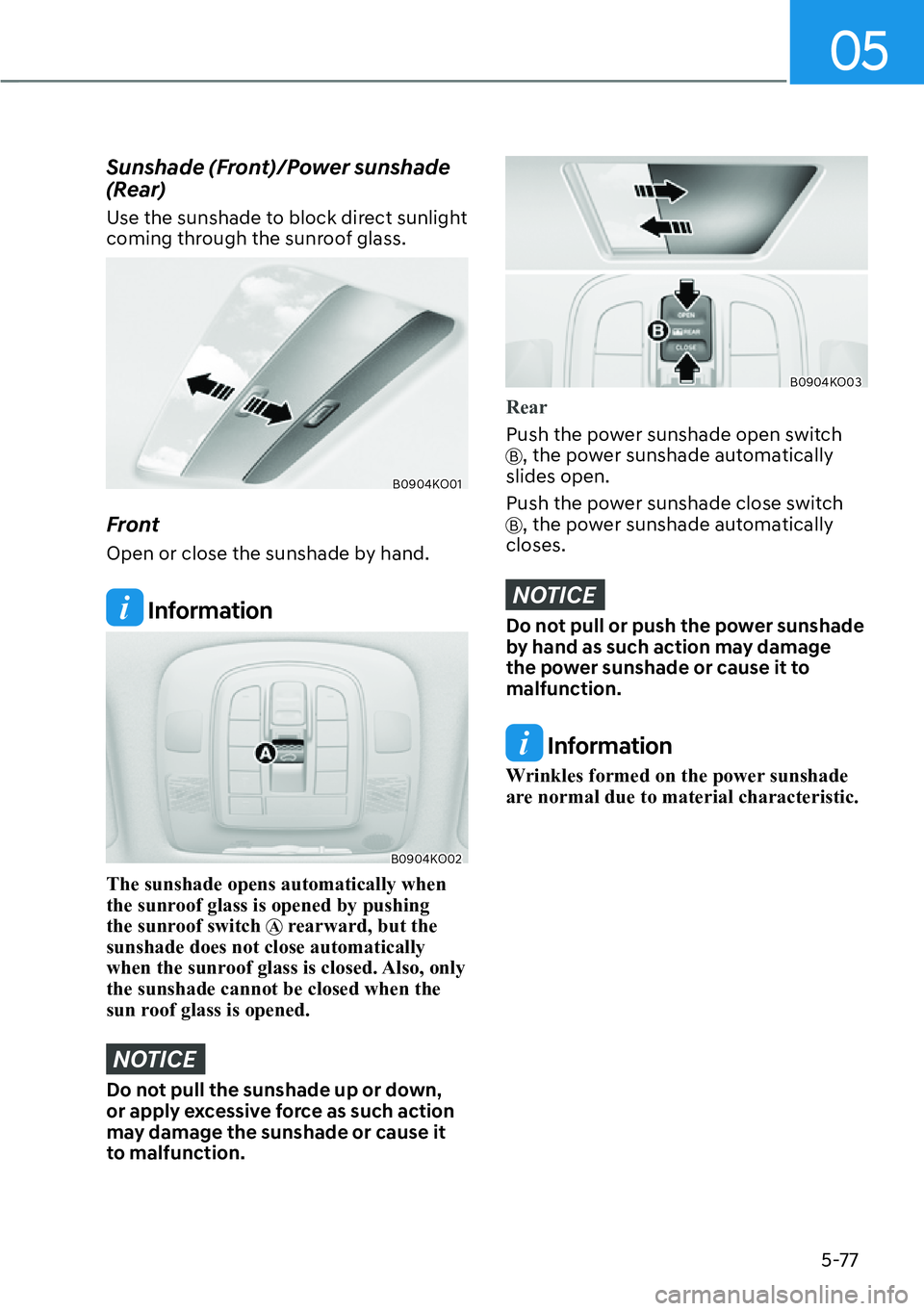

Sunshade (Front)/Power sunshade
(Rear)
Use the sunshade to block direct sunlight
coming through the sunroof glass.
B0904KO01
Front
Open or close the sunshade by hand.
Information
B0904KO02
The sunshade opens automatically when
the sunroof glass is opened by pushing
the sunroof switch
A rearward, but the
sunshade does not close automatically
when the sunroof glass is closed. Also, only
the sunshade cannot be closed when the
sun roof glass is opened.
NOTICE
Do not pull the sunshade up or down,
or apply excessive force as such action
may damage the sunshade or cause it
to malfunction.
B0904KO03
Rear
Push the power sunshade open switch
B, the power sunshade automatically
slides open.
Push the power sunshade close switch
B, the power sunshade automatically
closes.
NOTICE
Do not pull or push the power sunshade
by hand as such action may damage
the power sunshade or cause it to
malfunction.
Information
Wrinkles formed on the power sunshade
are normal due to material characteristic.

Convenience Features5-78

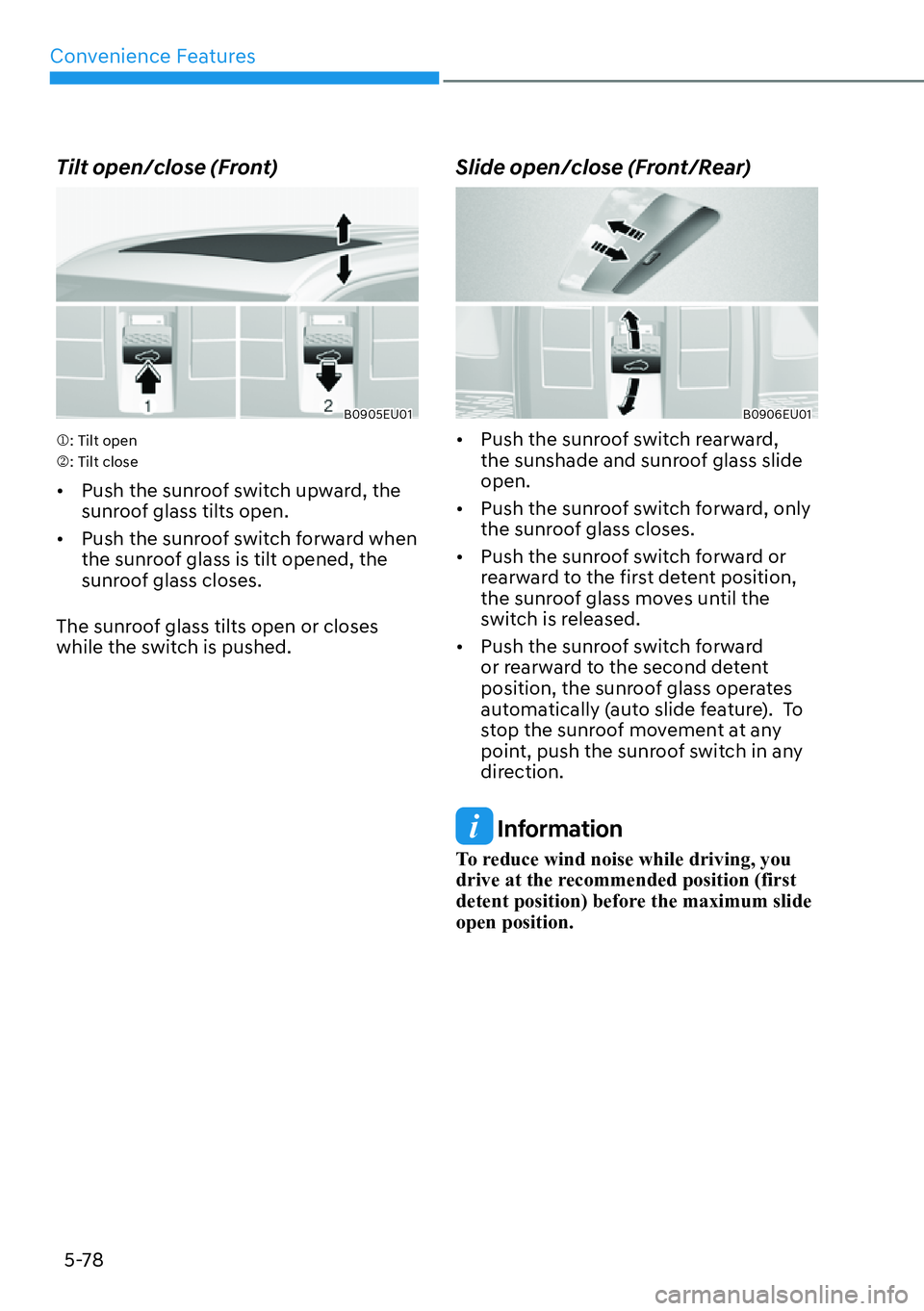

Tilt open/close (Front)
B0905EU01
M: Tilt open
N: Tilt close

[ Push the sunroof switch upward, the
sunroof glass tilts open.

[ Push the sunroof switch forward when
the sunroof glass is tilt opened, the
sunroof glass closes.
The sunroof glass tilts open or closes
while the switch is pushed.
Slide open/close (Front/Rear)
B0906EU01

[ Push the sunroof switch rearward,
the sunshade and sunroof glass slide
open.

[ Push the sunroof switch forward, only
the sunroof glass closes.

[ Push the sunroof switch forward or
rearward to the first detent position,
the sunroof glass moves until the
switch is released.

[ Push the sunroof switch forward
or rearward to the second detent
position, the sunroof glass operates
automatically (auto slide feature). To
stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Information
To reduce wind noise while driving, you
drive at the recommended position (first
detent position) before the maximum slide
open position.

05
5-79
Automatic reversal
B0907KO01
If the sunroof glass senses any obstacle
while it is closing automatically, it will
reverse direction then
The auto reverse function may not
work if an object thin or soft is caught
between the sliding sunroof glass and
sunroof sash.
WARNING

[Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.

[ Never deliberately use your body
parts to test the automatic reversal
function. The sunroof glass may
reverse direction, but there is a risk
of injury.
NOTICE

[Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.

[ Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.

[ Regularly remove any accumulated
dust on the sunroof rail.

[ Dust accumulated between the
sunroof and roof panel can make
noise Open the sunroof and remove
dust regularly using a clean cloth.

[ Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.

[ Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.

[ Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.

Convenience Features5-80
Resetting the sunroof
B0908EU01
B0908EU02
A: Front, B: Rear
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:

[When the 12-volt battery is either
disconnected or discharged

[ When the sunroof fuse is replaced

[ If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properly Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunroof glass is in the fully closed position. If the sunroof
glass is open, push the switch forward
until the sunroof glass is fully closed.
3. Release the switch when the sunroof glass is fully closed.
4. Push the switch forward until the sunroof glass moves slightly. Then
release the switch.
5. Once again push and hold the sunroof switch forward until the sunroof glass
slides open and close. Do not release
the switch until the operation is
completed.
If you release the switch during
operation, start the procedure again
from step 2. Information
If the sunroof does not reset when
the vehicle battery is disconnected or
discharged, or the sunroof fuse is blown,
the sunroof may not operate normally.

05
5-81
Sunroof open warning
B0088KO02
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle.
Also, leaving the sunroof open when the
vehicle is unattended may invite theft.

Convenience Features5-82
Opening the Hood
B0152KO01
1. Park the vehicle and set the parking brake.
2. Pull the release lever to unlatch the hood. The hood should pop open
slightly.
B0152KO02
3. Go to the front of the vehicle, raise the hood slightly, push up the secondary
latch M inside of the hood center and
lift the hood N.
After the hood has been lifted halfway,
it will raise completely by itself.
Closing the Hood
1. Before closing the hood, check in and around the engine compartment to
ensure the following:

- Any tools or other loose objects
are removed from the engine room
area or hood opening area

- All gloves, rags, or other
combustible material is removed
from the engine compartment

- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted approximately 12 in. (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[ Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[ Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
HOOD

05
5-83
/,)7*$7(

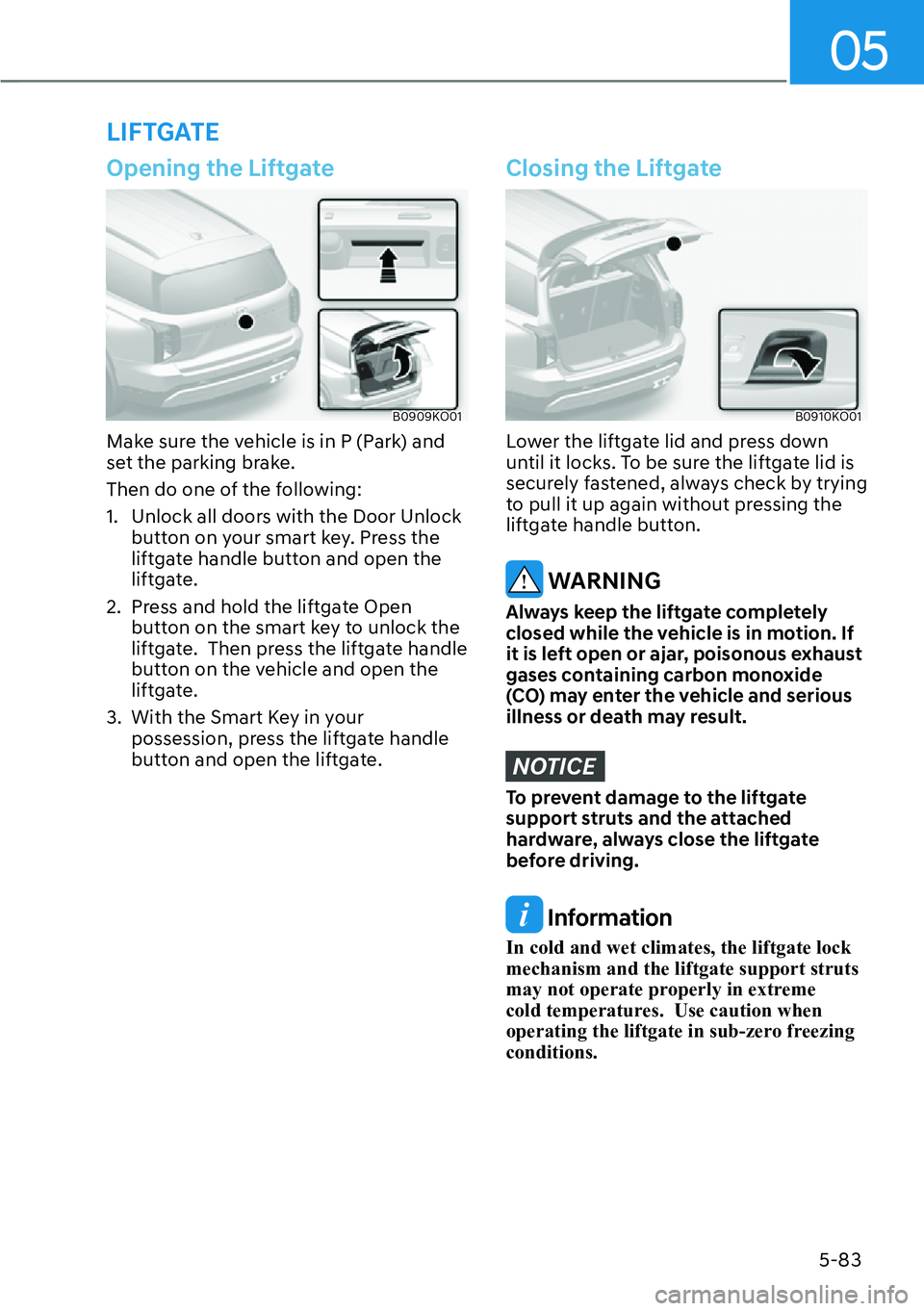

Opening the Liftgate
B0909KO01
Make sure the vehicle is in P (Park) and
set the parking brake.
Then do one of the following:
1. Unlock all doors with the Door Unlock button on your smart key. Press the
liftgate handle button and open the
liftgate.
2. Press and hold the liftgate Open button on the smart key to unlock the
liftgate. Then press the liftgate handle
button on the vehicle and open the
liftgate.
3. With the Smart Key in your possession, press the liftgate handle
button and open the liftgate.
Closing the Liftgate
B0910KO01
Lower the liftgate lid and press down
until it locks. To be sure the liftgate lid is
securely fastened, always check by trying
to pull it up again without pressing the
liftgate handle button.
WARNING
Always keep the liftgate completely
closed while the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
NOTICE
To prevent damage to the liftgate
support struts and the attached
hardware, always close the liftgate
before driving.
Information
In cold and wet climates, the liftgate lock
mechanism and the liftgate support struts
may not operate properly in extreme
cold temperatures. Use caution when
operating the liftgate in sub-zero freezing
conditions.
