2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-148
When the Auto Defogging
System operates, the indicator
will illuminate.
If a high amount of humidity is detected
in the vehicle, the Auto Defogging
System will be enabled. The following
steps will be performed automatically:
Step 1) The A/C button will turn ON and the air intake or icon control will
change to Fresh mode.
Step 2) The mode will be changed to defrost to direct airflow to the
windshield.
Step 3) The fan speed will be rising up to level 3.
If the air conditioning is off or
recirculated air position is manually
selected while Auto Defogging System is
ON, the Auto Defogging System Indicator
will blink 3 times to signal that the
manual operation has been canceled.To cancel or reset the Auto Defogging
System
Press the front windshield defroster
butt
on for 3 seconds when the ignition
switch is in the ON position. When the
Auto Defogging System is canceled, the
ADS OFF symbol will blink 3 times and
ADS OFF will be displayed on the climate
control information screen.
When the Auto Defogging System is
reset, the ADS OFF symbol will blink 6
times without a signal.
Information
To maintain the effectiveness and
efficiency of the Auto Defogging System,
do not select Recirculation mode while the
system is operating.
NOTICE
Do not remove the sensor cover located
on the upper end of the windshield
glass.
Damage to system parts could occur
and may not be covered by your vehicle
warranty.

05
5-149
Rear Window DefrosterNOTICE
To prevent damage to the rear window
defroster conducting elements bonded
to the inside surface of the rear window,
never use sharp instruments or window
cleaners containing abrasives to clean
the window.
If you want to defrost and defog
the front windshield, refer to the

U:LQGVKLHOG'HIURVWLQJDQG'HIRJJLQJ
V
section in this chapter.
The defroster heats the
window to remove frost, fog
and thin ice from the interior
and exterior of the rear
window, while the engine is
running.

[ To activate the rear window defroster,
press the rear window defroster
button located in the center control
panel. The indicator on the rear
window defroster button illuminates
when the defroster is ON.

[ To turn off the defroster, press the rear
window defroster button again.
Information

[If there is heavy accumulation of snow
on the rear window, brush it off before
operating the rear defroster.

[ The rear window defroster
automatically turns off after
approximately 20 minutes or when the
ignition switch or Engine Start/Stop
button is in the LOCK/OFF position.
Side view mirror defroster
If your vehicle is equipped with the side
view mirror defrosters, they will operate
at the same time you turn on the rear
window defroster.

Convenience Features5-150

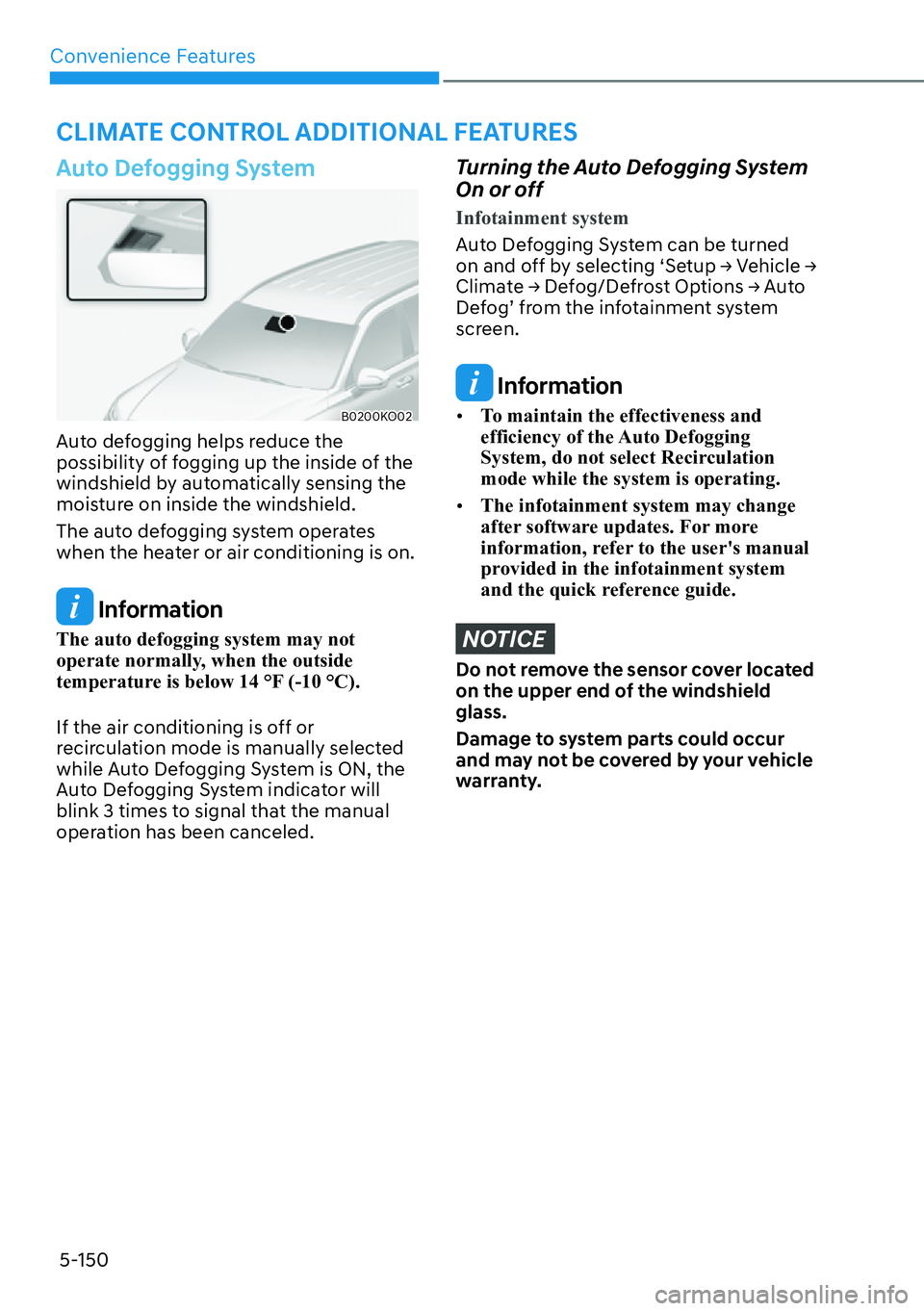

Auto Defogging System
B0200KO02
Auto defogging helps reduce the
possibility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
Information
The auto defogging system may not
operate normally, when the outside
temperature is below 14 °F (-10 °C).
If the air conditioning is off or
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto Defogging System indicator will
blink 3 times to signal that the manual
operation has been canceled.
Turning the Auto Defogging System
On or off
Infotainment system
Auto Defogging System can be turned
RQDQGR
IIE\VHOHFWLQJ
S6HWXS

05
5-151
Auto Dehumidify (if equipped)
To increase cabin air quality and reduce
windshield misting, recirculation mode
switches off automatically after about 5
to 30 minutes, depending on the outside
temperature, and the air intake will
change to fresh mode.
Turning Auto Dehumidify On or off
Climate control system
To turn the Auto Dehumidify feature on
or o
ff, select Face level () mode and
press the A/C button, press the air intake
control (
) button at 5 times within
3 seconds. When Auto Dehumidify is
turned on, the air intake control button
indicator will blink 6 times. When turned
off, the indicator will blink 3 times.
Infotainment system
Auto Dehumidify can be turned on
DQGR
IIE\VHOHFWLQJ
S6HWXS

Convenience Features5-152
Sunroof Inside Air Recirculation
(if equipped)
When the sunroof is opened, fresh
mode will be automatically selected.
At this time, if you press the air intake
control button, recirculation mode will
be selected but will change back to fresh
mode after 3 minutes. When the sunroof
is closed, the air intake position will
return to the original position that was
selected.
Scheduled Ventilation Control
The Scheduled Ventilation Control
releases hot air in the vehicle to lower
cabin temperature before getting in the
vehicle.
Depending on the outside ambient
temperature, the blower is operated for 5
to 15 minutes while the vehicle is parked.
Turning Schedule Ventilation
Control On or Off
The Schedule Ventilation Control can
be turned on and off by selecting ‘Setup

05
5-153
WARNING
Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items
may catch fire and/or explode if the
vehicle is exposed to hot temperatures
for extended periods.
WARNING
ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop
or turn quickly, or if there is a crash, the
items may fly out of the compartment
and may cause an injury if they strike
the driver or a passenger.
NOTICE
To avoid possible theft, do not leave
valuables in the storage compartments.
Center Console Storage
B0221KO01
To open:
Press the button.
Glove Box
B0222KO02
To open:
Pull the lever M.
WARNING
ALWAYS close the glove box door after
use.
An open glove box door can cause
serious injury to the passenger in an
accident, even if the passenger is
wearing a seat belt.
STORAGE COMPARTMENT

Convenience Features5-154
,17(5,25)($785(6

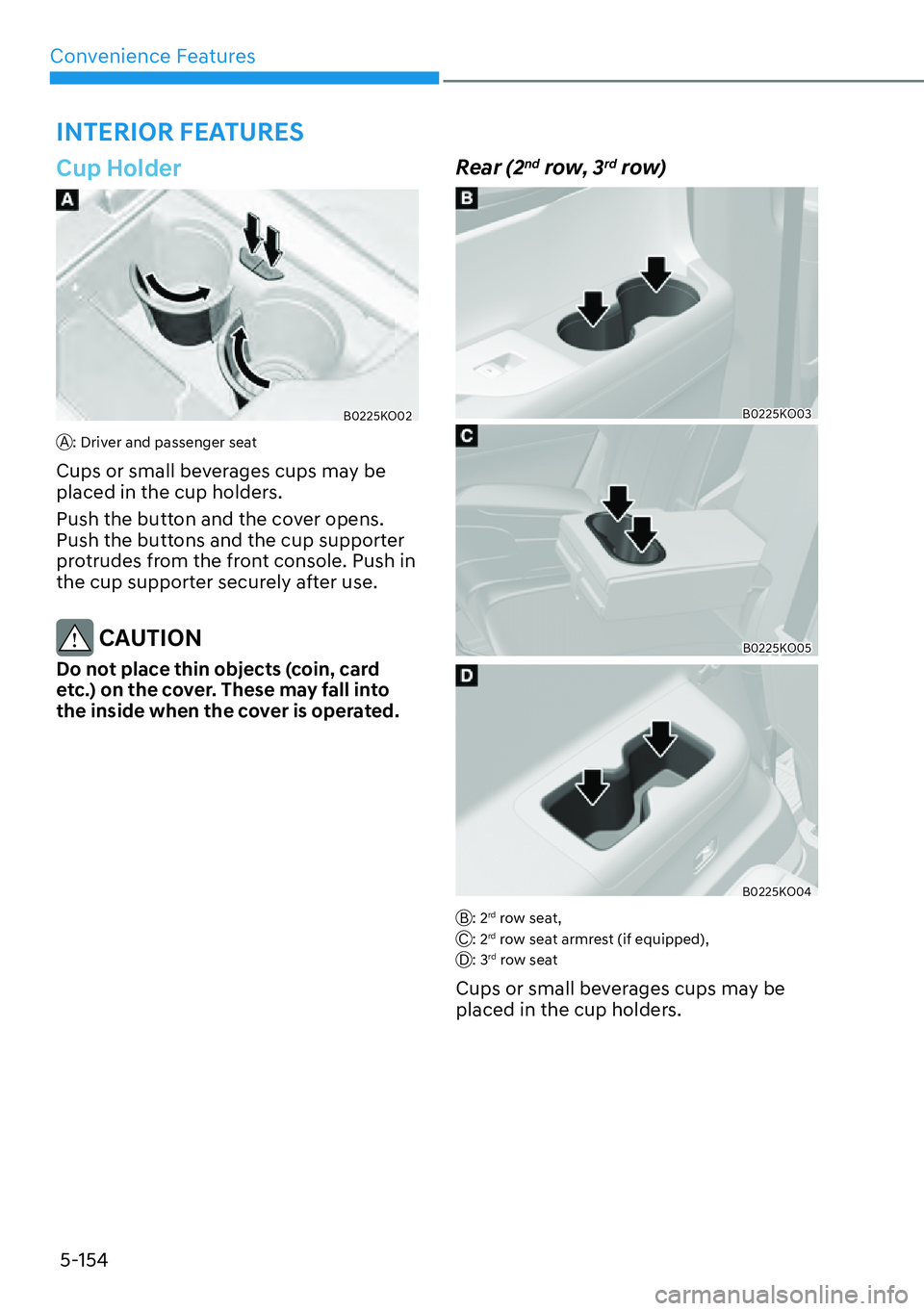

Cup Holder
B0225KO02
A: Driver and passenger seat
Cups or small beverages cups may be
placed in the cup holders.
Push the button and the cover opens.
Push the buttons and the cup supporter
protrudes from the front console. Push in
the cup supporter securely after use.
CAUTION
Do not place thin objects (coin, card
etc.) on the cover. These may fall into
the inside when the cover is operated.
Rear (2nd row, 3rd row)
B0225KO03
B0225KO05
B0225KO04
B: 2rd row seat,
C: 2rd row seat armrest (if equipped),
D: 3rd row seat
Cups or small beverages cups may be
placed in the cup holders.

05
5-155

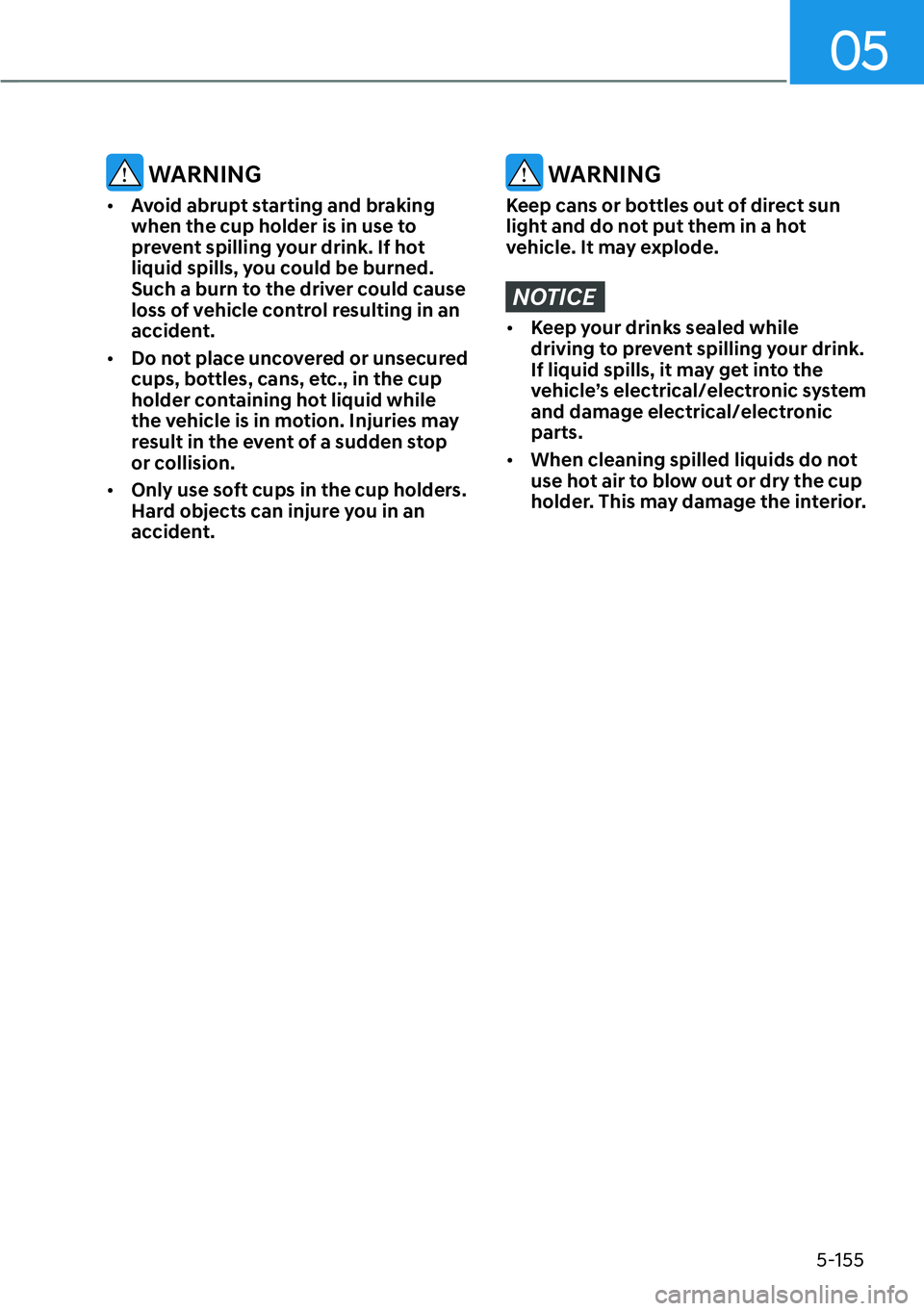

WARNING

[Avoid abrupt starting and braking
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an
accident.

[ Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop
or collision.

[ Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE

[Keep your drinks sealed while
driving to prevent spilling your drink.
If liquid spills, it may get into the
vehicle’s electrical/electronic system
and damage electrical/electronic
parts.

[ When cleaning spilled liquids do not
use hot air to blow out or dry the cup
holder. This may damage the interior.
