2023 HYUNDAI PALISADE seat memory

2-5
02
1. Instrument cluster .................................. 4-4
2. Horn ....................................................... 5-46
3. Ignition switch, Engine Start/ Stop button ..................................... 6-5, 6-8
4. Hazard warning flasher button .............. 8-2
5. Infotainment system ............................ 5-171
6. Climate control system ............. 5-114, 5-128
7. Shift button ............................................ 6-14
8. Auto Hold button .................................. 6-33
9. Integrated memory system .................. 5-41
10. DBC (Downhill Brake Control) butt on .. 6-43
11. Parking Safety button ........................... 7-131
12. ISG (Idle Stop and Go) button .............. 6-54
13. Parking/View button ............................ 7-112 14. Ventilate seat button ............................ 3-34
15. Warmer seat button ............................. 3-32
16. Steering wheel heater button .............. 5-46
17. Ventilation seat button (2
nd seat) ......... 3-34
18. Warmer seat button (2
nd seat) ............. 3-32
19. Rear climate control system .... 5-120, 5-137
20. Power outlet ......................................... 5-157
21. AC inverter .......................................... 5-159
22. Passenger air bag ................................. 3-62
23. Glove box ............................................. 5-153
24. Light switch ........................................... 5-98
25. Washer/Wiper switch .......................... 5-110
26. Wireless charging system ....................5-161
The actual shape may differ from the illustration.
A0004KO01
,167580(173$1(/29(59,(:

5

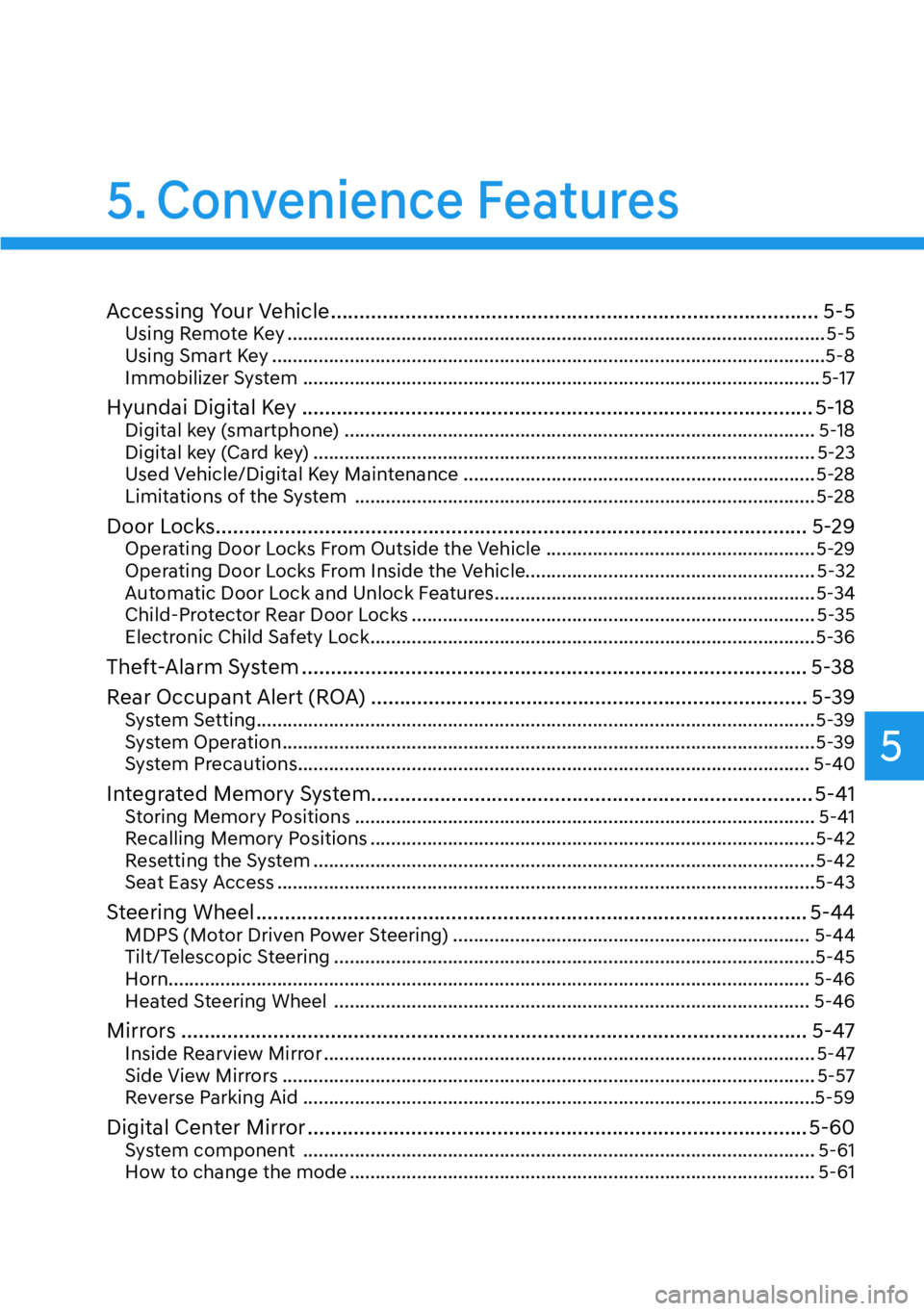

Accessing Your Vehicle ........................................................................\
............. 5-5Using Remote Key ........................................................................\
................................ 5-5
Using Smart Key ........................................................................\
...................................5-8
Immobilizer System ........................................................................\
............................ 5-17
Hyundai Digital Key ......................................................................\
................... 5-18Digital key (smartphone) ........................................................................\
................... 5-18
Digital key (Card key) ........................................................................\
......................... 5-23
Used Vehicle/Digital Key Maintenance .................................................................\
... 5-28
Limitations of the System ........................................................................\
................. 5-28
Door Locks ........................................................................\
............................... 5-29Operating Door Locks From Outside the Vehicle .................................................... 5-29
Operating Door Locks From Inside the Vehicle........................................................ 5-32
Automatic Door Lock and Unlock Features .............................................................. 5-34
Child-Protector Rear Door Locks ........................................................................\
...... 5-35
Electronic Child Safety Lock ........................................................................\
..............5-36
Theft-Alarm System ........................................................................\
................ 5-38
Rear Occupant Alert (ROA) ........................................................................\
.... 5-39
System Setting........................................................................\
....................................5-39
System Operation ........................................................................\
...............................5-39
System Precautions ........................................................................\
........................... 5-40
Integrated Memory System......................................................................\
....... 5-41
Storing Memory Positions ........................................................................\
................. 5-41
Recalling Memory Positions ........................................................................\
..............5-42
Resetting the System ........................................................................\
.........................5-42
Seat Easy Access ........................................................................\
................................5-43
Steering Wheel ........................................................................\
........................ 5-44MDPS (Motor Driven Power Steering) ..................................................................... 5-44
Tilt/Telescopic Steering ........................................................................\
.....................5-45
Horn........................................................................\
.................................................... 5-46
Heated Steering Wheel ........................................................................\
.................... 5-46
Mirrors ......................................................................\
....................................... 5-47Inside Rearview Mirror ........................................................................\
....................... 5-47
Side View Mirrors ........................................................................\
............................... 5-57
Reverse Parking Aid .............................................................\
......................................5-59
Digital Center Mirror ........................................................................\
............... 5-60System component ........................................................................\
........................... 5-61
How to change the mode ........................................................................\
.................. 5-61
5. Convenience Features

05
5-41
B0122KO01
The IMS, or Integrated Memory System,
for the driver’s seat is provided to store
and recall the following memory settings
with a simple button operation.

[Driver’s seat position

[ Side view mirror position

[ Head-Up Display (HUD) position (if
equipped)
WARNING
Never attempt to operate the
integrated memory system while the
vehicle is moving.
This could result in loss of control, and
an accident causing death, serious
injury, or property damage.
Information

[If the battery is disconnected, the
memory settings will be erased.

[ If the Integrated Memory System does
not operate normally, have the system
inspected by an authorized HYUNDAI
dealer.
Storing Memory Positions
1. Shift to P (Park) while the Ignition
switch is in the ON position.
2. Adjust the driver’s seat position, side view mirror position and head-up
display height to the desired position.
3. Press the SET button. The system will beep once and notify you ‘Press
button to save settings’ on the cluster
LCD display.
4. Press one of the memory buttons (1 or 2) within 4 seconds. The system
will beep twice when the memory has
been successfully stored.
5. ‘Driver 1 (or 2) settings saved’ will appear on the cluster LCD display. The
message appears only for the driver’s
seat position memory setting.
,17(*5$7('0(025<6<67(0

Convenience Features5-42

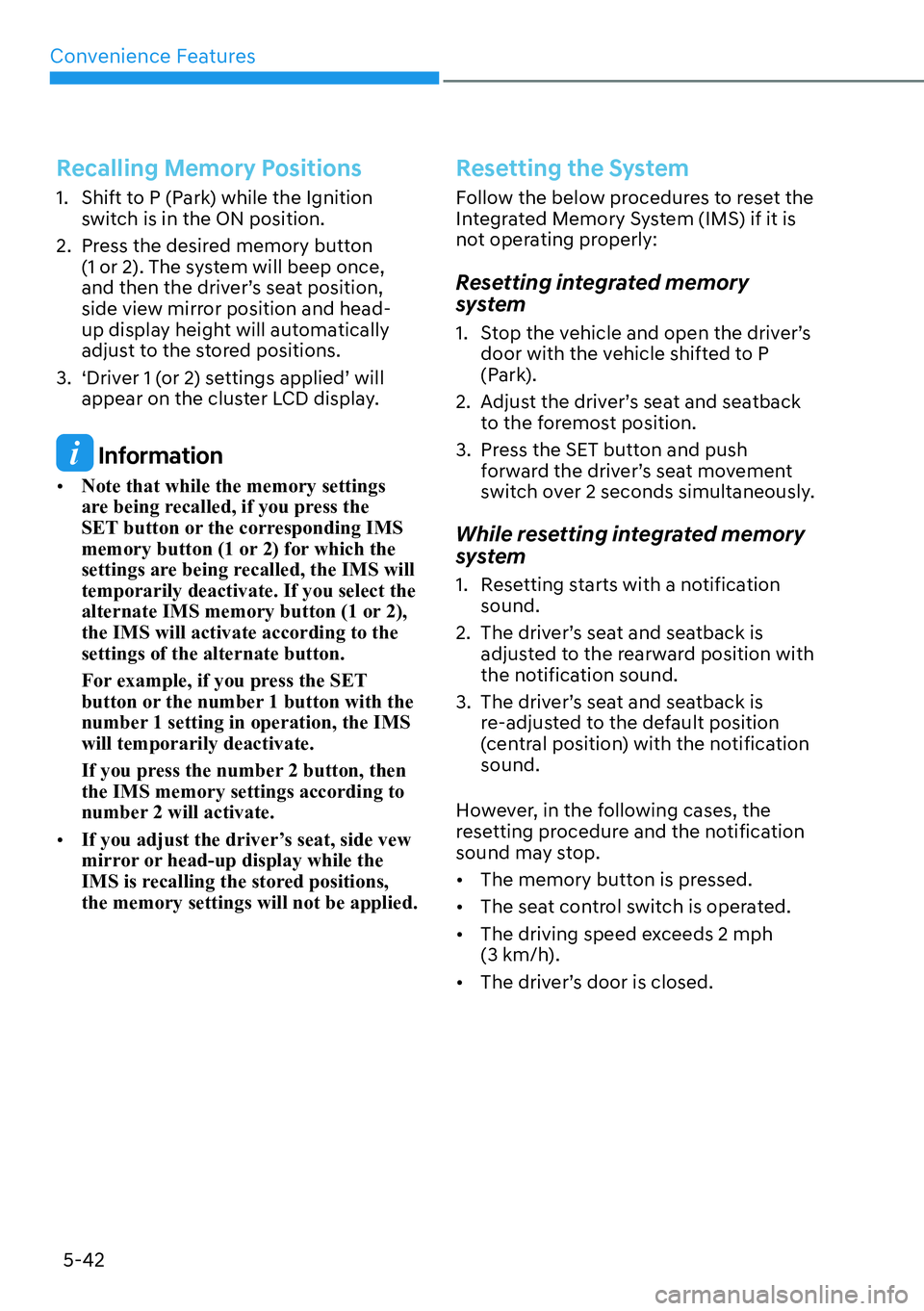

Recalling Memory Positions
1. Shift to P (Park) while the Ignition switch is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once,
and then the driver’s seat position,
side view mirror position and head-
up display height will automatically
adjust to the stored positions.
3. ‘Driver 1 (or 2) settings applied’ will appear on the cluster LCD display.
Information

[Note that while the memory settings
are being recalled, if you press the
SET button or the corresponding IMS
memory button (1 or 2) for which the
settings are being recalled, the IMS will
temporarily deactivate. If you select the
alternate IMS memory button (1 or 2),
the IMS will activate according to the
settings of the alternate button.
For example, if you press the SET
button or the number 1 button with the
number 1 setting in operation, the IMS
will temporarily deactivate.
If you press the number 2 button, then
the IMS memory settings according to
number 2 will activate.

[ If you adjust the driver’s seat, side vew
mirror or head-up display while the
IMS is recalling the stored positions,
the memory settings will not be applied.
Resetting the System
Follow the below procedures to reset the
Integrated Memory System (IMS) if it is
not operating properly:
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the SET button and push forward the driver’s seat movement
switch over 2 seconds simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification sound.
2. The driver’s seat and seatback is adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.

[ The memory button is pressed.

[ The seat control switch is operated.

[ The driving speed exceeds 2 mph
(3 km/h).

[ The driver’s door is closed.

05
5-43
NOTICE

[While integrated memory system
is being reset, if the resetting
and notification sound stops
incompletely, restart the resetting
procedure again.

[ Make sure that there are no objects
around the driver’s seat in advance
of resetting the integrated memory
system.

[ After resetting the integrated
memory system, the adjustment for
the driver seat must be stored again
to recall the memory position.
Seat Easy Access (if equipped)
Seat easy access will move the driver’s
seat and steering wheel automatically as
follows:

[Exiting the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the ignition switch is in the LOCK/OFF
position with the gear in P (Park) and
the driver’s door open.

- Driver seat: Moves rearward
depending on the distance selected
from the Settings menu in the
infotainment system.

- Steering wheel: Moves upward
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and
the rear seats.
Also, on a regular basis, the steering
wheel will also move forward to adjust
its location by itself.
[
Entering the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the ignition switch is placed to the
ACC, ON or START position or while
carrying the smart key, the driver’s
door is closed with the ignition switch
is placed in the LOCK/OFF position.

- Driver seat: Moves back to its
original position.

- Steering wheel: Moves back to its
original position.

[ You can set the Seat Easy Access
function from the Settings menu
in the infotainment system screen.
Select:

- Driver seat
6HWXS
