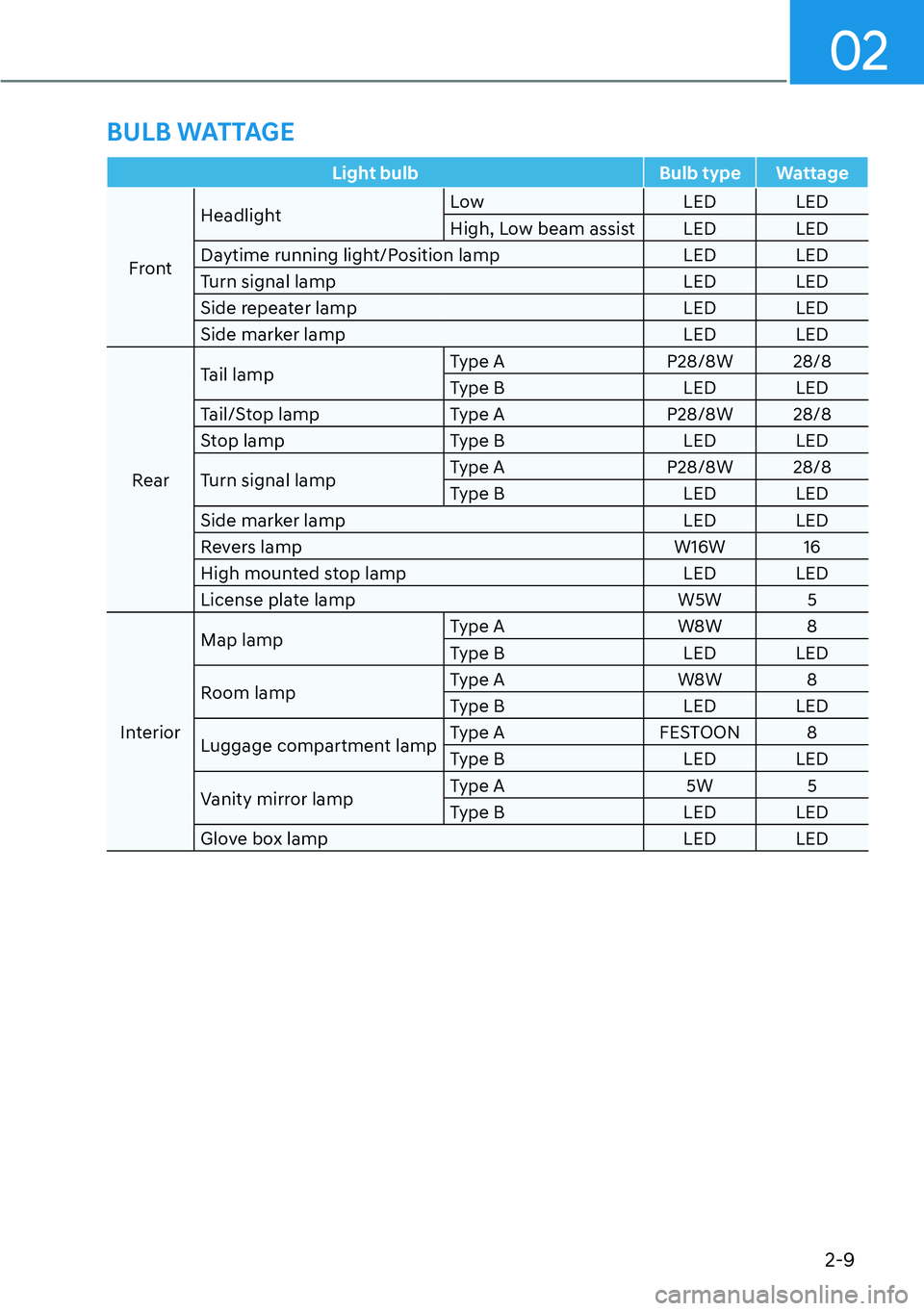

Light bulbBulb type Wattage
Front H
eadlight
Low
LED LED
High, Low beam assist LED LED
Daytime running light/Position lamp LED LED
Turn signal lamp LED LED
Side repeater lamp LED LED
Side marker lamp LED LED
Rear Tail lamp
Type A
P28/8W 28/8
Type B LED LED
Tail/Stop lamp Type AP28/8W 28/8
Stop lamp Type BLED LED
Turn signal lamp Type A
P28/8W 28/8
Type B LED LED
Side marker lamp LED LED
Revers lamp W16W 16
High mounted stop lamp LED LED
License plate lamp W5W 5
Interior Map lamp
Type A
W8W 8
Type B LED LED
Room lamp Type A
W8W 8
Type B LED LED
Luggage compartment lamp Type A
FESTOON 8
Type B LED LED
Vanity mirror lamp Type A
5W5
Type B LED LED
Glove box lamp LED LED
BULB WATTAGE
04
4-27
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
After adding engine oil, if you travel
approximately 31~62 miles (50~100 km)
after the engine warms up, the warning
message should disappear.
If the warning message remains on, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
Engine overheated
This message is displayed when the
engine coolant temperature is above
approximately 248°F (120°C). This means
that the engine is overheated and may
be damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized HYUNDAI dealer.
Check headlight
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight LED (if equipped)
This message is displayed if there is a
problem with the LED headlight. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
Convenience Features5-100

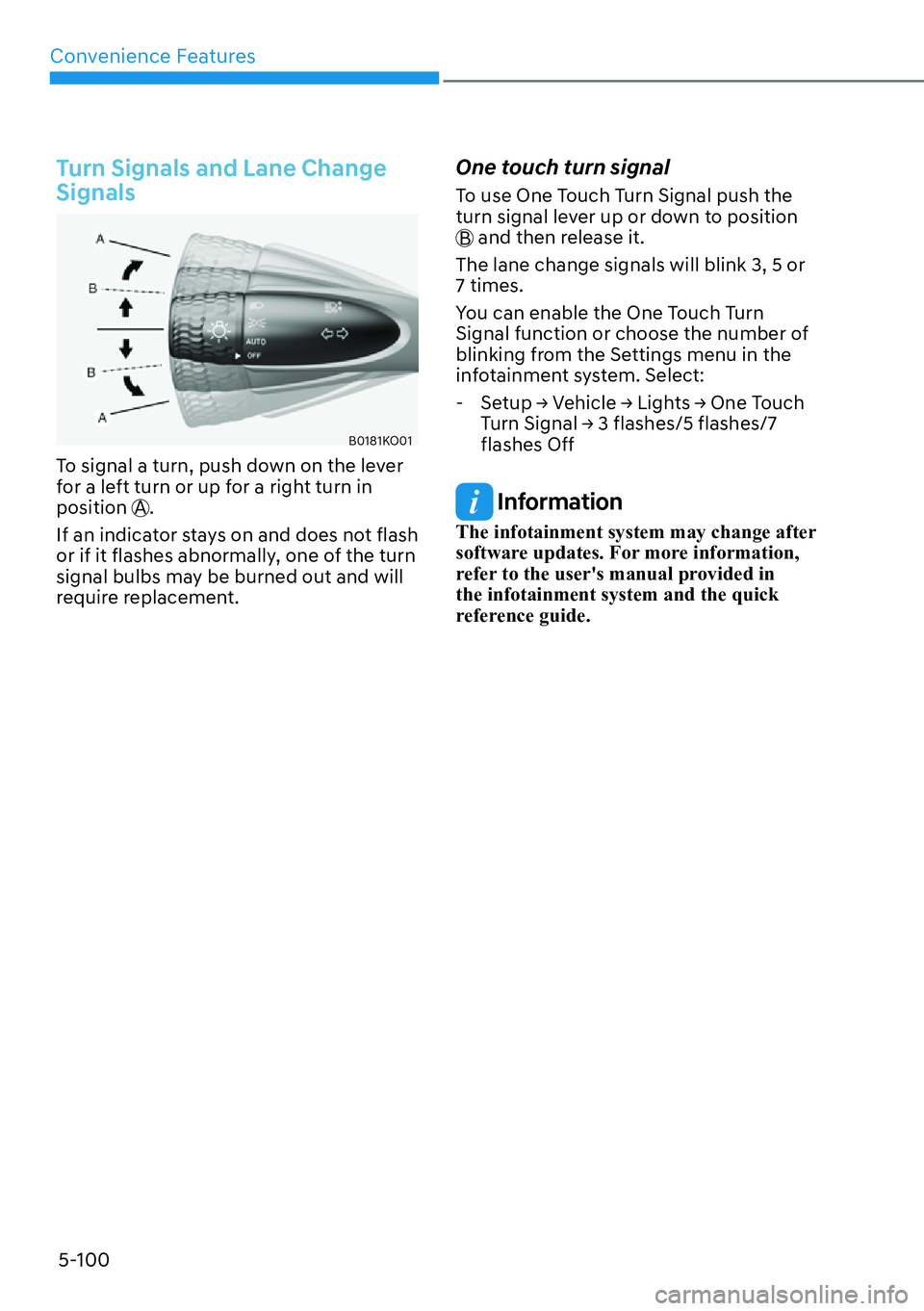

Turn Signals and Lane Change
Signals
B0181KO01
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position A
.
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal lever up or down to position B
and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number of
blinking from the Settings menu in the
infotainment system. Select:
- 6 H W X S
Driving Your Vehicle6-74
Making turns
When you’re turning with a trailer, make
wider turns than normal. Do this so your
trailer won’t strike soft shoulders, curbs,
road signs, trees, or other objects. Avoid
jerky or sudden maneuvers. Signal well in
advance.
Turn signals
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you
signal a turn or lane change. Properly
connected, the trailer lights will also flash
to alert other drivers you’re about to turn,
change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer
are burned out. Thus, you may think
drivers behind you are seeing your
signals when, in fact, they are not. It’s
important to check frequently to be sure
the trailer bulbs are still working. You
must also check the lights every time
you disconnect and then reconnect the
wires.
WARNING
Do not connect a trailer lighting system
directly to your vehicle’s lighting
system. Use an approved trailer wiring
harness. Failure to do so could result
in damage to the vehicle electrical
system and/or personal injury. Consult
an authorized HYUNDAI dealer for
assistance.
Driving on hills
Reduce speed and shift to a lower gear
before you start down a long or steep
downgrade. If you don’t shift to a lower
gear, you may have to use your brakes
excessively and they would overheat and
may not operate efficiently.
On a long uphill grade, shift to a lower
gear and reduce your speed to around
45 mph (70 km/h) to reduce the
possibility of engine and transmission
overheating.
If your trailer weighs more than the
maximum trailer weight without trailer
brakes and you have an automatic
transmission, you should drive in D
(Drive) when towing a trailer.
Operating your vehicle in D (Drive)
when towing a trailer will minimize heat
build-up and extend the life of your
transmission.
NOTICE
To prevent engine and/or transmission
overheating:
[ When towing a trailer on steep
grades (in excess of 6%) pay close
attention to the engine coolant
temperature gauge to ensure the
engine does not overheat. If the
needle of the coolant temperature
gauge moves towards “H” (HOT),
pull over and stop as soon as it is
safe to do so, and allow the engine
to idle until it cools down. You may
proceed once the engine has cooled
sufficiently.
[ When towing a trailer, your vehicle
speed may be much slower than the
general flow of traffic, especially
when climbing an uphill grade. Use
the right hand lane when towing a
trailer on an uphill grade. Choose
your vehicle speed according to the
maximum posted speed limit for
vehicles with trailers, the steepness
of the grade, and your trailer weight.
9
Tires and Wheels ........................................................................\
...................... 9-31Tire Care ........................................................................\
..............................................9-31
Recommended Cold Tire Inflation Pressures ........................................................... 9-31
Check Tire Inflation Pressure ........................................................................\
............. 9-32
Tire Rotation ........................................................................\
.......................................9-33
Wheel Alignment and Tire Balance ........................................................................\
...9-34
Tire Replacement ........................................................................\
...............................9-34
Wheel Replacement ........................................................................\
...........................9-35
Tire Traction ........................................................................\
........................................9-35
Tire Maintenance..................................................................\
......................................9-35
Tire Sidewall Labeling ........................................................................\
........................9-36
Tire Terminology and Definitions ........................................................................\
......9-39
All Season Tires ........................................................................\
.................................. 9-42
Summer Tires ........................................................................\
.................................... 9-42
Snow Tires......................................................................\
............................................ 9-43
Radial-Ply Tires ........................................................................\
.................................. 9-43
Low Aspect Ratio Tires ........................................................................\
...................... 9-44
Fuses ...................................................................\
............................................. 9-45Instrument Panel Fuse Replacement ....................................................................... 9-46
Engine Compartment Panel Fuse Replacement ......................................................9-47
Fuse/Relay Panel Description........................................................................\
........... 9-48
Light Bulbs ........................................................................\
............................... 9-56
Headlight, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement .............................................................\
................................................. 9-57
Side Repeater Lamp Replacement ........................................................................\
.. 9-58
Rear Combination Lamp Replacement ................................................................... 9-58
High Mounted Stop Lamp Replacement ................................................................. 9-60
License Plate Lamp Replacement ........................................................................\
.... 9-60
Interior Light Replacement ........................................................................\
................ 9-61
Appearance Care ........................................................................\
.................... 9-63Exterior Care ........................................................................\
...................................... 9-63
Interior Care ........................................................................\
....................................... 9-68
Emission Control System ........................................................................\
......... 9-71
California Perchlorate Notice ........................................................................\
..9-74
09
9-59
Tail/Stop lamp and turn signal lamp
(Type A)
B0474EU01
1. Turn off the engine.
2. Open the liftgate.
3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.
4. Remove the rear combination lamp assembly from the body of the
vehicle.
5. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
B0474EU02
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place. 8. Install the socket into the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
9. Reinstall the lamp assembly to the body of the vehicle.
Tail lamp, stop lamp, turn signal
lamp and garnish lamp (Type B)
If the LED lamp does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot replaced as a
single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Side maker lamp
If the LED lamp does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot replaced as a
single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Reverse lamp
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDI dealer.
