2) Disconnect terminal from oil pressure switch.
G2M0091
3) Remove oil pressure switch.
S2M0119
B: INSTALLATION
1) Apply fluid packing to oil pressure switch
threads before installation.
Fluid packing:
THREE BOND 1215 or equivalent
S2M0124A
2) Install oil pressure switch onto engine block.
Tightening torque:
25
±3 N´m (2.5±0.3 kg-m, 18.1±2.2 ft-lb)
S2M0119
3) Connect terminal of oil pressure switch.
G2M0091
4) Install generator on bracket and temporarily
tighten installing bolts.
H2M1499
5) Install front side V-belt and adjust it. 1-5 [G2A0].>
6) Install V-belt cover.
B2M0017
17
[W3B0]2-4SERVICE PROCEDURE
3. Oil Pressure Switch

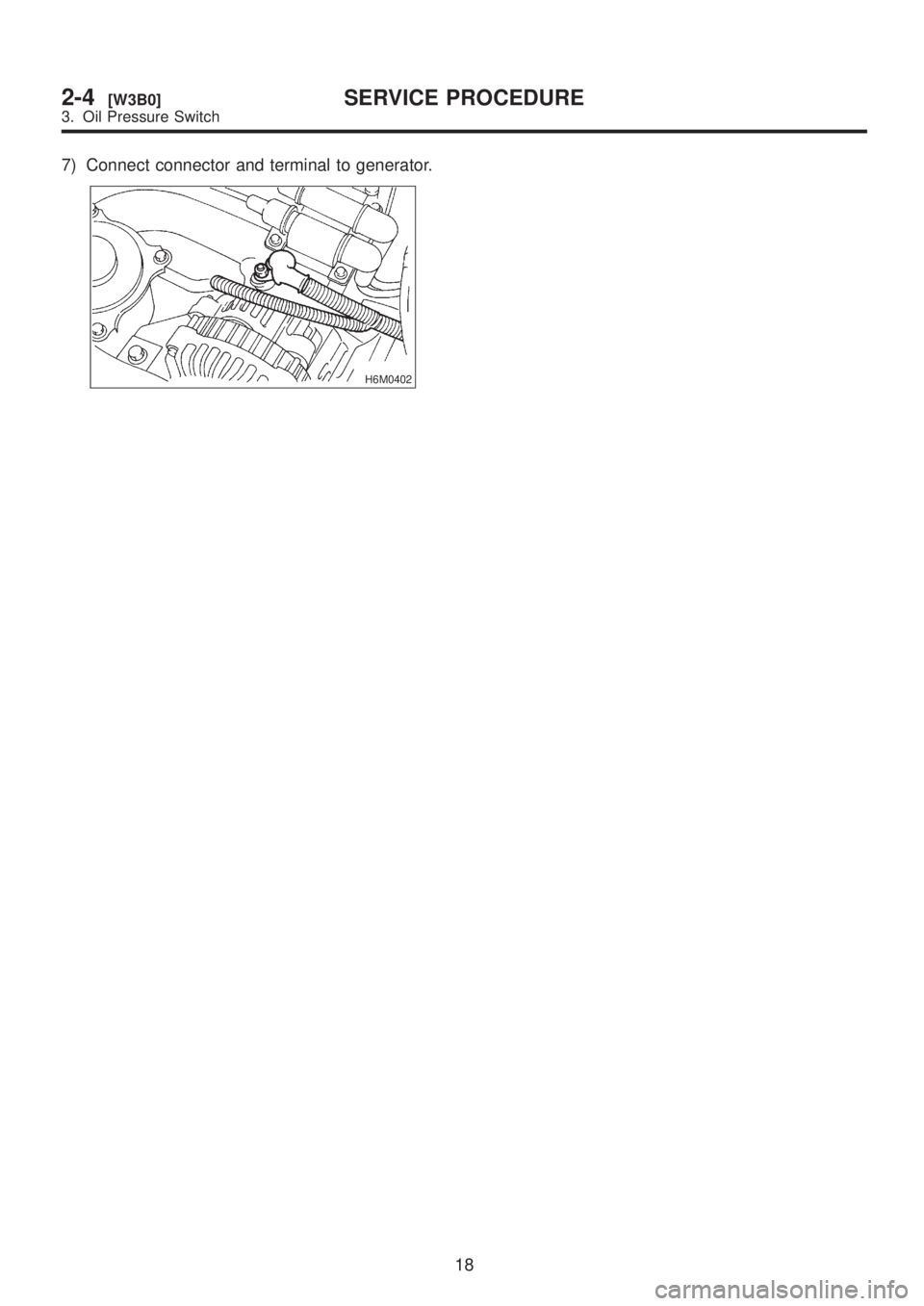

7) Connect connector and terminal to generator.
H6M0402
18
2-4[W3B0]SERVICE PROCEDURE
3. Oil Pressure Switch

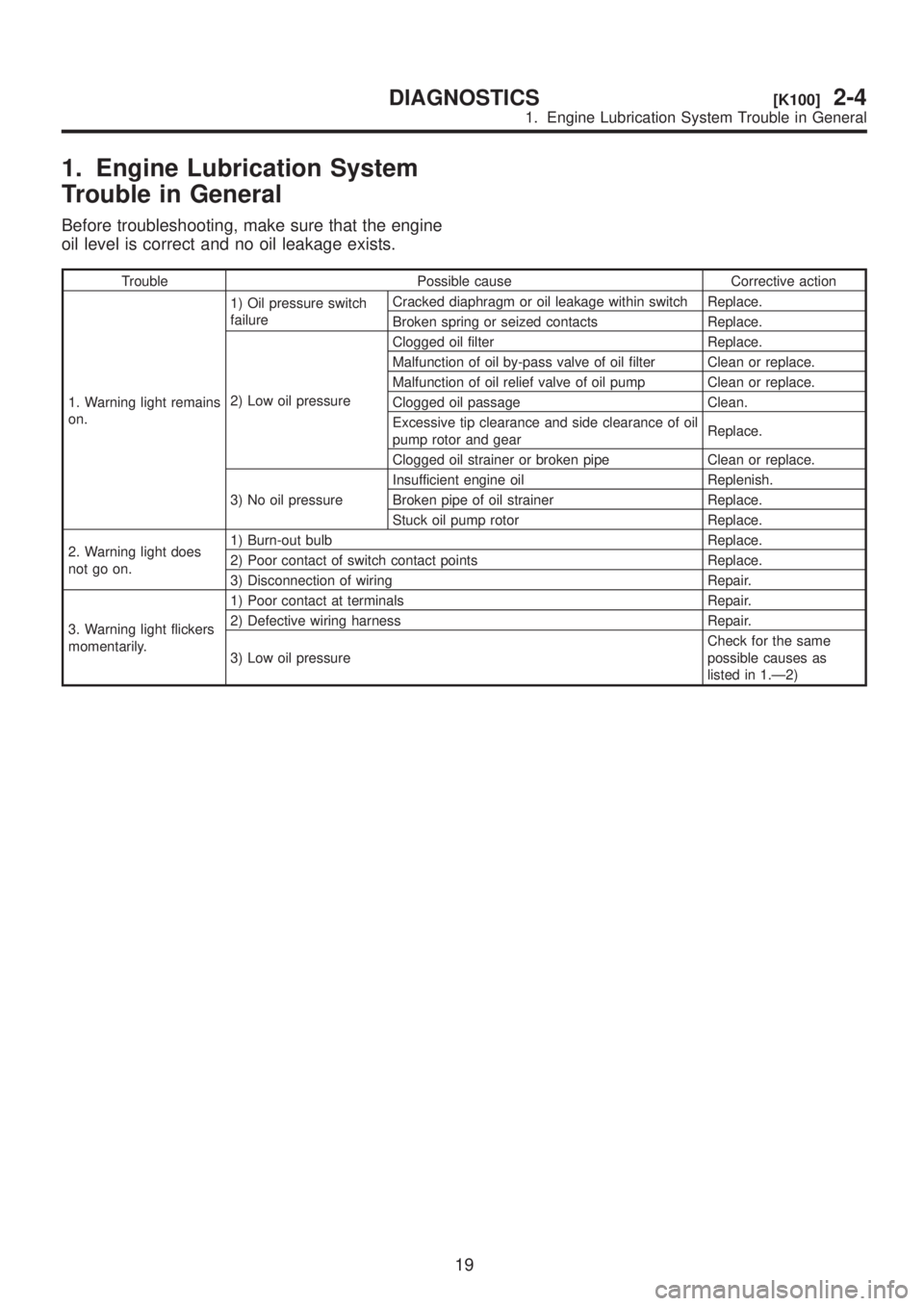

1. Engine Lubrication System
Trouble in General
Before troubleshooting, make sure that the engine
oil level is correct and no oil leakage exists.
Trouble Possible cause Corrective action
1. Warning light remains
on.1) Oil pressure switch
failureCracked diaphragm or oil leakage within switch Replace.
Broken spring or seized contacts Replace.
2) Low oil pressureClogged oil filter Replace.
Malfunction of oil by-pass valve of oil filter Clean or replace.
Malfunction of oil relief valve of oil pump Clean or replace.
Clogged oil passage Clean.
Excessive tip clearance and side clearance of oil
pump rotor and gearReplace.
Clogged oil strainer or broken pipe Clean or replace.
3) No oil pressureInsufficient engine oil Replenish.
Broken pipe of oil strainer Replace.
Stuck oil pump rotor Replace.
2. Warning light does
not go on.1) Burn-out bulb Replace.
2) Poor contact of switch contact points Replace.
3) Disconnection of wiring Repair.
3. Warning light flickers
momentarily.1) Poor contact at terminals Repair.
2) Defective wiring harness Repair.
3) Low oil pressureCheck for the same
possible causes as
listed in 1.Ð2)
19
[K100]2-4DIAGNOSTICS
1. Engine Lubrication System Trouble in General

MEMO:
20
2-4DIAGNOSTICS

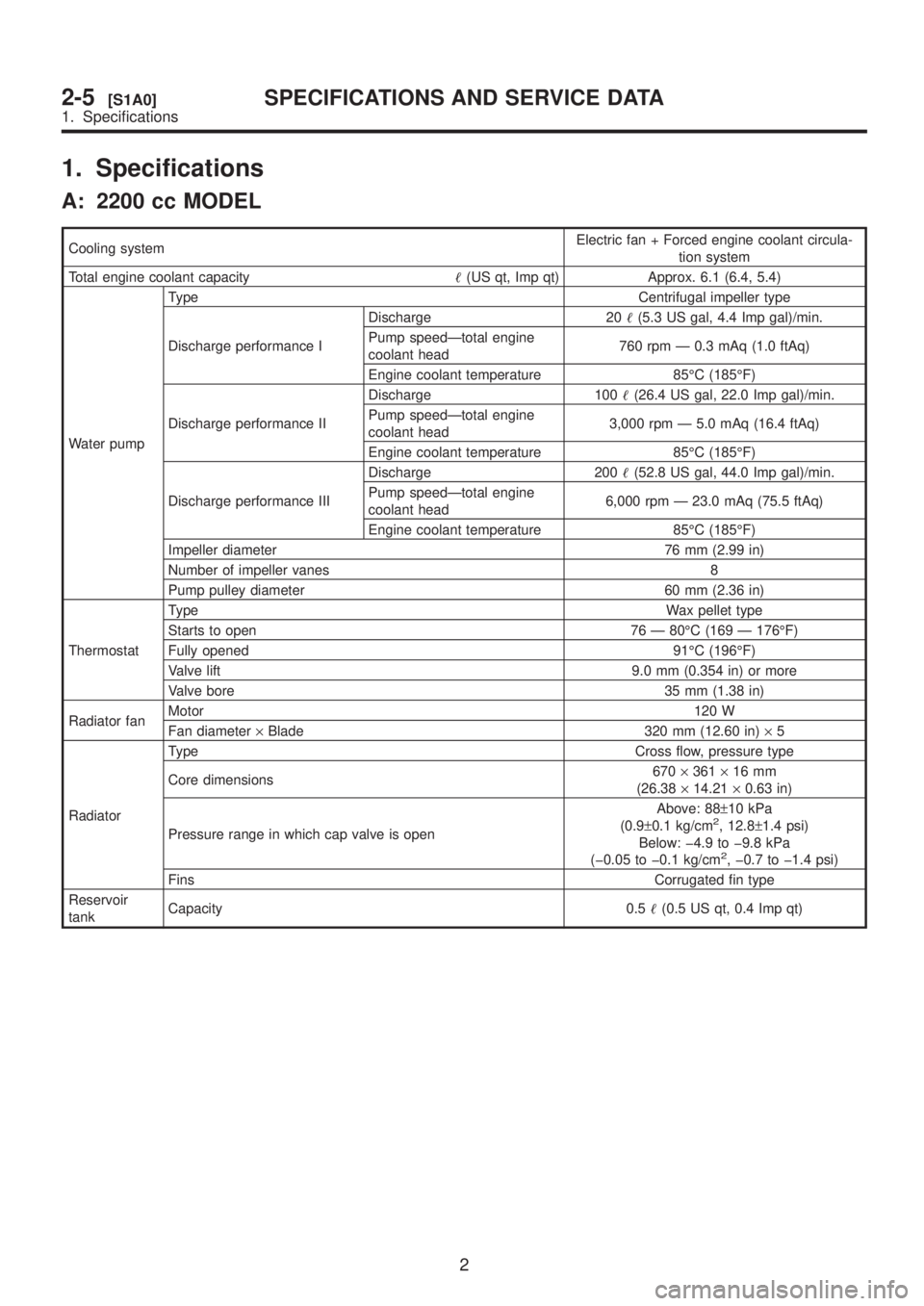

1. Specifications
A: 2200 cc MODEL
Cooling systemElectric fan + Forced engine coolant circula-
tion system
Total engine coolant capacity(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
Water pumpType Centrifugal impeller type
Discharge performance IDischarge 20(5.3 US gal, 4.4 Imp gal)/min.
Pump speedÐtotal engine
coolant head760 rpm Ð 0.3 mAq (1.0 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Discharge performance IIDischarge 100(26.4 US gal, 22.0 Imp gal)/min.
Pump speedÐtotal engine
coolant head3,000 rpm Ð 5.0 mAq (16.4 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Discharge performance IIIDischarge 200(52.8 US gal, 44.0 Imp gal)/min.
Pump speedÐtotal engine
coolant head6,000 rpm Ð 23.0 mAq (75.5 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Impeller diameter 76 mm (2.99 in)
Number of impeller vanes 8
Pump pulley diameter 60 mm (2.36 in)
ThermostatTypeWax pellet type
Starts to open 76 Ð 80ÉC (169 Ð 176ÉF)
Fully opened 91ÉC (196ÉF)
Valve lift 9.0 mm (0.354 in) or more
Valve bore 35 mm (1.38 in)
Radiator fanMotor120 W
Fan diameter´Blade 320 mm (12.60 in)´5
RadiatorType Cross flow, pressure type
Core dimensions670´361´16 mm
(26.38´14.21´0.63 in)
Pressure range in which cap valve is openAbove: 88±10 kPa
(0.9±0.1 kg/cm
2, 12.8±1.4 psi)
Below: þ4.9 to þ9.8 kPa
(þ0.05 to þ0.1 kg/cm
2, þ0.7 to þ1.4 psi)
FinsCorrugated fin type
Reservoir
tankCapacity 0.5(0.5 US qt, 0.4 Imp qt)
2
2-5[S1A0]SPECIFICATIONS AND SERVICE DATA
1. Specifications

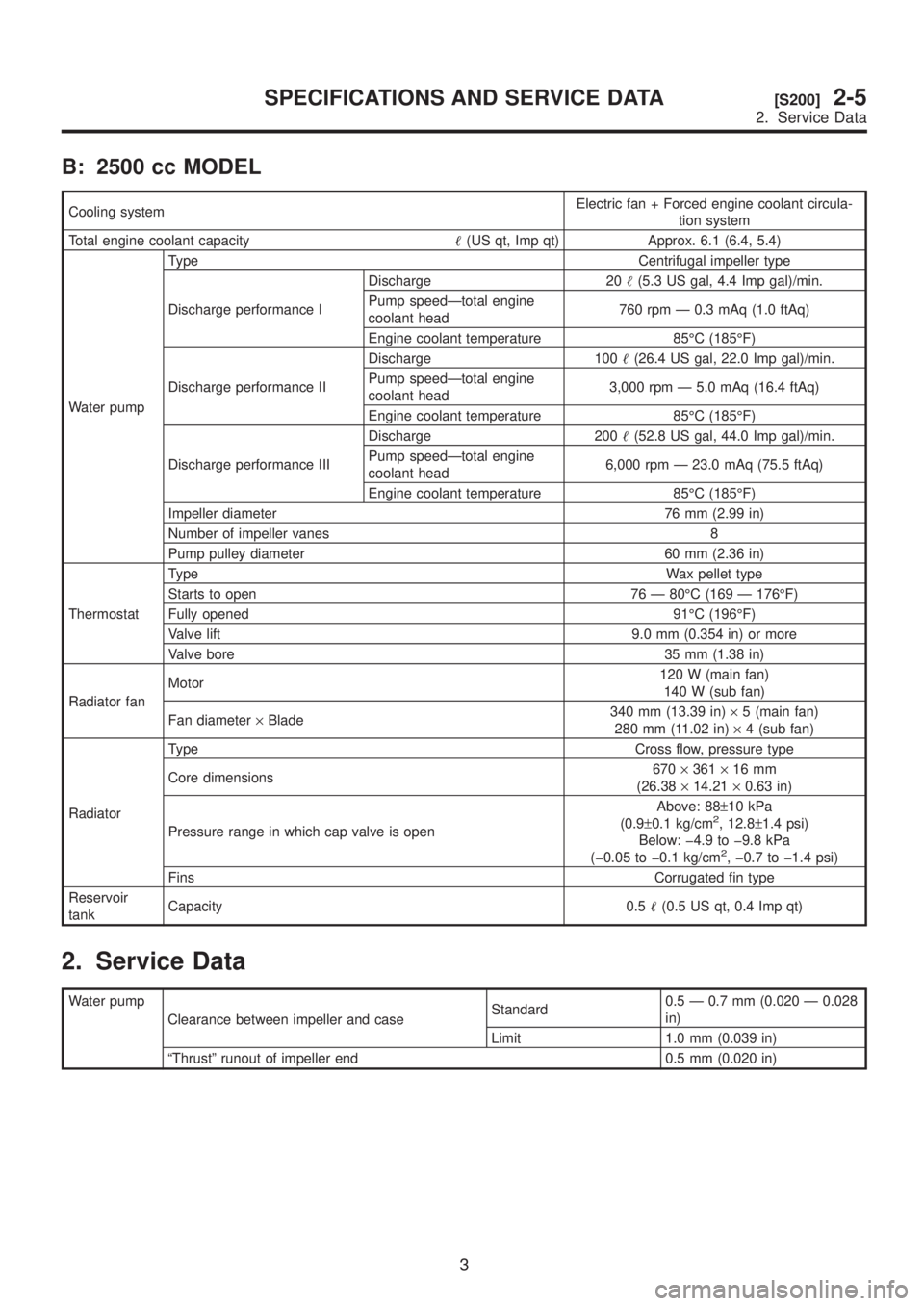

B: 2500 cc MODEL
Cooling systemElectric fan + Forced engine coolant circula-
tion system
Total engine coolant capacity(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
Water pumpType Centrifugal impeller type
Discharge performance IDischarge 20(5.3 US gal, 4.4 Imp gal)/min.
Pump speedÐtotal engine
coolant head760 rpm Ð 0.3 mAq (1.0 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Discharge performance IIDischarge 100(26.4 US gal, 22.0 Imp gal)/min.
Pump speedÐtotal engine
coolant head3,000 rpm Ð 5.0 mAq (16.4 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Discharge performance IIIDischarge 200(52.8 US gal, 44.0 Imp gal)/min.
Pump speedÐtotal engine
coolant head6,000 rpm Ð 23.0 mAq (75.5 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Impeller diameter 76 mm (2.99 in)
Number of impeller vanes 8
Pump pulley diameter 60 mm (2.36 in)
ThermostatTypeWax pellet type
Starts to open 76 Ð 80ÉC (169 Ð 176ÉF)
Fully opened 91ÉC (196ÉF)
Valve lift 9.0 mm (0.354 in) or more
Valve bore 35 mm (1.38 in)
Radiator fanMotor120 W (main fan)
140 W (sub fan)
Fan diameter´Blade340 mm (13.39 in)´5 (main fan)
280 mm (11.02 in)´4 (sub fan)
RadiatorType Cross flow, pressure type
Core dimensions670´361´16 mm
(26.38´14.21´0.63 in)
Pressure range in which cap valve is openAbove: 88±10 kPa
(0.9±0.1 kg/cm
2, 12.8±1.4 psi)
Below: þ4.9 to þ9.8 kPa
(þ0.05 to þ0.1 kg/cm
2, þ0.7 to þ1.4 psi)
FinsCorrugated fin type
Reservoir
tankCapacity 0.5(0.5 US qt, 0.4 Imp qt)
2. Service Data
Water pump
Clearance between impeller and caseStandard0.5 Ð 0.7 mm (0.020 Ð 0.028
in)
Limit 1.0 mm (0.039 in)
ªThrustº runout of impeller end 0.5 mm (0.020 in)
3
[S200]2-5SPECIFICATIONS AND SERVICE DATA
2. Service Data

B: 2500 cc MODEL
Cooling systemElectric fan + Forced engine coolant circula-
tion system
Total engine coolant capacity(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
Water pumpType Centrifugal impeller type
Discharge performance IDischarge 20(5.3 US gal, 4.4 Imp gal)/min.
Pump speedÐtotal engine
coolant head760 rpm Ð 0.3 mAq (1.0 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Discharge performance IIDischarge 100(26.4 US gal, 22.0 Imp gal)/min.
Pump speedÐtotal engine
coolant head3,000 rpm Ð 5.0 mAq (16.4 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Discharge performance IIIDischarge 200(52.8 US gal, 44.0 Imp gal)/min.
Pump speedÐtotal engine
coolant head6,000 rpm Ð 23.0 mAq (75.5 ftAq)
Engine coolant temperature 85ÉC (185ÉF)
Impeller diameter 76 mm (2.99 in)
Number of impeller vanes 8
Pump pulley diameter 60 mm (2.36 in)
ThermostatTypeWax pellet type
Starts to open 76 Ð 80ÉC (169 Ð 176ÉF)
Fully opened 91ÉC (196ÉF)
Valve lift 9.0 mm (0.354 in) or more
Valve bore 35 mm (1.38 in)
Radiator fanMotor120 W (main fan)
140 W (sub fan)
Fan diameter´Blade340 mm (13.39 in)´5 (main fan)
280 mm (11.02 in)´4 (sub fan)
RadiatorType Cross flow, pressure type
Core dimensions670´361´16 mm
(26.38´14.21´0.63 in)
Pressure range in which cap valve is openAbove: 88±10 kPa
(0.9±0.1 kg/cm
2, 12.8±1.4 psi)
Below: þ4.9 to þ9.8 kPa
(þ0.05 to þ0.1 kg/cm
2, þ0.7 to þ1.4 psi)
FinsCorrugated fin type
Reservoir
tankCapacity 0.5(0.5 US qt, 0.4 Imp qt)
2. Service Data
Water pump
Clearance between impeller and caseStandard0.5 Ð 0.7 mm (0.020 Ð 0.028
in)
Limit 1.0 mm (0.039 in)
ªThrustº runout of impeller end 0.5 mm (0.020 in)
3
[S200]2-5SPECIFICATIONS AND SERVICE DATA
2. Service Data

1. Water Pump
B2M1188A
(1) Water pump ASSY
(2) Gasket
(3) Heater hose
(4) Thermostat
(5) Gasket(6) Thermostat caseTightening torque: N´m (kg-m, ft-lb)
T1:
First 10+4/þ0
(1.0+0.4/þ0, 7.2+2.9/þ0)
Second 10+4/þ0
(1.0+0.4/þ0, 7.2+2.9/þ0)
T2:6.4±0.5 (0.65±0.05, 4.7±0.4)
4
2-5[C100]COMPONENT PARTS
1. Water Pump
