1999 SUBARU LEGACY Service Repair Manual

4. Control Valve and Harness Routing
B3M0928A
(1) Stay
(2) Transmission harness
(3) O-ring
(4) O-ring
(5) Torque converter turbine speed
sensor
(6) O-ring
(7) Vehicle speed sensor 2 (Front)
(8) O-ring
(9) Vehicle speed sensor 1 (Rear)
(10) Upper valve body
(11) Accumulator piston(12) Accumulator spring
(13) Side plate
(14) Separate plate
(15) Middle valve body
(16) Separate plate
(17) Fluid filter
(18) Fluid filter
(19) Lower valve body
(20) Shift solenoid 2
(21) Shift solenoid 1
(22) 2-4 brake timing solenoid
(23) Duty solenoid D (2-4 brake)(24) ATF temperature sensor
(25) Duty solenoid A (Line pressure)
(26) Low clutch timing solenoid
(27) Duty solenoid B (Lock-up)
(28) Oil strainer
Tightening torque: N´m (kg-m, ft-lb)
T1:
7±1 (0.7±0.1, 5.1±0.7)
T2:8±1 (0.8±0.1, 5.8±0.7)
20
3-2[C400]COMPONENT PARTS
4. Control Valve and Harness Routing

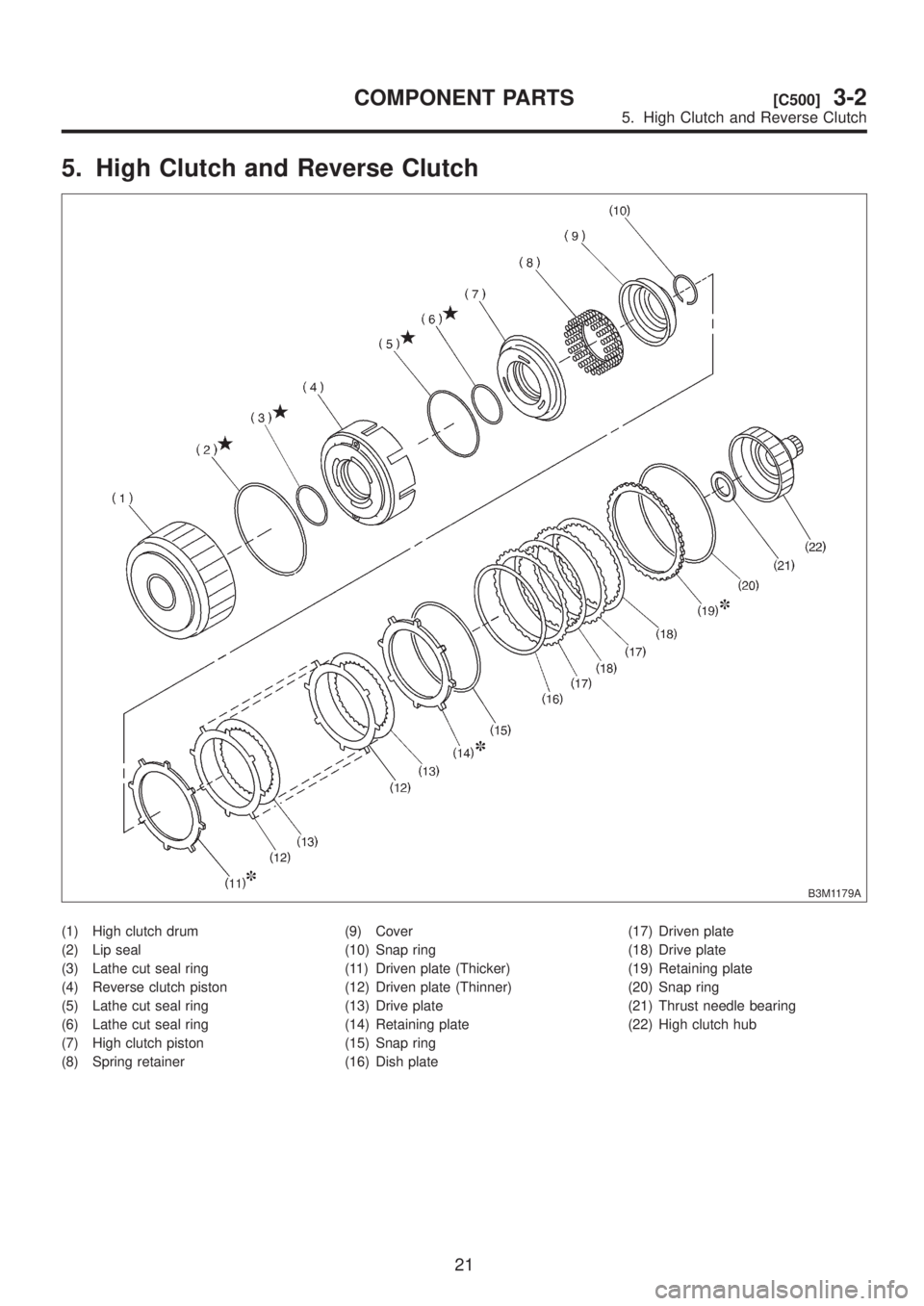

5. High Clutch and Reverse Clutch
B3M1179A
(1) High clutch drum
(2) Lip seal
(3) Lathe cut seal ring
(4) Reverse clutch piston
(5) Lathe cut seal ring
(6) Lathe cut seal ring
(7) High clutch piston
(8) Spring retainer(9) Cover
(10) Snap ring
(11) Driven plate (Thicker)
(12) Driven plate (Thinner)
(13) Drive plate
(14) Retaining plate
(15) Snap ring
(16) Dish plate(17) Driven plate
(18) Drive plate
(19) Retaining plate
(20) Snap ring
(21) Thrust needle bearing
(22) High clutch hub
21
[C500]3-2COMPONENT PARTS
5. High Clutch and Reverse Clutch

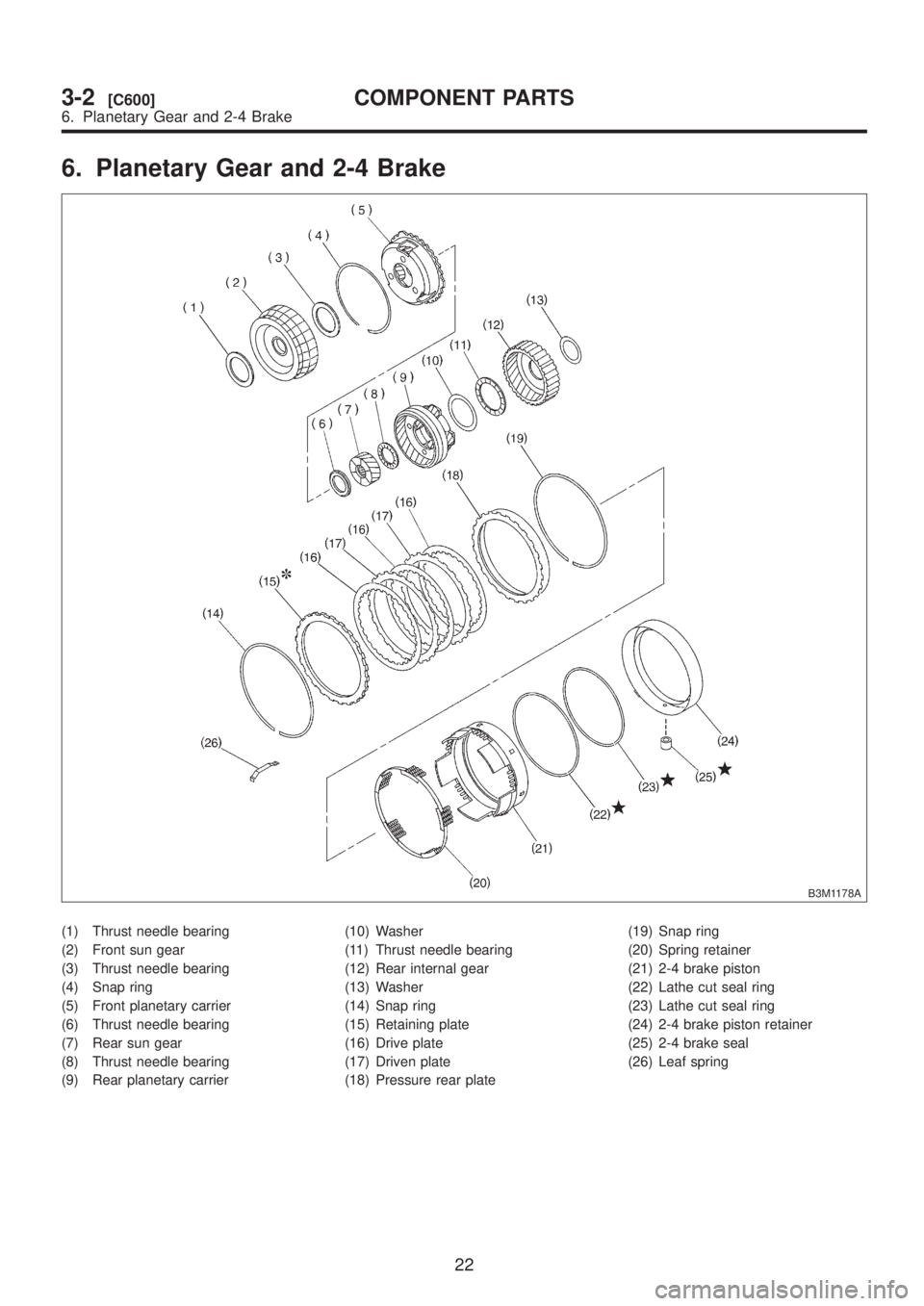

6. Planetary Gear and 2-4 Brake
B3M1178A
(1) Thrust needle bearing
(2) Front sun gear
(3) Thrust needle bearing
(4) Snap ring
(5) Front planetary carrier
(6) Thrust needle bearing
(7) Rear sun gear
(8) Thrust needle bearing
(9) Rear planetary carrier(10) Washer
(11) Thrust needle bearing
(12) Rear internal gear
(13) Washer
(14) Snap ring
(15) Retaining plate
(16) Drive plate
(17) Driven plate
(18) Pressure rear plate(19) Snap ring
(20) Spring retainer
(21) 2-4 brake piston
(22) Lathe cut seal ring
(23) Lathe cut seal ring
(24) 2-4 brake piston retainer
(25) 2-4 brake seal
(26) Leaf spring
22
3-2[C600]COMPONENT PARTS
6. Planetary Gear and 2-4 Brake

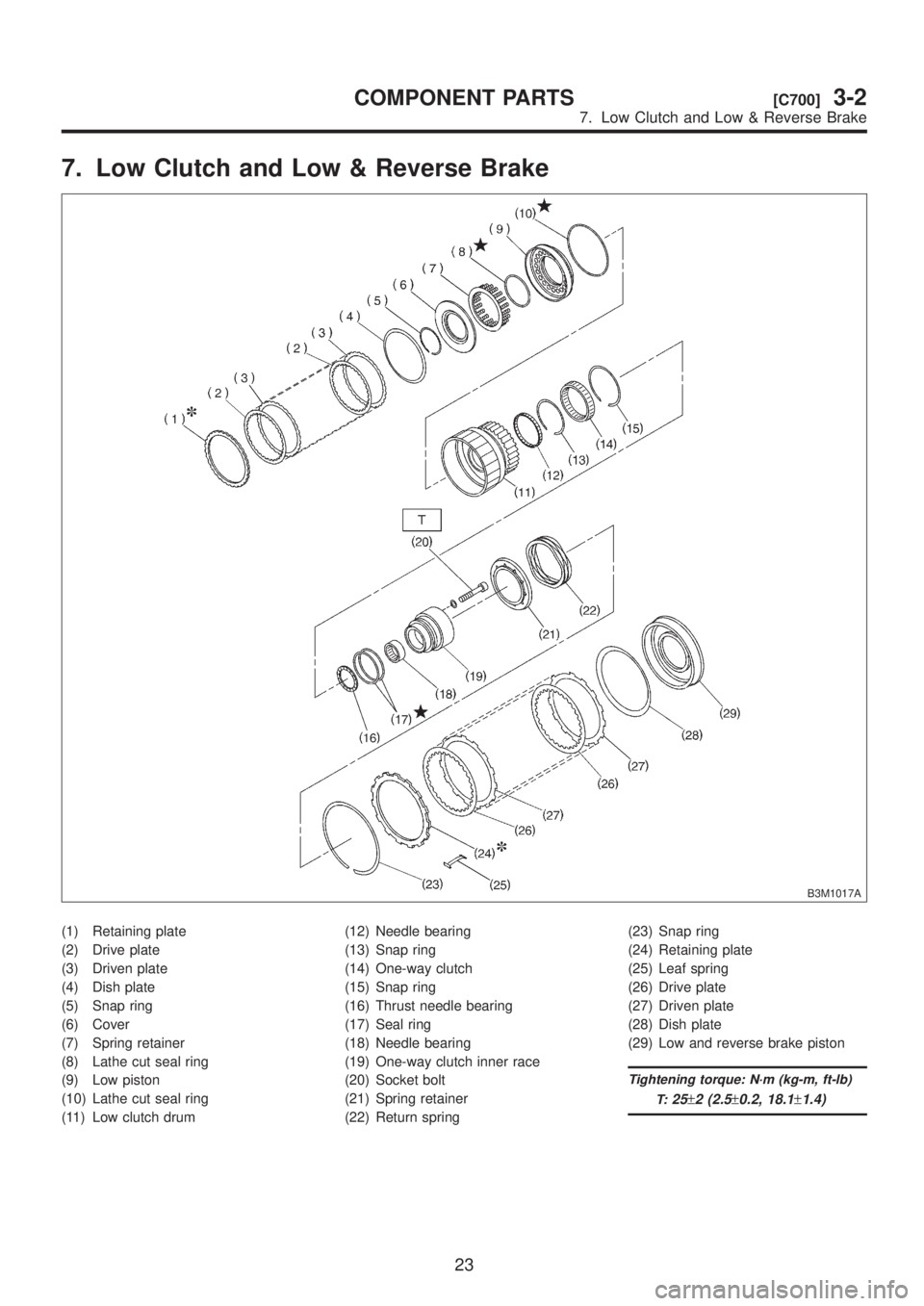

7. Low Clutch and Low & Reverse Brake
B3M1017A
(1) Retaining plate
(2) Drive plate
(3) Driven plate
(4) Dish plate
(5) Snap ring
(6) Cover
(7) Spring retainer
(8) Lathe cut seal ring
(9) Low piston
(10) Lathe cut seal ring
(11) Low clutch drum(12) Needle bearing
(13) Snap ring
(14) One-way clutch
(15) Snap ring
(16) Thrust needle bearing
(17) Seal ring
(18) Needle bearing
(19) One-way clutch inner race
(20) Socket bolt
(21) Spring retainer
(22) Return spring(23) Snap ring
(24) Retaining plate
(25) Leaf spring
(26) Drive plate
(27) Driven plate
(28) Dish plate
(29) Low and reverse brake piston
Tightening torque: N´m (kg-m, ft-lb)
T:
25±2 (2.5±0.2, 18.1±1.4)
23
[C700]3-2COMPONENT PARTS
7. Low Clutch and Low & Reverse Brake

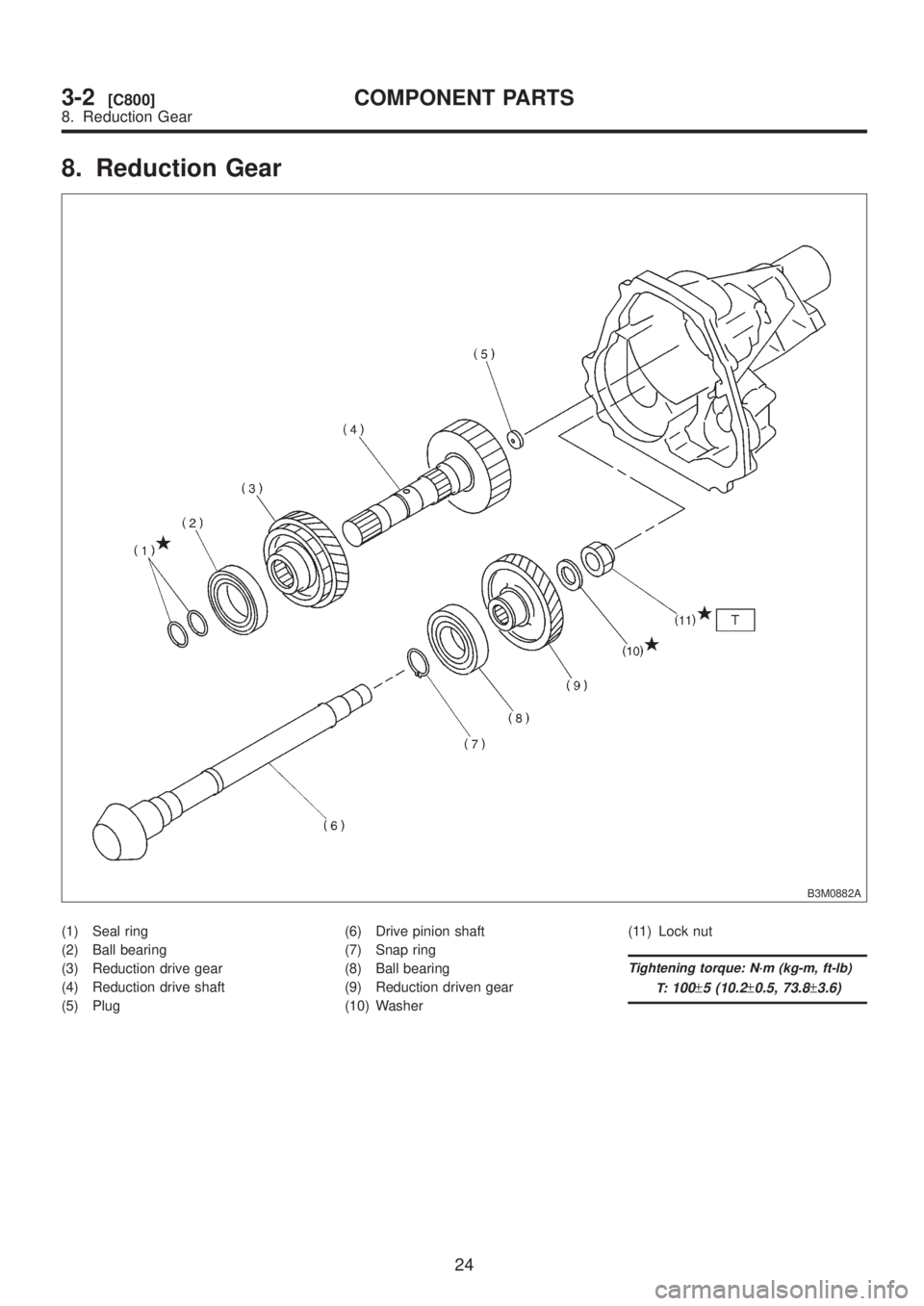

8. Reduction Gear
B3M0882A
(1) Seal ring
(2) Ball bearing
(3) Reduction drive gear
(4) Reduction drive shaft
(5) Plug(6) Drive pinion shaft
(7) Snap ring
(8) Ball bearing
(9) Reduction driven gear
(10) Washer(11) Lock nut
Tightening torque: N´m (kg-m, ft-lb)
T:
100±5 (10.2±0.5, 73.8±3.6)
24
3-2[C800]COMPONENT PARTS
8. Reduction Gear

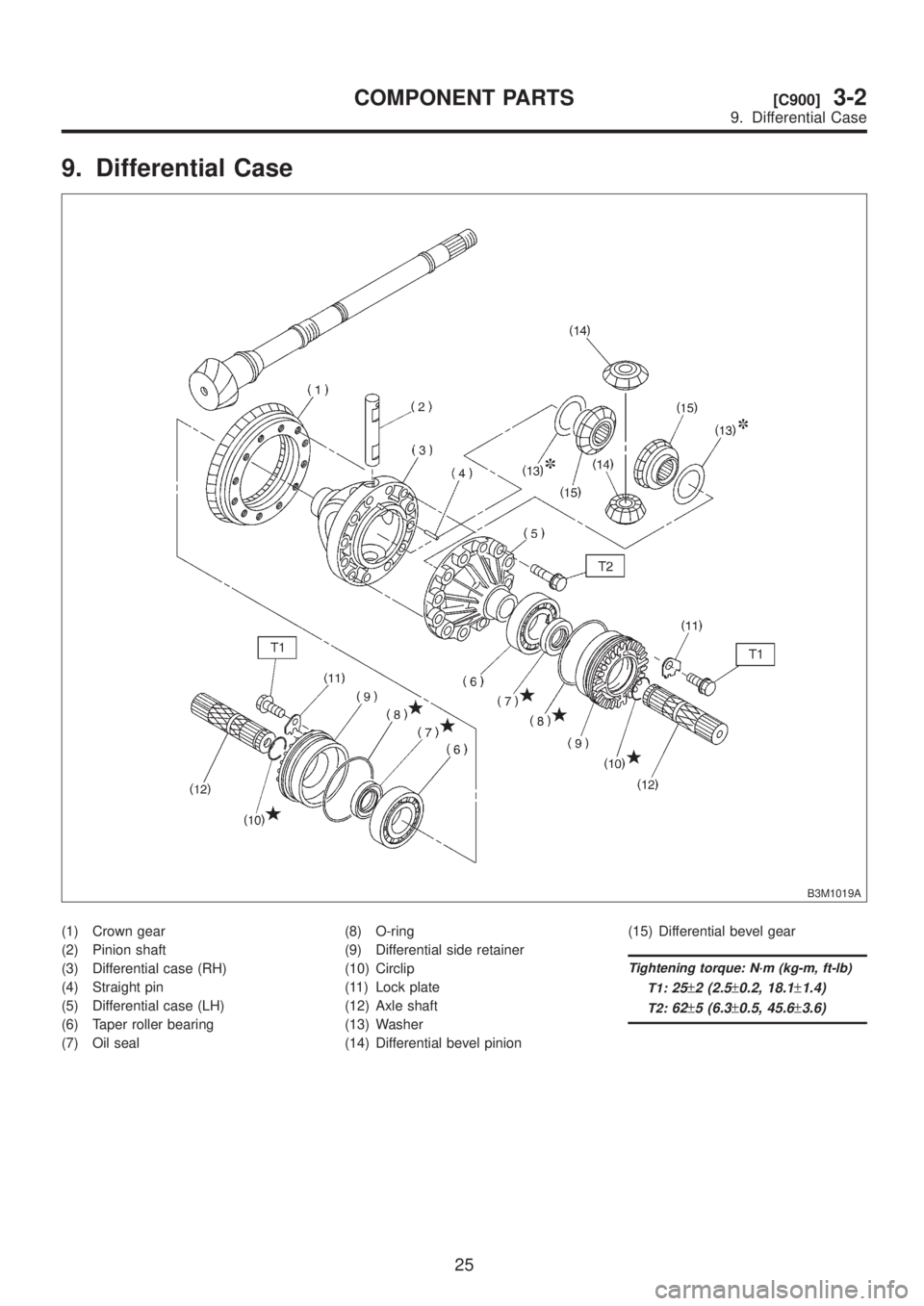

9. Differential Case
B3M1019A
(1) Crown gear
(2) Pinion shaft
(3) Differential case (RH)
(4) Straight pin
(5) Differential case (LH)
(6) Taper roller bearing
(7) Oil seal(8) O-ring
(9) Differential side retainer
(10) Circlip
(11) Lock plate
(12) Axle shaft
(13) Washer
(14) Differential bevel pinion(15) Differential bevel gear
Tightening torque: N´m (kg-m, ft-lb)
T1:
25±2 (2.5±0.2, 18.1±1.4)
T2:62±5 (6.3±0.5, 45.6±3.6)
25
[C900]3-2COMPONENT PARTS
9. Differential Case

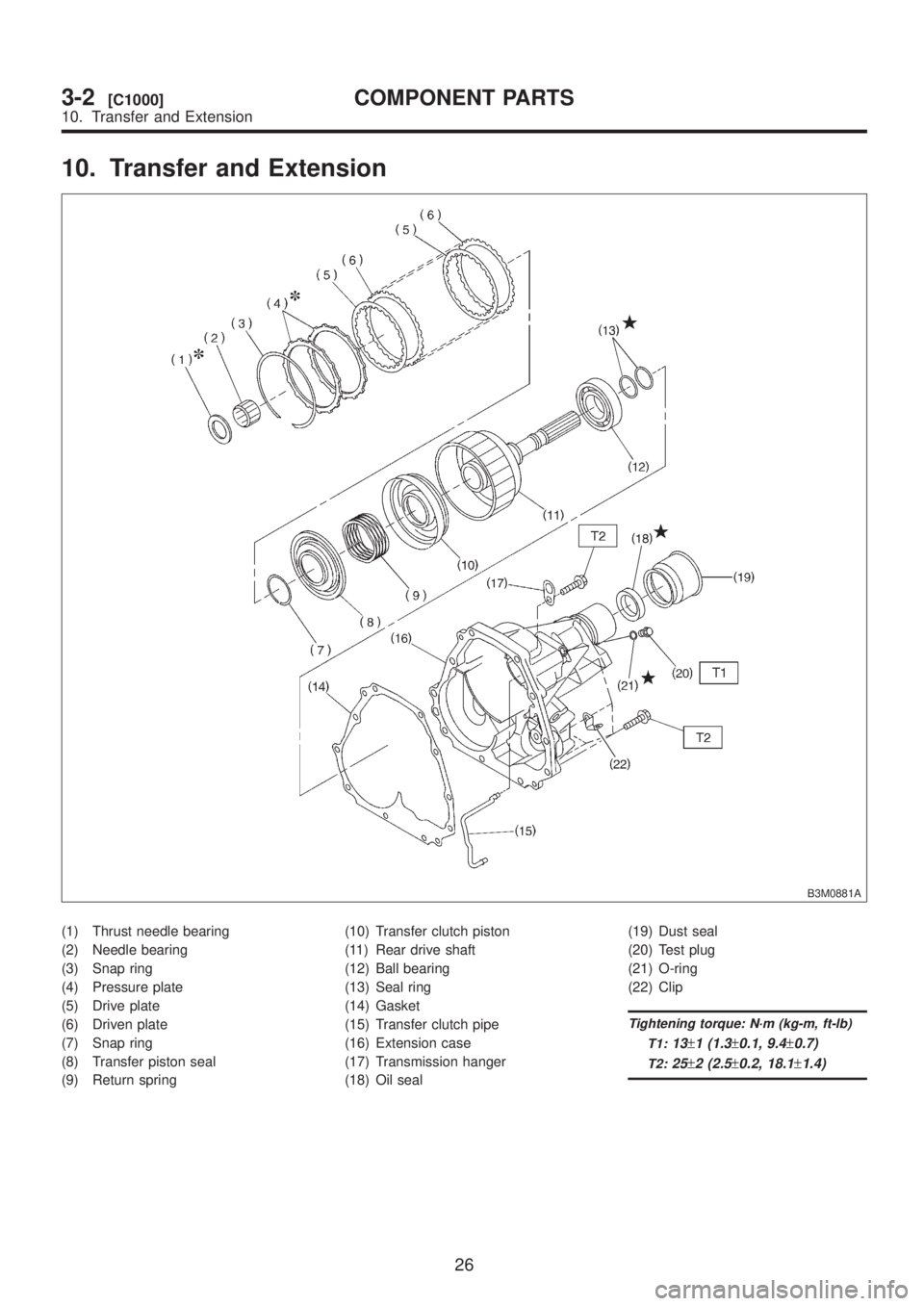

10. Transfer and Extension
B3M0881A
(1) Thrust needle bearing
(2) Needle bearing
(3) Snap ring
(4) Pressure plate
(5) Drive plate
(6) Driven plate
(7) Snap ring
(8) Transfer piston seal
(9) Return spring(10) Transfer clutch piston
(11) Rear drive shaft
(12) Ball bearing
(13) Seal ring
(14) Gasket
(15) Transfer clutch pipe
(16) Extension case
(17) Transmission hanger
(18) Oil seal(19) Dust seal
(20) Test plug
(21) O-ring
(22) Clip
Tightening torque: N´m (kg-m, ft-lb)
T1:
13±1 (1.3±0.1, 9.4±0.7)
T2:25±2 (2.5±0.2, 18.1±1.4)
26
3-2[C1000]COMPONENT PARTS
10. Transfer and Extension

1. General
A: PRECAUTION
When disassembling or assembling the automatic
transmission, observe the following instructions.
1) Workshop
Provide a place that is clean and free from dust.
Principally the conventional workshop is suitable
except for a dusty place. In a workshop where
grinding work, etc. which produces fine particles is
done, make independent place divided by the vinyl
curtain or the equivalent.
2) Work table
The size of 1 x 1.5 m (40 x 60 in) is large enough
to work, and it is more desirable that its surface be
covered with flat plate like iron plate which is not
rusted too much.
3) Cleaning of exterior
(1) Clean the exterior surface of transmission
with steam and/or kerosene prior to
disassembly, however it should be noted that
vinyl tape be placed on the air breather or oil
level gauge to prevent infiltration of the steam
into the transmission and also the cleaning job
be done away from the place of disassembly
and assembly.
(2) Partial cleaning will do, depending on the
extent of disassembly (such as when disassem-
bly is limited to some certain parts).
4) Disassembly, assembly and cleaning
(1) Disassemble and assemble the transmis-
sion while inspecting the parts in accordance
with the Diagnostics.
(2) During job, do not use gloves. Do not clean
the parts with rags: Use chamois or nylon cloth.
(3) Pay special attention to the air to be used
for cleaning. Get the moisture and the dust rid
of the air as much as possible. Be careful not to
scratch or dent any part while checking for
proper operation with an air gun.
(4) Complete the job from cleaning to comple-
tion of assembly as continuously and speedily
as possible in order to avoid occurrence of sec-
ondary troubles caused by dust. When stopping
the job unavoidably cover the parts with clean
chamois or nylon cloth to keep them away from
any dust.
(5) Use kerosene, white gasoline or the equiva-
lent as washing fluid. Use always new fluid for
cleaning the automatic transmission parts and
never reuse. The used fluid is usable in disas-
semble and assemble work of engine and
manual transmission.
(6) Although the cleaning should be done by
dipping into the washing fluid or blowing of the
pressurized washing fluid, the dipping is more
desirable. (Do not rub with a brush.) Assemblethe parts immediately after the cleaning without
exposure to the air for a while. Besides in case
of washing rubber parts, perform the job quickly
not to dip them into the washing fluid for long
time.
(7) Apply the automatic transmission fluid
(ATF) onto the parts immediately prior to
assembly, and the specified tightening torque
should be observed carefully.
(8) Use vaseline if it is necessary to hold parts
in the position when assembling.
(9) Drain ATF and differential gear oil into a
saucer so that the conditions of fluid and oil can
be inspected.
(10) Do not support axle drive shaft, stator
shaft, input shaft or various pipes when moving
transmission from one place to another.
(11) Always discard old oil seals and O-ring,
and install new ones.
(12) Always discard old oil seals and O-ring,
and install new ones.
(13) Be sure to replace parts which are
damaged, worn, scratched, discolored, etc.
B: INSPECTION
1. ATF LEVEL
1) Raise ATF temperature to 60 to 80ÉC (140 to
176ÉF) from 40 to 60ÉC (104 to 140ÉF) (when cold)
by driving a distance of 5 to 10 km (3 to 6 miles).
NOTE:
The level of ATF varies with fluid temperature. Pay
attention to the fluid temperature when checking oil
level.
B3M1020A
2) Make sure the vehicle is level. After selecting all
positions (P, R, N, D, 3, 2, 1), set the selector lev-
eler in ªPº range. Measure fluid level with the
engine idling.
NOTE:
After running, idle the engine for one or two min-
utes before measurement.
3) If the fluid level is below the center between
upper and lower marks, add the recommended
ATF until the fluid level is found within the specified
27
[W1B1]3-2SERVICE PROCEDURE
1. General
