1999 SUBARU LEGACY Service Repair Manual

33

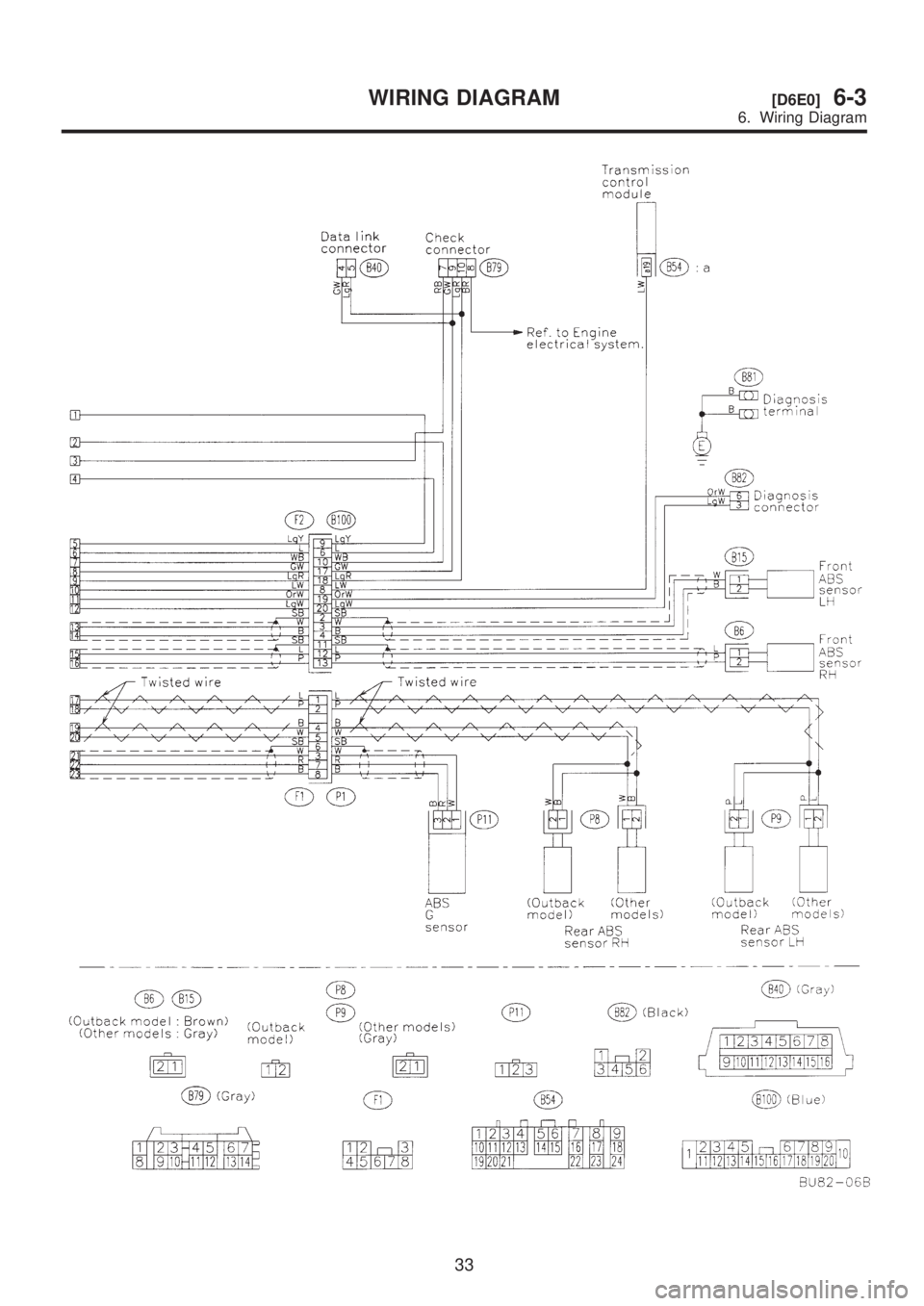

[D6E0]6-3WIRING DIAGRAM
6. Wiring Diagram

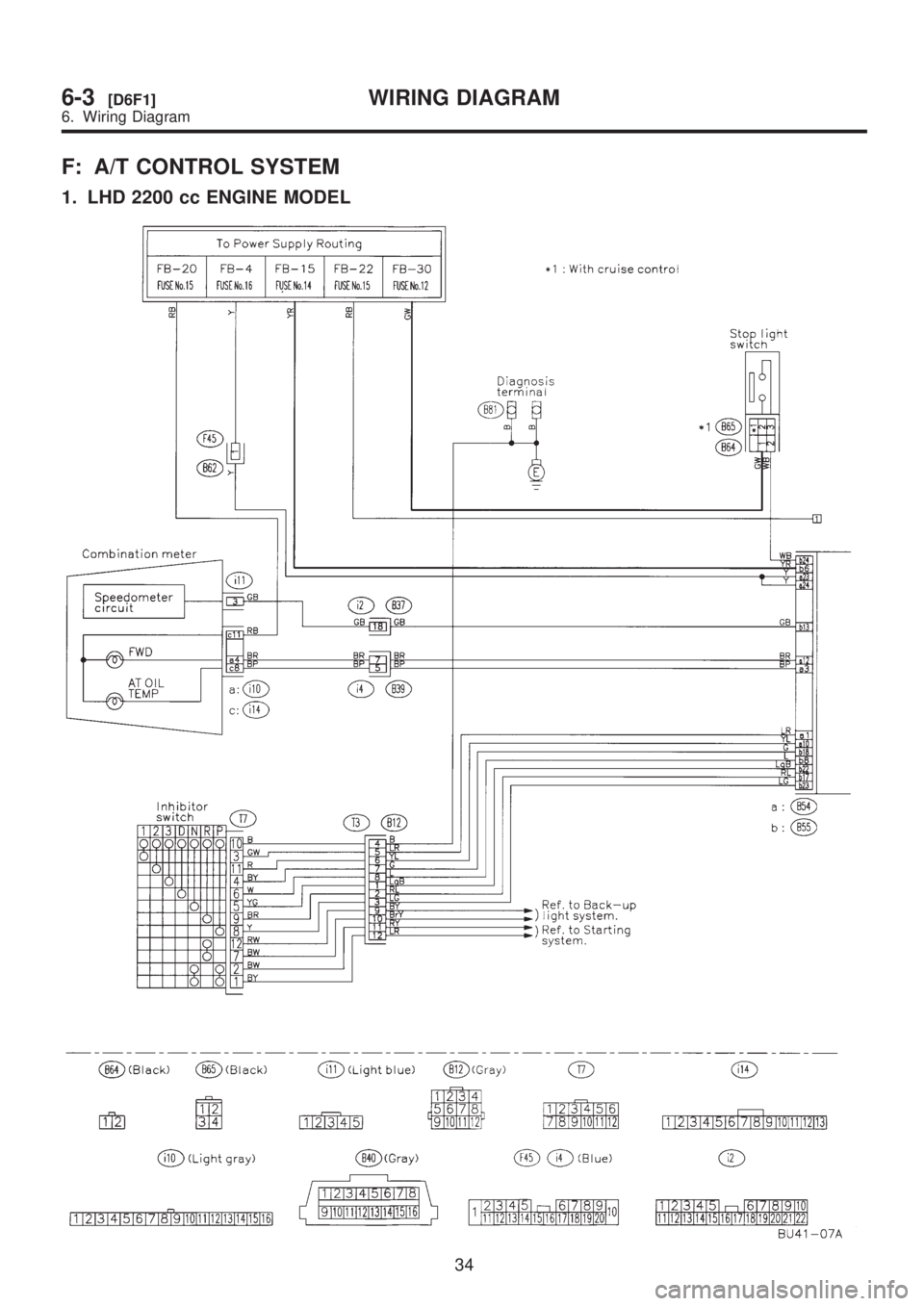

F: A/T CONTROL SYSTEM

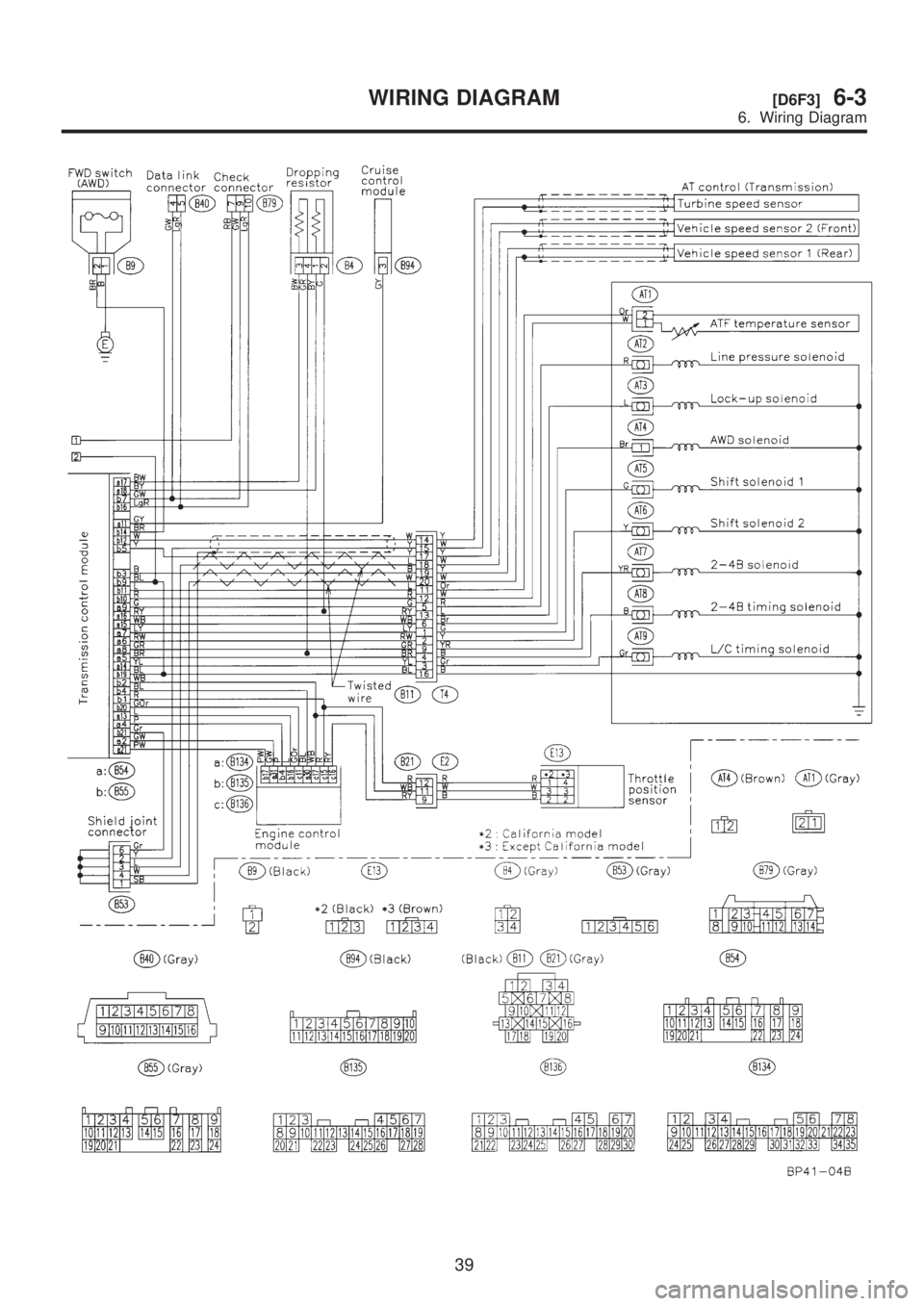

1. LHD 2200 cc ENGINE MODEL
34
6-3[D6F1]WIRING DIAGRAM
6. Wiring Diagram

35
[D6F1]6-3WIRING DIAGRAM
6. Wiring Diagram

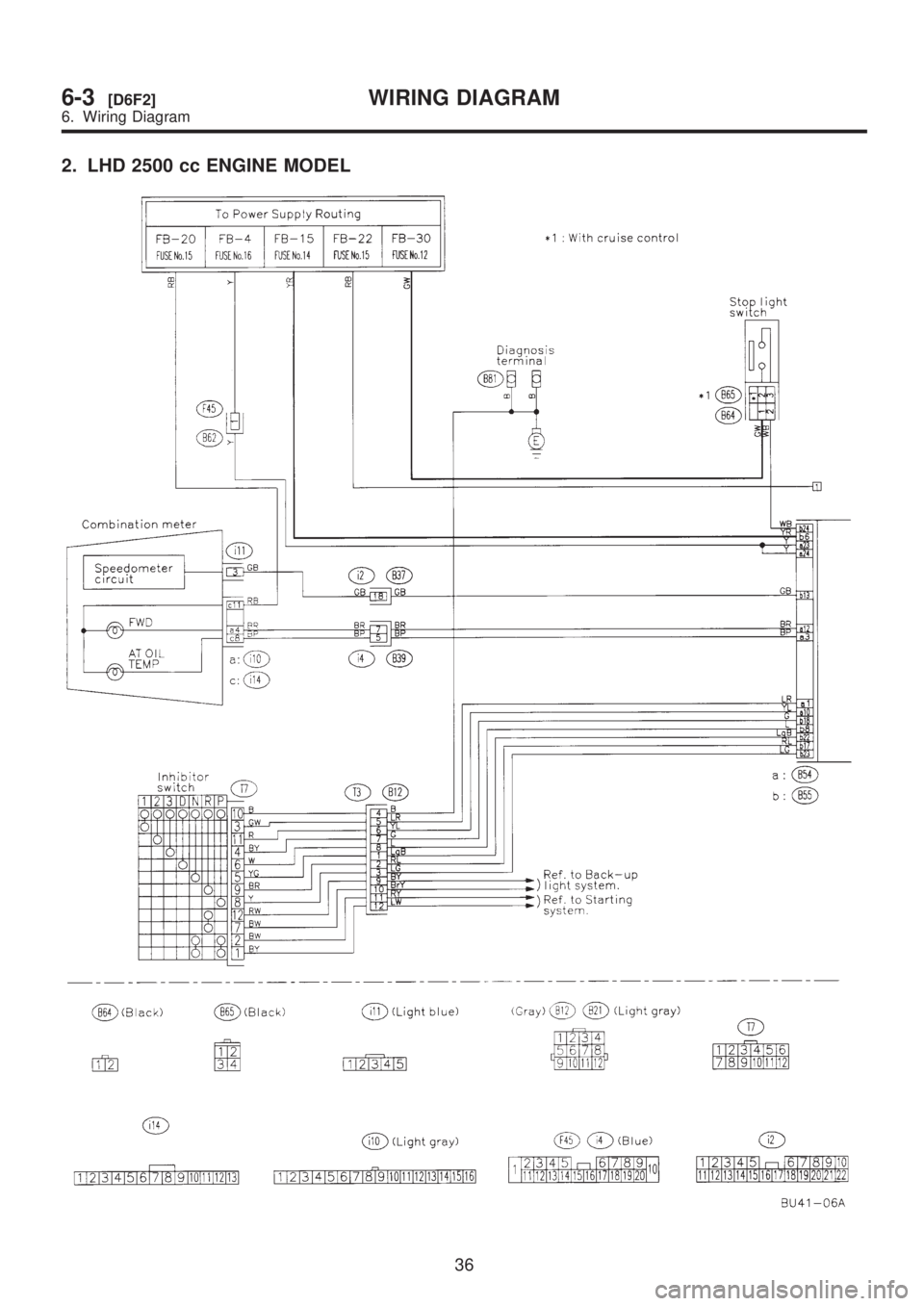

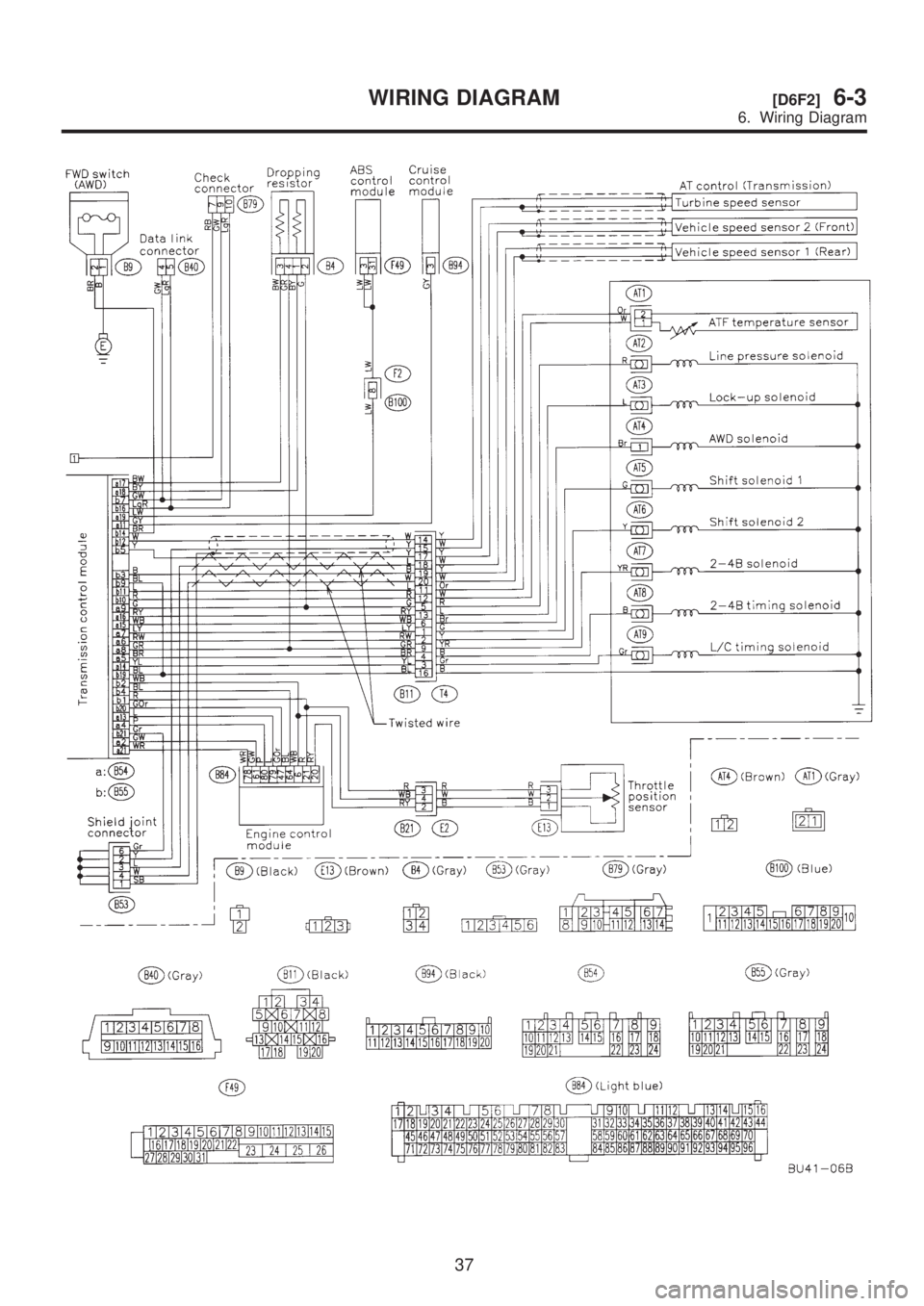

2. LHD 2500 cc ENGINE MODEL
36
6-3[D6F2]WIRING DIAGRAM
6. Wiring Diagram

37
[D6F2]6-3WIRING DIAGRAM
6. Wiring Diagram

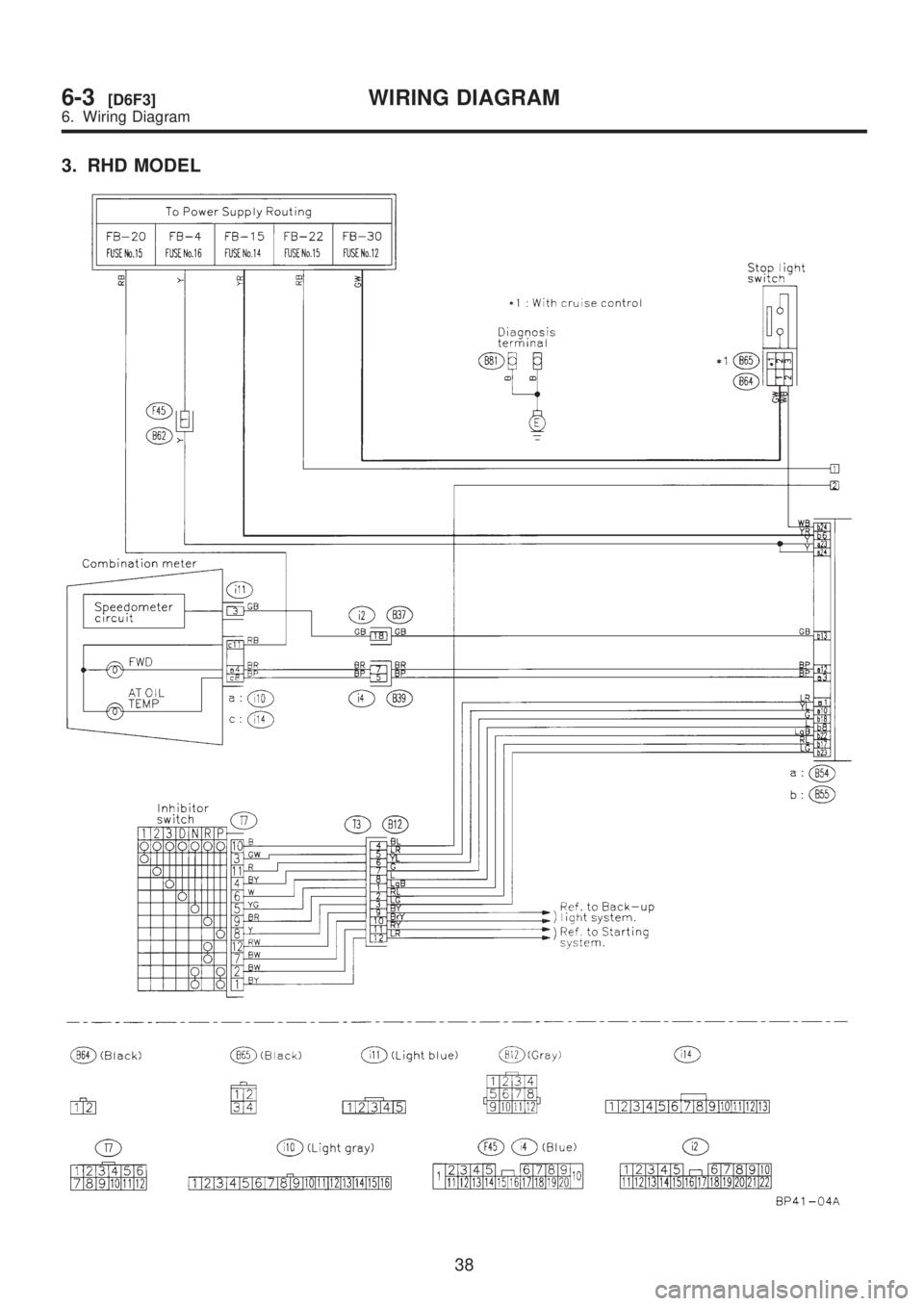

3. RHD MODEL
38
6-3[D6F3]WIRING DIAGRAM
6. Wiring Diagram

39
[D6F3]6-3WIRING DIAGRAM
6. Wiring Diagram

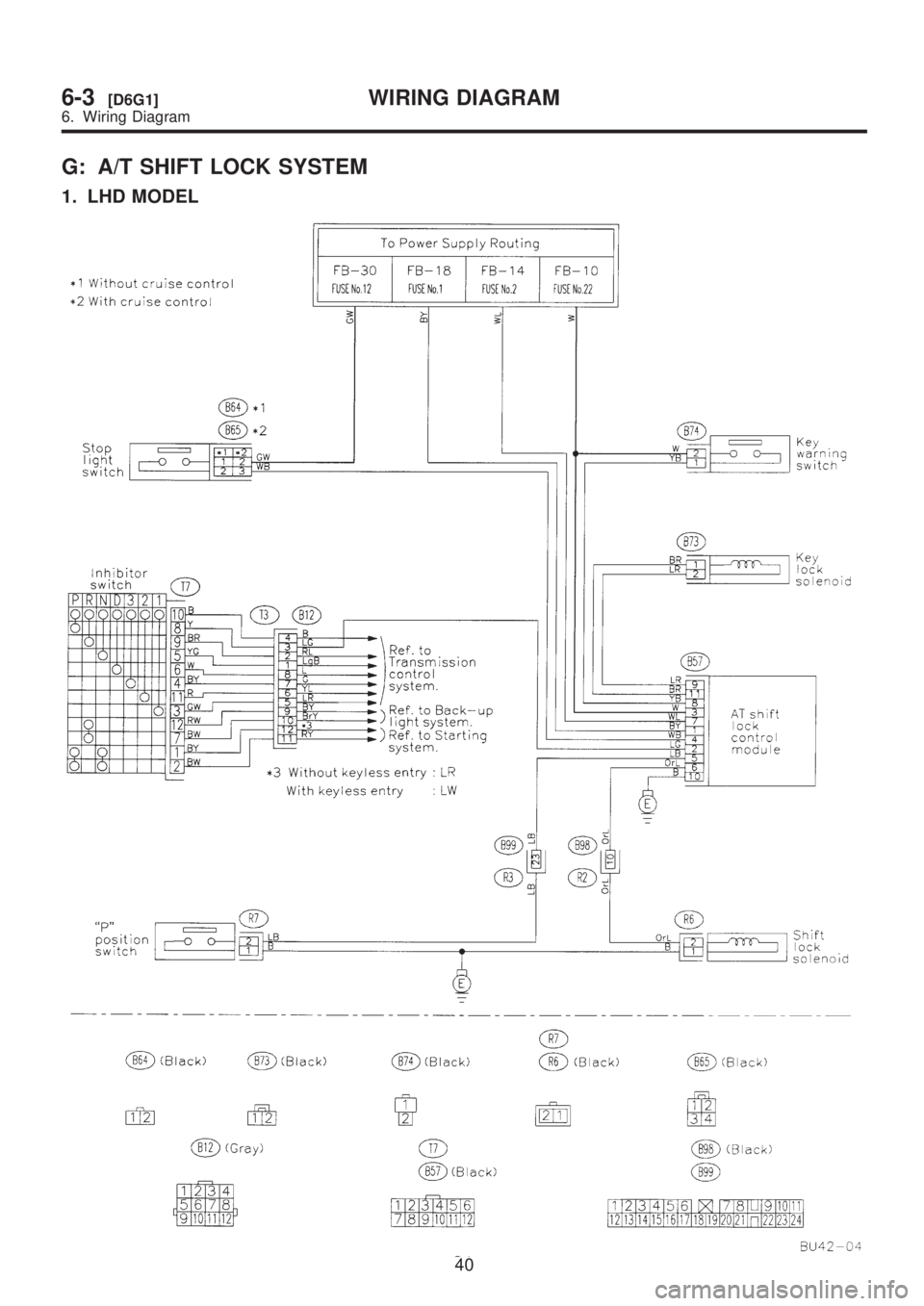

G: A/T SHIFT LOCK SYSTEM
1. LHD MODEL
40
6-3[D6G1]WIRING DIAGRAM
6. Wiring Diagram
