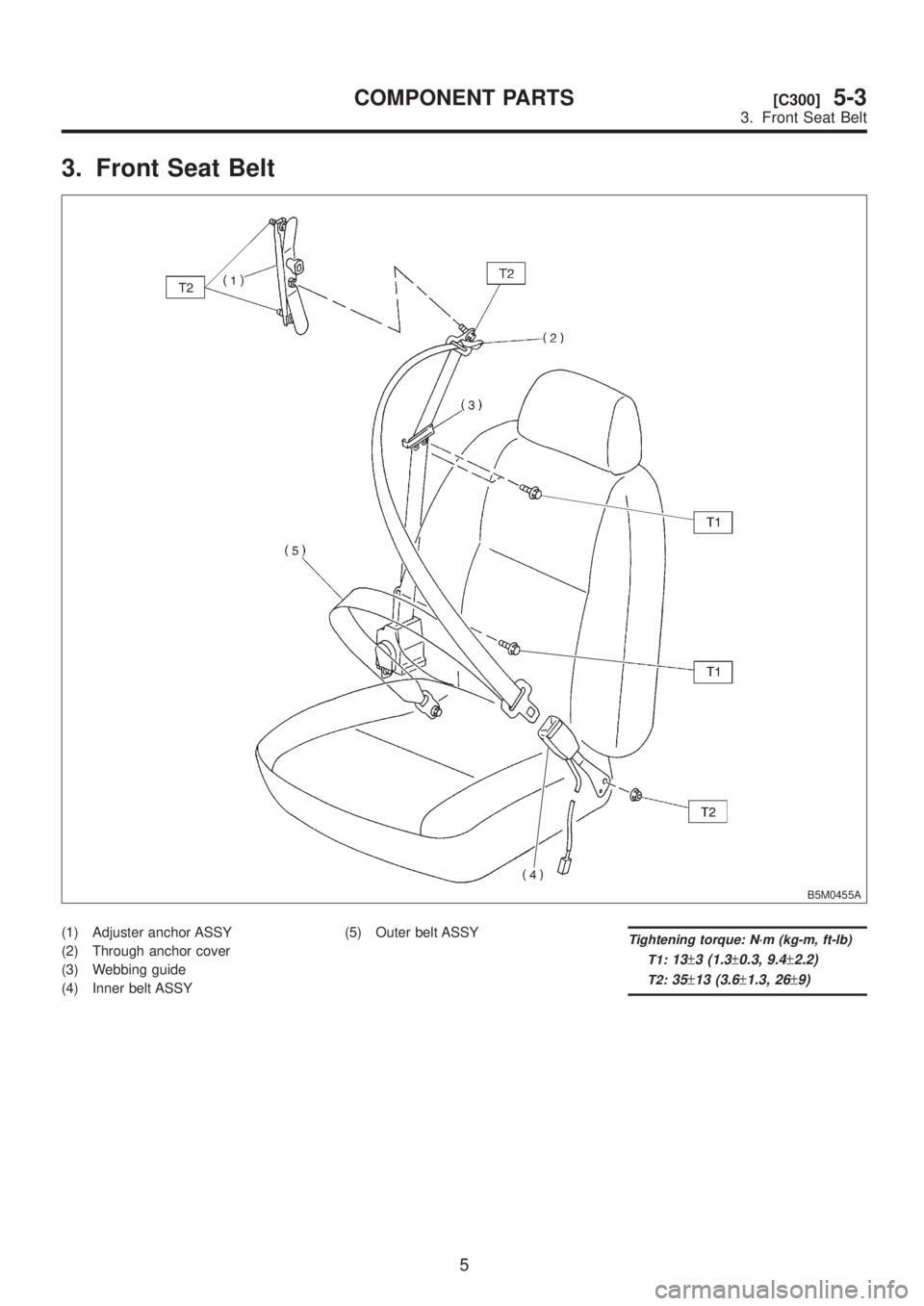

3. Front Seat Belt
B5M0455A
(1) Adjuster anchor ASSY
(2) Through anchor cover
(3) Webbing guide
(4) Inner belt ASSY(5) Outer belt ASSYTightening torque: N´m (kg-m, ft-lb)
T1:
13±3 (1.3±0.3, 9.4±2.2)
T2:35±13 (3.6±1.3, 26±9)
5
[C300]5-3COMPONENT PARTS
3. Front Seat Belt

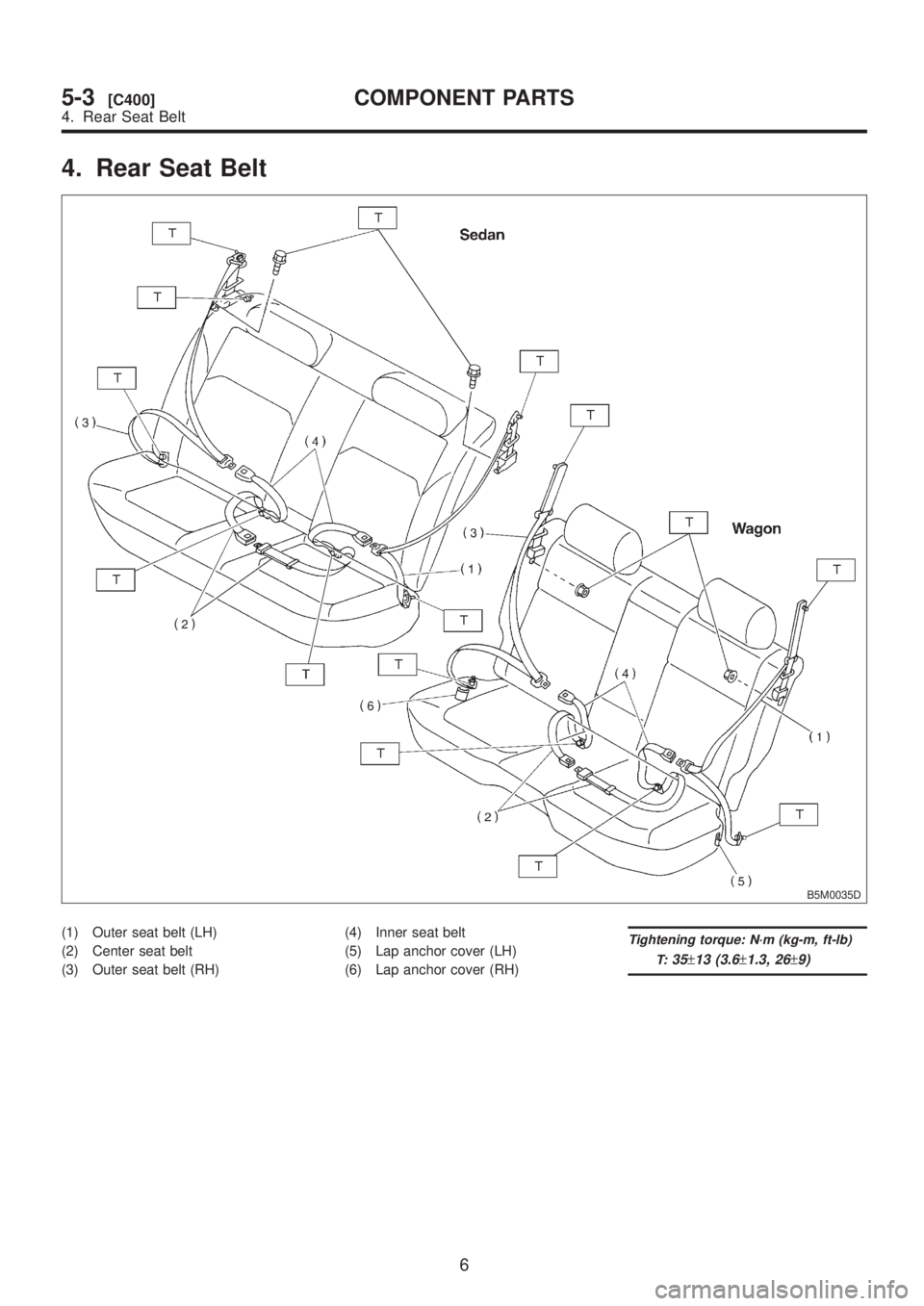

4. Rear Seat Belt
B5M0035D
(1) Outer seat belt (LH)
(2) Center seat belt
(3) Outer seat belt (RH)(4) Inner seat belt
(5) Lap anchor cover (LH)
(6) Lap anchor cover (RH)Tightening torque: N´m (kg-m, ft-lb)
T:
35±13 (3.6±1.3, 26±9)
6
5-3[C400]COMPONENT PARTS
4. Rear Seat Belt

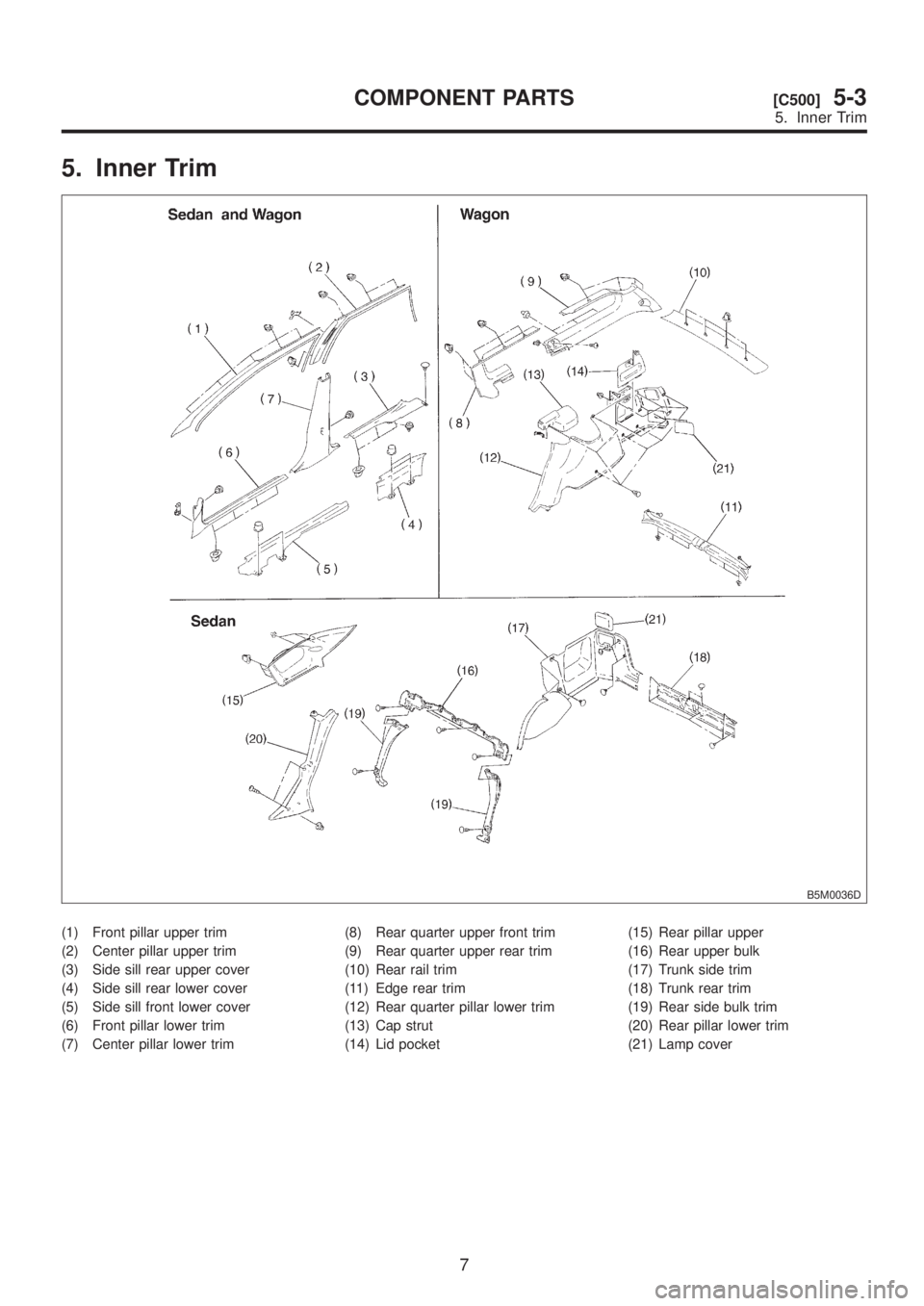

5. Inner Trim
B5M0036D
(1) Front pillar upper trim
(2) Center pillar upper trim
(3) Side sill rear upper cover
(4) Side sill rear lower cover
(5) Side sill front lower cover
(6) Front pillar lower trim
(7) Center pillar lower trim(8) Rear quarter upper front trim
(9) Rear quarter upper rear trim
(10) Rear rail trim
(11) Edge rear trim
(12) Rear quarter pillar lower trim
(13) Cap strut
(14) Lid pocket(15) Rear pillar upper
(16) Rear upper bulk
(17) Trunk side trim
(18) Trunk rear trim
(19) Rear side bulk trim
(20) Rear pillar lower trim
(21) Lamp cover
7
[C500]5-3COMPONENT PARTS
5. Inner Trim

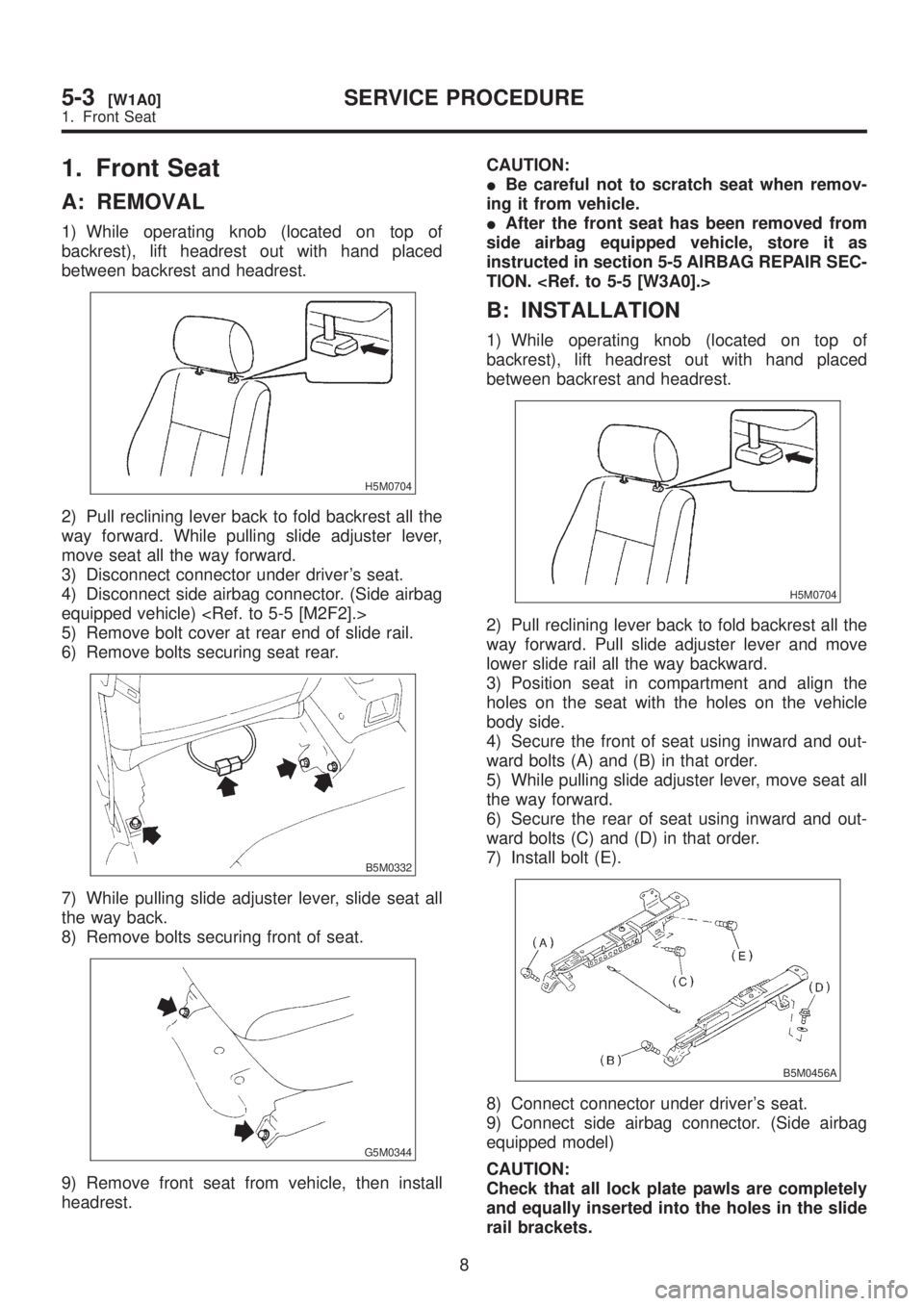

1. Front Seat
A: REMOVAL
1) While operating knob (located on top of
backrest), lift headrest out with hand placed
between backrest and headrest.
H5M0704
2) Pull reclining lever back to fold backrest all the
way forward. While pulling slide adjuster lever,
move seat all the way forward.
3) Disconnect connector under driver's seat.
4) Disconnect side airbag connector. (Side airbag
equipped vehicle)
5) Remove bolt cover at rear end of slide rail.
6) Remove bolts securing seat rear.
B5M0332
7) While pulling slide adjuster lever, slide seat all
the way back.
8) Remove bolts securing front of seat.
G5M0344
9) Remove front seat from vehicle, then install
headrest.CAUTION:
IBe careful not to scratch seat when remov-
ing it from vehicle.
IAfter the front seat has been removed from
side airbag equipped vehicle, store it as
instructed in section 5-5 AIRBAG REPAIR SEC-
TION.
B: INSTALLATION
1) While operating knob (located on top of
backrest), lift headrest out with hand placed
between backrest and headrest.
H5M0704
2) Pull reclining lever back to fold backrest all the
way forward. Pull slide adjuster lever and move
lower slide rail all the way backward.
3) Position seat in compartment and align the
holes on the seat with the holes on the vehicle
body side.
4) Secure the front of seat using inward and out-
ward bolts (A) and (B) in that order.
5) While pulling slide adjuster lever, move seat all
the way forward.
6) Secure the rear of seat using inward and out-
ward bolts (C) and (D) in that order.
7) Install bolt (E).
B5M0456A
8) Connect connector under driver's seat.
9) Connect side airbag connector. (Side airbag
equipped model)
CAUTION:
Check that all lock plate pawls are completely
and equally inserted into the holes in the slide
rail brackets.
8
5-3[W1A0]SERVICE PROCEDURE
1. Front Seat

10) After installation, ensure that all mechanisms
operate properly and lock.
11) If any mechanism does not function properly,
loosen bolts (C), (D) and (E), slide seat as
required, insert all lock plate pawls into holes in
slide rail brackets, and tighten bolts (C), (D) and
(E) in that order.
12) Install bolt cover on rear end of slide rail.
13) Install headrest on backrest.
NOTE:
Tighten bolts in the designated order.2. Rear Seat
A: REMOVAL
1. SEDAN
1) Remove bolts securing hinges (located at front
of cushion) to body.
2) Slightly raise front of cushion while pushing
down on cushion in the direction of ªCº. With cush-
ion held in that position, move it forward until it is
unhooked.
G5M0345
3) Remove bolts securing lower portion of back-
rest to body.
4) Pull strap (located in center of fold-down back-
rest) to release lock, and fold backrest onto cush-
ion. (Fold-down type)
G5M0346
5) Lift rear seat backrest in direction ªAº until it is
released
9
[W2A1]5-3SERVICE PROCEDURE
2. Rear Seat

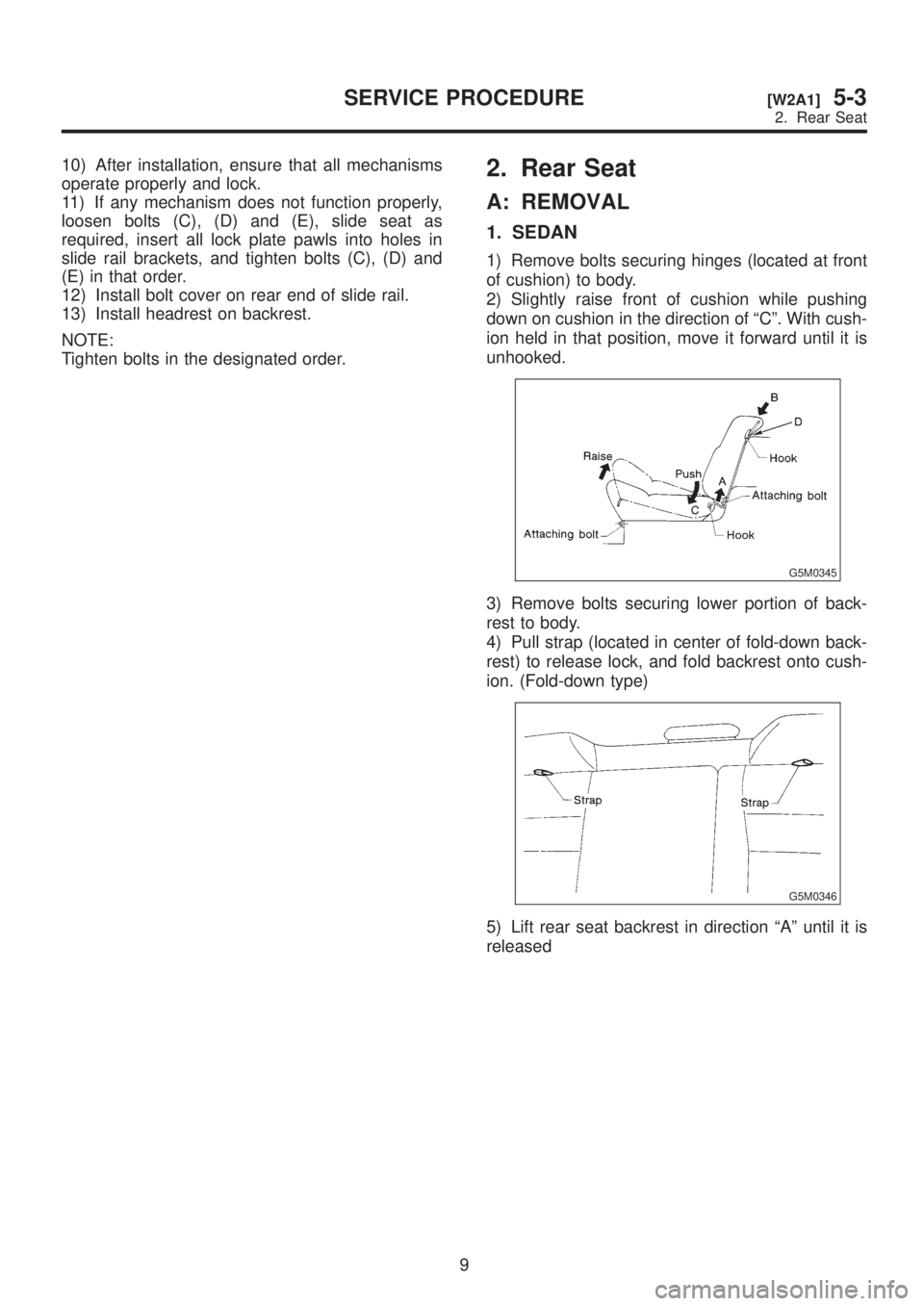

10) After installation, ensure that all mechanisms
operate properly and lock.
11) If any mechanism does not function properly,
loosen bolts (C), (D) and (E), slide seat as
required, insert all lock plate pawls into holes in
slide rail brackets, and tighten bolts (C), (D) and
(E) in that order.
12) Install bolt cover on rear end of slide rail.
13) Install headrest on backrest.
NOTE:
Tighten bolts in the designated order.2. Rear Seat
A: REMOVAL
1. SEDAN
1) Remove bolts securing hinges (located at front
of cushion) to body.
2) Slightly raise front of cushion while pushing
down on cushion in the direction of ªCº. With cush-
ion held in that position, move it forward until it is
unhooked.
G5M0345
3) Remove bolts securing lower portion of back-
rest to body.
4) Pull strap (located in center of fold-down back-
rest) to release lock, and fold backrest onto cush-
ion. (Fold-down type)
G5M0346
5) Lift rear seat backrest in direction ªAº until it is
released
9
[W2A1]5-3SERVICE PROCEDURE
2. Rear Seat

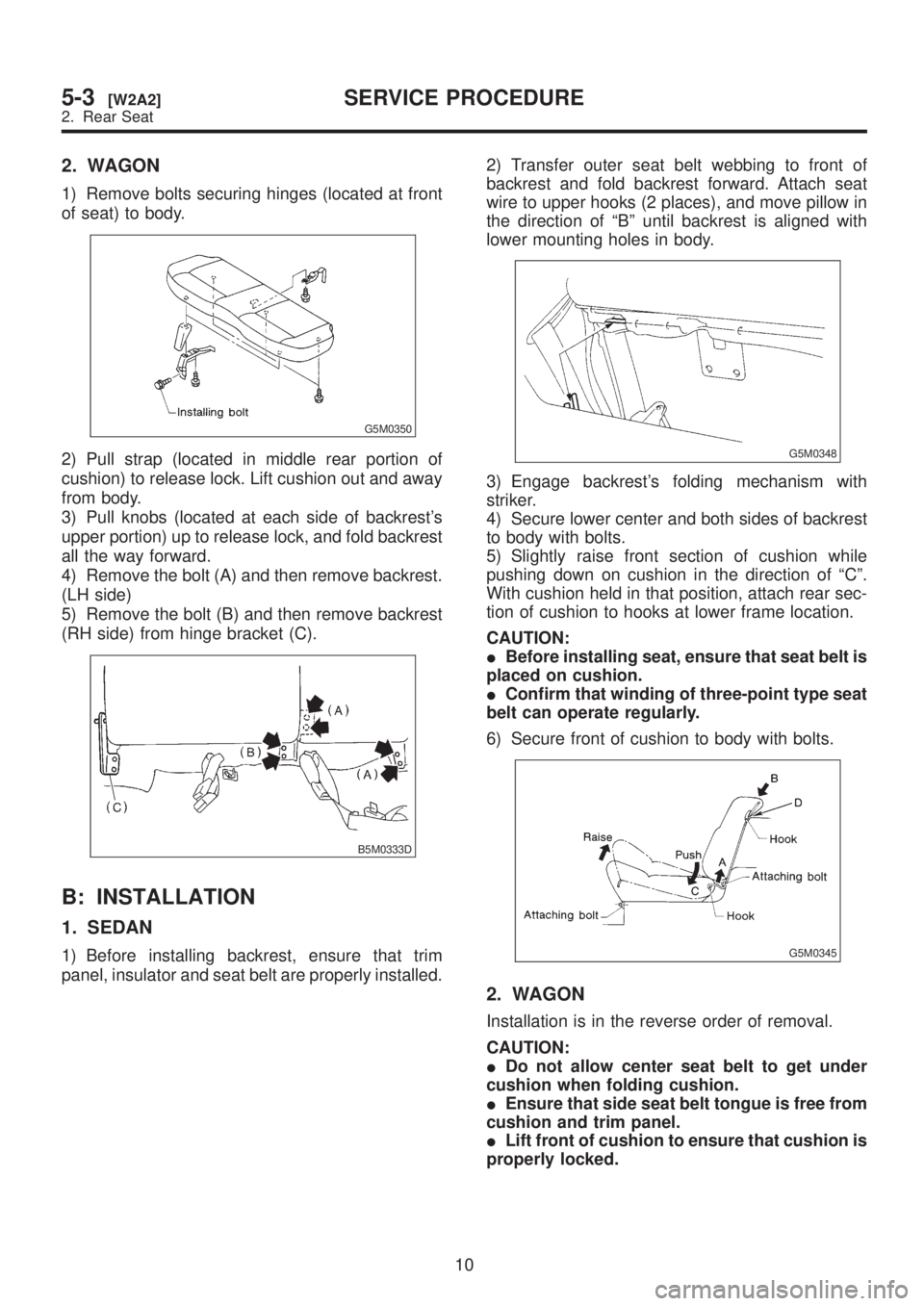

2. WAGON
1) Remove bolts securing hinges (located at front
of seat) to body.
G5M0350
2) Pull strap (located in middle rear portion of
cushion) to release lock. Lift cushion out and away
from body.
3) Pull knobs (located at each side of backrest's
upper portion) up to release lock, and fold backrest
all the way forward.
4) Remove the bolt (A) and then remove backrest.
(LH side)
5) Remove the bolt (B) and then remove backrest
(RH side) from hinge bracket (C).
B5M0333D
B: INSTALLATION
1. SEDAN
1) Before installing backrest, ensure that trim
panel, insulator and seat belt are properly installed.2) Transfer outer seat belt webbing to front of
backrest and fold backrest forward. Attach seat
wire to upper hooks (2 places), and move pillow in
the direction of ªBº until backrest is aligned with
lower mounting holes in body.
G5M0348
3) Engage backrest's folding mechanism with
striker.
4) Secure lower center and both sides of backrest
to body with bolts.
5) Slightly raise front section of cushion while
pushing down on cushion in the direction of ªCº.
With cushion held in that position, attach rear sec-
tion of cushion to hooks at lower frame location.
CAUTION:
IBefore installing seat, ensure that seat belt is
placed on cushion.
IConfirm that winding of three-point type seat
belt can operate regularly.
6) Secure front of cushion to body with bolts.
G5M0345
2. WAGON
Installation is in the reverse order of removal.
CAUTION:
IDo not allow center seat belt to get under
cushion when folding cushion.
IEnsure that side seat belt tongue is free from
cushion and trim panel.
ILift front of cushion to ensure that cushion is
properly locked.
10
5-3[W2A2]SERVICE PROCEDURE
2. Rear Seat

3. Front Seat Belt
A: REMOVAL AND INSTALLATION
1. OUTER BELT
1) Remove through anchor cover cap.
2) Remove shoulder anchor bolt.
B5M0038A
3) Remove side sill rear upper cover and front pil-
lar lower trim.
4) Remove center pillar lower trim.
5) Remove webbing guide.
6) Roll up floor mat at the bottom of center pillar.
7) Remove lap anchor bolt.
8) Remove outer belt assembly.
9) Installation is in the reverse order of removal.
B5M0039
2. INNER BELT
1) Remove anchor nut.
2) Installation is in the reverse order of removal.
G5M0356
3. ADJUSTABLE SHOULDER ANCHOR
1) Remove shoulder anchor bolt.
2) Remove lower center pillar trim.
3) Remove front and center pillar upper trim.
4) Remove adjustable shoulder anchor assembly.
G5M0357
5) Installation is in the reverse order of removal.
CAUTION:
IThe left and right ELR's are not mutually
interchangeable because different sensors are
used.
IBe careful not to twist belts during installa-
tion.
11
[W3A3]5-3SERVICE PROCEDURE
3. Front Seat Belt
