1999 SUBARU LEGACY Service Repair Manual

MEMO:
49
[D6K0]6-3WIRING DIAGRAM
6. Wiring Diagram

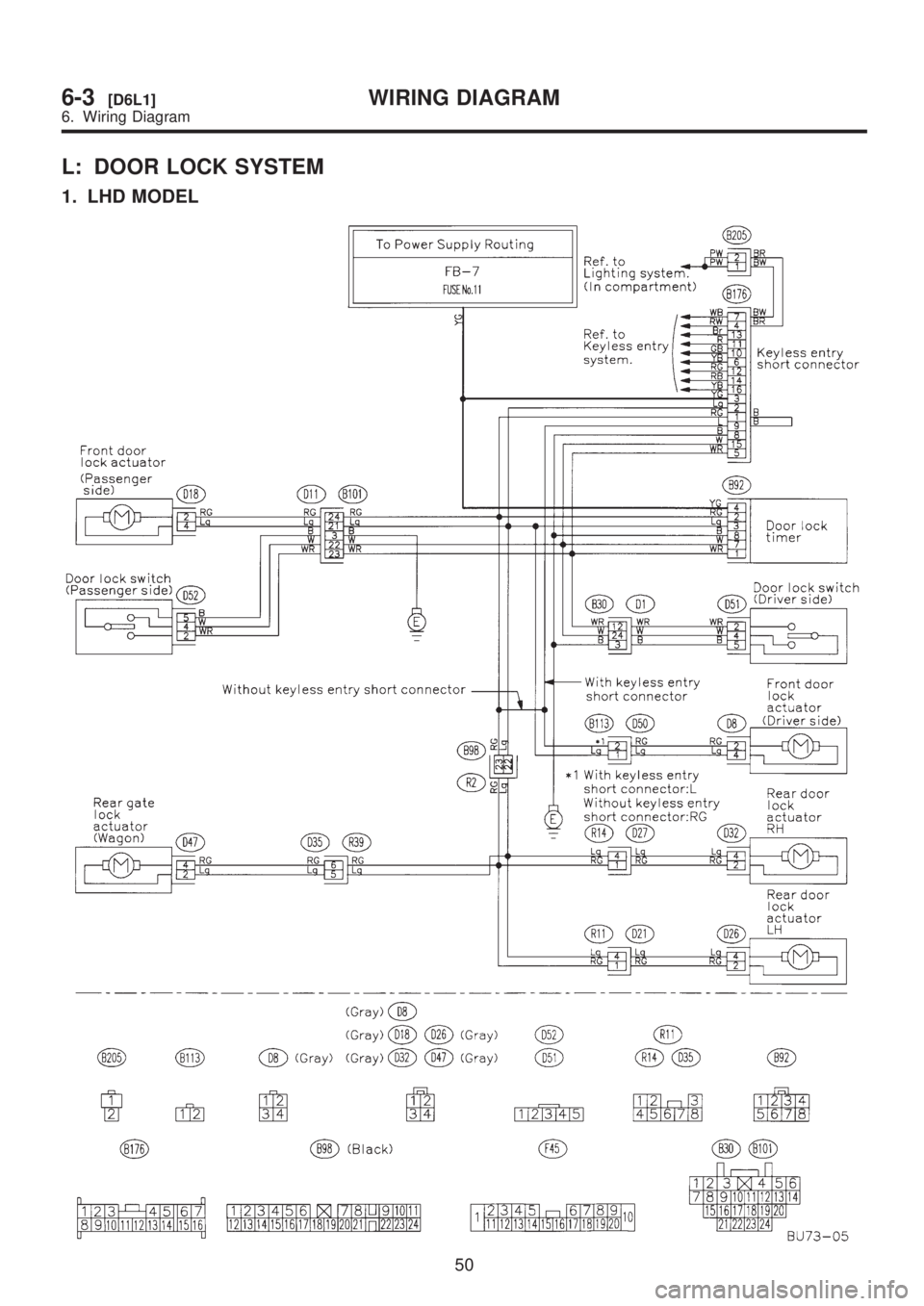

L: DOOR LOCK SYSTEM
1. LHD MODEL
50
6-3[D6L1]WIRING DIAGRAM
6. Wiring Diagram

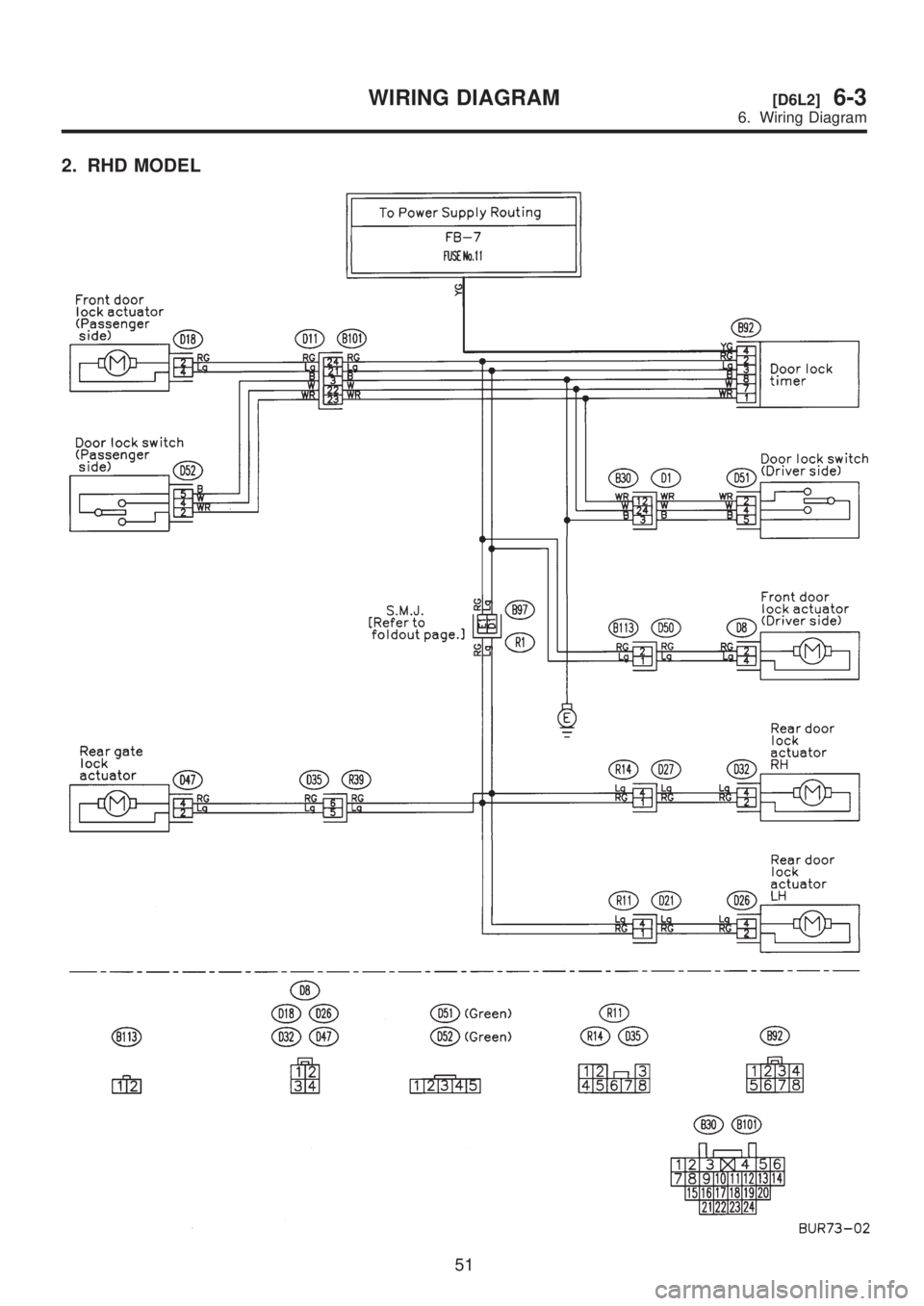

2. RHD MODEL
51
[D6L2]6-3WIRING DIAGRAM
6. Wiring Diagram

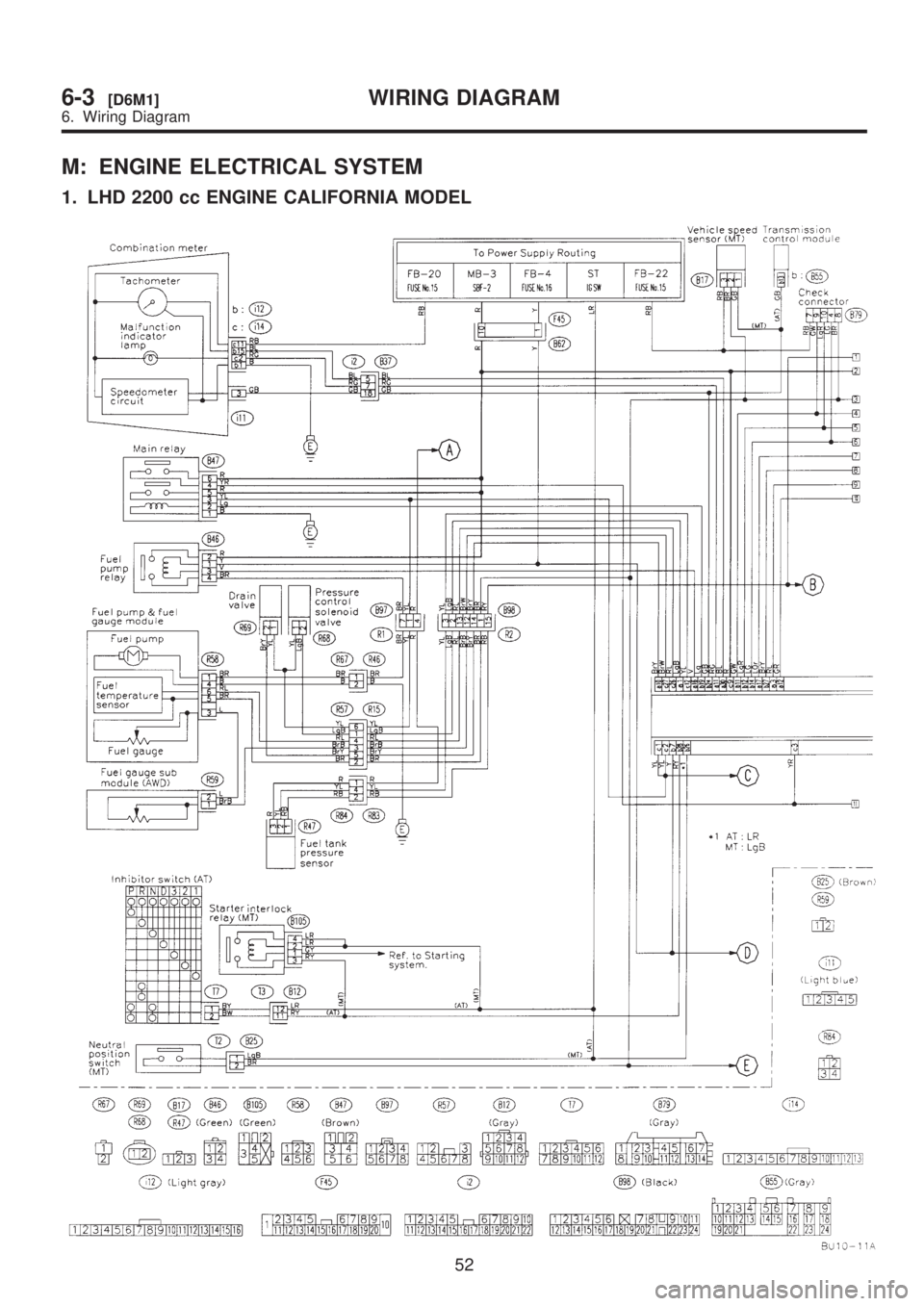

M: ENGINE ELECTRICAL SYSTEM
1. LHD 2200 cc ENGINE CALIFORNIA MODEL
52
6-3[D6M1]WIRING DIAGRAM
6. Wiring Diagram

53

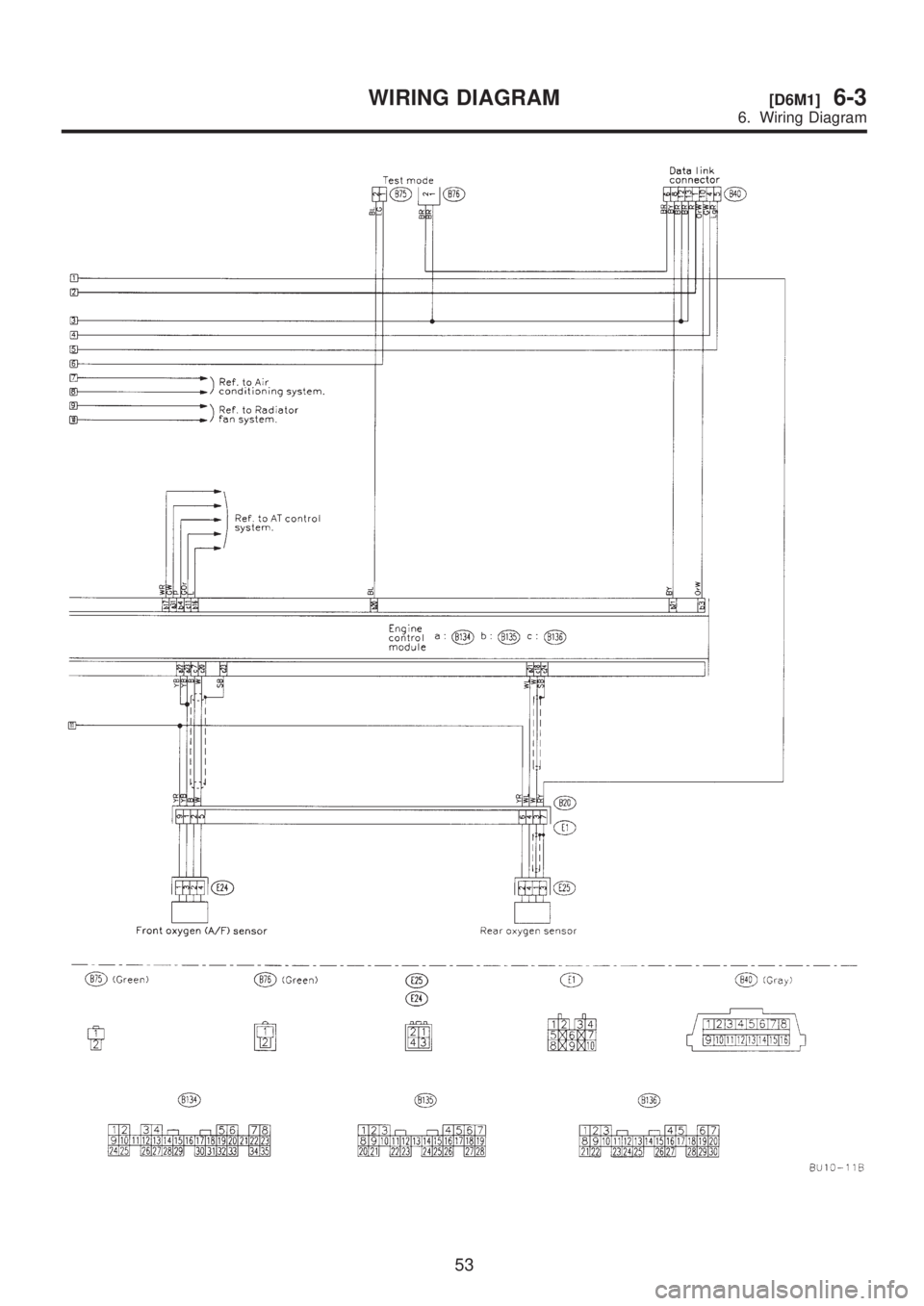

[D6M1]6-3WIRING DIAGRAM
6. Wiring Diagram

54

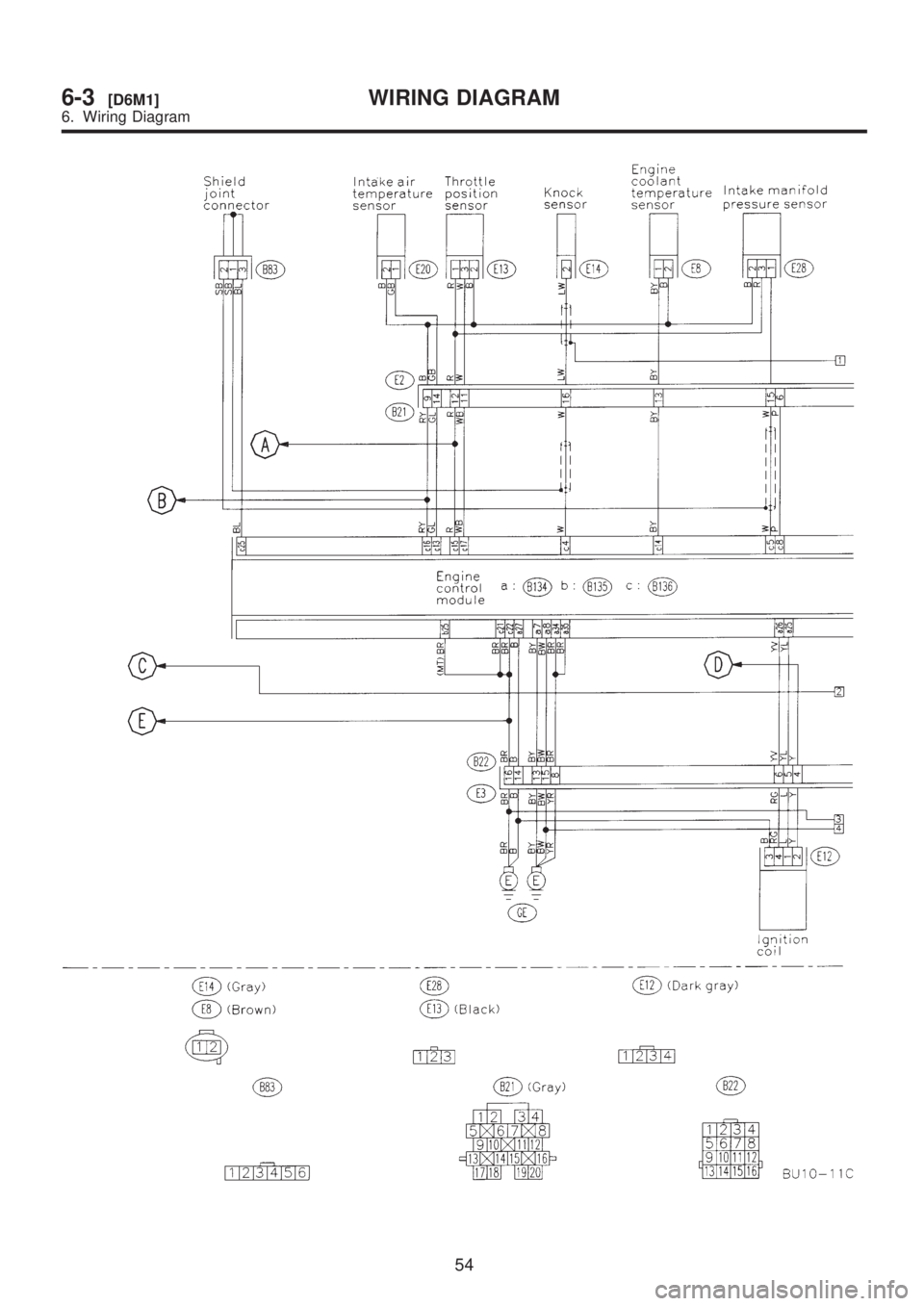

6-3[D6M1]WIRING DIAGRAM
6. Wiring Diagram

55

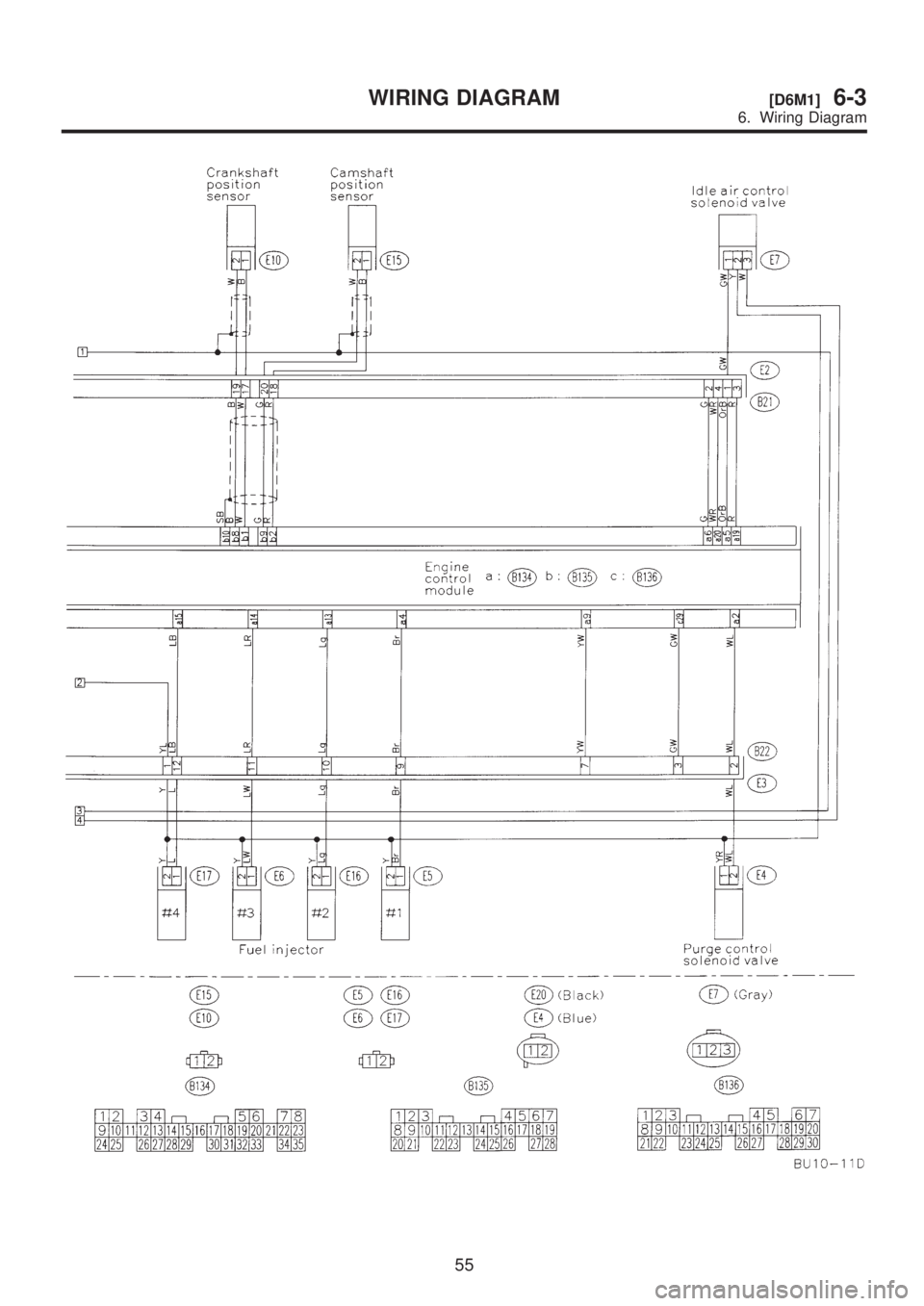

[D6M1]6-3WIRING DIAGRAM
6. Wiring Diagram

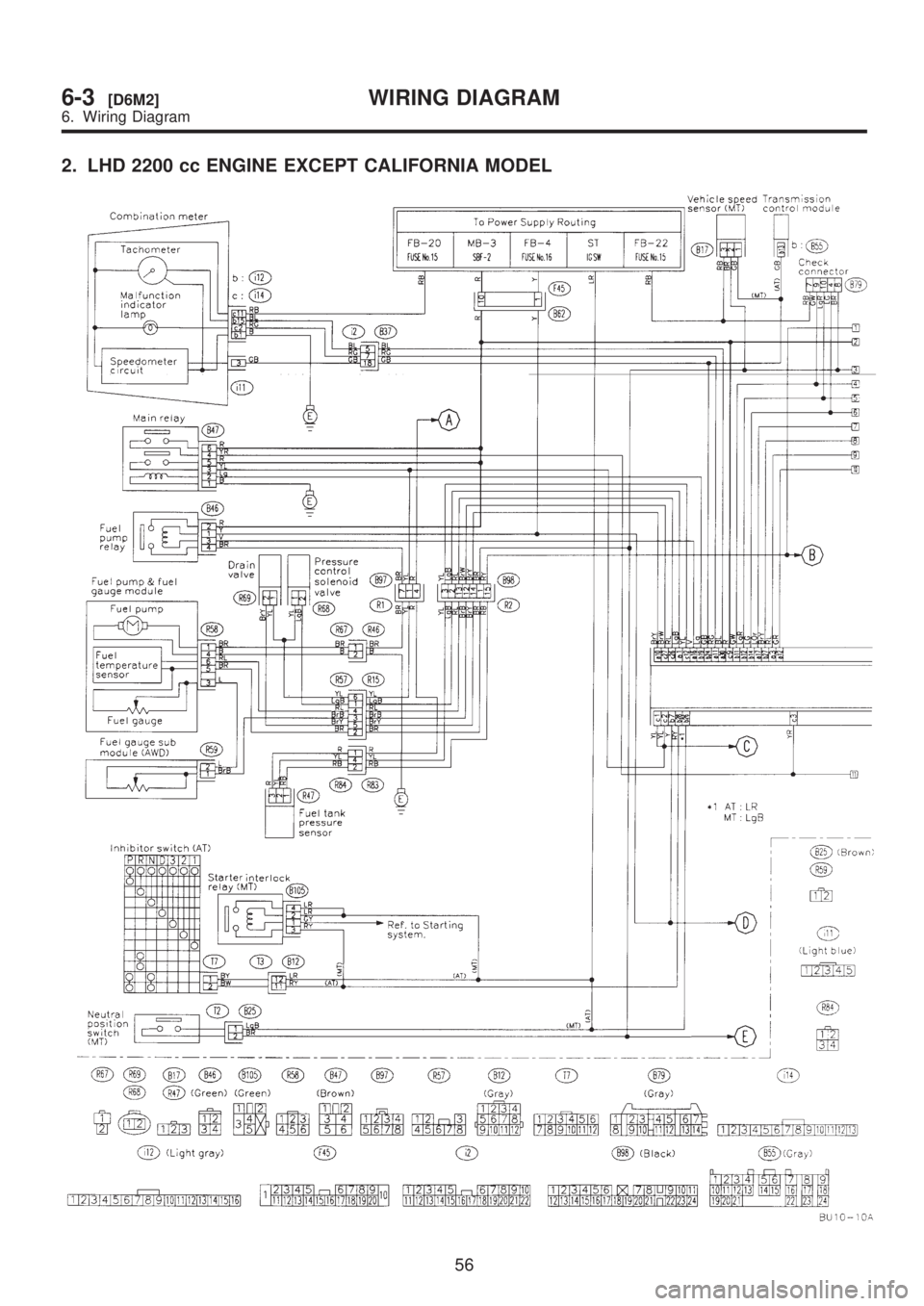

2. LHD 2200 cc ENGINE EXCEPT CALIFORNIA MODEL
56
6-3[D6M2]WIRING DIAGRAM
6. Wiring Diagram
