1999 SUBARU LEGACY Service Repair Manual

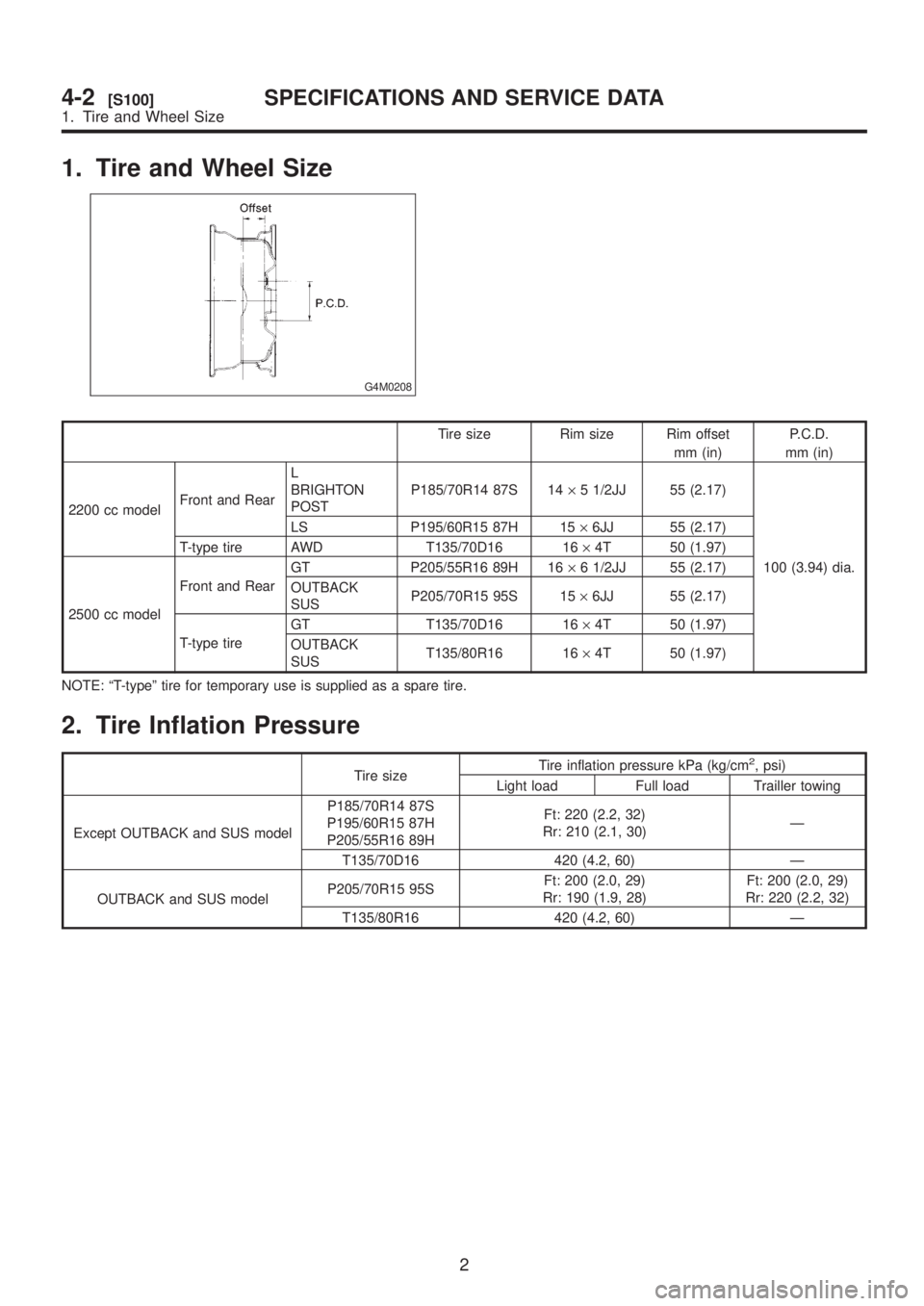

1. Tire and Wheel Size
G4M0208
Tire size Rim size Rim offset
mm (in)P.C.D.
mm (in)
2200 cc modelFront and RearL
BRIGHTON
POSTP185/70R14 87S 14´5 1/2JJ 55 (2.17)
100 (3.94) dia. LS P195/60R15 87H 15´6JJ 55 (2.17)
T-type tire AWD T135/70D16 16´4T 50 (1.97)
2500 cc modelFront and RearGT P205/55R16 89H 16´6 1/2JJ 55 (2.17)
OUTBACK
SUSP205/70R15 95S 15´6JJ 55 (2.17)
T-type tireGT T135/70D16 16´4T 50 (1.97)
OUTBACK
SUST135/80R16 16´4T 50 (1.97)
NOTE: ªT-typeº tire for temporary use is supplied as a spare tire.
2. Tire Inflation Pressure
Tire sizeTire inflation pressure kPa (kg/cm
2, psi)
Light load Full load Trailler towing
Except OUTBACK and SUS modelP185/70R14 87S
P195/60R15 87H
P205/55R16 89HFt: 220 (2.2, 32)
Rr: 210 (2.1, 30)Ð
T135/70D16 420 (4.2, 60) Ð
OUTBACK and SUS modelP205/70R15 95SFt: 200 (2.0, 29)
Rr: 190 (1.9, 28)Ft: 200 (2.0, 29)
Rr: 220 (2.2, 32)
T135/80R16 420 (4.2, 60) Ð
2
4-2[S100]SPECIFICATIONS AND SERVICE DATA
1. Tire and Wheel Size

1. Tire and Wheel Size
G4M0208
Tire size Rim size Rim offset
mm (in)P.C.D.
mm (in)
2200 cc modelFront and RearL
BRIGHTON
POSTP185/70R14 87S 14´5 1/2JJ 55 (2.17)
100 (3.94) dia. LS P195/60R15 87H 15´6JJ 55 (2.17)
T-type tire AWD T135/70D16 16´4T 50 (1.97)
2500 cc modelFront and RearGT P205/55R16 89H 16´6 1/2JJ 55 (2.17)
OUTBACK
SUSP205/70R15 95S 15´6JJ 55 (2.17)
T-type tireGT T135/70D16 16´4T 50 (1.97)
OUTBACK
SUST135/80R16 16´4T 50 (1.97)
NOTE: ªT-typeº tire for temporary use is supplied as a spare tire.
2. Tire Inflation Pressure
Tire sizeTire inflation pressure kPa (kg/cm
2, psi)
Light load Full load Trailler towing
Except OUTBACK and SUS modelP185/70R14 87S
P195/60R15 87H
P205/55R16 89HFt: 220 (2.2, 32)
Rr: 210 (2.1, 30)Ð
T135/70D16 420 (4.2, 60) Ð
OUTBACK and SUS modelP205/70R15 95SFt: 200 (2.0, 29)
Rr: 190 (1.9, 28)Ft: 200 (2.0, 29)
Rr: 220 (2.2, 32)
T135/80R16 420 (4.2, 60) Ð
2
4-2[S100]SPECIFICATIONS AND SERVICE DATA
1. Tire and Wheel Size

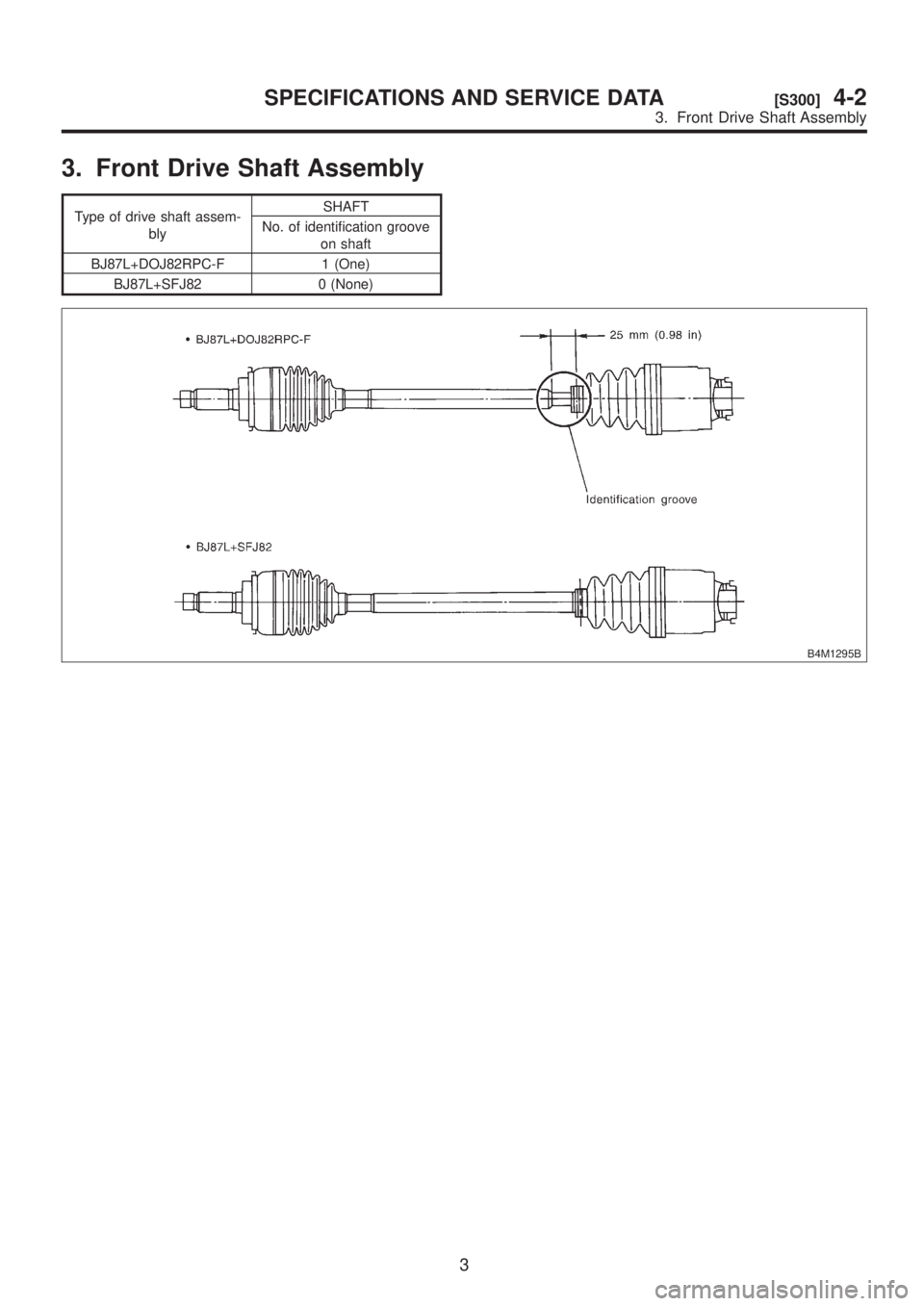

3. Front Drive Shaft Assembly
Type of drive shaft assem-
blySHAFT
No. of identification groove
on shaft
BJ87L+DOJ82RPC-F 1 (One)
BJ87L+SFJ82 0 (None)
B4M1295B
3
[S300]4-2SPECIFICATIONS AND SERVICE DATA
3. Front Drive Shaft Assembly

4. Rear Drive Shaft Assembly
Type of axle shaft assemblySHAFT
No. of identification grooves
on shaft
79AC None
79AC-RH 2 (Two)
79AC-LH 1 (One)
B4M1304A
5. Application Table
Model Power unitFront drive shaft Rear drive shaft
5MT 4AT 5MT 4AT
AWD 2200 cc BJ87L+DOJ82RPC-F BJ87L+SFJ82 79AC-RH, 79AC-LH 79AC
AWD 2500 cc BJ87L+DOJ82RPC-F BJ87L+SFJ82 79AC-RH, 79AC-LH 79AC-RH, 79AC-LH
4
4-2[S400]SPECIFICATIONS AND SERVICE DATA

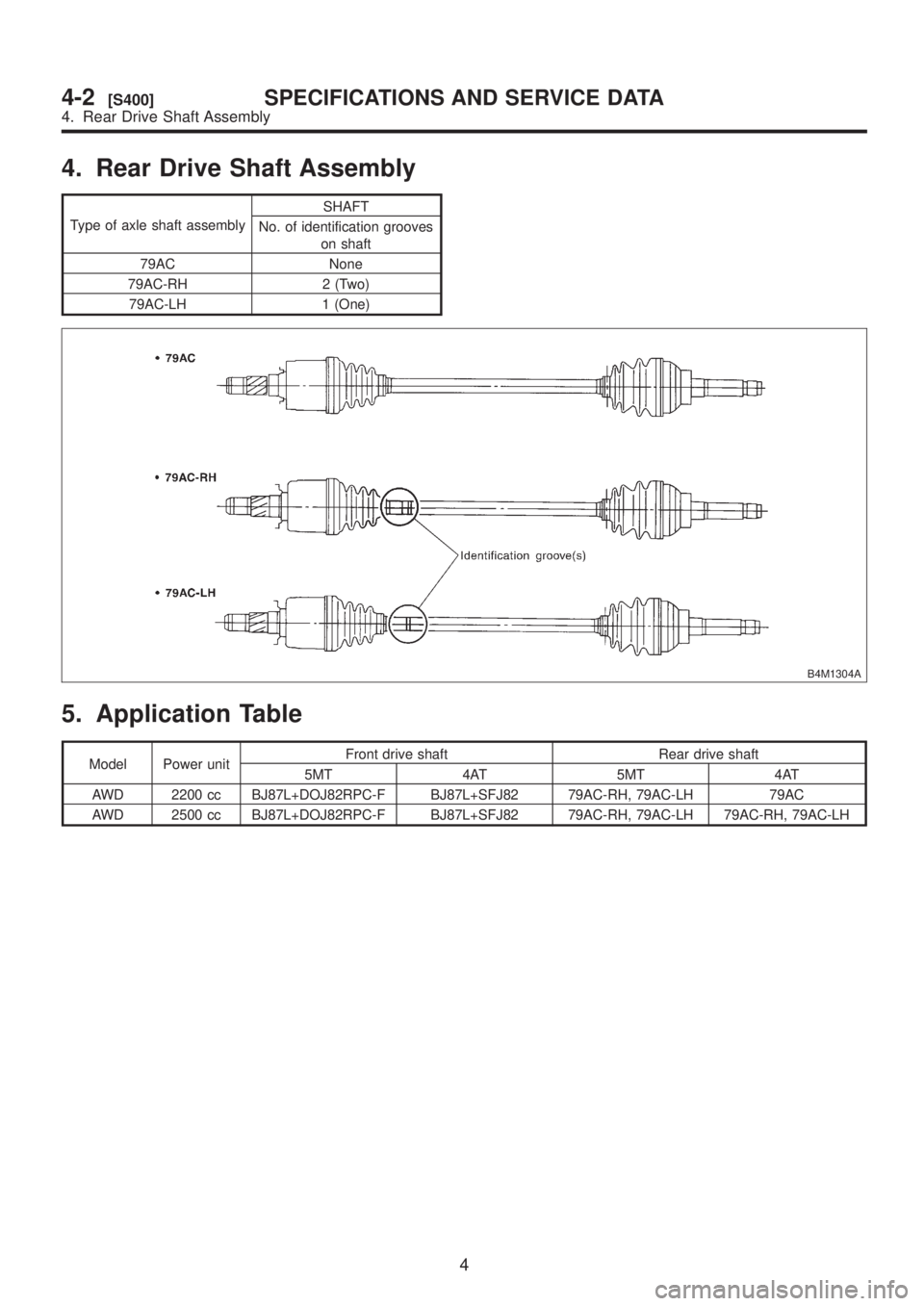

4. Rear Drive Shaft Assembly

4. Rear Drive Shaft Assembly
Type of axle shaft assemblySHAFT
No. of identification grooves
on shaft
79AC None
79AC-RH 2 (Two)
79AC-LH 1 (One)
B4M1304A
5. Application Table
Model Power unitFront drive shaft Rear drive shaft
5MT 4AT 5MT 4AT
AWD 2200 cc BJ87L+DOJ82RPC-F BJ87L+SFJ82 79AC-RH, 79AC-LH 79AC
AWD 2500 cc BJ87L+DOJ82RPC-F BJ87L+SFJ82 79AC-RH, 79AC-LH 79AC-RH, 79AC-LH
4
4-2[S400]SPECIFICATIONS AND SERVICE DATA
4. Rear Drive Shaft Assembly

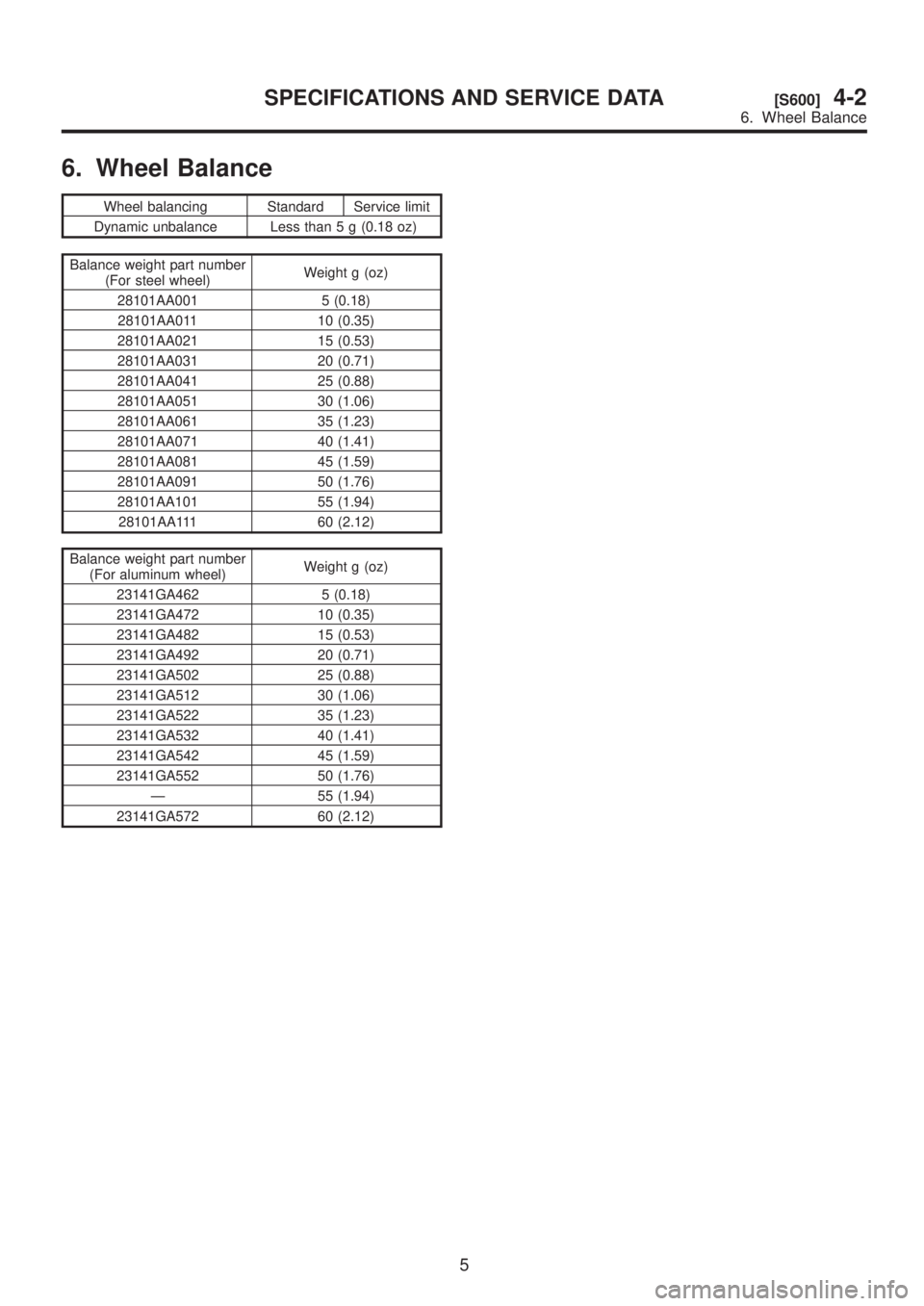

6. Wheel Balance
Wheel balancing Standard Service limit
Dynamic unbalance Less than 5 g (0.18 oz)
Balance weight part number
(For steel wheel)Weight g (oz)
28101AA001 5 (0.18)
28101AA011 10 (0.35)
28101AA021 15 (0.53)
28101AA031 20 (0.71)
28101AA041 25 (0.88)
28101AA051 30 (1.06)
28101AA061 35 (1.23)
28101AA071 40 (1.41)
28101AA081 45 (1.59)
28101AA091 50 (1.76)
28101AA101 55 (1.94)
28101AA111 60 (2.12)
Balance weight part number
(For aluminum wheel)Weight g (oz)
23141GA462 5 (0.18)
23141GA472 10 (0.35)
23141GA482 15 (0.53)
23141GA492 20 (0.71)
23141GA502 25 (0.88)
23141GA512 30 (1.06)
23141GA522 35 (1.23)
23141GA532 40 (1.41)
23141GA542 45 (1.59)
23141GA552 50 (1.76)
Ð 55 (1.94)
23141GA572 60 (2.12)
5
[S600]4-2SPECIFICATIONS AND SERVICE DATA
6. Wheel Balance

1. Front Axle
A: EXCEPT AWD AT MODEL
H4M0999B
(1) Spring pin
(2) Baffle plate (DOJ)
(3) Outer race (DOJ)
(4) Snap ring
(5) Inner race (DOJ)
(6) Ball
(7) Cage
(8) Circlip
(9) Boot band(10) Boot (DOJ)
(11) Boot (BJ)
(12) BJ ASSY
(13) Baffle plate
(14) Oil seal (IN)
(15) Snap ring
(16) Bearing
(17) Housing
(18) Oil seal (OUT)(19) Tone wheel
(20) Hub bolt
(21) Hub
(22) Axle nut
Tightening torque: N´m (kg-m, ft-lb)
T1:
13±3 (1.3±0.3, 9.4±2.2)
T2:186±20 (19±2, 137±14)
6
4-2[C1A0]COMPONENT PARTS
1. Front Axle

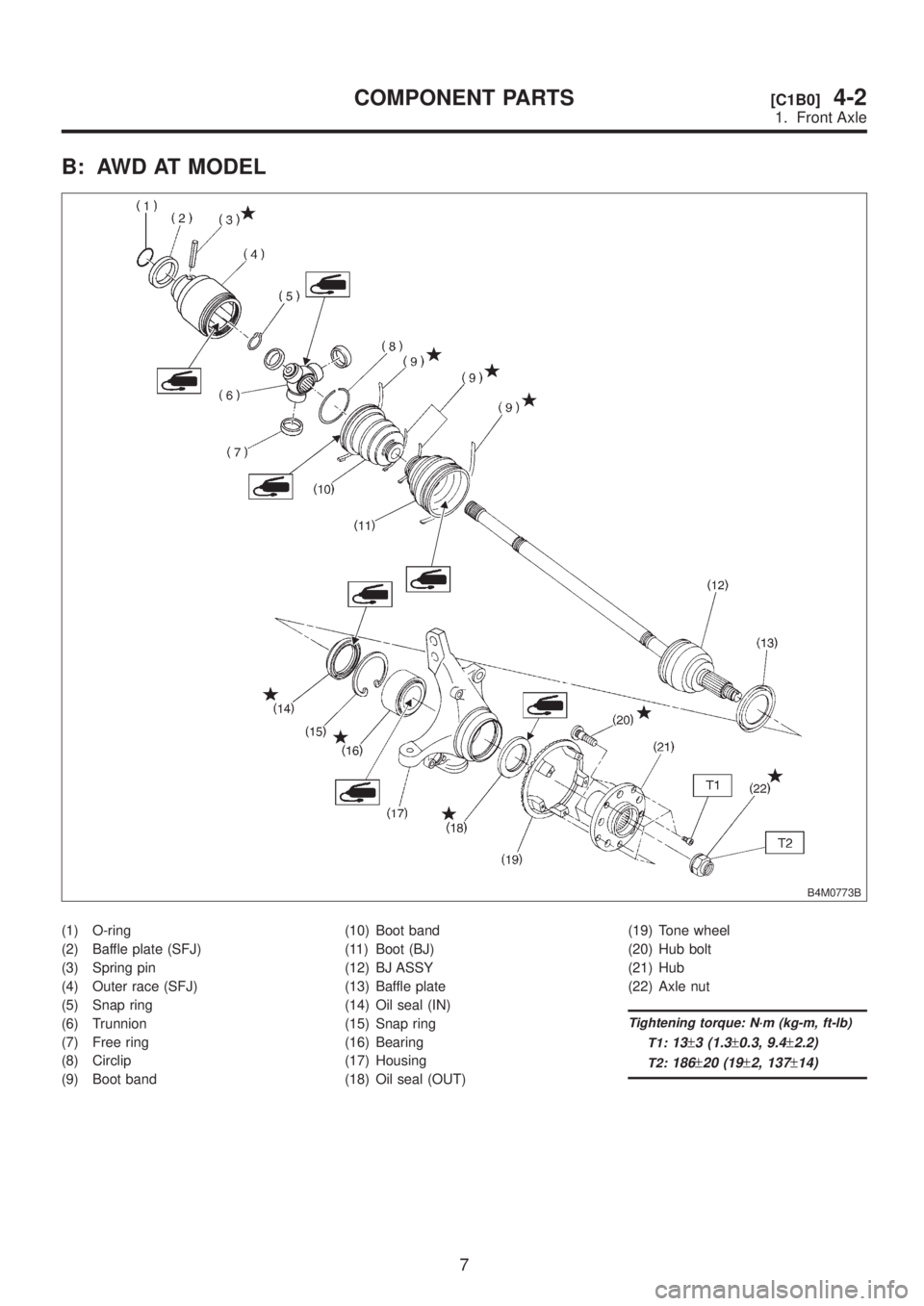

B: AWD AT MODEL
B4M0773B
(1) O-ring
(2) Baffle plate (SFJ)
(3) Spring pin
(4) Outer race (SFJ)
(5) Snap ring
(6) Trunnion
(7) Free ring
(8) Circlip
(9) Boot band(10) Boot band
(11) Boot (BJ)
(12) BJ ASSY
(13) Baffle plate
(14) Oil seal (IN)
(15) Snap ring
(16) Bearing
(17) Housing
(18) Oil seal (OUT)(19) Tone wheel
(20) Hub bolt
(21) Hub
(22) Axle nut
Tightening torque: N´m (kg-m, ft-lb)
T1:
13±3 (1.3±0.3, 9.4±2.2)
T2:186±20 (19±2, 137±14)
7
[C1B0]4-2COMPONENT PARTS
1. Front Axle
