1999 SUBARU LEGACY Service Repair Manual

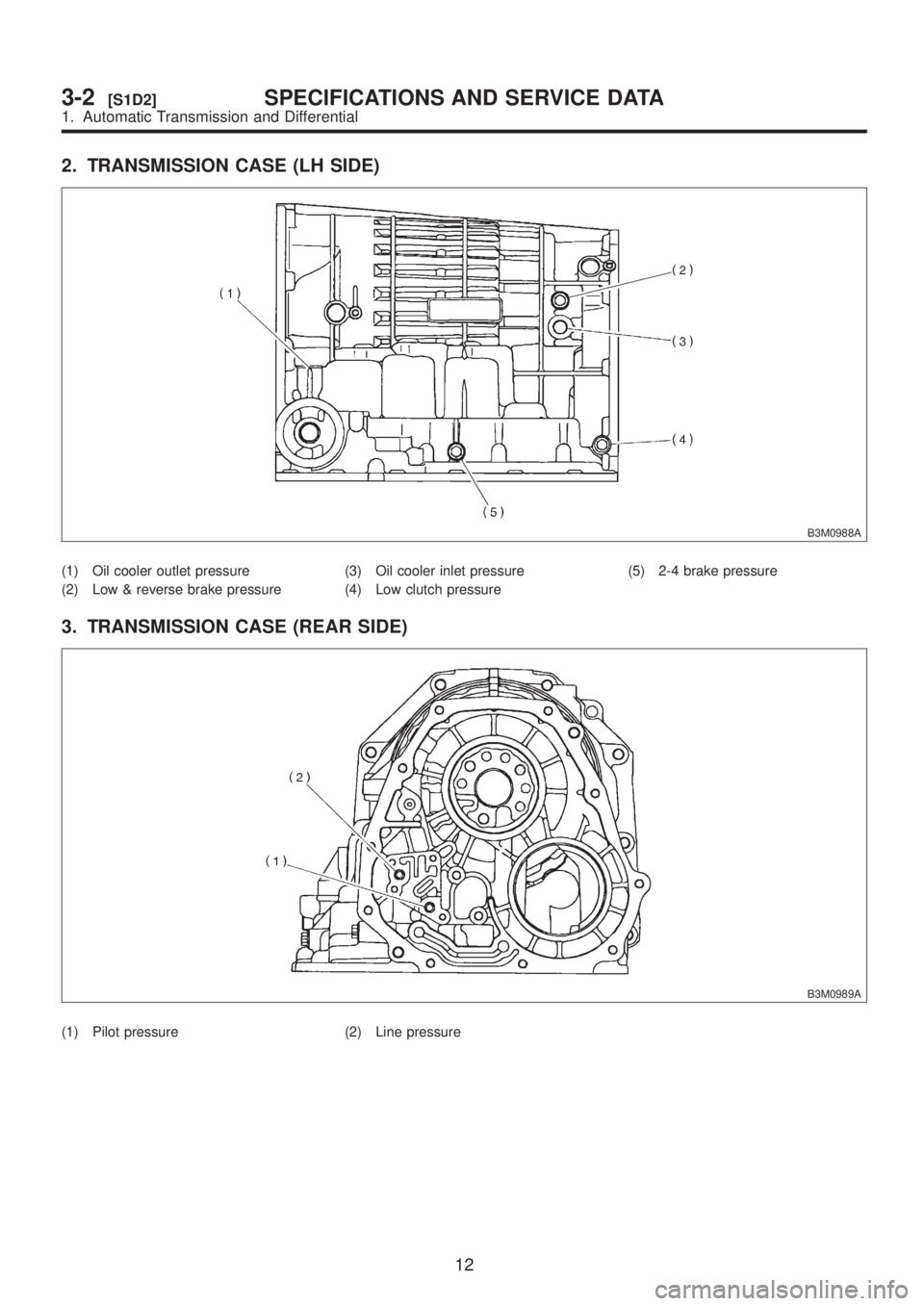

2. TRANSMISSION CASE (LH SIDE)
B3M0988A
(1) Oil cooler outlet pressure
(2) Low & reverse brake pressure(3) Oil cooler inlet pressure
(4) Low clutch pressure(5) 2-4 brake pressure
3. TRANSMISSION CASE (REAR SIDE)
B3M0989A
(1) Pilot pressure (2) Line pressure
12
3-2[S1D2]SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

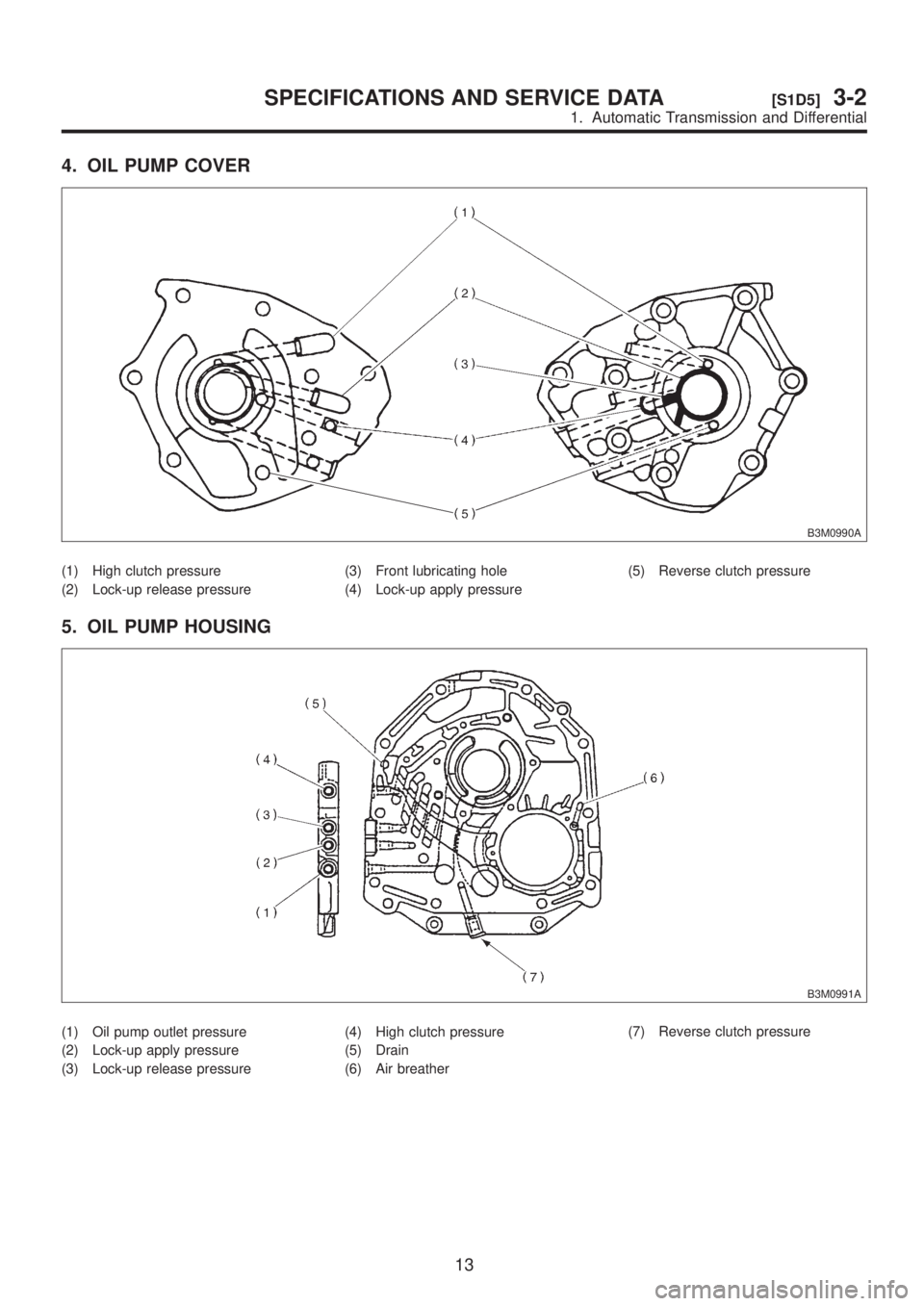

4. OIL PUMP COVER
B3M0990A
(1) High clutch pressure
(2) Lock-up release pressure(3) Front lubricating hole
(4) Lock-up apply pressure(5) Reverse clutch pressure
5. OIL PUMP HOUSING
B3M0991A
(1) Oil pump outlet pressure
(2) Lock-up apply pressure
(3) Lock-up release pressure(4) High clutch pressure
(5) Drain
(6) Air breather(7) Reverse clutch pressure
13
[S1D5]3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

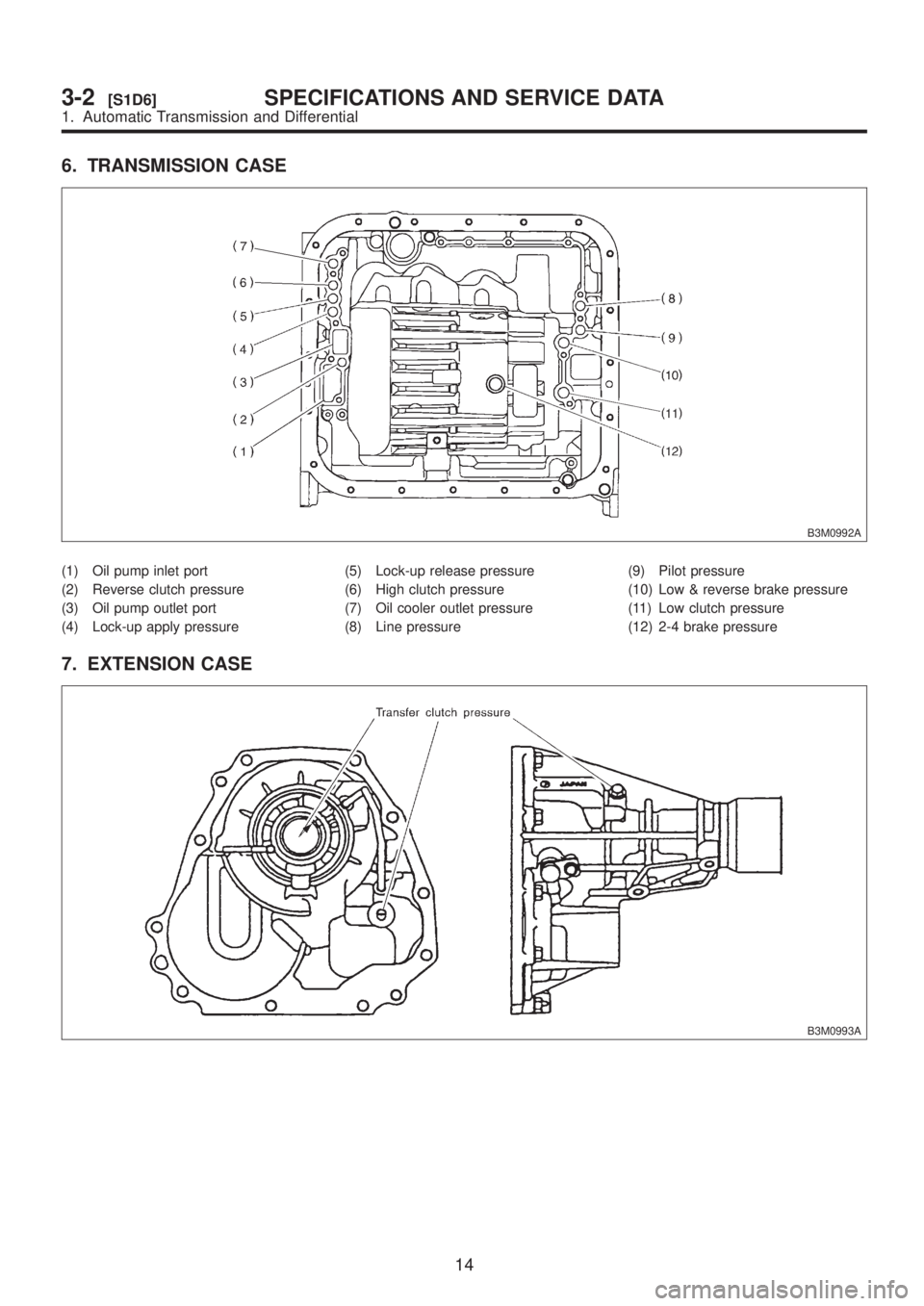

6. TRANSMISSION CASE
B3M0992A
(1) Oil pump inlet port
(2) Reverse clutch pressure
(3) Oil pump outlet port
(4) Lock-up apply pressure(5) Lock-up release pressure
(6) High clutch pressure
(7) Oil cooler outlet pressure
(8) Line pressure(9) Pilot pressure
(10) Low & reverse brake pressure
(11) Low clutch pressure
(12) 2-4 brake pressure
7. EXTENSION CASE
B3M0993A
14
3-2[S1D6]SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

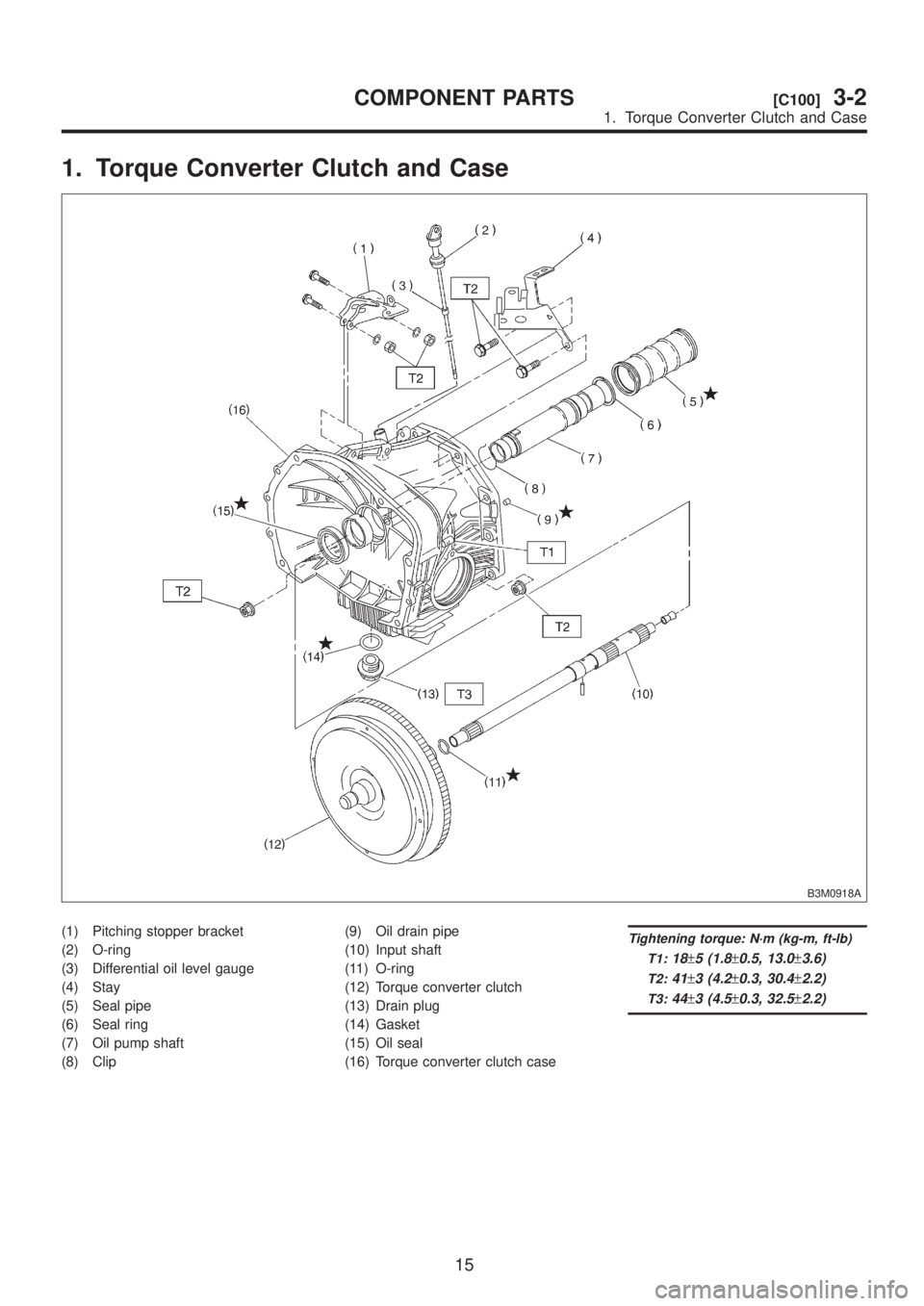

1. Torque Converter Clutch and Case
B3M0918A
(1) Pitching stopper bracket
(2) O-ring
(3) Differential oil level gauge
(4) Stay
(5) Seal pipe
(6) Seal ring
(7) Oil pump shaft
(8) Clip(9) Oil drain pipe
(10) Input shaft
(11) O-ring
(12) Torque converter clutch
(13) Drain plug
(14) Gasket
(15) Oil seal
(16) Torque converter clutch caseTightening torque: N´m (kg-m, ft-lb)
T1:
18±5 (1.8±0.5, 13.0±3.6)
T2:41±3 (4.2±0.3, 30.4±2.2)
T3:44±3 (4.5±0.3, 32.5±2.2)
15
[C100]3-2COMPONENT PARTS
1. Torque Converter Clutch and Case

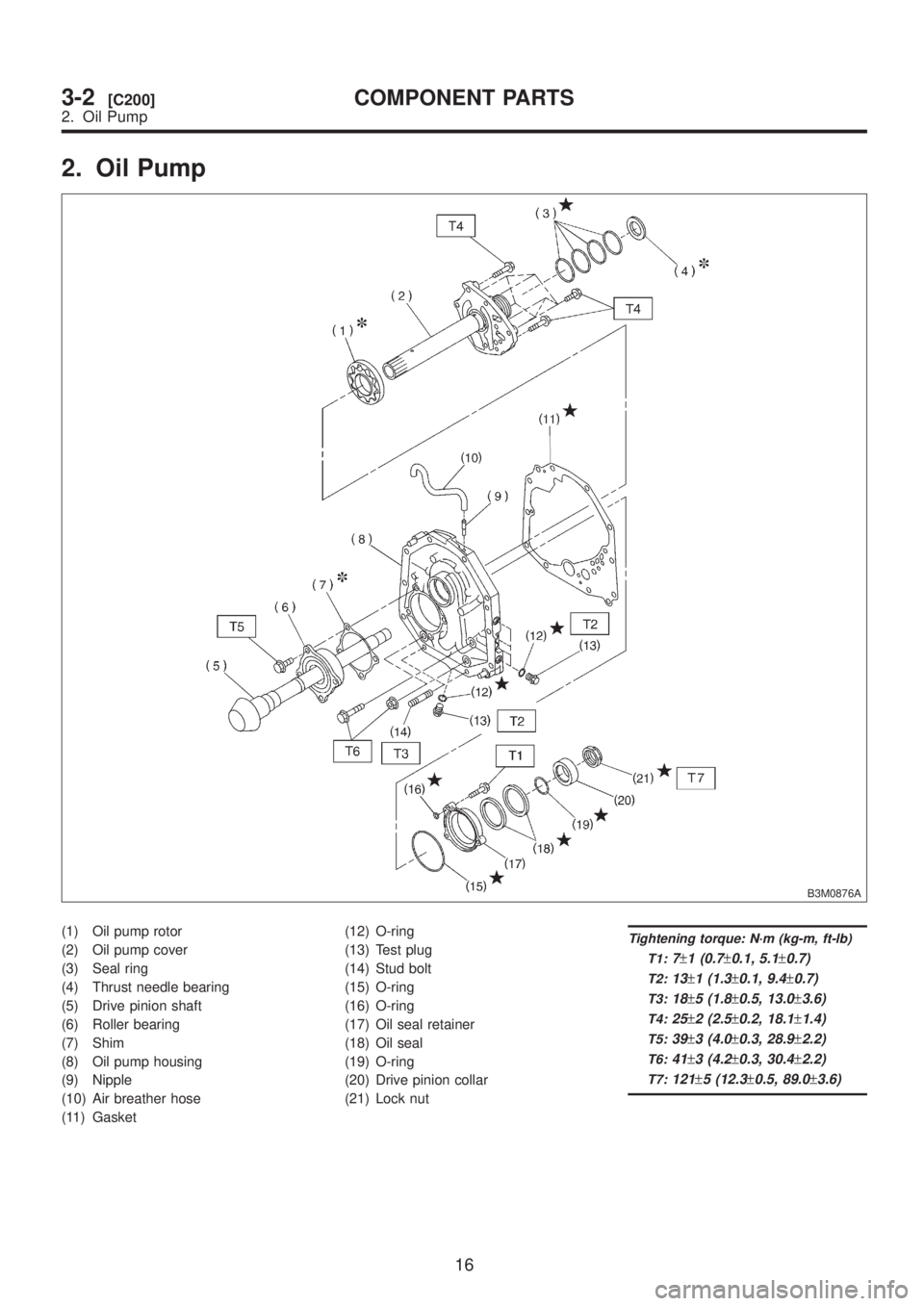

2. Oil Pump
B3M0876A
(1) Oil pump rotor
(2) Oil pump cover
(3) Seal ring
(4) Thrust needle bearing
(5) Drive pinion shaft
(6) Roller bearing
(7) Shim
(8) Oil pump housing
(9) Nipple
(10) Air breather hose
(11) Gasket(12) O-ring
(13) Test plug
(14) Stud bolt
(15) O-ring
(16) O-ring
(17) Oil seal retainer
(18) Oil seal
(19) O-ring
(20) Drive pinion collar
(21) Lock nutTightening torque: N´m (kg-m, ft-lb)
T1:
7±1 (0.7±0.1, 5.1±0.7)
T2:13±1 (1.3±0.1, 9.4±0.7)
T3:18±5 (1.8±0.5, 13.0±3.6)
T4:25±2 (2.5±0.2, 18.1±1.4)
T5:39±3 (4.0±0.3, 28.9±2.2)
T6:41±3 (4.2±0.3, 30.4±2.2)
T7:121±5 (12.3±0.5, 89.0±3.6)
16
3-2[C200]COMPONENT PARTS
2. Oil Pump

MEMO:
17
[C200]3-2COMPONENT PARTS
2. Oil Pump

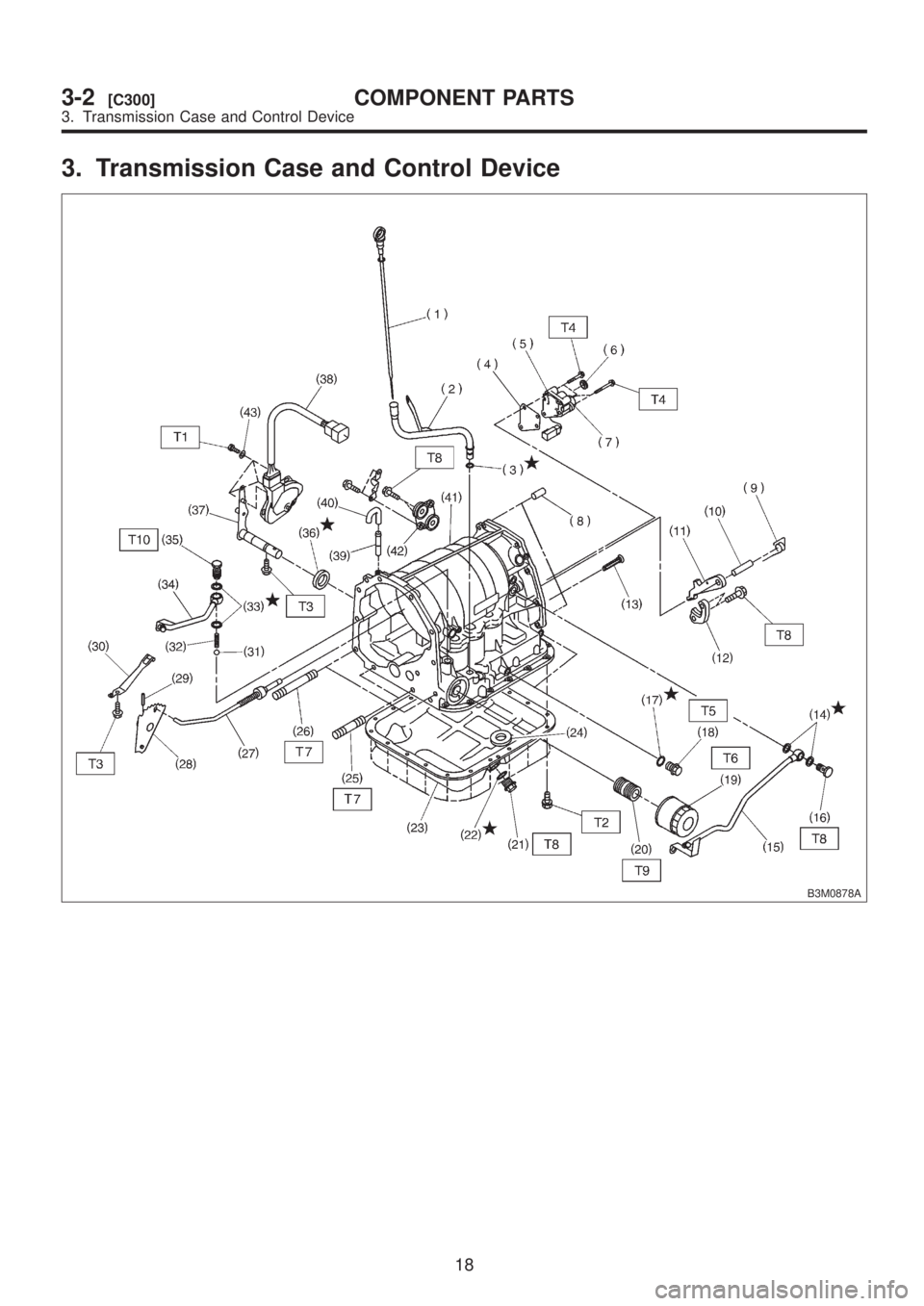

3. Transmission Case and Control Device
B3M0878A
18
3-2[C300]COMPONENT PARTS
3. Transmission Case and Control Device

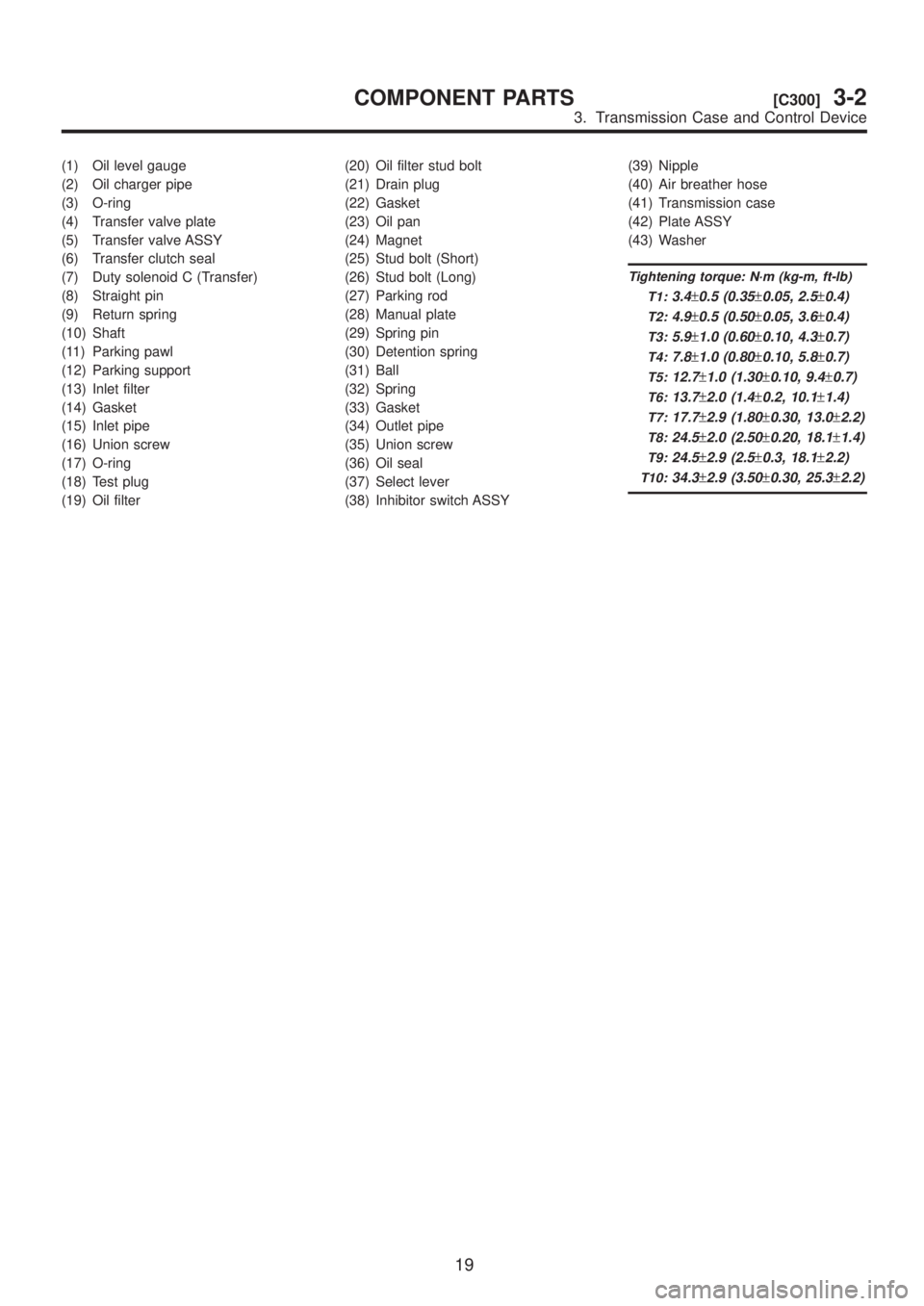

(1) Oil level gauge
(2) Oil charger pipe
(3) O-ring
(4) Transfer valve plate
(5) Transfer valve ASSY
(6) Transfer clutch seal
(7) Duty solenoid C (Transfer)
(8) Straight pin
(9) Return spring
(10) Shaft
(11) Parking pawl
(12) Parking support
(13) Inlet filter
(14) Gasket
(15) Inlet pipe
(16) Union screw
(17) O-ring
(18) Test plug
(19) Oil filter(20) Oil filter stud bolt
(21) Drain plug
(22) Gasket
(23) Oil pan
(24) Magnet
(25) Stud bolt (Short)
(26) Stud bolt (Long)
(27) Parking rod
(28) Manual plate
(29) Spring pin
(30) Detention spring
(31) Ball
(32) Spring
(33) Gasket
(34) Outlet pipe
(35) Union screw
(36) Oil seal
(37) Select lever
(38) Inhibitor switch ASSY(39) Nipple
(40) Air breather hose
(41) Transmission case
(42) Plate ASSY
(43) Washer
Tightening torque: N´m (kg-m, ft-lb)
T1:
3.4±0.5 (0.35±0.05, 2.5±0.4)
T2:4.9±0.5 (0.50±0.05, 3.6±0.4)
T3:5.9±1.0 (0.60±0.10, 4.3±0.7)
T4:7.8±1.0 (0.80±0.10, 5.8±0.7)
T5:12.7±1.0 (1.30±0.10, 9.4±0.7)
T6:13.7±2.0 (1.4±0.2, 10.1±1.4)
T7:17.7±2.9 (1.80±0.30, 13.0±2.2)
T8:24.5±2.0 (2.50±0.20, 18.1±1.4)
T9:24.5±2.9 (2.5±0.3, 18.1±2.2)
T10:34.3±2.9 (3.50±0.30, 25.3±2.2)
19
[C300]3-2COMPONENT PARTS
3. Transmission Case and Control Device
