7) Check parts that have been removed for cracks
or scratches, and repair or replace them with new
ones, if necessary.
8) Reassemble the evaporator in the reverse
order of disassembly.
NOTE:
Confirm that the O-ring is inserted in the specified
position.15. Condenser Fan Assembly

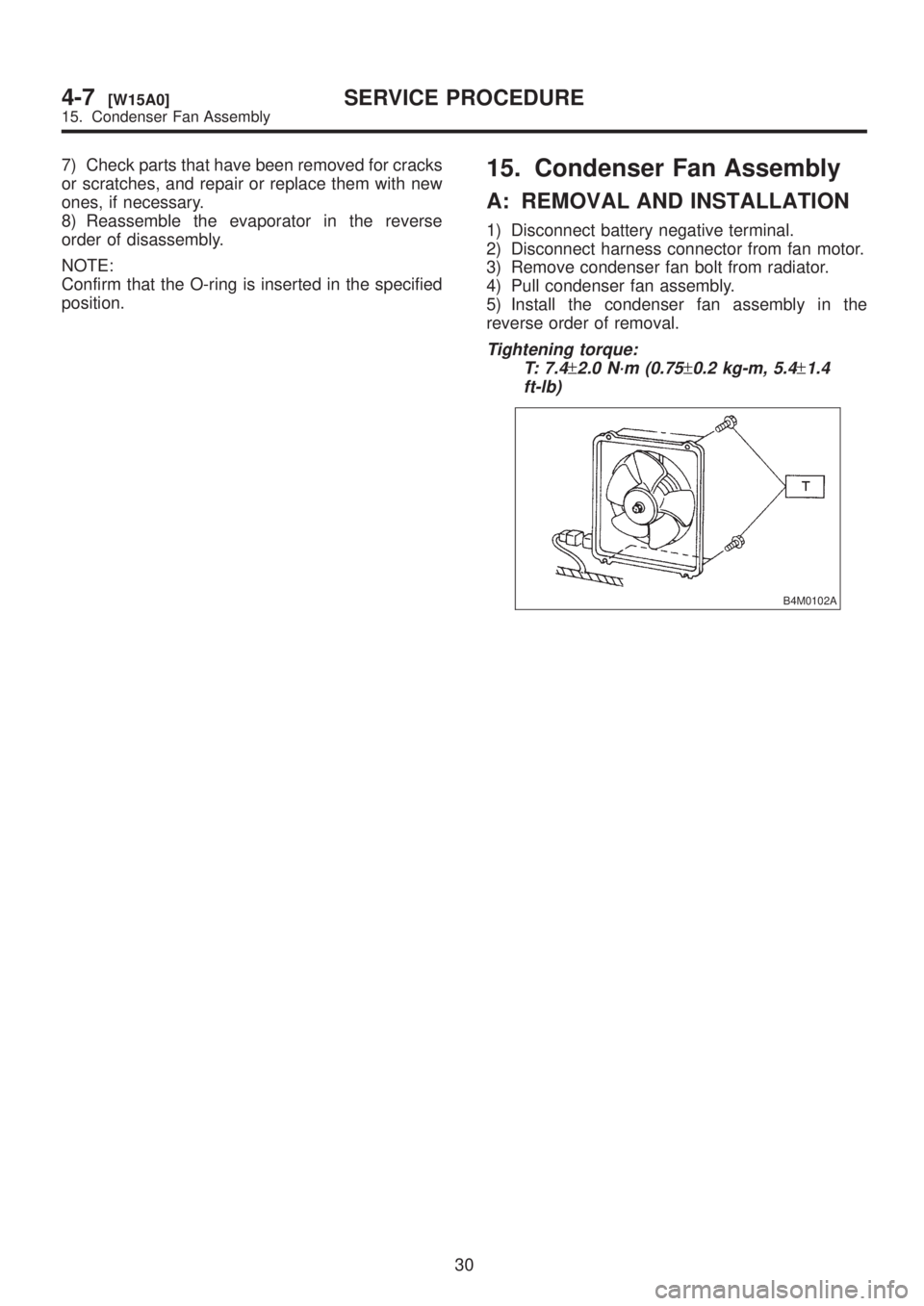

A: REMOVAL AND INSTALLATION
1) Disconnect battery negative terminal.
2) Disconnect harness connector from fan motor.
3) Remove condenser fan bolt from radiator.
4) Pull condenser fan assembly.
5) Install the condenser fan assembly in the
reverse order of removal.
Tightening torque:
T: 7.4
±2.0 N´m (0.75±0.2 kg-m, 5.4±1.4
ft-lb)
B4M0102A
30
4-7[W15A0]SERVICE PROCEDURE
15. Condenser Fan Assembly

7) Check parts that have been removed for cracks
or scratches, and repair or replace them with new
ones, if necessary.
8) Reassemble the evaporator in the reverse
order of disassembly.
NOTE:
Confirm that the O-ring is inserted in the specified
position.15. Condenser Fan Assembly
A: REMOVAL AND INSTALLATION
1) Disconnect battery negative terminal.
2) Disconnect harness connector from fan motor.
3) Remove condenser fan bolt from radiator.
4) Pull condenser fan assembly.
5) Install the condenser fan assembly in the
reverse order of removal.
Tightening torque:
T: 7.4
±2.0 N´m (0.75±0.2 kg-m, 5.4±1.4
ft-lb)
B4M0102A
30
4-7[W15A0]SERVICE PROCEDURE
15. Condenser Fan Assembly

16. Flexible Hose

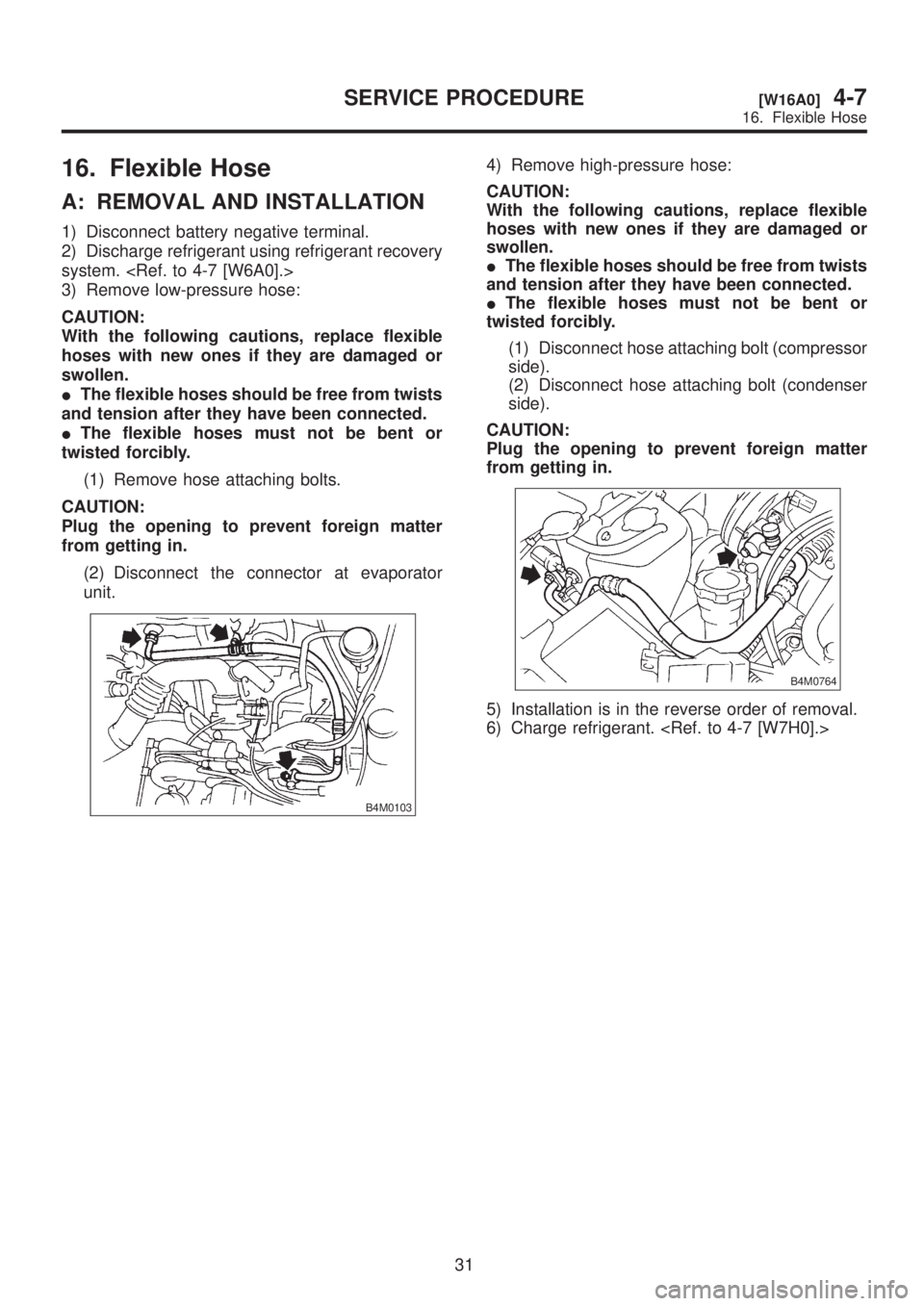

A: REMOVAL AND INSTALLATION
1) Disconnect battery negative terminal.
2) Discharge refrigerant using refrigerant recovery
system.
3) Remove low-pressure hose:
CAUTION:
With the following cautions, replace flexible
hoses with new ones if they are damaged or
swollen.
IThe flexible hoses should be free from twists
and tension after they have been connected.
IThe flexible hoses must not be bent or
twisted forcibly.
(1) Remove hose attaching bolts.
CAUTION:
Plug the opening to prevent foreign matter
from getting in.
(2) Disconnect the connector at evaporator
unit.
B4M0103
4) Remove high-pressure hose:
CAUTION:
With the following cautions, replace flexible
hoses with new ones if they are damaged or
swollen.
IThe flexible hoses should be free from twists
and tension after they have been connected.
IThe flexible hoses must not be bent or
twisted forcibly.
(1) Disconnect hose attaching bolt (compressor
side).
(2) Disconnect hose attaching bolt (condenser
side).
CAUTION:
Plug the opening to prevent foreign matter
from getting in.
B4M0764
5) Installation is in the reverse order of removal.
6) Charge refrigerant.
31
[W16A0]4-7SERVICE PROCEDURE
16. Flexible Hose

17. Relay and Fuse
A: LOCATION

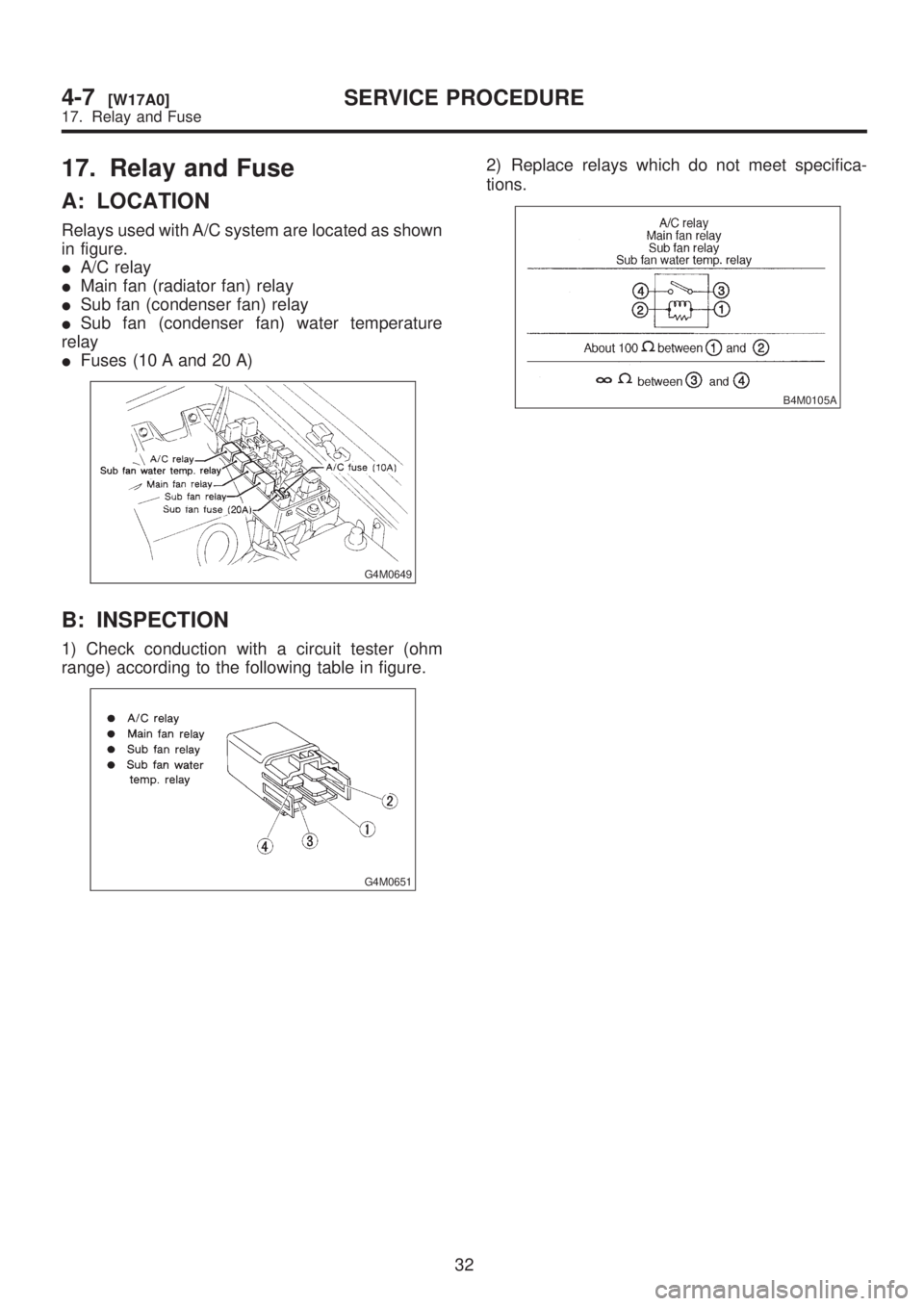

Relays used with A/C system are located as shown
in figure.
IA/C relay
IMain fan (radiator fan) relay
ISub fan (condenser fan) relay
ISub fan (condenser fan) water temperature
relay
IFuses (10 A and 20 A)
G4M0649
B: INSPECTION
1) Check conduction with a circuit tester (ohm
range) according to the following table in figure.
G4M0651
2) Replace relays which do not meet specifica-
tions.
B4M0105A
32
4-7[W17A0]SERVICE PROCEDURE
17. Relay and Fuse

18. Pressure Switch (Dual
Switch)

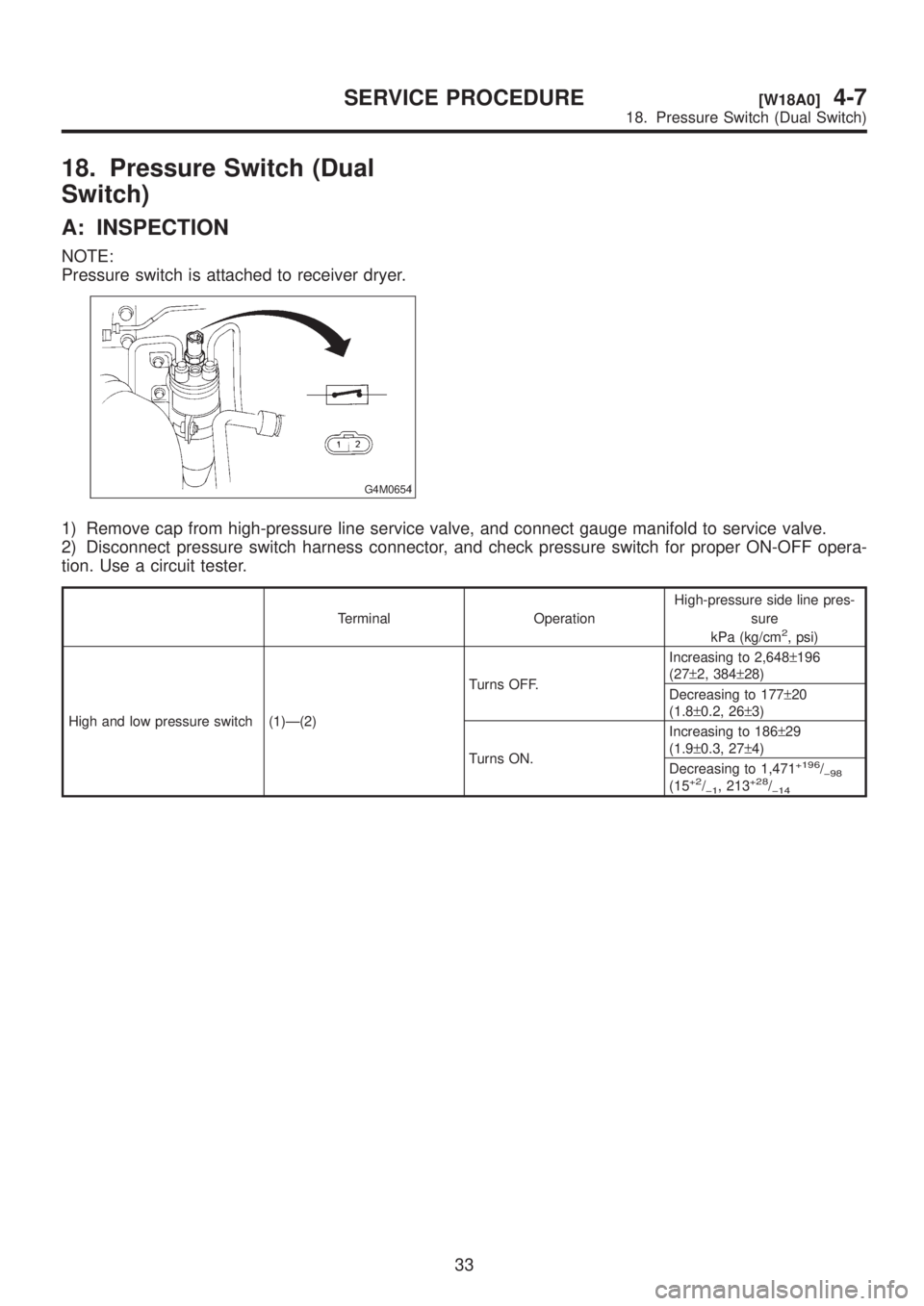

A: INSPECTION
NOTE:
Pressure switch is attached to receiver dryer.
G4M0654
1) Remove cap from high-pressure line service valve, and connect gauge manifold to service valve.
2) Disconnect pressure switch harness connector, and check pressure switch for proper ON-OFF opera-
tion. Use a circuit tester.
Terminal OperationHigh-pressure side line pres-
sure
kPa (kg/cm2, psi)
High and low pressure switch (1)Ð(2)Turns OFF.Increasing to 2,648±196
(27±2, 384±28)
Decreasing to 177±20
(1.8±0.2, 26±3)
Turns ON.Increasing to 186±29
(1.9±0.3, 27±4)
Decreasing to 1,471
+196/þ98(15+2/þ1, 213+28/þ14
33
[W18A0]4-7SERVICE PROCEDURE
18. Pressure Switch (Dual Switch)

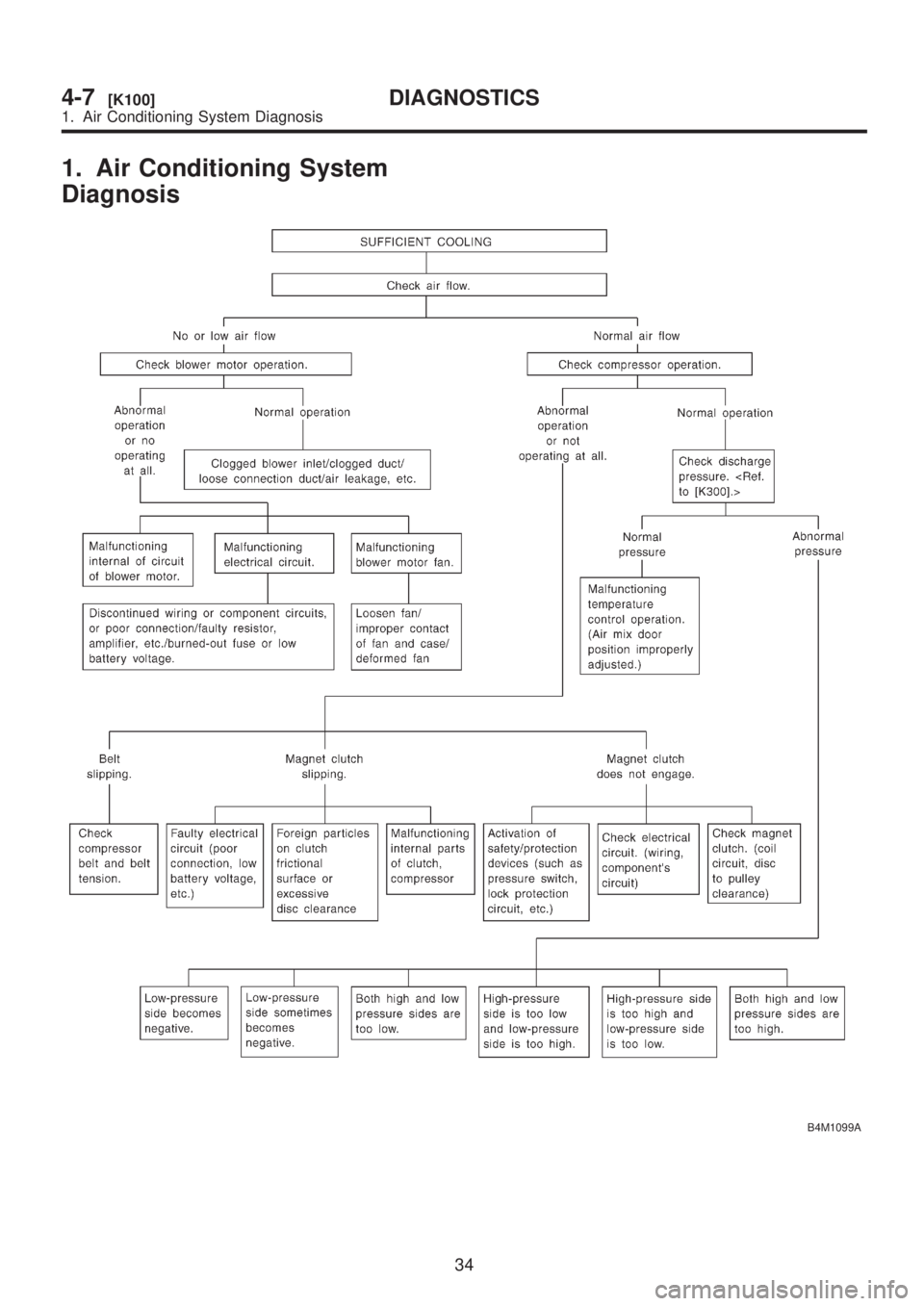

1. Air Conditioning System
Diagnosis
B4M1099A
34
4-7[K100]DIAGNOSTICS
1. Air Conditioning System Diagnosis

2. Performance Test Diagnosis

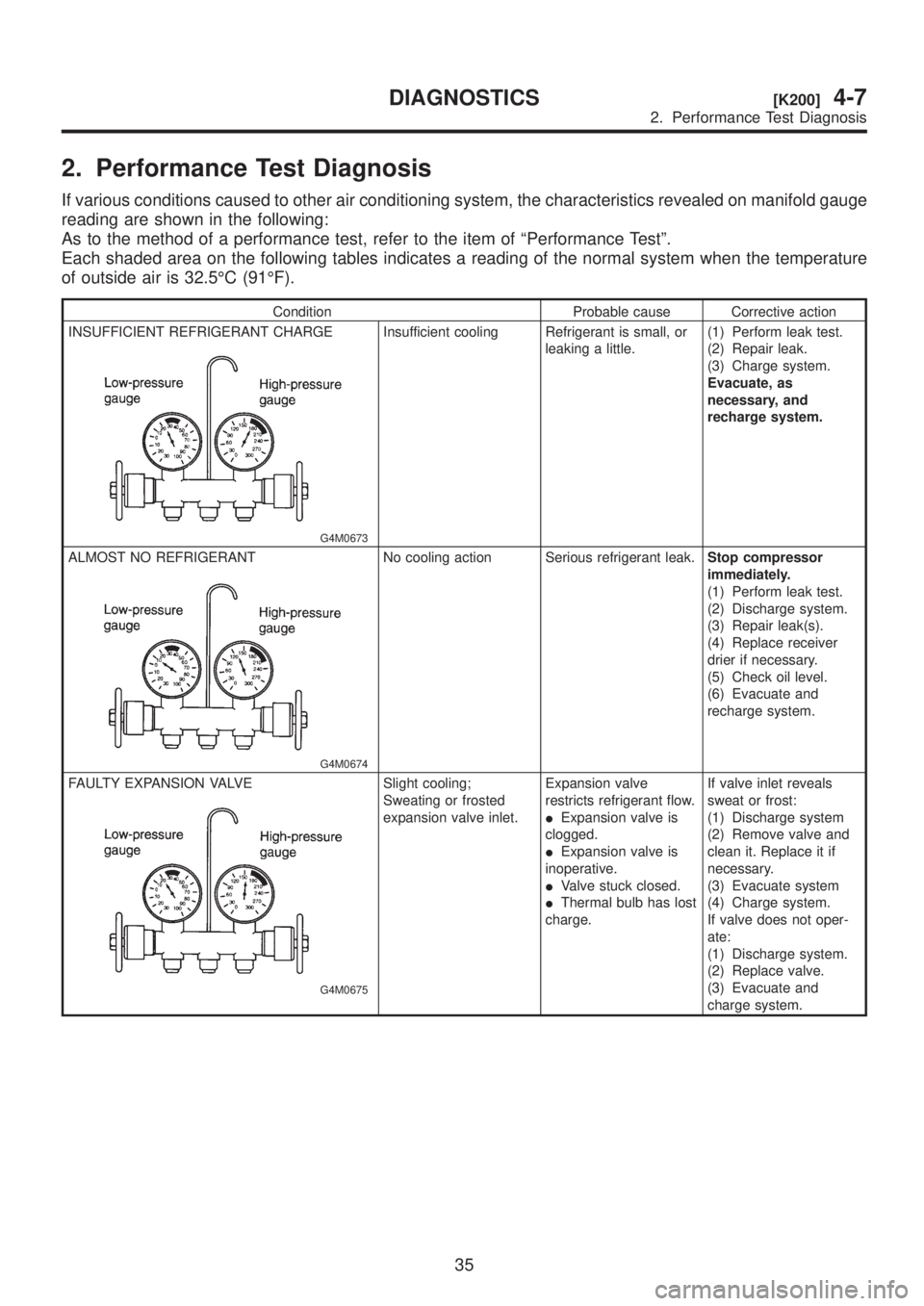

If various conditions caused to other air conditioning system, the characteristics revealed on manifold gauge
reading are shown in the following:
As to the method of a performance test, refer to the item of ªPerformance Testº.
Each shaded area on the following tables indicates a reading of the normal system when the temperature
of outside air is 32.5ÉC (91ÉF).
Condition Probable cause Corrective action
INSUFFICIENT REFRIGERANT CHARGE
G4M0673
Insufficient cooling Refrigerant is small, or
leaking a little.(1) Perform leak test.
(2) Repair leak.
(3) Charge system.
Evacuate, as
necessary, and
recharge system.
ALMOST NO REFRIGERANT
G4M0674
No cooling action Serious refrigerant leak.Stop compressor
immediately.
(1) Perform leak test.
(2) Discharge system.
(3) Repair leak(s).
(4) Replace receiver
drier if necessary.
(5) Check oil level.
(6) Evacuate and
recharge system.
FAULTY EXPANSION VALVE
G4M0675
Slight cooling;
Sweating or frosted
expansion valve inlet.Expansion valve
restricts refrigerant flow.
IExpansion valve is
clogged.
IExpansion valve is
inoperative.
IValve stuck closed.
IThermal bulb has lost
charge.If valve inlet reveals
sweat or frost:
(1) Discharge system
(2) Remove valve and
clean it. Replace it if
necessary.
(3) Evacuate system
(4) Charge system.
If valve does not oper-
ate:
(1) Discharge system.
(2) Replace valve.
(3) Evacuate and
charge system.
35
[K200]4-7DIAGNOSTICS
2. Performance Test Diagnosis

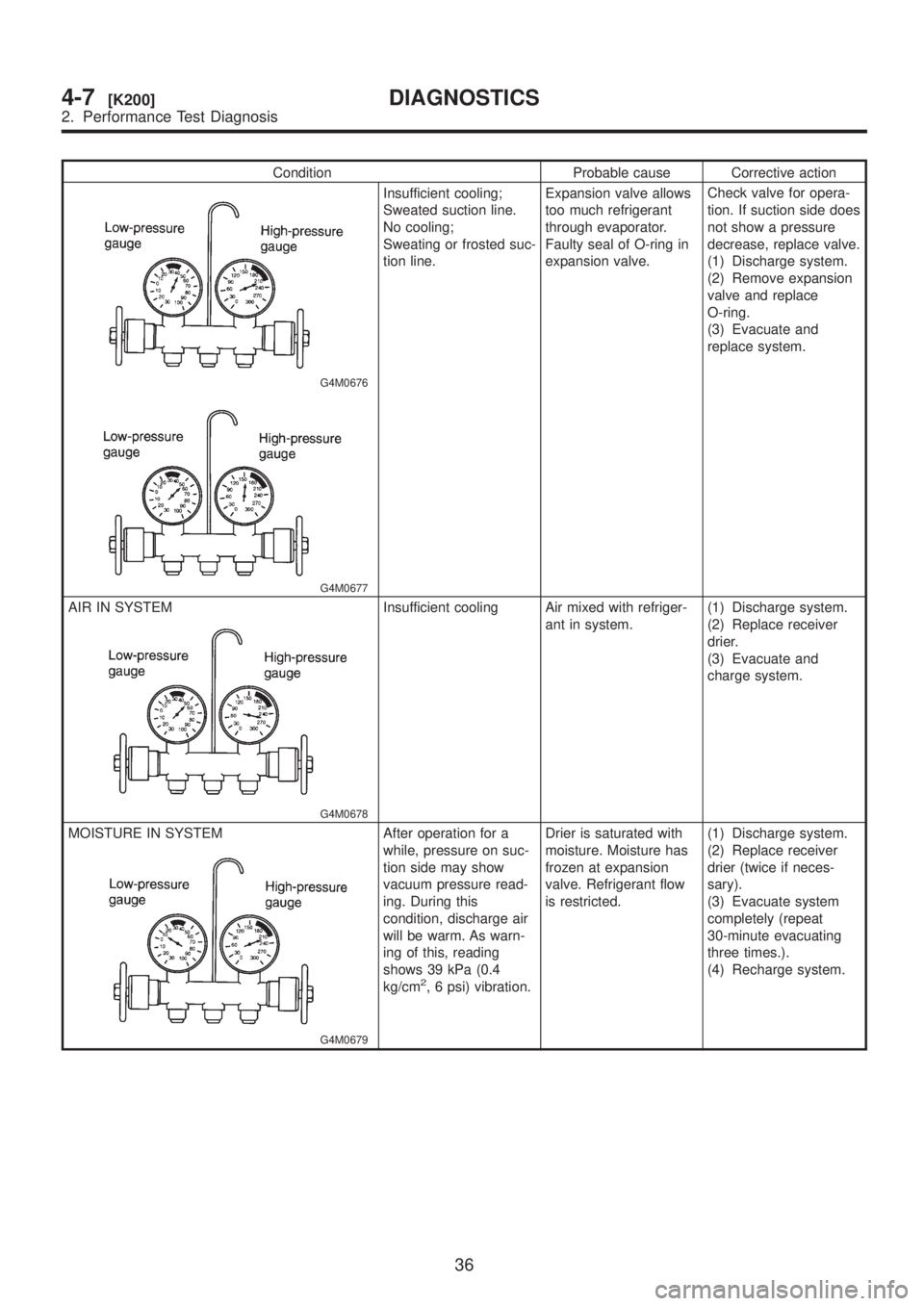

Condition Probable cause Corrective action
G4M0676
G4M0677
Insufficient cooling;
Sweated suction line.
No cooling;
Sweating or frosted suc-
tion line.Expansion valve allows
too much refrigerant
through evaporator.
Faulty seal of O-ring in
expansion valve.Check valve for opera-
tion. If suction side does
not show a pressure
decrease, replace valve.
(1) Discharge system.
(2) Remove expansion
valve and replace
O-ring.
(3) Evacuate and
replace system.
AIR IN SYSTEM
G4M0678
Insufficient cooling Air mixed with refriger-
ant in system.(1) Discharge system.
(2) Replace receiver
drier.
(3) Evacuate and
charge system.
MOISTURE IN SYSTEM
G4M0679
After operation for a
while, pressure on suc-
tion side may show
vacuum pressure read-
ing. During this
condition, discharge air
will be warm. As warn-
ing of this, reading
shows 39 kPa (0.4
kg/cm
2, 6 psi) vibration.Drier is saturated with
moisture. Moisture has
frozen at expansion
valve. Refrigerant flow
is restricted.(1) Discharge system.
(2) Replace receiver
drier (twice if neces-
sary).
(3) Evacuate system
completely (repeat
30-minute evacuating
three times.).
(4) Recharge system.
36
4-7[K200]DIAGNOSTICS
