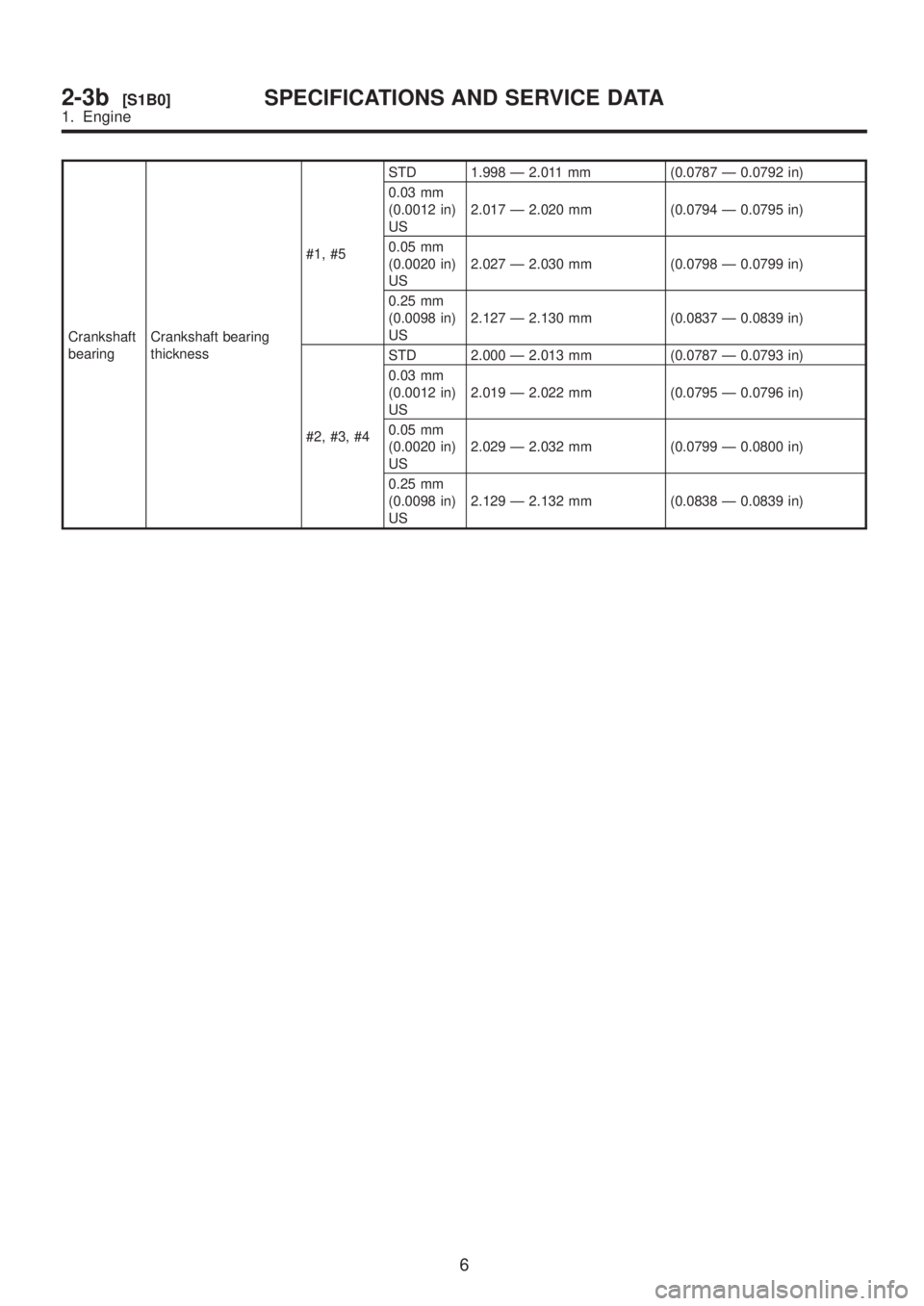

Crankshaft
bearingCrankshaft bearing
thickness#1, #5STD 1.998 Ð 2.011 mm (0.0787 Ð 0.0792 in)
0.03 mm
(0.0012 in)
US2.017 Ð 2.020 mm (0.0794 Ð 0.0795 in)
0.05 mm
(0.0020 in)
US2.027 Ð 2.030 mm (0.0798 Ð 0.0799 in)
0.25 mm
(0.0098 in)
US2.127 Ð 2.130 mm (0.0837 Ð 0.0839 in)
#2, #3, #4STD 2.000 Ð 2.013 mm (0.0787 Ð 0.0793 in)
0.03 mm
(0.0012 in)
US2.019 Ð 2.022 mm (0.0795 Ð 0.0796 in)
0.05 mm
(0.0020 in)
US2.029 Ð 2.032 mm (0.0799 Ð 0.0800 in)
0.25 mm
(0.0098 in)
US2.129 Ð 2.132 mm (0.0838 Ð 0.0839 in)
6
2-3b[S1B0]SPECIFICATIONS AND SERVICE DATA
1. Engine

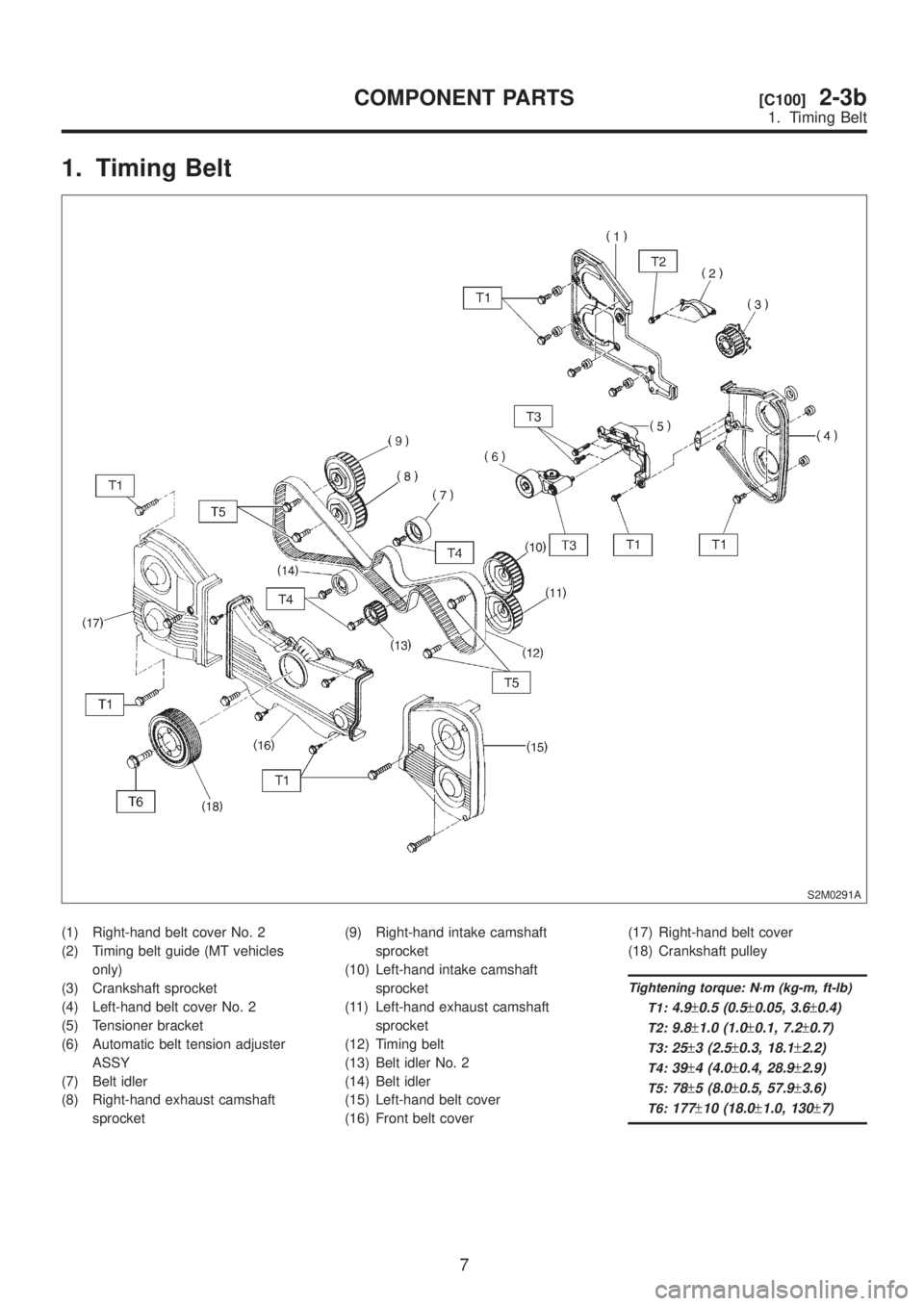

1. Timing Belt
S2M0291A
(1) Right-hand belt cover No. 2
(2) Timing belt guide (MT vehicles
only)
(3) Crankshaft sprocket
(4) Left-hand belt cover No. 2
(5) Tensioner bracket
(6) Automatic belt tension adjuster
ASSY
(7) Belt idler
(8) Right-hand exhaust camshaft
sprocket(9) Right-hand intake camshaft
sprocket
(10) Left-hand intake camshaft
sprocket
(11) Left-hand exhaust camshaft
sprocket
(12) Timing belt
(13) Belt idler No. 2
(14) Belt idler
(15) Left-hand belt cover
(16) Front belt cover(17) Right-hand belt cover
(18) Crankshaft pulley
Tightening torque: N´m (kg-m, ft-lb)
T1:
4.9±0.5 (0.5±0.05, 3.6±0.4)
T2:9.8±1.0 (1.0±0.1, 7.2±0.7)
T3:25±3 (2.5±0.3, 18.1±2.2)
T4:39±4 (4.0±0.4, 28.9±2.9)
T5:78±5 (8.0±0.5, 57.9±3.6)
T6:177±10 (18.0±1.0, 130±7)
7
[C100]2-3bCOMPONENT PARTS
1. Timing Belt

2. Cylinder Head and Camshaft
S2M0292C
8
2-3b[C200]COMPONENT PARTS

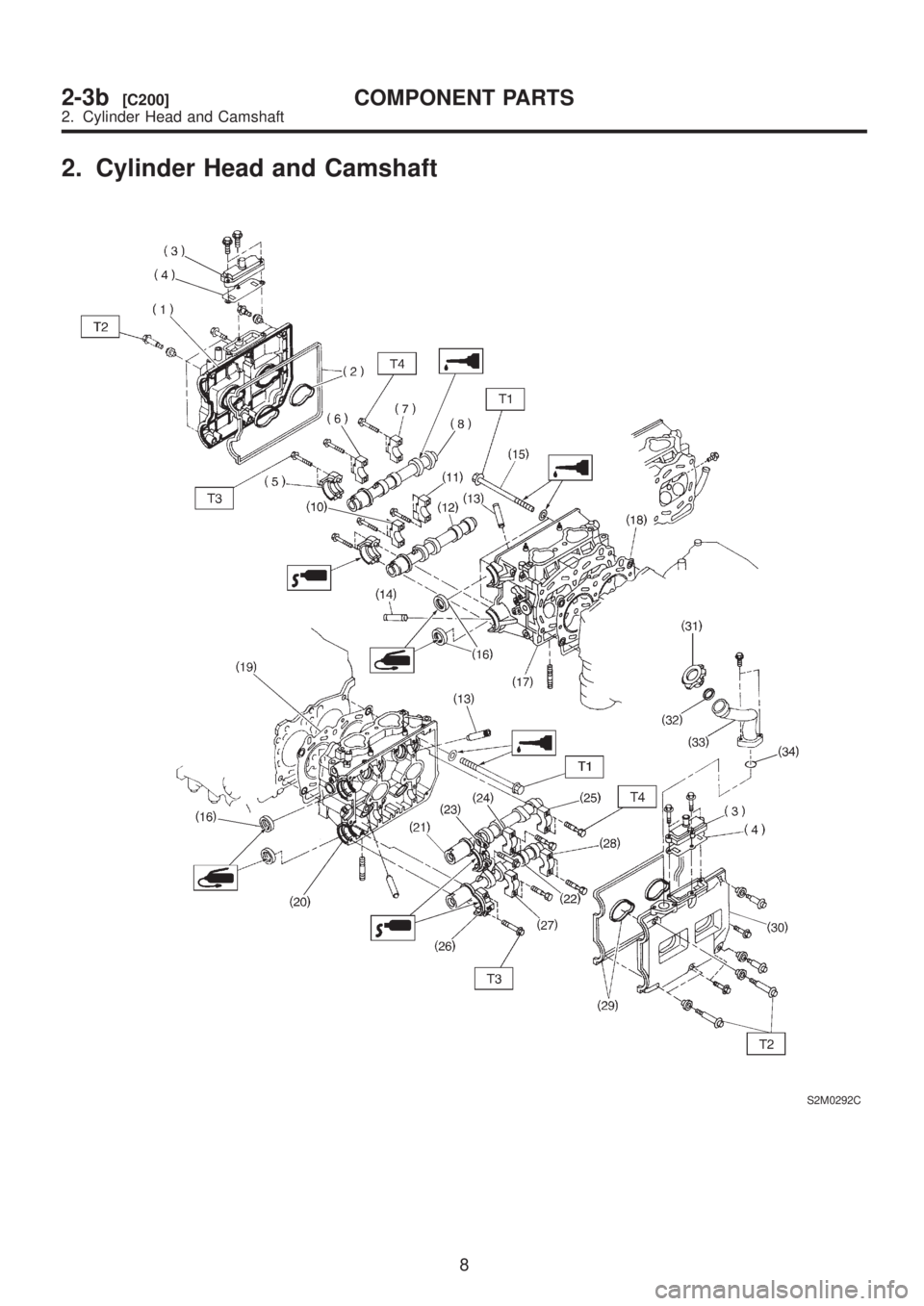

2. Cylinder Head and Camshaft

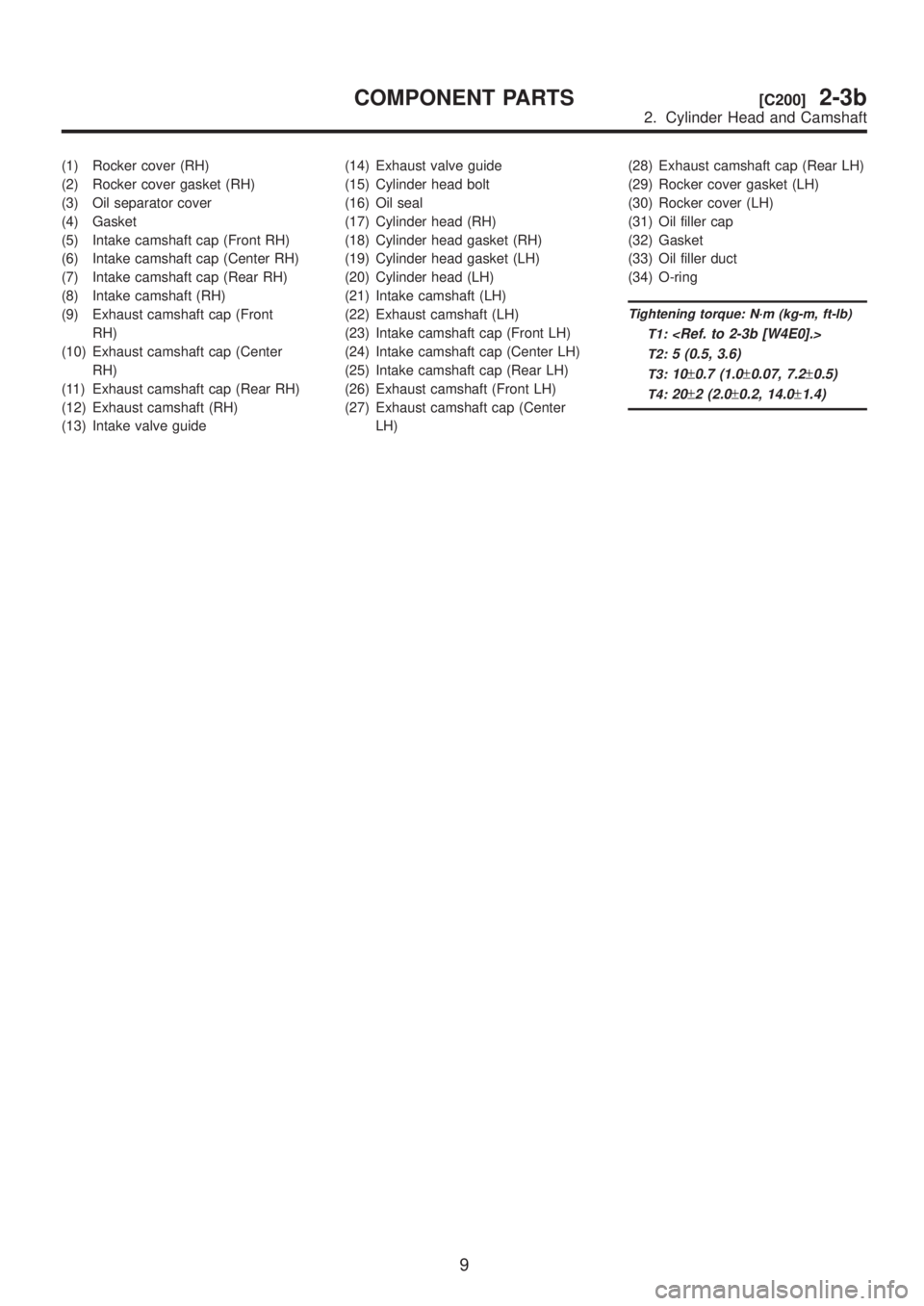

(1) Rocker cover (RH)
(2) Rocker cover gasket (RH)
(3) Oil separator cover
(4) Gasket
(5) Intake camshaft cap (Front RH)
(6) Intake camshaft cap (Center RH)
(7) Intake camshaft cap (Rear RH)
(8) Intake camshaft (RH)
(9) Exhaust camshaft cap (Front
RH)
(10) Exhaust camshaft cap (Center
RH)
(11) Exhaust camshaft cap (Rear RH)
(12) Exhaust camshaft (RH)
(13) Intake valve guide(14) Exhaust valve guide
(15) Cylinder head bolt
(16) Oil seal
(17) Cylinder head (RH)
(18) Cylinder head gasket (RH)
(19) Cylinder head gasket (LH)
(20) Cylinder head (LH)
(21) Intake camshaft (LH)
(22) Exhaust camshaft (LH)
(23) Intake camshaft cap (Front LH)
(24) Intake camshaft cap (Center LH)
(25) Intake camshaft cap (Rear LH)
(26) Exhaust camshaft (Front LH)
(27) Exhaust camshaft cap (Center
LH)(28) Exhaust camshaft cap (Rear LH)
(29) Rocker cover gasket (LH)
(30) Rocker cover (LH)
(31) Oil filler cap
(32) Gasket
(33) Oil filler duct
(34) O-ring
Tightening torque: N´m (kg-m, ft-lb)
T1:

T2:5 (0.5, 3.6)
T3:10±0.7 (1.0±0.07, 7.2±0.5)
T4:20±2 (2.0±0.2, 14.0±1.4)
9
[C200]2-3bCOMPONENT PARTS
2. Cylinder Head and Camshaft

3. Cylinder Head and Valve
Assembly
S2M0406A
(1) Exhaust valve
(2) Intake valve
(3) Cylinder head
(4) Valve spring seat(5) Intake valve oil seal
(6) Valve spring
(7) Retainer
(8) Retainer key(9) Valve lifter
(10) Shim
(11) Exhaust valve oil seal
10
2-3b[C300]COMPONENT PARTS
3. Cylinder Head and Valve Assembly

4. Cylinder Block
B2M1766A

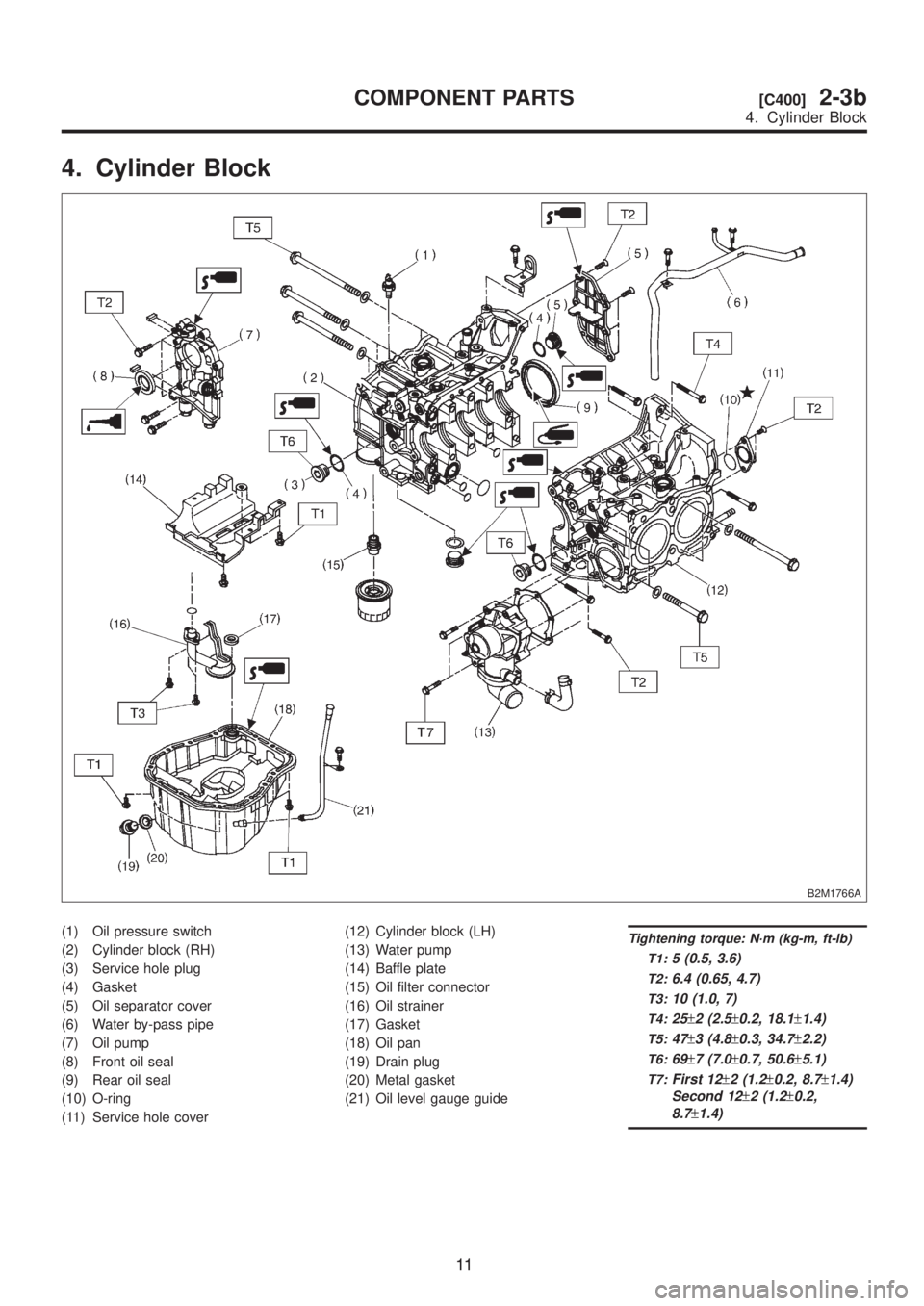

(1) Oil pressure switch
(2) Cylinder block (RH)
(3) Service hole plug
(4) Gasket
(5) Oil separator cover
(6) Water by-pass pipe
(7) Oil pump
(8) Front oil seal
(9) Rear oil seal
(10) O-ring
(11) Service hole cover(12) Cylinder block (LH)
(13) Water pump
(14) Baffle plate
(15) Oil filter connector
(16) Oil strainer
(17) Gasket
(18) Oil pan
(19) Drain plug
(20) Metal gasket
(21) Oil level gauge guideTightening torque: N´m (kg-m, ft-lb)
T1:
5 (0.5, 3.6)
T2:6.4 (0.65, 4.7)
T3:10 (1.0, 7)
T4:25±2 (2.5±0.2, 18.1±1.4)
T5:47±3 (4.8±0.3, 34.7±2.2)
T6:69±7 (7.0±0.7, 50.6±5.1)
T7:First 12±2 (1.2±0.2, 8.7±1.4)
Second 12
±2 (1.2±0.2,
8.7
±1.4)
11
[C400]2-3bCOMPONENT PARTS
4. Cylinder Block

5. Crankshaft and Piston
B2M1958A
(1) Flywheel (MT vehicles only)
(2) Bell bearing (MT vehicles only)
(3) Reinforcement (AT vehicles only)
(4) Drive plate (AT vehicles only)
(5) Top ring
(6) Second ring
(7) Oil ring
(8) Piston(9) Piston pin
(10) Circlip
(11) Connecting rod bolt
(12) Connecting rod
(13) Connecting rod bearing
(14) Connecting rod cap
(15) Crankshaft
(16) Woodruff key(17) Crankshaft bearing #1, #3
(18) Crankshaft bearing #2, #4
(19) Crankshaft bearing #5
Tightening torque: N´m (kg-m, ft-lb)
T1:
44±2 (4.5±0.2, 32.5±1.4)
T2:72±3 (7.3±0.3, 52.8±2.2)
12
2-3b[C500]COMPONENT PARTS
5. Crankshaft and Piston

1. Precautions
A: GENERAL PRECAUTIONS

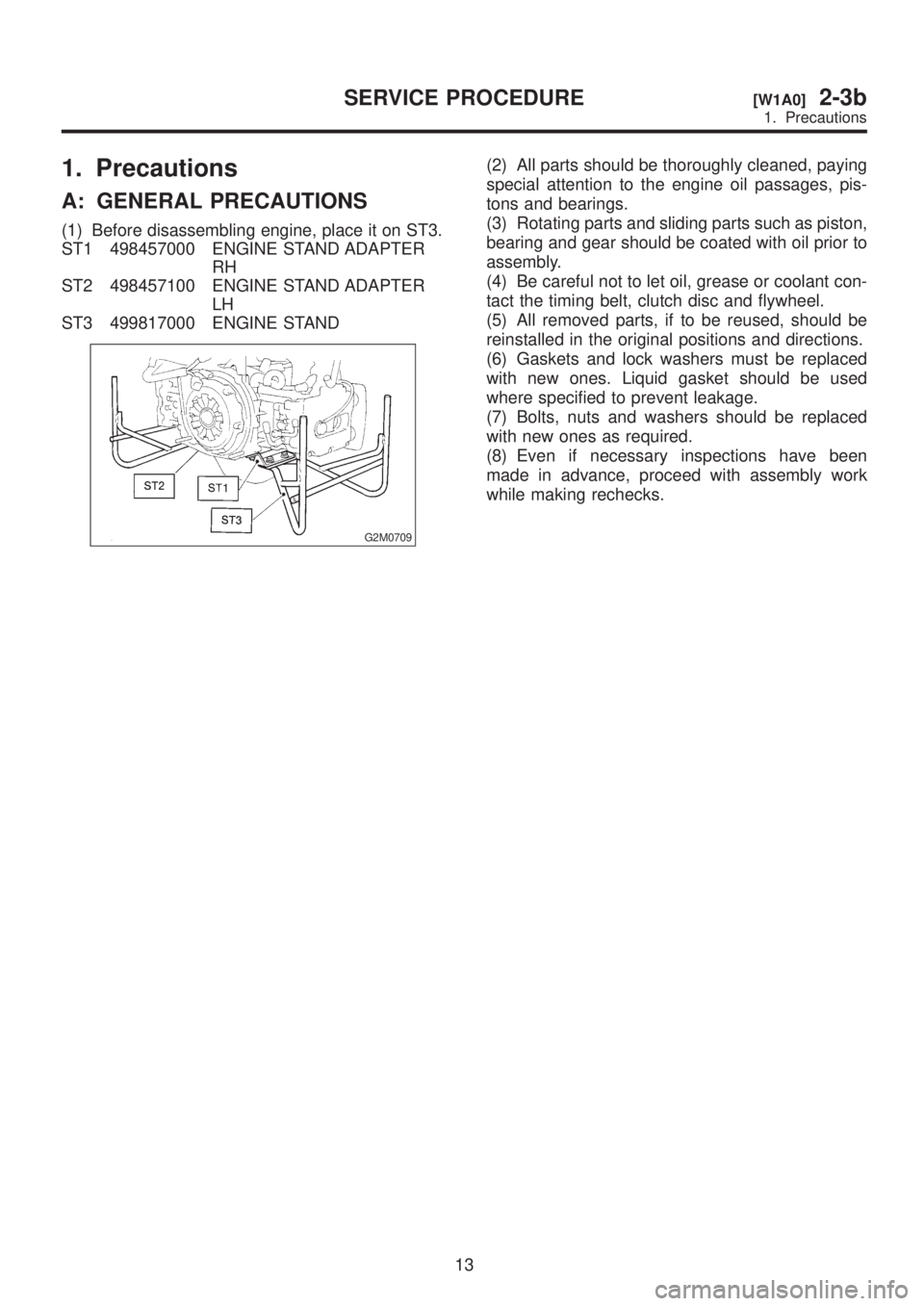

(1) Before disassembling engine, place it on ST3.
ST1 498457000 ENGINE STAND ADAPTER
RH
ST2 498457100 ENGINE STAND ADAPTER
LH
ST3 499817000 ENGINE STAND
G2M0709
(2) All parts should be thoroughly cleaned, paying
special attention to the engine oil passages, pis-
tons and bearings.
(3) Rotating parts and sliding parts such as piston,
bearing and gear should be coated with oil prior to
assembly.
(4) Be careful not to let oil, grease or coolant con-
tact the timing belt, clutch disc and flywheel.
(5) All removed parts, if to be reused, should be
reinstalled in the original positions and directions.
(6) Gaskets and lock washers must be replaced
with new ones. Liquid gasket should be used
where specified to prevent leakage.
(7) Bolts, nuts and washers should be replaced
with new ones as required.
(8) Even if necessary inspections have been
made in advance, proceed with assembly work
while making rechecks.
13
[W1A0]2-3bSERVICE PROCEDURE
1. Precautions
