1999 SUBARU LEGACY Service Repair Manual

4. Front Door Glass
B5M0054B
(1) Glass
(2) Regulator and motor ASSY
(3) Regulator handle (Except power
window)(4) Retainer spring
(5) Regulator ASSYTightening torque: N´m (kg-m, ft-lb)
T:
7.4±2.0 (0.75±0.2, 5.4±1.4)
6
5-2[C400]COMPONENT PARTS

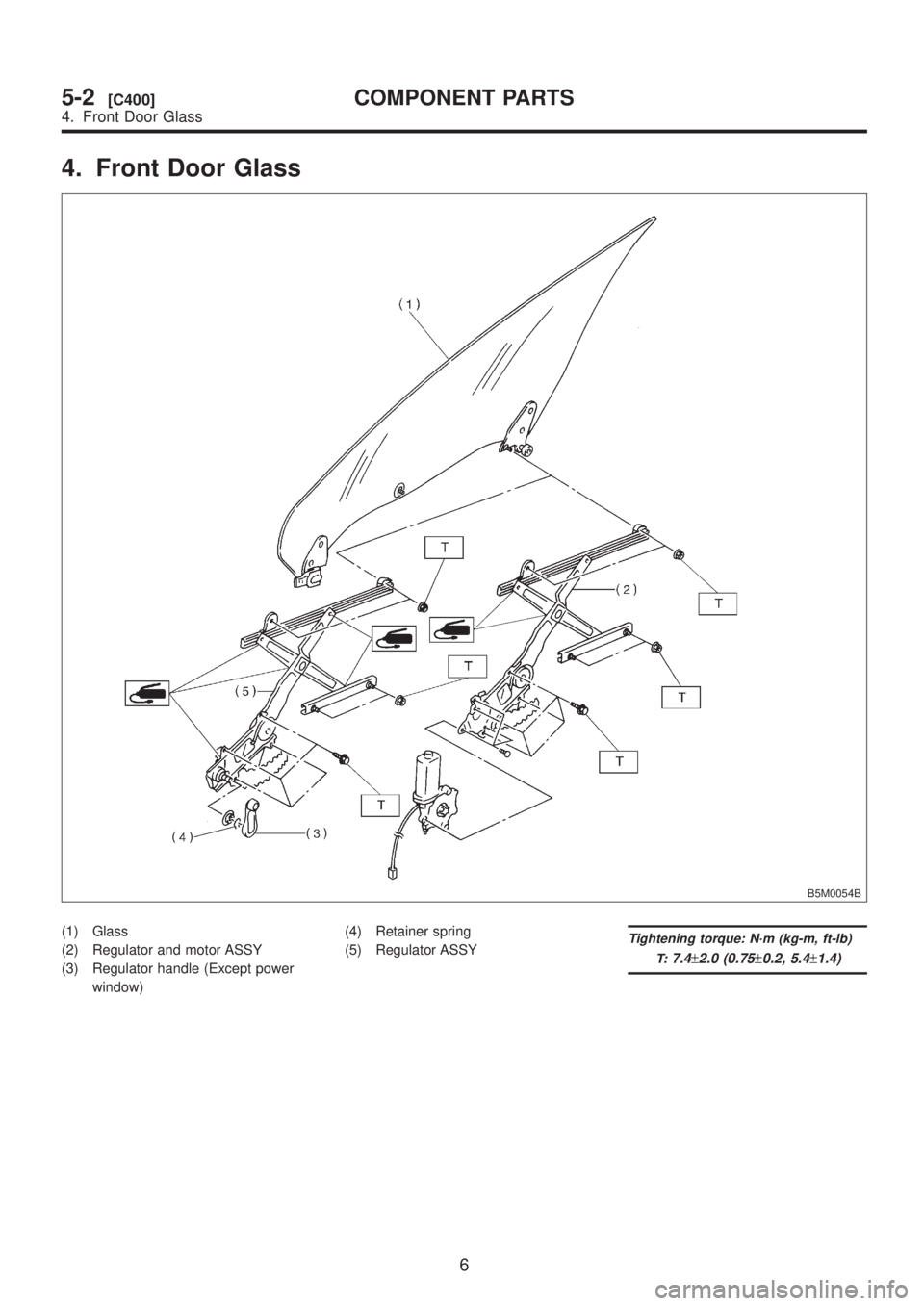

4. Front Door Glass

5. Rear Door Glass
B5M0055B
(1) Glass
(2) Regulator and motor ASSY
(3) Regulator handle (Except power
window)(4) Retainer spring
(5) Regulator ASSYTightening torque: N´m (kg-m, ft-lb)
T:
7.4±2.0 (0.75±0.2, 5.4±1.4)
7
[C500]5-2COMPONENT PARTS

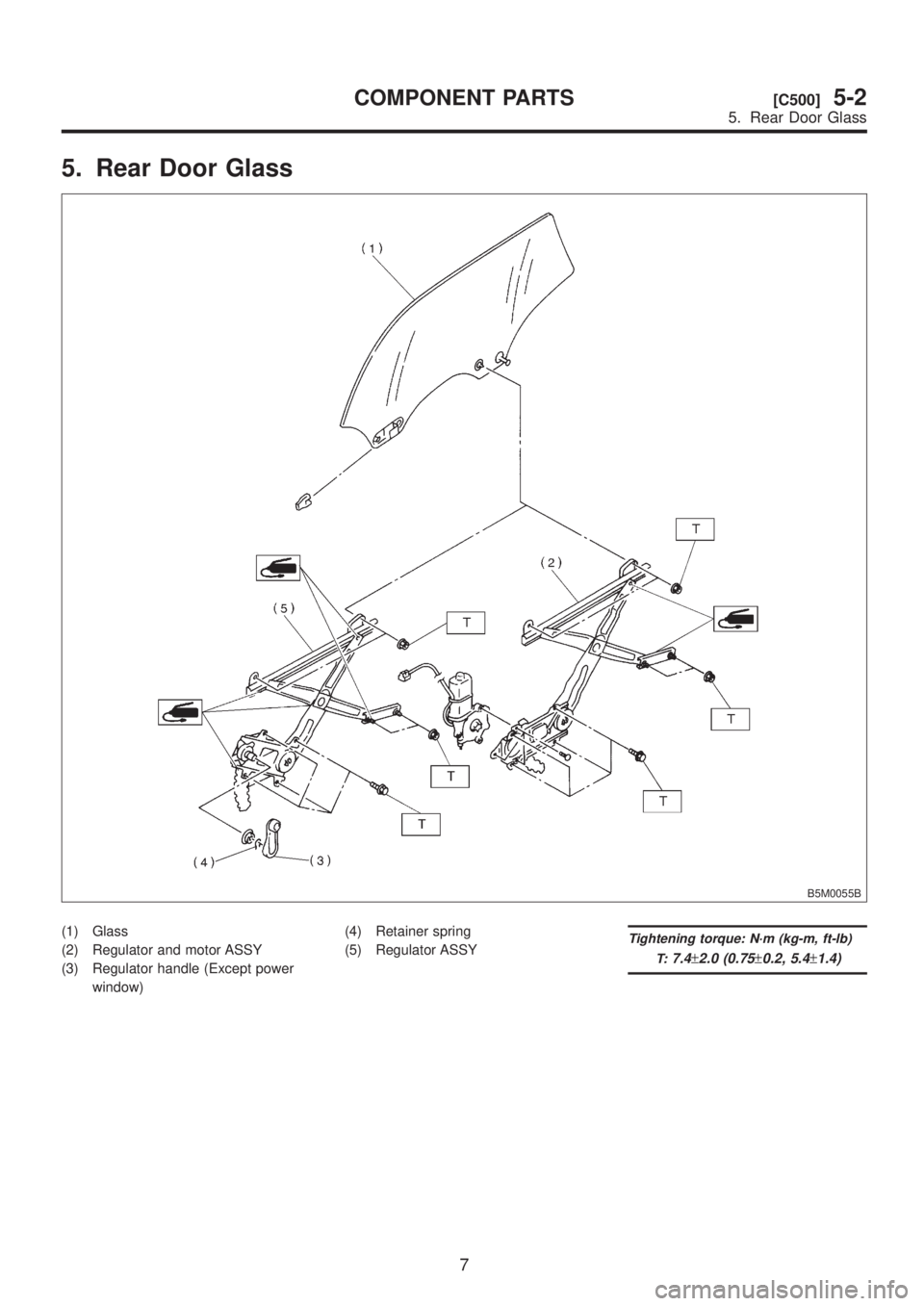

5. Rear Door Glass

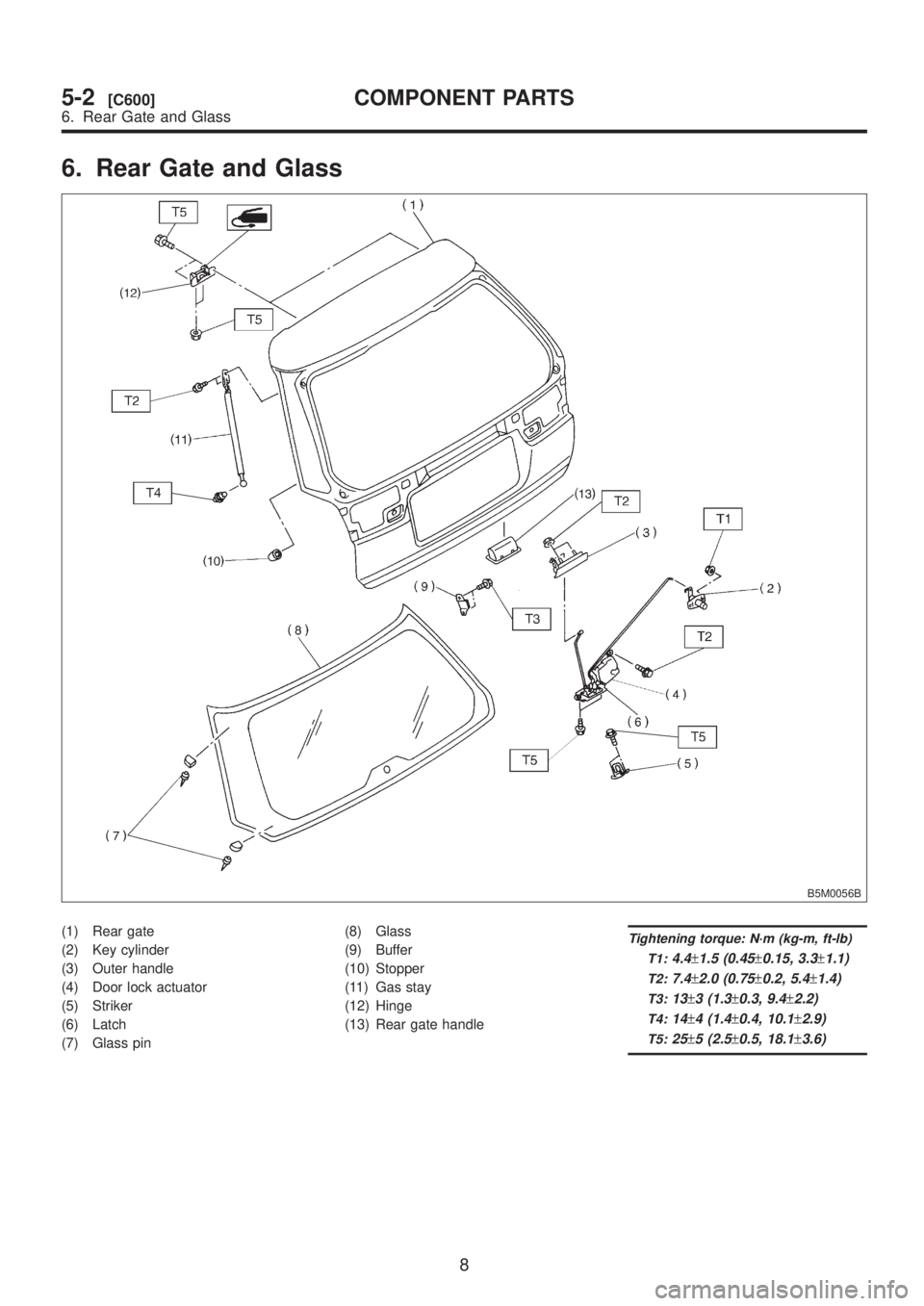

6. Rear Gate and Glass
B5M0056B
(1) Rear gate
(2) Key cylinder
(3) Outer handle
(4) Door lock actuator
(5) Striker
(6) Latch
(7) Glass pin(8) Glass
(9) Buffer
(10) Stopper
(11) Gas stay
(12) Hinge
(13) Rear gate handleTightening torque: N´m (kg-m, ft-lb)
T1:
4.4±1.5 (0.45±0.15, 3.3±1.1)
T2:7.4±2.0 (0.75±0.2, 5.4±1.4)
T3:13±3 (1.3±0.3, 9.4±2.2)
T4:14±4 (1.4±0.4, 10.1±2.9)
T5:25±5 (2.5±0.5, 18.1±3.6)
8
5-2[C600]COMPONENT PARTS
6. Rear Gate and Glass

7. Door Lock Assembly

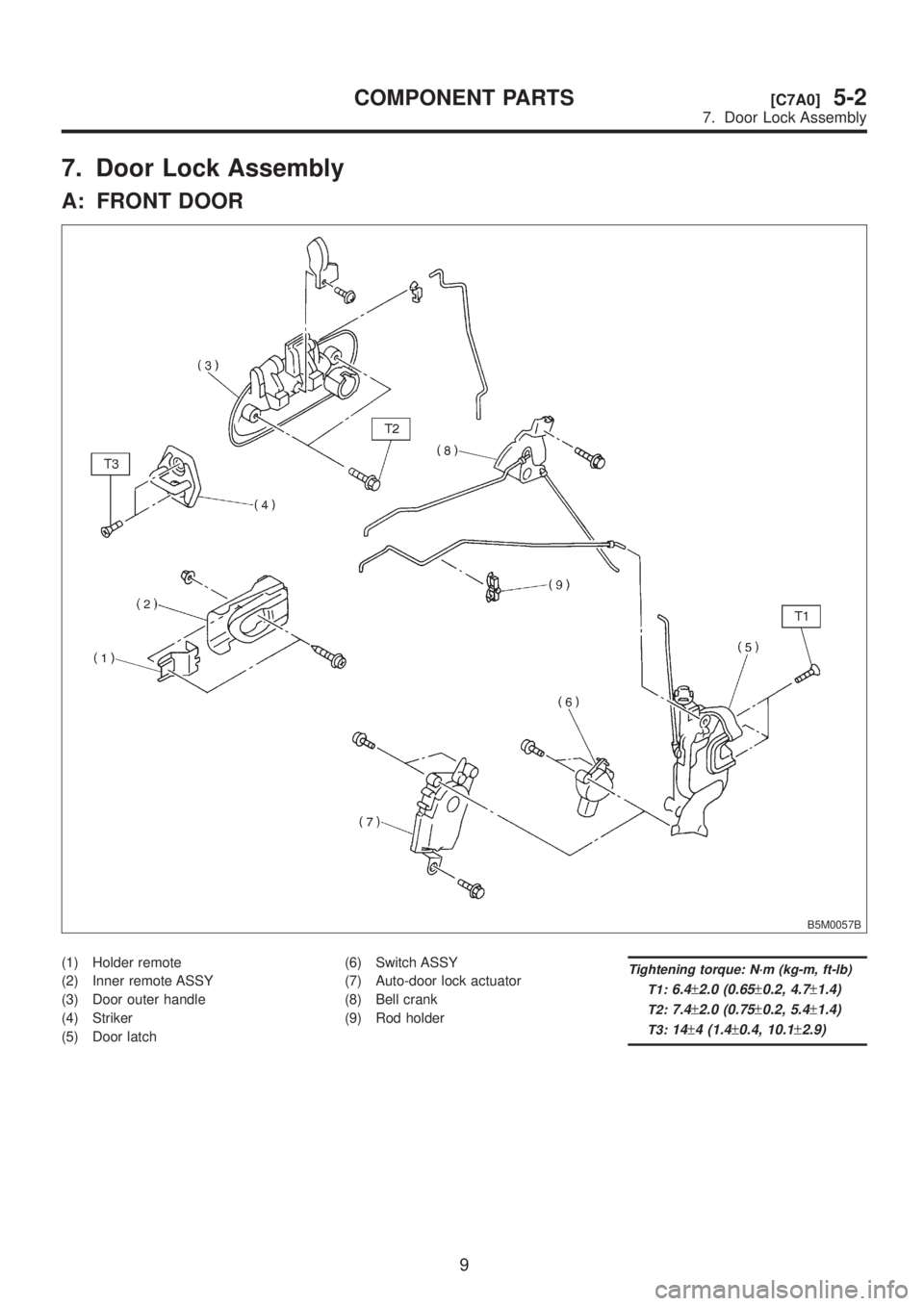

A: FRONT DOOR
B5M0057B
(1) Holder remote
(2) Inner remote ASSY
(3) Door outer handle
(4) Striker
(5) Door latch(6) Switch ASSY
(7) Auto-door lock actuator
(8) Bell crank
(9) Rod holderTightening torque: N´m (kg-m, ft-lb)
T1:
6.4±2.0 (0.65±0.2, 4.7±1.4)
T2:7.4±2.0 (0.75±0.2, 5.4±1.4)
T3:14±4 (1.4±0.4, 10.1±2.9)
9
[C7A0]5-2COMPONENT PARTS
7. Door Lock Assembly

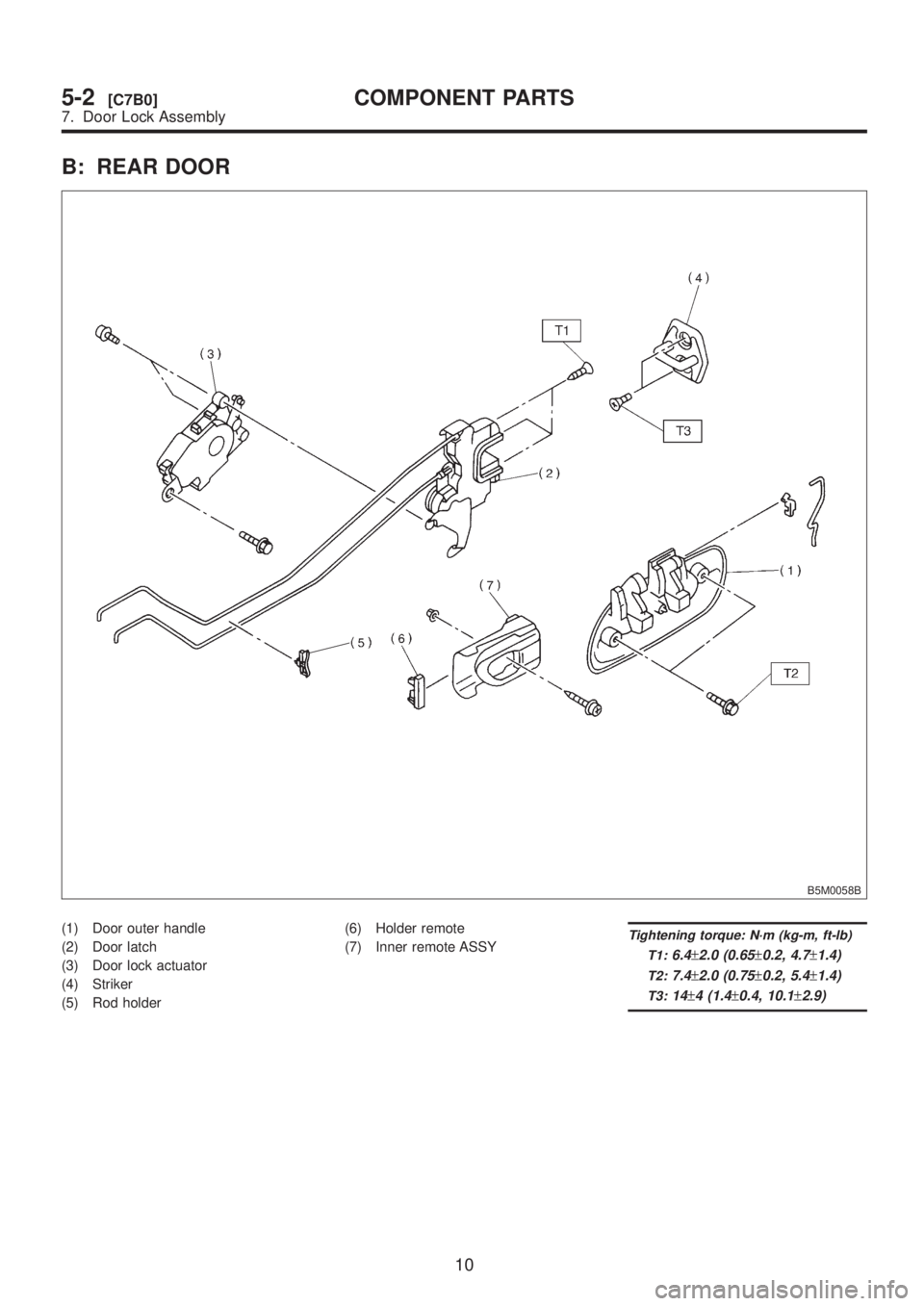

B: REAR DOOR
B5M0058B
(1) Door outer handle
(2) Door latch
(3) Door lock actuator
(4) Striker
(5) Rod holder(6) Holder remote
(7) Inner remote ASSYTightening torque: N´m (kg-m, ft-lb)
T1:
6.4±2.0 (0.65±0.2, 4.7±1.4)
T2:7.4±2.0 (0.75±0.2, 5.4±1.4)
T3:14±4 (1.4±0.4, 10.1±2.9)
10
5-2[C7B0]COMPONENT PARTS
7. Door Lock Assembly

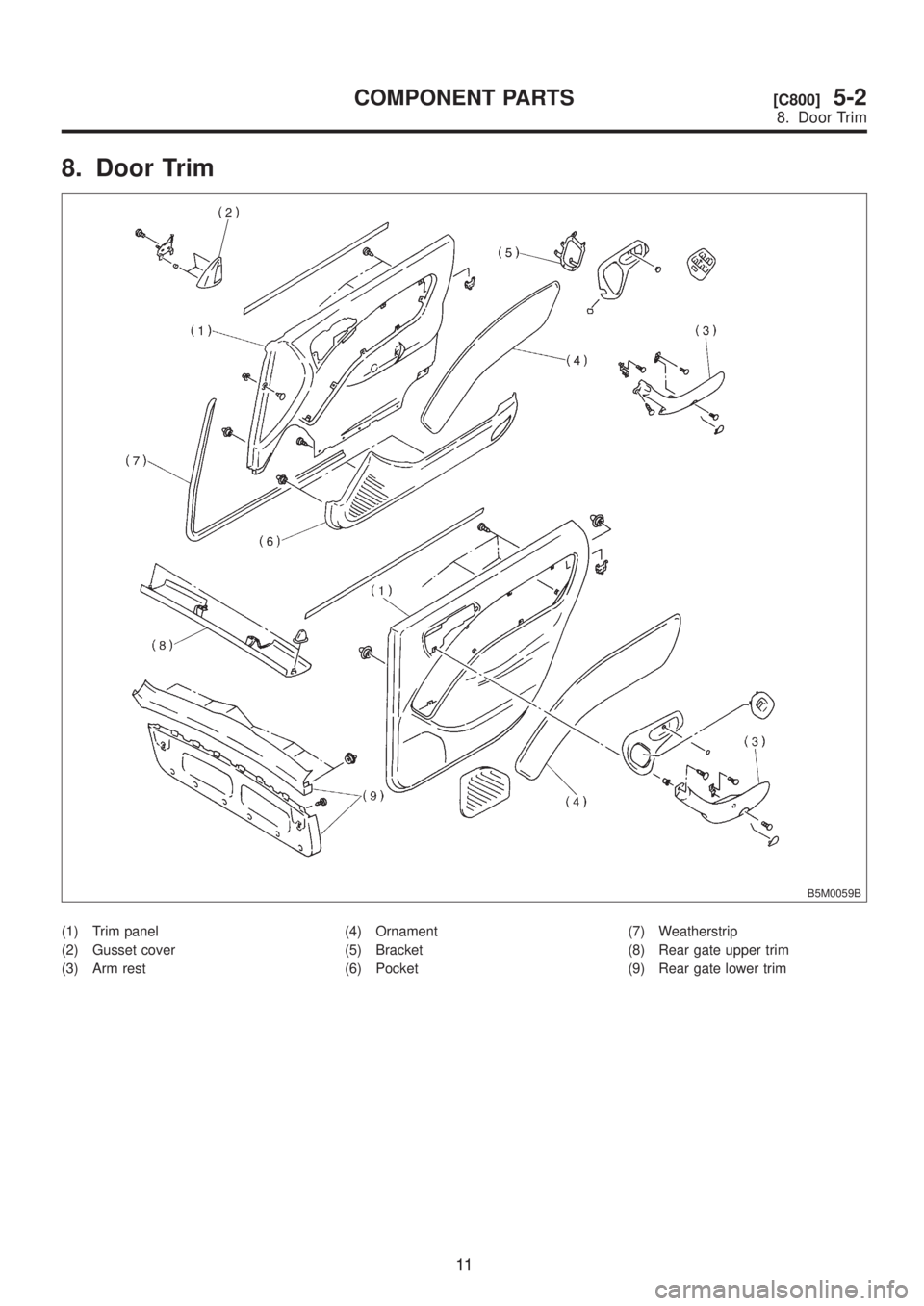

8. Door Trim
B5M0059B
(1) Trim panel
(2) Gusset cover
(3) Arm rest(4) Ornament
(5) Bracket
(6) Pocket(7) Weatherstrip
(8) Rear gate upper trim
(9) Rear gate lower trim
11
[C800]5-2COMPONENT PARTS
8. Door Trim

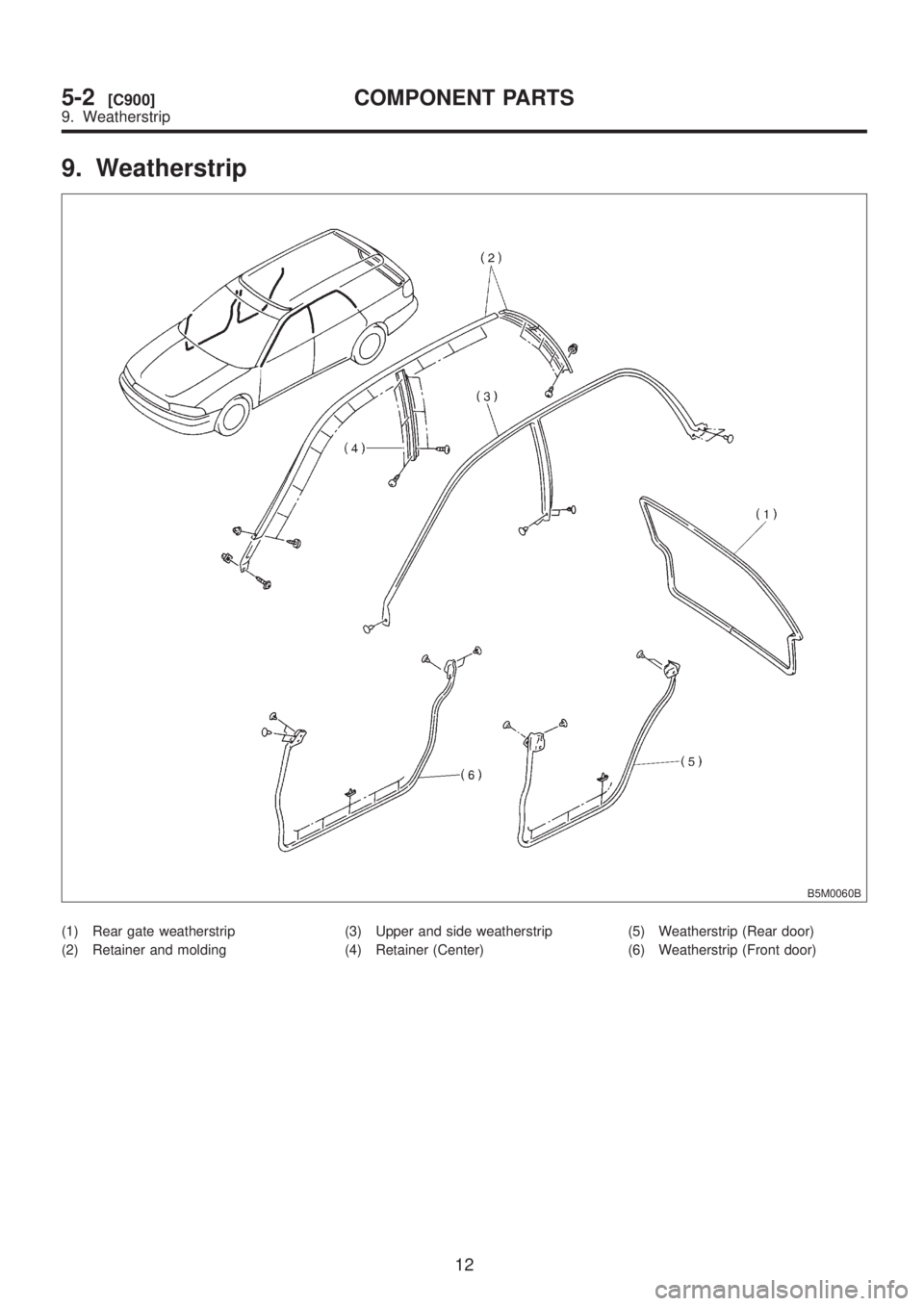

9. Weatherstrip
B5M0060B
(1) Rear gate weatherstrip
(2) Retainer and molding(3) Upper and side weatherstrip
(4) Retainer (Center)(5) Weatherstrip (Rear door)
(6) Weatherstrip (Front door)
12
5-2[C900]COMPONENT PARTS
9. Weatherstrip

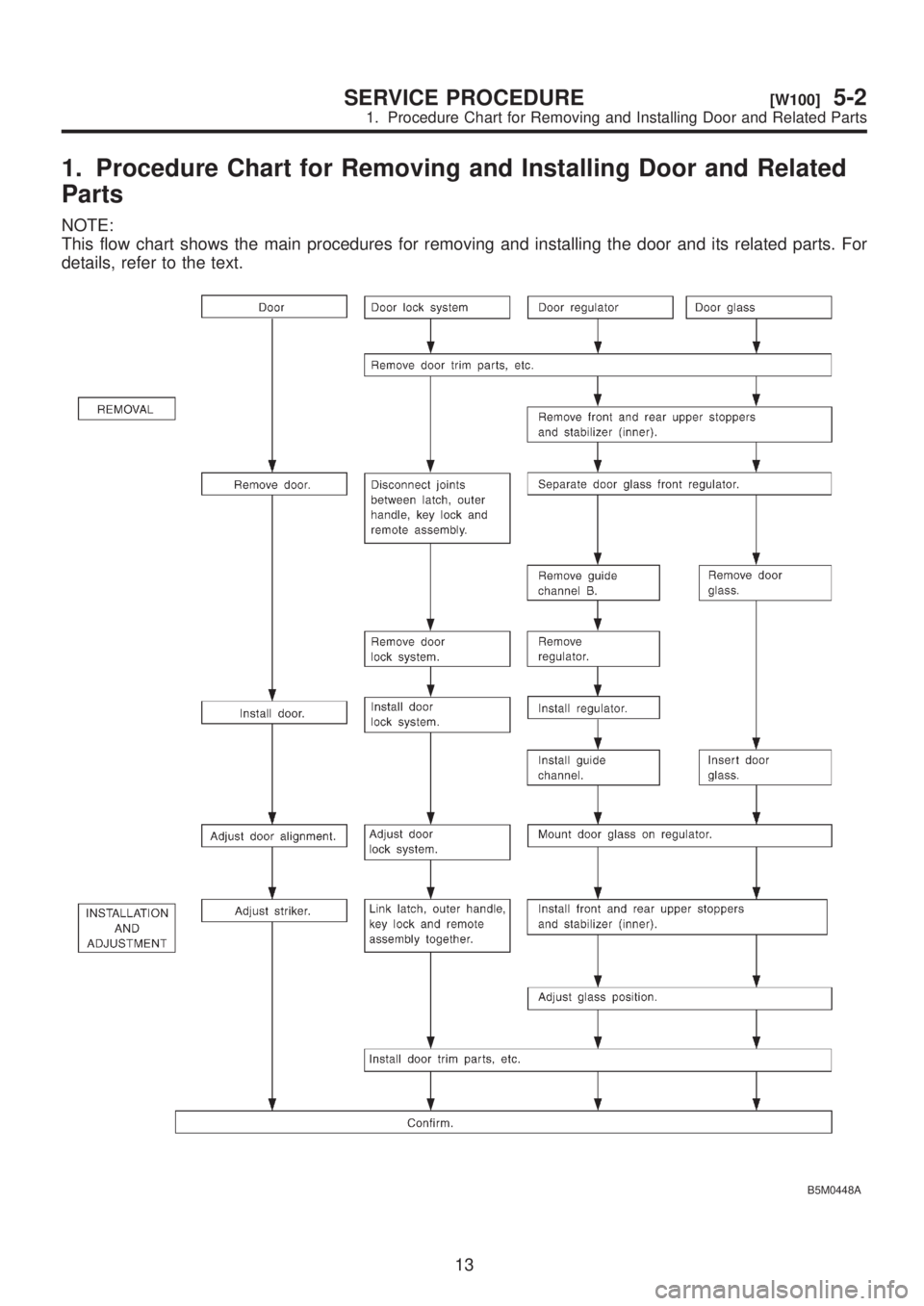

1. Procedure Chart for Removing and Installing Door and Related
Parts
NOTE:
This flow chart shows the main procedures for removing and installing the door and its related parts. For
details, refer to the text.
B5M0448A
13
[W100]5-2SERVICE PROCEDURE
1. Procedure Chart for Removing and Installing Door and Related Parts
