1999 SUBARU LEGACY Service Repair Manual

1. Supplemental Restraint
System ªAirbagº
A: PRECAUTION
Airbag system wiring harness is routed near the
steering wheel, steering shaft and column.
WARNING:
IAll Airbag system wiring harness and con-
nectors are colored yellow. Do not use electri-cal test equipment on these circuit.
IBe careful not to damage Airbag system wir-
ing harness when servicing the steering wheel,
steering shaft and column.
10
4-3[W1A0]SERVICE PROCEDURE
1. Supplemental Restraint System ªAirbagº

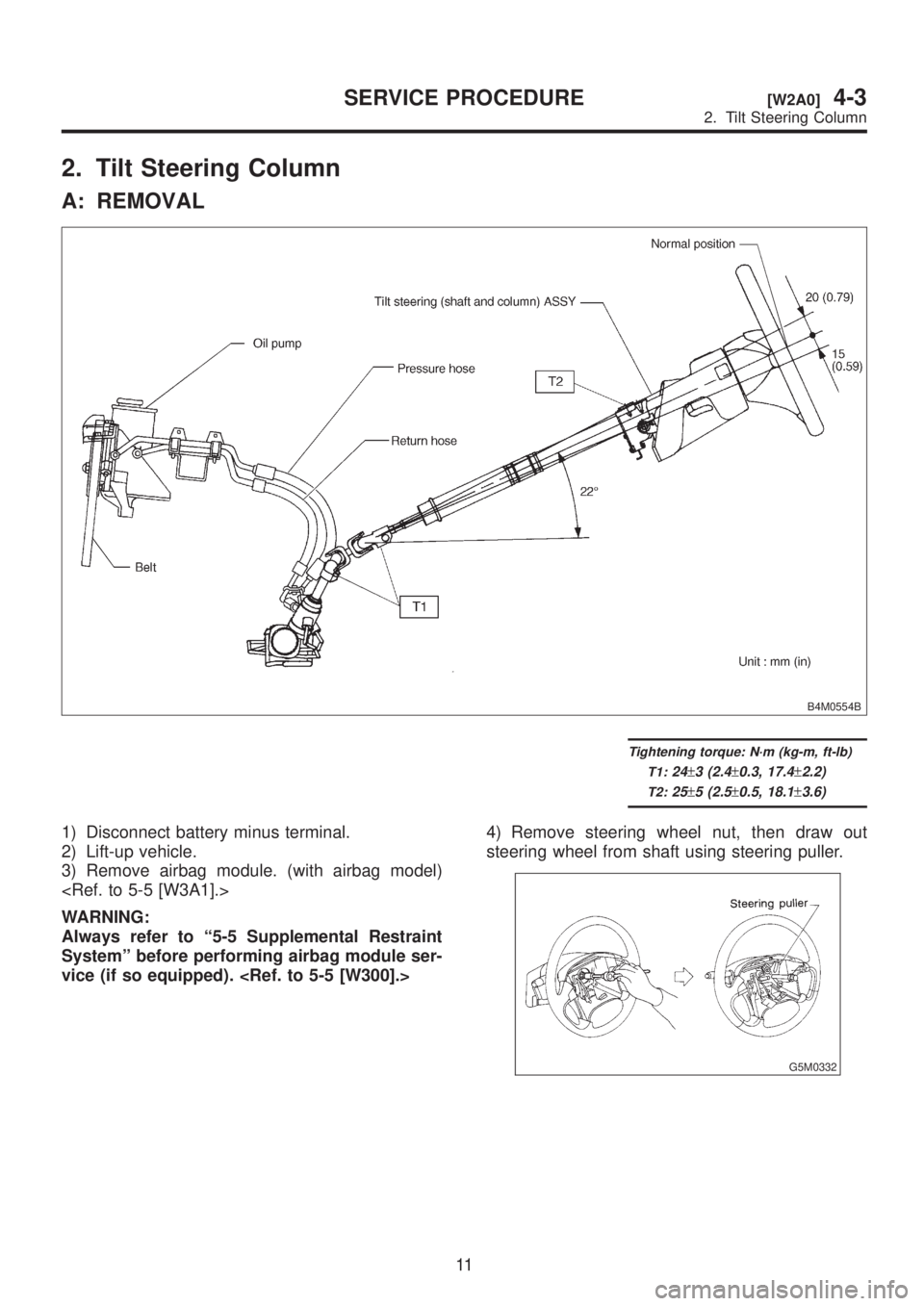

2. Tilt Steering Column
A: REMOVAL
B4M0554B
Tightening torque: N´m (kg-m, ft-lb)
T1:
24±3 (2.4±0.3, 17.4±2.2)
T2:25±5 (2.5±0.5, 18.1±3.6)
1) Disconnect battery minus terminal.
2) Lift-up vehicle.
3) Remove airbag module. (with airbag model)

WARNING:
Always refer to ª5-5 Supplemental Restraint
Systemº before performing airbag module ser-
vice (if so equipped). 4) Remove steering wheel nut, then draw out
steering wheel from shaft using steering puller.
G5M0332
11
[W2A0]4-3SERVICE PROCEDURE
2. Tilt Steering Column

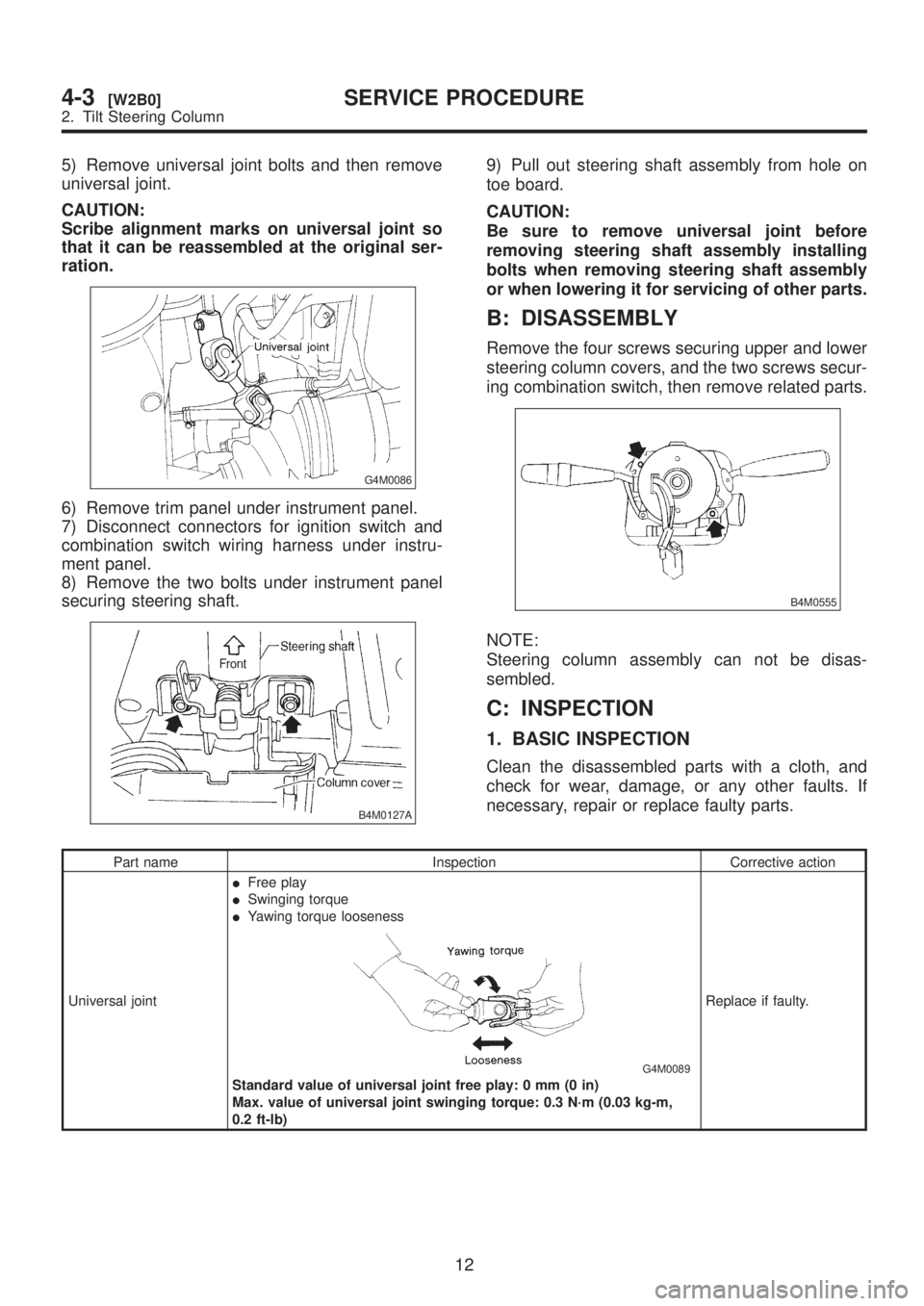

5) Remove universal joint bolts and then remove
universal joint.
CAUTION:
Scribe alignment marks on universal joint so
that it can be reassembled at the original ser-
ration.
G4M0086
6) Remove trim panel under instrument panel.
7) Disconnect connectors for ignition switch and
combination switch wiring harness under instru-
ment panel.
8) Remove the two bolts under instrument panel
securing steering shaft.
B4M0127A
9) Pull out steering shaft assembly from hole on
toe board.
CAUTION:
Be sure to remove universal joint before
removing steering shaft assembly installing
bolts when removing steering shaft assembly
or when lowering it for servicing of other parts.
B: DISASSEMBLY
Remove the four screws securing upper and lower
steering column covers, and the two screws secur-
ing combination switch, then remove related parts.
B4M0555
NOTE:
Steering column assembly can not be disas-
sembled.
C: INSPECTION
1. BASIC INSPECTION
Clean the disassembled parts with a cloth, and
check for wear, damage, or any other faults. If
necessary, repair or replace faulty parts.
Part name Inspection Corrective action
Universal jointIFree play
ISwinging torque
IYawing torque looseness
G4M0089
Standard value of universal joint free play: 0 mm (0 in)
Max. value of universal joint swinging torque: 0.3 N´m (0.03 kg-m,
0.2 ft-lb)Replace if faulty.
12
4-3[W2B0]SERVICE PROCEDURE
2. Tilt Steering Column

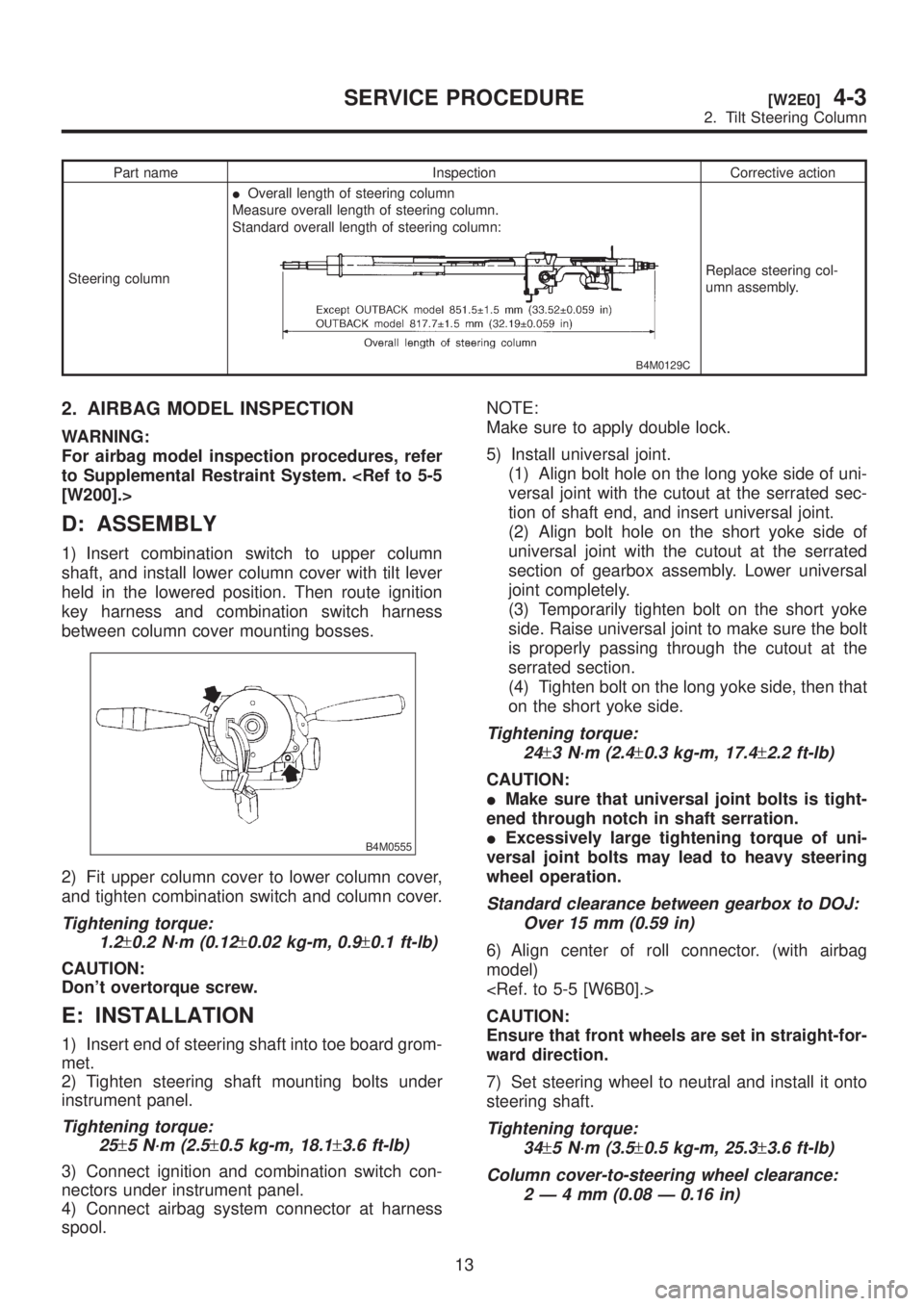

Part name Inspection Corrective action
Steering columnIOverall length of steering column
Measure overall length of steering column.
Standard overall length of steering column:
B4M0129C
Replace steering col-
umn assembly.
2. AIRBAG MODEL INSPECTION
WARNING:
For airbag model inspection procedures, refer
to Supplemental Restraint System. [W200].>
D: ASSEMBLY
1) Insert combination switch to upper column
shaft, and install lower column cover with tilt lever
held in the lowered position. Then route ignition
key harness and combination switch harness
between column cover mounting bosses.
B4M0555
2) Fit upper column cover to lower column cover,
and tighten combination switch and column cover.
Tightening torque:
1.2
±0.2 N´m (0.12±0.02 kg-m, 0.9±0.1 ft-lb)
CAUTION:
Don't overtorque screw.
E: INSTALLATION
1) Insert end of steering shaft into toe board grom-
met.
2) Tighten steering shaft mounting bolts under
instrument panel.
Tightening torque:
25
±5 N´m (2.5±0.5 kg-m, 18.1±3.6 ft-lb)
3) Connect ignition and combination switch con-
nectors under instrument panel.
4) Connect airbag system connector at harness
spool.NOTE:
Make sure to apply double lock.
5) Install universal joint.
(1) Align bolt hole on the long yoke side of uni-
versal joint with the cutout at the serrated sec-
tion of shaft end, and insert universal joint.
(2) Align bolt hole on the short yoke side of
universal joint with the cutout at the serrated
section of gearbox assembly. Lower universal
joint completely.
(3) Temporarily tighten bolt on the short yoke
side. Raise universal joint to make sure the bolt
is properly passing through the cutout at the
serrated section.
(4) Tighten bolt on the long yoke side, then that
on the short yoke side.
Tightening torque:
24
±3 N´m (2.4±0.3 kg-m, 17.4±2.2 ft-lb)
CAUTION:
IMake sure that universal joint bolts is tight-
ened through notch in shaft serration.
IExcessively large tightening torque of uni-
versal joint bolts may lead to heavy steering
wheel operation.
Standard clearance between gearbox to DOJ:
Over 15 mm (0.59 in)
6) Align center of roll connector. (with airbag
model)

CAUTION:
Ensure that front wheels are set in straight-for-
ward direction.
7) Set steering wheel to neutral and install it onto
steering shaft.
Tightening torque:
34
±5 N´m (3.5±0.5 kg-m, 25.3±3.6 ft-lb)
Column cover-to-steering wheel clearance:
2Ð4mm(0.08 Ð 0.16 in)
13
[W2E0]4-3SERVICE PROCEDURE
2. Tilt Steering Column

CAUTION:
Insert roll connector guide pin into guide hole
on lower end of surface of steering wheel to
prevent damage.
Draw out airbag system connector, horn con-
nector and cruise control connectors from
guide hole of steering wheel lower end. (with
airbag model)
8) Install airbag module to steering wheel. (with
airbag model)
WARNING:
Always refer to 5-5 Supplemental Restraint
System before performing the service opera-

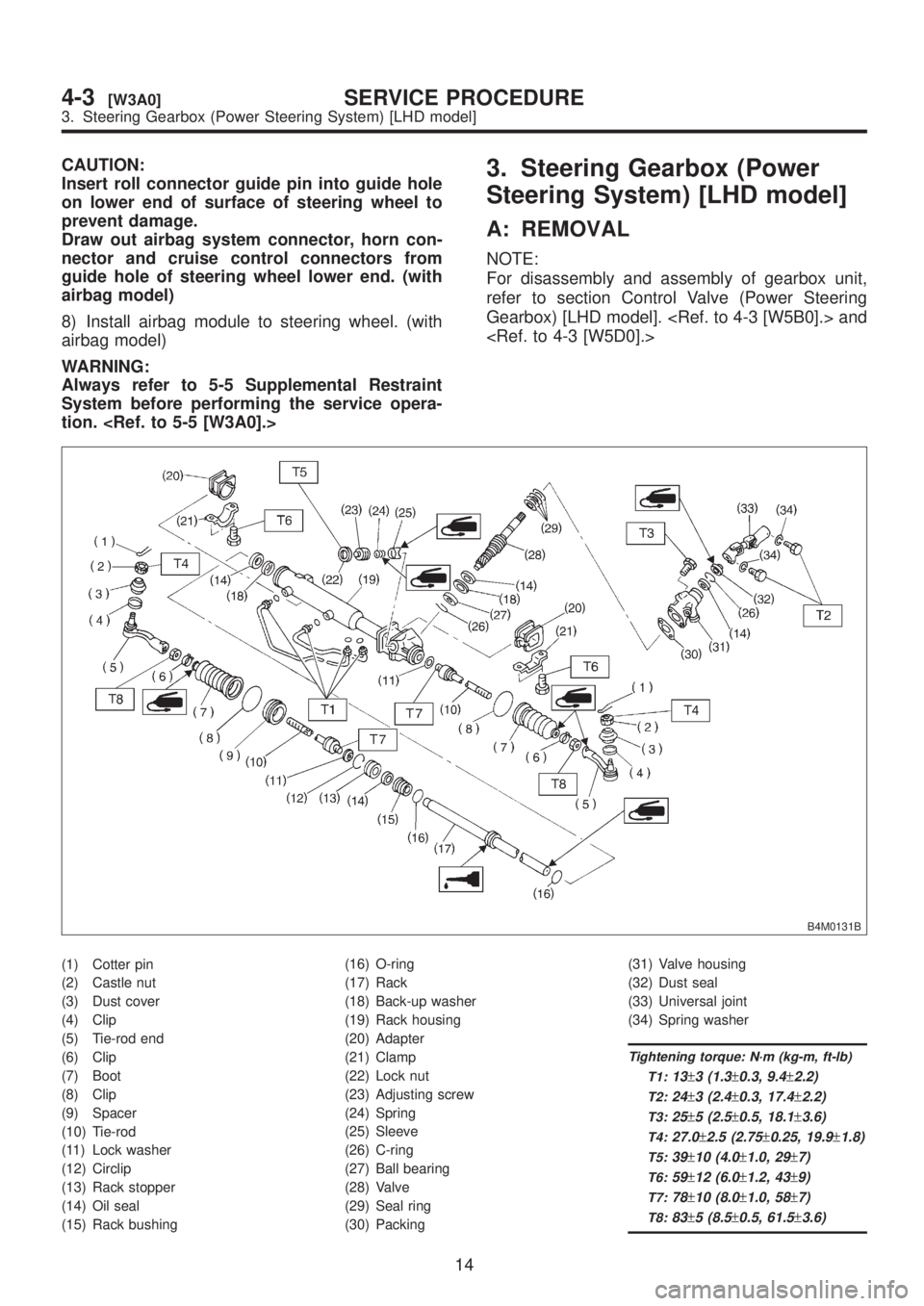

tion. 3. Steering Gearbox (Power
Steering System) [LHD model]
A: REMOVAL
NOTE:
For disassembly and assembly of gearbox unit,
refer to section Control Valve (Power Steering
Gearbox) [LHD model]. and

B4M0131B
(1) Cotter pin
(2) Castle nut
(3) Dust cover
(4) Clip
(5) Tie-rod end
(6) Clip
(7) Boot
(8) Clip
(9) Spacer
(10) Tie-rod
(11) Lock washer
(12) Circlip
(13) Rack stopper
(14) Oil seal
(15) Rack bushing(16) O-ring
(17) Rack
(18) Back-up washer
(19) Rack housing
(20) Adapter
(21) Clamp
(22) Lock nut
(23) Adjusting screw
(24) Spring
(25) Sleeve
(26) C-ring
(27) Ball bearing
(28) Valve
(29) Seal ring
(30) Packing(31) Valve housing
(32) Dust seal
(33) Universal joint
(34) Spring washer
Tightening torque: N´m (kg-m, ft-lb)
T1:
13±3 (1.3±0.3, 9.4±2.2)
T2:24±3 (2.4±0.3, 17.4±2.2)
T3:25±5 (2.5±0.5, 18.1±3.6)
T4:27.0±2.5 (2.75±0.25, 19.9±1.8)
T5:39±10 (4.0±1.0, 29±7)
T6:59±12 (6.0±1.2, 43±9)
T7:78±10 (8.0±1.0, 58±7)
T8:83±5 (8.5±0.5, 61.5±3.6)
14
4-3[W3A0]SERVICE PROCEDURE
3. Steering Gearbox (Power Steering System) [LHD model]

CAUTION:
Insert roll connector guide pin into guide hole
on lower end of surface of steering wheel to
prevent damage.
Draw out airbag system connector, horn con-
nector and cruise control connectors from
guide hole of steering wheel lower end. (with
airbag model)
8) Install airbag module to steering wheel. (with
airbag model)
WARNING:
Always refer to 5-5 Supplemental Restraint
System before performing the service opera-
tion. 3. Steering Gearbox (Power
Steering System) [LHD model]
A: REMOVAL
NOTE:
For disassembly and assembly of gearbox unit,
refer to section Control Valve (Power Steering
Gearbox) [LHD model]. and

B4M0131B
(1) Cotter pin
(2) Castle nut
(3) Dust cover
(4) Clip
(5) Tie-rod end
(6) Clip
(7) Boot
(8) Clip
(9) Spacer
(10) Tie-rod
(11) Lock washer
(12) Circlip
(13) Rack stopper
(14) Oil seal
(15) Rack bushing(16) O-ring
(17) Rack
(18) Back-up washer
(19) Rack housing
(20) Adapter
(21) Clamp
(22) Lock nut
(23) Adjusting screw
(24) Spring
(25) Sleeve
(26) C-ring
(27) Ball bearing
(28) Valve
(29) Seal ring
(30) Packing(31) Valve housing
(32) Dust seal
(33) Universal joint
(34) Spring washer
Tightening torque: N´m (kg-m, ft-lb)
T1:
13±3 (1.3±0.3, 9.4±2.2)
T2:24±3 (2.4±0.3, 17.4±2.2)
T3:25±5 (2.5±0.5, 18.1±3.6)
T4:27.0±2.5 (2.75±0.25, 19.9±1.8)
T5:39±10 (4.0±1.0, 29±7)
T6:59±12 (6.0±1.2, 43±9)
T7:78±10 (8.0±1.0, 58±7)
T8:83±5 (8.5±0.5, 61.5±3.6)
14
4-3[W3A0]SERVICE PROCEDURE
3. Steering Gearbox (Power Steering System) [LHD model]

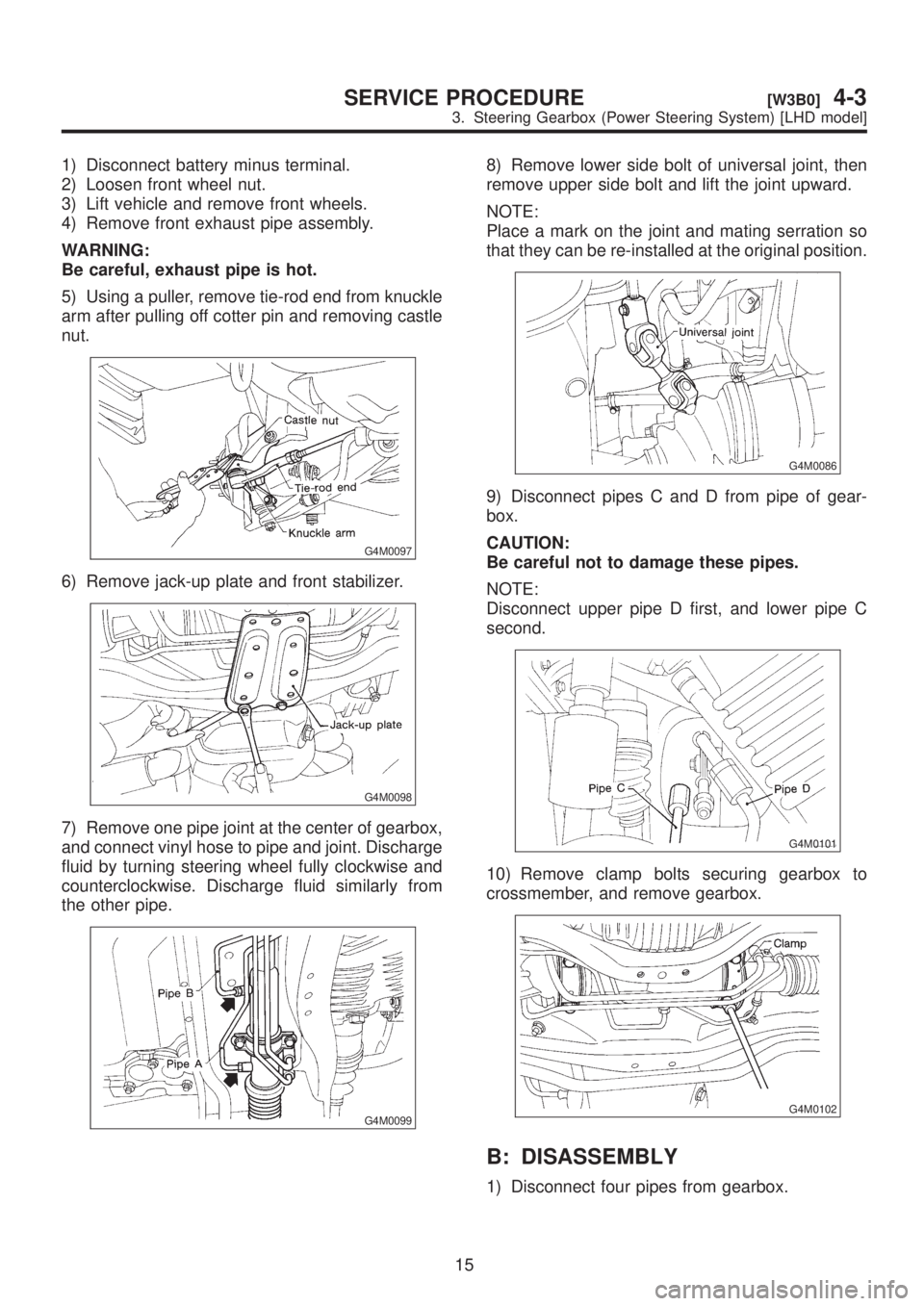

1) Disconnect battery minus terminal.
2) Loosen front wheel nut.
3) Lift vehicle and remove front wheels.
4) Remove front exhaust pipe assembly.
WARNING:
Be careful, exhaust pipe is hot.
5) Using a puller, remove tie-rod end from knuckle
arm after pulling off cotter pin and removing castle
nut.
G4M0097
6) Remove jack-up plate and front stabilizer.
G4M0098
7) Remove one pipe joint at the center of gearbox,
and connect vinyl hose to pipe and joint. Discharge
fluid by turning steering wheel fully clockwise and
counterclockwise. Discharge fluid similarly from
the other pipe.
G4M0099
8) Remove lower side bolt of universal joint, then
remove upper side bolt and lift the joint upward.
NOTE:
Place a mark on the joint and mating serration so
that they can be re-installed at the original position.
G4M0086
9) Disconnect pipes C and D from pipe of gear-
box.
CAUTION:
Be careful not to damage these pipes.
NOTE:
Disconnect upper pipe D first, and lower pipe C
second.
G4M0101
10) Remove clamp bolts securing gearbox to
crossmember, and remove gearbox.
G4M0102
B: DISASSEMBLY
1) Disconnect four pipes from gearbox.
15
[W3B0]4-3SERVICE PROCEDURE
3. Steering Gearbox (Power Steering System) [LHD model]

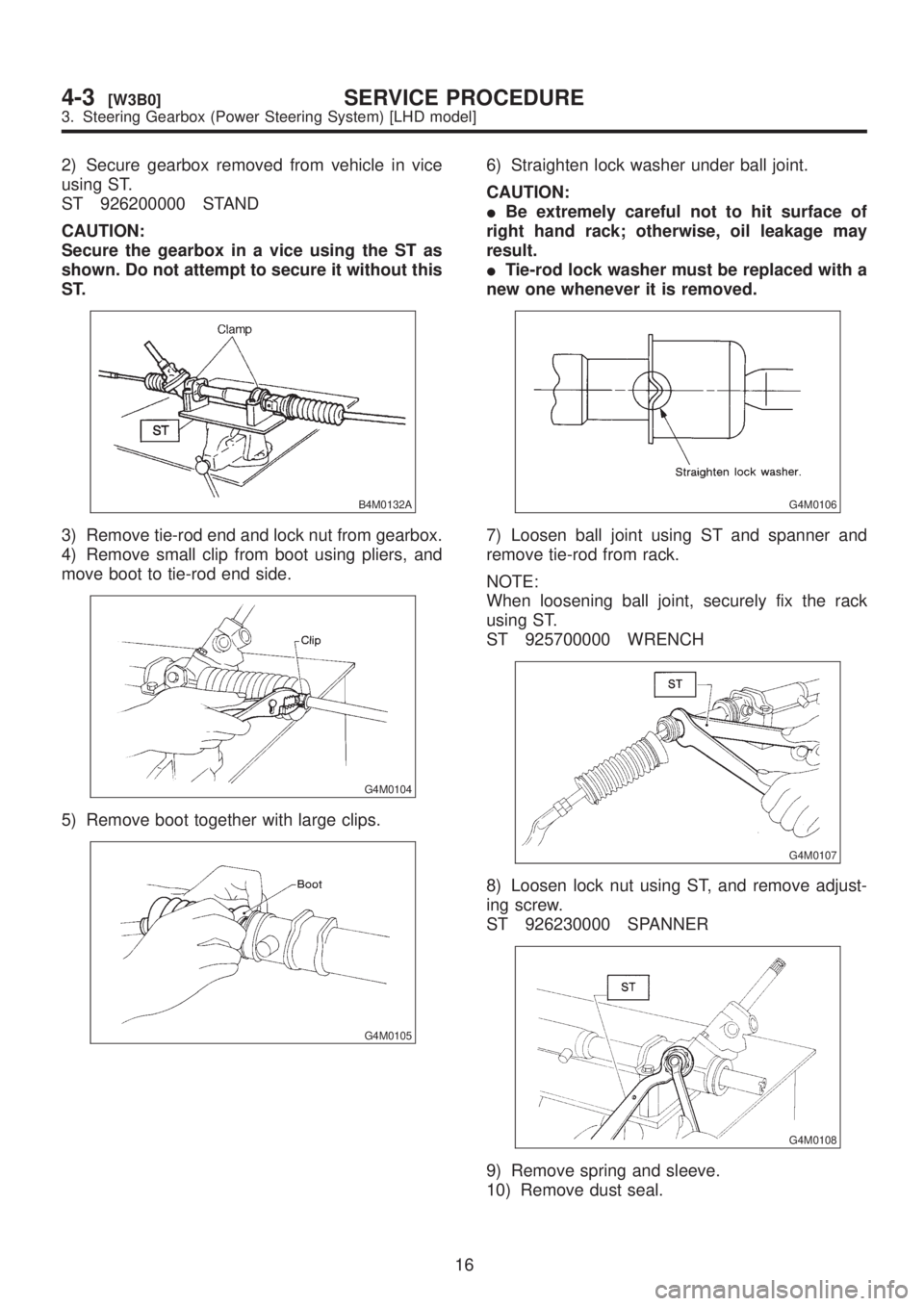

2) Secure gearbox removed from vehicle in vice
using ST.
ST 926200000 STAND
CAUTION:
Secure the gearbox in a vice using the ST as
shown. Do not attempt to secure it without this
ST.
B4M0132A
3) Remove tie-rod end and lock nut from gearbox.
4) Remove small clip from boot using pliers, and
move boot to tie-rod end side.
G4M0104
5) Remove boot together with large clips.
G4M0105
6) Straighten lock washer under ball joint.
CAUTION:
IBe extremely careful not to hit surface of
right hand rack; otherwise, oil leakage may
result.
ITie-rod lock washer must be replaced with a
new one whenever it is removed.
G4M0106
7) Loosen ball joint using ST and spanner and
remove tie-rod from rack.
NOTE:
When loosening ball joint, securely fix the rack
using ST.
ST 925700000 WRENCH
G4M0107
8) Loosen lock nut using ST, and remove adjust-
ing screw.
ST 926230000 SPANNER
G4M0108
9) Remove spring and sleeve.
10) Remove dust seal.
16
4-3[W3B0]SERVICE PROCEDURE
3. Steering Gearbox (Power Steering System) [LHD model]
