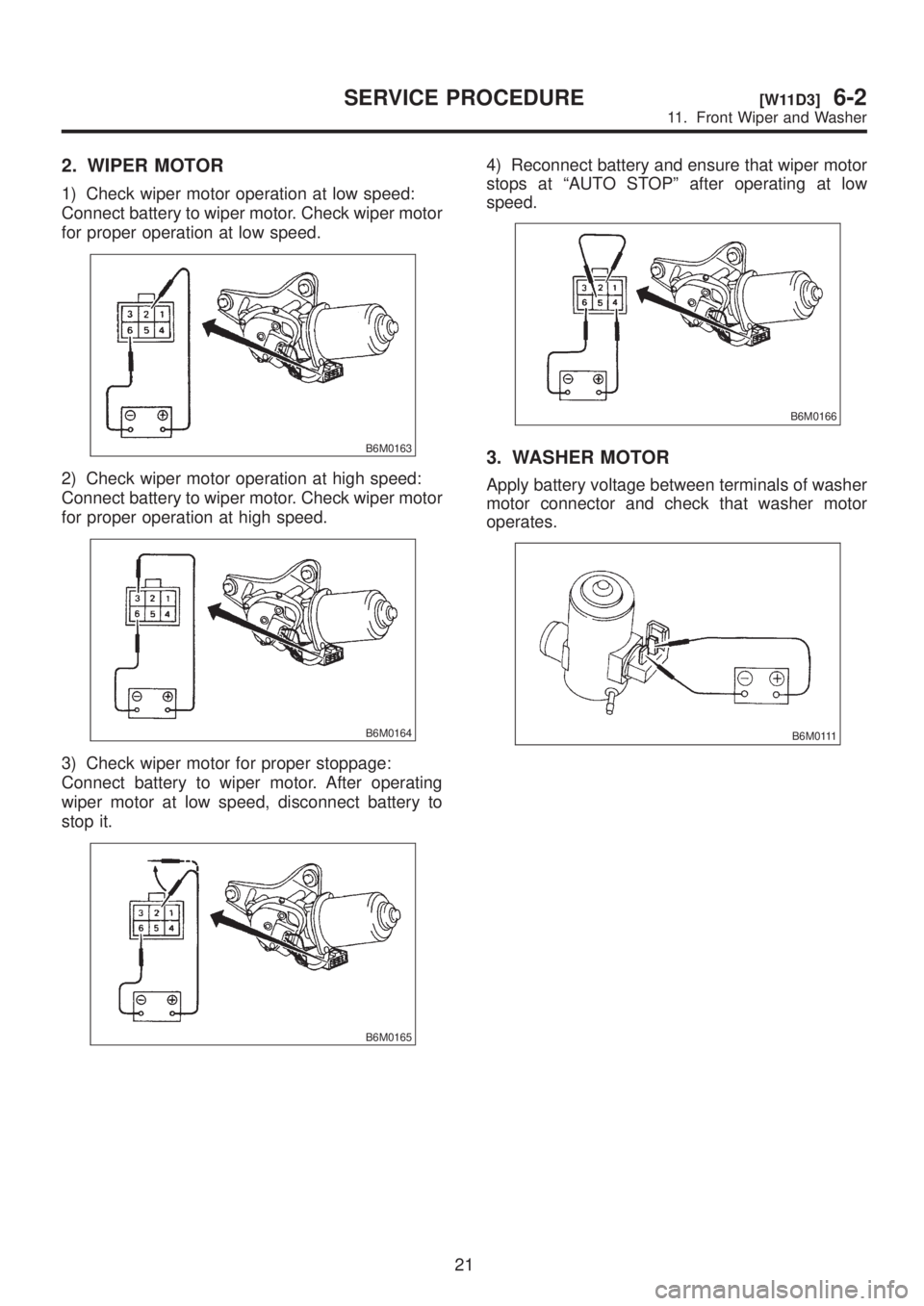

2. WIPER MOTOR
1) Check wiper motor operation at low speed:
Connect battery to wiper motor. Check wiper motor
for proper operation at low speed.
B6M0163
2) Check wiper motor operation at high speed:
Connect battery to wiper motor. Check wiper motor
for proper operation at high speed.
B6M0164
3) Check wiper motor for proper stoppage:
Connect battery to wiper motor. After operating
wiper motor at low speed, disconnect battery to
stop it.
B6M0165
4) Reconnect battery and ensure that wiper motor
stops at ªAUTO STOPº after operating at low
speed.
B6M0166
3. WASHER MOTOR
Apply battery voltage between terminals of washer
motor connector and check that washer motor
operates.
B6M0111
21
[W11D3]6-2SERVICE PROCEDURE
11. Front Wiper and Washer

12. Rear Wiper and Washer

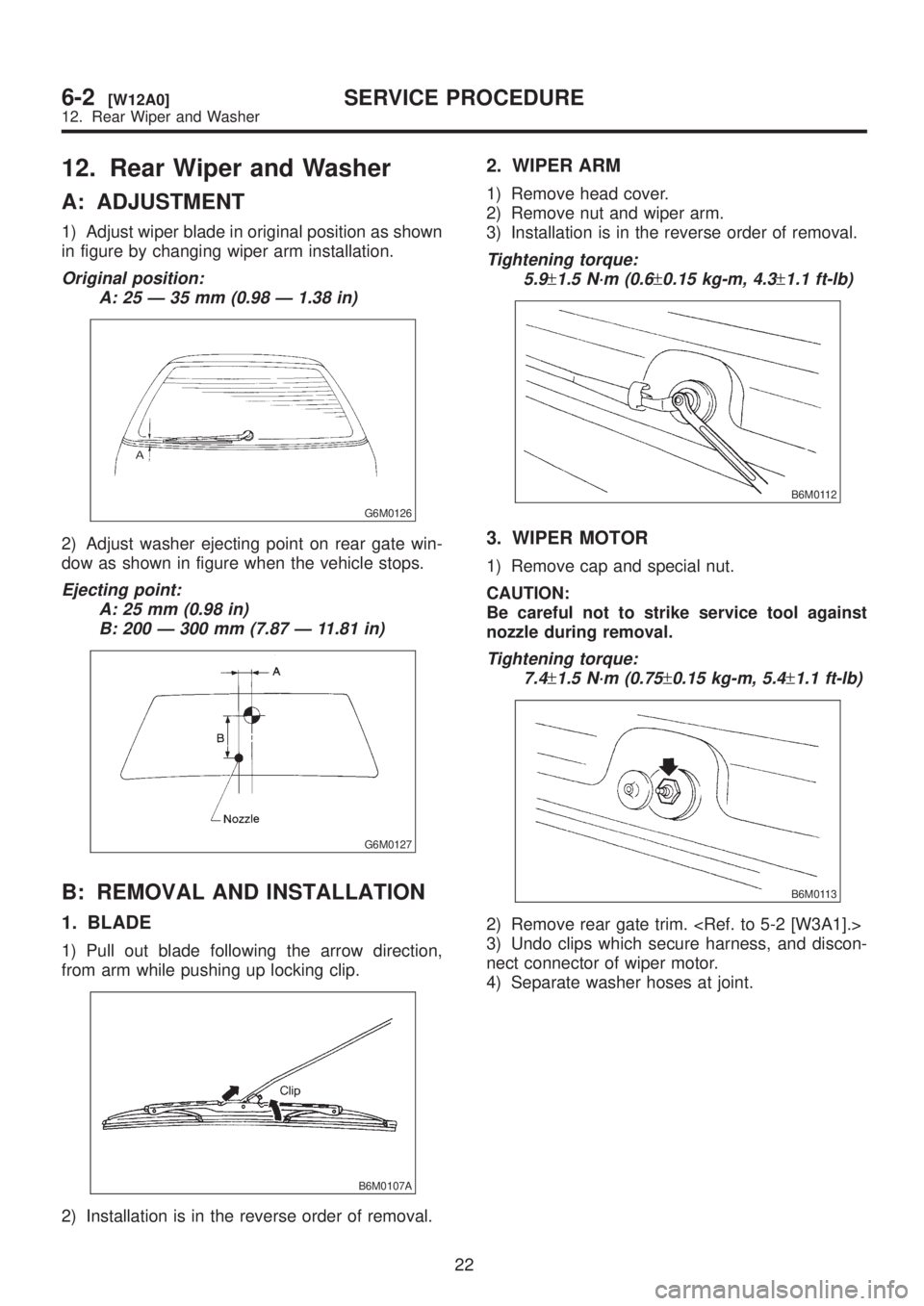

A: ADJUSTMENT
1) Adjust wiper blade in original position as shown
in figure by changing wiper arm installation.
Original position:
A: 25 Ð 35 mm (0.98 Ð 1.38 in)
G6M0126
2) Adjust washer ejecting point on rear gate win-
dow as shown in figure when the vehicle stops.
Ejecting point:
A: 25 mm (0.98 in)
B: 200 Ð 300 mm (7.87 Ð 11.81 in)
G6M0127
B: REMOVAL AND INSTALLATION
1. BLADE
1) Pull out blade following the arrow direction,
from arm while pushing up locking clip.
B6M0107A
2) Installation is in the reverse order of removal.
2. WIPER ARM
1) Remove head cover.
2) Remove nut and wiper arm.
3) Installation is in the reverse order of removal.
Tightening torque:
5.9
±1.5 N´m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
B6M0112
3. WIPER MOTOR
1) Remove cap and special nut.
CAUTION:
Be careful not to strike service tool against
nozzle during removal.
Tightening torque:
7.4
±1.5 N´m (0.75±0.15 kg-m, 5.4±1.1 ft-lb)
B6M0113
2) Remove rear gate trim.
3) Undo clips which secure harness, and discon-
nect connector of wiper motor.
4) Separate washer hoses at joint.
22
6-2[W12A0]SERVICE PROCEDURE
12. Rear Wiper and Washer

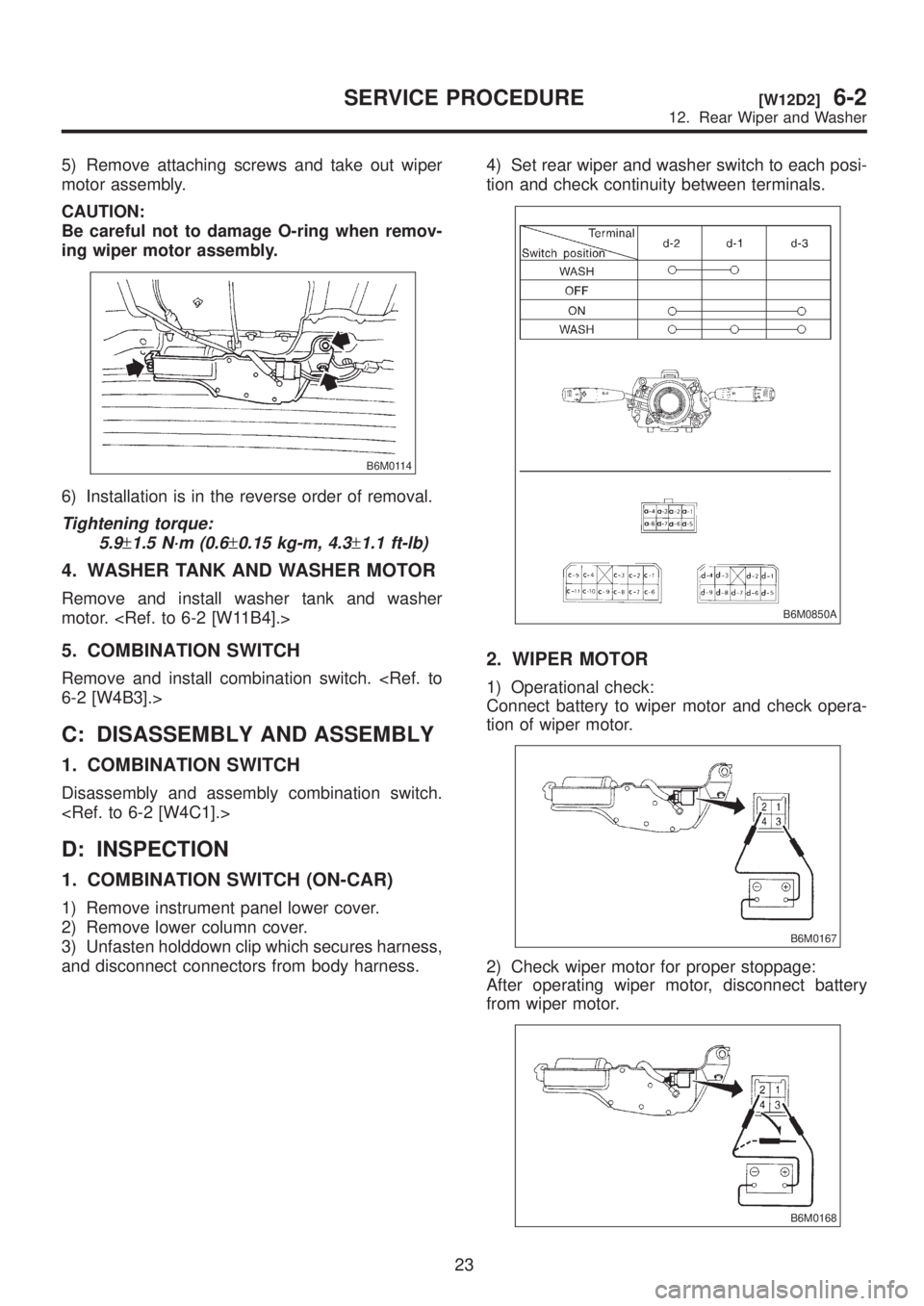

5) Remove attaching screws and take out wiper
motor assembly.
CAUTION:
Be careful not to damage O-ring when remov-
ing wiper motor assembly.
B6M0114
6) Installation is in the reverse order of removal.
Tightening torque:
5.9
±1.5 N´m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
4. WASHER TANK AND WASHER MOTOR
Remove and install washer tank and washer
motor.
5. COMBINATION SWITCH
Remove and install combination switch. 6-2 [W4B3].>
C: DISASSEMBLY AND ASSEMBLY
1. COMBINATION SWITCH
Disassembly and assembly combination switch.

D: INSPECTION
1. COMBINATION SWITCH (ON-CAR)
1) Remove instrument panel lower cover.
2) Remove lower column cover.
3) Unfasten holddown clip which secures harness,
and disconnect connectors from body harness.4) Set rear wiper and washer switch to each posi-
tion and check continuity between terminals.
B6M0850A
2. WIPER MOTOR
1) Operational check:
Connect battery to wiper motor and check opera-
tion of wiper motor.
B6M0167
2) Check wiper motor for proper stoppage:
After operating wiper motor, disconnect battery
from wiper motor.
B6M0168
23
[W12D2]6-2SERVICE PROCEDURE
12. Rear Wiper and Washer

3) Reconnect battery and ensure that wiper motor
stops at ªAUTO STOPº after it has been operated.
B6M0169
3. REAR WIPER RELAY
1) Connect battery to terminal No. 1 and ground
terminal No. 2.
2) Check continuity between terminals.
When current flows. Between termi-
nals No. 3 and
No. 5Continuity does
not exist.
Between termi-
nals No. 3 and
No. 4Continuity
exists.
When current does not
flow.Between termi-
nals No. 3 and
No. 5Continuity
exists.
Between termi-
nals No. 3 and
No. 4Continuity does
not exist.
Between termi-
nals No. 1 and
No. 2Continuity
exists.
G6M0134
4. WASHER MOTOR
Apply battery voltage between terminals of washer
motor connector and check that washer motor
operates.
B6M0111
24
6-2[W12D3]SERVICE PROCEDURE
12. Rear Wiper and Washer

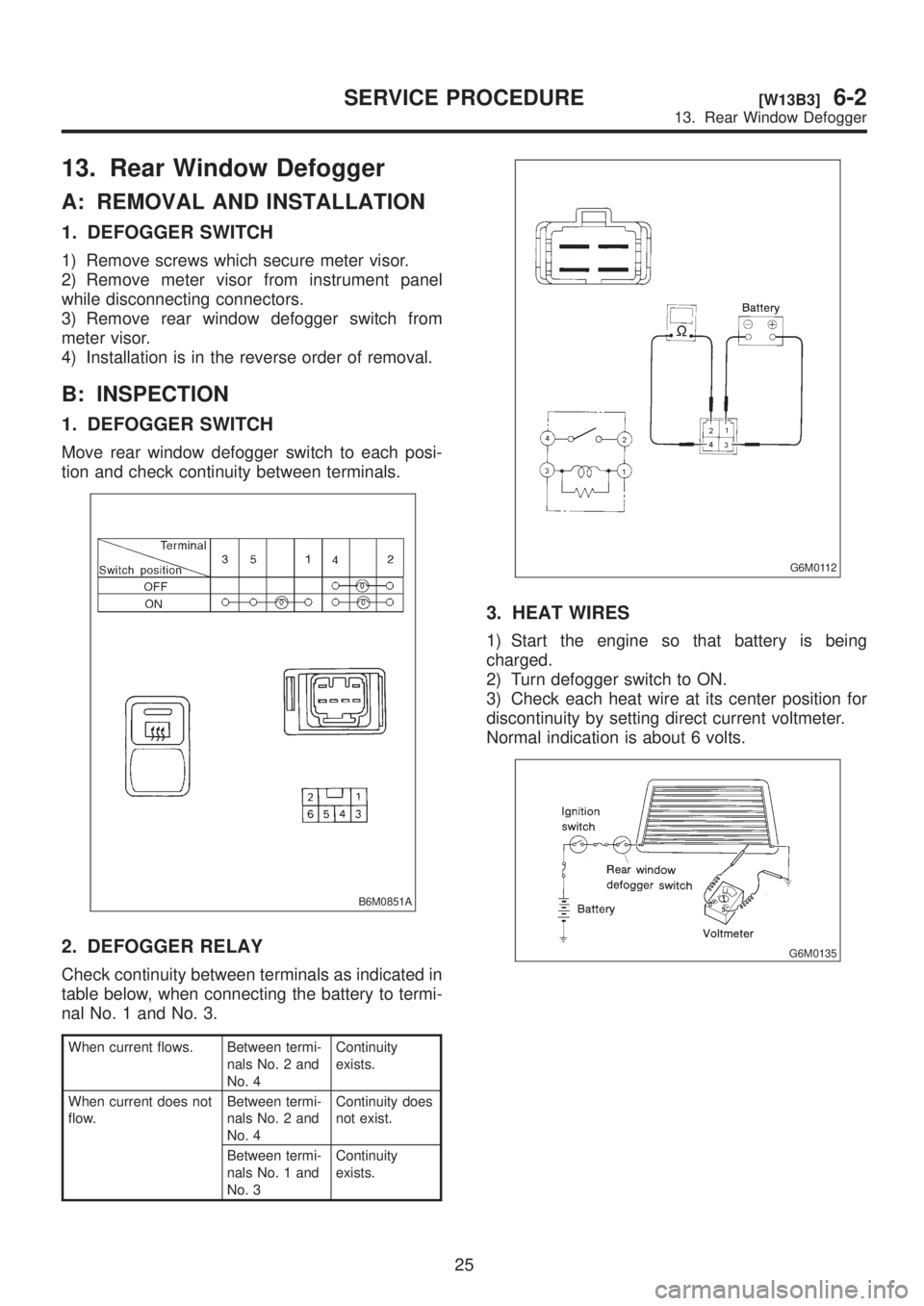

13. Rear Window Defogger
A: REMOVAL AND INSTALLATION
1. DEFOGGER SWITCH
1) Remove screws which secure meter visor.
2) Remove meter visor from instrument panel
while disconnecting connectors.
3) Remove rear window defogger switch from
meter visor.
4) Installation is in the reverse order of removal.
B: INSPECTION
1. DEFOGGER SWITCH
Move rear window defogger switch to each posi-
tion and check continuity between terminals.
B6M0851A
2. DEFOGGER RELAY
Check continuity between terminals as indicated in
table below, when connecting the battery to termi-
nal No. 1 and No. 3.
When current flows. Between termi-
nals No. 2 and
No. 4Continuity
exists.
When current does not
flow.Between termi-
nals No. 2 and
No. 4Continuity does
not exist.
Between termi-
nals No. 1 and
No. 3Continuity
exists.
G6M0112
3. HEAT WIRES
1) Start the engine so that battery is being
charged.
2) Turn defogger switch to ON.
3) Check each heat wire at its center position for
discontinuity by setting direct current voltmeter.
Normal indication is about 6 volts.
G6M0135
25
[W13B3]6-2SERVICE PROCEDURE
13. Rear Window Defogger

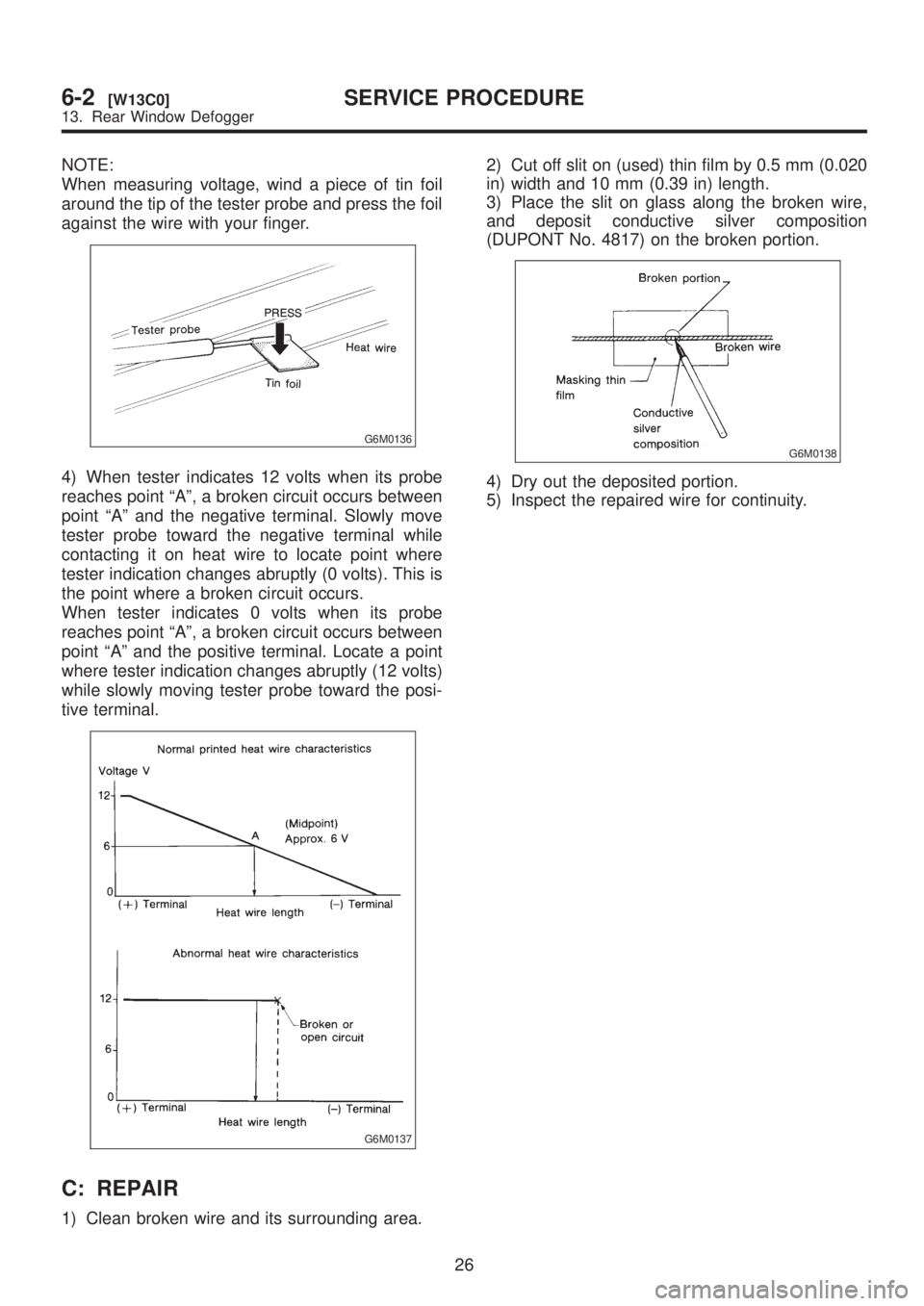

NOTE:
When measuring voltage, wind a piece of tin foil
around the tip of the tester probe and press the foil
against the wire with your finger.
G6M0136
4) When tester indicates 12 volts when its probe
reaches point ªAº, a broken circuit occurs between
point ªAº and the negative terminal. Slowly move
tester probe toward the negative terminal while
contacting it on heat wire to locate point where
tester indication changes abruptly (0 volts). This is
the point where a broken circuit occurs.
When tester indicates 0 volts when its probe
reaches point ªAº, a broken circuit occurs between
point ªAº and the positive terminal. Locate a point
where tester indication changes abruptly (12 volts)
while slowly moving tester probe toward the posi-
tive terminal.
G6M0137
C: REPAIR
1) Clean broken wire and its surrounding area.2) Cut off slit on (used) thin film by 0.5 mm (0.020
in) width and 10 mm (0.39 in) length.
3) Place the slit on glass along the broken wire,
and deposit conductive silver composition
(DUPONT No. 4817) on the broken portion.
G6M0138
4) Dry out the deposited portion.
5) Inspect the repaired wire for continuity.
26
6-2[W13C0]SERVICE PROCEDURE
13. Rear Window Defogger

14. Combination Meter

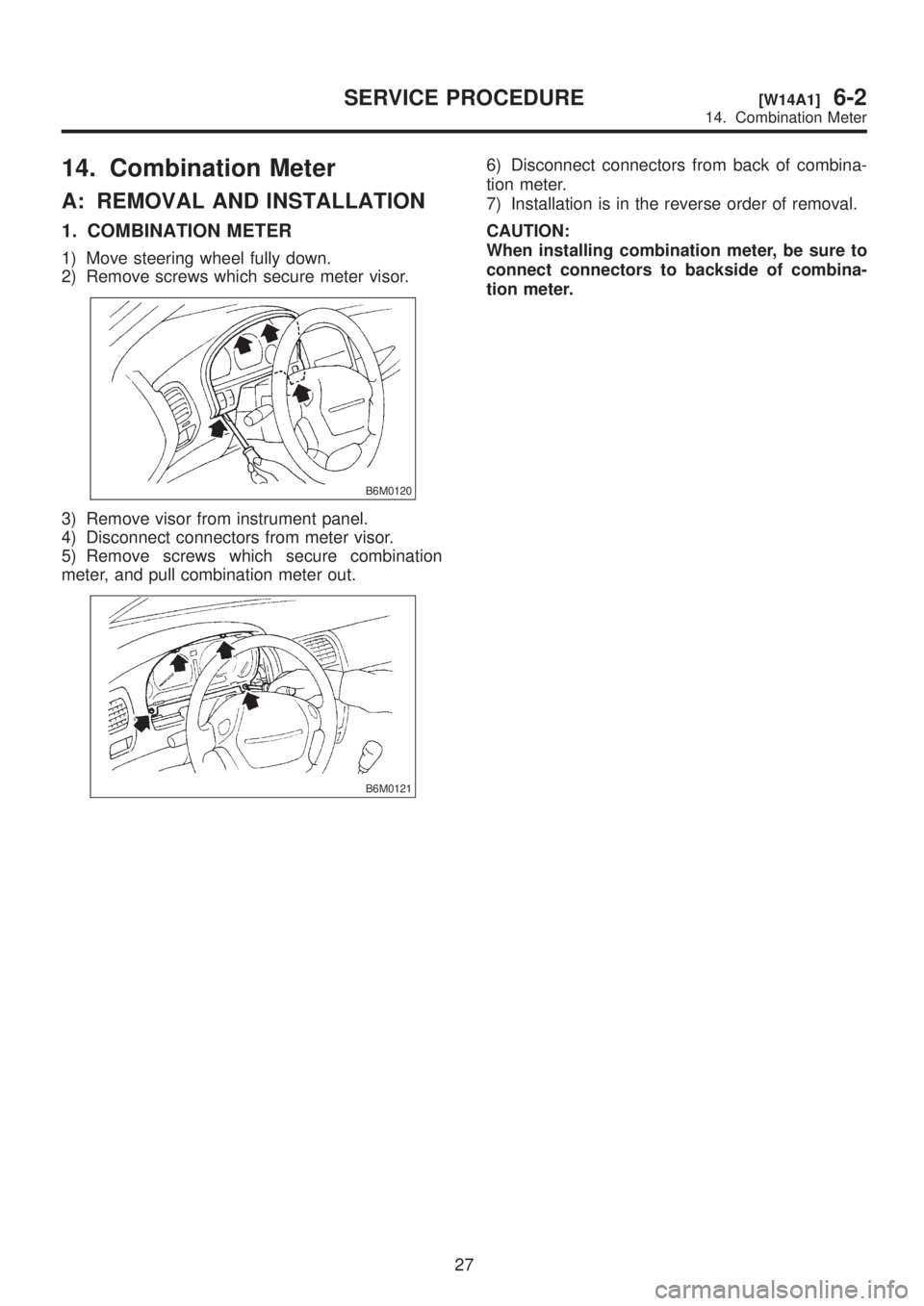

A: REMOVAL AND INSTALLATION
1. COMBINATION METER
1) Move steering wheel fully down.
2) Remove screws which secure meter visor.
B6M0120
3) Remove visor from instrument panel.
4) Disconnect connectors from meter visor.
5) Remove screws which secure combination
meter, and pull combination meter out.
B6M0121
6) Disconnect connectors from back of combina-
tion meter.
7) Installation is in the reverse order of removal.
CAUTION:
When installing combination meter, be sure to
connect connectors to backside of combina-
tion meter.
27
[W14A1]6-2SERVICE PROCEDURE
14. Combination Meter

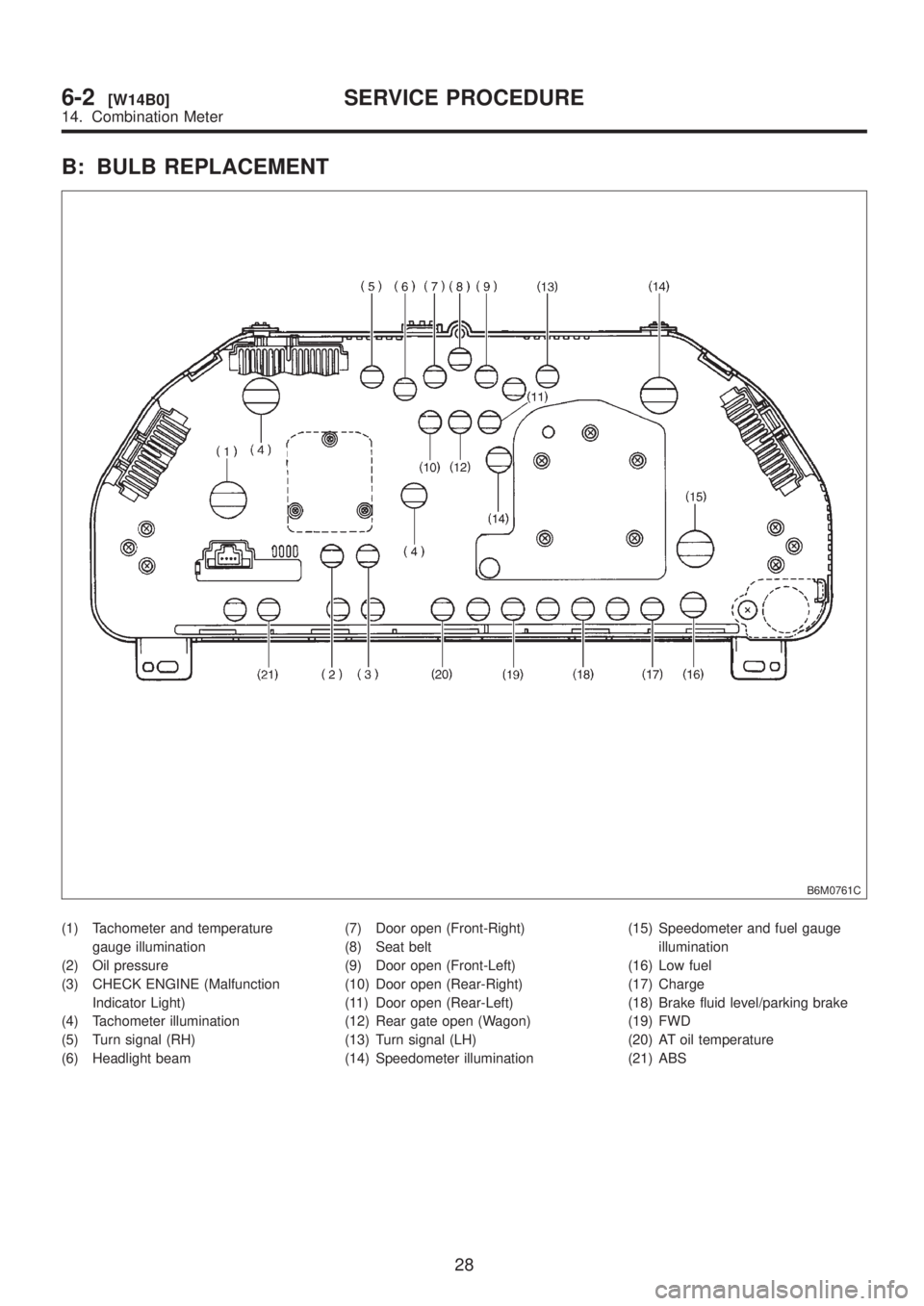

B: BULB REPLACEMENT
B6M0761C
(1) Tachometer and temperature
gauge illumination
(2) Oil pressure
(3) CHECK ENGINE (Malfunction
Indicator Light)
(4) Tachometer illumination
(5) Turn signal (RH)
(6) Headlight beam(7) Door open (Front-Right)
(8) Seat belt
(9) Door open (Front-Left)
(10) Door open (Rear-Right)
(11) Door open (Rear-Left)
(12) Rear gate open (Wagon)
(13) Turn signal (LH)
(14) Speedometer illumination(15) Speedometer and fuel gauge
illumination
(16) Low fuel
(17) Charge
(18) Brake fluid level/parking brake
(19) FWD
(20) AT oil temperature
(21) ABS
28
6-2[W14B0]SERVICE PROCEDURE
14. Combination Meter
