1999 SUBARU LEGACY Service Repair Manual

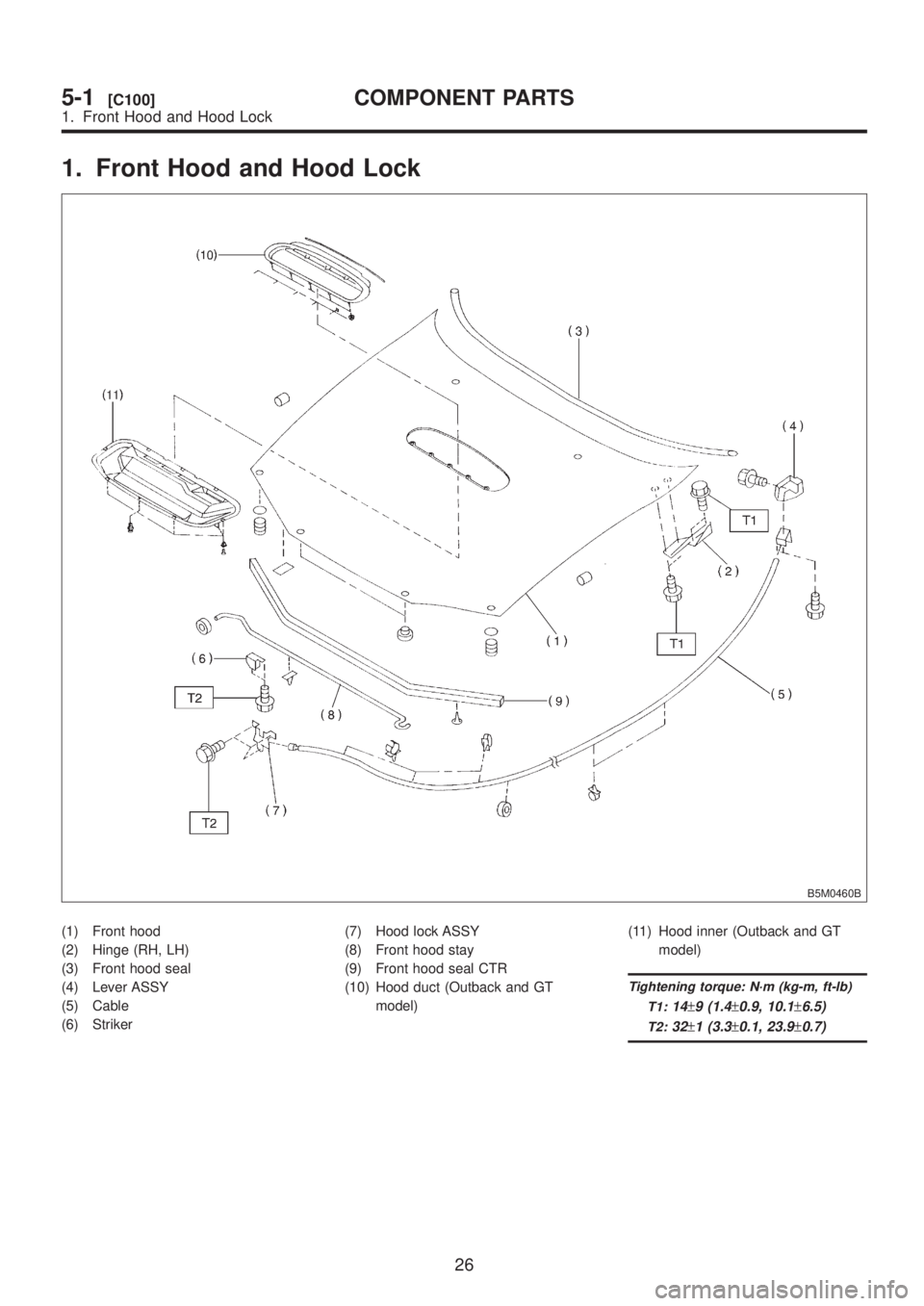

1. Front Hood and Hood Lock
B5M0460B
(1) Front hood
(2) Hinge (RH, LH)
(3) Front hood seal
(4) Lever ASSY
(5) Cable
(6) Striker(7) Hood lock ASSY
(8) Front hood stay
(9) Front hood seal CTR
(10) Hood duct (Outback and GT
model)(11) Hood inner (Outback and GT
model)
Tightening torque: N´m (kg-m, ft-lb)
T1:
14±9 (1.4±0.9, 10.1±6.5)
T2:32±1 (3.3±0.1, 23.9±0.7)
26
5-1[C100]COMPONENT PARTS
1. Front Hood and Hood Lock

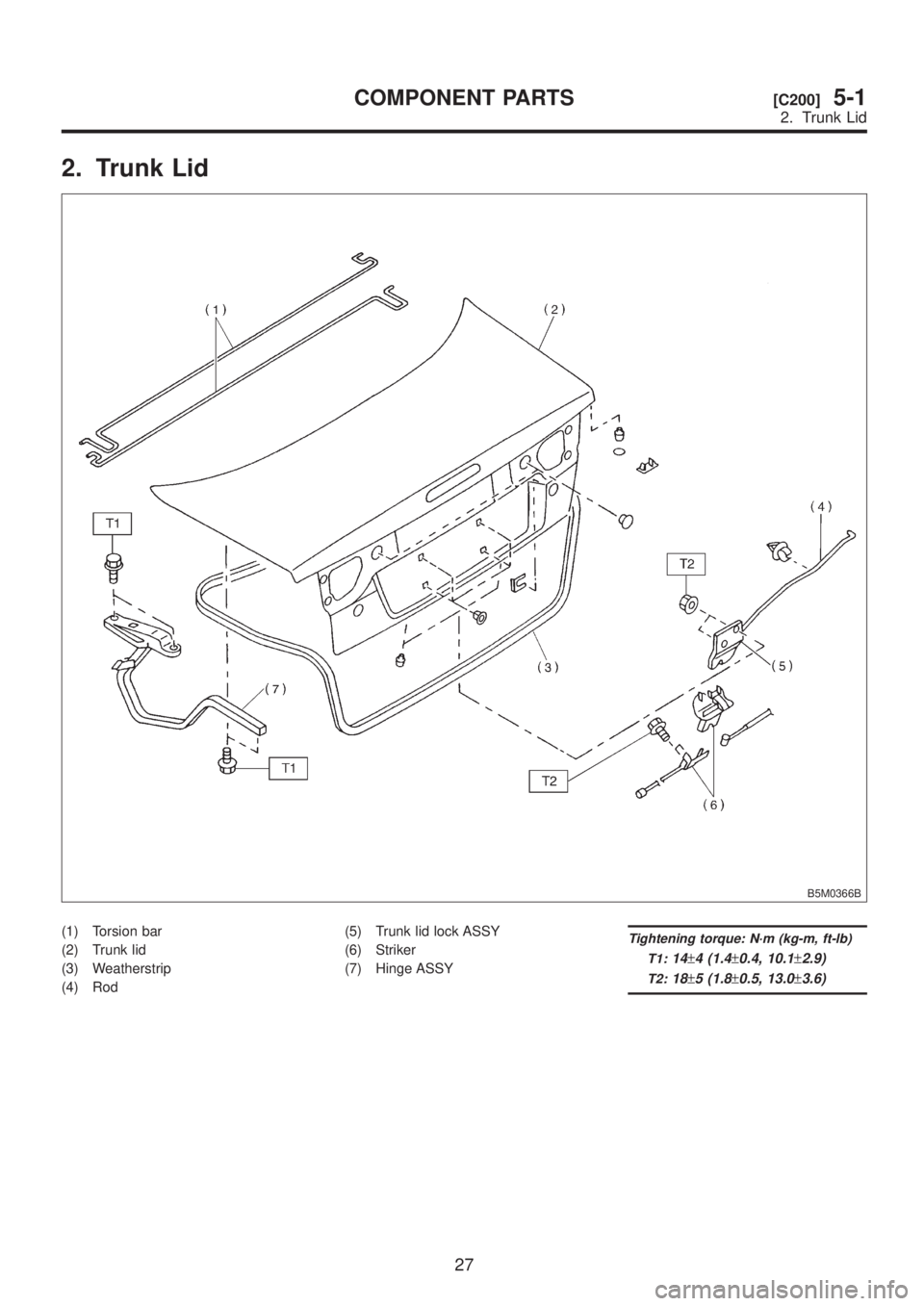

2. Trunk Lid
B5M0366B
(1) Torsion bar
(2) Trunk lid
(3) Weatherstrip
(4) Rod(5) Trunk lid lock ASSY
(6) Striker
(7) Hinge ASSYTightening torque: N´m (kg-m, ft-lb)
T1:
14±4 (1.4±0.4, 10.1±2.9)
T2:18±5 (1.8±0.5, 13.0±3.6)
27
[C200]5-1COMPONENT PARTS
2. Trunk Lid

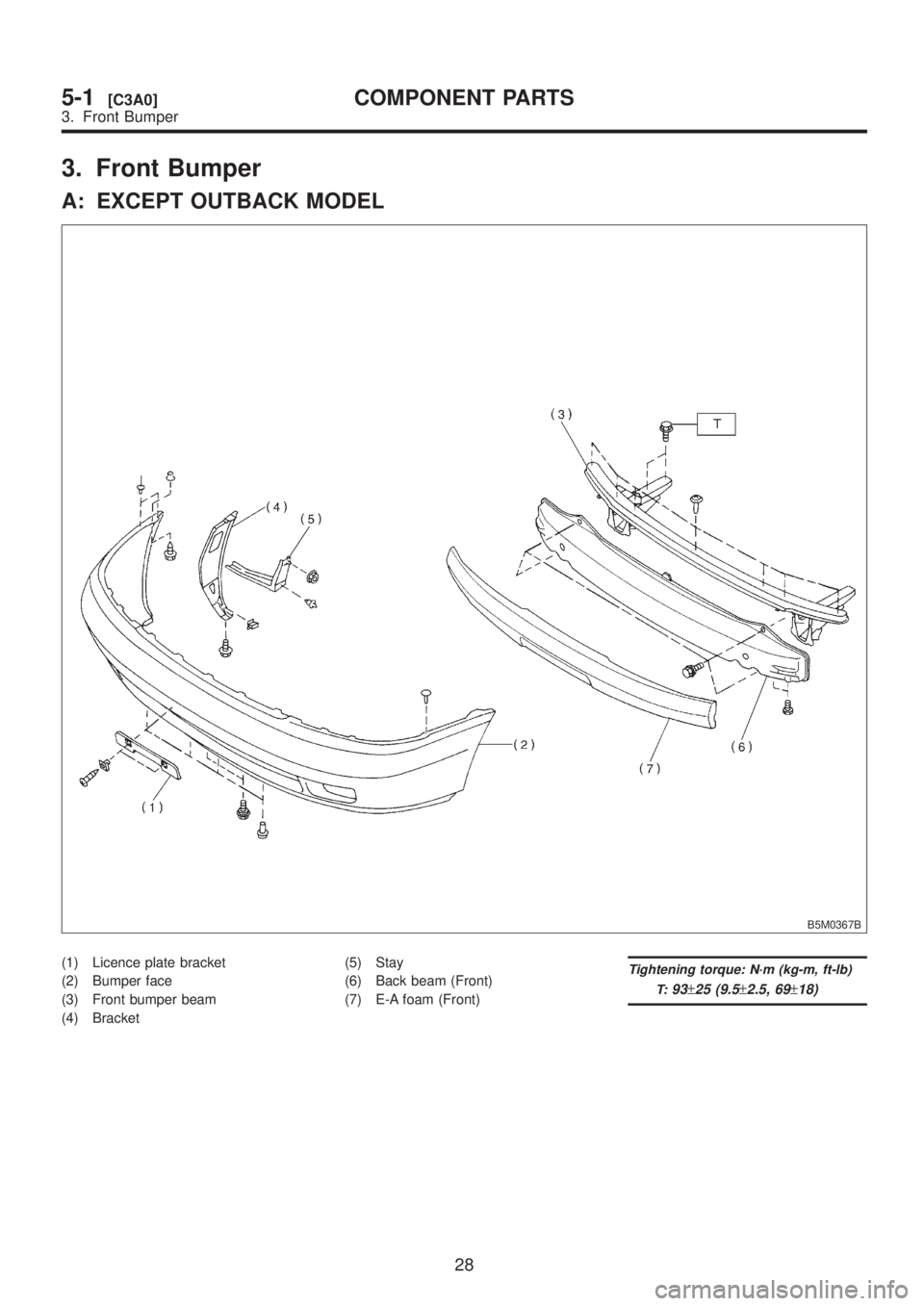

3. Front Bumper
A: EXCEPT OUTBACK MODEL
B5M0367B
(1) Licence plate bracket
(2) Bumper face
(3) Front bumper beam
(4) Bracket(5) Stay
(6) Back beam (Front)
(7) E-A foam (Front)Tightening torque: N´m (kg-m, ft-lb)
T:
93±25 (9.5±2.5, 69±18)
28
5-1[C3A0]COMPONENT PARTS
3. Front Bumper

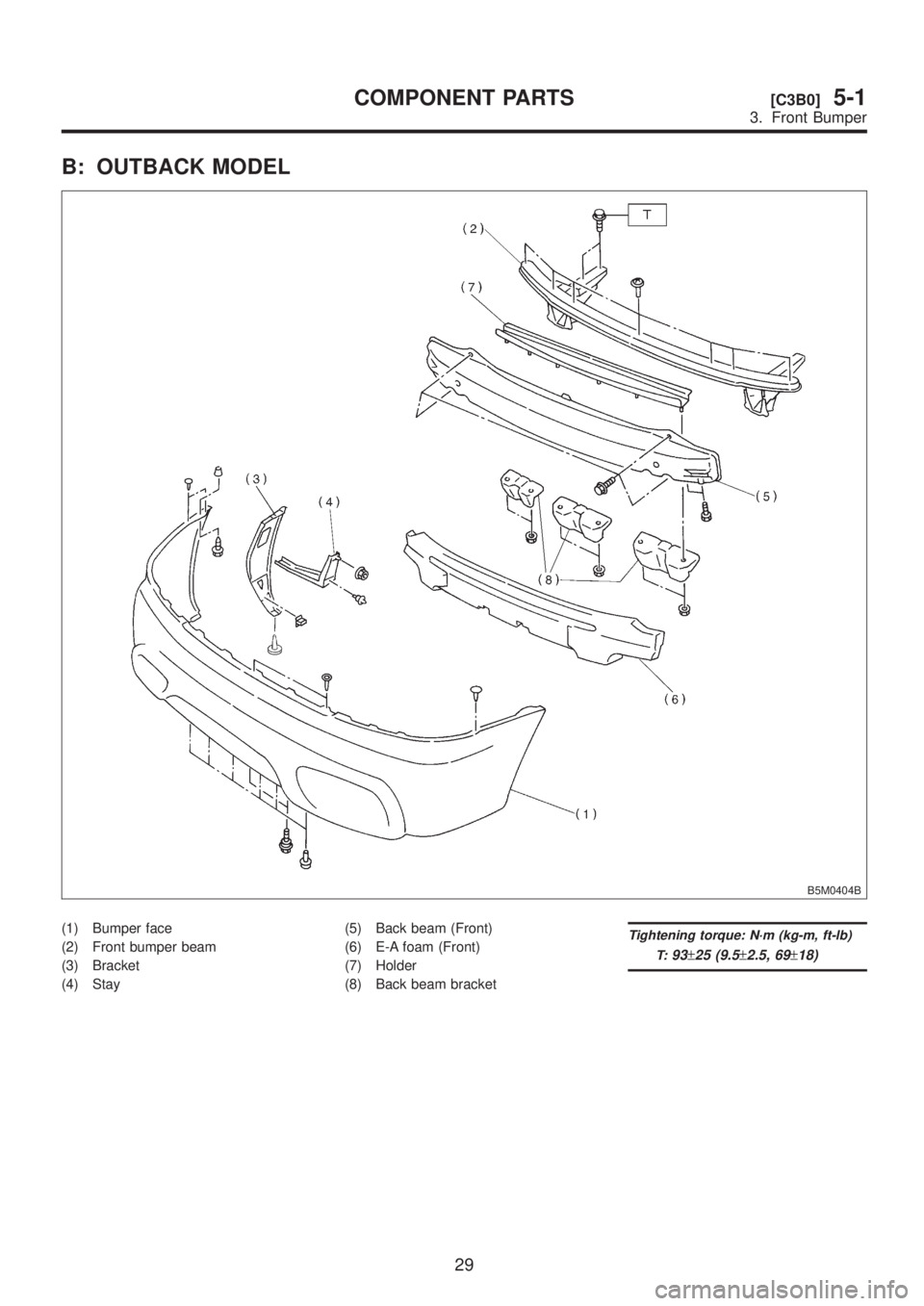

B: OUTBACK MODEL
B5M0404B
(1) Bumper face
(2) Front bumper beam
(3) Bracket
(4) Stay(5) Back beam (Front)
(6) E-A foam (Front)
(7) Holder
(8) Back beam bracketTightening torque: N´m (kg-m, ft-lb)
T:
93±25 (9.5±2.5, 69±18)
29
[C3B0]5-1COMPONENT PARTS
3. Front Bumper

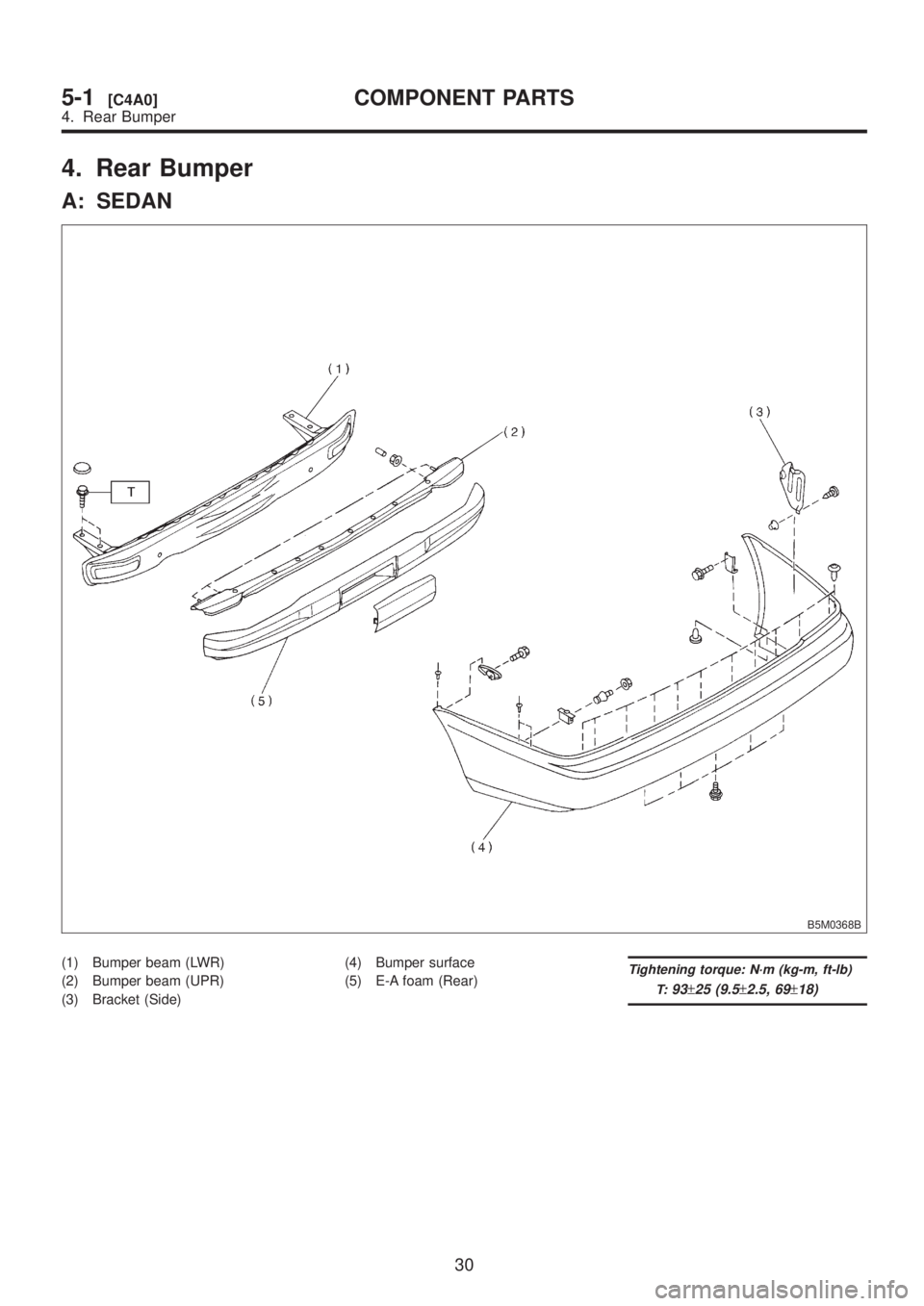

4. Rear Bumper
A: SEDAN
B5M0368B
(1) Bumper beam (LWR)
(2) Bumper beam (UPR)
(3) Bracket (Side)(4) Bumper surface
(5) E-A foam (Rear)Tightening torque: N´m (kg-m, ft-lb)
T:
93±25 (9.5±2.5, 69±18)
30
5-1[C4A0]COMPONENT PARTS
4. Rear Bumper

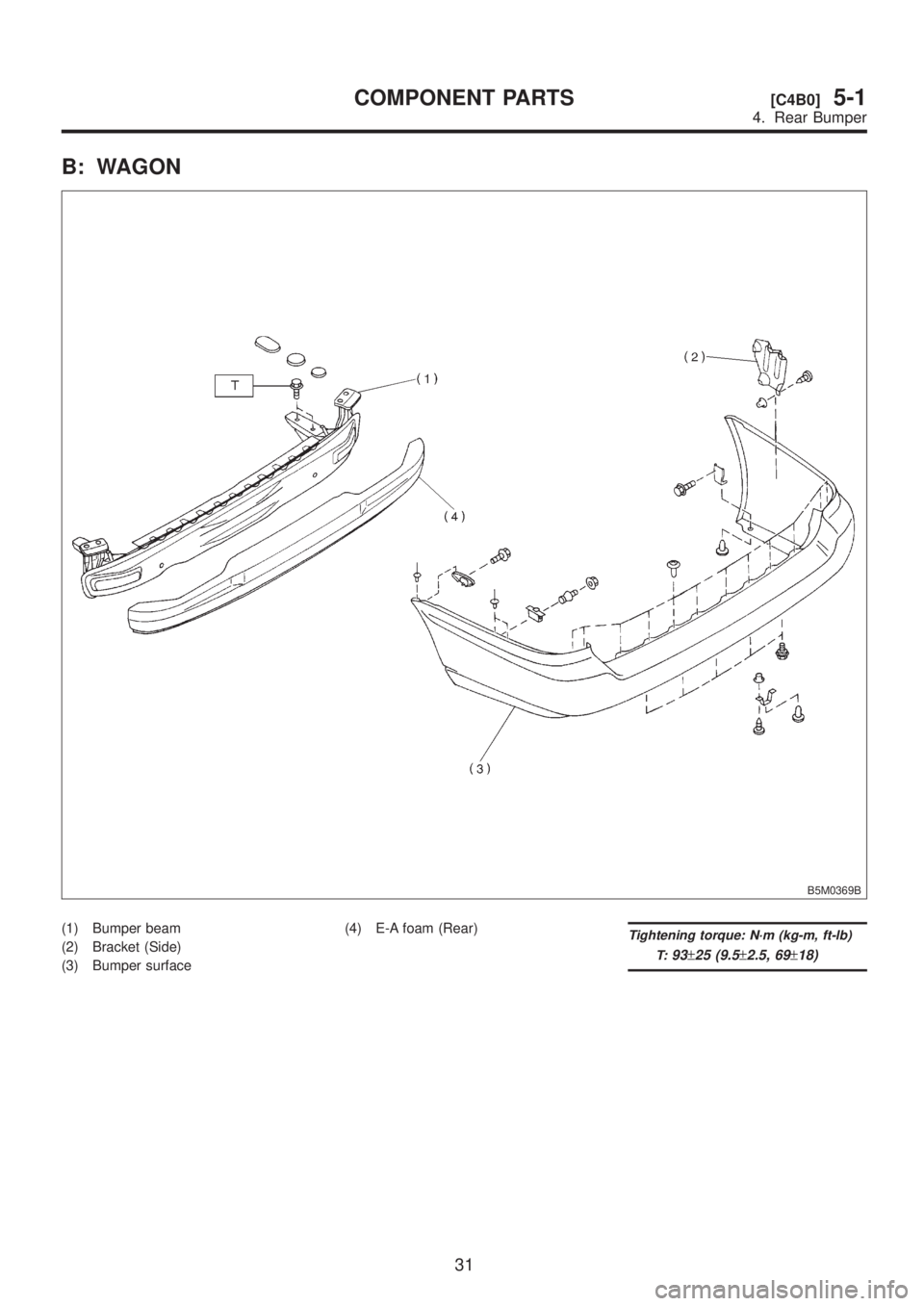

B: WAGON
B5M0369B
(1) Bumper beam
(2) Bracket (Side)
(3) Bumper surface(4) E-A foam (Rear)Tightening torque: N´m (kg-m, ft-lb)
T:
93±25 (9.5±2.5, 69±18)
31
[C4B0]5-1COMPONENT PARTS
4. Rear Bumper

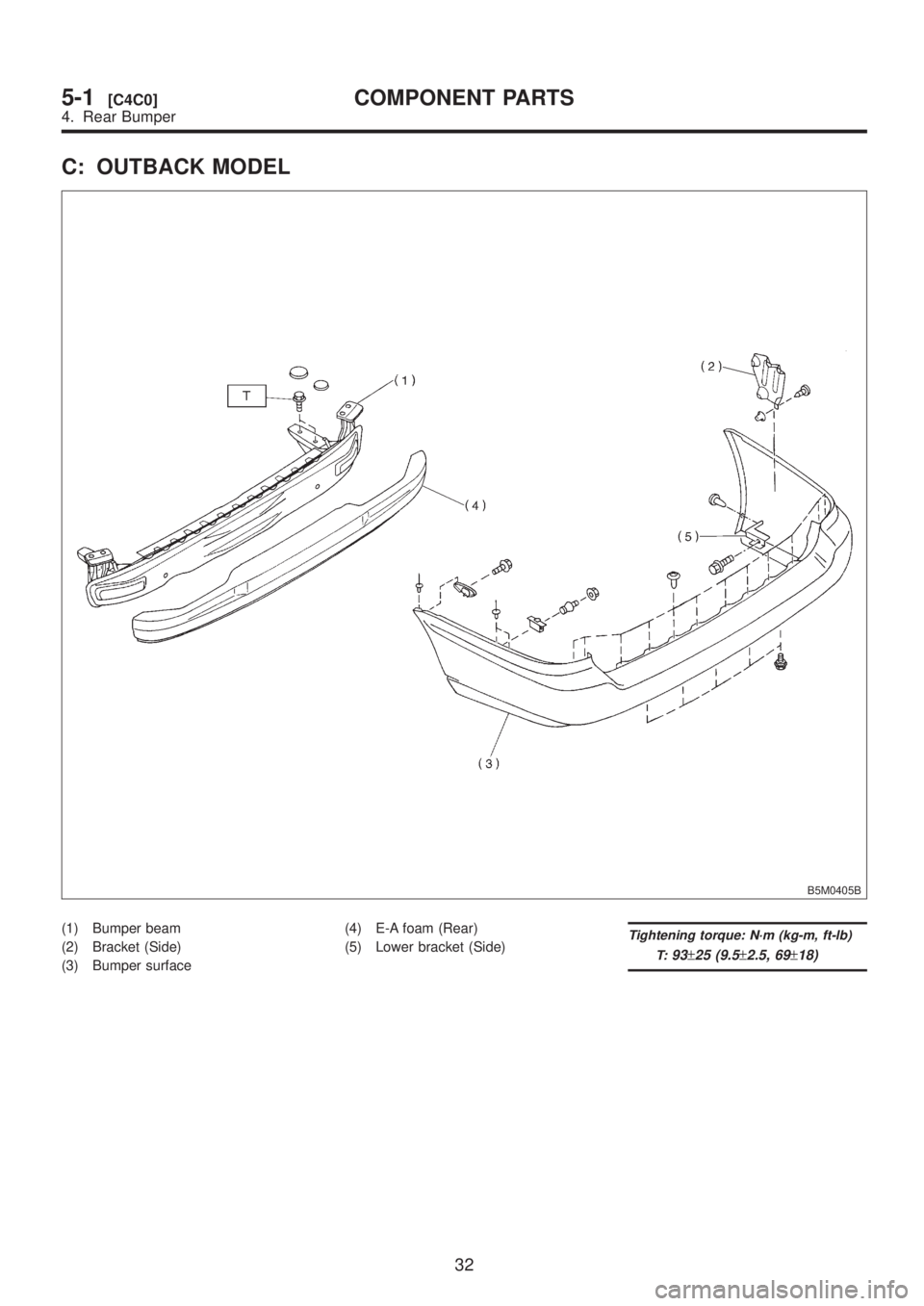

C: OUTBACK MODEL
B5M0405B
(1) Bumper beam
(2) Bracket (Side)
(3) Bumper surface(4) E-A foam (Rear)
(5) Lower bracket (Side)Tightening torque: N´m (kg-m, ft-lb)
T:
93±25 (9.5±2.5, 69±18)
32
5-1[C4C0]COMPONENT PARTS
4. Rear Bumper

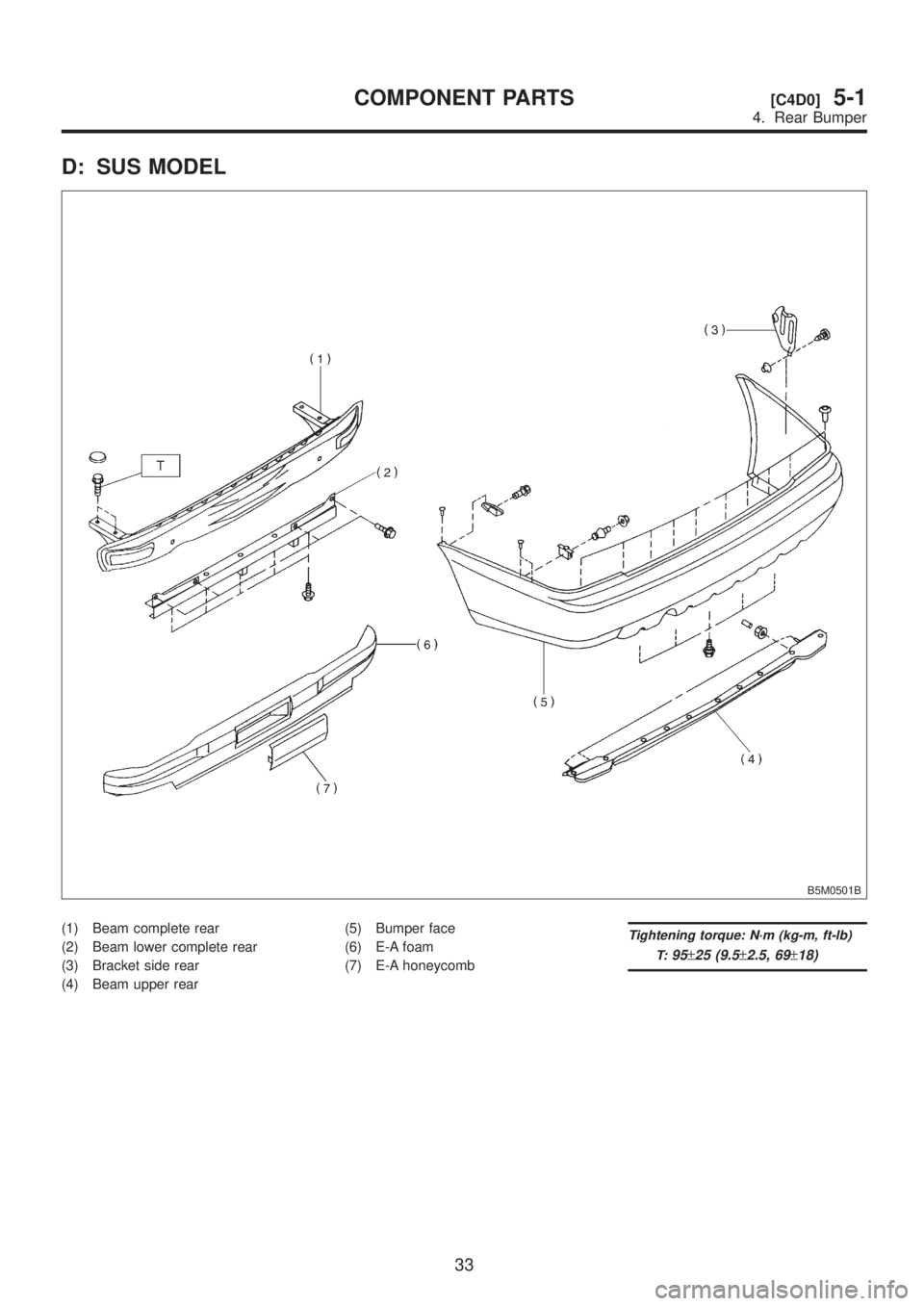

D: SUS MODEL
B5M0501B
(1) Beam complete rear
(2) Beam lower complete rear
(3) Bracket side rear
(4) Beam upper rear(5) Bumper face
(6) E-A foam
(7) E-A honeycombTightening torque: N´m (kg-m, ft-lb)
T:
95±25 (9.5±2.5, 69±18)
33
[C4D0]5-1COMPONENT PARTS
4. Rear Bumper
