1999 SUBARU LEGACY Service Repair Manual

B: CENTER STRUCTURE
B5M0251B
B5M0393B
18
5-1[S3B0]SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

B5M0253B
19
[S3B0]5-1SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

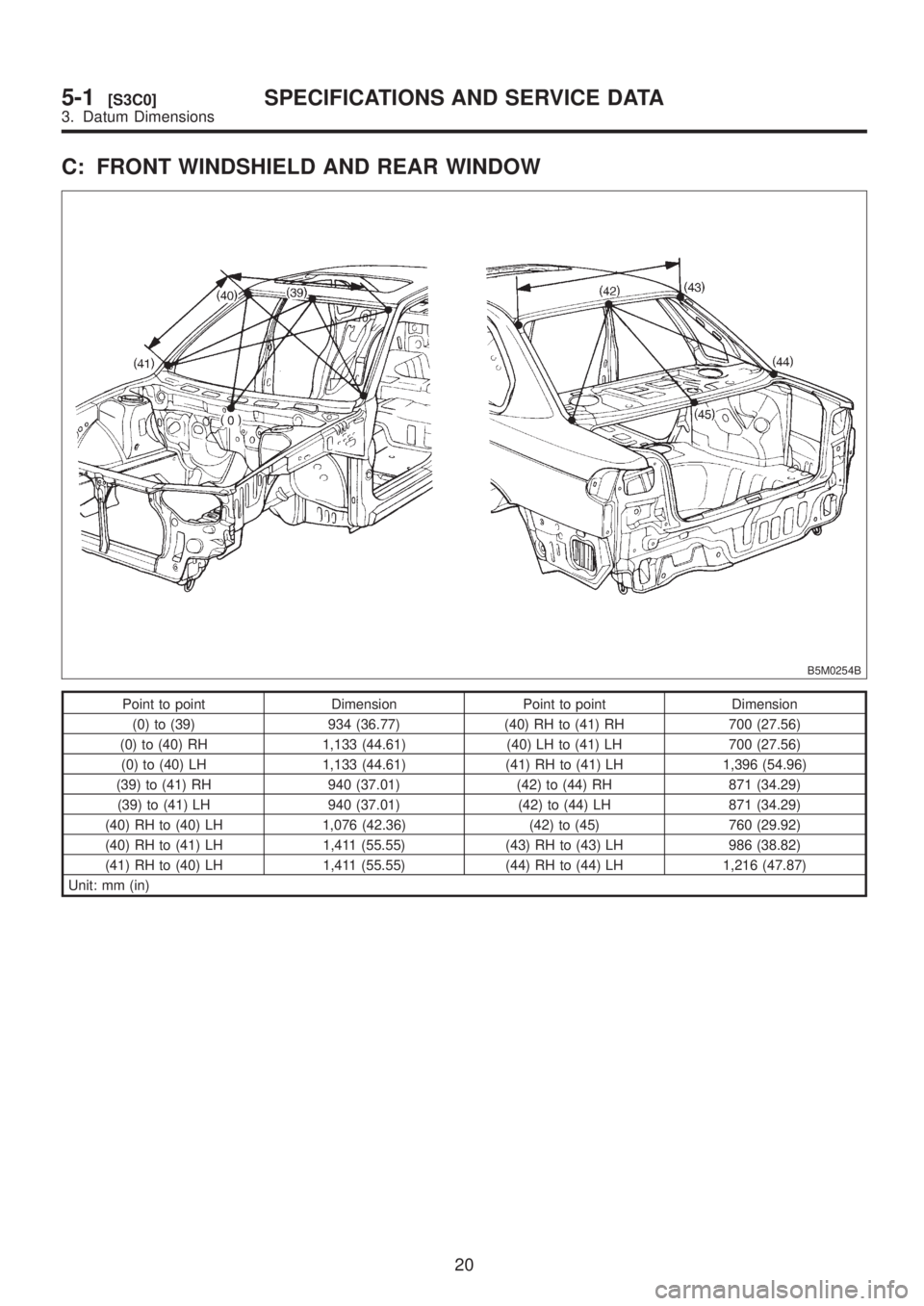

C: FRONT WINDSHIELD AND REAR WINDOW
B5M0254B
Point to point Dimension Point to point Dimension
(0) to (39) 934 (36.77) (40) RH to (41) RH 700 (27.56)
(0) to (40) RH 1,133 (44.61) (40) LH to (41) LH 700 (27.56)
(0) to (40) LH 1,133 (44.61) (41) RH to (41) LH 1,396 (54.96)
(39) to (41) RH 940 (37.01) (42) to (44) RH 871 (34.29)
(39) to (41) LH 940 (37.01) (42) to (44) LH 871 (34.29)
(40) RH to (40) LH 1,076 (42.36) (42) to (45) 760 (29.92)
(40) RH to (41) LH 1,411 (55.55) (43) RH to (43) LH 986 (38.82)
(41) RH to (40) LH 1,411 (55.55) (44) RH to (44) LH 1,216 (47.87)
Unit: mm (in)
20
5-1[S3C0]SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

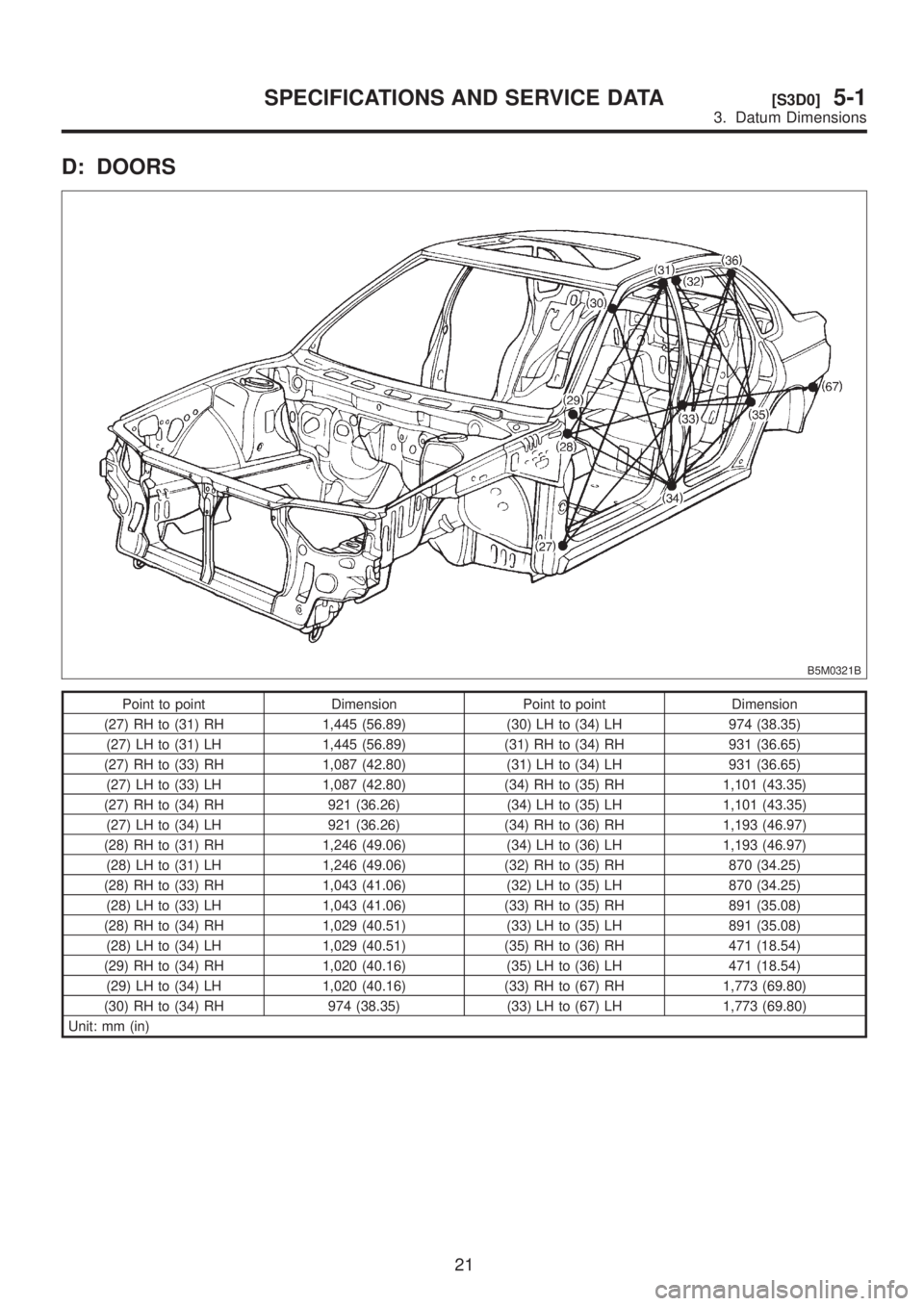

D: DOORS
B5M0321B
Point to point Dimension Point to point Dimension
(27) RH to (31) RH 1,445 (56.89) (30) LH to (34) LH 974 (38.35)
(27) LH to (31) LH 1,445 (56.89) (31) RH to (34) RH 931 (36.65)
(27) RH to (33) RH 1,087 (42.80) (31) LH to (34) LH 931 (36.65)
(27) LH to (33) LH 1,087 (42.80) (34) RH to (35) RH 1,101 (43.35)
(27) RH to (34) RH 921 (36.26) (34) LH to (35) LH 1,101 (43.35)
(27) LH to (34) LH 921 (36.26) (34) RH to (36) RH 1,193 (46.97)
(28) RH to (31) RH 1,246 (49.06) (34) LH to (36) LH 1,193 (46.97)
(28) LH to (31) LH 1,246 (49.06) (32) RH to (35) RH 870 (34.25)
(28) RH to (33) RH 1,043 (41.06) (32) LH to (35) LH 870 (34.25)
(28) LH to (33) LH 1,043 (41.06) (33) RH to (35) RH 891 (35.08)
(28) RH to (34) RH 1,029 (40.51) (33) LH to (35) LH 891 (35.08)
(28) LH to (34) LH 1,029 (40.51) (35) RH to (36) RH 471 (18.54)
(29) RH to (34) RH 1,020 (40.16) (35) LH to (36) LH 471 (18.54)
(29) LH to (34) LH 1,020 (40.16) (33) RH to (67) RH 1,773 (69.80)
(30) RH to (34) RH 974 (38.35) (33) LH to (67) LH 1,773 (69.80)
Unit: mm (in)
21
[S3D0]5-1SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

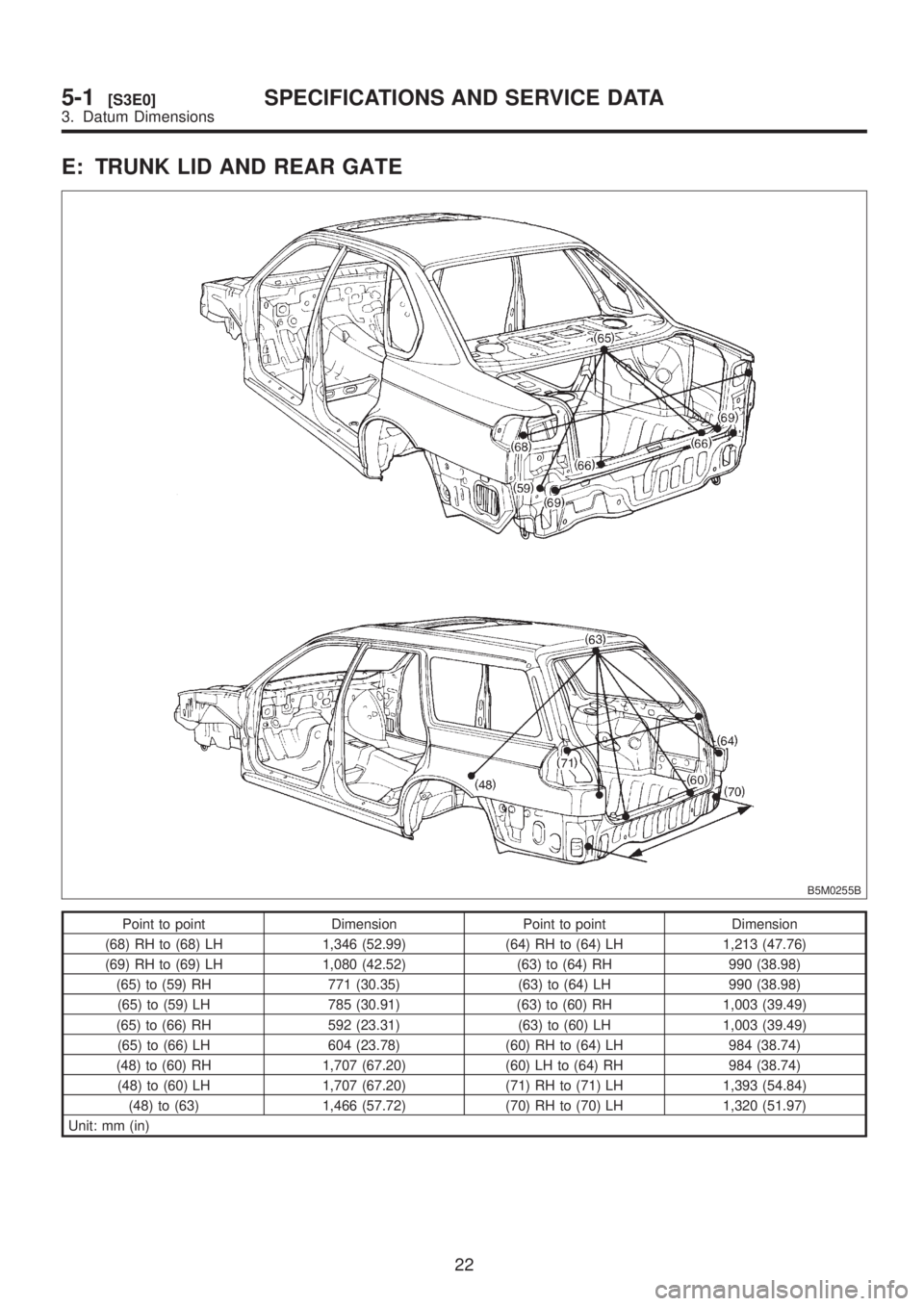

E: TRUNK LID AND REAR GATE
B5M0255B
Point to point Dimension Point to point Dimension
(68) RH to (68) LH 1,346 (52.99) (64) RH to (64) LH 1,213 (47.76)
(69) RH to (69) LH 1,080 (42.52) (63) to (64) RH 990 (38.98)
(65) to (59) RH 771 (30.35) (63) to (64) LH 990 (38.98)
(65) to (59) LH 785 (30.91) (63) to (60) RH 1,003 (39.49)
(65) to (66) RH 592 (23.31) (63) to (60) LH 1,003 (39.49)
(65) to (66) LH 604 (23.78) (60) RH to (64) LH 984 (38.74)
(48) to (60) RH 1,707 (67.20) (60) LH to (64) RH 984 (38.74)
(48) to (60) LH 1,707 (67.20) (71) RH to (71) LH 1,393 (54.84)
(48) to (63) 1,466 (57.72) (70) RH to (70) LH 1,320 (51.97)
Unit: mm (in)
22
5-1[S3E0]SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

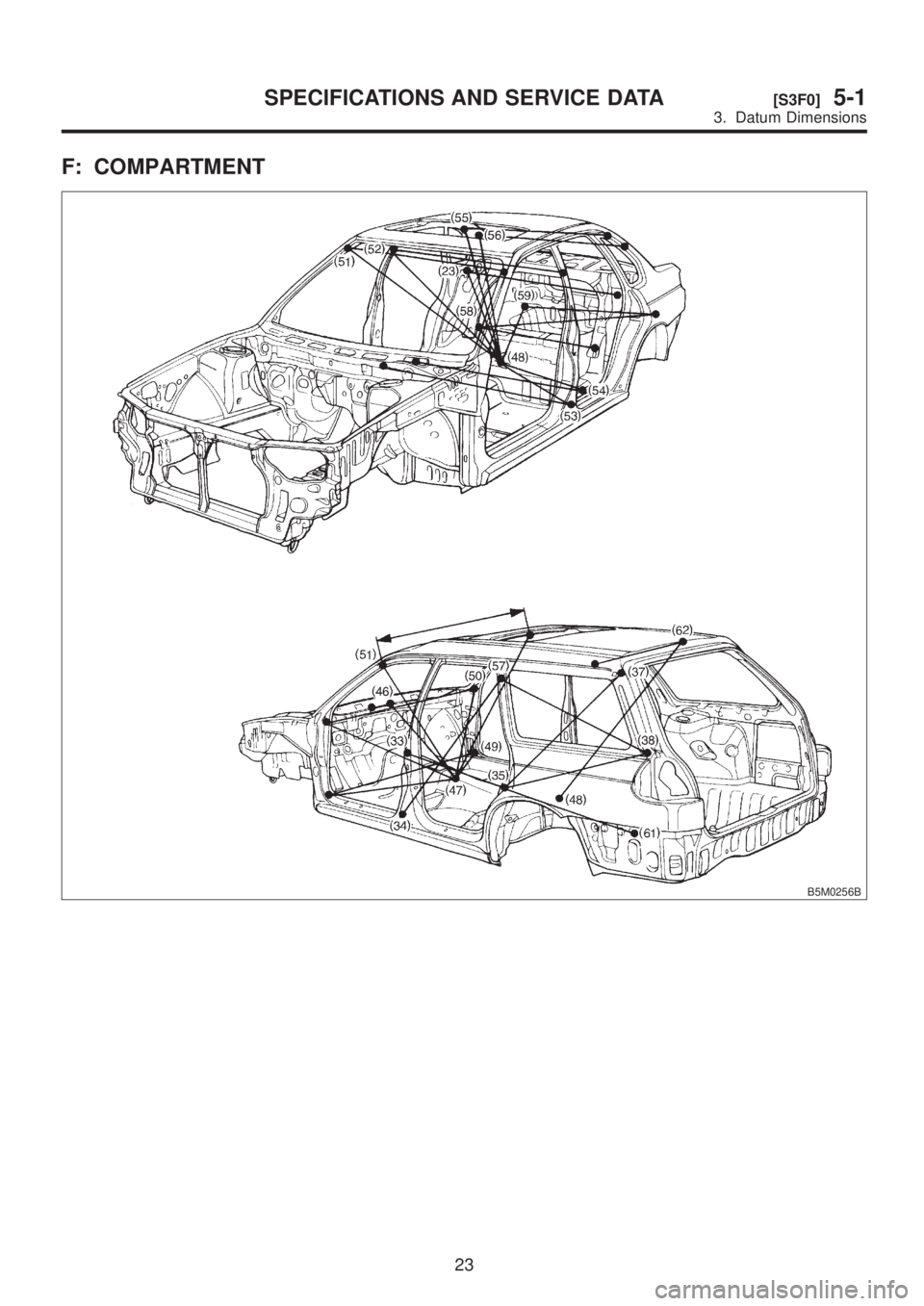

F: COMPARTMENT
B5M0256B
23
[S3F0]5-1SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

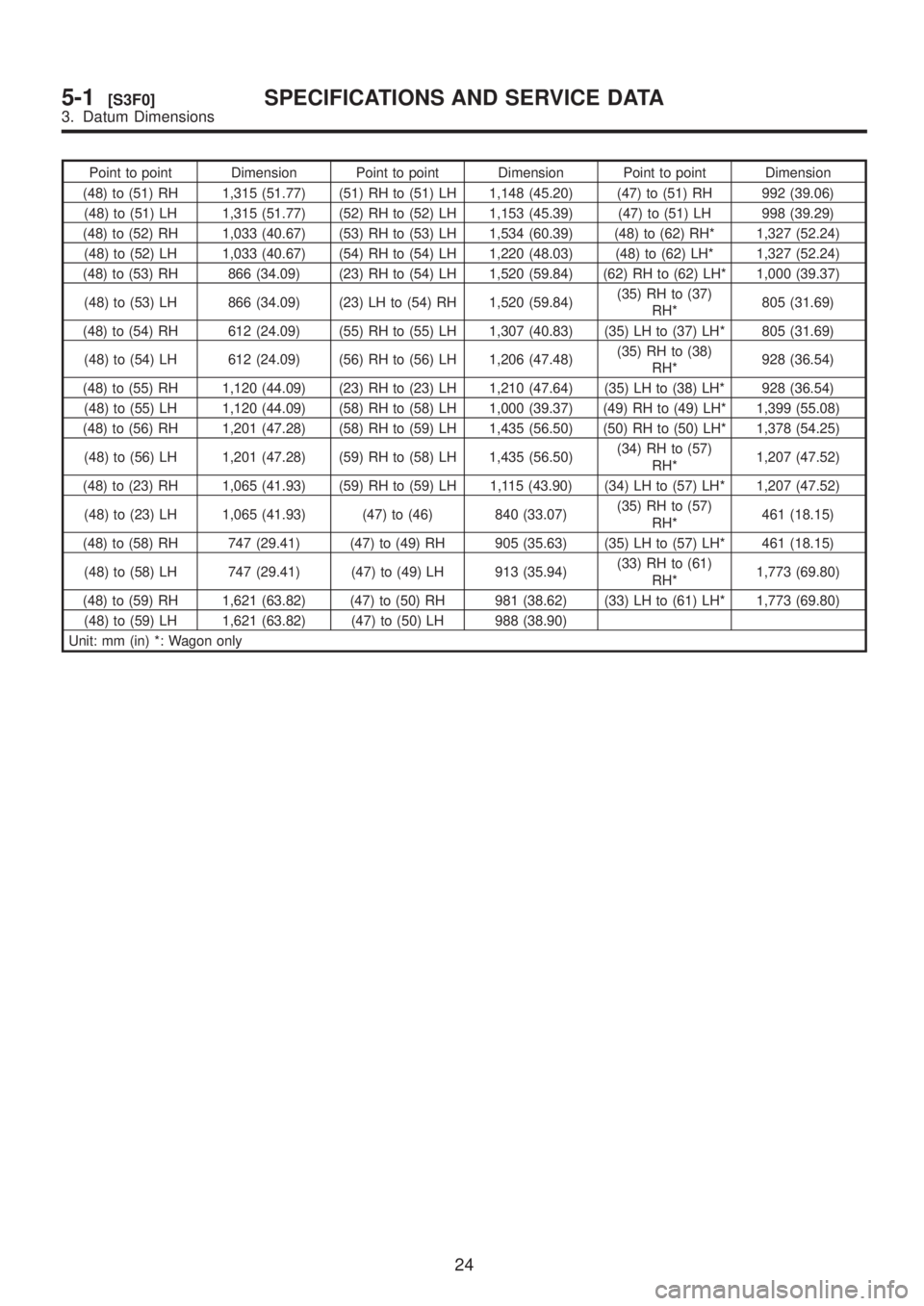

Point to point Dimension Point to point Dimension Point to point Dimension
(48) to (51) RH 1,315 (51.77) (51) RH to (51) LH 1,148 (45.20) (47) to (51) RH 992 (39.06)
(48) to (51) LH 1,315 (51.77) (52) RH to (52) LH 1,153 (45.39) (47) to (51) LH 998 (39.29)
(48) to (52) RH 1,033 (40.67) (53) RH to (53) LH 1,534 (60.39) (48) to (62) RH* 1,327 (52.24)
(48) to (52) LH 1,033 (40.67) (54) RH to (54) LH 1,220 (48.03) (48) to (62) LH* 1,327 (52.24)
(48) to (53) RH 866 (34.09) (23) RH to (54) LH 1,520 (59.84) (62) RH to (62) LH* 1,000 (39.37)
(48) to (53) LH 866 (34.09) (23) LH to (54) RH 1,520 (59.84)(35) RH to (37)
RH*805 (31.69)
(48) to (54) RH 612 (24.09) (55) RH to (55) LH 1,307 (40.83) (35) LH to (37) LH* 805 (31.69)
(48) to (54) LH 612 (24.09) (56) RH to (56) LH 1,206 (47.48)(35) RH to (38)
RH*928 (36.54)
(48) to (55) RH 1,120 (44.09) (23) RH to (23) LH 1,210 (47.64) (35) LH to (38) LH* 928 (36.54)
(48) to (55) LH 1,120 (44.09) (58) RH to (58) LH 1,000 (39.37) (49) RH to (49) LH* 1,399 (55.08)
(48) to (56) RH 1,201 (47.28) (58) RH to (59) LH 1,435 (56.50) (50) RH to (50) LH* 1,378 (54.25)
(48) to (56) LH 1,201 (47.28) (59) RH to (58) LH 1,435 (56.50)(34) RH to (57)
RH*1,207 (47.52)
(48) to (23) RH 1,065 (41.93) (59) RH to (59) LH 1,115 (43.90) (34) LH to (57) LH* 1,207 (47.52)
(48) to (23) LH 1,065 (41.93) (47) to (46) 840 (33.07)(35) RH to (57)
RH*461 (18.15)
(48) to (58) RH 747 (29.41) (47) to (49) RH 905 (35.63) (35) LH to (57) LH* 461 (18.15)
(48) to (58) LH 747 (29.41) (47) to (49) LH 913 (35.94)(33) RH to (61)
RH*1,773 (69.80)
(48) to (59) RH 1,621 (63.82) (47) to (50) RH 981 (38.62) (33) LH to (61) LH* 1,773 (69.80)
(48) to (59) LH 1,621 (63.82) (47) to (50) LH 988 (38.90)
Unit: mm (in) *: Wagon only
24
5-1[S3F0]SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

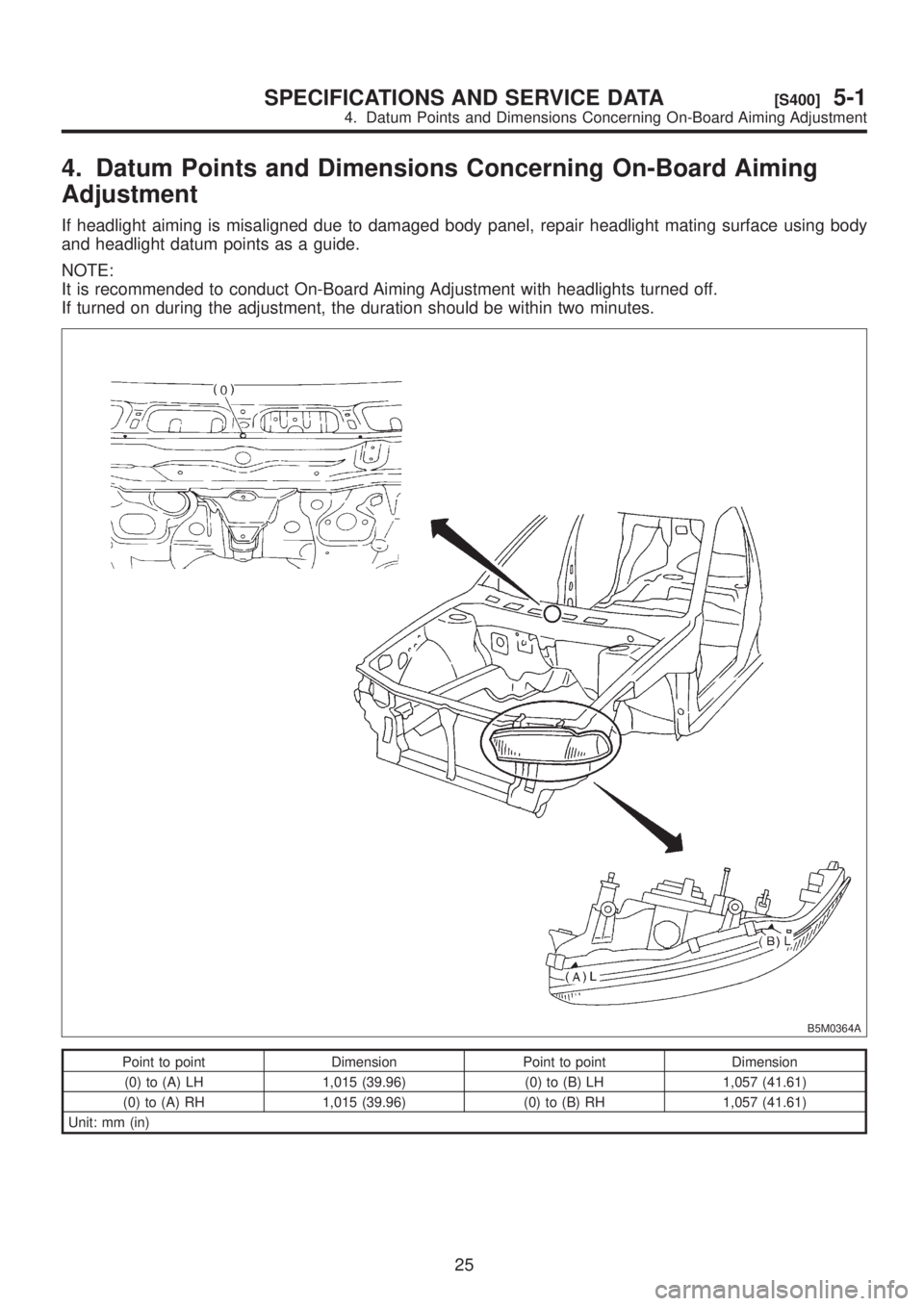

4. Datum Points and Dimensions Concerning On-Board Aiming
Adjustment
If headlight aiming is misaligned due to damaged body panel, repair headlight mating surface using body
and headlight datum points as a guide.
NOTE:
It is recommended to conduct On-Board Aiming Adjustment with headlights turned off.
If turned on during the adjustment, the duration should be within two minutes.
B5M0364A
Point to point Dimension Point to point Dimension
(0) to (A) LH 1,015 (39.96) (0) to (B) LH 1,057 (41.61)
(0) to (A) RH 1,015 (39.96) (0) to (B) RH 1,057 (41.61)
Unit: mm (in)
25
[S400]5-1SPECIFICATIONS AND SERVICE DATA
4. Datum Points and Dimensions Concerning On-Board Aiming Adjustment
