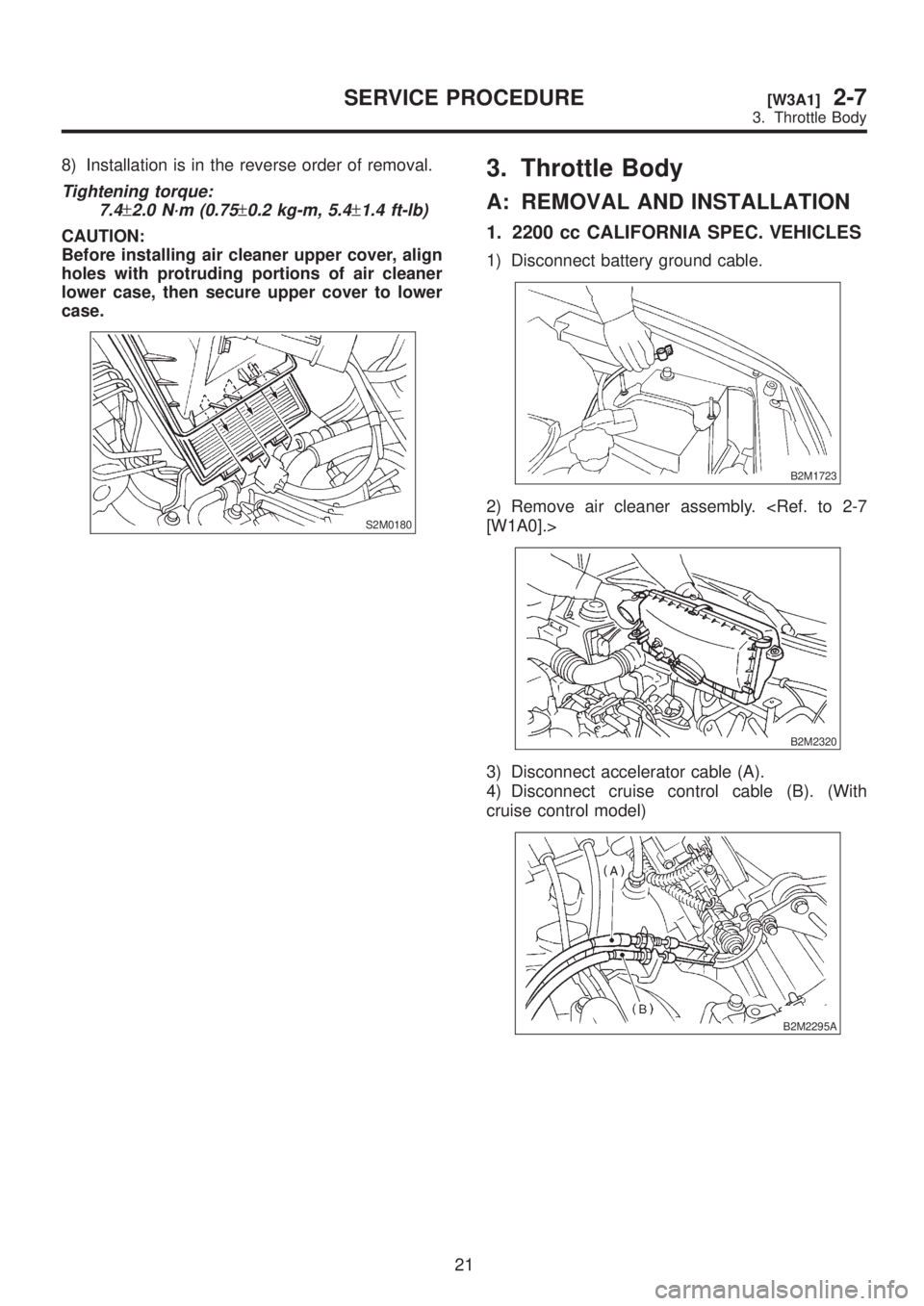

8) Installation is in the reverse order of removal.
Tightening torque:
7.4
±2.0 N´m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
CAUTION:
Before installing air cleaner upper cover, align
holes with protruding portions of air cleaner
lower case, then secure upper cover to lower
case.
S2M0180
3. Throttle Body
A: REMOVAL AND INSTALLATION
1. 2200 cc CALIFORNIA SPEC. VEHICLES
1) Disconnect battery ground cable.
B2M1723
2) Remove air cleaner assembly. [W1A0].>
B2M2320
3) Disconnect accelerator cable (A).
4) Disconnect cruise control cable (B). (With
cruise control model)
B2M2295A
21
[W3A1]2-7SERVICE PROCEDURE
3. Throttle Body

5) Disconnect connectors from idle air control
solenoid valve (A) and intake manifold pressure
sensor (B).
B2M2296A
(A) Idle air control solenoid valve
(B) Intake manifold pressure sensor
6) Disconnect connector from throttle position
sensor.
B2M2297
7) Disconnect air by-pass hose from idle air con-
trol solenoid valve.
B2M2298
8) Disconnect engine coolant hoses from throttle
body.
B2M2299
9) Remove bolts which install throttle body to
intake manifold.
B2M2300
10) Installation is in the reverse order of removal.
CAUTION:
Always use a new gasket.
Tightening torque:
Throttle body:
22
±2 N´m (2.2±0.2 kg-m, 15.9±1.4 ft-lb)
Air cleaner case:
4.9
±0.5 N´m (0.5±0.05 kg-m, 3.6±0.4 ft-lb)
2. 2200 cc EXCEPT CALIFORNIA SPEC.
VEHICLES
1) Disconnect battery ground cable.
B2M1723
22
2-7[W3A2]SERVICE PROCEDURE
3. Throttle Body

2) Loosen clamps which connect air intake duct to
air intake chamber and mass air flow sensor.
B2M2019
3) Loosen clamp which connects air intake cham-
ber to throttle body.
B2M2769
4) Disconnect blow-by hose and air hoses, and
remove air intake chamber.
B2M2301
5) Disconnect accelerator cable (A).
6) Disconnect cruise control cable (B). (With
cruise control model)
B2M2302A
7) Disconnect connector from throttle position
sensor.
B2M2303
8) Disconnect connector from idle air control sole-
noid valve.
B2M2756
9) Disconnect engine coolant hoses from throttle
body.
B2M2304
10) Remove bolts which install throttle body to
intake manifold.
B2M2305
11) Installation is in the reverse order of removal.
23
[W3A2]2-7SERVICE PROCEDURE
3. Throttle Body

CAUTION:
IAlways use a new gasket.
IBefore installing air cleaner upper cover,
align holes with protruding portions of air
cleaner lower case, then secure upper cover to
lower case.
Tightening torque:
Throttle body:
22
±2 N´m (2.2±0.2 kg-m, 15.9±1.4 ft-lb)
Air intake chamber:
4.9
±0.5 N´m (0.5±0.05 kg-m, 3.6±0.4 ft-lb)
3. 2500 cc MODEL
1) Disconnect battery ground cable.
B2M1723
2) Loosen clamps which connect air intake duct to
air intake chamber and mass air flow sensor.
S2M0080
3) Loosen clamp which connects air intake cham-
ber to throttle body.
S2M0096
4) Disconnect blow-by hose and air hoses, and
remove air intake chamber and air intake duct as
a unit.
S6M0007
5) Disconnect accelerator cable (A).
6) Disconnect cruise control cable (B). (With
cruise control model)
B2M1190A
7) Disconnect connector from throttle position
sensor.
S2M0083
8) Disconnect engine coolant hoses from throttle
body.
B2M1248
24
2-7[W3A3]SERVICE PROCEDURE
3. Throttle Body

9) Remove bolts which install throttle body to
intake manifold.
B2M1249
10) Installation is in the reverse order of removal.
CAUTION:
IAlways use a new gasket.
IBefore installing air cleaner upper cover,
align holes with protruding portions of air
cleaner lower case, then secure upper cover to
lower case.
Tightening torque:
Throttle body:
22
±2 N´m (2.2±0.2 kg-m, 15.9±1.4 ft-lb)
Air intake chamber:
4.9
±0.5 N´m (0.5±0.05 kg-m, 3.6±0.4 ft-lb)
4. Intake Manifold
A: REMOVAL
1. 2200 cc CALIFORNIA SPEC. VEHICLES
1) Release fuel pressure.
2) Open fuel flap lid, and remove fuel filler cap.
B2M1746
3) Disconnect battery ground cable.
B2M1723
4) Disconnect connector from intake air tempera-
ture sensor.
B2M2285
25
[W4A1]2-7SERVICE PROCEDURE
4. Intake Manifold

9) Remove bolts which install throttle body to
intake manifold.
B2M1249
10) Installation is in the reverse order of removal.
CAUTION:
IAlways use a new gasket.
IBefore installing air cleaner upper cover,
align holes with protruding portions of air
cleaner lower case, then secure upper cover to
lower case.
Tightening torque:
Throttle body:
22
±2 N´m (2.2±0.2 kg-m, 15.9±1.4 ft-lb)
Air intake chamber:
4.9
±0.5 N´m (0.5±0.05 kg-m, 3.6±0.4 ft-lb)
4. Intake Manifold
A: REMOVAL
1. 2200 cc CALIFORNIA SPEC. VEHICLES
1) Release fuel pressure.
2) Open fuel flap lid, and remove fuel filler cap.
B2M1746
3) Disconnect battery ground cable.
B2M1723
4) Disconnect connector from intake air tempera-
ture sensor.
B2M2285
25
[W4A1]2-7SERVICE PROCEDURE
4. Intake Manifold

5) Remove bolt which installs air intake duct (A)
on the front of body.
B2M2283A
6) Remove bolt which installs air intake duct (B)
on body.
B2M2284A
7) Remove bolts which install air cleaner case on
stays.
B2M2349
8) Loosen clamp which connects air intake cham-
ber to throttle body.
B2M2286
9) Disconnect blow-by hose from air cleaner case.10) Remove air intake duct (A), (B) and air cleaner
assembly as a unit.
B2M2773
11) Disconnect accelerator cable (A).
12) Disconnect cruise control cable (B). (With
cruise control model)
B2M2295A
13) Remove power steering pump from bracket.
(1) Remove resonator chamber.
B2M2306
(2) Remove V-belt covers.
B2M2307
26
2-7[W4A1]SERVICE PROCEDURE
4. Intake Manifold

(3) Loosen lock bolt and slider bolt, and remove
power steering pump drive V-belt.
B2M2308
(4) Remove bolts which secure power steering
pipe brackets to intake manifold.
NOTE:
Do not disconnect power steering hose.
B2M2309
(5) Remove bolts which install power steering
pump to bracket.
B2M2310
(6) Remove bolt which holds power steering
fluid tank bracket onto cylinder block.
B2M2325
(7) Place power steering pump on the right side
wheel apron.
B2M2311
14) Remove fuel pipe protector LH. (LHD model
only)
B2M2754
15) Remove fuel pipe protector RH. (RHD model
only)
B2M2755
27
[W4A1]2-7SERVICE PROCEDURE
4. Intake Manifold
