1999 SUBARU LEGACY Service Repair Manual

153
[D8D2]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

E: ENGINE WIRING HARNESS AND TRANSMISSION CORD
1. 2200 cc ENGINE MODEL
Connector Connecting to
No. Pole Color Area No. Name
E1 10 * A-3/B-2 B20
Bulkhead wiring harness E2 20 * A-3/B-2 B21
E3 16 * A-3/B-2 B22
E4 2 Blue A-3/B-1 Purge control solenoid valve
E5 2 Gray A-3/B-1 Injector #1
E6 2 Gray A-3/B-1 Injector #3
E73 Gray A-4 Idle air control solenoid valve (California model)
6 * B-2 Idle air control solenoid valve (Except California model)
E8 2 Brown A-3/B-1 Engine coolant temperature sensor
E9 1 * A-3/B-1 Thermometer
E10 2 Gray B-1/B-3 Crankshaft position sensor
E11 1 * B-1/B-3 Oil pressure switch
E12 4 Gray A-3/B-1 Ignition coil
E133 Black A-3 Throttle position sensor (California model)
4 Brown B-2 Throttle position sensor (Except California model)
E14 2 Gray A-4/B-2 Knock sensor
E15 2 Dark gray B-4/C-2 Camshaft position sensor
E16 2 Gray B-2/B-4 Injector #2
E17 2 Gray B-2/B-4 Injector #4
E20 2 Black A-4 Intake air temperature sensor
E21 3 * A-1 Pressure sensor
E243 * A-1 Front oxygen sensor (Except California model)
4 * A-3 Front oxygen (A/F) sensor (California model)
E25 4 * A-1/A-3 Rear oxygen sensor
E26 5 Gray B-1 Mass air flow sensor
E27 2 * A-1 Pressure sources switching solenoid
E28 3 * A-4 Intake manifold pressure sensor
*: Non-colored
Connector Connecting to
No. Pole Color Area No. Name
T1 2 Gray D-1 B24
Bulkhead wiring harness (MT)
T2 2 Brown D-1 B25
T3 12 Gray D-3 B12
Bulkhead wiring harness (AT)
T4 16 Gray D-3 B11
T5 4 Gray C-1/D-3 B19 Bulkhead wiring harness
T6 4 Gray D-2/D-4 Rear oxygen sensor
T7 12 * D-4 Inhibitor switch (AT)
*: Non-colored
154
6-3[D8E1]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

155
[D8E1]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

2. 2500 cc ENGINE MODEL
Connector Connecting to
No. Pole Color Area No. Name
E1 6 * A-3 B20
Bulkhead wiring harness E2 12 Gray A-3 B21
E3 16 Gray A-3 B22
E4 2 Blue A-2 Purge control solenoid valve
E5 2 Light gray A-2 Injector #1
E6 2 Dark gray A-3 Injector #3
E7 3 Gray A-3 Idle air control solenoid valve
E8 2 Brown B-3 Engine coolant temperature sensor
E9 1 * B-3 Thermometer
E10 2 Gray B-3 Crankshaft position sensor
E11 1 * B-3 Oil pressure switch
E12 3 Gray A-3 Ignition coil
E13 3 Brown A-3 Throttle position sensor
E14 2 Gray B-3 Knock sensor
E15 2 Dark gray B-4 Camshaft position sensor
E16 2 Light gray B-4 Injector #2
E17 2 Dark gray B-4 Injector #4
E18 2 Brown B-3 EGR solenoid (AT)
*: Non-colored
Connector Connecting to
No. Pole Color Area No. Name
T1 2 Gray C-1 B24
Bulkhead wiring harness (MT)
T2 2 Brown C-1 B25
T3 12 Gray D-3 B12
Bulkhead wiring harness (AT)
T4 16 Gray D-3 B11
T5 4 Gray C-1/C-3 B19 Bulkhead wiring harness
T6 4 Gray D-2/D-4 Rear oxygen sensor
T7 12 * C-4 Inhibitor switch (AT)
*: Non-colored
156
6-3[D8E2]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

157
[D8E2]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

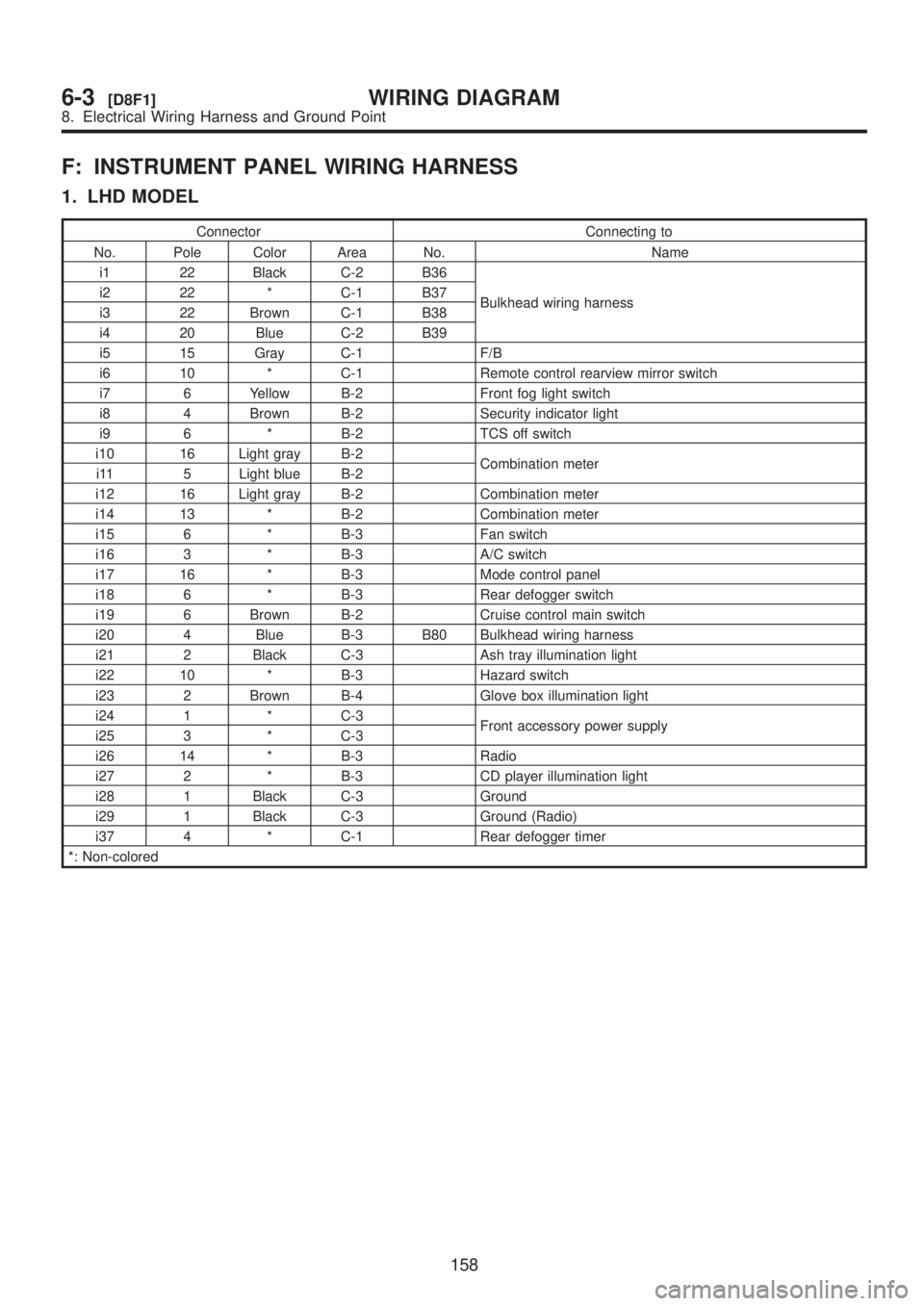

F: INSTRUMENT PANEL WIRING HARNESS
1. LHD MODEL
Connector Connecting to
No. Pole Color Area No. Name
i1 22 Black C-2 B36
Bulkhead wiring harness i2 22 * C-1 B37
i3 22 Brown C-1 B38
i4 20 Blue C-2 B39
i5 15 Gray C-1 F/B
i6 10 * C-1 Remote control rearview mirror switch
i7 6 Yellow B-2 Front fog light switch
i8 4 Brown B-2 Security indicator light
i9 6 * B-2 TCS off switch
i10 16 Light gray B-2
Combination meter
i11 5 Light blue B-2
i12 16 Light gray B-2 Combination meter
i14 13 * B-2 Combination meter
i15 6 * B-3 Fan switch
i16 3 * B-3 A/C switch
i17 16 * B-3 Mode control panel
i18 6 * B-3 Rear defogger switch
i19 6 Brown B-2 Cruise control main switch
i20 4 Blue B-3 B80 Bulkhead wiring harness
i21 2 Black C-3 Ash tray illumination light
i22 10 * B-3 Hazard switch
i23 2 Brown B-4 Glove box illumination light
i24 1 * C-3
Front accessory power supply
i25 3 * C-3
i26 14 * B-3 Radio
i27 2 * B-3 CD player illumination light
i28 1 Black C-3 Ground
i29 1 Black C-3 Ground (Radio)
i37 4 * C-1 Rear defogger timer
*: Non-colored
158
6-3[D8F1]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

159
[D8F1]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

2. RHD MODEL
Connector Connecting to
No. Pole Color Area No. Name
i1 22 Black C-4 B36
Bulkhead wiring harness i2 22 * C-4 B37
i3 22 Brown C-4 B38
i4 20 Blue C-4 B39
i5 15 Gray C-4 F/B
i6 10 * C-4 Remote control rearview mirror switch
i10 16 Light gray B-3
Combination meter
i11 5 Light blue B-3
i12 16 Light gray B-3 Combination meter
i14 13 * B-3 Combination meter
i15 8 * B-2 Fan switch
i17 16 Black B-2 Mode control panel
i18 6 * B-3 Rear defogger switch
i19 6 Brown B-3 Cruise control main switch
i20 4 Blue B-2 B80 Bulkhead wiring harness
i22 10 * B-2 Hazard switch
i23 2 Brown B-2 Glove box illumination light
i24 1 * C-2
Front accessory power supply
i25 3 * C-2
i26 14 * B-2 Radio
i27 2 * B-2 CD player illumination light
i28 1 Black C-2 Ground
i29 1 Black C-2 Ground (Radio)
i37 4 * C-4 Rear defogger timer
Non-colored
160
6-3[D8F2]WIRING DIAGRAM
