1999 SUBARU LEGACY Service Repair Manual

25
[D6B1]6-3WIRING DIAGRAM

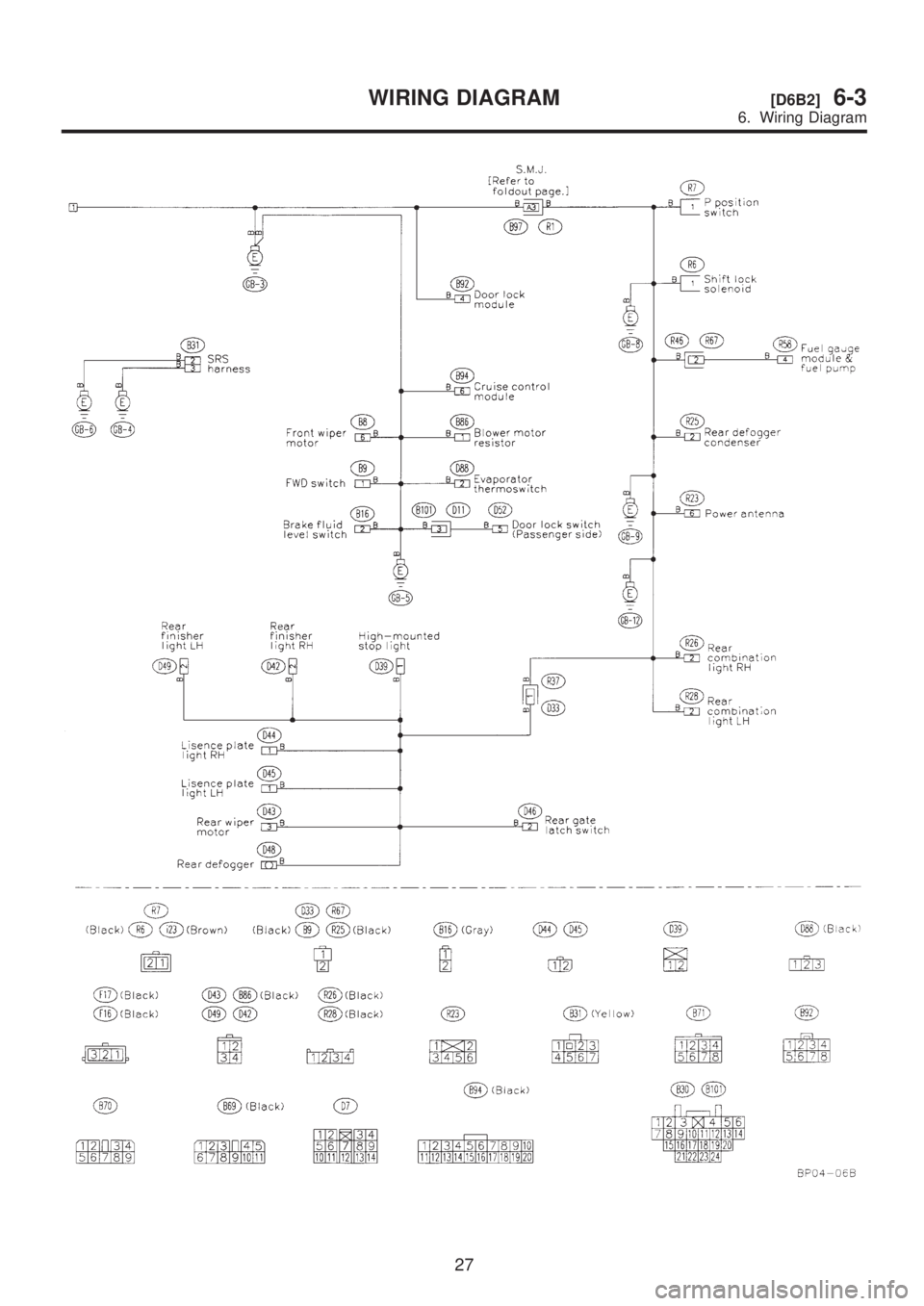

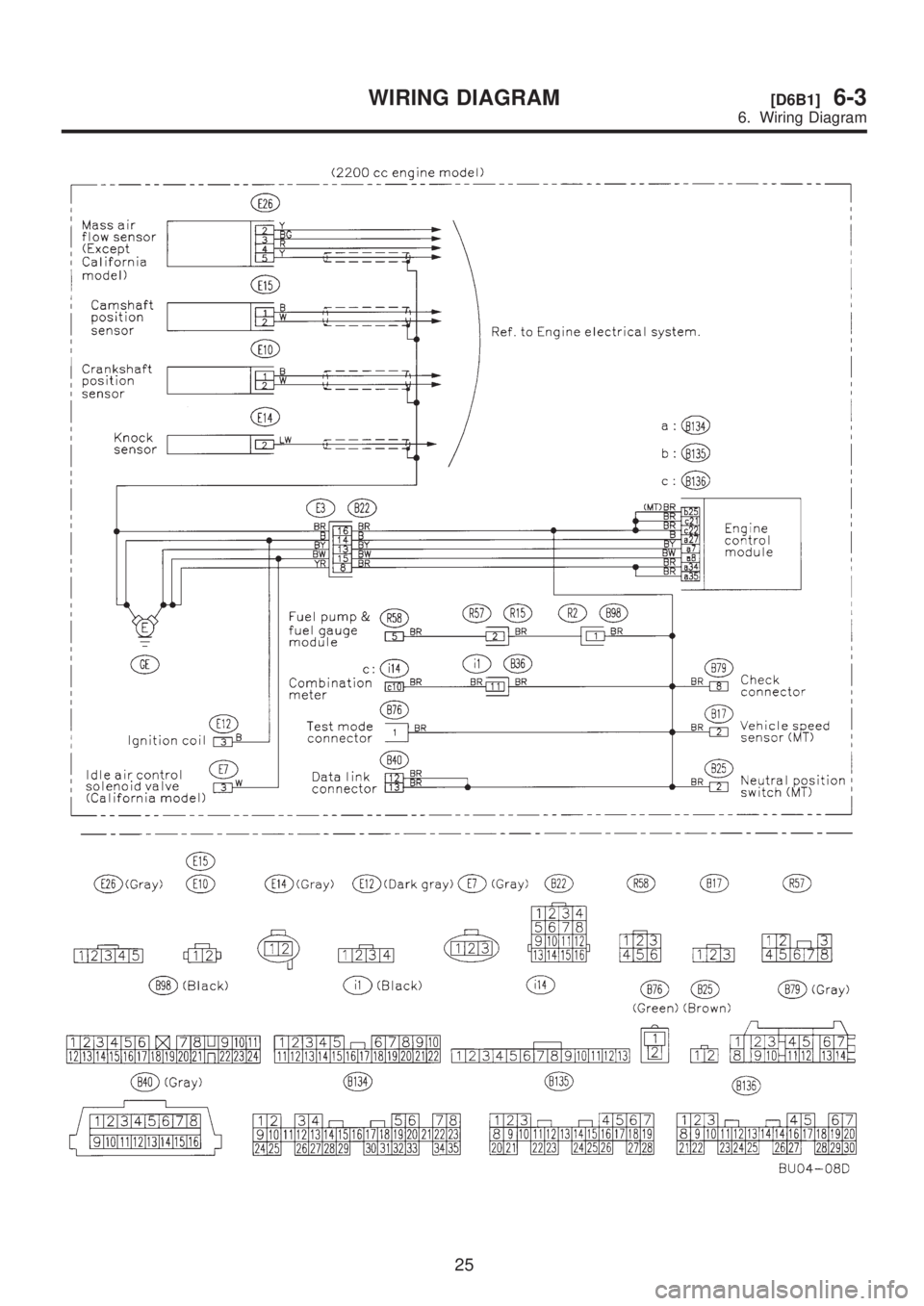

6. Wiring Diagram

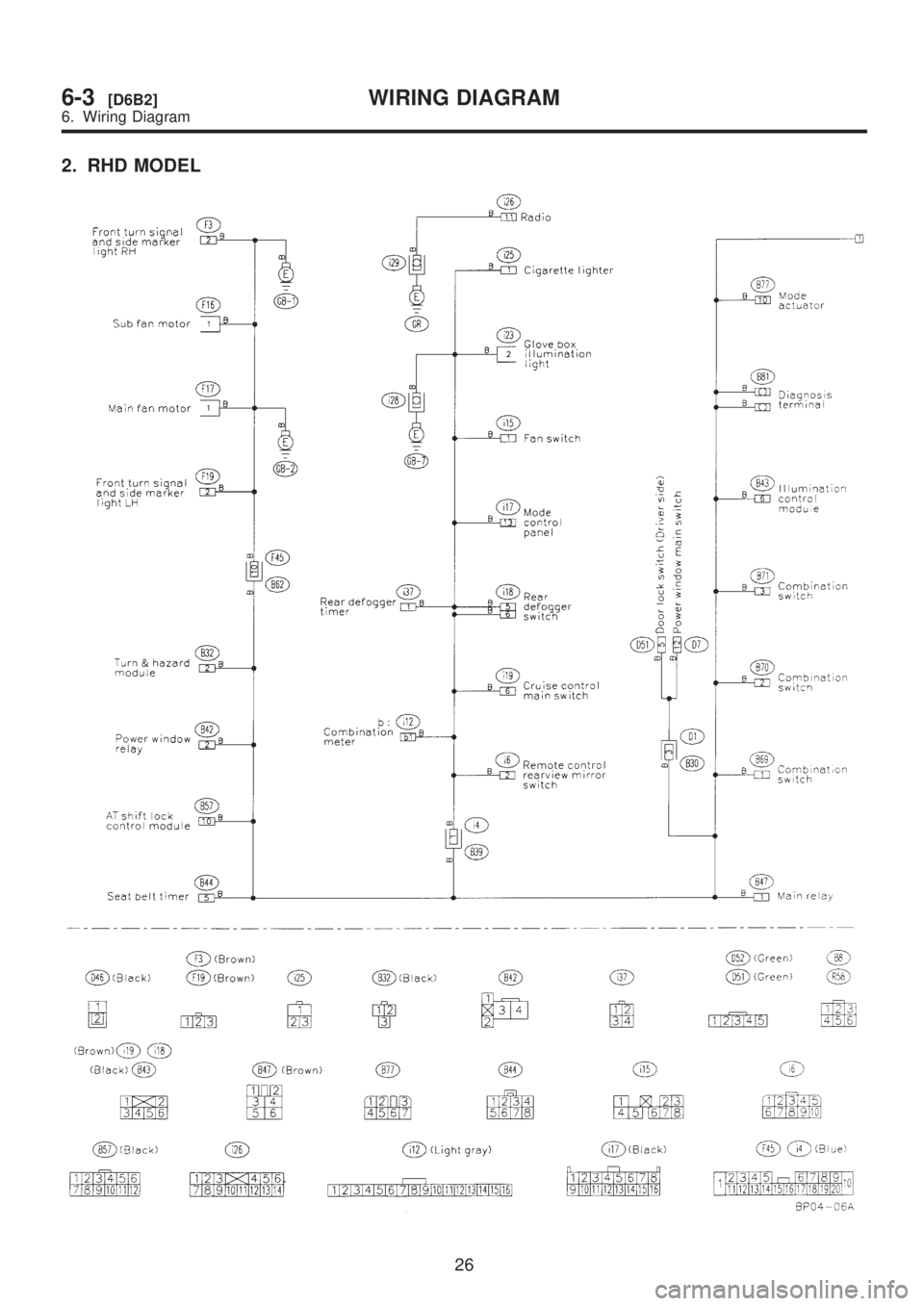

2. RHD MODEL
26
6-3[D6B2]WIRING DIAGRAM
6. Wiring Diagram

27
[D6B2]6-3WIRING DIAGRAM
6. Wiring Diagram

28
6-3[D6B2]WIRING DIAGRAM
6. Wiring Diagram

C: AIRBAG SYSTEM
29
[D6C0]6-3WIRING DIAGRAM
6. Wiring Diagram

D: AIR CONDITIONING SYSTEM
1. LHD MODEL
30
6-3[D6D1]WIRING DIAGRAM
6. Wiring Diagram

2. RHD MODEL
31
[D6D2]6-3WIRING DIAGRAM
6. Wiring Diagram

E: ANTI-LOCK BRAKE SYSTEM
32
6-3[D6E0]WIRING DIAGRAM
6. Wiring Diagram
