1999 SUBARU LEGACY Service Repair Manual

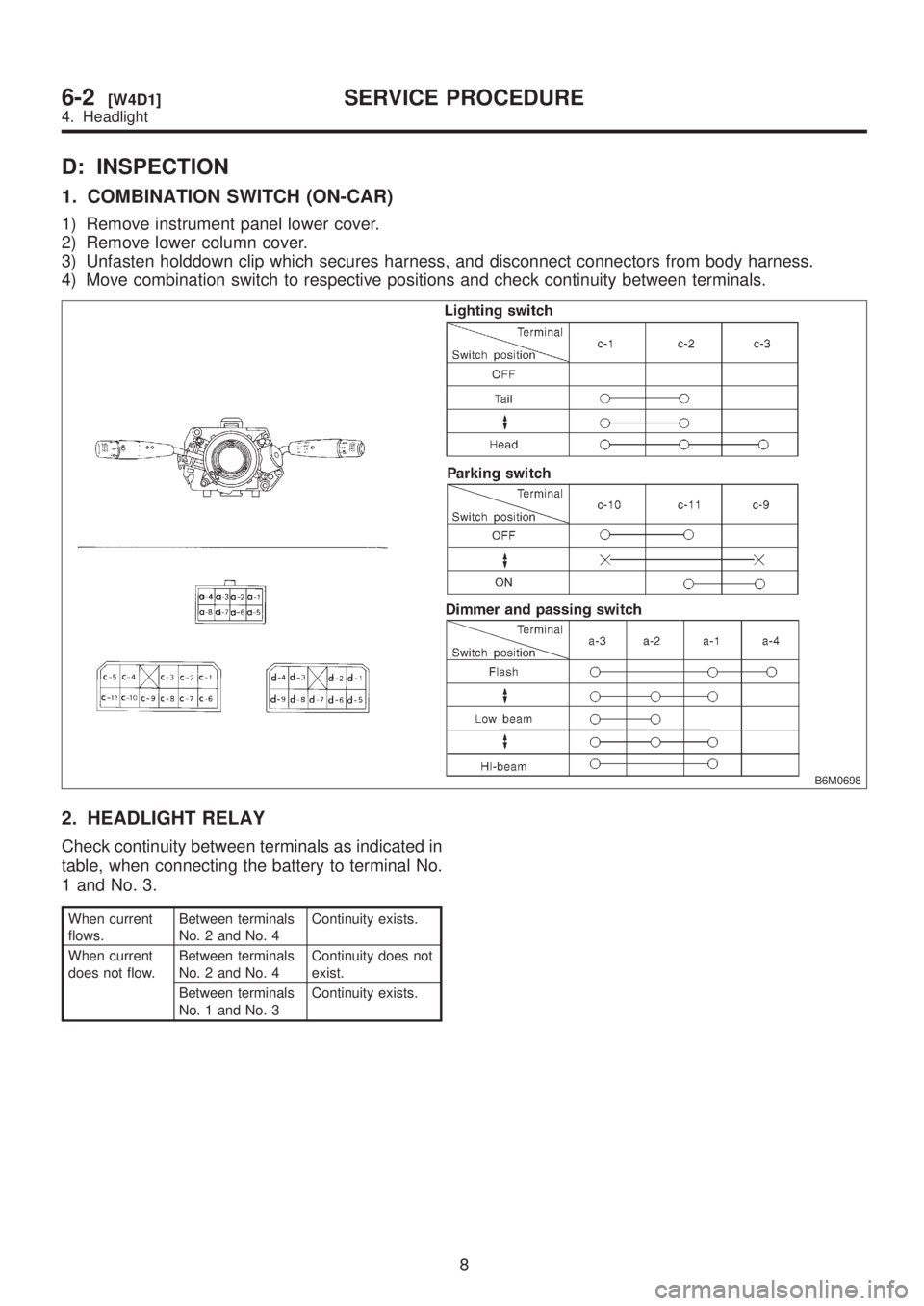

D: INSPECTION
1. COMBINATION SWITCH (ON-CAR)
1) Remove instrument panel lower cover.
2) Remove lower column cover.
3) Unfasten holddown clip which secures harness, and disconnect connectors from body harness.
4) Move combination switch to respective positions and check continuity between terminals.
B6M0698
2. HEADLIGHT RELAY
Check continuity between terminals as indicated in
table, when connecting the battery to terminal No.
1 and No. 3.
When current
flows.Between terminals
No. 2 and No. 4Continuity exists.
When current
does not flow.Between terminals
No. 2 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 3Continuity exists.
8
6-2[W4D1]SERVICE PROCEDURE
4. Headlight

G6M0111

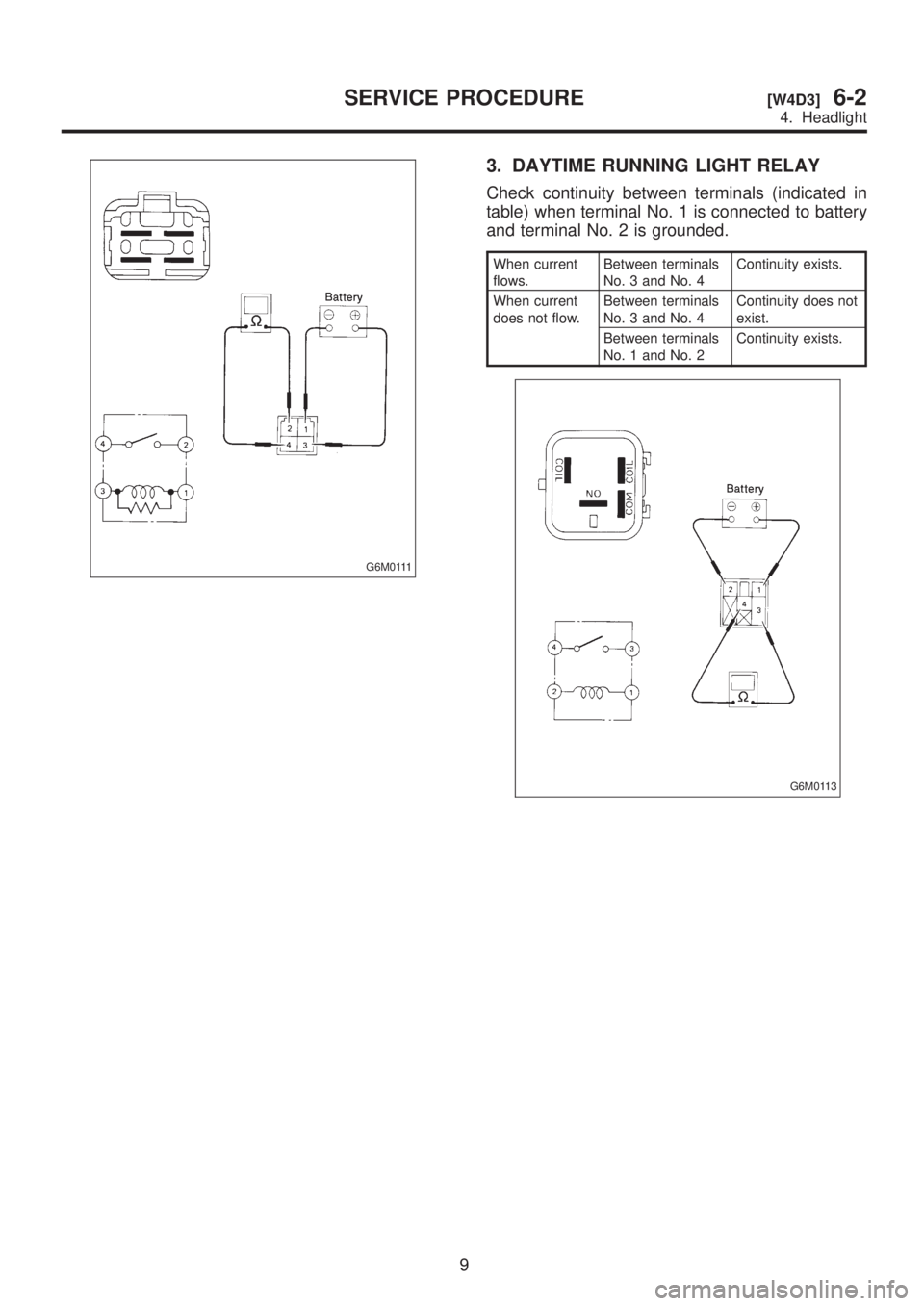

3. DAYTIME RUNNING LIGHT RELAY
Check continuity between terminals (indicated in
table) when terminal No. 1 is connected to battery
and terminal No. 2 is grounded.
When current
flows.Between terminals
No. 3 and No. 4Continuity exists.
When current
does not flow.Between terminals
No. 3 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 2Continuity exists.
G6M0113
9
[W4D3]6-2SERVICE PROCEDURE
4. Headlight

Check continuity between terminals (indicated in
table) when terminal No. 1 is connected to battery
and terminal No. 2 is grounded.
When current
flows.Between terminals
No. 3 and No. 5Continuity does not
exist.
Between terminals
No. 3 and No. 4Continuity exists.
When current
does not flow.Between terminals
No. 3 and No. 5Continuity exists.
Between terminals
No. 3 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 2Continuity exists.
G6M0114

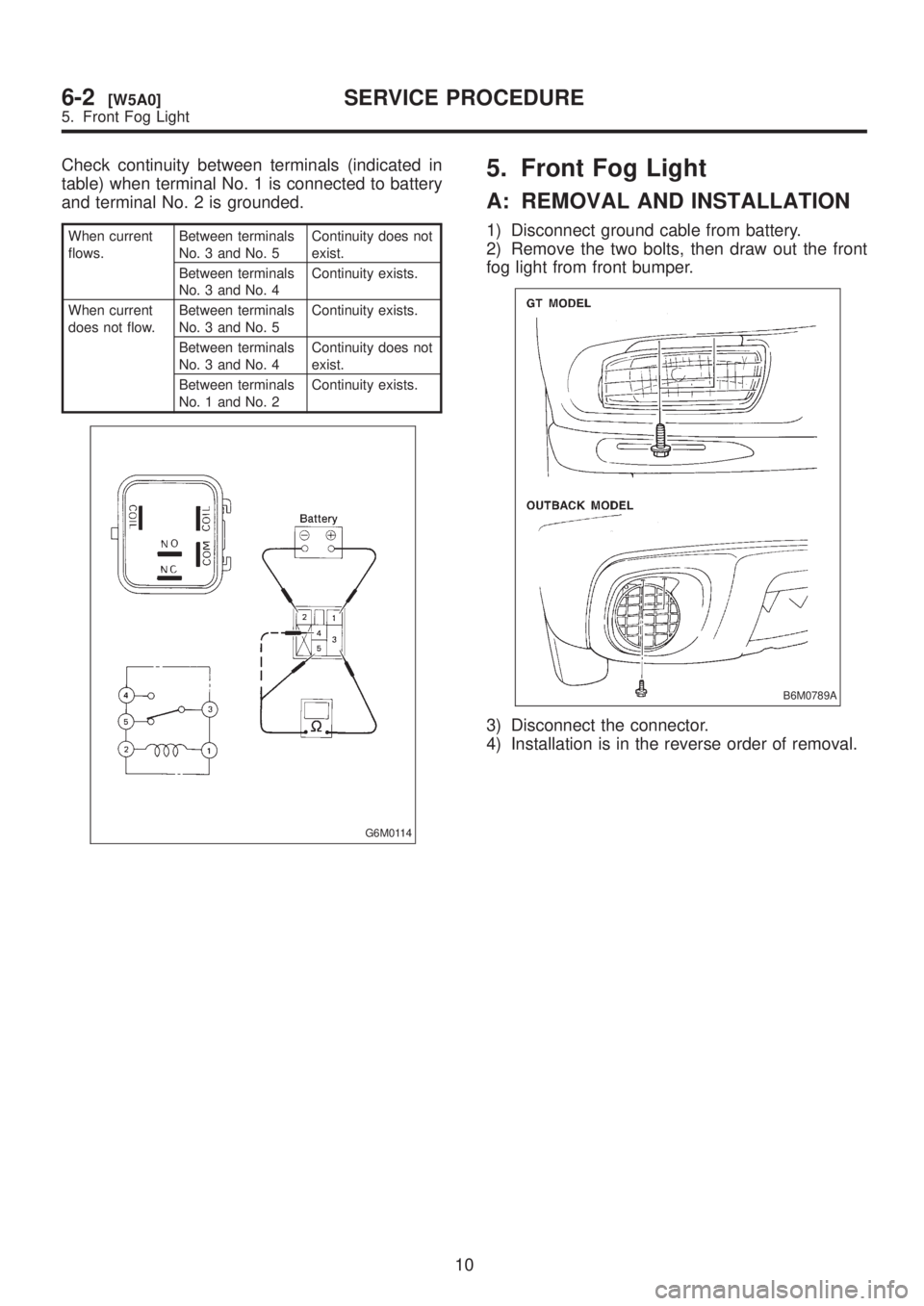

5. Front Fog Light
A: REMOVAL AND INSTALLATION
1) Disconnect ground cable from battery.
2) Remove the two bolts, then draw out the front
fog light from front bumper.
B6M0789A
3) Disconnect the connector.
4) Installation is in the reverse order of removal.
10
6-2[W5A0]SERVICE PROCEDURE
5. Front Fog Light

Check continuity between terminals (indicated in
table) when terminal No. 1 is connected to battery
and terminal No. 2 is grounded.
When current
flows.Between terminals
No. 3 and No. 5Continuity does not
exist.
Between terminals
No. 3 and No. 4Continuity exists.
When current
does not flow.Between terminals
No. 3 and No. 5Continuity exists.
Between terminals
No. 3 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 2Continuity exists.
G6M0114
5. Front Fog Light
A: REMOVAL AND INSTALLATION
1) Disconnect ground cable from battery.
2) Remove the two bolts, then draw out the front
fog light from front bumper.
B6M0789A
3) Disconnect the connector.
4) Installation is in the reverse order of removal.
10
6-2[W5A0]SERVICE PROCEDURE
5. Front Fog Light

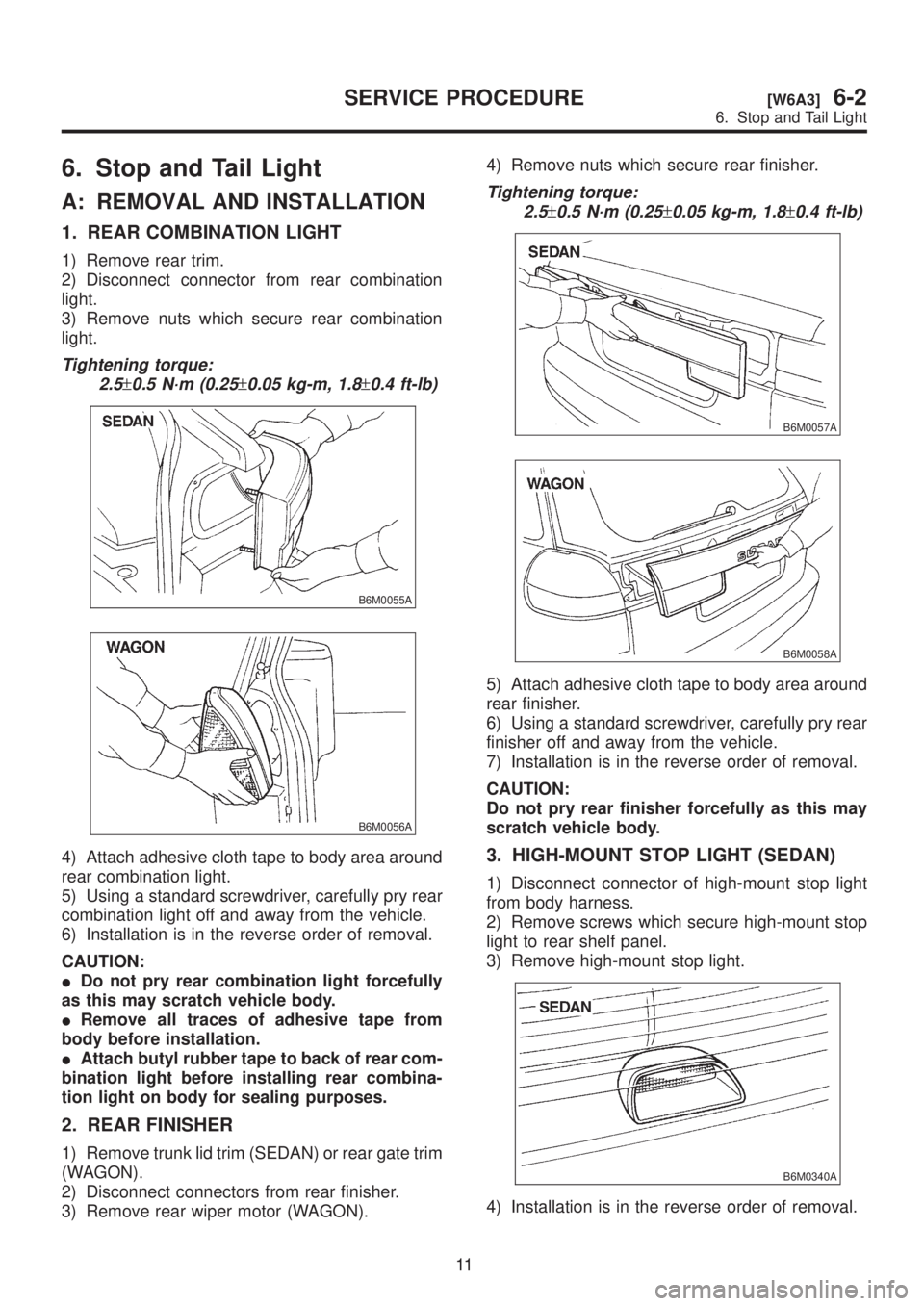

6. Stop and Tail Light
A: REMOVAL AND INSTALLATION
1. REAR COMBINATION LIGHT
1) Remove rear trim.
2) Disconnect connector from rear combination
light.
3) Remove nuts which secure rear combination
light.
Tightening torque:
2.5
±0.5 N´m (0.25±0.05 kg-m, 1.8±0.4 ft-lb)
B6M0055A
B6M0056A
4) Attach adhesive cloth tape to body area around
rear combination light.
5) Using a standard screwdriver, carefully pry rear
combination light off and away from the vehicle.
6) Installation is in the reverse order of removal.
CAUTION:
IDo not pry rear combination light forcefully
as this may scratch vehicle body.
IRemove all traces of adhesive tape from
body before installation.
IAttach butyl rubber tape to back of rear com-
bination light before installing rear combina-
tion light on body for sealing purposes.
2. REAR FINISHER
1) Remove trunk lid trim (SEDAN) or rear gate trim
(WAGON).
2) Disconnect connectors from rear finisher.
3) Remove rear wiper motor (WAGON).4) Remove nuts which secure rear finisher.
Tightening torque:
2.5
±0.5 N´m (0.25±0.05 kg-m, 1.8±0.4 ft-lb)
B6M0057A
B6M0058A
5) Attach adhesive cloth tape to body area around
rear finisher.
6) Using a standard screwdriver, carefully pry rear
finisher off and away from the vehicle.
7) Installation is in the reverse order of removal.
CAUTION:
Do not pry rear finisher forcefully as this may
scratch vehicle body.
3. HIGH-MOUNT STOP LIGHT (SEDAN)
1) Disconnect connector of high-mount stop light
from body harness.
2) Remove screws which secure high-mount stop
light to rear shelf panel.
3) Remove high-mount stop light.
B6M0340A
4) Installation is in the reverse order of removal.
11
[W6A3]6-2SERVICE PROCEDURE
6. Stop and Tail Light

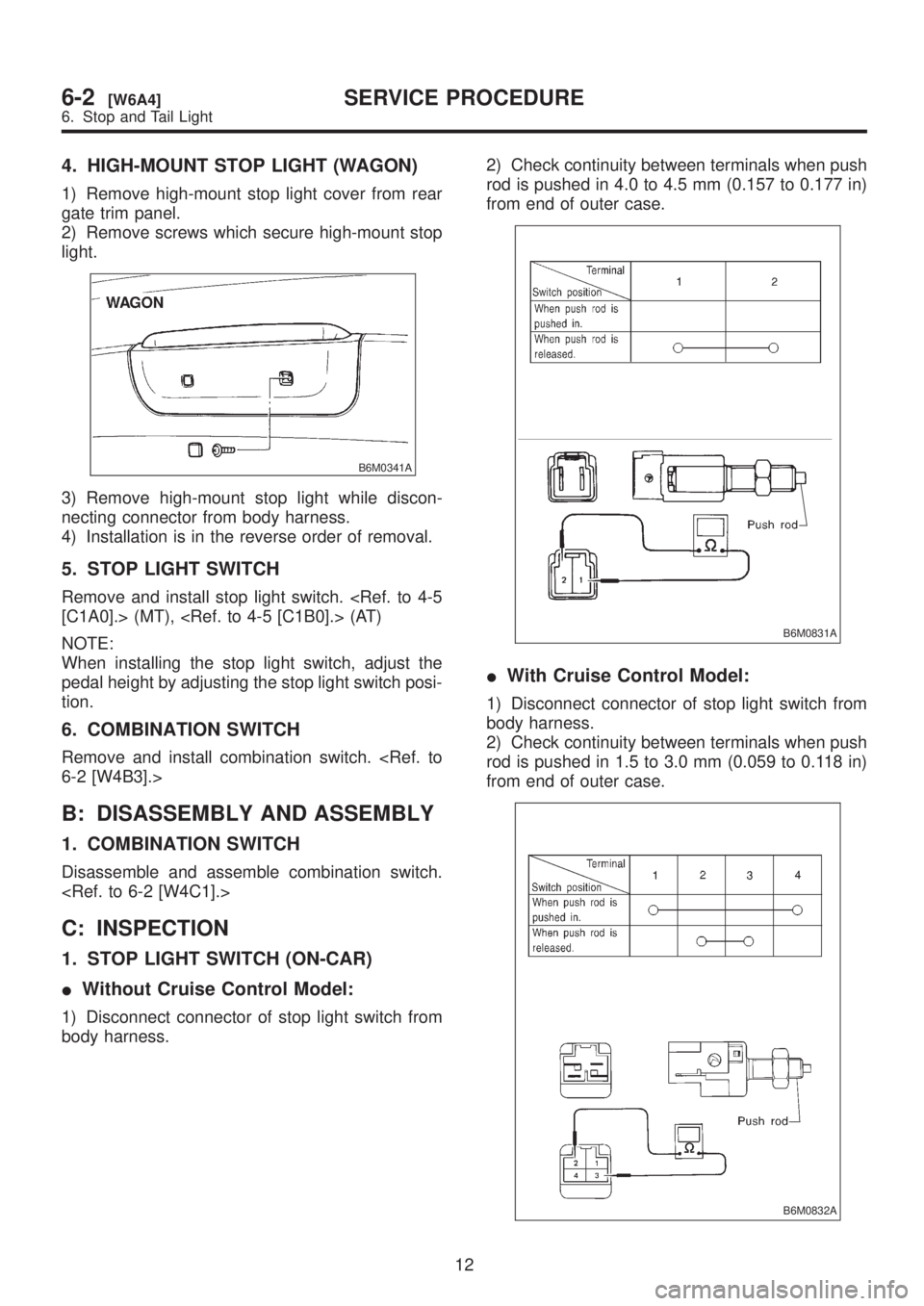

4. HIGH-MOUNT STOP LIGHT (WAGON)
1) Remove high-mount stop light cover from rear
gate trim panel.
2) Remove screws which secure high-mount stop
light.
B6M0341A
3) Remove high-mount stop light while discon-
necting connector from body harness.
4) Installation is in the reverse order of removal.
5. STOP LIGHT SWITCH
Remove and install stop light switch. [C1A0].> (MT), (AT)
NOTE:
When installing the stop light switch, adjust the
pedal height by adjusting the stop light switch posi-
tion.
6. COMBINATION SWITCH
Remove and install combination switch. 6-2 [W4B3].>
B: DISASSEMBLY AND ASSEMBLY
1. COMBINATION SWITCH
Disassemble and assemble combination switch.

C: INSPECTION
1. STOP LIGHT SWITCH (ON-CAR)
IWithout Cruise Control Model:
1) Disconnect connector of stop light switch from
body harness.2) Check continuity between terminals when push
rod is pushed in 4.0 to 4.5 mm (0.157 to 0.177 in)
from end of outer case.
B6M0831A
IWith Cruise Control Model:
1) Disconnect connector of stop light switch from
body harness.
2) Check continuity between terminals when push
rod is pushed in 1.5 to 3.0 mm (0.059 to 0.118 in)
from end of outer case.
B6M0832A
12
6-2[W6A4]SERVICE PROCEDURE
6. Stop and Tail Light

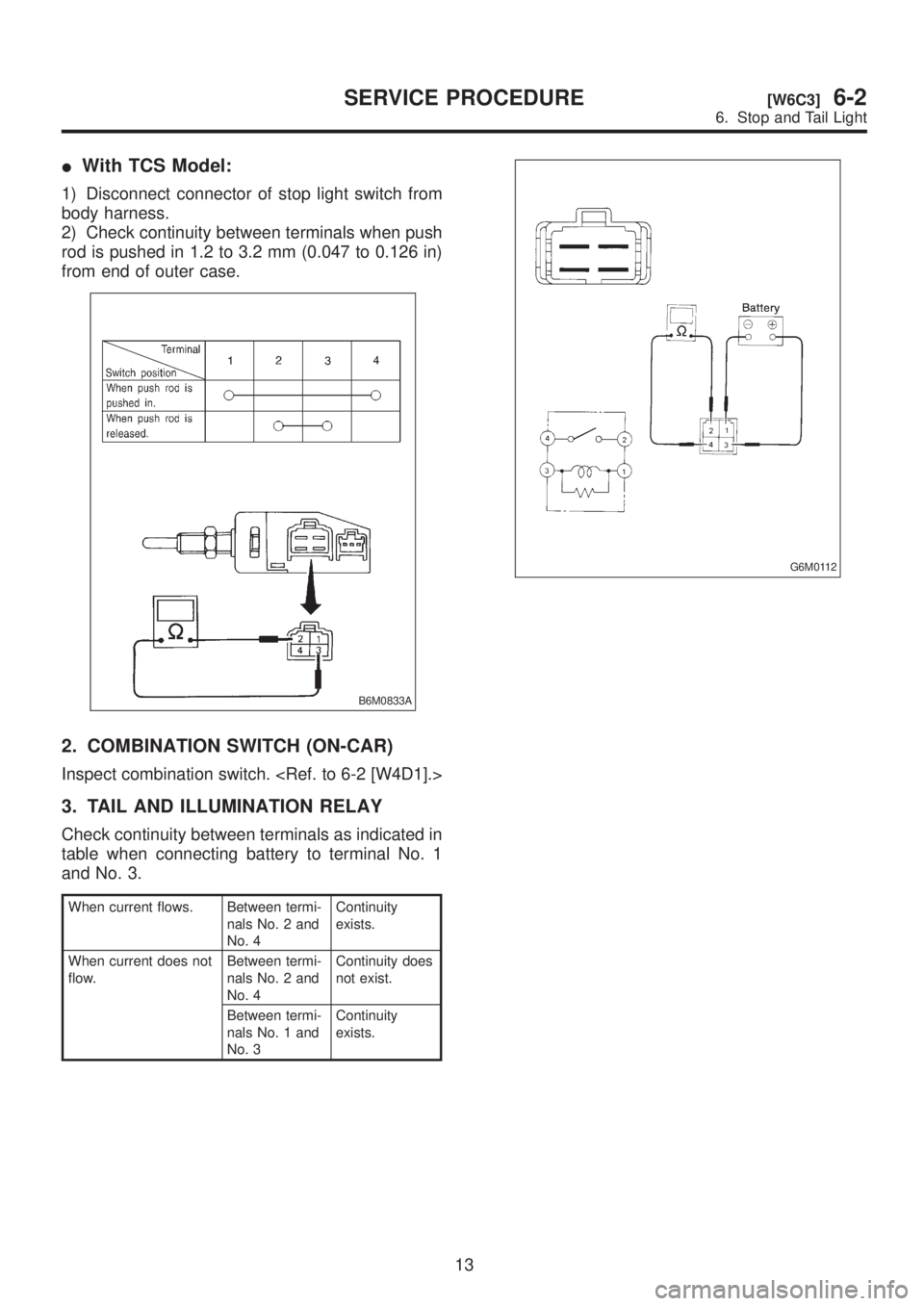

IWith TCS Model:
1) Disconnect connector of stop light switch from
body harness.
2) Check continuity between terminals when push
rod is pushed in 1.2 to 3.2 mm (0.047 to 0.126 in)
from end of outer case.
B6M0833A
2. COMBINATION SWITCH (ON-CAR)
Inspect combination switch.
3. TAIL AND ILLUMINATION RELAY
Check continuity between terminals as indicated in
table when connecting battery to terminal No. 1
and No. 3.
When current flows. Between termi-
nals No. 2 and
No. 4Continuity
exists.
When current does not
flow.Between termi-
nals No. 2 and
No. 4Continuity does
not exist.
Between termi-
nals No. 1 and
No. 3Continuity
exists.
G6M0112
13
[W6C3]6-2SERVICE PROCEDURE
6. Stop and Tail Light

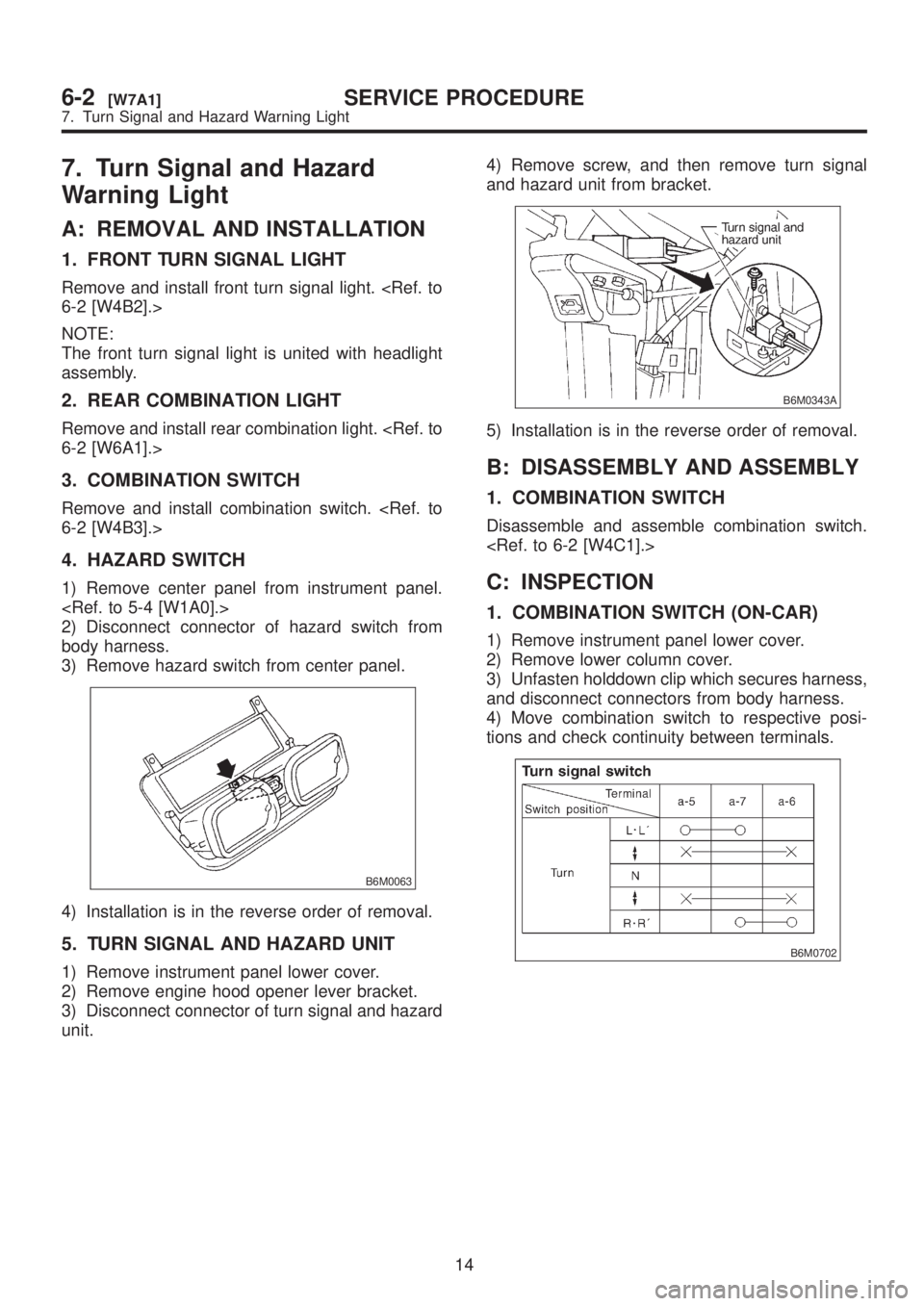

7. Turn Signal and Hazard
Warning Light
A: REMOVAL AND INSTALLATION
1. FRONT TURN SIGNAL LIGHT
Remove and install front turn signal light. 6-2 [W4B2].>
NOTE:
The front turn signal light is united with headlight
assembly.
2. REAR COMBINATION LIGHT
Remove and install rear combination light. 6-2 [W6A1].>
3. COMBINATION SWITCH
Remove and install combination switch. 6-2 [W4B3].>
4. HAZARD SWITCH
1) Remove center panel from instrument panel.

2) Disconnect connector of hazard switch from
body harness.
3) Remove hazard switch from center panel.
B6M0063
4) Installation is in the reverse order of removal.
5. TURN SIGNAL AND HAZARD UNIT
1) Remove instrument panel lower cover.
2) Remove engine hood opener lever bracket.
3) Disconnect connector of turn signal and hazard
unit.4) Remove screw, and then remove turn signal
and hazard unit from bracket.
B6M0343A
5) Installation is in the reverse order of removal.
B: DISASSEMBLY AND ASSEMBLY
1. COMBINATION SWITCH
Disassemble and assemble combination switch.

C: INSPECTION
1. COMBINATION SWITCH (ON-CAR)
1) Remove instrument panel lower cover.
2) Remove lower column cover.
3) Unfasten holddown clip which secures harness,
and disconnect connectors from body harness.
4) Move combination switch to respective posi-
tions and check continuity between terminals.
B6M0702
14
6-2[W7A1]SERVICE PROCEDURE
7. Turn Signal and Hazard Warning Light
