1999 SUBARU LEGACY Service Repair Manual

19. Remote Controlled
Rearview Mirror
A: REMOVAL AND INSTALLATION
1. REMOTE CONTROLLED REARVIEW
MIRROR SWITCH
1) Remove rearview mirror switch from instrument
panel by using a small standard screwdriver.
CAUTION:
Do not pry rearview mirror switch forcefully as
this may scratch instrument panel.
B6M0352A
2) Remove rearview mirror switch while discon-
necting connector.
3) Installation is in the reverse order of removal.
2. REARVIEW MIRROR
1) Remove door trim panel.
2) Disconnect connector of rearview mirror.
3) Remove screws which secure rearview mirror,
and then remove rearview mirror.
B6M0137
4) Installation is in the reverse order of removal.
3. MIRROR PLATE
1) Remove rearview mirror. [W19A2].>
2) Warm around the mirror holder by hair dryer.
CAUTION:
The mirror holder will become extremely hot.
Avoid carelessly touching it.
B6M0826A
3) Remove mirror plate while lifting the mirror
holder using a flat bladed screwdriver.
NOTE:
When removing mirror plate in vehicles with mirror
heater, disconnect mirror connector which is on the
back side.
B6M0827
4) Installation is in the reverse order of removal.
B: INSPECTION
1. REARVIEW MIRROR SWITCH
Move rearview mirror switch to each position and
check continuity between terminals.
35
[W19B1]6-2SERVICE PROCEDURE
19. Remote Controlled Rearview Mirror

B6M0714A
2. REARVIEW MIRROR
Check to ensure that rearview mirror moves prop-
erly when battery voltage is applied to terminals.
Operation Terminal connection
(+) (þ)
UP 3 1
DOWN 1 3
RIGHT 1 2
LEFT 2 1
B6M0140
36
6-2[W19B2]SERVICE PROCEDURE
19. Remote Controlled Rearview Mirror

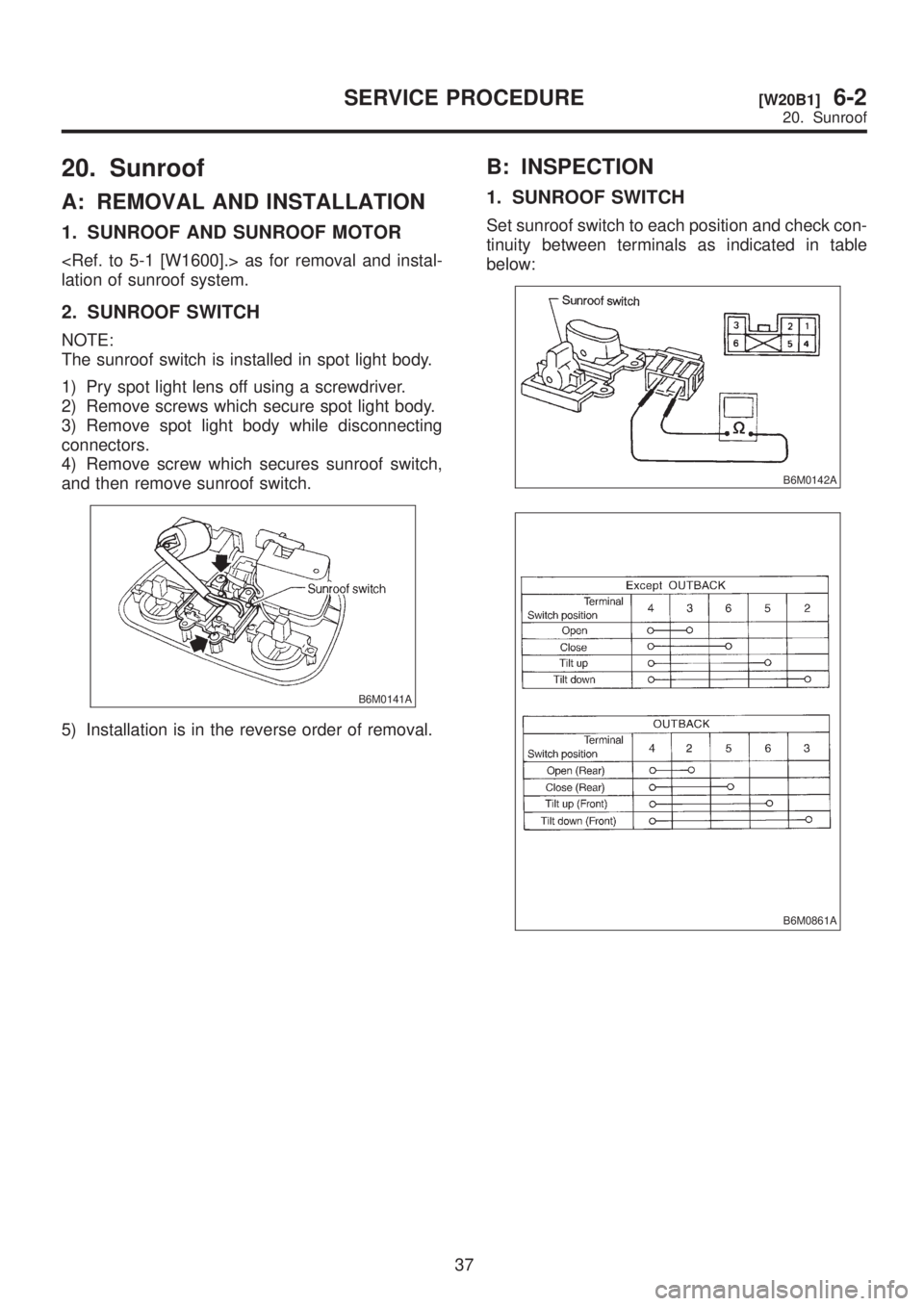

20. Sunroof
A: REMOVAL AND INSTALLATION
1. SUNROOF AND SUNROOF MOTOR
as for removal and instal-
lation of sunroof system.
2. SUNROOF SWITCH
NOTE:
The sunroof switch is installed in spot light body.
1) Pry spot light lens off using a screwdriver.
2) Remove screws which secure spot light body.
3) Remove spot light body while disconnecting
connectors.
4) Remove screw which secures sunroof switch,
and then remove sunroof switch.
B6M0141A
5) Installation is in the reverse order of removal.
B: INSPECTION
1. SUNROOF SWITCH
Set sunroof switch to each position and check con-
tinuity between terminals as indicated in table
below:
B6M0142A
B6M0861A
37
[W20B1]6-2SERVICE PROCEDURE
20. Sunroof

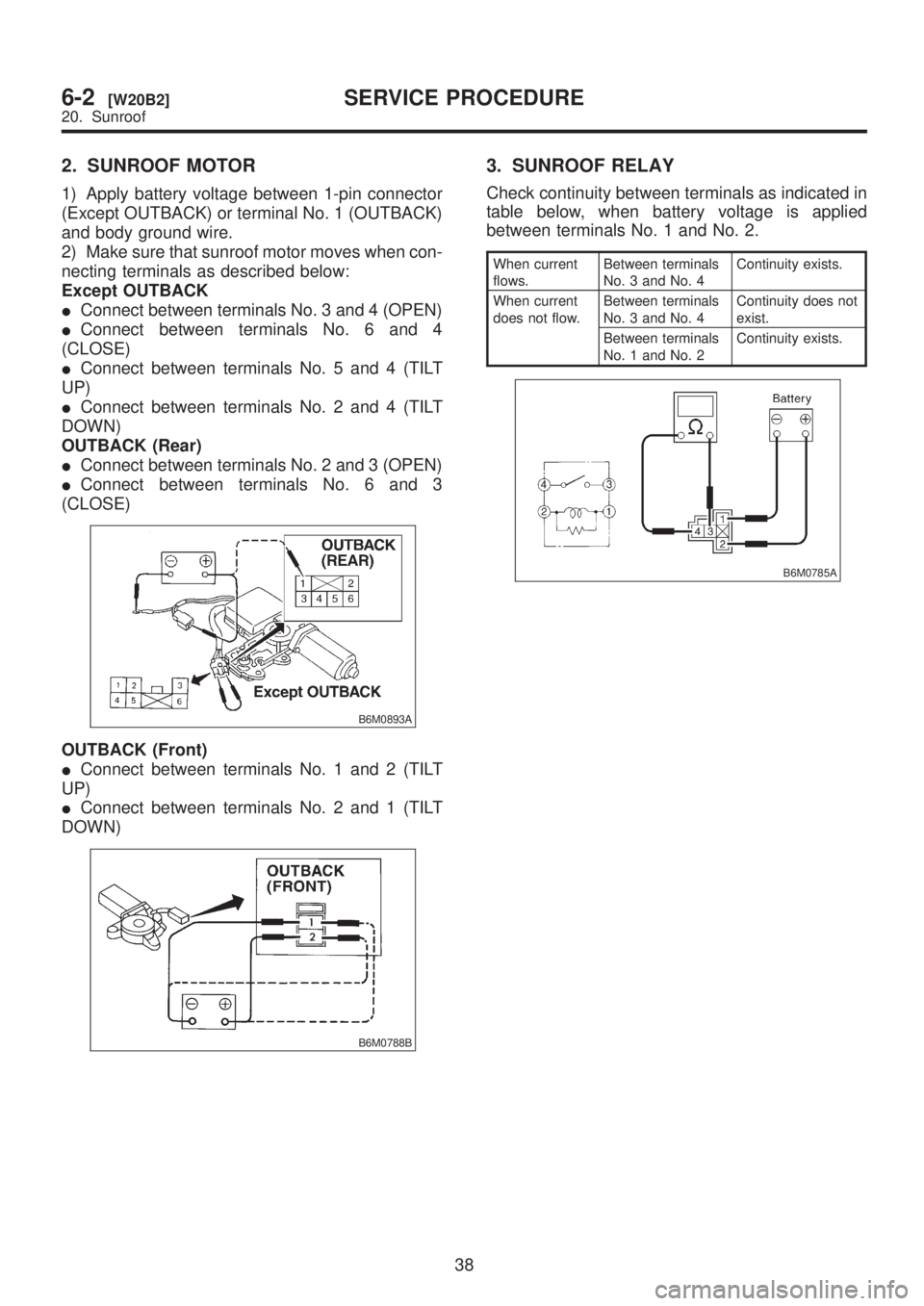

2. SUNROOF MOTOR
1) Apply battery voltage between 1-pin connector
(Except OUTBACK) or terminal No. 1 (OUTBACK)
and body ground wire.
2) Make sure that sunroof motor moves when con-
necting terminals as described below:
Except OUTBACK
IConnect between terminals No. 3 and 4 (OPEN)
IConnect between terminals No. 6 and 4
(CLOSE)
IConnect between terminals No. 5 and 4 (TILT
UP)
IConnect between terminals No. 2 and 4 (TILT
DOWN)
OUTBACK (Rear)
IConnect between terminals No. 2 and 3 (OPEN)
IConnect between terminals No. 6 and 3
(CLOSE)
B6M0893A
OUTBACK (Front)
IConnect between terminals No. 1 and 2 (TILT
UP)
IConnect between terminals No. 2 and 1 (TILT
DOWN)
B6M0788B
3. SUNROOF RELAY
Check continuity between terminals as indicated in
table below, when battery voltage is applied
between terminals No. 1 and No. 2.
When current
flows.Between terminals
No. 3 and No. 4Continuity exists.
When current
does not flow.Between terminals
No. 3 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 2Continuity exists.
B6M0785A
38
6-2[W20B2]SERVICE PROCEDURE
20. Sunroof

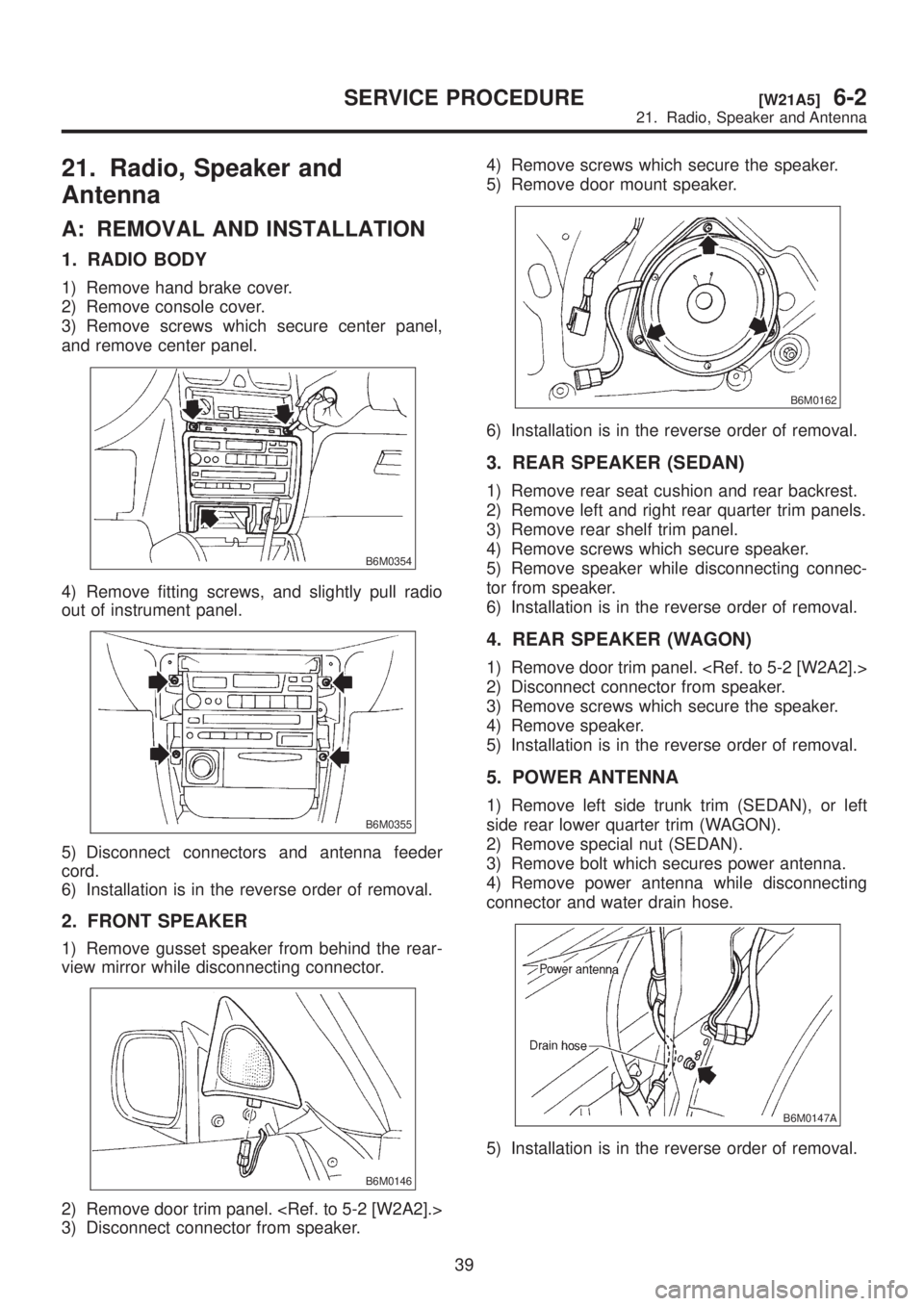

21. Radio, Speaker and
Antenna
A: REMOVAL AND INSTALLATION
1. RADIO BODY
1) Remove hand brake cover.
2) Remove console cover.
3) Remove screws which secure center panel,
and remove center panel.
B6M0354
4) Remove fitting screws, and slightly pull radio
out of instrument panel.
B6M0355
5) Disconnect connectors and antenna feeder
cord.
6) Installation is in the reverse order of removal.
2. FRONT SPEAKER
1) Remove gusset speaker from behind the rear-
view mirror while disconnecting connector.
B6M0146
2) Remove door trim panel.
3) Disconnect connector from speaker.4) Remove screws which secure the speaker.
5) Remove door mount speaker.
B6M0162
6) Installation is in the reverse order of removal.
3. REAR SPEAKER (SEDAN)
1) Remove rear seat cushion and rear backrest.
2) Remove left and right rear quarter trim panels.
3) Remove rear shelf trim panel.
4) Remove screws which secure speaker.
5) Remove speaker while disconnecting connec-
tor from speaker.
6) Installation is in the reverse order of removal.
4. REAR SPEAKER (WAGON)
1) Remove door trim panel.
2) Disconnect connector from speaker.
3) Remove screws which secure the speaker.
4) Remove speaker.
5) Installation is in the reverse order of removal.
5. POWER ANTENNA
1) Remove left side trunk trim (SEDAN), or left
side rear lower quarter trim (WAGON).
2) Remove special nut (SEDAN).
3) Remove bolt which secures power antenna.
4) Remove power antenna while disconnecting
connector and water drain hose.
B6M0147A
5) Installation is in the reverse order of removal.
39
[W21A5]6-2SERVICE PROCEDURE
21. Radio, Speaker and Antenna

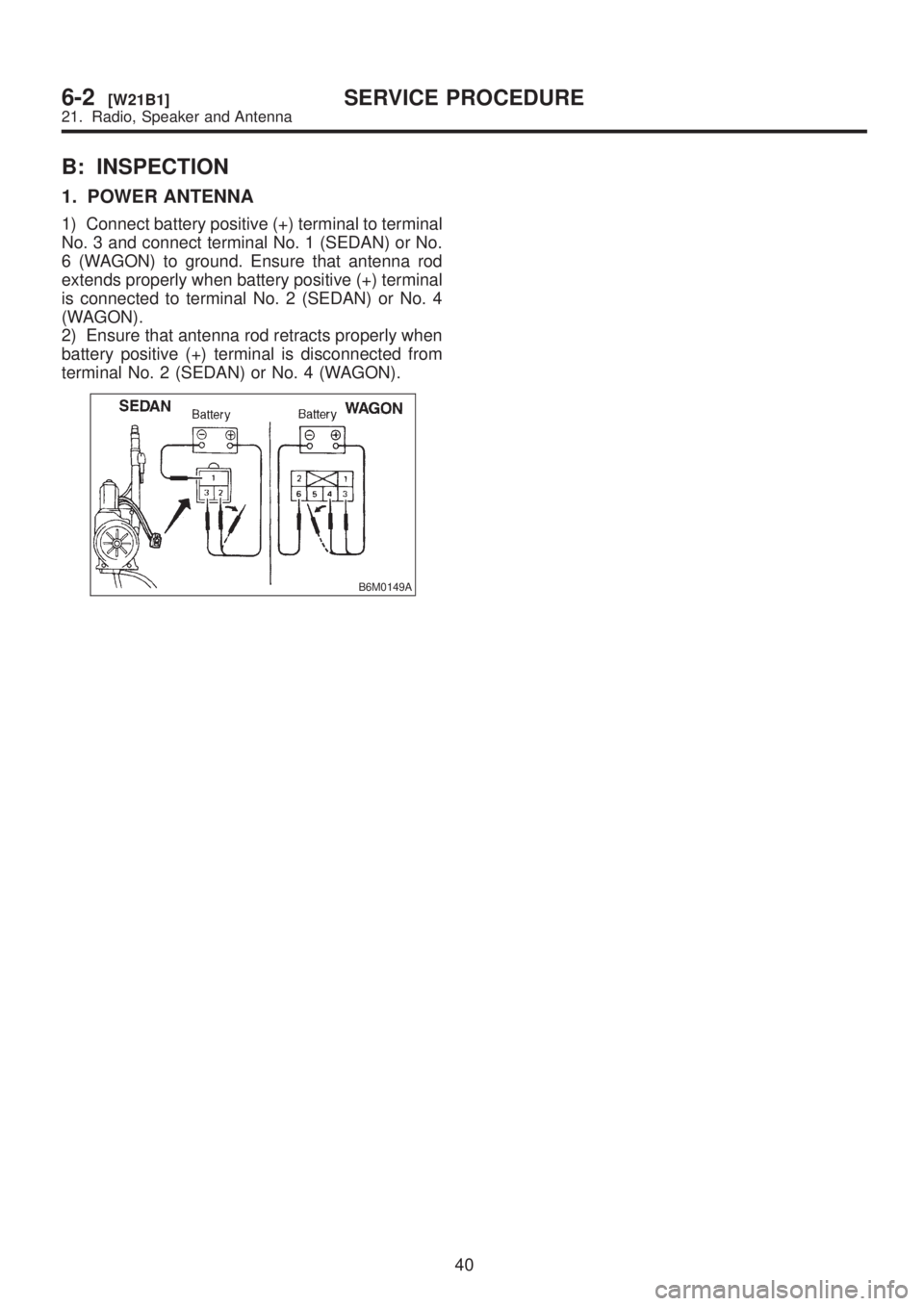

B: INSPECTION
1. POWER ANTENNA
1) Connect battery positive (+) terminal to terminal
No. 3 and connect terminal No. 1 (SEDAN) or No.
6 (WAGON) to ground. Ensure that antenna rod
extends properly when battery positive (+) terminal
is connected to terminal No. 2 (SEDAN) or No. 4
(WAGON).
2) Ensure that antenna rod retracts properly when
battery positive (+) terminal is disconnected from
terminal No. 2 (SEDAN) or No. 4 (WAGON).
B6M0149A
40
6-2[W21B1]SERVICE PROCEDURE
21. Radio, Speaker and Antenna

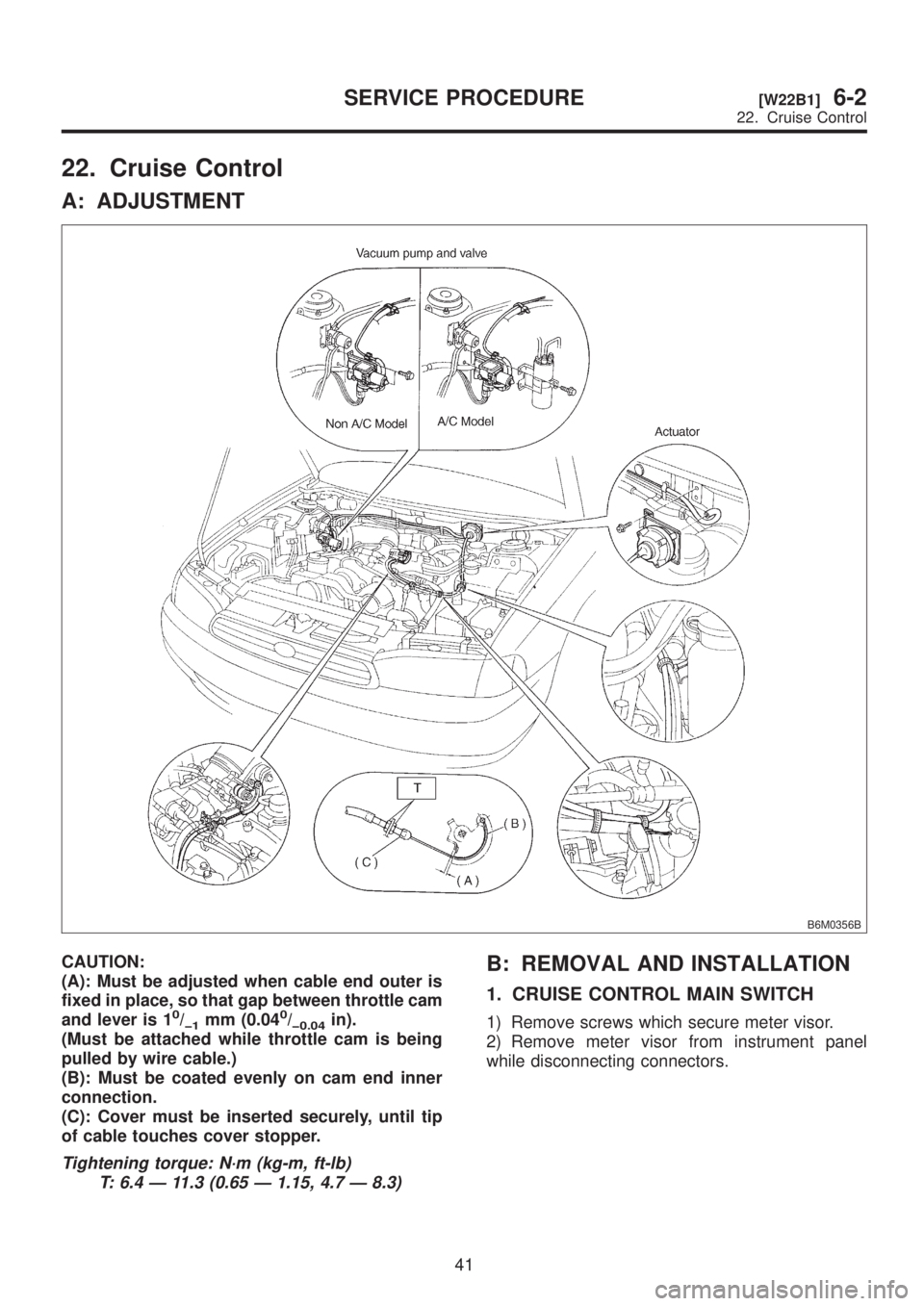

22. Cruise Control
A: ADJUSTMENT
B6M0356B
CAUTION:
(A): Must be adjusted when cable end outer is
fixed in place, so that gap between throttle cam
and lever is 1
0/þ1mm (0.040/þ0.04in).
(Must be attached while throttle cam is being
pulled by wire cable.)
(B): Must be coated evenly on cam end inner
connection.
(C): Cover must be inserted securely, until tip
of cable touches cover stopper.
Tightening torque: N´m (kg-m, ft-lb)
T: 6.4 Ð 11.3 (0.65 Ð 1.15, 4.7 Ð 8.3)
B: REMOVAL AND INSTALLATION
1. CRUISE CONTROL MAIN SWITCH
1) Remove screws which secure meter visor.
2) Remove meter visor from instrument panel
while disconnecting connectors.
41
[W22B1]6-2SERVICE PROCEDURE
22. Cruise Control

3) Remove cruise control main switch from meter
visor.
B6M0154A
4) Installation is in the reverse order of removal.
2. CRUISE CONTROL COMMAND SWITCH
1) Remove screw which secures horn pad to the
base of steering wheel.
2) Remove horn pad from steering wheel while
disconnecting connector.
3) Disconnect connector of cruise control com-
mand switch.
4) Remove screws which secure cruise control
command switch to steering wheel, and then
remove command switch.
5) Installation is in the reverse order of removal.
WARNING:
When removing or installing the module from
the airbag equipped model, refer to procedure
for removal or installation of airbag module.

B6M0357A
3. ACTUATOR
1) Loosen nut which secures cruise control cable
end to throttle cam, and then remove cable from
engine throttle cam.2) Remove clip bands from cruise control cable.
B6M0156
3) Remove nuts which secure actuator.
B6M0358
4) Remove actuator while disconnecting vacuum
hose.
5) Installation is in the reverse order of removal.
Tightening torque:
7.4
±1.5 N´m (0.75±0.15 kg-m, 5.4±1.1 ft-lb)
CAUTION:
IBe careful not to apply excessive load to the
wire cable when adjusting and/or installing;
otherwise, the actuator may be deformed or
damaged.
IDo not bend cable sharply with a radius less
than 100 mm (3.94 in); otherwise, cable may
bend permanently, resulting in poor perfor-
mance.
IWhen installing cable, be careful not to
sharply bend or pinch the inner cable;
otherwise, the cable may break.
4. VACUUM PUMP AND VALVES
1) Disconnect connector from vacuum pump.
42
