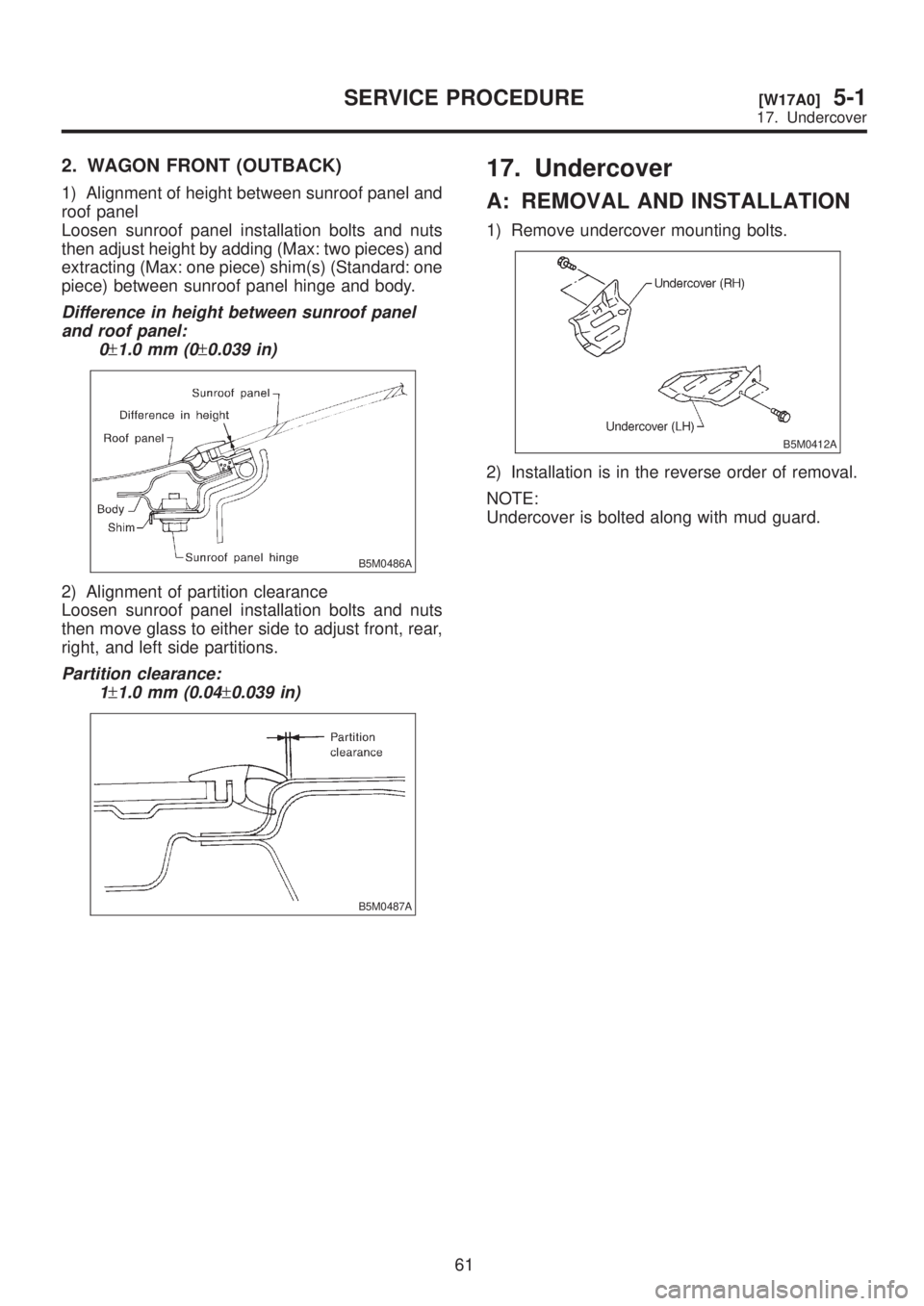

2. WAGON FRONT (OUTBACK)
1) Alignment of height between sunroof panel and
roof panel
Loosen sunroof panel installation bolts and nuts
then adjust height by adding (Max: two pieces) and
extracting (Max: one piece) shim(s) (Standard: one
piece) between sunroof panel hinge and body.
Difference in height between sunroof panel
and roof panel:
0
±1.0 mm (0±0.039 in)
B5M0486A
2) Alignment of partition clearance
Loosen sunroof panel installation bolts and nuts
then move glass to either side to adjust front, rear,
right, and left side partitions.
Partition clearance:
1
±1.0 mm (0.04±0.039 in)
B5M0487A
17. Undercover
A: REMOVAL AND INSTALLATION
1) Remove undercover mounting bolts.
B5M0412A
2) Installation is in the reverse order of removal.
NOTE:
Undercover is bolted along with mud guard.
61
[W17A0]5-1SERVICE PROCEDURE
17. Undercover

2. WAGON FRONT (OUTBACK)
1) Alignment of height between sunroof panel and
roof panel
Loosen sunroof panel installation bolts and nuts
then adjust height by adding (Max: two pieces) and
extracting (Max: one piece) shim(s) (Standard: one
piece) between sunroof panel hinge and body.
Difference in height between sunroof panel
and roof panel:
0
±1.0 mm (0±0.039 in)
B5M0486A
2) Alignment of partition clearance
Loosen sunroof panel installation bolts and nuts
then move glass to either side to adjust front, rear,
right, and left side partitions.
Partition clearance:
1
±1.0 mm (0.04±0.039 in)
B5M0487A
17. Undercover
A: REMOVAL AND INSTALLATION
1) Remove undercover mounting bolts.
B5M0412A
2) Installation is in the reverse order of removal.
NOTE:
Undercover is bolted along with mud guard.
61
[W17A0]5-1SERVICE PROCEDURE
17. Undercover

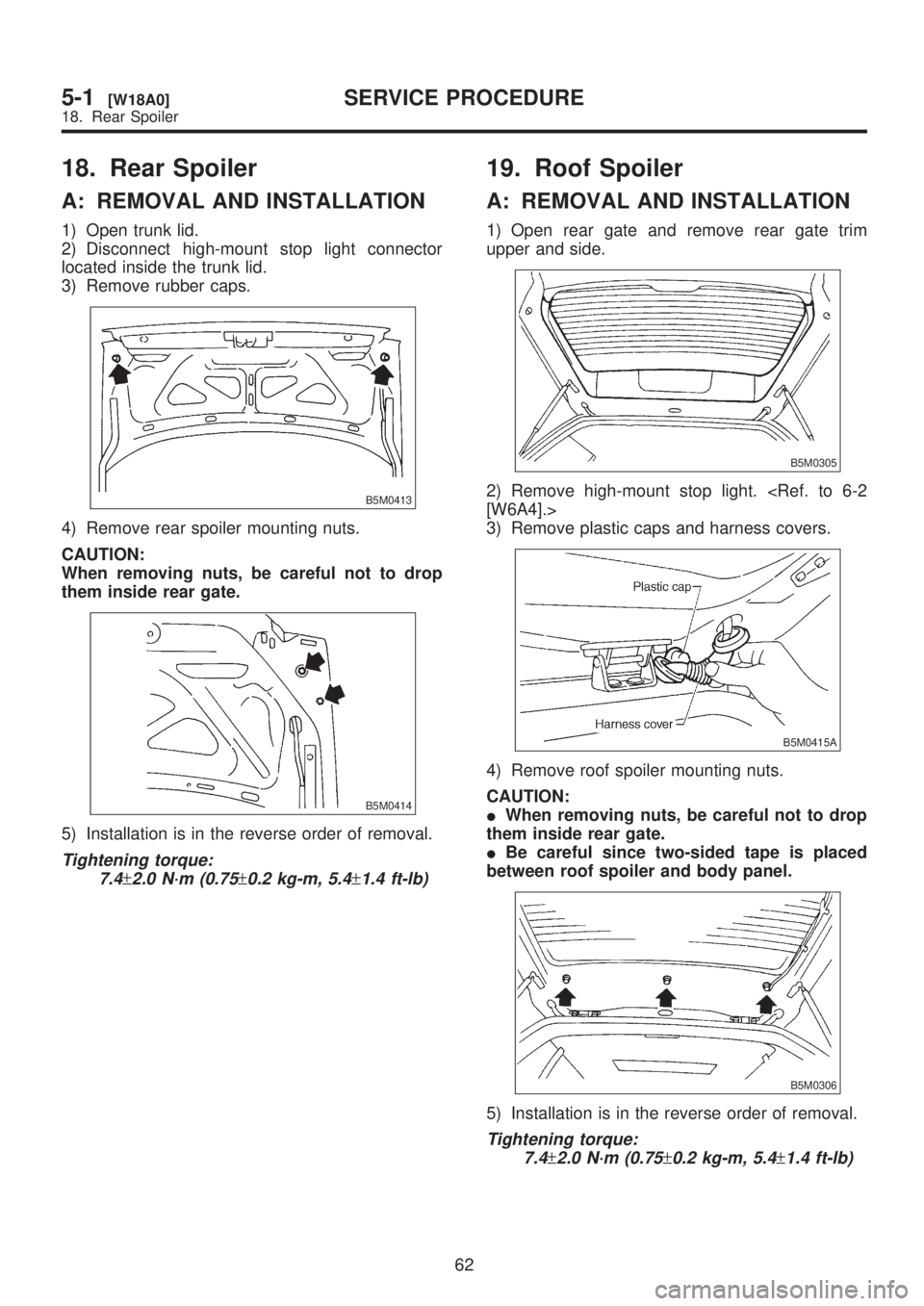

18. Rear Spoiler
A: REMOVAL AND INSTALLATION
1) Open trunk lid.
2) Disconnect high-mount stop light connector
located inside the trunk lid.
3) Remove rubber caps.
B5M0413
4) Remove rear spoiler mounting nuts.
CAUTION:
When removing nuts, be careful not to drop
them inside rear gate.
B5M0414
5) Installation is in the reverse order of removal.
Tightening torque:
7.4
±2.0 N´m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
19. Roof Spoiler
A: REMOVAL AND INSTALLATION
1) Open rear gate and remove rear gate trim
upper and side.
B5M0305
2) Remove high-mount stop light. [W6A4].>
3) Remove plastic caps and harness covers.
B5M0415A
4) Remove roof spoiler mounting nuts.
CAUTION:
IWhen removing nuts, be careful not to drop
them inside rear gate.
IBe careful since two-sided tape is placed
between roof spoiler and body panel.
B5M0306
5) Installation is in the reverse order of removal.
Tightening torque:
7.4
±2.0 N´m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
62
5-1[W18A0]SERVICE PROCEDURE
18. Rear Spoiler

18. Rear Spoiler
A: REMOVAL AND INSTALLATION
1) Open trunk lid.
2) Disconnect high-mount stop light connector
located inside the trunk lid.
3) Remove rubber caps.
B5M0413
4) Remove rear spoiler mounting nuts.
CAUTION:
When removing nuts, be careful not to drop
them inside rear gate.
B5M0414
5) Installation is in the reverse order of removal.
Tightening torque:
7.4
±2.0 N´m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
19. Roof Spoiler
A: REMOVAL AND INSTALLATION
1) Open rear gate and remove rear gate trim
upper and side.
B5M0305
2) Remove high-mount stop light. [W6A4].>
3) Remove plastic caps and harness covers.
B5M0415A
4) Remove roof spoiler mounting nuts.
CAUTION:
IWhen removing nuts, be careful not to drop
them inside rear gate.
IBe careful since two-sided tape is placed
between roof spoiler and body panel.
B5M0306
5) Installation is in the reverse order of removal.
Tightening torque:
7.4
±2.0 N´m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
62
5-1[W18A0]SERVICE PROCEDURE
18. Rear Spoiler

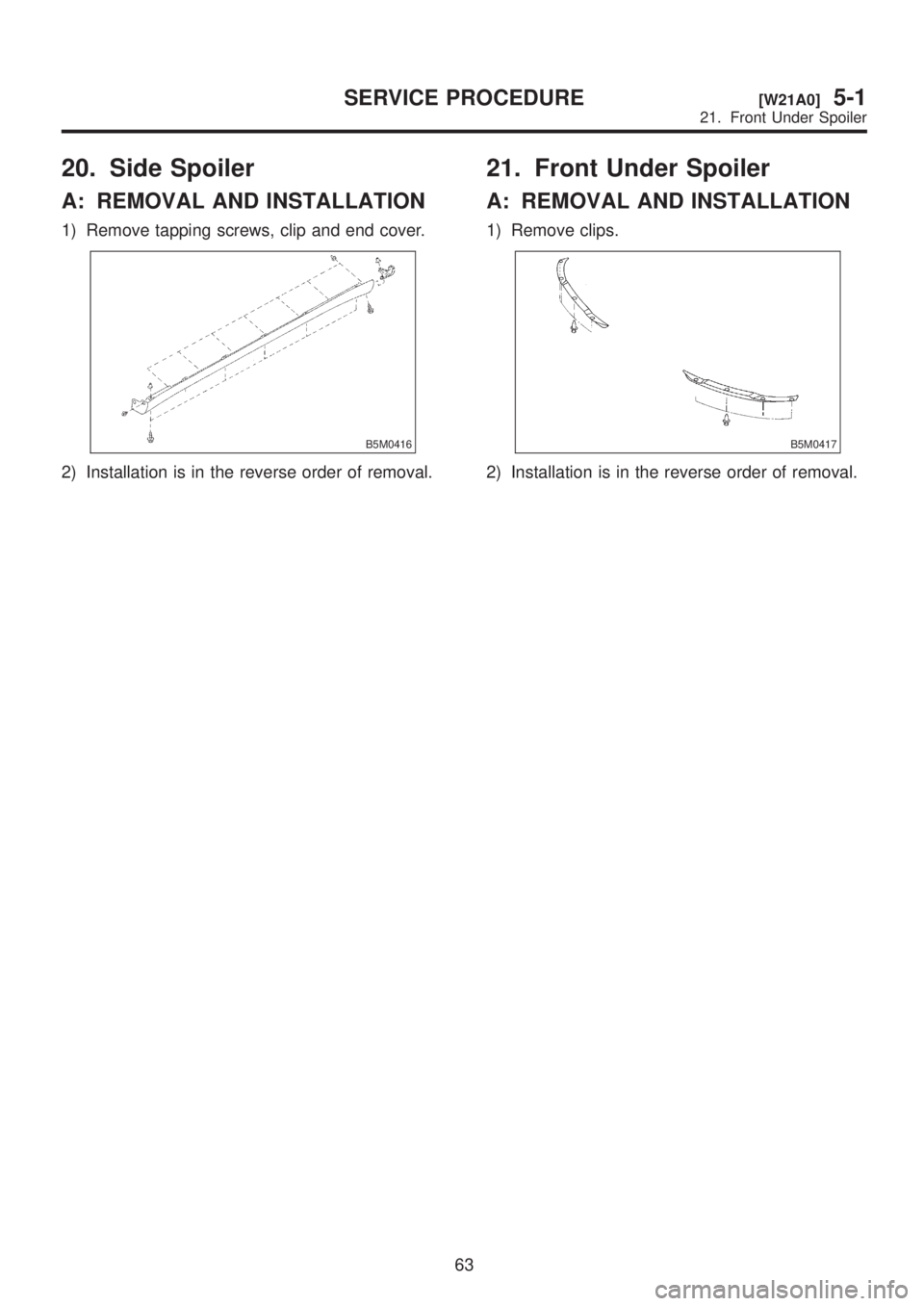

20. Side Spoiler
A: REMOVAL AND INSTALLATION
1) Remove tapping screws, clip and end cover.
B5M0416
2) Installation is in the reverse order of removal.
21. Front Under Spoiler
A: REMOVAL AND INSTALLATION
1) Remove clips.
B5M0417
2) Installation is in the reverse order of removal.
63
[W21A0]5-1SERVICE PROCEDURE
21. Front Under Spoiler

20. Side Spoiler
A: REMOVAL AND INSTALLATION
1) Remove tapping screws, clip and end cover.
B5M0416
2) Installation is in the reverse order of removal.
21. Front Under Spoiler
A: REMOVAL AND INSTALLATION
1) Remove clips.
B5M0417
2) Installation is in the reverse order of removal.
63
[W21A0]5-1SERVICE PROCEDURE
21. Front Under Spoiler

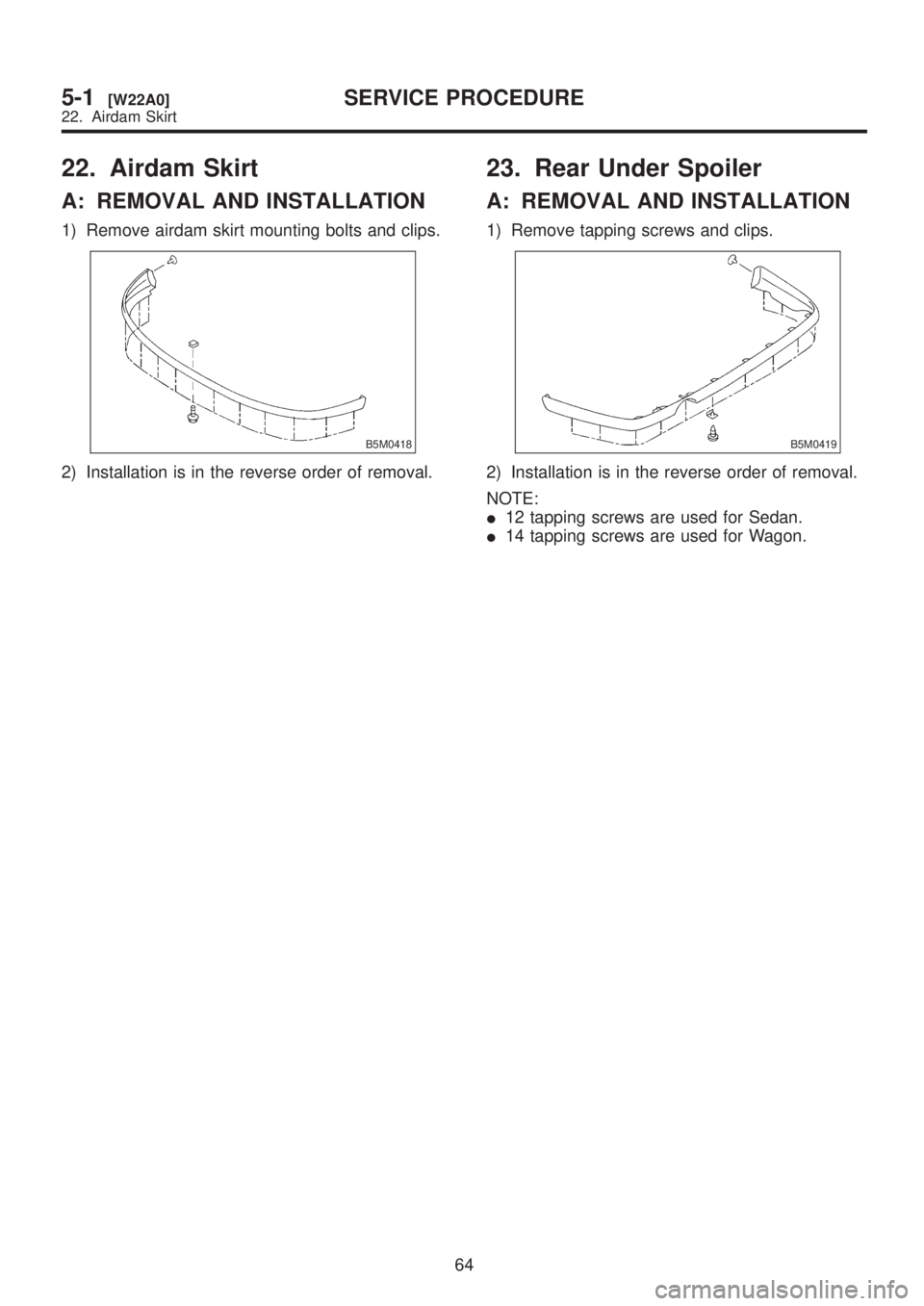

22. Airdam Skirt
A: REMOVAL AND INSTALLATION
1) Remove airdam skirt mounting bolts and clips.
B5M0418
2) Installation is in the reverse order of removal.
23. Rear Under Spoiler
A: REMOVAL AND INSTALLATION
1) Remove tapping screws and clips.
B5M0419
2) Installation is in the reverse order of removal.
NOTE:
I12 tapping screws are used for Sedan.
I14 tapping screws are used for Wagon.
64
5-1[W22A0]SERVICE PROCEDURE
22. Airdam Skirt

22. Airdam Skirt
A: REMOVAL AND INSTALLATION
1) Remove airdam skirt mounting bolts and clips.
B5M0418
2) Installation is in the reverse order of removal.
23. Rear Under Spoiler
A: REMOVAL AND INSTALLATION
1) Remove tapping screws and clips.
B5M0419
2) Installation is in the reverse order of removal.
NOTE:
I12 tapping screws are used for Sedan.
I14 tapping screws are used for Wagon.
64
5-1[W22A0]SERVICE PROCEDURE
