1999 SUBARU LEGACY Service Repair Manual

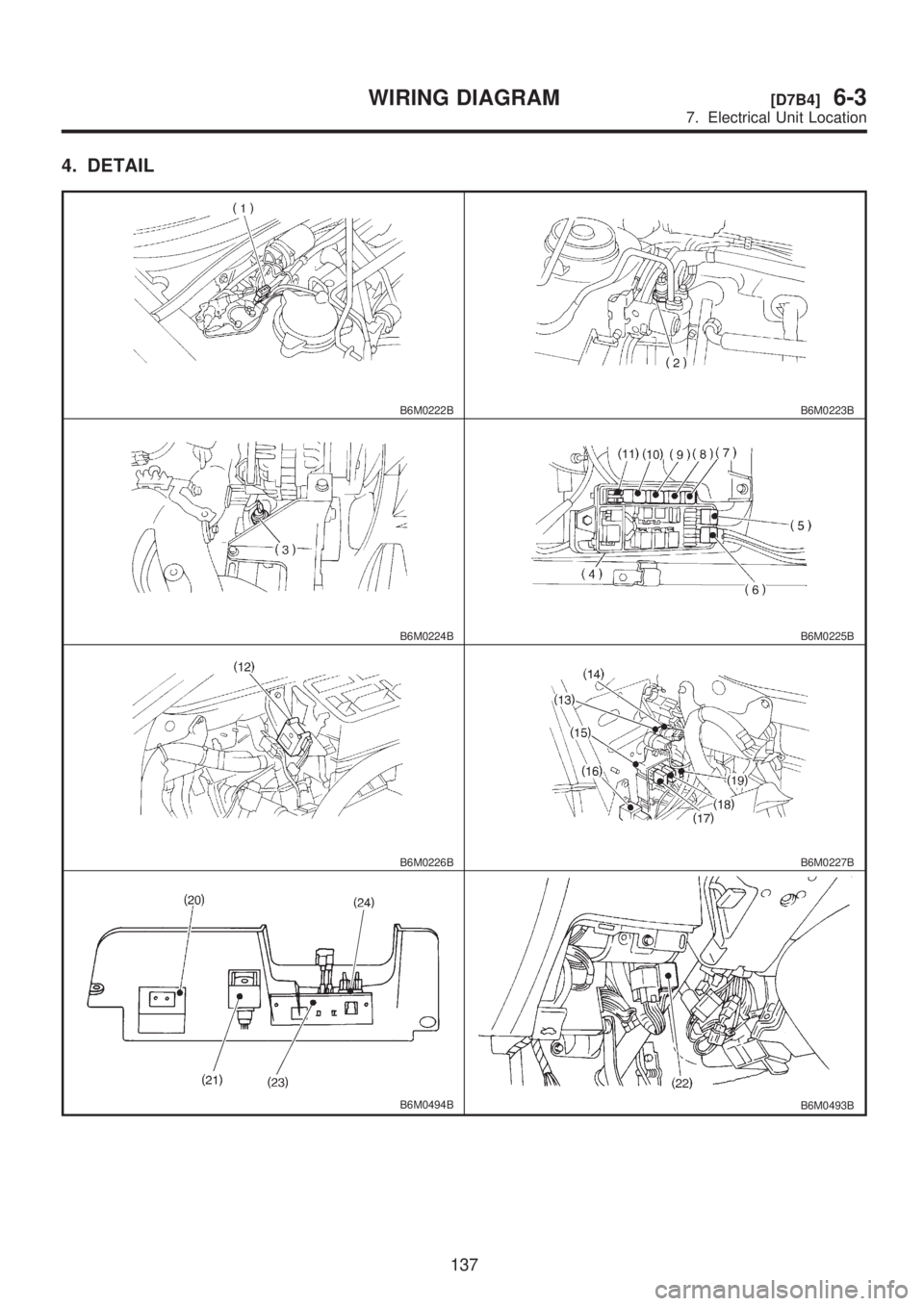

4. DETAIL
B6M0222BB6M0223B
B6M0224BB6M0225B
B6M0226BB6M0227B
B6M0494BB6M0493B
137
[D7B4]6-3WIRING DIAGRAM

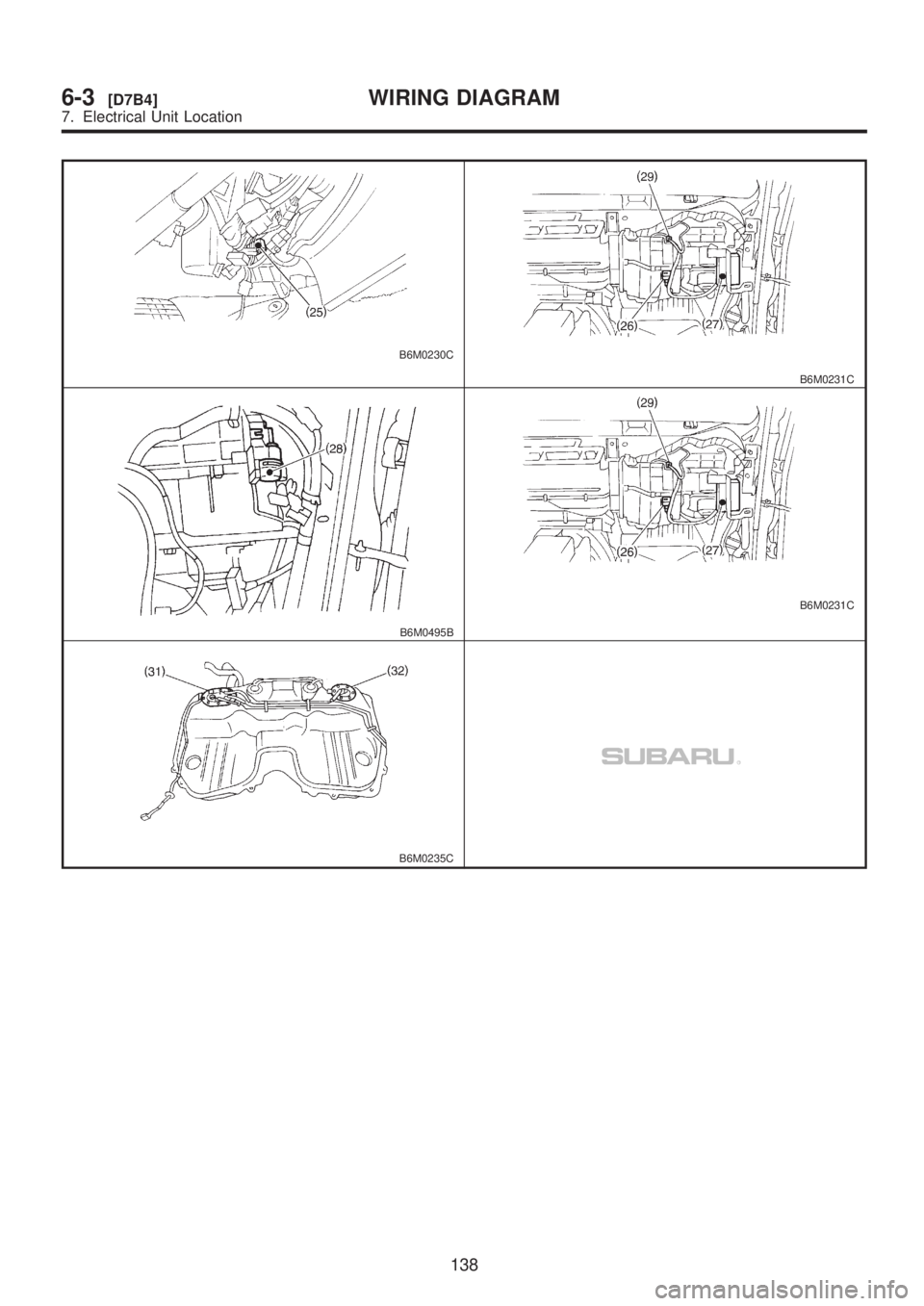

7. Electrical Unit Location

B6M0230C
B6M0231C
B6M0495B
B6M0231C
B6M0235C
138
6-3[D7B4]WIRING DIAGRAM
7. Electrical Unit Location

MEMO:
139
[D7B4]6-3WIRING DIAGRAM
7. Electrical Unit Location

8. Electrical Wiring Harness and Ground Point
A: OVERALL LOCATION
1. LHD MODEL
B6M0267B
(1) Front wiring harness
(2) Engine wiring harness
(3) Room light cord
(4) Bulkhead wiring harness
(5) Instrument panel wiring harness
(6) Front door cord RH
(7) Rear door cord RH(8) Rear wiring harness
(9) Trunk lid cord (Sedan)
(10) Rear defogger ground cord
(Sedan)
(11) Fuel tank cord
(12) Rear door cord LH
(13) Front door cord LH(14) Sunroof cord
(15) Floor wiring harness
(16) Transmission cord
(17) Rear gate cord (Wagon)
(18) Rear oxygen sensor cord
140
6-3[D8A1]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

2. RHD MODEL
B6M0510B
(1) Front wiring harness
(2) Engine wiring harness
(3) Room light cord
(4) Bulkhead wiring harness
(5) Instrument panel wiring harness(6) Front door cord RH
(7) Rear door cord RH
(8) Rear wiring harness
(9) Fuel tank cord
(10) Rear door cord LH(11) Front door cord LH
(12) Transmission cord
(13) Rear gate cord
(14) Rear oxygen sensor cord
141
[D8A2]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

B: FRONT WIRING HARNESS
1. LHD MODEL

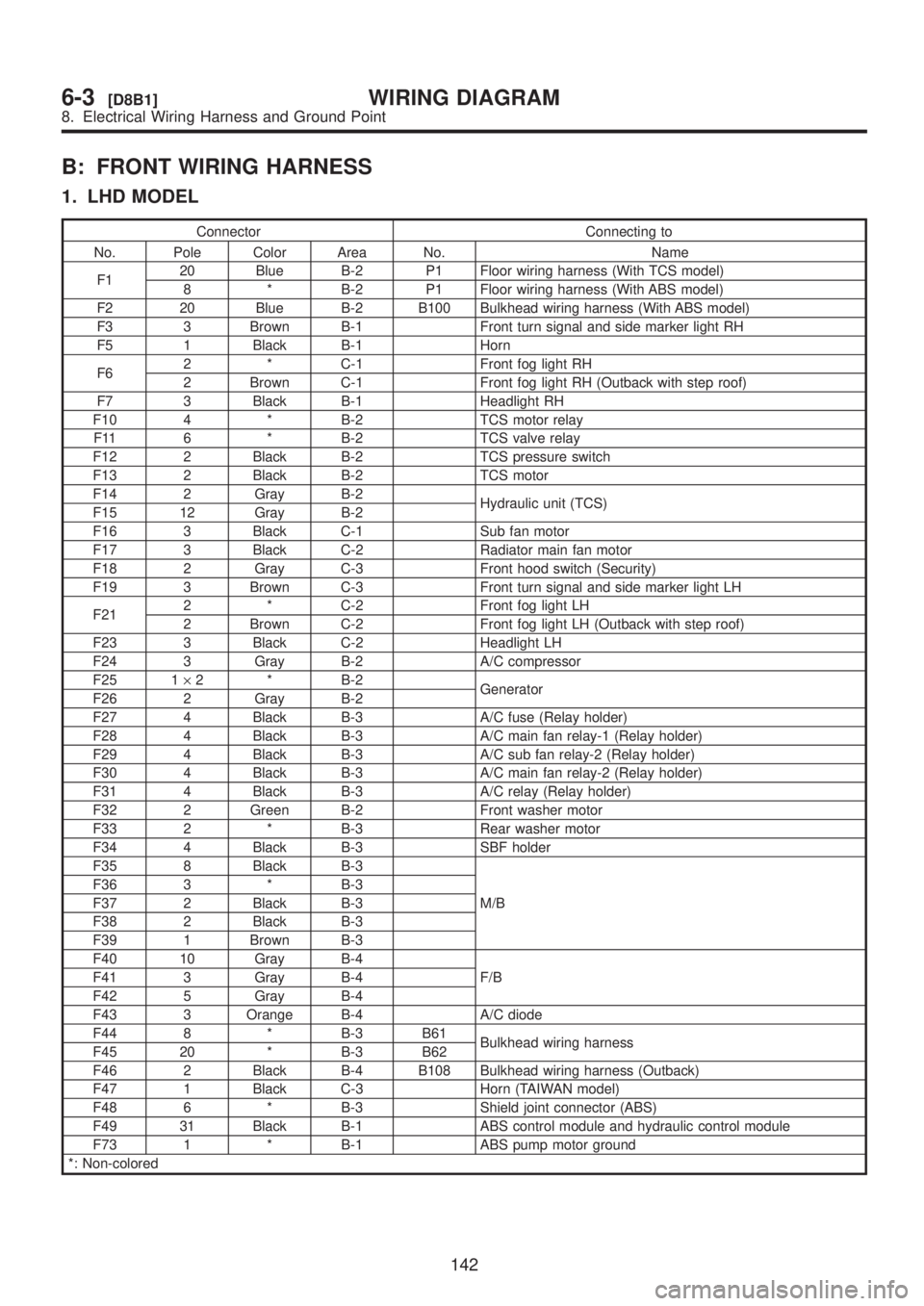

Connector Connecting to
No. Pole Color Area No. Name
F120 Blue B-2 P1 Floor wiring harness (With TCS model)
8 * B-2 P1 Floor wiring harness (With ABS model)
F2 20 Blue B-2 B100 Bulkhead wiring harness (With ABS model)
F3 3 Brown B-1 Front turn signal and side marker light RH
F5 1 Black B-1 Horn
F62 * C-1 Front fog light RH
2 Brown C-1 Front fog light RH (Outback with step roof)
F7 3 Black B-1 Headlight RH
F10 4 * B-2 TCS motor relay
F11 6 * B-2 TCS valve relay
F12 2 Black B-2 TCS pressure switch
F13 2 Black B-2 TCS motor
F14 2 Gray B-2
Hydraulic unit (TCS)
F15 12 Gray B-2
F16 3 Black C-1 Sub fan motor
F17 3 Black C-2 Radiator main fan motor
F18 2 Gray C-3 Front hood switch (Security)
F19 3 Brown C-3 Front turn signal and side marker light LH
F212 * C-2 Front fog light LH
2 Brown C-2 Front fog light LH (Outback with step roof)
F23 3 Black C-2 Headlight LH
F24 3 Gray B-2 A/C compressor
F25 1´2 * B-2
Generator
F26 2 Gray B-2
F27 4 Black B-3 A/C fuse (Relay holder)
F28 4 Black B-3 A/C main fan relay-1 (Relay holder)
F29 4 Black B-3 A/C sub fan relay-2 (Relay holder)
F30 4 Black B-3 A/C main fan relay-2 (Relay holder)
F31 4 Black B-3 A/C relay (Relay holder)
F32 2 Green B-2 Front washer motor
F33 2 * B-3 Rear washer motor
F34 4 Black B-3 SBF holder
F35 8 Black B-3
M/B F36 3 * B-3
F37 2 Black B-3
F38 2 Black B-3
F39 1 Brown B-3
F40 10 Gray B-4
F/B F41 3 Gray B-4
F42 5 Gray B-4
F43 3 Orange B-4 A/C diode
F44 8 * B-3 B61
Bulkhead wiring harness
F45 20 * B-3 B62
F46 2 Black B-4 B108 Bulkhead wiring harness (Outback)
F47 1 Black C-3 Horn (TAIWAN model)
F48 6 * B-3 Shield joint connector (ABS)
F49 31 Black B-1 ABS control module and hydraulic control module
F73 1 * B-1 ABS pump motor ground
*: Non-colored
142
6-3[D8B1]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

143
[D8B1]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

2. RHD MODEL

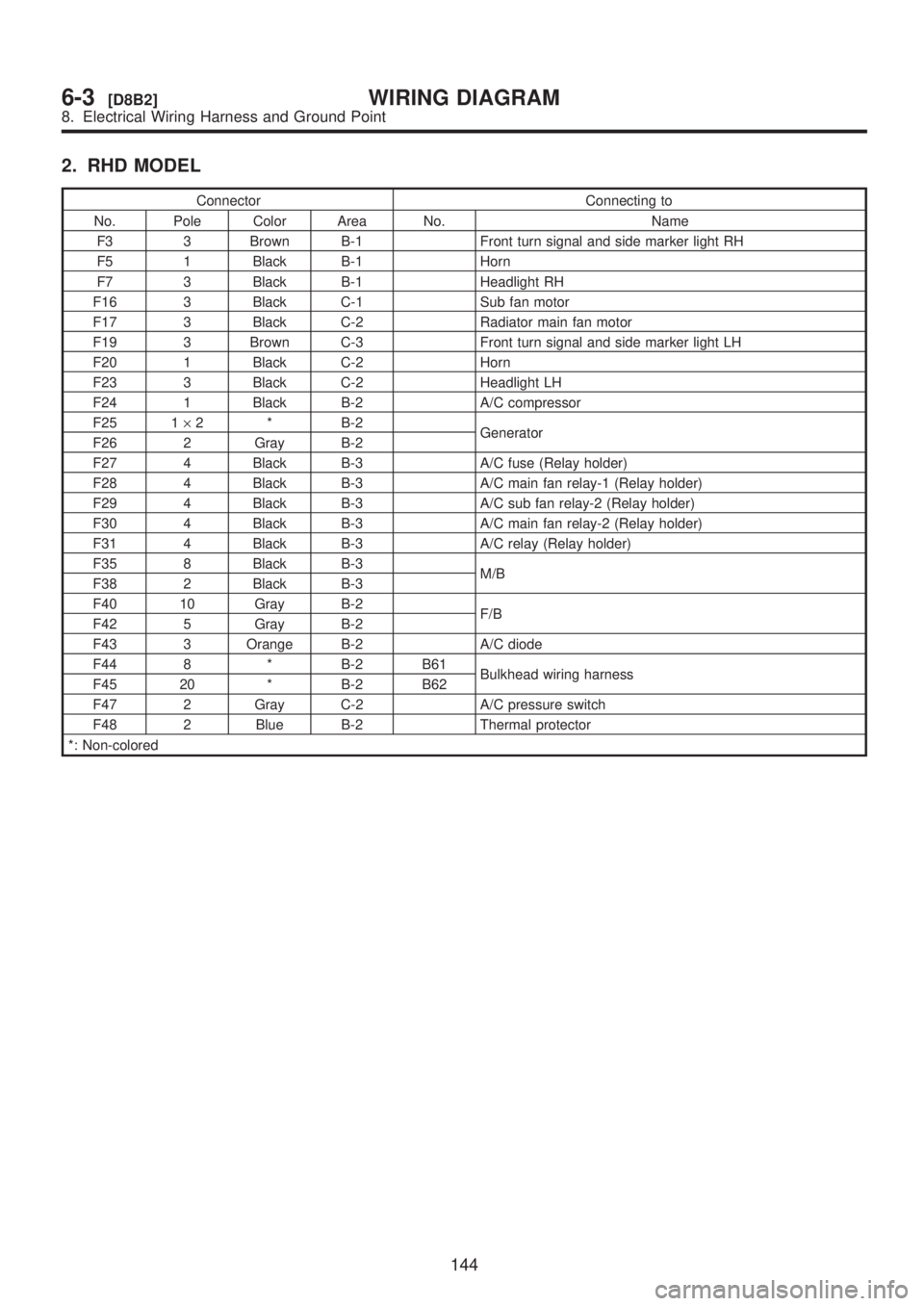

Connector Connecting to
No. Pole Color Area No. Name
F3 3 Brown B-1 Front turn signal and side marker light RH
F5 1 Black B-1 Horn
F7 3 Black B-1 Headlight RH
F16 3 Black C-1 Sub fan motor
F17 3 Black C-2 Radiator main fan motor
F19 3 Brown C-3 Front turn signal and side marker light LH
F20 1 Black C-2 Horn
F23 3 Black C-2 Headlight LH
F24 1 Black B-2 A/C compressor
F25 1´2 * B-2
Generator
F26 2 Gray B-2
F27 4 Black B-3 A/C fuse (Relay holder)
F28 4 Black B-3 A/C main fan relay-1 (Relay holder)
F29 4 Black B-3 A/C sub fan relay-2 (Relay holder)
F30 4 Black B-3 A/C main fan relay-2 (Relay holder)
F31 4 Black B-3 A/C relay (Relay holder)
F35 8 Black B-3
M/B
F38 2 Black B-3
F40 10 Gray B-2
F/B
F42 5 Gray B-2
F43 3 Orange B-2 A/C diode
F44 8 * B-2 B61
Bulkhead wiring harness
F45 20 * B-2 B62
F47 2 Gray C-2 A/C pressure switch
F48 2 Blue B-2 Thermal protector
*: Non-colored
144
6-3[D8B2]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
