3-20
Safety system
Seat belt warning light
Driver’s seat belt
„ Instrument cluster
1GQA2083
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time you
turn the ignition switch ON regardless of
belt fastening.
If the seat belt is not fastened when the
ignition switch is turned ON or if it is
disconnected after the ignition switch
is turned ON, the seat belt warning light
will illuminate until the belt is fastened.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive under 12mph (20km/h),
the corresponding warning light will
continue to illuminate until you fasten
the seat belt.
If you continue to drive without the
seat belt fastened or you unfasten the
seat belt when you drive over 12mph
(20km/h), the seat belt warning chime
will sound for approximately 100
seconds and the corresponding warning
light will blink.
Front passenger’s seat belt
(if equipped)
As a reminder to the front passenger, the
front passenger’s seat belt warning lights
will illuminate for approximately
6 seconds each time you turn the ignition
switch ON regardless of belt fastening.
If the seat belt is not fastened when the
ignition switch is turned ON or if it is
disconnected after the ignition
switch is turned ON, the seat belt warning
light will illuminate until the belt is fastened.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive under 12mph (20km/h), the
corresponding warning light will continue to
illuminate until you fasten the seat belt.
If you continue to drive without the seat
belt fastened or you unfasten the seat belt
when you drive over 12mph (20km/h),
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
WARNING
Riding in an improper position
adversely affects the front passenger’s
seat belt warning system. It is
important for the driver to instruct the
passenger to properly be seated as
instructed in this manual.
i Information
‡
Although the front passenger seat is not
occupied, the seat belt warning light will
blink or illuminate for 6 seconds. Also,
when the front passenger gets off the
vehicle whilst the warning is activating,
the warning may continue for 6 seconds
even after the passenger gets off.

3-21
03
Rear seat belt warning
(if equipped)
OBC3030011R
Rear center seat (or all rear seat)
As a reminder to the rear passenger,
the rear passenger’s seat belt warning
lights will illuminate for approximately 6
seconds each time you turn the ignition
switch ON regardless of belt fastening.
If the seat belt is not fastened when
the ignition switch is turned ON,
the corresponding warning light will
illuminate until the seat belt is fastened.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when vehicle speed is under 12 mph
(20 km/h), the corresponding warning
light will continue to illuminate until you
fasten the seat belt.
If you continue to drive without the seat
belt fastened or you unfasten the seat
belt when vehicle speed is 12 mph (20
km/h) or faster, the seat belt warning
chime will sound for approximately 35
seconds and the corresponding warning
light will blink.
When the seat belt is unfastened whilst
driving, the warning lights will illuminate
when vehicle speed is below 12 mph (20
km/h).
When vehicle speed is 12 mph (20
km/h) or faster, the warning light will
blink and warning chime will sound for
approximately 35 seconds.
Rear left / right side seat (if equipped)
As a reminder to the rear passenger,
the rear passenger’s seat belt warning
lights will illuminate for approximately 6
seconds each time you turn the ignition
switch ON regardless of belt fastening.
Whether or not a passenger is seated :
If the seat belt is not fastened when the
ignition switch is turned ON, the seat
belt warning light will illuminate for
approximately 70 seconds.
If you start to drive without the seat belt
fastened the corresponding warning
light will continue to illuminate for
approximately 70 seconds regardless of
vehicle speed.
If you unfasten the seat belt when
vehicle speed is below 12 mph (20
km/h), the corresponding warning light
will illuminate for approximately 70
seconds. If you unfasten the seat belt
when vehicle speed is above 12 mph
(20 km/h), the seat belt warning chime
will sound for approximately 35 seconds
and the corresponding warning light will
blink.
If the rear door is opened whilst driving
below 12 mph (20 km/h), the warning
light and warning sound will not operate
even if vehicle speed is above 12 mph
(20 km/h).
WARNING
Riding in an improper position
adversely affects the rear passenger’s
seat belt warning system. It is
important for the driver to instruct the
passenger to properly be seated as
instructed in this manual.

3-22
Safety system
i Information

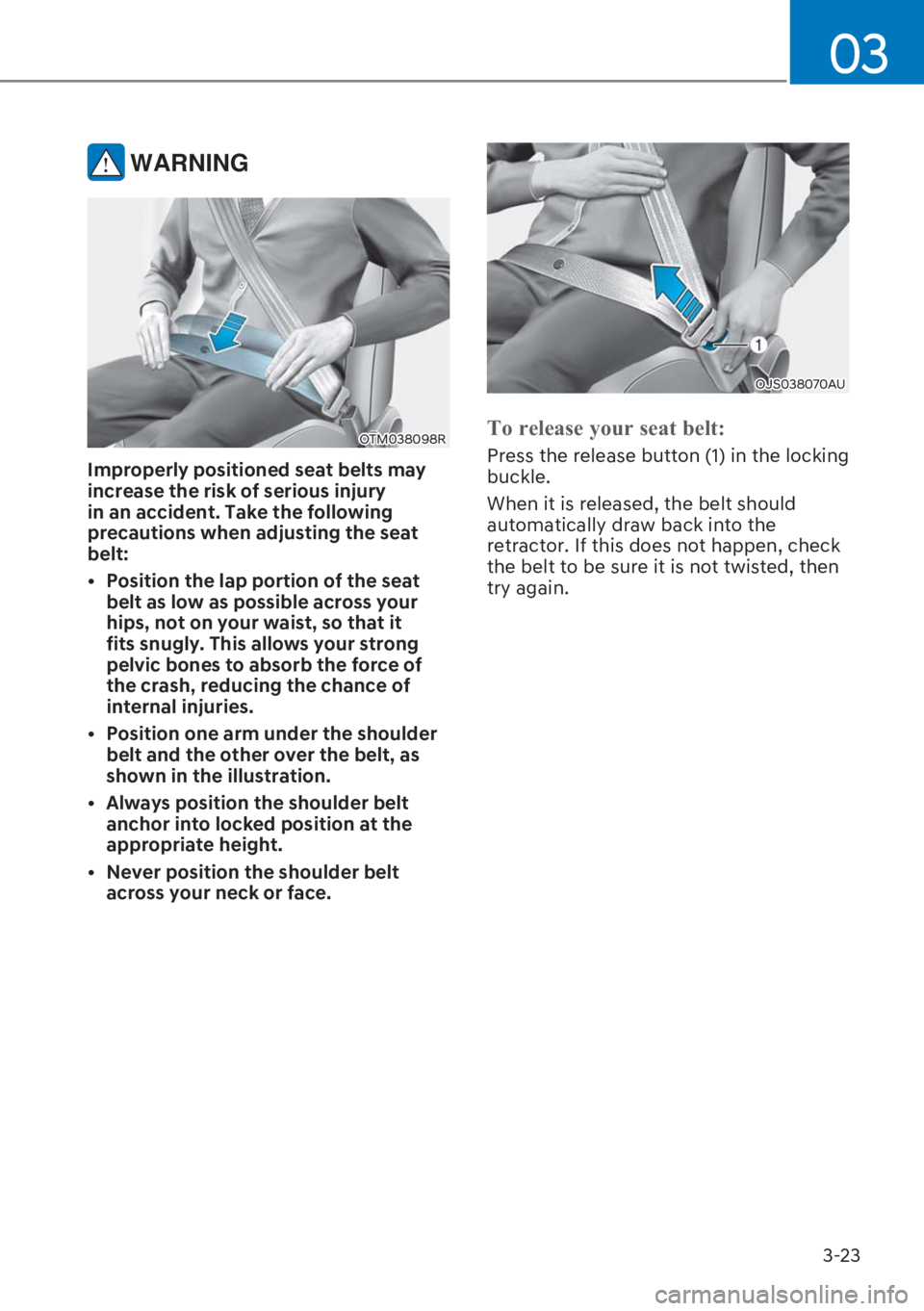

3-23
03
WARNING
OTM038098R
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it
fits snugly. This allows your strong
pelvic bones to absorb the force of
the crash, reducing the chance of
internal injuries.

[Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[Always position the shoulder belt
anchor into locked position at the
appropriate height.

[Never position the shoulder belt
across your neck or face.
OJS038070AU
7RUHOHDVH\RXUVHDWEHOW
Press the release button (1) in the locking
buckle.
When it is released, the belt should
automatically draw back into the
retractor. If this does not happen, check
the belt to be sure it is not twisted, then
try again.

3-24
Safety system
Rear centre seat belt
(if equipped)
OAC3039044TU
When using the rear centre seat belt, the
buckle with the “CENTER” mark must be
used.
i Information
If you are not able to pull out the safety
belt from the retractor, firmly pull the
belt out and release it. After release, you
will be able to pull the belt out smoothly.
Pre-tensioner seat belt
(if equipped)
OLMB033039/H
[1] : Retractor pre-tensioner seat belt
Your vehicle is equipped with driver’s
and front passenger’s Pre-tensioner
Seat Belts (Retractor Pre-tensioner). The
purpose of the pre-tensioner is to make
sure the seat belts fit tightly against the
occupant’s body in certain frontal or
side collision(s). The pre-tensioner seat
belts may be activated in crashes where
the frontal or side collision(s) is severe
enough, together with the air bags.
When the vehicle stops suddenly, or if
the occupant tries to lean forward too
quickly, the seat belt retractor will lock
into position.
In certain frontal collisions, the pre-
tensioner will activate and pull the seat
belt into tighter contact against the
occupant’s body.
If the system senses excessive tension
on the driver or passenger’s seat
belt when the pre-tensioner system
activates, the load limiter inside the
retractor pre-tensioner will release some
of the pressure on the affected seat belt
(if equipped with load limiter).

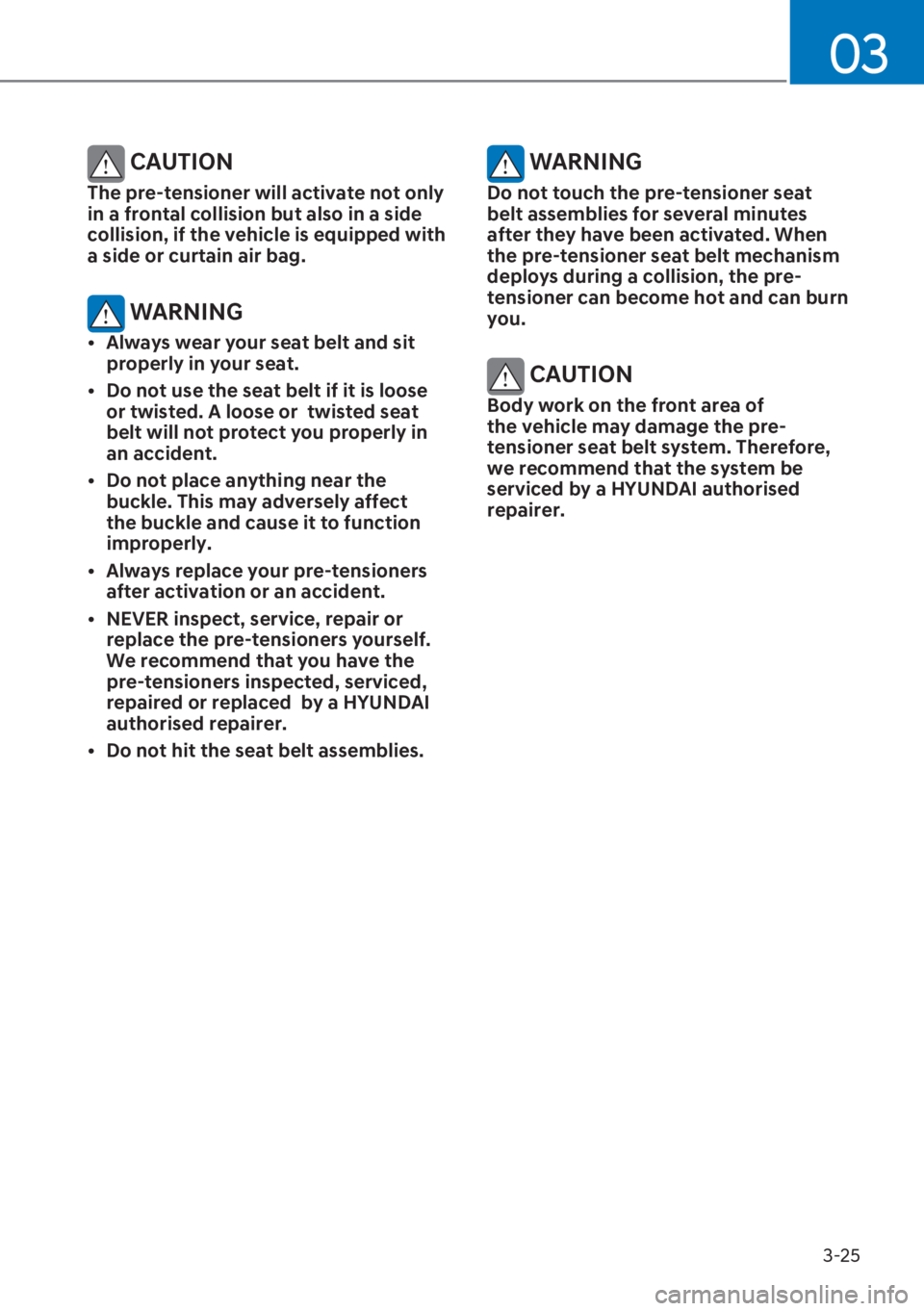

3-25
03
CAUTION
The pre-tensioner will activate not only
in a frontal collision but also in a side
collision, if the vehicle is equipped with
a side or curtain air bag.
WARNING

[Always wear your seat belt and sit
properly in your seat.

[Do not use the seat belt if it is loose
or twisted. A loose or twisted seat
belt will not protect you properly in
an accident.

[Do not place anything near the
buckle. This may adversely affect
the buckle and cause it to function
improperly.

[Always replace your pre-tensioners
after activation or an accident.

[NEVER inspect, service, repair or
replace the pre-tensioners yourself.
We recommend that you have the
pre-tensioners inspected, serviced,
repaired or replaced by a HYUNDAI
authorised repairer.

[Do not hit the seat belt assemblies.
WARNING
Do not touch the pre-tensioner seat
belt assemblies for several minutes
after they have been activated. When
the pre-tensioner seat belt mechanism
deploys during a collision, the pre-
tensioner can become hot and can burn
you.
CAUTION
Body work on the front area of
the vehicle may damage the pre-
tensioner seat belt system. Therefore,
we recommend that the system be
serviced by a HYUNDAI authorised
repairer.

3-26
Safety system
8KMB3311/H
The Pre-Tensioner Seat Belt System
consists mainly of the following
components. Their locations are shown
in the illustration above:
(1) SRS air bag warning light
(2) Front retractor pre-tensioner
(if equipped)
(3) SRS control module
OBC3030012R
„Rear
(4) Rear retractor pre-tensioner
(if equipped)
NOTICE
The sensor that activates the SRS
air bag is connected with the pre–
tensioner seat belts. The SRS air bag
warning light on the instrument panel
will illuminate for approximately 6
seconds after the ignition switch is
placed to the ON position, and then it
should turn off.
If the pre-tensioner is not working
properly, the warning light will
illuminate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is
being driven, we recommend the pre-
tensioner seat belts and/or SRS air bags
be inspected by a HYUNDAI authorised
repairer as soon as possible.

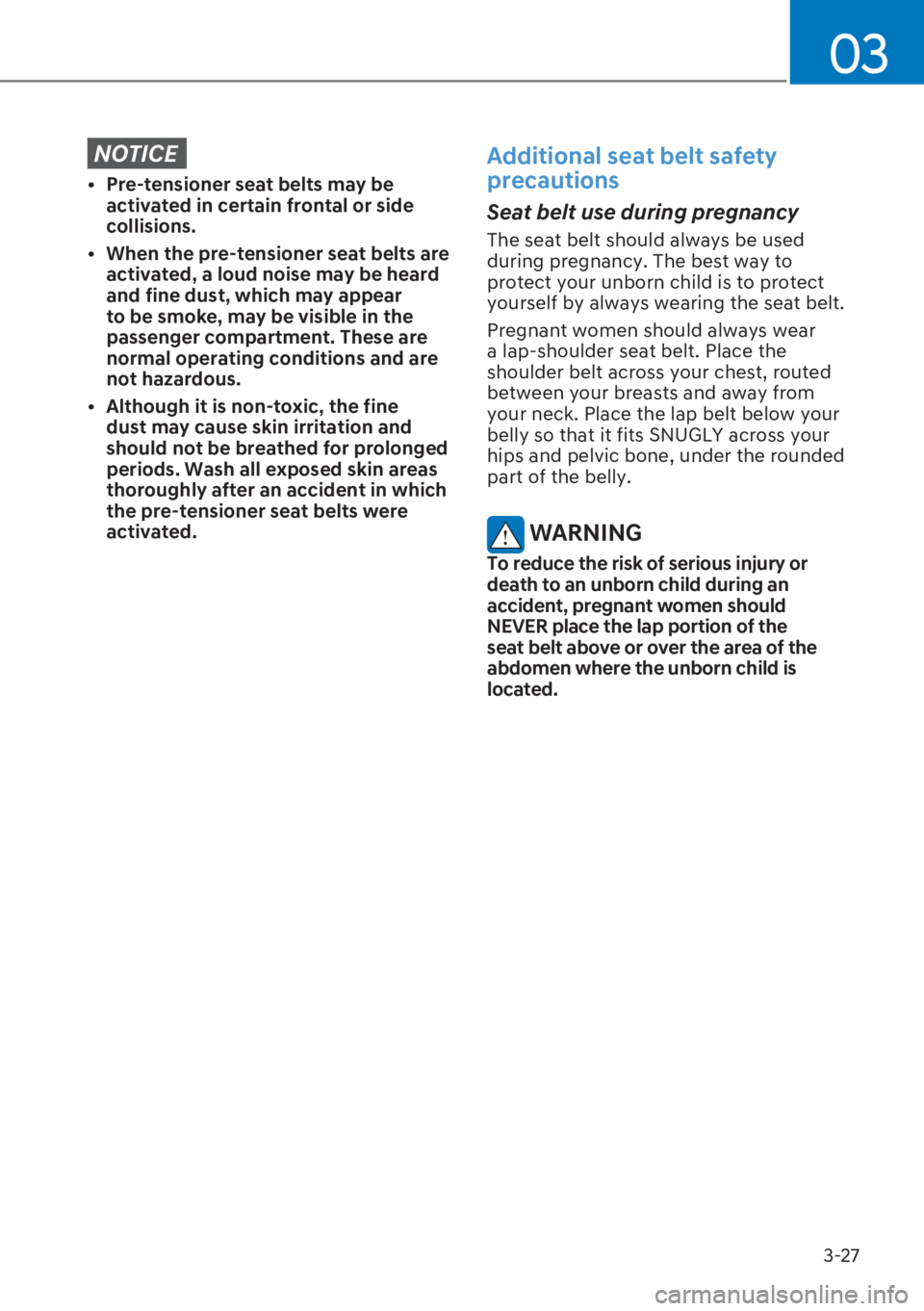

3-27
03
NOTICE

[Pre-tensioner seat belts may be
activated in certain frontal or side
collisions.

[When the pre-tensioner seat belts are
activated, a loud noise may be heard
and fine dust, which may appear
to be smoke, may be visible in the
passenger compartment. These are
normal operating conditions and are
not hazardous.

[Although it is non-toxic, the fine
dust may cause skin irritation and
should not be breathed for prolonged
periods. Wash all exposed skin areas
thoroughly after an accident in which
the pre-tensioner seat belts were
activated.
Additional seat belt safety
precautions
Seat belt use during pregnancy
The seat belt should always be used
during pregnancy. The best way to
protect your unborn child is to protect
yourself by always wearing the seat belt.
Pregnant women should always wear
a lap-shoulder seat belt. Place the
shoulder belt across your chest, routed
between your breasts and away from
your neck. Place the lap belt below your
belly so that it fits SNUGLY across your
hips and pelvic bone, under the rounded
part of the belly.
WARNING
To reduce the risk of serious injury or
death to an unborn child during an
accident, pregnant women should
NEVER place the lap portion of the
seat belt above or over the area of the
abdomen where the unborn child is
located.
