2023 HYUNDAI I20 Owners Manual

2-22
Vehicle information
5HFRPPHQGHG6$(YLVFRVLW\QXPEHU
&$87,21
$OZD\VEHVXUHWRFOHDQWKHDUHDDURXQGDQ\ILOOHUSOXJGUDLQSOXJRUGLSVWLFN
before checking or draining any lubricant. This is especially important in dusty or
sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher
viscosity engine oils are required for satisfactory lubrication in hot weather. Using oils
of any viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil viscosity from the chart.
7HPSHUDWXUH5DQJHIRU6$(9LVFRVLW\1XPEHUV
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Smartstream G1.2/
G1.0 T-GDI/48V MHEV *
10W-20
Gasoline 1.4 *1
0/5W-20, 0/5W-30
10W-30
15W-40
20W-50
*1 : If mineral oil or semi-synthetic oil is used, it is a severe maintenance condition in terms of
engine oil change.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended
to only use engine oils that uphold this API Certification Mark.

2-23
02
180%(5

2-24
Vehicle information

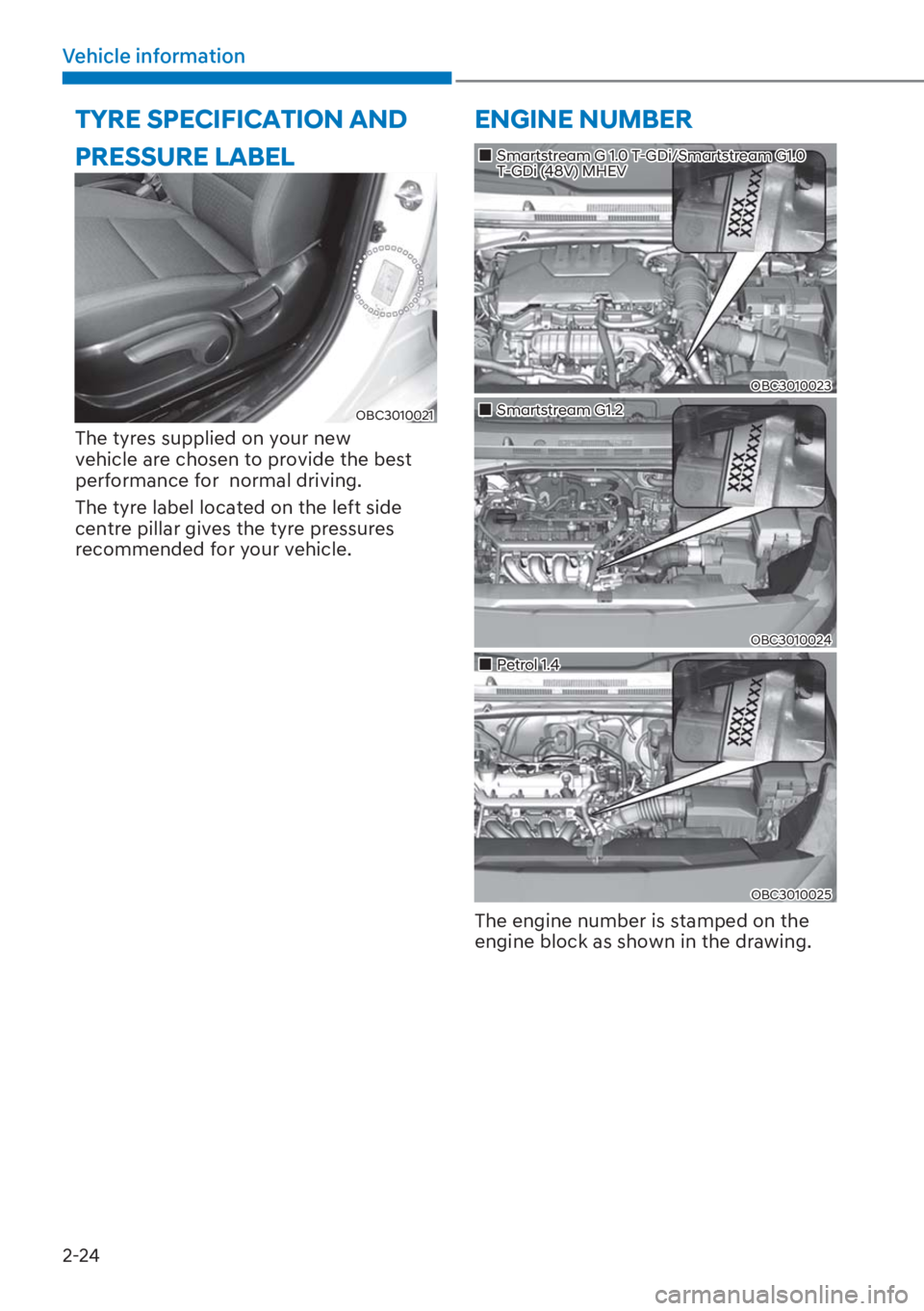

PRESSURE LABEL
OBC3010021
The tyres supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tyre label located on the left side
centre pillar gives the tyre pressures
recommended for your vehicle.
TYRE SPECIFICATION AND ENGINE NUMBER
OBC3010023
„6PDUWVWUHDP*7*'L6PDUWVWUHDP*7*'L90+(9
OBC3010024
„Smartstream G1.2
2%&
„3HWURO
The engine number is stamped on the
engine block as shown in the drawing.

2-25
02

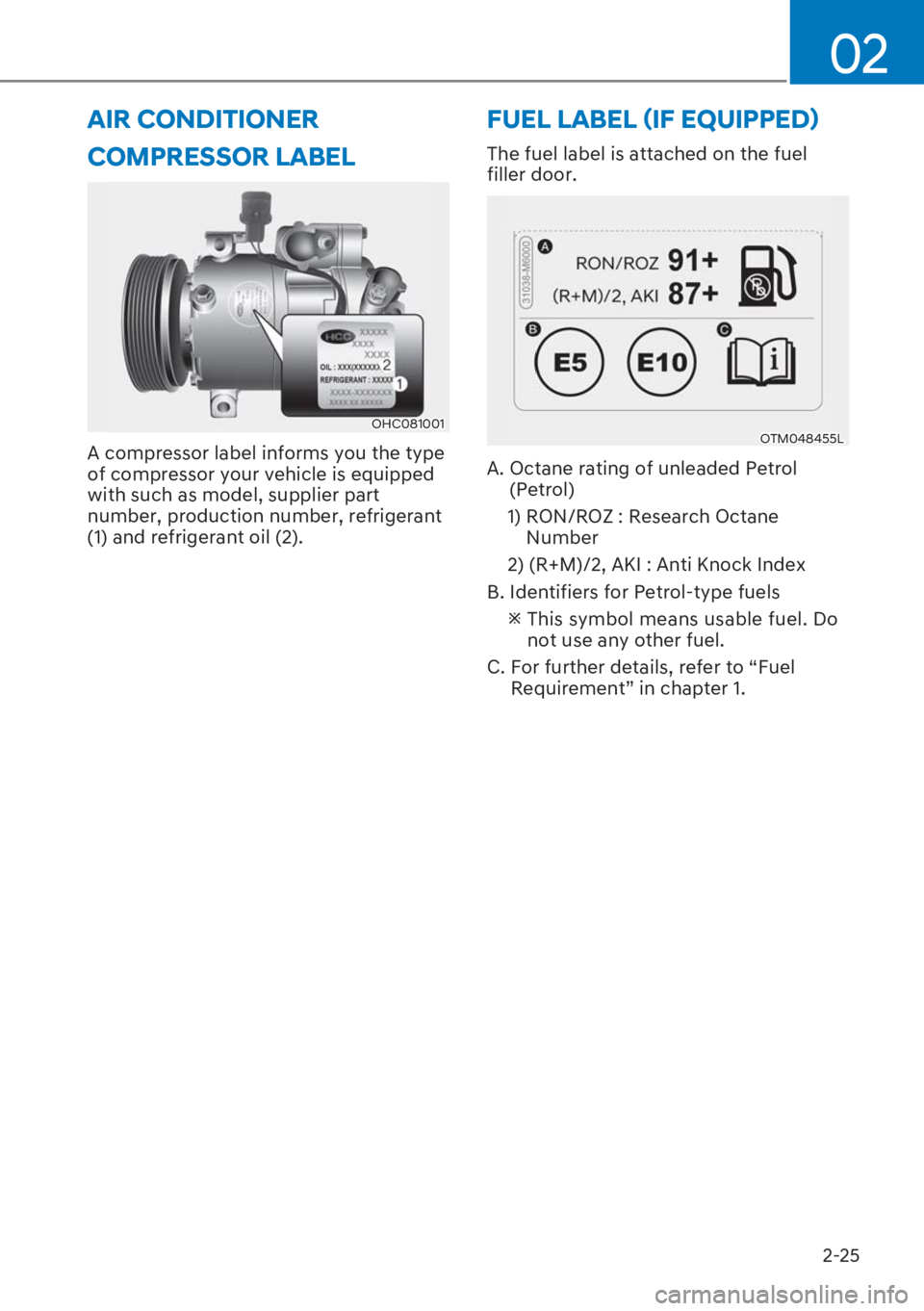

COMPRESSOR LABEL
2+&
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).
AIR CONDITIONER )8(//$%(/

2-26
Vehicle information
&(

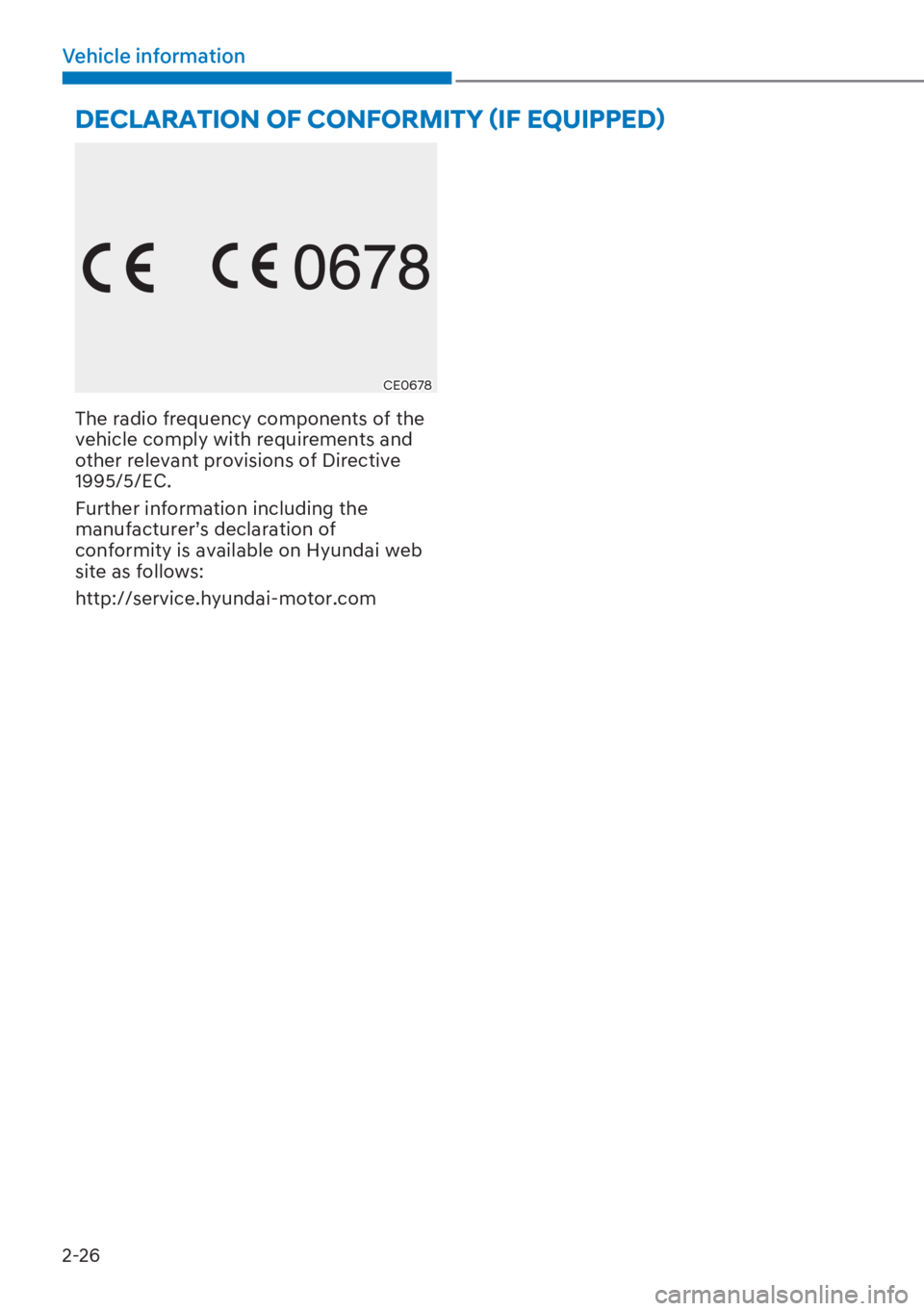

The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the
manufacturer’s declaration of
conformity is available on Hyundai web
site as follows:
http://service.hyundai-motor.com
'(&/$5$7,212)&21)250,7<

Important safety precautions ........................................................................ 3-2Always wear your seat belt ........................................................................................3-2
Restrain all children ....................................................................................................3-2
Air bag hazards ...........................................................................................................3-2
Driver distraction ........................................................................................................3-2
Control your speed .................................................................................................... 3-3
Keep your vehicle in safe condition ......................................................................... 3-3
Seats ................................................................................................................ 3-4Safety precautions .................................................................................................... 3-5
Front seats ................................................................................................................. 3-6
Rear seats ................................................................................................................. 3-10
Head restraint ........................................................................................................... 3-12
Seat warmers ............................................................................................................ 3-16
Rear Occupant Alert (ROA) ...................................................................................... 3-17
Seat belts ........................................................................................................3-19Seat belt safety precautions .................................................................................... 3-19
Seat belt warning light ............................................................................................ 3-20
Seat belt restraint system ........................................................................................3-22
Pre-tensioner seat belt ........................................................................................... 3-24
Additional seat belt safety precautions .................................................................. 3-27
Care of seat belts..................................................................................................... 3-29
Child Restraint System (CRS) ....................................................................... 3-30Our recommendation:Children always in the rear ................................................ 3-30
Selecting a Child Restraint System (CRS) ............................................................... 3-31
Installing a Child Restraint System (CRS) .............................................................. 3-33
Air bag - supplemental restraint system ......................................................3-41Where are the air bags? .......................................................................................... 3-43
How does the air bags system operate? ................................................................ 3-48
What to expect after an air bag inflates ................................................................. 3-51
Do not install a Child Restraint System on the front passenger seat .................. 3-52
Why didn’t my air bag go off in a collision? ........................................................... 3-52
SRS Care ...................................................................................................................3-57
Additional safety precautions................................................................................. 3-58
Air bag warning labels............................................................................................. 3-58
3. Safety system
3

3-2
Safety system
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always wear your seat belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain all children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint Systems.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air bag hazards
Whilst air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.
Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving. To
reduce your risk of distraction and an
accident:

[ALWAYS set up your mobile devices
(i.e., MP3 players, phones, navigation
units, etc.) when your vehicle is parked
or safely stopped.

[ONLY use your mobile device when
allowed by laws and conditions permit
safe use.
NEVER text or email whilst driving.
Most countries have laws prohibiting
drivers from texting. Some countries
and cities also prohibit drivers from
using handheld phones.

[NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.

3-3
03
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally, the
higher the speed, the greater the risk,
but serious injuries can also occur at
lower speeds. Never drive faster than is
safe for current conditions, regardless of
the maximum speed posted.
Keep your vehicle in safe
condition
Having a tyre blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tyre pressures and condition
frequently, and perform all regularly
scheduled maintenance.
