INSTRUMENT PANEL OVERVIEW
1. Lighting control/Turn signals switch .... 5-42
2. Steering wheel audio controls* ........... 5-95
3. Instrument cluster .................................. 4-2
4. Horn ....................................................... 5-22
5. Driver’s air bag ...................................... 3-43
6. Wipers and Washers switch ................. 5-54
7. Drive Assist ......................... 7-31, 7-81, 7-108
8. Ignition switch ........................................ 6-5
9. Shift lever ...............................................6-13
10. USB port ...............................................5-94
11. USB charger .......................................... 5-8712. Climate control system* ..................... 5-57
13. Infotainment system ...........................5-94
14. Hazard warning light button ................ 8-2
15. Central door lock/unlock button ......... 5-15
16. Passenger’s front air bag .................... 3-43
17. Glove box ..............................................5-83
18. Parking Safety button ........................ 7-135
19. Drive mode button .............................. 6-55
20. Seat warmer switch ............................. 3-17
21. Parking/View button ...........................7-113
The actual shape may differ from the illustration.
OBC3010004R

2-11
02
1. Lighting control/Turn signals switch ..... 5-43
2. Steering wheel audio controls .............. 5-95
3. Instrument cluster ................................... 4-2
4. Horn .........................................................5-22
5. Driver’s air bag ....................................... 3-43
6. Wipers and Washers switch .................. 5-54
7. Driver Assist ..........................7-31, 7-81, 7-108
8. Ignition switch ......................................... 6-5
9. Shift lever ................................................ 6-13
10. USB charger .......................................... 5-87
11. Power outlet .......................................... 5-86
12. USB port ................................................ 5-94
13. Climate control system .........................5-5714. Hazard warning light button ............... 5-94
15. Central door lock/unlock button ........... 8-2
16. Infotainment system ............................. 5-15
17. Passenger’s front air bag ...................... 3-43
18. Glove box .............................................. 5-83
19. Parking/View button ........................... 7-135
20. Parking Safety button .......................... 6-55
21. Drive mode button ................................ 3-17
22. Seat warmer switch ............................. 7-113
The actual shape may differ from the illustration.
OBC3TN011004R
„1OLQH

3-17
03
OBC3030010R
Whilst the engine is running, push either
of the switches to warm the driver’s seat
or front passenger’s seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.

[Each time you push the switch, the
temperature setting of the seat is
changed as follows:


OFFJHIGH ()JMIDDLE ()JLOW ()
K

[The seat warmer defaults to the OFF
position whenever the ignition switch
is turned on.

[When pressing the switch for more
than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.
Rear Occupant Alert (ROA)
(if equipped)
Rear Occupant Alert is provided to help
prevent the driver from leaving the
vehicle with the rear passenger left in
the vehicle.
System setting
To use Rear Occupant Alert, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
 6HWXS

3-18
Safety system
WARNING
Rear Occupant Alert does not actually
detect objects or people in the rear
seat. By using a rear door opened and
closed history, the system informs the
driver that there may be something in
the rear seat.
CAUTION
Rear Occupant Alert uses a rear opened
and closed history.
The history is reset after the drive
turns off ignition normally, gets off the
vehicle and locks the door remotely
using the remote keyless entry. So even
if a rear door does not reopen, Rear
Occupant Alert alerts can occur.
For example, after Rear Occupant Alert
alerts occur, if the driver do not lock
the door then ride and drive again, the
alert can occur.

3-20
Safety system
Seat belt warning light
Driver’s seat belt
„ Instrument cluster
1GQA2083
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time you
turn the ignition switch ON regardless of
belt fastening.
If the seat belt is not fastened when the
ignition switch is turned ON or if it is
disconnected after the ignition switch
is turned ON, the seat belt warning light
will illuminate until the belt is fastened.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive under 12mph (20km/h),
the corresponding warning light will
continue to illuminate until you fasten
the seat belt.
If you continue to drive without the
seat belt fastened or you unfasten the
seat belt when you drive over 12mph
(20km/h), the seat belt warning chime
will sound for approximately 100
seconds and the corresponding warning
light will blink.
Front passenger’s seat belt
(if equipped)
As a reminder to the front passenger, the
front passenger’s seat belt warning lights
will illuminate for approximately
6 seconds each time you turn the ignition
switch ON regardless of belt fastening.
If the seat belt is not fastened when the
ignition switch is turned ON or if it is
disconnected after the ignition
switch is turned ON, the seat belt warning
light will illuminate until the belt is fastened.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive under 12mph (20km/h), the
corresponding warning light will continue to
illuminate until you fasten the seat belt.
If you continue to drive without the seat
belt fastened or you unfasten the seat belt
when you drive over 12mph (20km/h),
the seat belt warning chime will sound
for approximately 100 seconds and the
corresponding warning light will blink.
WARNING
Riding in an improper position
adversely affects the front passenger’s
seat belt warning system. It is
important for the driver to instruct the
passenger to properly be seated as
instructed in this manual.
i Information
‡
Although the front passenger seat is not
occupied, the seat belt warning light will
blink or illuminate for 6 seconds. Also,
when the front passenger gets off the
vehicle whilst the warning is activating,
the warning may continue for 6 seconds
even after the passenger gets off.

3-21
03
Rear seat belt warning
(if equipped)
OBC3030011R
Rear center seat (or all rear seat)
As a reminder to the rear passenger,
the rear passenger’s seat belt warning
lights will illuminate for approximately 6
seconds each time you turn the ignition
switch ON regardless of belt fastening.
If the seat belt is not fastened when
the ignition switch is turned ON,
the corresponding warning light will
illuminate until the seat belt is fastened.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when vehicle speed is under 12 mph
(20 km/h), the corresponding warning
light will continue to illuminate until you
fasten the seat belt.
If you continue to drive without the seat
belt fastened or you unfasten the seat
belt when vehicle speed is 12 mph (20
km/h) or faster, the seat belt warning
chime will sound for approximately 35
seconds and the corresponding warning
light will blink.
When the seat belt is unfastened whilst
driving, the warning lights will illuminate
when vehicle speed is below 12 mph (20
km/h).
When vehicle speed is 12 mph (20
km/h) or faster, the warning light will
blink and warning chime will sound for
approximately 35 seconds.
Rear left / right side seat (if equipped)
As a reminder to the rear passenger,
the rear passenger’s seat belt warning
lights will illuminate for approximately 6
seconds each time you turn the ignition
switch ON regardless of belt fastening.
Whether or not a passenger is seated :
If the seat belt is not fastened when the
ignition switch is turned ON, the seat
belt warning light will illuminate for
approximately 70 seconds.
If you start to drive without the seat belt
fastened the corresponding warning
light will continue to illuminate for
approximately 70 seconds regardless of
vehicle speed.
If you unfasten the seat belt when
vehicle speed is below 12 mph (20
km/h), the corresponding warning light
will illuminate for approximately 70
seconds. If you unfasten the seat belt
when vehicle speed is above 12 mph
(20 km/h), the seat belt warning chime
will sound for approximately 35 seconds
and the corresponding warning light will
blink.
If the rear door is opened whilst driving
below 12 mph (20 km/h), the warning
light and warning sound will not operate
even if vehicle speed is above 12 mph
(20 km/h).
WARNING
Riding in an improper position
adversely affects the rear passenger’s
seat belt warning system. It is
important for the driver to instruct the
passenger to properly be seated as
instructed in this manual.

3-26
Safety system
8KMB3311/H
The Pre-Tensioner Seat Belt System
consists mainly of the following
components. Their locations are shown
in the illustration above:
(1) SRS air bag warning light
(2) Front retractor pre-tensioner
(if equipped)
(3) SRS control module
OBC3030012R
„Rear
(4) Rear retractor pre-tensioner
(if equipped)
NOTICE
The sensor that activates the SRS
air bag is connected with the pre–
tensioner seat belts. The SRS air bag
warning light on the instrument panel
will illuminate for approximately 6
seconds after the ignition switch is
placed to the ON position, and then it
should turn off.
If the pre-tensioner is not working
properly, the warning light will
illuminate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is
being driven, we recommend the pre-
tensioner seat belts and/or SRS air bags
be inspected by a HYUNDAI authorised
repairer as soon as possible.

3-46
Safety system

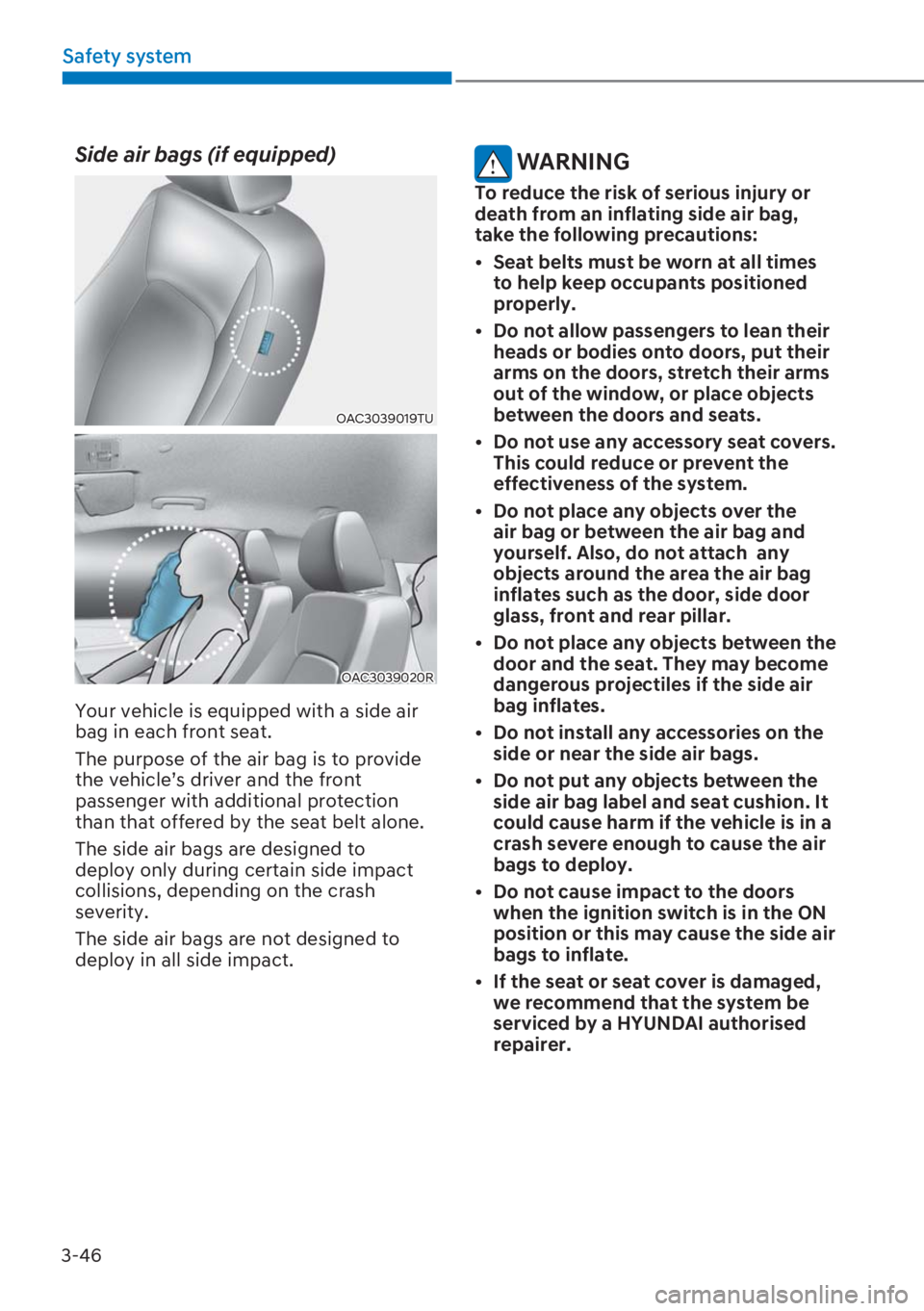

Side air bags (if equipped)
OAC3039019TU
OAC3039020R
Your vehicle is equipped with a side air
bag in each front seat.
The purpose of the air bag is to provide
the vehicle’s driver and the front
passenger with additional protection
than that offered by the seat belt alone.
The side air bags are designed to
deploy only during certain side impact
collisions, depending on the crash
severity.
The side air bags are not designed to
deploy in all side impact.
WARNING
To reduce the risk of serious injury or
death from an inflating side air bag,
take the following precautions:

[Seat belts must be worn at all times
to help keep occupants positioned
properly.

[Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.

[Do not use any accessory seat covers.
This could reduce or prevent the
effectiveness of the system.

[Do not place any objects over the
air bag or between the air bag and
yourself. Also, do not attach any
objects around the area the air bag
inflates such as the door, side door
glass, front and rear pillar.

[Do not place any objects between the
door and the seat. They may become
dangerous projectiles if the side air
bag inflates.

[Do not install any accessories on the
side or near the side air bags.

[Do not put any objects between the
side air bag label and seat cushion. It
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.

[Do not cause impact to the doors
when the ignition switch is in the ON
position or this may cause the side air
bags to inflate.

[If the seat or seat cover is damaged,
we recommend that the system be
serviced by a HYUNDAI authorised
repairer.
