2023 HYUNDAI I20 radiator
[x] Cancel search: radiatorPage 23 of 649
2-12
Vehicle information
ENGINE COMPARTMENT
1. Engine coolant reservoir .............................................................................................................. 9-16
2. Engine oil filler cap ...................................................................................................................... 9-14
3. Brake/Clutch* fluid reservoir ......................................................................................................9-20
4. Air cleaner .................................................................................................................................... 9-24
5. Fuse box .......................................................................................................................................9-42
6. Battery ..........................................................................................................................................9-29
7. Windsreen washer fluid reservoir ............................................................................................... 9-23
8. Radiator cap ..................................................................................................................................9-17
9. Engine oil dipstick ....................................................................................................................... 9-13
The actual engine room in the vehicle may differ from the illustration.
OBC3090001R
„ 6 P D U W V W U H D P * 7 * ' L 6 P D U W V W U H D P * 7 * ' L 9 0 + ( 9
Page 24 of 649
2-13
02
1. Engine coolant reservoir .............................................................................................................. 9-16
2. Engine oil filler cap ...................................................................................................................... 9-14
3. Brake/Clutch* fluid reservoir ......................................................................................................9-20
4. Air cleaner .................................................................................................................................... 9-24
5. Fuse box .......................................................................................................................................9-42
6. Battery ..........................................................................................................................................9-29
7. Windsreen washer fluid reservoir ............................................................................................... 9-23
8. Radiator cap ..................................................................................................................................9-17
9. Engine oil dipstick ....................................................................................................................... 9-13
The actual engine room in the vehicle may differ from the illustration.
OBC3090003R
„Smartstream G1.2
Page 25 of 649
2-14
Vehicle information
1. Engine coolant reservoir .............................................................................................................. 9-16
2. Engine oil filler cap ...................................................................................................................... 9-14
3. Brake/Clutch* fluid reservoir ......................................................................................................9-20
4. Air cleaner .................................................................................................................................... 9-24
5. Fuse box .......................................................................................................................................9-42
6. Battery ..........................................................................................................................................9-29
7. Windsreen washer fluid reservoir ............................................................................................... 9-23
8. Radiator cap ..................................................................................................................................9-17
9. Engine oil dipstick ....................................................................................................................... 9-13
The actual engine room in the vehicle may differ from the illustration.
OBC3090004R
„ 3 H W U R O

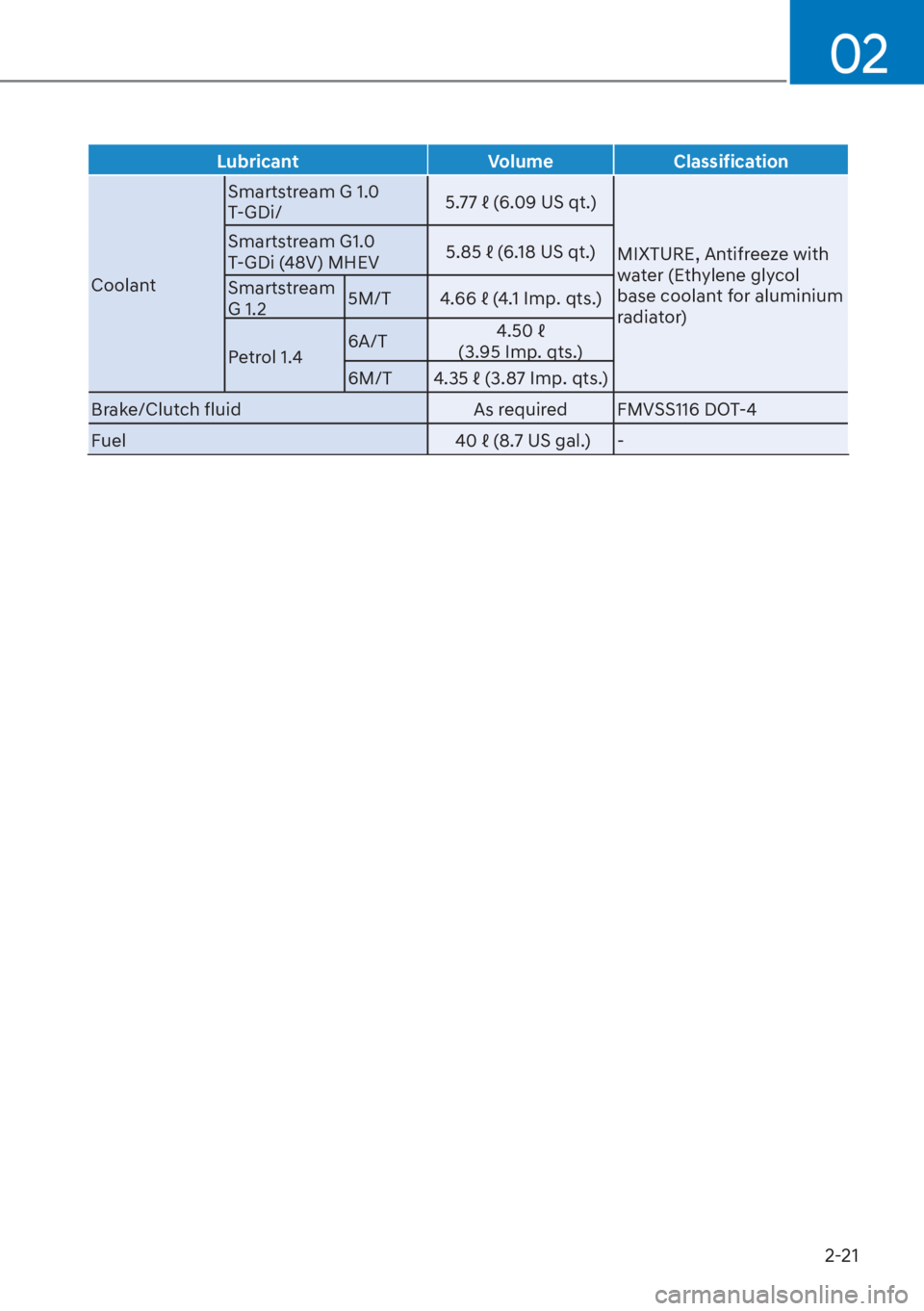

Page 32 of 649
2-21
02
Lubricant Volume Classification
CoolantSmartstream G 1.0
T-GDi/ b 8 6 T W
MIXTURE, Antifreeze with
water (Ethylene glycol
base coolant for aluminium
radiator) Smartstream G1.0
T-GDi (48V) MHEV b 8 6 T W
Smartstream
G 1.25M/T b , P S T W V
Petrol 1.46A/T b
(3.95 Imp. qts.)
6M/T b , P S T W V
Brake/Clutch fluid As required FMVSS116 DOT-4
Fuel b 8 6 J D O -
Page 101 of 649
4-6
Instrument cluster
Engine Coolant Temperature Gauge
„3.5-Inch
OBC3040007/OBC3040008
„10.25-Inch
This gauge indicates the temperature
of the engine coolant when the ignition
switch is in the ON position.
NOTICE
If the gauge pointer moves beyond the
normal range area toward the “130”
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” in chapter 8.
WARNING
Never remove the radiator cap or
reservoir cap when the engine is hot.
The engine coolant is under pressure
and could cause severe burns. Wait
until the engine is cool before adding
coolant to the reservoir.
Fuel Gauge
„3.5-Inch
OBC3040009/OCN7040011L
„10.25-Inch
This gauge indicates the approximate
amount of fuel remaining in the fuel
tank.
i Information

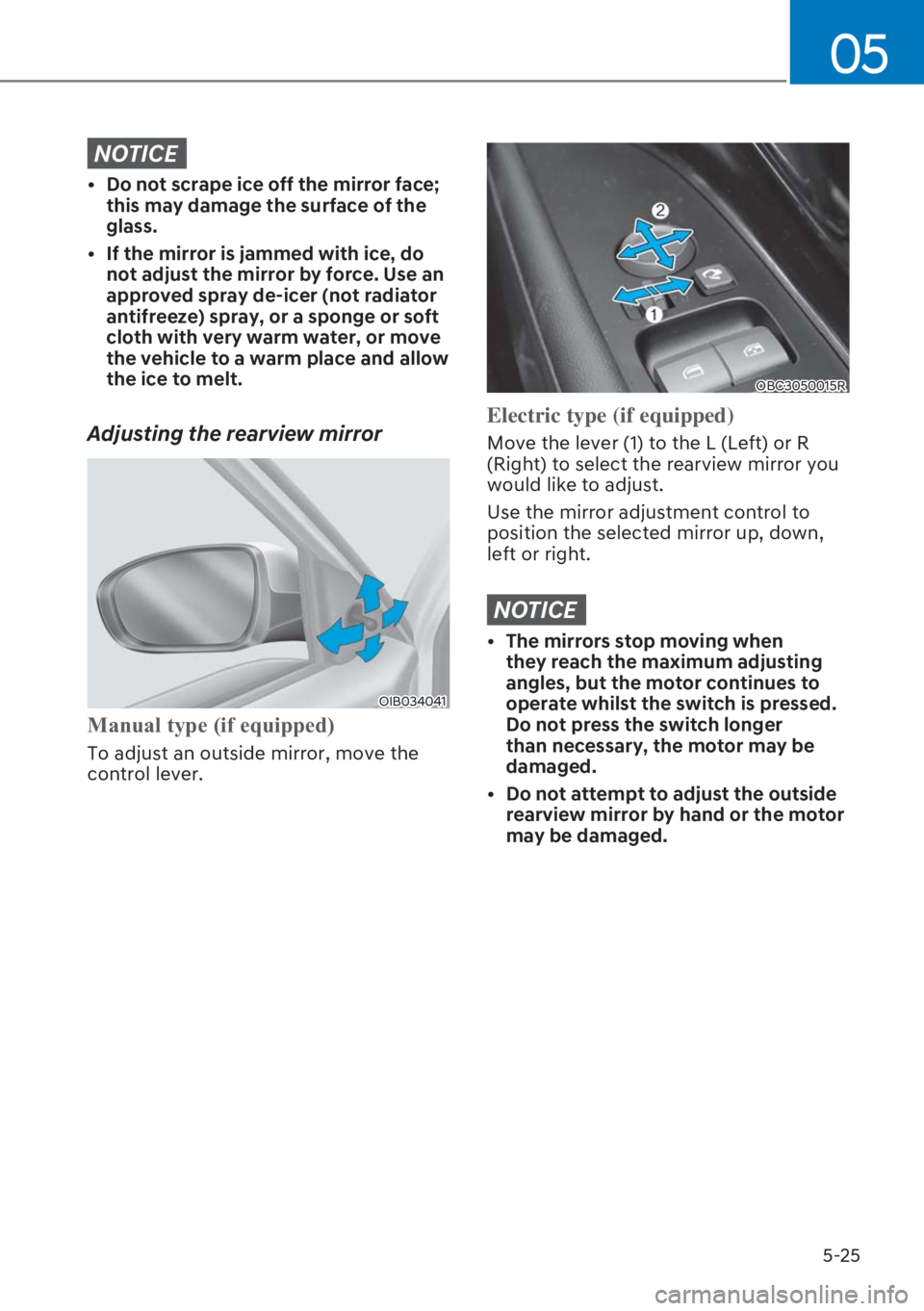

Page 166 of 649
5-25
05
NOTICE
[ ' R Q R W V F U D S H L F H R I I W K H P L U U R U I D F H
this may damage the surface of the
glass.
[ , I W K H P L U U R U L V M D P P H G Z L W K L F H G R
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and allow
the ice to melt.
Adjusting the rearview mirror
OIB034041
0 D Q X D O W \ S H L I H T X L S S H G
To adjust an outside mirror, move the
control lever.
OBC3050015R
Electric type (if equipped)
Move the lever (1) to the L (Left) or R
(Right) to select the rearview mirror you
would like to adjust.
Use the mirror adjustment control to
position the selected mirror up, down,
left or right.
NOTICE
[ 7 K H P L U U R U V V W R S P R Y L Q J Z K H Q
they reach the maximum adjusting
angles, but the motor continues to
operate whilst the switch is pressed.
Do not press the switch longer
than necessary, the motor may be
damaged.
[ ' R Q R W D W W H P S W W R D G M X V W W K H R X W V L G H
rearview mirror by hand or the motor
may be damaged.
Page 524 of 649
8-9
08
If your temperature gauge indicates
overheating, you experience a loss of
power, or hear loud pinging or knocking,
the engine may be overheating. If this
happens, you should:
1. Pull off the road and stop as soon as it
is safe to do so.
2. Place the shift lever in P (Park, for
automatic transmission/dual clutch
transmission vehicle) or neutral (for
manual transmission/dual clutch
transmission vehicle) and set the
parking brake. If the air conditioning is
ON, turn it OFF.
3. If engine coolant is running out under
the vehicle or steam is coming out
from the bonnet, stop the engine. Do
not open the bonnet until the coolant
has stopped running or the steaming
has stopped. If there is no visible
loss of engine coolant and no steam,
leave the engine running and check
to be sure the engine cooling fan is
operating. If the fan is not running,
turn the engine off.
WARNING
Whilst the engine is
running, keep hands,
clothing and tools away
from the moving parts such
as the cooling fan and drive
belt to prevent serious
injury.4. Check for coolant leaking from the
radiator, hoses or under the vehicle. (If
the air conditioning had been in use, it
is normal for cold water to be draining
from it when you stop.)
5. If engine coolant is leaking out, stop
the engine immediately and we
recommend that you call a HYUNDAI
authorised repairer for assistance.
WARNING
NEVER remove the radiator
cap or the drain plug whilst
the engine and radiator are
hot. Hot coolant and steam
may blow out under
pressure, causing serious injury.
Turn the engine off and wait until the
engine cools down. Use extreme care
when removing the radiator cap. Wrap
a thick towel around it, and turn it
counterclockwise slowly to the first
stop. Step back whilst the pressure
is released from the cooling system.
When you are sure all the pressure
has been released, press down on the
cap, using a thick towel, and continue
turning counterclockwise to remove it.
IF THE ENGINE OVERHEATS
Page 566 of 649
9-7
09
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience
or the proper tools and equipment
to do the work, we recommend that
the system be serviced by a HYUNDAI
authorised repairer. ALWAYS follow
these precautions for performing
maintenance work:
[ 3 D U N \ R X U Y H K L F O H R Q O H Y H O J U R X Q G
move the shift lever into the P (Park,
for automatic transmission/dual
clutch transmission vehicle) position,
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.
[ % O R F N W K H W \ U H V I U R Q W D Q G E D F N W R
prevent the vehicle from moving.
Remove loose clothing or jewellery
that can become entangled in
moving parts.
[ , I \ R X P X V W U X Q W K H H Q J L Q H G X U L Q J
maintenance, do so out doors or in an
area with plenty of ventilation.
[ . H H S I O D P H V V S D U N V R U V P R N L Q J
materials away from the battery and
fuel-related parts.The following lists are vehicle checks
and inspections that should be
performed by the owner or a HYUNDAI
authorised repairer at the frequencies
indicated to help ensure safe,
dependable operation of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer
as soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labour, parts and lubricants used.
Owner maintenance schedule
When you stop for fuel:
[ Check the coolant level in the engine
coolant reservoir.
[ Check the windscreen washer fluid
level.
[ Check for low or under-inflated tyres.
[ Check the radiator and condenser.
Check if the front of the radiator and
condenser are clean and not blocked
with leaves, dirt or insects, etc.
If any of the above parts are extremely
dirty or you are not sure of their
condition, we recommend that
you contact a HYUNDAI authorised
repairer.
WARNING
% H F D U H I X O Z K H Q F K H F N L Q J \ R X U H Q J L Q H
coolant level when the engine is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
OWNER MAINTENANCE
