5-84
Convenient features
Ashtray (if equipped)
OGB044045
To use the ashtray, open the cover.
To clean the ashtray:
The plastic receptacle should be
removed by lifting the plastic ashtray
receptacle upward after turning the
cover counterclockwise and pulling it
out.
WARNING
Ashtray use
3XWWLQJOLWFLJDUHWWHVRUPDWFKHVLQ
an ashtray with other combustible
materials may cause a fire.
Cup holder
OIB044026
Cups or small beverages cups may be
placed in the cup holders.
WARNING

[ $YRLGDEUXSWVWDUWLQJDQGEUDNLQJ
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an
accident.

[ 'RQRWSODFHXQFRYHUHGRUXQVHFXUHG
cups, bottles, cans, etc., in the cup
holder containing hot liquid whilst
the vehicle is in motion. Injuries may
result in the event of sudden stop or
collision.

[ 2QO\XVHVRIWFXSVLQWKHFXSKROGHUV
Hard objects can injure you in an
accident.
WARNING
.HHSFDQVRUERWWOHVRXWRIGLUHFWVXQ
light and do not put them in a hot
vehicle. It may explode.
INTERIOR FEATURES

5-85
05

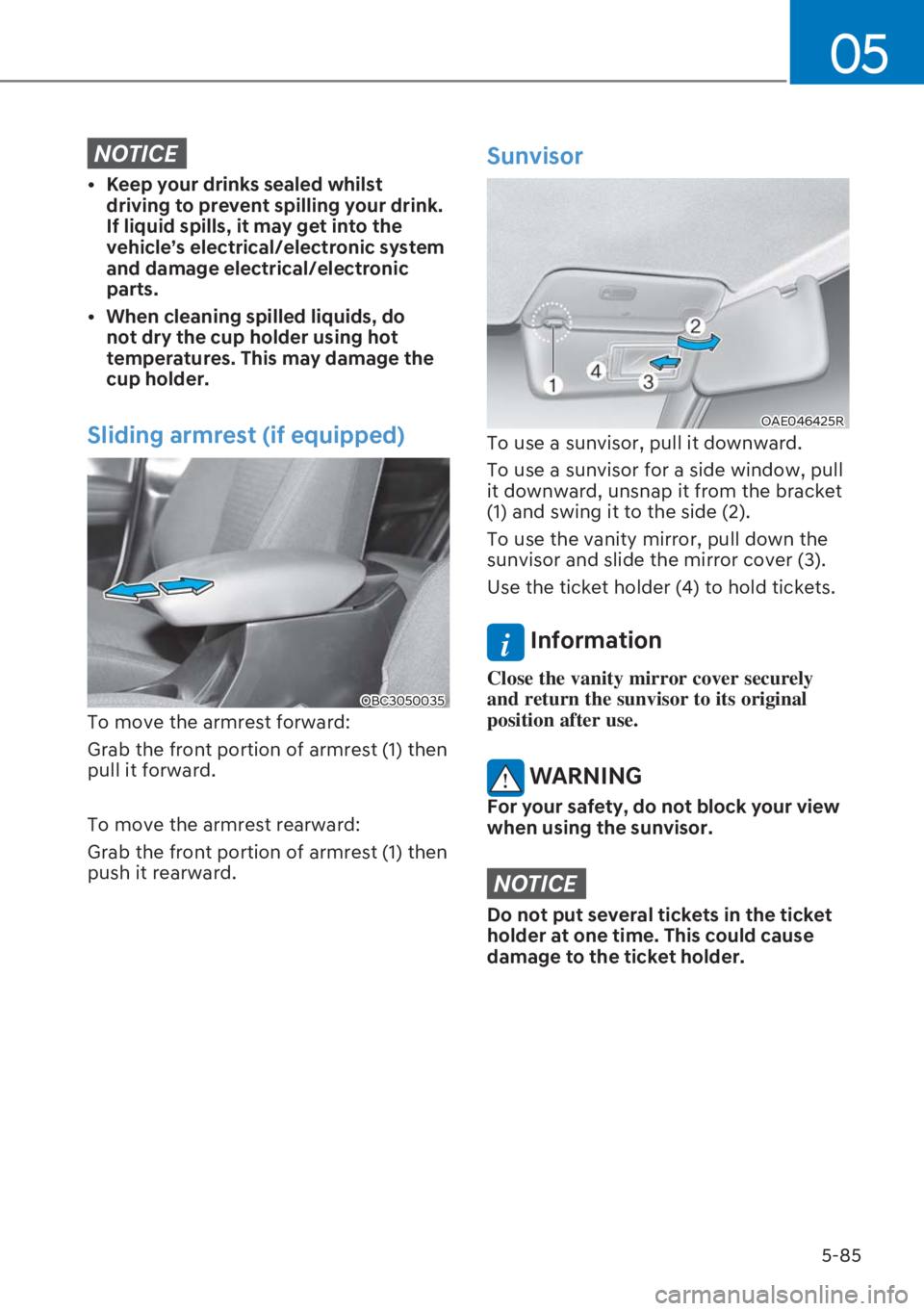

NOTICE

[ .HHS\RXUGULQNVVHDOHGZKLOVW
driving to prevent spilling your drink.
If liquid spills, it may get into the
vehicle’s electrical/electronic system
and damage electrical/electronic
parts.

[ :KHQFOHDQLQJVSLOOHGOLTXLGVGR
not dry the cup holder using hot
temperatures. This may damage the
cup holder.
Sliding armrest (if equipped)
OBC3050035
To move the armrest forward:
Grab the front portion of armrest (1) then
pull it forward.
To move the armrest rearward:
Grab the front portion of armrest (1) then
push it rearward.
Sunvisor
OAE046425R
To use a sunvisor, pull it downward.
To use a sunvisor for a side window, pull
it downward, unsnap it from the bracket
(1) and swing it to the side (2).
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Use the ticket holder (4) to hold tickets.
i Information
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
)RU\RXUVDIHW\GRQRWEORFN\RXUYLHZ
when using the sunvisor.
NOTICE
Do not put several tickets in the ticket
holder at one time. This could cause
damage to the ticket holder.

5-86
Convenient features
3RZHURXWOHWLIHTXLSSHG
OBC3N050026
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems.
The devices should draw less than 180
W(Watts) with the engine running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin,
etc.) into a power outlet or touch the
power outlet with a wet hand.
NOTICE
7RSUHYHQWGDPDJHWRWKH3RZHU
Outlets :

[ 8VHWKHSRZHURXWOHWRQO\ZKHQWKH
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[ 2QO\XVH9HOHFWULFDFFHVVRULHV
which are less than 180 W(Watts) in
electric capacity.

[ $GMXVWWKHDLUFRQGLWLRQHURUKHDWHU
to the lowest operating level when
using the power outlet.

[ &ORVHWKHFRYHUZKHQQRWLQXVH

[ 6RPHHOHFWURQLFGHYLFHVFDQFDXVH
electronic interference when plugged
into a vehicle’s power outlet. These
devices may cause excessive audio
static and malfunctions in other
electronic systems or devices used in
your vehicle.

[ 3XVKWKHSOXJLQDVIDUDVLWZLOOJR,I
good contact is not made, the plug
may overheat and the fuse may open.

[ 3OXJLQEDWWHU\HTXLSSHGHOHFWULFDO
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.

5-87
05
USB charger (if equipped)
OBC3N051027AU
The USB charger is located inside the
FRQVROHER[EHWZHHQWKHGULYHU
TVVHDW
DQGWKHIURQWSDVVHQJHU
TVVHDW,QVHUW
the USB charger into the USB port, and
re-charge a smart phone or a tablet PC.

[ $FKDUJLQJVWDWXVFKDUJLQJFRPSOHWLRQ
message is displayed on a screen of a
smart phone or a tablet PC.

[ $VPDUWSKRQHRUDWDEOHW3&PD\
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[ $VPDUWSKRQHRUDWDEOHW3&ZKLFK
adopts a different re-charging
method, may not be properly
re-charged. In this case, use an
exclusive charger of your device.

[ 7KHFKDUJLQJWHUPLQDOLVRQO\WR
re-charge a device. Do not use the
charging terminal either to turn ON an
audio or to play media on the AVN.
Wireless mobile phone charging
system (if equipped)
OBC3N050028
[A] : Charging pad
There is a wireless mobile phone charger
inside the front console.
The system is available when all doors
are closed, and when the ignition switch
is in the ON position.

5-88
Convenient features
To charge a mobile phone
The wireless mobile phone charging
system charges only the Qi-enabled
mobile phones (
). Read the label on
the mobile phone accessory cover or
YLVLW\RXUPRELOHSKRQHPDQXIDFWXUHU
TV
website to check whether your mobile
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled mobile
phone on the wireless charging unit.
1. Remove other items, including the
smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place
the mobile phone on the centre of
charging pad.
2. The indicator light is orange when
the mobile phone is charging. The
indicator light turns green when phone
charging is complete.
3. You can turn ON or OFF the wireless
charging function in the User Settings
mode on the instrument cluster. For
further information, refer to the “LCD
Display Modes” in this chapter 4.
If your mobile phone is not charging:
- Slightly change the position of the
mobile phone on the charging pad.
- Make sure the indicator light is orange.
The indicator light will blink orange for
10 seconds if there is a malfunction in
the wireless charging system.
In this case, temporarily stop the
charging process, and re-attempt to
wirelessly charge your mobile phone.
The system warns you with a message
on the LCD display if the mobile phone
is still on the wireless charging unit after
the engine is turned OFF and the front
door is opened.
)RUVRPHPDQXIDFWXUHUV
TPRELOHSKRQHV
the system may not warn you even
though the mobile phone is left on the
wireless charging unit. This is due to the
particular characteristic of the mobile
phone and not a malfunction of the
wireless charging.

5-89
05
NOTICE

[ 7KHZLUHOHVVPRELOHSKRQHFKDUJLQJ
system may not support certain
mobile phones, which are not verified
for the Qi specification (
).

[ :KHQSODFLQJ\RXUPRELOHSKRQHRQ
the charging mat, position the phone
in the middle of the mat for optimal
charging performance. If your mobile
phone is off to the side, the charging
rate may be less and in some cases
the mobile phone may experience
higher heat conduction.

[ ,QVRPHFDVHVWKHZLUHOHVVFKDUJLQJ
may stop temporarily when the
5HPRWH.H\RU6PDUW.H\LVXVHG
either when starting the vehicle or
locking/unlocking the doors, etc.

[ :KHQFKDUJLQJFHUWDLQPRELOH
phones, the charging indicator may
not change to green when the mobile
phone is fully charged.

[ 7KHZLUHOHVVFKDUJLQJSURFHVVPD\
temporarily stop, when temperature
abnormally increases inside the
wireless mobile phone charging
system. The wireless charging
process restarts, when temperature
falls to a certain level.

[ 7KHZLUHOHVVFKDUJLQJSURFHVVPD\
temporarily stop when there is
any metallic item, such as a coin,
between the wireless mobile phone
charging system and a mobile phone.
[ :KHQFKDUJLQJVRPHPRELOHSKRQHV
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.

[ ,IWKHPRELOHSKRQHKDVDWKLFNFRYHU
the wireless charging may not be
possible.

[ ,IWKHPRELOHSKRQHLVQRWFRPSOHWHO\
contacting the charging pad, wireless
charging may not operate properly.

[ 6RPHPDJQHWLFLWHPVFUHGLWFDUGV
phone cards, passbook and tickets)
may be damaged whilst using the
wireless charging process.

[ :KHQDQ\PRELOHSKRQHZLWKRXW
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the mobile phone in any way.
· Some mobile phones may not be
able to put on the charging pad due
to their size. In this case, wireless
charging may be limited.
i Information
,IWKHLJQLWLRQVZLWFKLVLQWKH/2&.2))
position, the charging also stops.

5-90
Convenient features
Clock
WARNING
Do not adjust the clock whilst driving.
You may lose your steering control
and cause severe personal injury or
accidents.
)RUPRUHGHWDLOVSOHDVHUHIHUWRWKH
manual that was supplied with your
vehicle.
Coat hook
OPDE046050
These hooks are not designed to hold
large or heavy items.
WARNING
OGSB047265L
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.

5-91
05

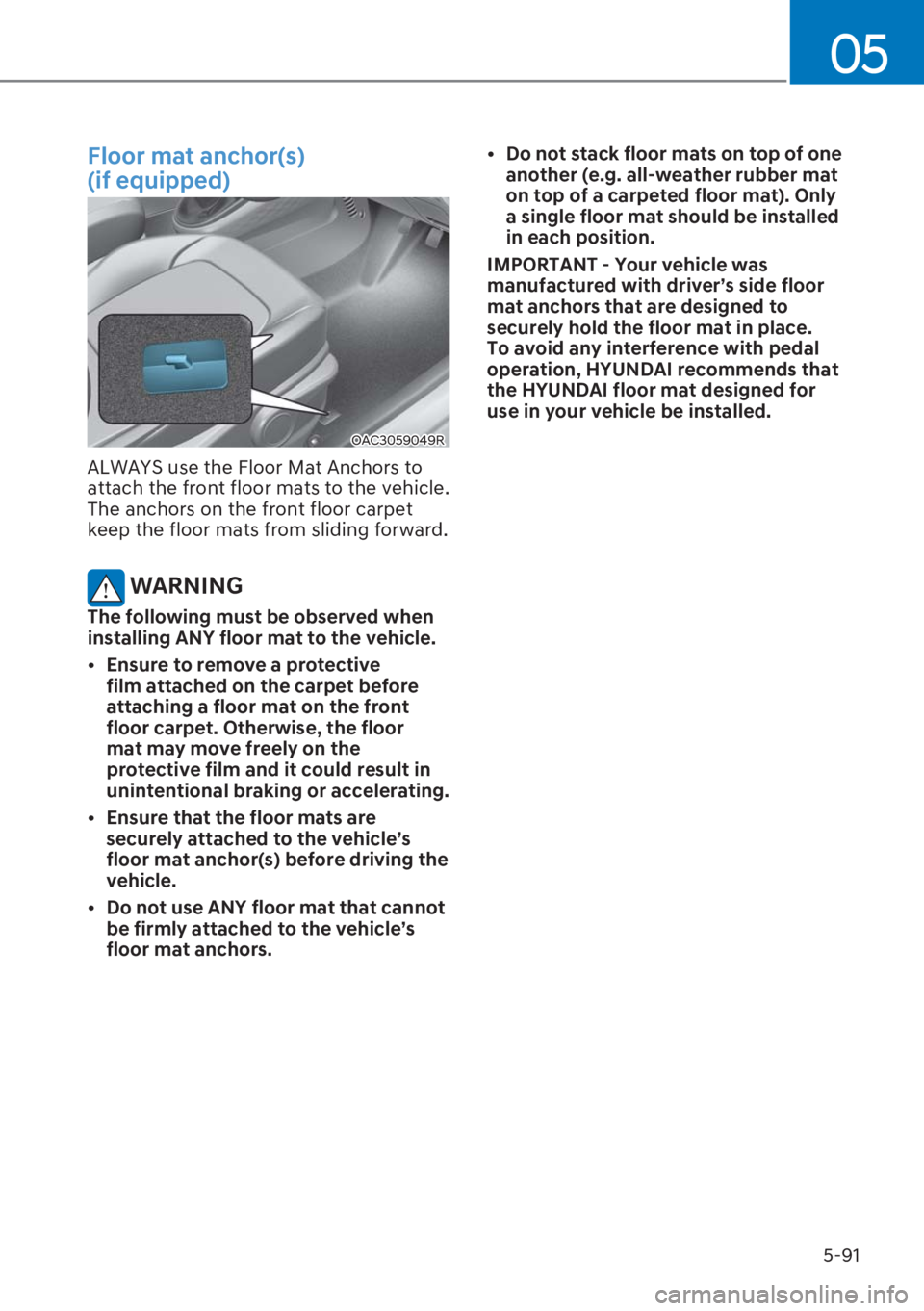

)ORRUPDWDQFKRUV
(if equipped)
OAC3059049R
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
WARNING
The following must be observed when
installing ANY floor mat to the vehicle.

[ (QVXUHWRUHPRYHDSURWHFWLYH
film attached on the carpet before
attaching a floor mat on the front
floor carpet. Otherwise, the floor
mat may move freely on the
protective film and it could result in
unintentional braking or accelerating.

[ (QVXUHWKDWWKHIORRUPDWVDUH
securely attached to the vehicle’s
floor mat anchor(s) before driving the
vehicle.

[ 'RQRWXVH$1<IORRUPDWWKDWFDQQRW
be firmly attached to the vehicle’s
floor mat anchors.
[ 'RQRWVWDFNIORRUPDWVRQWRSRIRQH
another (e.g. all-weather rubber mat
on top of a carpeted floor mat). Only
a single floor mat should be installed
in each position.
,03257$17<RXUYHKLFOHZDV
manufactured with driver’s side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, HYUNDAI recommends that
the HYUNDAI floor mat designed for
use in your vehicle be installed.
