2023 HYUNDAI I20 Owners Manual

6-32
Driving your vehicle

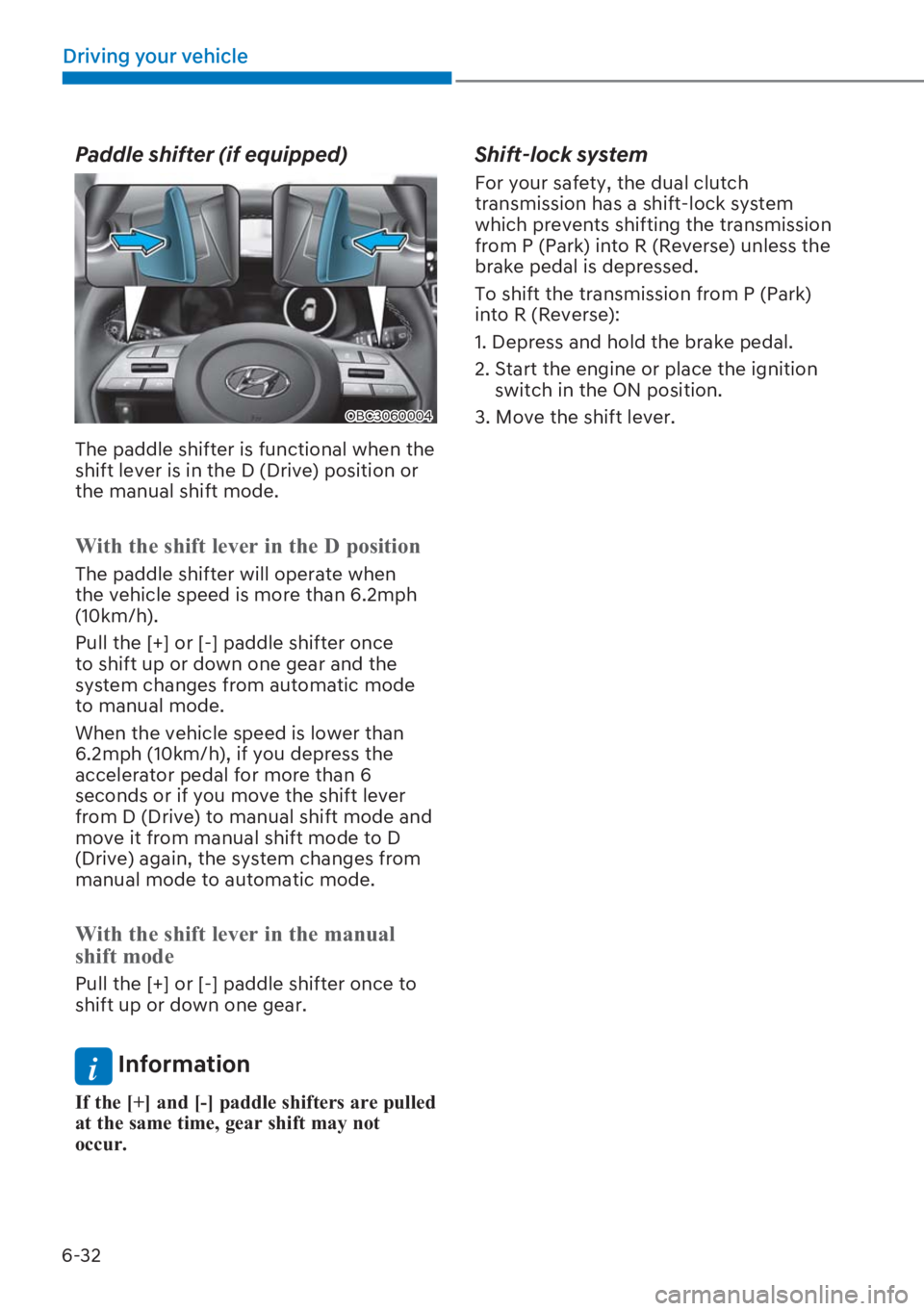

Paddle shifter (if equipped)
OBC3060004
The paddle shifter is functional when the
shift lever is in the D (Drive) position or
the manual shift mode.
:LWKWKHVKLIWOHYHULQWKH'SRVLWLRQ
The paddle shifter will operate when
the vehicle speed is more than 6.2mph
(10km/h).
Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
system changes from automatic mode
to manual mode.
When the vehicle speed is lower than
6.2mph (10km/h), if you depress the
accelerator pedal for more than 6
seconds or if you move the shift lever
from D (Drive) to manual shift mode and
move it from manual shift mode to D
(Drive) again, the system changes from
manual mode to automatic mode.
:LWKWKHVKLIWOHYHULQWKHPDQXDO
VKLIWPRGH
Pull the [+] or [-] paddle shifter once to
shift up or down one gear.
i Information
,IWKH>@DQG>@SDGGOHVKLIWHUVDUHSXOOHG
DWWKHVDPHWLPHJHDUVKLIWPD\QRW
RFFXU
Shift-lock system
For your safety, the dual clutch
transmission has a shift-lock system
which prevents shifting the transmission
from P (Park) into R (Reverse) unless the
brake pedal is depressed.
To shift the transmission from P (Park)
into R (Reverse):
1. Depress and hold the brake pedal.
2. Start the engine or place the ignition
switch in the ON position.
3. Move the shift lever.

6-33
06
Shift-lock release
If the shift lever cannot be moved from
the P (Park) position into R (Reverse)
position with the brake pedal depressed,
continue depressing the brake, and then
do the following:
OBC3060003R
1. Place the ignition switch in the LOCK/
OFF position.
2. Apply the parking brake.
3. Press the shift-lock release button.
4. Press and hold the lock release button
on the shift lever.
5. Move the shift lever.
If you need to use the shift-lock release,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer immediately.
Ignition key interlock system
(if equipped)
The ignition key cannot be removed
unless the shift lever is in the P (Park)
position.
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position, apply the parking brake, and
place the ignition switch in the LOCK/
OFF position. Take the Key with you
when exiting the vehicle.
WARNING
When you stay in the vehicle with
the engine running, be careful not to
depress the accelerator pedal for a long
period of time. The engine or exhaust
system may overheat and start a fire.
The exhaust gas and the exhaust
system are very hot. Keep away from
the exhaust system components.
Do not stop or park over flammable
materials, such as dry grass, paper or
leaves. They may ignite and cause a
fire.

6-34
Driving your vehicle
Good driving practices

[Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.

[Never move the shift lever into P
(Park) when the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[Do not move the shift lever to N
(Neutral) when driving. Doing so may
result in an accident because of a loss
of engine braking and the transmission
could be damaged.

[Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If you
drive in the opposite direction of the
selected gear, the engine will turn
off and a serious accident might be
occurred due to the degraded brake
performance.

[Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

[When driving in manual shift mode,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine rpms are
outside of the allowable range.

[Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.

[Exercise extreme caution when driving
on a slippery surface. Be especially
careful when braking, accelerating or
shifting gears. On a slippery surface,
an abrupt change in vehicle speed can
cause the drive wheels to lose traction
and may cause loss of vehicle control
resulting in an accident.
[Optimum vehicle performance
and fuel economy is obtained by
smoothly depressing and releasing the
accelerator.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[Avoid high speeds when cornering or
turning.

[Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.

[HYUNDAI recommends you follow all
posted speed limits.
i Information- Kickdown
Mechanism (if equipped)
8VHWKHNLFNGRZQPHFKDQLVPIRU
PD[LPXPDFFHOHUDWLRQ'HSUHVVWKH
DFFHOHUDWRUSHGDOEH\RQGWKHSUHVVXUH
SRLQW7KHDXWRPDWLFWUDQVPLVVLRQZLOO
VKLIWWRDORZHUJHDUGHSHQGLQJRQWKH
HQJLQHVSHHG

6-35
06
Power brakes
Your vehicle has power-assisted brakes
that adjust automatically through normal
usage.
If the engine is not running or is turned
off whilst driving, the power assist for
the brakes will not work. You can still
stop your vehicle by applying greater
force to the brake pedal than typical.
The stopping distance, however, will be
longer than with power brakes.
When the engine is not running, the
reserve brake power is partially depleted
each time the brake pedal is applied.
Do not pump the brake pedal when the
power assist has been interrupted.
Pump the brake pedal only when
necessary to maintain steering control
on slippery surfaces.
WARNING
Take the following precautions:

[Do not drive with your foot resting
on the brake pedal. This will create
abnormal high brake temperatures,
excessive brake lining and pad wear,
and increased stopping distances.

[When descending down a long or
steep hill, downshift to a lower
gear in order to control your
speed without using the brake
pedal excessively. Applying the
brakes continuously will cause
the brakes to overheat and could
result in a temporary loss of braking
performance.

[Wet brakes may impair the vehicle’s
ability to safely slow down; the
vehicle may also pull to one side
when the brakes are applied.
Applying the brakes lightly will
indicate whether they have been
affected in this way. Always test your
brakes in this fashion after driving
through deep water. To dry the
brakes, lightly tap the brake pedal to
heat up the brakes whilst maintaining
a safe forward speed until brake
performance returns to normal.
Avoid driving at high speeds until the
brakes function correctly.
Disc brakes wear indicator
When your brake pads are worn and new
pads are required, you will hear a high
pitched warning sound from your front
or rear brakes. You may hear this sound
come and go or it may occur whenever
you depress the brake pedal.
Note that some driving conditions or
climates may cause a brake squeal
when you first apply (or lightly apply)
the brakes. This is normal and does not
indicate a problem with your brakes.
NOTICE
To avoid costly brake repairs, do not
continue to drive with worn brake pads.
i Information
$OZD\VUHSODFHEUDNHSDGVDVFRPSOHWH
IURQWRUUHDUD[OHVHWV
BRAKING SYSTEM

6-36
Driving your vehicle
Rear drum brakes
Your rear drum brakes do not have wear
indicators. Therefore, have the rear
brake linings inspected if you hear a rear
brake rubbing noise. Also have your rear
brakes inspected each time you change
or rotate your tyres and when you have
the front brakes replaced.
Parking brake
OBC3060005
Always set the parking brake before
leaving the vehicle, to apply:
Firmly depress the brake pedal.
Pull up the parking brake lever as far as
possible.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH, do not operate the parking
brake whilst the vehicle is moving
except in an emergency situation. It
could damage the brake system and
lead to an accident.
OBC3060006
To release:
Firmly depress the brake pedal.
Slightly pull up the parking brake lever.
Whilst pressing the release button (1),
lower the parking brake (2).
If the parking brake does not release
or does not release all the way, we
recommend that the system be checked
by a HYUNDAI authorised repairer.
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal.
Move the shift is in the 1st gear when
the vehicle is parked on a uphill and in
R (Reverse) on an downhill (for manual
transmission vehicle), or P (Park, for
automatic transmission/dual clutch
transmission vehicle) position, then
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.

6-37
06
Parking brake warning light
Check the Parking Brake
Warning Light by placing the
ignition switch to the ON
position (do not start the
engine).
This light will illuminate when the
parking brake is applied with the ignition
switch in the START or ON position.
Before driving, be sure the parking brake
is released and the Brake Warning Light
is OFF.
If the Parking Brake Warning Light
remains on after the parking brake is
released whilst the engine is running,
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible, cease driving the
vehicle immediately. If that is not
possible, use extreme caution whilst
operating the vehicle and only continue
to drive the vehicle until you can reach a
safe location.
Anti-lock Brake System (ABS)
WARNING
An Anti-Lock Braking System (ABS) or
an Electronic Stability Control (ESC)
system will not prevent accidents
due to improper or dangerous driving
manoeuvres. Even though vehicle
control is improved during emergency
braking, always maintain a safe
distance between you and objects
ahead of you. Vehicle speeds should
always be reduced during extreme
road conditions. The braking distance
for vehicles equipped with ABS or ESC
may be longer than for those without
these systems in the following road
conditions.
Drive your vehicle at reduced speeds
during the following conditions:

[Rough, gravel or snow-covered
roads.

[On roads where the road surface is
pitted or has different surface height.

[Tyre chains are installed on your
vehicle.
The safety features of an ABS or ESC
equipped vehicle should not be tested
by high speed driving or cornering. This
could endanger the safety of yourself
or others.
ABS is an electronic braking system that
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
time.

6-38
Driving your vehicle
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes. Depress your brake pedal as
hard as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or
distance it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle
to veer into oncoming traffic or off the
road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS warning light (
) will stay
on for several seconds after the ignition
switch is in the ON position. During
that time, the ABS will go through self-
diagnosis and the light will go off if
everything is normal. If the light stays
on, you may have a problem with your
ABS. We recommend that you contact a
HYUNDAI authorised repairer as soon as
possible.
WARNING
If the ABS warning light () is on and
stays on, you may have a problem with
the ABS. Your power brakes will work
normally. To reduce the risk of serious
injury or death, we recommend that
you contact your HYUNDAI dealer as
soon as possible.
NOTICE
When you drive on a road having poor
traction, such as an icy road, and apply
your brakes continuously, the ABS will
be active continuously and the ABS
warning light (
) may illuminate. Pull
your vehicle over to a safe place and
turn the engine off.
Restart the engine. If the ABS warning
light is off, then your ABS system is
normal.
Otherwise, you may have a problem
with your ABS system. We recommend
that you contact a HYUNDAI authorised
repairer as soon as possible.
i Information
:KHQ\RXMXPSVWDUW\RXUYHKLFOH
EHFDXVHRIDGUDLQHGEDWWHU\WKH$%6
ZDUQLQJOLJKW
PD\WXUQRQDWWKH
VDPHWLPH7KLVKDSSHQVEHFDXVHRIWKH
ORZEDWWHU\YROWDJH,WGRHVQRWPHDQ\RXU
$%6LVPDOIXQFWLRQLQJ+DYHWKHEDWWHU\
UHFKDUJHGEHIRUHGULYLQJWKHYHKLFOH

6-39
06
Electronic Stability Control
(ESC)
OBC3N061006AU
The Electronic Stability Control (ESC)
system helps to stabilize the vehicle
during cornering manoeuvres.
ESC checks where you are steering and
where the vehicle is actually going.
ESC applies braking pressure to any one
of the vehicle’s brakes and intervenes in
the engine management system to assist
the driver with keeping the vehicle on
the intended path. It is not a substitute
for safe driving practices. Always adjust
your speed and driving to the road
conditions.
WARNING
Never drive too fast for the road
conditions or too quickly when
cornering. The ESC system will not
prevent accidents.
Excessive speed in turns, abrupt
manoeuvres, and hydroplaning on wet
surfaces can result in severe accidents.
ESC operation
(6&21FRQGLWLRQ
When the ignition switch is in the
ON position, the ESC and the ESC
OFF indicator lights illuminate for
approximately three seconds. After both
lights go off, the ESC is enabled.
:KHQRSHUDWLQJ
When the ESC is in
operation, the ESC indicator
light blinks:

[ :KHQ\RXDSSO\\RXUEUDNHVXQGHU
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in
the brake pedal. This is normal and it
means your ESC is active.

[ :KHQWKH(6&DFWLYDWHVWKHHQJLQH
may not respond to the accelerator as
it does under routine conditions.

[ ,IWKH&UXLVH&RQWUROZDVLQXVHZKHQ
the ESC activates, the Cruise Control
automatically disengages. The Cruise
Control can be reengaged when the
road conditions allow. See “Cruise
Control System” later in this chapter
7 (if equipped).

[ :KHQPRYLQJRXWRIWKHPXGRU
driving on a slippery road, the engine
RPM (revolutions per minute) may
not increase even if you press the
accelerator pedal deeply. This is to
maintain the stability and traction of
the vehicle and does not indicate a
problem.
