2023 HYUNDAI I20 Owners Manual

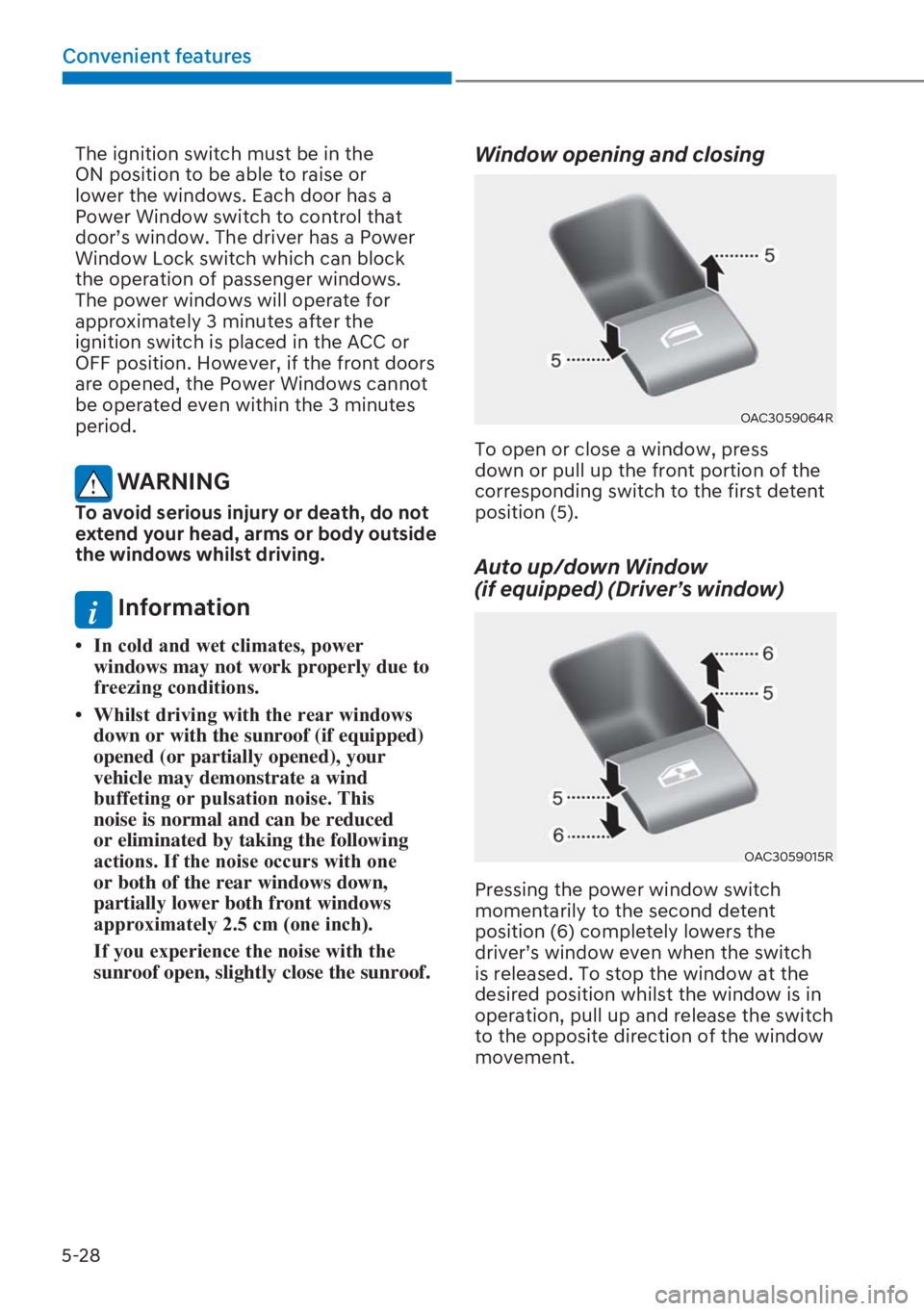

5-28
Convenient features
The ignition switch must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
GRRU
TVZLQGRZ7KHGULYHUKDVD3RZHU
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 3 minutes after the
ignition switch is placed in the ACC or
OFF position. However, if the front doors
are opened, the Power Windows cannot
be operated even within the 3 minutes
period.
WARNING
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows whilst driving.
i Information

5-29
05
To reset the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch to the ON
position.
2. Close the window and continue pulling
up on the power window switch for at
least one second.
If the power windows do not
operate properly after resetting, it
is recommended that the system be
checked by a HYUNDAI authorised
repairer.
WARNING
The automatic reverse feature doesn’t
activate whilst resetting power window
system. Make sure body parts or other
objects are safely out of the way before
closing the windows to avoid injuries or
vehicle damage.
Automatic reverse (if equipped)
OLF044032
If a window senses any obstacle whilst it
is closing automatically, it will stop and
lower approximately 30 cm (12 inches) to
allow the object to be cleared.
If the window detects the resistance
whilst the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 2.5 cm (1 inch).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
i Information
7KHDXWRPDWLFUHYHUVHIHDWXUHLVRQO\
DFWLYHZKHQWKH

5-30
Convenient features
NOTICE
Do not install any accessories on the
windows. The automatic reverse feature
may not operate.
Power window lock switch
OBC3050019R
The driver can disable the power window
VZLWFKHVRQWKHUHDUSDVVHQJHUV
TGRRUV
by pressing the power window lock
switch.
When the power window lock switch is
pressed:
‡7KHGULYHU
TVPDVWHUFRQWUROFDQ
operate all the power windows.
‡7KHIURQWSDVVHQJHU
TVFRQWUROFDQ
RSHUDWHWKHIURQWSDVVHQJHU
TVSRZHU
window.
‡7KHUHDUSDVVHQJHU
TVFRQWUROFDQQRW
RSHUDWHWKHUHDUSDVVHQJHUV
TSRZHU
window.
NOTICE

[ 7RSUHYHQWSRVVLEOHGDPDJHWRWKH
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.

[ 1HYHUWU\WRRSHUDWHWKHPDLQ
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
WARNING

[NEVER leave the keys in your vehicle
with unsupervised children, when the
engine is running.

[NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselves in
the windows, or otherwise injure
themselves or others.

[Always double check to make
sure arms, hands, head and other
obstructions are safely out of the way
before closing a window.

[Do not allow children to play with the
SRZHUZLQGRZV.HHSWKHGULYHU
TV
door power window lock switch in
WKH/2&.SRVLWLRQSUHVVHG6HULRXV
injury can result from unintentional
window operation by the child.

[Do not extend your head, arms or
body outside the windows whilst
driving.

5-31
05
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
OBC3050020
The sunroof can only be operated when
the ignition switch is in the ON position.
The sunroof can be operated for
approximately 3 minutes after the
Engine Start/Stop button is in the ACC or
OFF position. However, if the front door
is open, the sunroof cannot be operated
even within the 3 minutes period.
WARNING

[Never adjust the sunroof or sunshade
whilst driving. This could result
in loss of control and an accident
that may cause injury, or property
damage.

[Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.

[Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when the
roof bars are installed on the vehicle or
when there is luggage on the roof.
Sunshade
OBC3050021
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
Open or close the sunshade by hand.
i Information
7KHVXQVKDGHZLOORSHQDXWRPDWLFDOO\
when the sunroof glass moves, but the
sunshade does not close automatically
when the sunroof glass is closed. Also,
only the sunshade cannot be closed when
the sunroof glass is opened.
NOTICE
Do not pull the sunshade up or down,
or apply excessive force as such action
may damage the sunshade or cause it
to malfunction.
681522)

5-32
Convenient features
Tilt open/close
OCN7050030

[Push the sunroof switch upward, the
sunroof glass will tilt open.

[Push the sunroof switch forward, the
sunroof glass will automatically close.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
i Information
7KHVXQURRIJODVVFDQQRWVOLGHRSHQDQG
WLOWRSHQDWWKHVDPHWLPH<RXFDQQRW
tilt open whilst the sunroof glass is slide
open, and you cannot slide open whilst the
sunroof is tilt open. Slide open or tilt open
with the sunroof glass when the sunroof
glass is completely closed.
Slide open/close
OCN7050031

[Push the sunroof switch rearward, the
sunshade and sunroof glass will slide
open.
Push the sunroof switch forward, only
the sunroof glass will close.

[Push the sunroof switch forward or
rearward to the first detent position,
the sunroof glass will operate
manually.
Push the sunroof switch forward
or rearward to the second detent
position, the sunroof glass will operate
automatically (auto slide feature).
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
i Information
7RUHGXFHZLQGQRLVHZKLOVWGULYLQJ
we recommend you to drive at the
recommended position before the
maximum slide open position.

5-33
05
Automatic reversal
ODH043039
If the sunroof senses any obstacle whilst
it is closing automatically, it will reverse
direction then stop at a certain position.
The auto reverse function may not work
if an object thin or soft is caught, or the
sunroof is closed manually.
WARNING

[Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.

[Never deliberately use your body
parts to test the automatic reversal
function. The sunroof glass may
reverse direction, but there is a risk
of injury.
NOTICE

[Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.

[Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.

[Regularly remove any accumulated
dust on the sunroof rail.

[Using the sunroof for a long time
can make noise caused by dust in
accumulated between the sunroof
and vehicle body. Open the sunroof
and remove dust regularly using a
clean cloth.

[Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered with
snow or ice, otherwise the motor
could be damaged. In cold and wet
climates, the sunroof may not work
properly.

[Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.

[Do not extend any luggage outside
the sunroof whilst driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
whilst driving. Injuries may occur if the
vehicle suddenly stops.

5-34
Convenient features

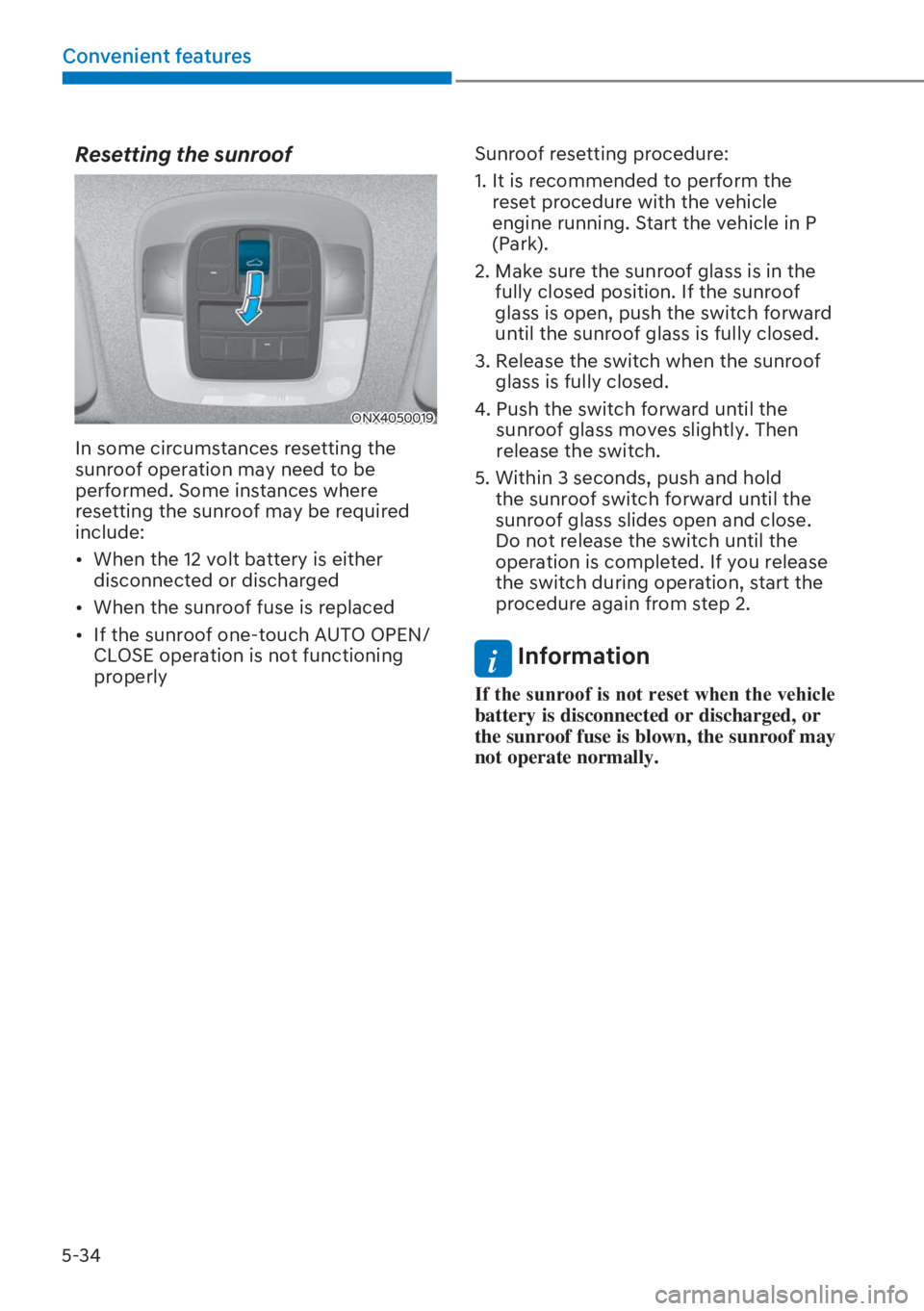

Resetting the sunroof
ONX4050019
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:

[When the 12 volt battery is either
disconnected or discharged

[When the sunroof fuse is replaced

[If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properlySunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunroof glass is in the
fully closed position. If the sunroof
glass is open, push the switch forward
until the sunroof glass is fully closed.
3. Release the switch when the sunroof
glass is fully closed.
4. Push the switch forward until the
sunroof glass moves slightly. Then
release the switch.
5. Within 3 seconds, push and hold
the sunroof switch forward until the
sunroof glass slides open and close.
Do not release the switch until the
operation is completed. If you release
the switch during operation, start the
procedure again from step 2.
i Information
,IWKHVXQURRILVQRWUHVHWZKHQWKHYHKLFOH
battery is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.

5-35
05

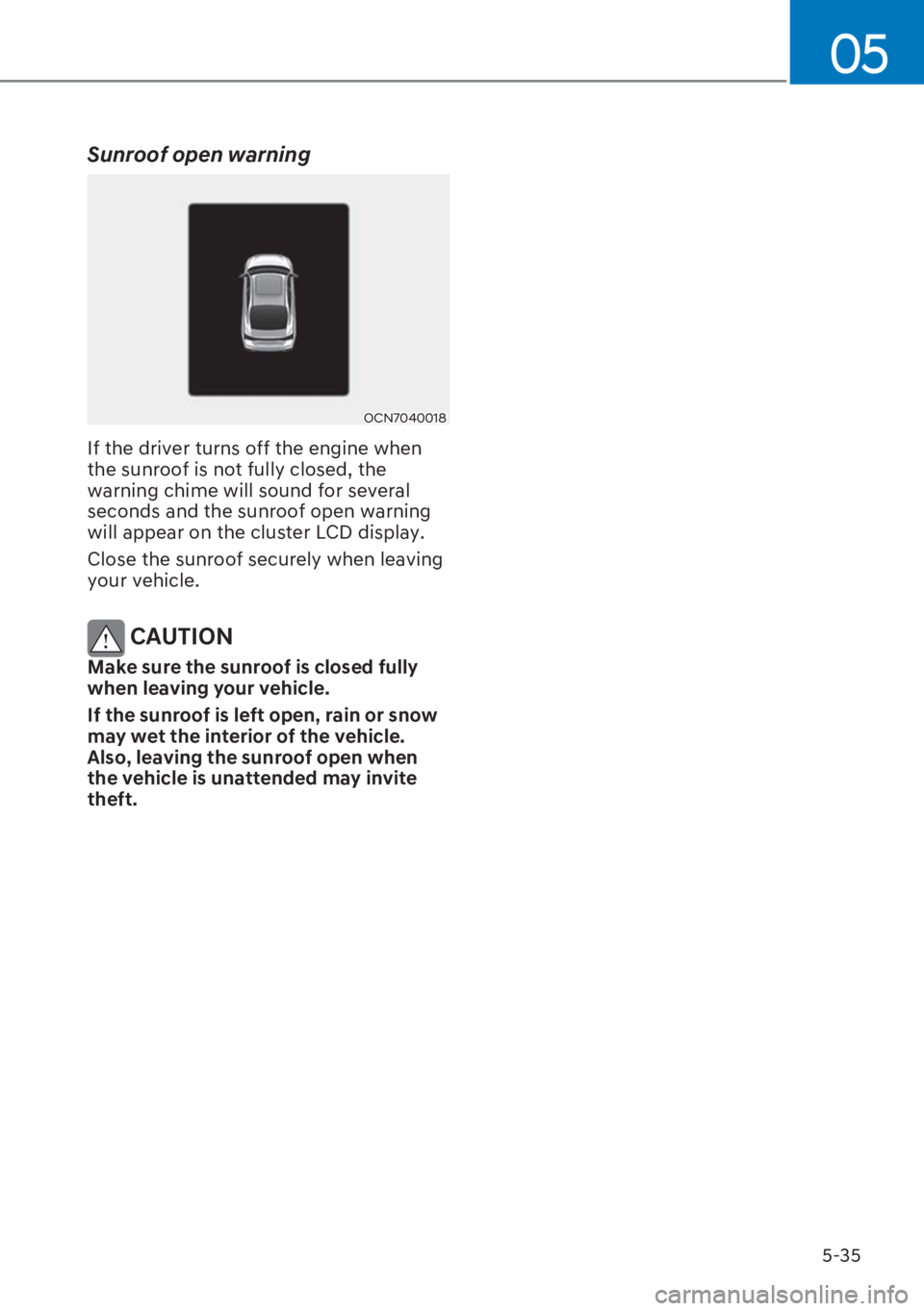

Sunroof open warning
OCN7040018
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle.
Also, leaving the sunroof open when
the vehicle is unattended may invite
theft.
