2023 HYUNDAI I20 Owners Manual

5-92
Convenient features

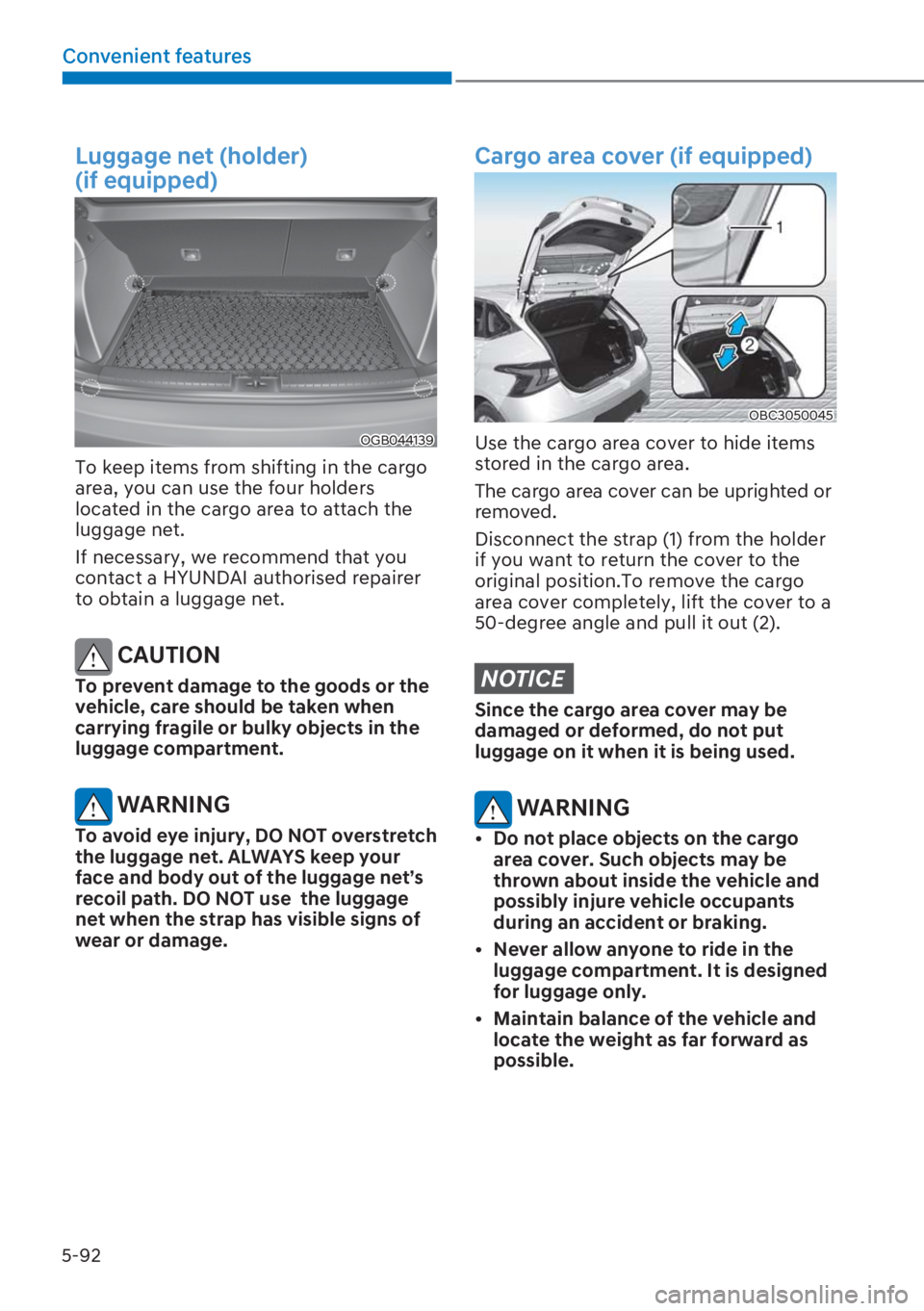

Luggage net (holder)
(if equipped)
OGB044139
To keep items from shifting in the cargo
area, you can use the four holders
located in the cargo area to attach the
luggage net.
If necessary, we recommend that you
contact a HYUNDAI authorised repairer
to obtain a luggage net.
CAUTION
To prevent damage to the goods or the
vehicle, care should be taken when
carrying fragile or bulky objects in the
luggage compartment.
WARNING
To avoid eye injury, DO NOT overstretch
the luggage net. ALWAYS keep your
face and body out of the luggage net’s
recoil path. DO NOT use the luggage
net when the strap has visible signs of
wear or damage.
Cargo area cover (if equipped)
OBC3050045
Use the cargo area cover to hide items
stored in the cargo area.
The cargo area cover can be uprighted or
removed.
Disconnect the strap (1) from the holder
if you want to return the cover to the
original position.To remove the cargo
area cover completely, lift the cover to a
50-degree angle and pull it out (2).
NOTICE
Since the cargo area cover may be
damaged or deformed, do not put
luggage on it when it is being used.
WARNING

[Do not place objects on the cargo
area cover. Such objects may be
thrown about inside the vehicle and
possibly injure vehicle occupants
during an accident or braking.

[Never allow anyone to ride in the
luggage compartment. It is designed
for luggage only.

[Maintain balance of the vehicle and
locate the weight as far forward as
possible.

5-93
05
Roof rack
OGB046238R
If the vehicle has a roof rack, you can
load cargo on top of your vehicle.
NOTICE
If the vehicle is equipped with a
sunroof, be sure not to position cargo
onto the roof rack in such a way that it
could interfere with sunroof operation.
NOTICE

[ :KHQFDUU\LQJFDUJRRQWKHURRI
rack, take the necessary precautions
to make sure the cargo does not
damage the roof of the vehicle.

[ :KHQFDUU\LQJODUJHREMHFWVRQWKH
roof rack, make sure they do not
exceed the overall roof length or
width.
WARNING

[ 7KHIROORZLQJVSHFLILFDWLRQLVWKH
maximum weight that can be loaded
onto the roof rack. Distribute the
load as evenly as possible onto the
roof rack and secure the load firmly.
522)
5$&.70 kg (154 lbs)
EVENLY DISTRIBUTED
Loading cargo or luggage in excess of
the specified weight limit on the roof
rack may damage your vehicle.

[ 7KHYHKLFOHFHQWUHRIJUDYLW\ZLOO
be higher when items are loaded
onto the roof rack. Avoid sudden
starts, braking, sharp turns, abrupt
manoeuvres or high speeds that may
result in loss of vehicle control or
rollover resulting in an accident.

[ $OZD\VGULYHVORZO\DQGWXUQFRUQHUV
carefully when carrying items on
the roof rack. Severe wind updrafts,
caused by passing vehicles or natural
causes, can cause sudden upward
pressure on items loaded on the
roof rack. This is especially true
when carrying large, flat items such
as wood panels or mattresses. This
could cause the items to fall off the
roof rack and cause damage to your
vehicle or others around you.

[ 7RSUHYHQWGDPDJHRUORVVRIFDUJR
whilst driving, check frequently
before or whilst driving to make
sure the items on the roof rack are
securely fastened.

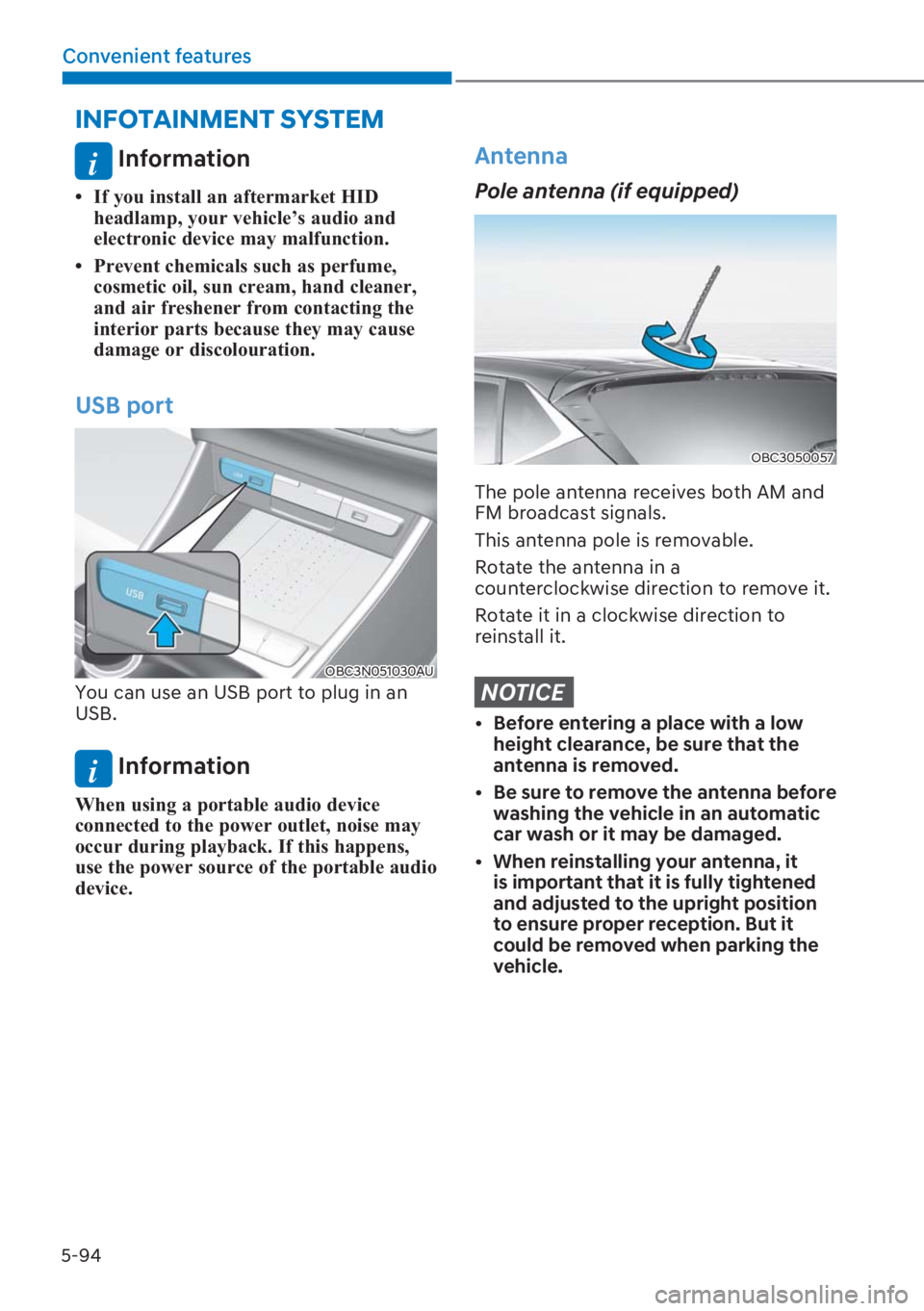

EXTERIOR FEATURES

5-94
Convenient features
i Information

5-95
05

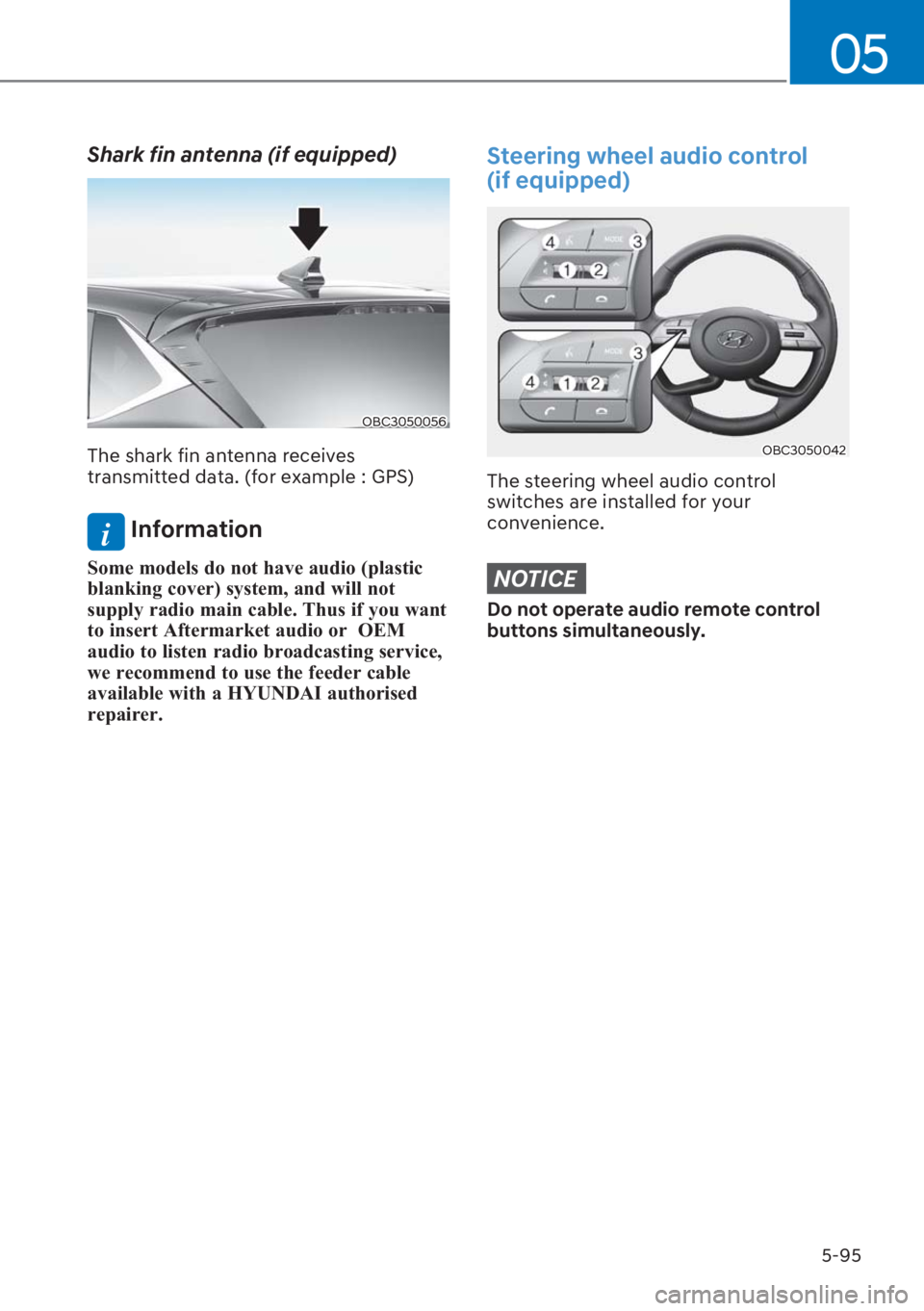

Shark fin antenna (if equipped)
OBC3050056
The shark fin antenna receives
transmitted data. (for example : GPS)
i Information
6RPHPRGHOVGRQRWKDYHDXGLRSODVWLF
EODQNLQJFRYHUV\VWHPDQGZLOOQRW
VXSSO\UDGLRPDLQFDEOH7KXVLI\RXZDQW
WRLQVHUW$IWHUPDUNHWDXGLRRU2(0
DXGLRWROLVWHQUDGLREURDGFDVWLQJVHUYLFH
ZHUHFRPPHQGWRXVHWKHIHHGHUFDEOH
DYDLODEOHZLWKD+<81'$,DXWKRULVHG
UHSDLUHU
6WHHULQJZKHHODXGLRFRQWURO
LIHTXLSSHG
OBC3050042
The steering wheel audio control
switches are installed for your
convenience.
NOTICE
'RQRWRSHUDWHDXGLRUHPRWHFRQWURO
EXWWRQVVLPXOWDQHRXVO\

5-96
Convenient features
VOLUME (VOL + / VOL -) (1)

[Move the VOLUME toggle switch up to
increase volume.

[Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET toggle switch is
moved up or down and held for 0.8
second or more, it will function in the
following modes.
5$',2PRGH
It will function as the AUTO SEEK select
switch. It will SEEK until you release the
switch.
0(',$PRGH
It will function as the FF/REW switch.
If the SEEK/PRESET toggle switch is
moved up or down, it will function in the
following modes.
5$',2PRGH
It will function as the PRESET STATION
UP/DOWN switch.
0(',$PRGH
It will function as the TRACK UP/ DOWN
switch.
MODE () (3)
Press the MODE button to select RADIO/
MEDIA/Bluetooth Audio, etc.
MUTE () (4, if equipped)

[ 3UHVVWKHEXWWRQWRPXWHWKHVRXQG

[ 3UHVVWKHEXWWRQDJDLQWRDFWLYDWHWKH
sound.
i Information
'HWDLOHGLQIRUPDWLRQIRUDXGLRFRQWURO
EXWWRQVDUHGHVFULEHGLQWKHIROORZLQJ
SDJHVLQWKLVFKDSWHU
Infotainment system (if equipped)
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.

5-97
05
9RLFHUHFRJQLWLRQLIHTXLSSHG
OBC3050043
A wide range of infotainment functions
can be commanded with voice
recognition.
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.
%OXHWRRWK®:LUHOHVV7HFKQRORJ\
KDQGVIUHHLIHTXLSSHG
OBC3050044
OBC3N050017
You can use the phone wirelessly by using the
Bluetooth® Wireless Technology.
(1) Call / Answer button
(2) Call end button
(3) LHD Microphone
(4) RHD Microphone

[Audio : For detailed information, refer
to the manual supplied separately.

[Navigation : Detailed information for
the Bluetooth
® Wireless Technology
hands-free is described in the manual
supplied separately.

5-98
Convenient features
+RZYHKLFOHUDGLRZRUNV
FM reception
OJF045308L
AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your vehicle. This
signal is then received by the radio and
sent to your vehicle speakers.
When a strong radio signal has reached
your vehicle, the precise engineering
of your audio system ensures the best
possible quality reproduction. However,
in some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors, such as
the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.
AM (MW, LW) reception
OJF045309L
AM broadcasts can be received at
greater distances than FM broadcasts.
This is because AM radio waves are
transmitted at low frequencies. These
long, low frequency radio waves can
follow the curvature of the earth rather
than travelling straight out into the
atmosphere. In addition, they curve
around obstructions so that they can
provide better signal coverage.

5-99
05
FM radio station
OJF045310L
FM broadcasts are transmitted at high
frequencies and do not bend to follow
the earth’s surface. Because of this,
FM broadcasts generally begin to fade
at short distances from the station.
Also, FM signals are easily affected
by buildings, mountains, or other
obstructions. These can result in certain
listening conditions which might lead
you to believe a problem exists with
your radio. The following conditions are
normal and do not indicate radio trouble
:
JBM004

[Fading - As your vehicle moves away
from the radio station, the signal will
weaken and sound will begin to fade.
When this occurs, we suggest that you
select another stronger station.

[Flutter/Static - Weak FM signals
or large obstructions between the
transmitter and your radio can disturb
the signal causing static or fluttering
noises to occur. Reducing the treble
level may lessen this effect until the
disturbance clears.
