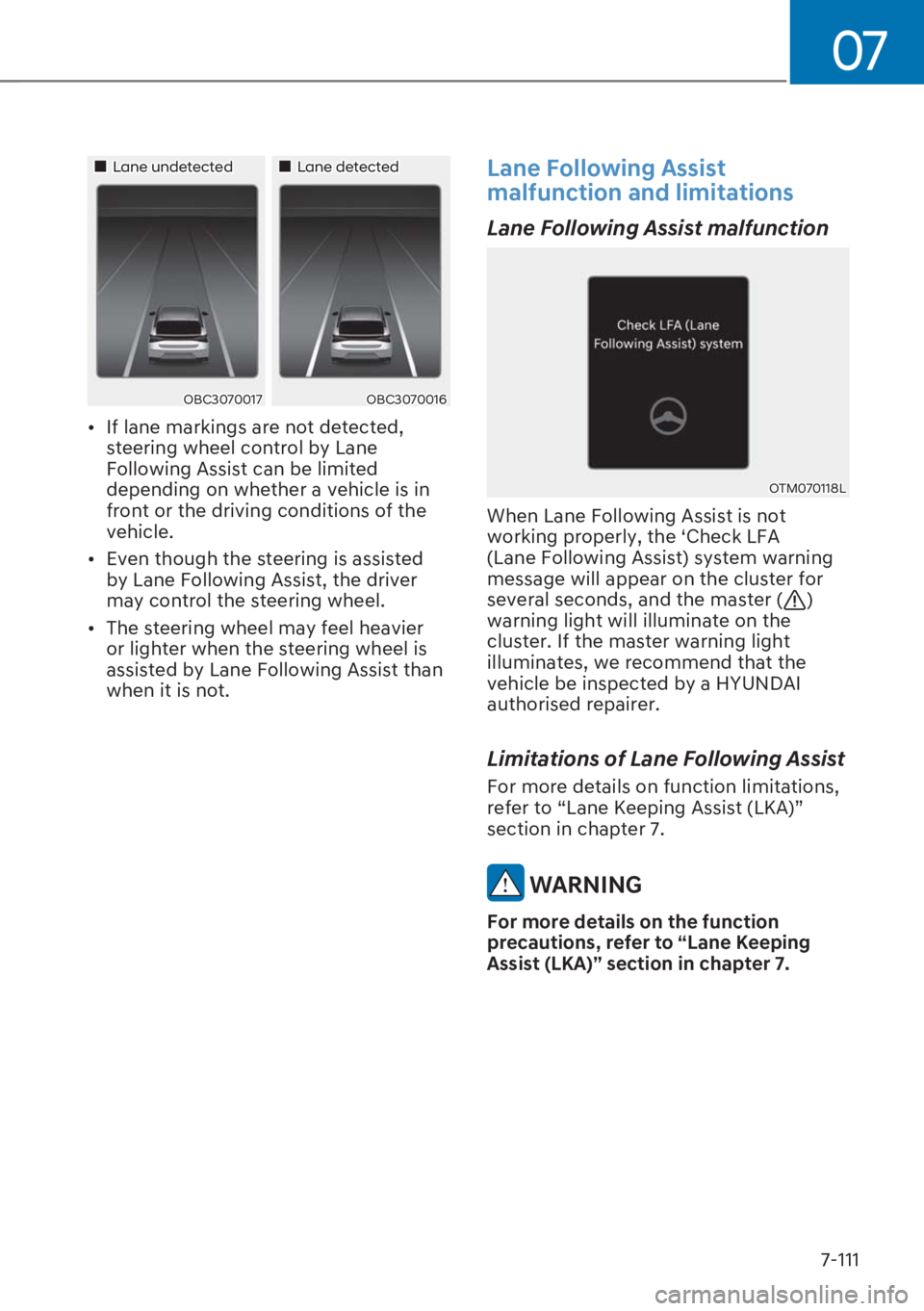

2023 HYUNDAI I20 Owners Manual

07
7-111
„Lane undetected„Lane detected
OBC3070017OBC3070016

[If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is in
front or the driving conditions of the
vehicle.

[Even though the steering is assisted
by Lane Following Assist, the driver
may control the steering wheel.

[The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
Lane Following Assist
malfunction and limitations
Lane Following Assist malfunction
OTM070118L
When Lane Following Assist is not
working properly, the ‘Check LFA
(Lane Following Assist) system warning
message will appear on the cluster for
several seconds, and the master (
)
warning light will illuminate on the
cluster. If the master warning light
illuminates, we recommend that the
vehicle be inspected by a HYUNDAI
authorised repairer.
Limitations of Lane Following Assist
For more details on function limitations,
refer to “Lane Keeping Assist (LKA)”
section in chapter 7.
WARNING
For more details on the function
precautions, refer to “Lane Keeping
Assist (LKA)” section in chapter 7.

Driver assistance system
7-112
OBC3070042
OBC3060002TU
Rear View Monitor will show the area
behind the vehicle to assist you when
parking or backing up.
Detecting sensor
OBC3070043
[1] : Rear view camera
Refer to the picture above for the
detailed location of the detecting sensor.
5($59,(:021,725

07
7-113

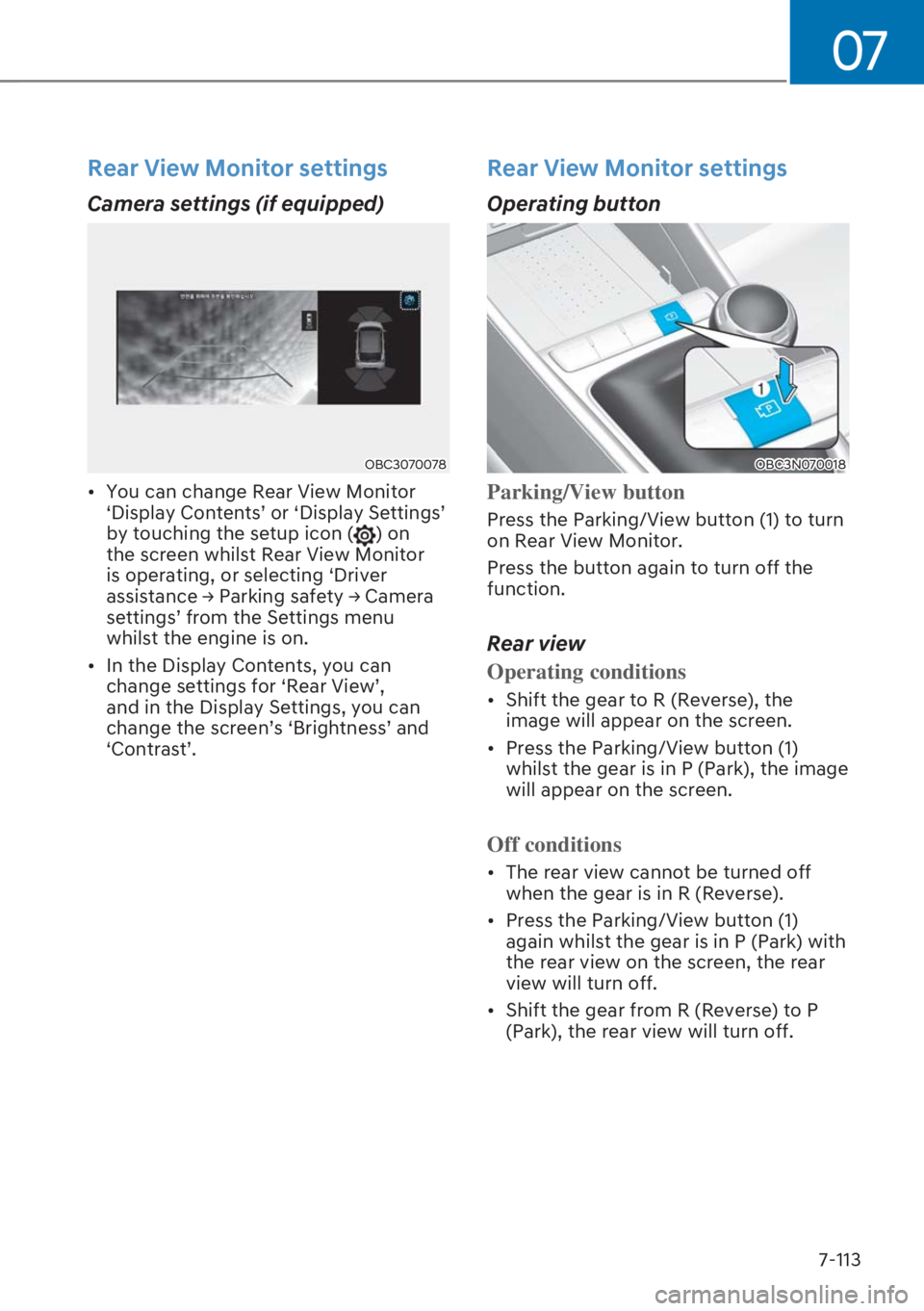

Rear View Monitor settings
Camera settings (if equipped)
OBC3070078

[You can change Rear View Monitor

S'LVSOD\&RQWHQWV
TRU
S'LVSOD\6HWWLQJV
T
by touching the setup icon (
) on
the screen whilst Rear View Monitor
is operating, or selecting ‘Driver
DVVLVWDQFH

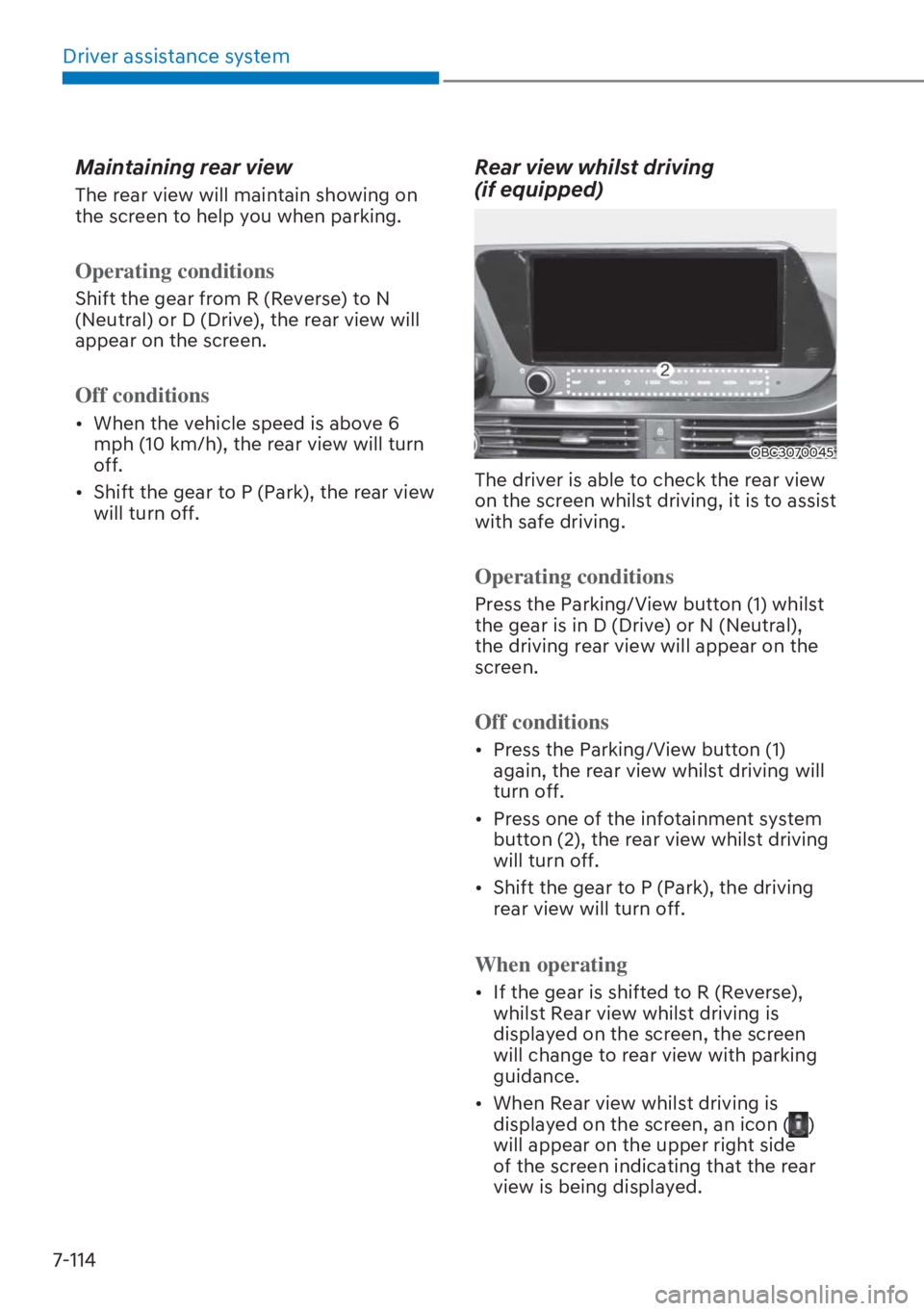

Driver assistance system
7-114
Maintaining rear view
The rear view will maintain showing on
the screen to help you when parking.
Operating conditions
Shift the gear from R (Reverse) to N
(Neutral) or D (Drive), the rear view will
appear on the screen.
Off conditions

[When the vehicle speed is above 6
mph (10 km/h), the rear view will turn
off.

[Shift the gear to P (Park), the rear view
will turn off.
Rear view whilst driving
(if equipped)
OBC3070045
The driver is able to check the rear view
on the screen whilst driving, it is to assist
with safe driving.
Operating conditions
Press the Parking/View button (1) whilst
the gear is in D (Drive) or N (Neutral),
the driving rear view will appear on the
screen.
Off conditions

[Press the Parking/View button (1)
again, the rear view whilst driving will
turn off.

[Press one of the infotainment system
button (2), the rear view whilst driving
will turn off.

[Shift the gear to P (Park), the driving
rear view will turn off.
When operating

[If the gear is shifted to R (Reverse),
whilst Rear view whilst driving is
displayed on the screen, the screen
will change to rear view with parking
guidance.

[When Rear view whilst driving is
displayed on the screen, an icon (
)
will appear on the upper right side
of the screen indicating that the rear
view is being displayed.

07
7-115
Rear top view (if equipped)
OBC3070079
When you touch the icon, the top
view is displayed on the screen and
shows the distance from the vehicle in
the back of your vehicle whilst parking.
Rear View Monitor malfunction
and limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
we recommend that the function be
inspected by a HYUNDAI authorised
repairer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[The rear view camera does not cover
the complete area behind the vehicle.
The driver should always check the
rear area directly through the inside
and outside rearview mirror before
parking or backing up.

[The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
normally.

Driver assistance system
7-116
Rear Cross-Traffic Collision Warning
Assist is designed to help detect vehicles
approaching from the left and right side
whilst your vehicle is reversing, and warn
the driver that a collision is imminent
with a warning message and an audible
warning.
OJX1070108R
[A] : Rear Cross-Traffic Collision Warning operating
range
CAUTION
The time of warning may vary
depending on vehicle speed of the
approaching vehicle.
Information
In the following text, Rear Cross-Traffic
Collision Warning will be referred as
Rear Cross-Traffic Safety system.
Detecting sensor
OBC3070018
[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Warning
(BCW)” section in chapter 7.
5($5&5266

07
7-117

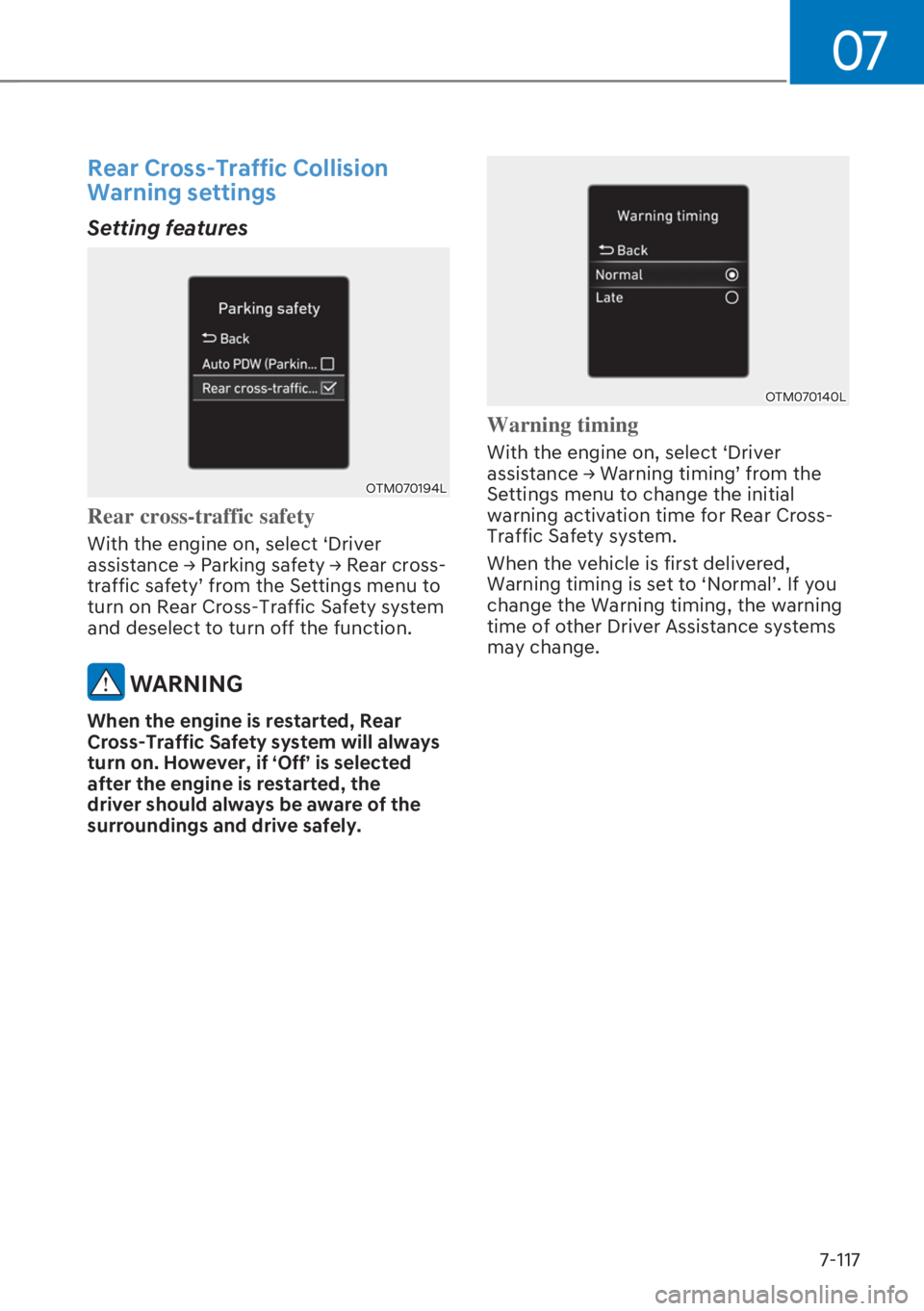

Rear Cross-Traffic Collision
Warning settings
Setting features
OTM070194L
Rear cross-traffic safety
With the engine on, select ‘Driver
DVVLVWDQFH

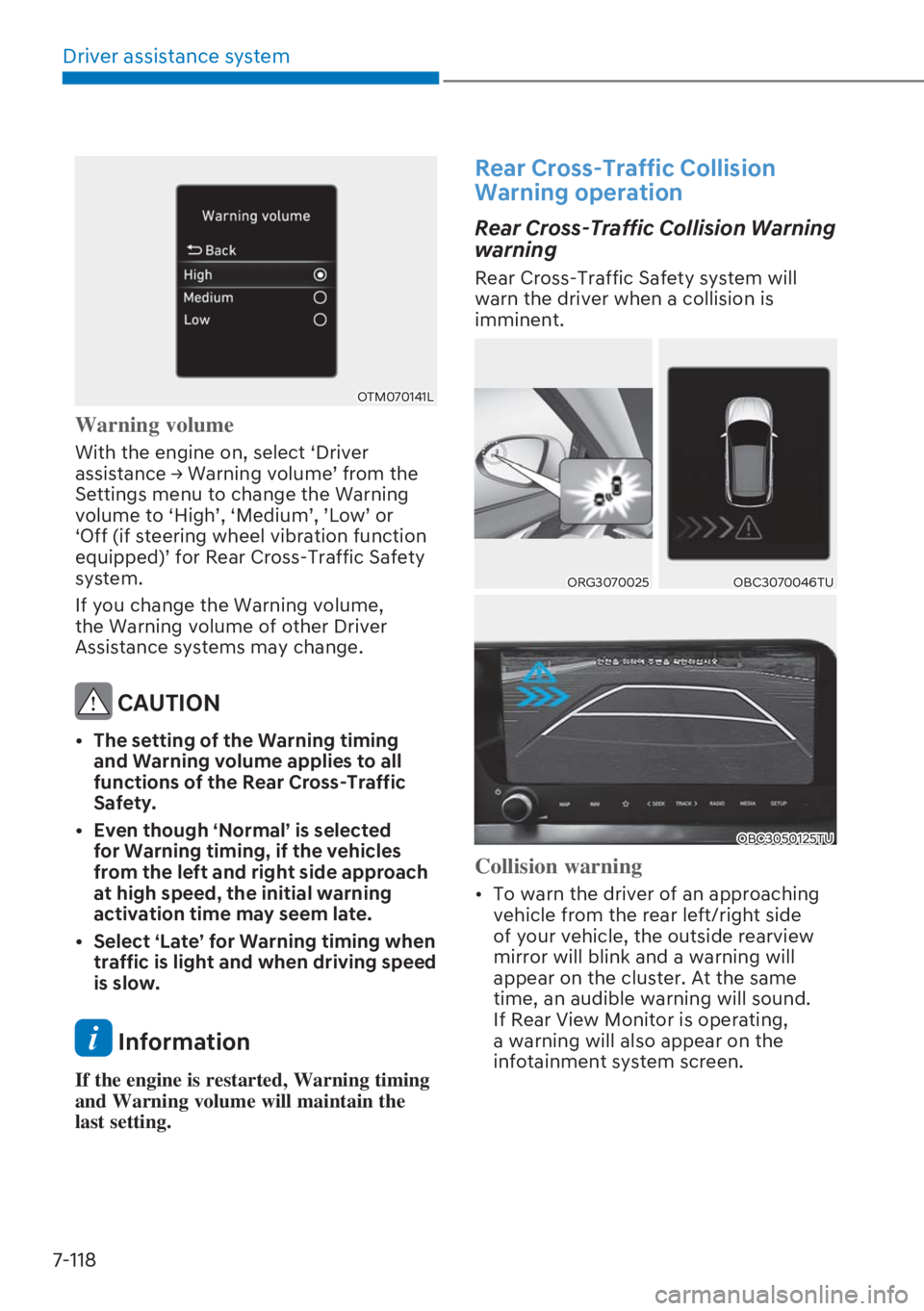

Driver assistance system
7-118
OTM070141L
Warning volume
With the engine on, select ‘Driver
DVVLVWDQFH
