2023 HYUNDAI I20 Owners Manual

07
7-167
[Leaving a parking space near a wall or
parking in a narrow space
OBC3070088TU
- For your safety, Parking Assist does
not search for parking spaces at
areas with narrow parking spaces
that are narrower than the minimum
space required for parking.
- Parking Assist may not operate
properly when leaving a parking
space that is narrow and near a
wall. Always check for pedestrians,
animals, objects whilst leaving.
WARNING
Take the following precautions when
using Parking Assist:

[The driver is responsible for safe
parking and exit when using Parking
Assist.

[The driver should operate Parking
Assist whilst properly depressing the
brake pedal when necessary.

[Always check surroundings when
using Parking Assist. Even in parking
spaces that Parking Assist has
searched, make sure that there are
no people, animals, or objects in the
parking space.

[A collision may occur if a pedestrian,
animal, or object suddenly appears
whilst Parking Assist is operating.
[Do not use Parking Assist when under
the influence of alcohol.

[Do not put your hands between the
steering wheel whilst it is being
automatically controlled. It may
cause an accident.

[Parking Assist may not operate
normally if the vehicle needs
wheel alignment adjustment when
the vehicle tilts to one side. We
recommend that the vehicle be
checked by a HYUNDAI authorised
repairer.

[Use the function only in a parking
space that is large enough for the
vehicle to move safely.

[Parking Assist may operate if the
Parking/View (
) button is pressed
whilst the vehicle is stopped. Be
careful not to press the button
unintentionally.

[Never drive too fast when using
Parking Assist. Always drive
cautiously to prevent unexpected
and sudden situations from
occurring.

[Slowly move forward or in reverse
whilst depressing the brake pedal
after the steering wheel has been
fully turned by Parking Assist.
CAUTION
If the 3rd stage warning (continuous
beep) of the Forward/Reverse Parking
Distance Warning sounds whilst
Parking Assist is operating, it means
the obstacle detected is close to
your vehicle. Make sure there are no
pedestrians, animals, or objects around
your vehicle.

Driver assistance system
7-168
'(&/$5$7,212)&21)250,7<

07

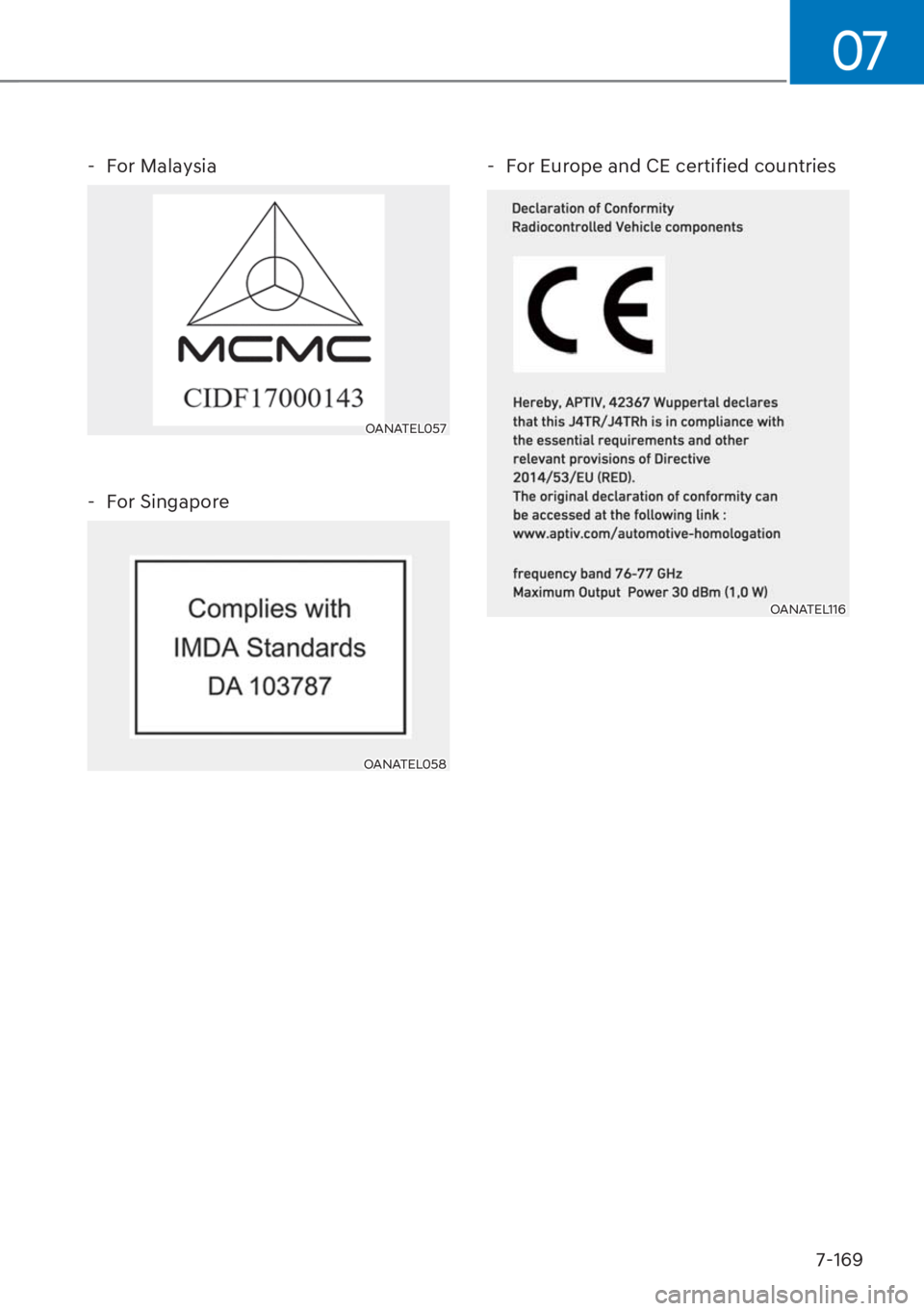

7-169 - For Malaysia
OANATEL057
- For Singapore
OANATEL058
- For Europe and CE certified countries
OANATEL116

Hazard warning flasher................................................................................... 8-3
In case of an emergency whilst driving ......................................................... 8-4
If the engine stalls whilst driving ............................................................................. 8-4
If the engine stalls at a crossroad or crossing ......................................................... 8-4
If you have a flat tyre whilst driving ......................................................................... 8-4
If the engine will not start .............................................................................. 8-5If the engine doesn’t turn over or turns over slowly ............................................... 8-5
If the engine turns over normally but doesn’t start ................................................ 8-5
Jump starting ..................................................................................................8-6
If the engine overheats ...................................................................................8-9
Tyre Pressure Monitoring System (TPMS) .................................................... 8-11
Check tyre pressure ..................................................................................................8-11
Tyre pressure monitoring system ............................................................................ 8-12
Low tyre pressure warning light .............................................................................. 8-13
Low tyre pressure position and tyre pressure telltale ............................................ 8-13
TPMS (Tyre Pressure Monitoring System) malfunction indicator ......................... 8-14
Changing a tyre with TPMS ..................................................................................... 8-14
If you have a flat tyre (with spare tyre) ........................................................ 8-16Jack and tools ..........................................................................................................8-16
Changing tyres ......................................................................................................... 8-17
Jack label .................................................................................................................. 8-21
EC Declaration of conformity for Jack................................................................... 8-22
If you have a flat tyre (with tyre mobility kit) .............................................. 8-26Introduction ............................................................................................................. 8-26
Notes on the safe use of the Tyre Mobility Kit ........................................................8-27
Components of the Tyre Mobility Kit ..................................................................... 8-28
Using the Tyre Mobility Kit ...................................................................................... 8-29
Distributing the sealant ........................................................................................... 8-31
Checking the tyre inflation pressure ....................................................................... 8-31
Towing ........................................................................................................... 8-32Towing service ......................................................................................................... 8-32
Removable towing hook ......................................................................................... 8-33
Emergency towing .................................................................................................. 8-34
8. Emergency situations
8

8

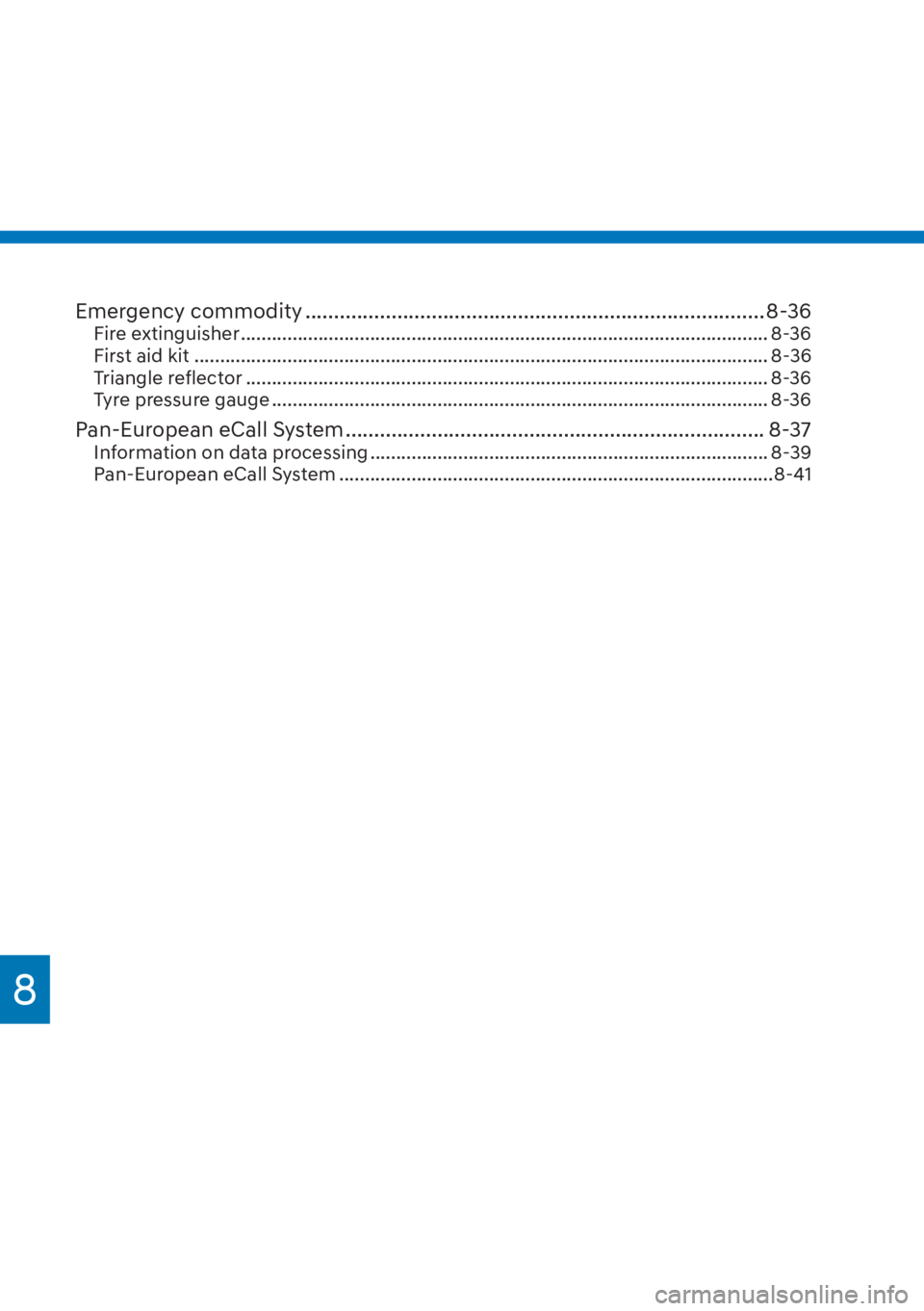

Emergency commodity ................................................................................ 8-36Fire extinguisher ...................................................................................................... 8-36
First aid kit ............................................................................................................... 8-36
Triangle reflector ..................................................................................................... 8-36
Tyre pressure gauge ................................................................................................ 8-36
Pan-European eCall System ......................................................................... 8-37Information on data processing ............................................................................. 8-39
Pan-European eCall System ....................................................................................8-41

8-3
08

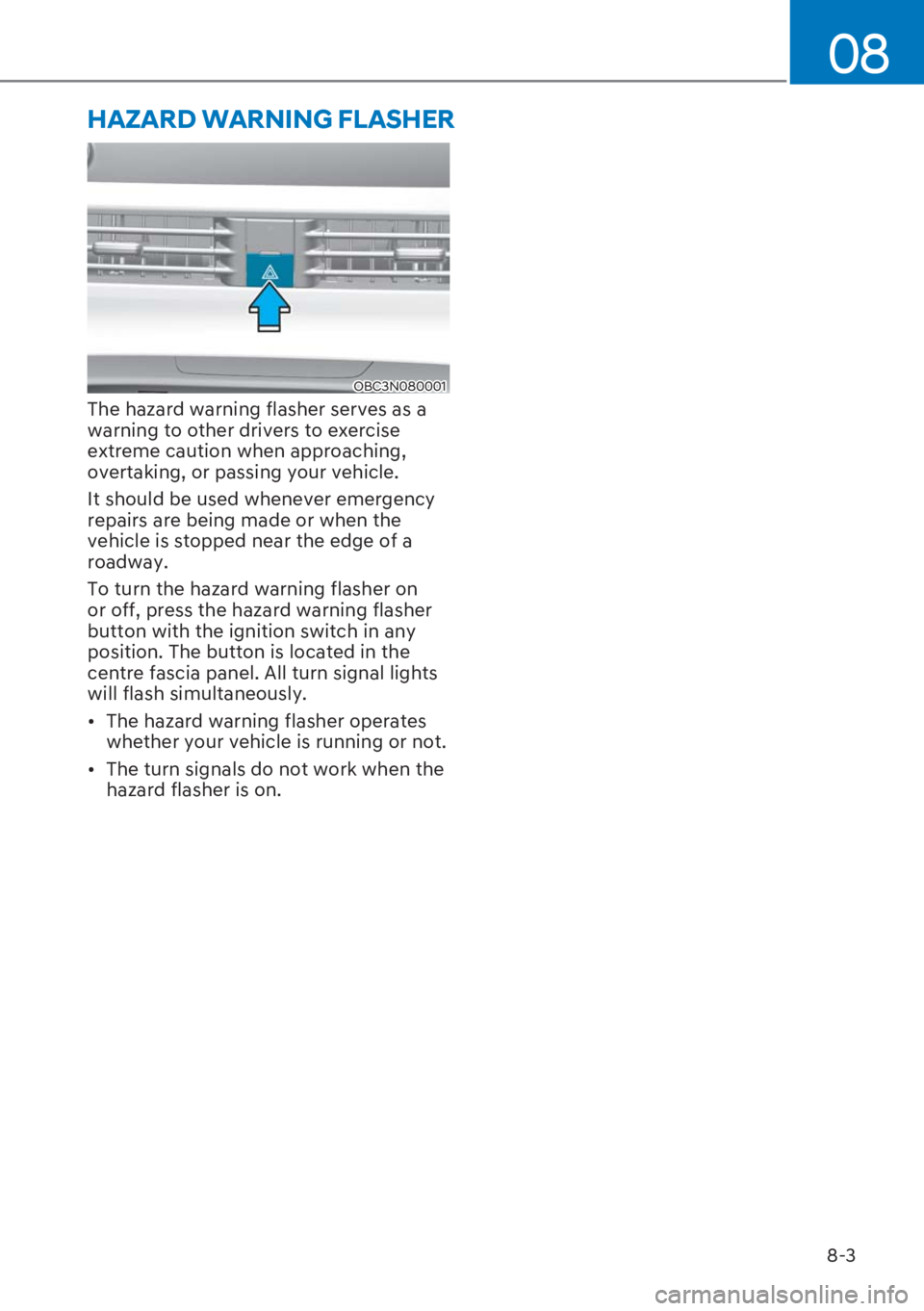

OBC3N080001
The hazard warning flasher serves as a
warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.
To turn the hazard warning flasher on
or off, press the hazard warning flasher
button with the ignition switch in any
position. The button is located in the
centre fascia panel. All turn signal lights
will flash simultaneously.

[The hazard warning flasher operates
whether your vehicle is running or not.

[The turn signals do not work when the
hazard flasher is on.
HAZARD WARNING FLASHER

8-4
Emergency situations
IN CASE OF AN EMERGENCY WHILST DRIVING
If the engine stalls whilst driving

[Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.

[Turn on your hazard warning flasher.

[Try to start the engine again. If your
vehicle will not start, we recommend
that you contact a HYUNDAI
authorised repairer.
If the engine stalls at a
crossroad or crossing
If the engine stalls at a crossroads or
crossing, if safe to do so, move the shift
lever to the N (Neutral) position and then
push the vehicle to a safe location.
If you have a flat tyre whilst
driving
If a tyre goes flat whilst you are driving:

[Take your foot off the accelerator
pedal and let the vehicle slow down
whilst driving straight ahead. Do
not apply the brakes immediately or
attempt to pull off the road as this
may cause loss of vehicle control
resulting in an accident. When the
vehicle has slowed to such a speed
that it is safe to do so, brake carefully
and pull off the road. Drive off the
road as far as possible and park on
firm, level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.

[When the vehicle is stopped, press
the hazard warning flasher button,
move the shift lever into P (Park, for
automatic transmission/dual clutch
transmission vehicle) or neutral
(for manual transmission vehicle),
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.

[Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.

[When changing a flat tyre, follow
the instructions provided later in this
chapter.

8-5
08
If the engine doesn’t turn over
or turns over slowly

[Be sure the shift lever is in N (Neutral)
or P (Park) if it is an automatic
transmission/dual clutch transmission
vehicle. The engine starts only when
the shift lever is in N (Neutral) or P
(Park).

[Check the battery connections to be
sure they are clean and tight.

[Turn on the interior light. If the light
dims or goes out when you operate
the starter, the battery is drained.
Do not push or pull the vehicle to start
it. This could cause damage to your
vehicle. See instructions for “Jump
Starting” provided in this chapter.
CAUTION
Push or pull starting the vehicle may
cause the catalytic converter to
overload which can lead to damage to
the emission control system.
If the engine turns over normally
but doesn’t start

[Check the fuel level and add fuel if
necessary.
If the engine still does not start, we
recommend that you call a HYUNDAI
authorised repairer for assistance.
IF THE ENGINE WILL NOT START
