2023 HYUNDAI I20 Owners Manual

3-28
Safety system
Seat belt use and children
Infant and small children
Most countries have Child Restraint
Systems laws which require children
to travel in approved Child Restraint
Systems devices, including booster
seats. The age at which seat belts can be
used instead of Child Restraint Systems
differs among countries, so you should
be aware of the specific requirements
in your country, and where you are
travelling. Infant and Child Restraint
Systems must be properly placed and
installed in a rear seat. For more details,
refer to the “Child Restraint Systems” in
this chapter.
WARNING
ALWAYS properly restrain infants and
small children in a Child Restraint System
appropriate for the child’s height and
weight.
To reduce the risk of serious injury or
death to a child and other passengers,
NEVER hold a child in your lap or arms
when the vehicle is moving. The violent
forces created during an accident will
tear off the child from your arms and
throw the child against the interior of the
vehicle.
Small children are best protected from
injury in an accident when properly
restrained in the rear seat by a Child
Restraint System that meets the
requirements of the Safety Standards of
your country. Before buying any Child
Restraint System, make sure that it has
a label certifying that it meets Safety
Standard of your country. The restraint
must be appropriate for your child’s
height and weight. Check the label
on the Child Restraint System for this
information. Refer to “Child Restraint
Systems” in this chapter.
Larger children
Children under age 13 and who are too
large for a booster seat must always
occupy the rear seat and use the
available lap/shoulder belts. A seat belt
should lie across the upper thighs and
be snug across the shoulder and chest
to restrain the child safely. Check belt fit
periodically. A child’s squirming could
put the belt out of position. Children are
afforded the most safety in the event of
an accident when they are restrained by
a proper restraint system and/or seat
belts in the rear seat.
If a larger child over age 13 must be
seated in the front seat, the child must
be securely restrained by the available
lap/shoulder belt and the seat should be
placed in the rearmost position.
If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the centre
of the vehicle. If the shoulder belt still
touches their face or neck, they need to
be returned to an appropriate booster
seat in the rear seat.
WARNING

[Always make sure larger children’s
seat belts are worn and properly
adjusted.

[NEVER allow the shoulder belt to
contact the child’s neck or face.

[Do not allow more than one child to
use a single seat belt.

3-29
03
Seat belt use and injured people
A seat belt should be used when an
injured person is being transported.
Consult a physician for specific
recommendations.
One person per belt
Two people (including children) should
never attempt to use a single seat belt.
This could increase the severity of injuries
in case of an accident.
Do not lie down
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts
and/or air bags) is greatly reduced by
reclining your seatback.
Seat belts must be snug against your
hips and chest to work properly. During
an accident, you could be twined with
the seat belt, causing neck or other
injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
WARNING

[NEVER ride with a reclined seatback
when the vehicle is moving.

[Riding with a reclined seatback
increases your chance of serious
or fatal injuries in the event of a
collision or sudden stop.

[Driver and passengers should always
sit well back in their seats, properly
belted, and with the seatbacks
upright.
Care of seat belts
Seat belt systems should never be
disassembled or modified. In addition,
care should be taken to assure that
seat belts and belt hardware are not
damaged by seat hinges, doors or other
abuse.
Periodic inspection
All seat belts should be inspected
periodically for wear or damage of any
kind. Any damaged parts should be
replaced as soon as possible.
Keep belts clean and dry
Seat belts should be kept clean and
dry. If belts become dirty, they can be
cleaned by using a mild soap solution
and warm water. Bleach, dye, strong
detergents or abrasives should not be
used because they may damage and
weaken the fabric.
When to replace seat belts
The entire seat belt assembly or
assemblies should be replaced if the
vehicle has been involved in an accident.
This should be done even if no damage
is visible. We recommend that you
consult a HYUNDAI authorised repairer.

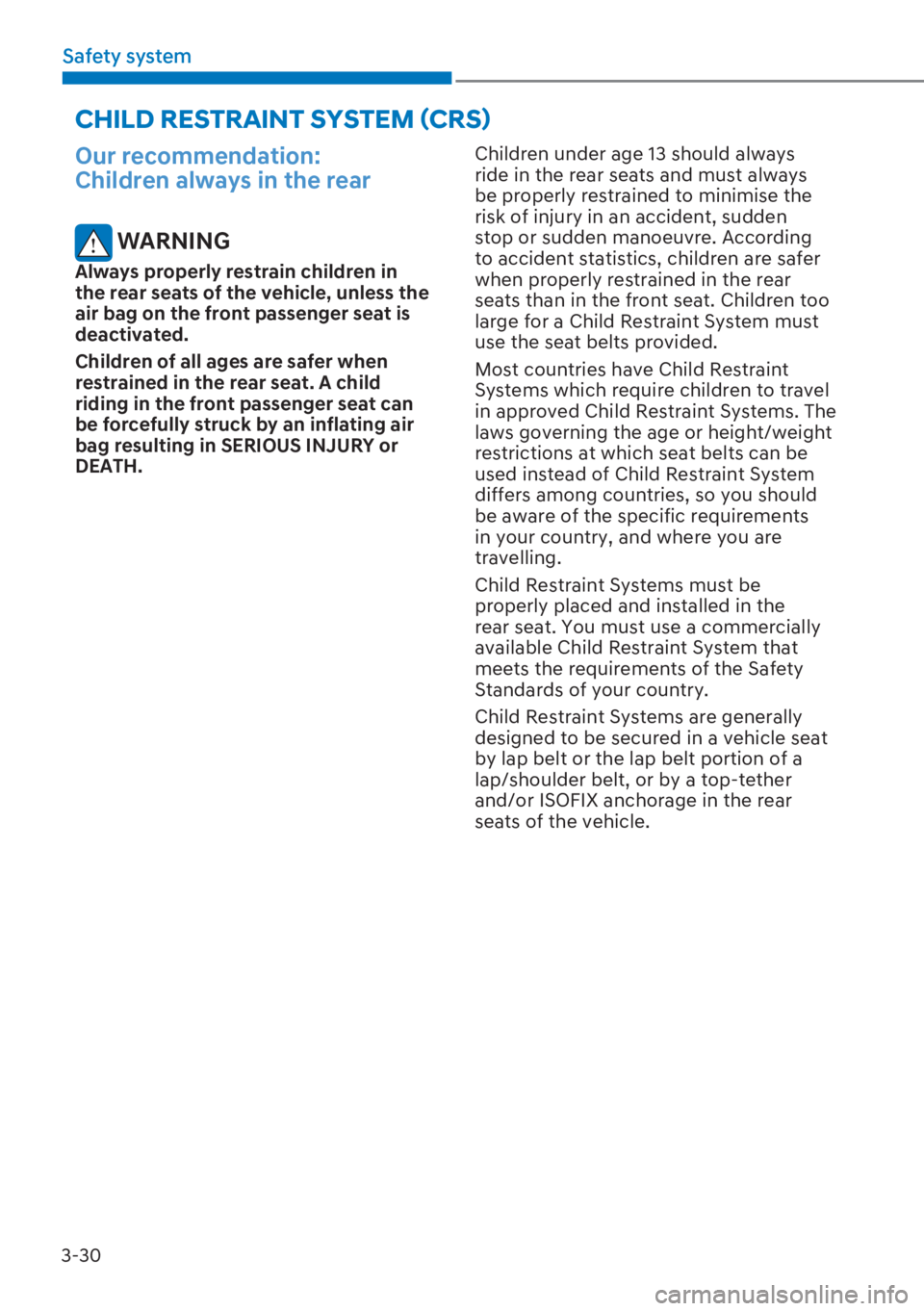

3-30
Safety system
&+,/'5(675$,176<67(0

3-31
03
Child Restraint System (CRS) always
in the rear
Infants and younger children must be
restrained in an appropriate rearward-
facing or forward-facing CRS that has
first been properly secured to the rear
seat of the vehicle. Read and comply
with the instructions for installation and
use provided by the manufacturer of the
Child Restraint System.
WARNING

[Always follow the Child Restraint
System manufacturer’s instructions
for installation and use.

[Always properly restrain your child in
the Child Restraint System.

[Do not use an infant carrier or a
child safety seat that “hooks” over
a seatback, it may not provide
adequate protection in an accident.

[After an accident, we recommend
a HYUNDAI dealer check the Child
Restraint System, seat belts,
ISOFIX anchorages and top-tether
anchorages.
Selecting a Child Restraint
System (CRS)
When selecting a CRS for your child,
always:

[Make sure a CRS has a label certifying
that it meets applicable Safety
Standards of your country.

[Select a CRS based on your child’s
height and weight. The required label
or the instructions for use typically
provide this information.

[Select a CRS that fits the vehicle
seating position where it will be used.

[Read and comply with the warnings
and instructions for installation and
use provided with a CRS.
Child Restraint System types
There are three main types of Child
Restraint Systems: rearward-facing
seats, forward-facing seats, and booster
seats. They are classified according to
the child’s age, height and weight.

3-32
Safety system
CRS09
Rearward-facing Child Restraint
System
A rearward-facing Child Restraint
System provides restraint with the
seating surface against the back of the
child. The harness system holds the
child in place, and in an accident, acts
to keep the child positioned in the Child
Restraint Systems and reduce the stress
to the fragile neck and spinal cord.
All children under the age of one
year must always ride in a rearward-
facing Child Restraint System. There
are different types of rearward-facing
Child Restraint Systems: infant-only
Child Restraint Systems can only be
used rearward-facing. Convertible
and 3-in-1 Child Restraint Systems
typically have higher height and weight
limits for the rearward-facing position
system, allowing you to keep your child
rearward-facing for a longer period of
time.
Keep using Child Restraint Systems in
the rearward-facing position as long as
children fit within the height and weight
limits allowed by the Child Restraint
System’s manufacturer.
OIB034017
Forward-facing Child Restraint
System
A forward-facing Child Restraint System
provides restraint for the child’s body
with a harness. Keep children in a
forward-facing Child Restraint System
with a harness until they reach the top
height or weight limit allowed by your
Child Restraint System’s manufacturer.
Once your child outgrows the forward-
facing Child Restraint System, your child
is ready for a booster seat.
Booster seats
A booster seat is Child Restraint System
designed to improve the fit of the
vehicle’s seat belt system. A booster
seat positions the seat belt so that it fits
properly over your child’s stronger body
parts. Keep your children in booster
seats until they are big enough to fit in a
seat belt properly.
For a seat belt to fit properly, the lap belt
must lie comfortable across the upper
thighs, not the stomach. The shoulder
belt should lie comfortable across the
shoulder and chest and not across the
neck or face. Children under age 13
must always be properly restrained to
minimise the risk of injury in an accident,
sudden stop or sudden manoeuvre.

3-33
03
Installing a Child Restraint
System (CRS)
WARNING
Before installing your Child Restraint
System always:
Read and follow the instructions
provided by the manufacturer of the
Child Restraint System.
Failure to follow all warnings and
instructions could increase the risk of
the SERIOUS INJURY or DEATH if an
accident occurs.
WARNING
If the vehicle head restraint prevents
proper installation of a Child Restraint
System, the head restraint of the
respective seating position shall be
readjusted or entirely removed.
After selecting a proper Child Restraint
System and checking that the Child
Restraint System fits properly in the rear
of this vehicle, you are ready to install
the Child Restraint System according to
the manufacturer’s instruction. There are
three general steps in installing the Child
Restraint Systems properly:

[Properly secure the Child Restraint
System to the vehicle. All Child
Restraint Systems must be secured
to the vehicle with the lap belt or lap
part of a lap/shoulder belt or with
the ISOFIX top-tether and/or ISOFIX
anchorage.
[Make sure the Child Restraint System
is firmly secured. After installing a
Child Restraint System to the vehicle,
push and pull the seat forward and
from side-to-side to verify that it is
securely attached to the seat. A Child
Restraint System secured with a seat
belt should be installed as firmly as
possible. However, some side-to- side
movement can be expected.
When installing a Child Restraint
System, adjust the vehicle seat (up
and down, forward and rearward)
so that your child fits in the Child
Restraint System in a comfortable
manner.

[Secure the child in the Child
Restraint System. Make sure the
child is properly strapped in the Child
Restraint System according to the
Child Restraint System manufacturer’s
instructions.
CAUTION
A Child Restraint System in a closed
vehicle can become very hot. To
prevent burns, check the seating
surface and buckles before placing
your child in the Child Restraint
System.

3-34
Safety system
Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS)according to UN
regulations (Information for use by vehicle users and CRS manufacturers)
[Yes : Suitable for fitment of the designated category of CRS

[ No : Not suitable for fitment of the designated category of CRS

[“-” : Not applicable

[The table is based on LHD vehicle. Except for the front passenger seat, the table is valid for RHD vehicle.For RHD vehicle
front passenger seat, please use information for the seating position number 3.
Ye s
Seating positions
123
456
Airbag
ONAirbag
OFF
Universal belted CRS
1)
All mass groups - - NoYes
1)
(F,R)Ye s
(F,R)Yes
2)
F, RYe s
(F,R)
i-size CRSISOFIX CRF :
F2, F2X, R1, R2- - No NoYe s
(F,R)NoYe s
(F,R)
Carry-cot (ISOFIX lateral facing CRS)ISOFIX CRF:
L1, L2- - No No No No No
ISOFIX infant CRS
(i.e. CRS for a baby)ISOFIX CRF :
R1 - - No NoYe s
(R)NoYes
(R)
ISOFIX toddler CRS
- small ISOFIX CRF :
F2,F2X,R2,R2X - - No NoYes
(F,R)NoYes
(F,R)
ISOFIX toddler CRS – large* (* : not booster seats)ISOFIX CRF :
F3,R3 - - No NoYes
(F,R)NoYes
(F,R)
Booster Seat
– reduced WidthISO CRF : B2 - - Yes Yes Yes Yes Yes
Booster Seat
– full WidthISO CRF : B3 - - Yes Yes Yes Yes Yes
F : Forward facing R : Rearward facing
Note
1) : To install Universal CRS to 2nd row seating positions, 1st row seat should be adjust forward properly.
Note 2) : Never install CRS with a support leg on 2nd row centre seating position.

3-35
03
Seat NumberPosition
in the vehicleSeating positions
1 Front left
2 Front centre
3 Front right
42
nd row left
52
nd row centre
62
nd row right
❈ If the vehicle head restraint prevents proper installation of a CRS, the head restraint of the
seating position shall be readjusted or entirely removed
❈ Never place a rearward facing Child Restraint System on the front passenger seat, unless the
air bag is deactivated.
Recommended CRS for Vehicle according to UN regulations
(Information for use by vehicle users and CRS manufacturers)
Mass
groupName Manufacturer Type of FixationECE
Approval Number
Group 2 KidFix III S Britax RömerISOFIX and vehicle belt,
using CRS lap belt guideR44/04 - E1 – 04301304
Group 3 Junior III Graco Vehicle belt R44/04 – E11 – 03.44.165
CRS Manufacturer information
Britax : http://www.britax.com
Graco : http://www.gracobaby.com
