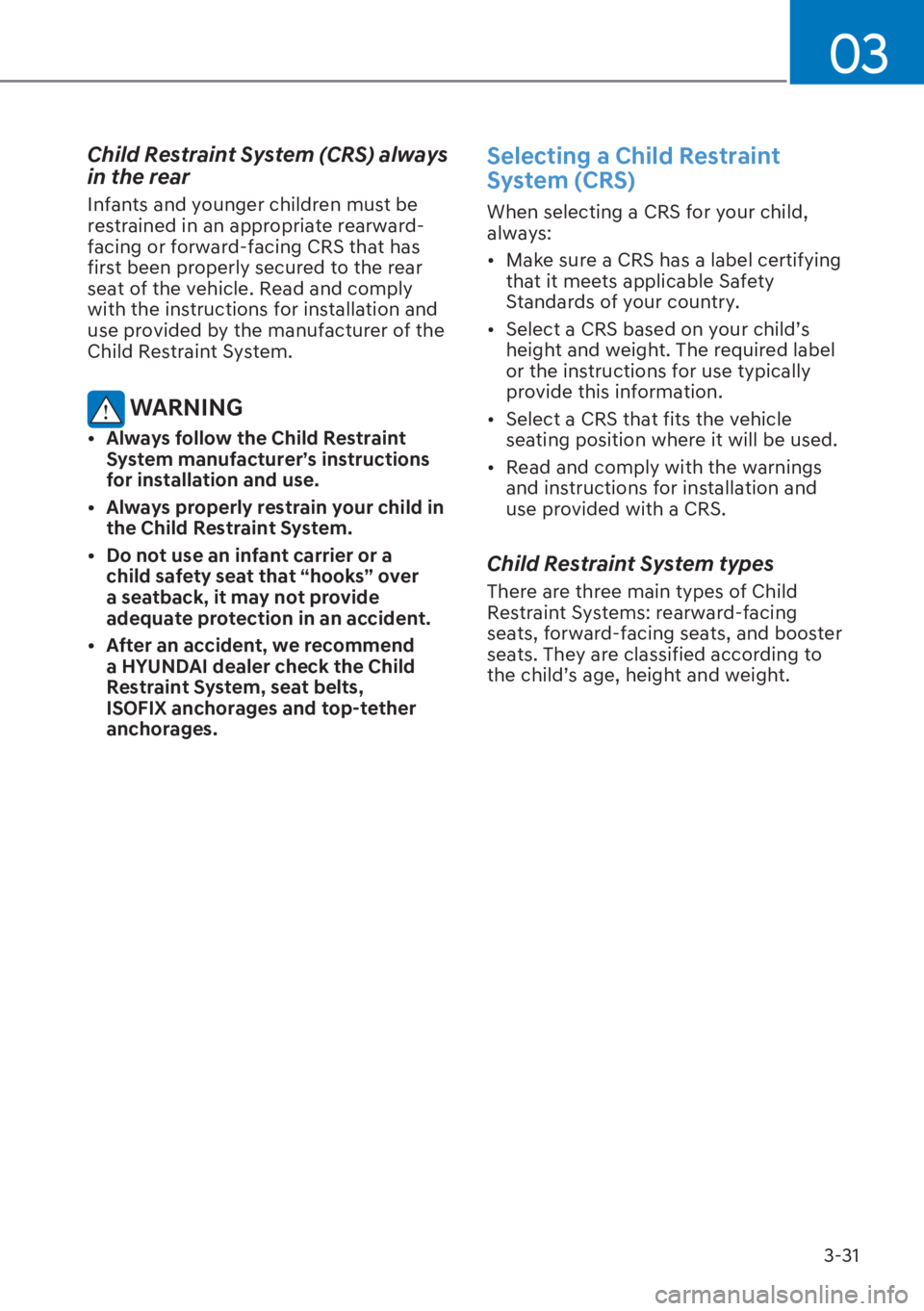

Child Restraint System (CRS) always
in the rear
Infants and younger children must be
restrained in an appropriate rearward-
facing or forward-facing CRS that has
first been properly secured to the rear
seat of the vehicle. Read and comply
with the instructions for installation and
use provided by the manufacturer of the
Child Restraint System.
WARNING

[Always follow the Child Restraint
System manufacturer’s instructions
for installation and use.

[Always properly restrain your child in
the Child Restraint System.

[Do not use an infant carrier or a
child safety seat that “hooks” over
a seatback, it may not provide
adequate protection in an accident.

[After an accident, we recommend
a HYUNDAI dealer check the Child
Restraint System, seat belts,
ISOFIX anchorages and top-tether
anchorages.
Selecting a Child Restraint
System (CRS)
When selecting a CRS for your child,
always:

[Make sure a CRS has a label certifying
that it meets applicable Safety
Standards of your country.

[Select a CRS based on your child’s
height and weight. The required label
or the instructions for use typically
provide this information.

[Select a CRS that fits the vehicle
seating position where it will be used.

[Read and comply with the warnings
and instructions for installation and
use provided with a CRS.
Child Restraint System types
There are three main types of Child
Restraint Systems: rearward-facing
seats, forward-facing seats, and booster
seats. They are classified according to
the child’s age, height and weight.

3-33
03
Installing a Child Restraint
System (CRS)
WARNING
Before installing your Child Restraint
System always:
Read and follow the instructions
provided by the manufacturer of the
Child Restraint System.
Failure to follow all warnings and
instructions could increase the risk of
the SERIOUS INJURY or DEATH if an
accident occurs.
WARNING
If the vehicle head restraint prevents
proper installation of a Child Restraint
System, the head restraint of the
respective seating position shall be
readjusted or entirely removed.
After selecting a proper Child Restraint
System and checking that the Child
Restraint System fits properly in the rear
of this vehicle, you are ready to install
the Child Restraint System according to
the manufacturer’s instruction. There are
three general steps in installing the Child
Restraint Systems properly:

[Properly secure the Child Restraint
System to the vehicle. All Child
Restraint Systems must be secured
to the vehicle with the lap belt or lap
part of a lap/shoulder belt or with
the ISOFIX top-tether and/or ISOFIX
anchorage.
[Make sure the Child Restraint System
is firmly secured. After installing a
Child Restraint System to the vehicle,
push and pull the seat forward and
from side-to-side to verify that it is
securely attached to the seat. A Child
Restraint System secured with a seat
belt should be installed as firmly as
possible. However, some side-to- side
movement can be expected.
When installing a Child Restraint
System, adjust the vehicle seat (up
and down, forward and rearward)
so that your child fits in the Child
Restraint System in a comfortable
manner.

[Secure the child in the Child
Restraint System. Make sure the
child is properly strapped in the Child
Restraint System according to the
Child Restraint System manufacturer’s
instructions.
CAUTION
A Child Restraint System in a closed
vehicle can become very hot. To
prevent burns, check the seating
surface and buckles before placing
your child in the Child Restraint
System.

3-34
Safety system
Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS)according to UN
regulations (Information for use by vehicle users and CRS manufacturers)
[Yes : Suitable for fitment of the designated category of CRS

[ No : Not suitable for fitment of the designated category of CRS

[“-” : Not applicable

[The table is based on LHD vehicle. Except for the front passenger seat, the table is valid for RHD vehicle.For RHD vehicle
front passenger seat, please use information for the seating position number 3.
Ye s
Seating positions
123
456
Airbag
ONAirbag
OFF
Universal belted CRS
1)
All mass groups - - NoYes
1)
(F,R)Ye s
(F,R)Yes
2)
F, RYe s
(F,R)
i-size CRSISOFIX CRF :
F2, F2X, R1, R2- - No NoYe s
(F,R)NoYe s
(F,R)
Carry-cot (ISOFIX lateral facing CRS)ISOFIX CRF:
L1, L2- - No No No No No
ISOFIX infant CRS
(i.e. CRS for a baby)ISOFIX CRF :
R1 - - No NoYe s
(R)NoYes
(R)
ISOFIX toddler CRS
- small ISOFIX CRF :
F2,F2X,R2,R2X - - No NoYes
(F,R)NoYes
(F,R)
ISOFIX toddler CRS – large* (* : not booster seats)ISOFIX CRF :
F3,R3 - - No NoYes
(F,R)NoYes
(F,R)
Booster Seat
– reduced WidthISO CRF : B2 - - Yes Yes Yes Yes Yes
Booster Seat
– full WidthISO CRF : B3 - - Yes Yes Yes Yes Yes
F : Forward facing R : Rearward facing
Note
1) : To install Universal CRS to 2nd row seating positions, 1st row seat should be adjust forward properly.
Note 2) : Never install CRS with a support leg on 2nd row centre seating position.

3-35
03

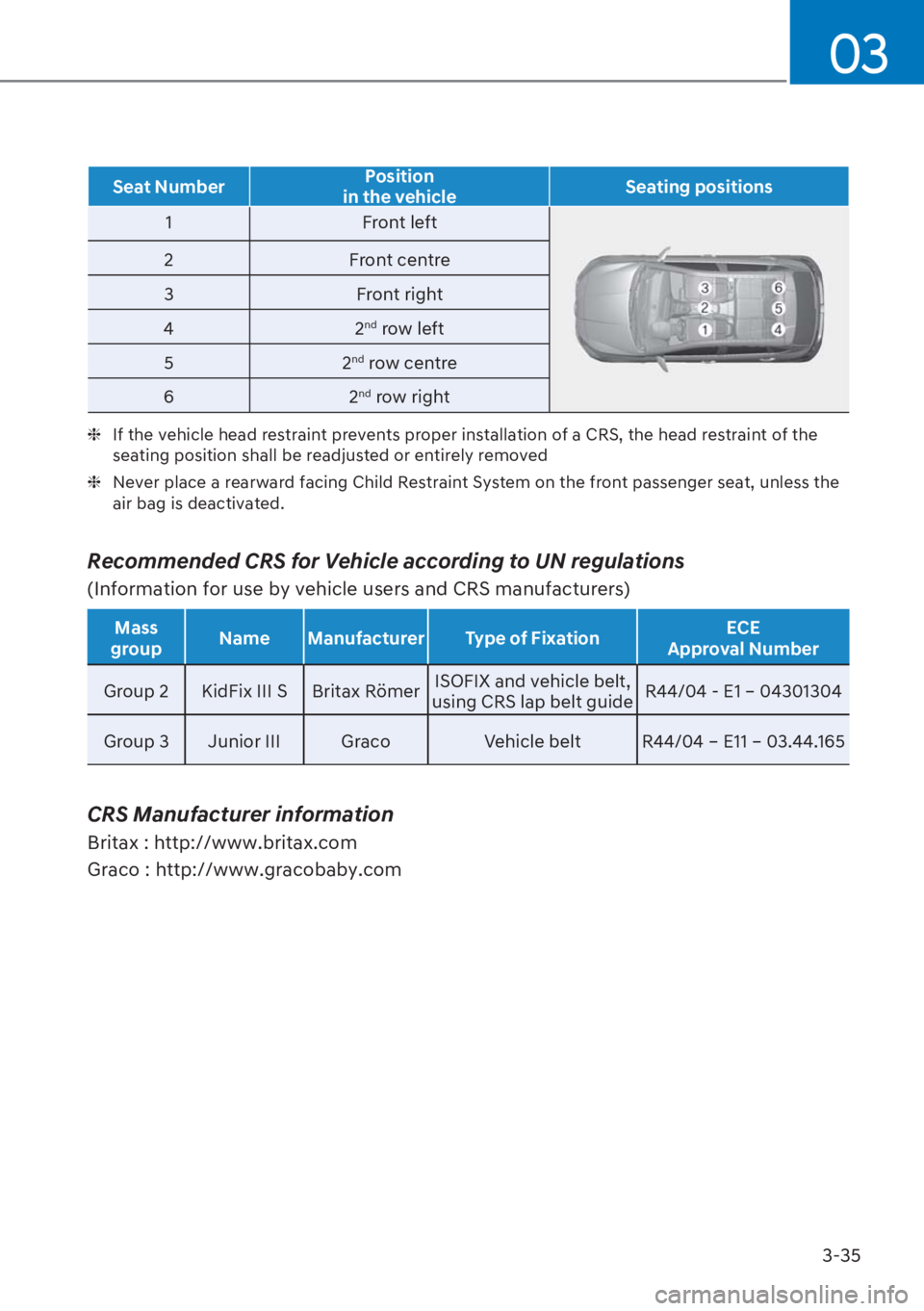

Seat NumberPosition
in the vehicleSeating positions
1 Front left
2 Front centre
3 Front right
42
nd row left
52
nd row centre
62
nd row right
❈ If the vehicle head restraint prevents proper installation of a CRS, the head restraint of the
seating position shall be readjusted or entirely removed
❈ Never place a rearward facing Child Restraint System on the front passenger seat, unless the
air bag is deactivated.
Recommended CRS for Vehicle according to UN regulations
(Information for use by vehicle users and CRS manufacturers)
Mass
groupName Manufacturer Type of FixationECE
Approval Number
Group 2 KidFix III S Britax RömerISOFIX and vehicle belt,
using CRS lap belt guideR44/04 - E1 – 04301304
Group 3 Junior III Graco Vehicle belt R44/04 – E11 – 03.44.165
CRS Manufacturer information
Britax : http://www.britax.com
Graco : http://www.gracobaby.com

3-36
Safety system
ISOFIX anchorage and top-tether
anchorage (ISOFIX anchorages
system) for children
The ISOFIX system holds a Child
Restraint System during driving and in
an accident. This system is designed to
make installation of the Child Restraint
System easier and reduce the possibility
of improperly installing your Child
Restraint System.
The ISOFIX system uses anchors in the
vehicle and attachments on the Child
Restraint System. The ISOFIX system
eliminates the need to use seat belts to
secure the Child Restraint System to the
rear seats.
ISOFIX anchorages are metal bars built
into the vehicle. There are two lower
anchors for each ISOFIX seating position
that will accommodate a Child Restraint
System with lower attachments.
To use the ISOFIX system in your
vehicle, you must have a Child Restraint
System with ISOFIX attachments. (An
ISOFIX Child Restraint System may only
be installed if it has vehicle-specific or
universal approval in accordance with
the requirements of ECE-R44 or ECE-
R129.)
The Child Restraint System manufacturer
will provide you with instructions on how
to use the Child Restraint System with its
attachments for the ISOFIX anchorages.
OBC3030014R
ISOFIX anchorages have been provided
in the left and right outboard rear
seating positions. Their locations are
shown in the illustration. There are no
ISOFIX anchorages provided for the
centre rear seating position.
WARNING
Do not attempt to install a Child
Restraint System using ISOFIX
anchorages in the rear centre
seating position. There are no ISOFIX
anchorages provided for this seat.
Using the outboard seat anchorages,
for the CRS installation on the rear
centre seating position, can damage
the anchorages.

3-37
03
OBC3030015
OBC3030016
[A] : ISOFIX Anchorage Position Indicator,
[B] : ISOFIX Anchorage
The ISOFIX anchorages symbols are
located on the left and right rear seat
cushions to identify the position of
the ISOFIX anchorages in your vehicle
(see arrows in illustration). Both rear
outboard seats are equipped with a
pair of ISOFIX anchorages as well as a
corresponding top-tether anchorage on
the back side of the rear seats.
(Child Restraint Systems with universal
approval according to ECE-R44 or ECE-
R129 need to be fixed additionally with a
top-tether connected to the back side of
the rear seats.)
ISOFIX anchorages are located the seat
cushion of the rear seat left and right
outboard seating positions.
To use the ISOFIX anchorages, open the
zipper if equipped.
Securing a Child Restraint System
with the “ISOFIX Anchorage
System”
To install a ISOFIX-compatible Child
Restraint System in either of the rear
outboard seating positions:
1. Move the seat belt buckle away from
the ISOFIX anchorages.
2. Move any other objects away from
the anchors that could prevent a
secure connection between the Child
Restraint System and the ISOFIX
anchorages.
3. Place the Child Restraint System on
the vehicle seat, then attach the seat
to the ISOFIX anchorages according to
the instructions provided by the Child
Restraint System manufacturer.
4. Follow the instructions of the Child
Restraint System’s manufacturer for
proper installation and connection
of the ISOFIX attachments on the
Child Restraint System to the ISOFIX
anchorages.

3-38
Safety system
WARNING
Take the following precautions when
using the ISOFIX system:

[Read and follow all installation
instructions provided with your Child
Restraint System.

[To prevent the child from reaching
and taking hold of unretracted
seat belts, buckle all unused rear
seat belts and retract the seat belt
webbing behind the child. Children
can be strangled if a shoulder belt
becomes wrapped around their neck
and the seat belt tightens.

[NEVER attach more than one
Child Restraint System to a single
anchorage. This could cause the
anchor or attachment to come loose
or break.

[Always have the ISOFIX system
inspected by your dealer after an
accident. An accident can damage
the ISOFIX system and may not
properly secure the Child Restraint
System.
Securing a Child Restraint System
seat with “Top-tether Anchorage”
system
OBC3030017
Top-tether anchorages for Child
Restraint Systems are located on the
rear of the seatback.
OBC3030018
1. Route the Child Restraint System seat
strap over the seatback.
For vehicles with adjustable head
restraint, route the tether strap under
the head restraint and between the
head restraint posts, otherwise route
the tether strap over the top of the
seatback.
2. Connect the top-tether to the top-
tether anchorage, then tighten
the top-tether according to the
instructions of your Child Restraint
System’s manufacturer to firmly
attach the Child Restraint System to
the seat.

3-39
03
WARNING
Take the following precautions when
installing the top-tether:

[Read and follow all installation
instructions provided with your Child
Restraint System.

[NEVER attach more than one Child
Restraint System to a single ISOFIX
top-tether anchorage. This could
cause the anchorage or attachment
to come loose or break.

[Do not attach the top-tether to
anything other than the correct top-
tether anchorage. It may not work
properly if attached to something
else.

[Child Restraint anchorages are
designed to withstand only those
loads imposed by correctly fitted
Child Restraint System.
Under no circumstances are they
to be used for adult seat belts or
harnesses or for attaching other
items or equipment to the vehicle.
Securing a Child Restraint System
with a lap/shoulder belt
When not using the ISOFIX system, all
Child Restraint Systems must be secured
to a rear seat with the lap part of a lap/
shoulder belt.
OHI038145
Installing a Child Restraint System
with a lap/shoulder belt
To install a Child Restraint System on the
rear seats, do the following:
1. Place the Child Restraint System on a
rear seat and route the lap/ shoulder
belt around or through the restraint,
following the restraint manufacturer’s
instructions. Make sure the seat belt
webbing is not twisted.
i Information
When using the rear centre seat belt, you
should also refer to the “Rear Centre Seat
Belt” in this chapter.
