[x] Cancel search: parking brakePage 48 of 649
3-11
03
WARNING
When you return the rear seatback to
its upright position after being folded
down:
Be careful not to damage the seat belt
webbing or buckle. Do not allow the
seat belt webbing or buckle to get
caught or pinched in the rear seat.
Ensure that the seatback is completely
locked into its upright position by
pushing on the top of the seatback.
Otherwise, in an accident or sudden
stop, the seat could fold down and
allow cargo to enter the passenger
compartment, which could result in
serious injury or death.
NOTICE
[ When returning the rear seatbacks
to the upright position, remember to
return the rear shoulder belts to their
proper position.
[ Routing the seat belt webbing
through the rear seat belt guides will
help keep the seat belts from being
trapped behind or under the seats.
WARNING
Cargo
Cargo should always be secured to
prevent it from being thrown about the
vehicle in a collision and causing injury
to the vehicle occupants. Do not place
objects in the rear seats, since they
cannot be properly secured and may hit
the front seat occupants in a collision.
WARNING
Cargo loading
Make sure the engine is off, the
Automatic transmission/Dual clutch
transmission is in N (Neutral) or the
Manual transmission is in R (Reverse)
or the 1st gear, and the parking brake is
securely applied whenever loading or
unloading cargo. Failure to take these
steps may allow the vehicle to move if
the shift lever is inadvertently moved to
another position.
Page 106 of 649
4-11
04
Parking Brake & Brake
fluid warning light
7 K L V Z D U Q L Q J O L J K W L O O X P L Q D W H V
[ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The parking brake & brake fluid
warning light illuminates for about 3
seconds and will then turn off once
the parking brake is released.
[ When the parking brake is applied.
[ When the brake fluid level in the
reservoir is low.
- If the warning light illuminates with
the parking brake released, it indicates
the brake fluid level in the reservoir is
low.
, I W K H E U D N H I O X L G O H Y H O L Q W K H U H V H U-
Y R L U L V O R Z
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (For more details,
refer to “Brake Fluid” in chapter 9).
After adding brake fluid, check all
brake components for fluid leaks. If
a brake fluid leak is found, or if the
warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. We recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
' X D O G L D J R Q D O E U D N L Q J V \ V W H P
Your vehicle is equipped with dual-
diagonal braking systems. This means
you still have braking on two wheels
even if one of the dual systems should
fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure are required
to stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If the brakes fail whilst you are driving,
shift to a lower gear for additional
engine braking and stop the vehicle as
soon as it is safe to do so.
WARNING
Parking Brake & Brake Fluid warning
light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake
& Brake Fluid warning light illuminates
with the parking brake released, it
indicates that the brake fluid level is
low.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Page 107 of 649
4-12
Instrument cluster
Anti-lock Brake System
(ABS) warning light
7 K L V Z D U Q L Q J O L J K W L O O X P L Q D W H V
[ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The ABS warning light illuminates for
about 3 seconds and then goes off.
[ Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking system
will still be operational even if there is
a malfunction with the ABS.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Electronic Brake Force
Distribution (EBD)
system warning light
7 K H V H W Z R Z D U Q L Q J O L J K W V L O O X P L Q D W H
D W W K H V D P H W L P H Z K L O V W G U L Y L Q J
[ When the ABS warning and
Parking Brake warning lights are on
simultaneously, it may indicate a
problem with the Electronic Brake
Force Distribution system.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
WARNING
Electronic Brake Force Distribution
(EBD) system warning light
When both ABS and Parking Brake &
Brake Fluid warning lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
In this case, avoid high speed driving
and abrupt braking.
We recommend you have the vehicle
inspected by a HYUNDAI authorised
repairer as soon as possible.
i Information
Electronic Brake Force Distribution
(EBD) system warning light
: K H Q W K H $ % 6 : D U Q L Q J / L J K W L V R Q
R U E R W K $ % 6 D Q G 3 D U N L Q J % U D N H
% U D N H ) O X L G Z D U Q L Q J O L J K W V D U H R Q W K H
V S H H G R P H W H U R G R P H W H U R U W U L S P H W H U P D \
Q R W Z R U N $ O V R W K H ( 3 6 Z D U Q L Q J O L J K W
P D \ L O O X P L Q D W H D Q G W K H V W H H U L Q J H I I R U W
P D \ L Q F U H D V H R U G H F U H D V H
, I W K L V R F F X U V Z H U H F R P P H Q G \ R X K D Y H
W K H Y H K L F O H L Q V S H F W H G E \ D + < 8 1 ' $ ,
D X W K R U L V H G U H S D L U H U D V V R R Q D V S R V V L E O H
Page 124 of 649
4-29
04
User settings mode
(if equipped)
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. Cluster
3. Lights
4. Door
5. Convenience
6. Units
7. Language
8. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.
6 K L I W W R 3 W R H G L W V H W W L Q J V ( Q J D J H
S D U N L Q J E U D N H W R H G L W V H W W L Q J V
This warning message illuminates if
you try to select an item from the User
Settings mode whilst driving.
[ $ X W R P D W L F W U D Q V P L V V L R Q , Q W H O O L J H Q W
variable transmission
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and
moving the shift level to P(Park).
[ 0 D Q X D O W U D Q V P L V V L R Q
For your safety, change the User
Settings after engaging the parking
brake.
4 X L F N J X L G H + H O S
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.
Page 157 of 649
![HYUNDAI I20 2023 Owners Manual 5-16
Convenient features
WARNING
[ 7 K H G R R U V V K R X O G D O Z D \ V E H I X O O \
closed and locked whilst the
vehicle is in motion. If the doors
are unlocked, the risk of be](/manual-img/35/56129/w960_56129-156.png "HYUNDAI I20 2023 Owners Manual 5-16
Convenient features
WARNING
[ 7 K H G R R U V V K R X O G D O Z D \ V E H I X O O \
closed and locked whilst the
vehicle is in motion. If the doors
are unlocked, the risk of be")
5-16
Convenient features
WARNING
[ 7 K H G R R U V V K R X O G D O Z D \ V E H I X O O \
closed and locked whilst the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.
[ ' R Q R W S X O O W K H L Q Q H U G R R U K D Q G O H R I
the driver’s or passenger’s door whilst
the vehicle is moving.
WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle.
Children might operate features of the
vehicle that could injure them, or they
could encounter other harm, possibly
from someone gaining entry to the
vehicle.
WARNING
Always secure your vehicle
Leaving your vehicle unlocked can
allow theft or entry into the vehicle.
To secure your vehicle, whilst
depressing the brake, move the shift
lever to the N (Neutral) position (for
Automatic transmission/Dual clutch
transmission) or the first gear or R
(Reverse, for Manual transmission),
engage the parking brake, and place
W K H L J Q L W L R Q V Z L W F K L Q W K H / 2 & . 2 ) )
position, close all windows, lock all
doors, and always take the key with
you.
WARNING
If you stay in the vehicle for a long time
whilst the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
WARNING
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching
the vehicle in the path of the door.
Deadlocks (if equipped)
Some vehicles are equipped with a
deadlock system. Deadlocks prevent
opening of a door from either inside
or outside the vehicle once the dead-
locks have been activated providing
an additional measure of vehicle
security.
To lock the vehicle using the dead-
lock function, the doors must be
locked by using the remote key or
smart key. To unlock the vehicle, the
transmitter or smart key must be used
again.
WARNING
Do not lock the doors with the
remote key or the smart key with
anybody left in the vehicle. The
passenger in the vehicle cannot
unlock the doors with the door
lock button. For example, if the
door is locked with the remote key,
the passenger in the vehicle can-
not unlock the door without the
transmitter.
Page 177 of 649
5-36
Convenient features

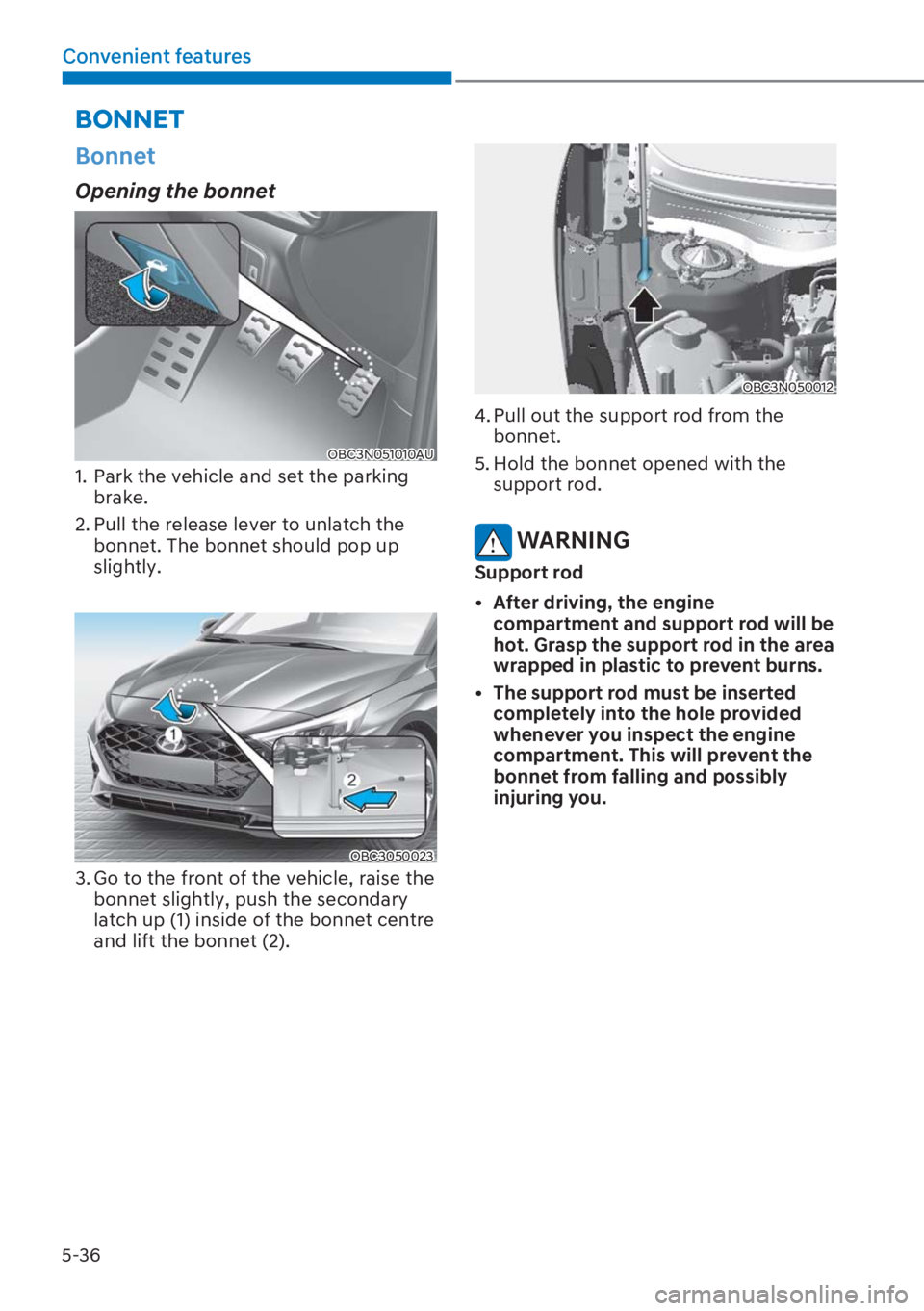

Bonnet
Opening the bonnet
OBC3N051010AU
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
bonnet. The bonnet should pop up
slightly.
OBC3050023
3. Go to the front of the vehicle, raise the
bonnet slightly, push the secondary
latch up (1) inside of the bonnet centre
and lift the bonnet (2).
OBC3N050012
4. Pull out the support rod from the
bonnet.
5. Hold the bonnet opened with the
support rod.
WARNING
Support rod
[ After driving, the engine
compartment and support rod will be
hot. Grasp the support rod in the area
wrapped in plastic to prevent burns.
[ The support rod must be inserted
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent the
bonnet from falling and possibly
injuring you.
BONNET
Page 182 of 649
5-41
05
[ Do not get back into a vehicle
once you have begun refuelling.
You can generate a build-up of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapours
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other petrol source, with your bare
hand.
[ When refuelling, always move the
shift lever to the N (Neutral, for
Automatic transmission/Dual clutch
transmission) or the first gear or R
(Reverse, for Manual transmission)
position, set the parking brake,
and place the ignition switch to the
/ 2 & . 2 ) ) S R V L W L R Q 6 S D U N V S U R G X F H G
by electrical components related to
the engine can ignite fuel vapours
causing a fire.
[ When using an approved portable
fuel container, be sure to place
the container on the ground prior
to refuelling. Static electricity
discharge from the container can
ignite fuel vapours causing a fire.
Once refuelling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.
[ Use only approved portable plastic
fuel containers designed to carry and
store petrol.[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle whilst at a gas station,
especially during refuelling.
[ Do not over-fill or top-off your
vehicle tank, which can cause petrol
spillage.
[ If a fire breaks out during refuelling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
W K H O R F D O I L U H G H S D U W P H Q W ) R O O R Z D Q \
safety instructions they provide.
[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.
[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
i Information
0 D N H V X U H W R U H I X H O \ R X U Y H K L F O H
D F F R U G L Q J W R W K H
Page 188 of 649

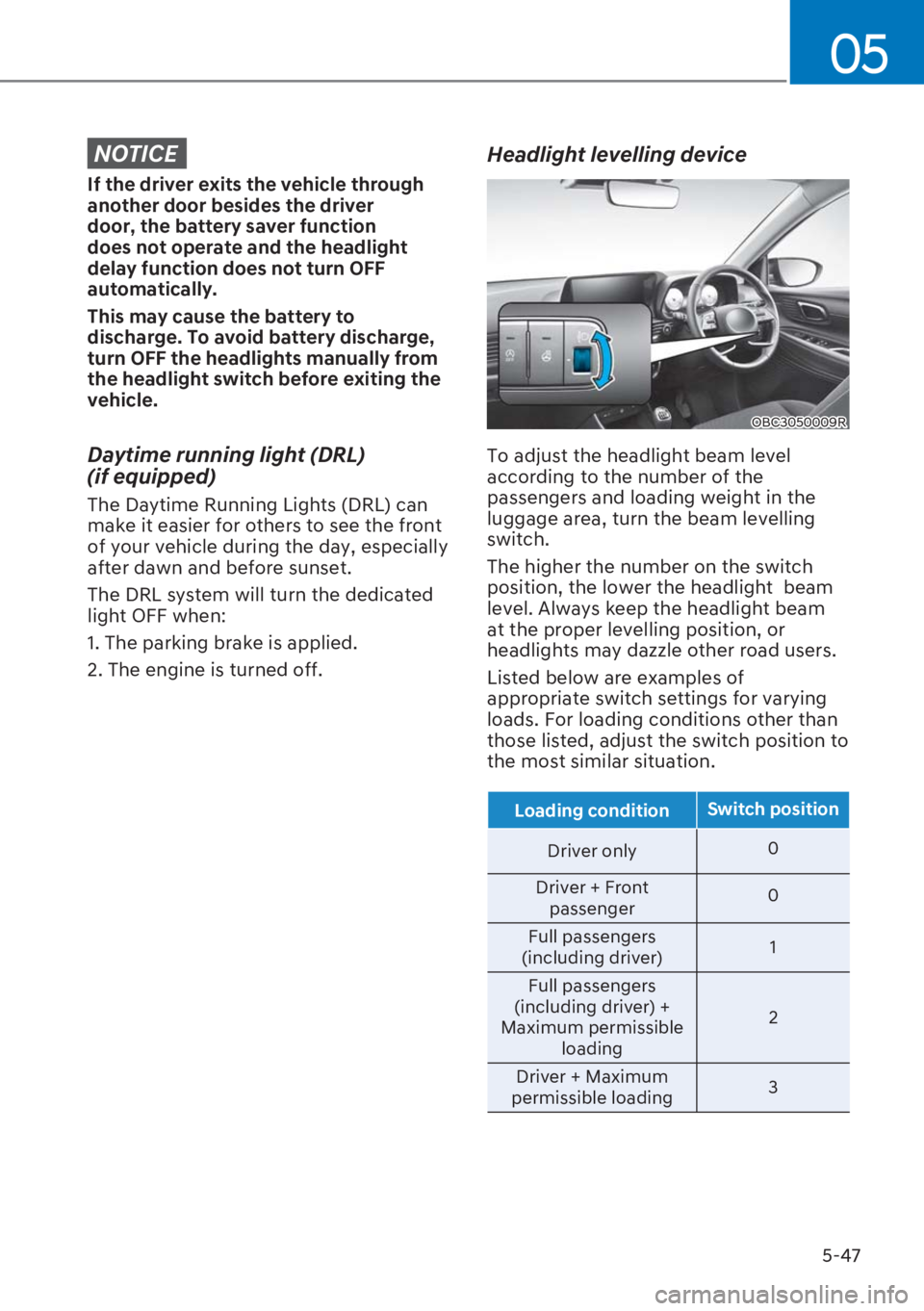

5-47
05
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlight
G H O D \ I X Q F W L R Q G R H V Q R W W X U Q 2 ) )
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
W X U Q 2 ) ) W K H K H D G O L J K W V P D Q X D O O \ I U R P
the headlight switch before exiting the
vehicle.
Daytime running light (DRL)
(if equipped)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
light OFF when:
1. The parking brake is applied.
2. The engine is turned off.
Headlight levelling device
OBC3050009R
To adjust the headlight beam level
according to the number of the
passengers and loading weight in the
luggage area, turn the beam levelling
switch.
The higher the number on the switch
position, the lower the headlight beam
level. Always keep the headlight beam
at the proper levelling position, or
headlights may dazzle other road users.
Listed below are examples of
appropriate switch settings for varying
loads. For loading conditions other than
those listed, adjust the switch position to
the most similar situation.
Loading conditionSwitch position
Driver only0
Driver + Front
passenger0
Full passengers
(including driver)1
Full passengers
(including driver) +
Maximum permissible
loading2
Driver + Maximum
permissible loading 3
