4-13
04
Electric Power Steering
(EPS) warning light
7 K L V Z D U Q L Q J O L J K W L O O X P L Q D W H V
[ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The electric powering steering
warning light illuminates for about 3
seconds and then goes off.
[ Whenever there is a malfunction with
the electric power steering.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Malfunction Indicator
Lamp (MIL)
7 K L V Z D U Q L Q J O L J K W L O O X P L Q D W H V
[ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.
[ Whenever there is a malfunction with
either the emission control system or
the engine or the vehicle powertrain.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
NOTICE
[ Driving with the Malfunction
Indicator Lamp (MIL) on may cause
damage to the emission control
system which could affect drivability
and/or fuel economy.
[ If the enhanced engine protection
system becomes activated due to
lack of engine oil, engine power
will be limited. If such condition
continues repeatedly, the
Malfunction Indicator Lamp will
illuminate.
CAUTION
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer as soon
as possible.
Charging system
warning light
7 K L V Z D U Q L Q J O L J K W L O O X P L Q D W H V
When there is a malfunction with either
the alternator or electrical charging
system.
Page 109 of 649
4-14
Instrument cluster
, I W K H U H L V D P D O I X Q F W L R Q Z L W K H L W K H U
W K H D O W H U Q D W R U R U H O H F W U L F D O F K D U J L Q J
V \ V W H P
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. Turn the engine off and check the
alternator drive belt for looseness or
breakage.
If the belt is adjusted properly, there
may be a problem in the electrical
charging system.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer as soon
as possible.
Engine oil pressure
warning light
7 K L V Z D U Q L Q J O L J K W L O O X P L Q D W H V
When the engine oil pressure is low.
, I W K H H Q J L Q H R L O S U H V V X U H L V O R Z
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. Turn the engine off and check the
engine oil level (For more details,
refer to “Engine Oil” in chapter 9). If
the level is low, add oil as required.
If the warning light remains on after
adding oil or if oil is not available, we
recommend that you have the vehicle
inspected by a HYUNDAI authorised
repairer as soon as possible.
i Information
: K H Q H Q J L Q H R L O S U H V V X U H G H F U H D V H V G X H W R
L Q V X I I L F L H Q W H Q J L Q H R L O H W F W K H ( Q J L Q H 2 L O
3 U H V V X U H Z D U Q L Q J O L J K W Z L O O L O O X P L Q D W H , Q
D G G L W L R Q W K H H Q K D Q F H G H Q J L Q H S U R W H F W L R Q
V \ V W H P Z K L F K O L P L W V H Q J L Q H S R Z H U Z L O O
E H D F W L Y D W H G , I W K H H Q J L Q H R L O S U H V V X U H L V
U H V W R U H G W K H ( Q J L Q H 2 L O 3 U H V V X U H Z D U Q L Q J
O L J K W D Q G W K H H Q K D Q F H G H Q J L Q H S U R W H F W L R Q
V \ V W H P Z L O O W X U Q R I I
NOTICE
[ If the engine is not stopped
immediately after the Engine Oil
Pressure Warning Light is illuminated,
severe damage could result.
[ If the warning light stays on whilst
the engine is running, it indicates
that there may be serious engine
damage or malfunction. In this case:
1. Stop the vehicle as soon as it is safe
to do so.
2. Turn off the engine and check the
oil level. If the oil level is low, fill
the engine oil to the proper level.
3. Start the engine again. If the
warning light stays on after the
engine is started, turn the engine
off immediately. In this case, we
recommend that you have the
vehicle inspected by a HYUNDAI
authorised repairer.
Page 128 of 649
4-33
04
' R R U
ItemsExplanation
Automatically
lock[ ( Q D E O H R Q 6 K L I W $ O O G R R U V Z L O O E H D X W R P D W L F D O O \ O R F N H G L I W K H V K L I W
button is shifted from the P (Park) position to the R (Reverse), N
(Neutral), or D (Drive) position. (only when the engine is running.)
[ ( Q D E O H R Q 6 S H H G $ O O G R R U V Z L O O E H D X W R P D W L F D O O \ O R F N H G Z K H Q W K H
vehicle speed exceeds 9.3mph (15km/h).
[ 2 I I 7 K H D X W R G R R U O R F N R S H U D W L R Q Z L O O E H G H D F W L Y D W H G
Automatically
unlock[ 2 Q 6 K L I W W R 3 $ O O G R R U V Z L O O E H D X W R P D W L F D O O \ X Q O R F N H G L I W K H V K L I W
button is shifted to the P (Park) position. (only when the engine is
running.)
[ 2 Q N H \ R X W 2 Q Y H K L F O H R I I $ O O G R R U V Z L O O E H D X W R P D W L F D O O \ X Q O R F N H G
when the ignition key is removed from the ignition switch or the
Engine Start/Stop button is set to the OFF position.
[ 2 I I 7 K H D X W R G R R U X Q O R F N R S H U D W L R Q Z L O O E H F D Q F H O O H G
& R Q Y H Q L H Q F H
ItemsExplanation
Rear occupant
alertTo activate or deactivate the Rear Occupant Alert.
For more details, refer to "Rear Occupant Alert (ROA) system" in
chapter 5.
Welcome mirror[ 2 Q G R R U X Q O R F N 7 K H R X W V L G H U H D U Y L H Z P L U U R U V D U H X Q I R O G H G
automatically when the doors are unlocked.
[ 2 Q G U L Y H U D S S U R D F K 7 K H R X W V L G H U H D U Y L H Z P L U U R U V D U H X Q I R O G H G
automatically when the vehicle is approached with the smart key.
For more details, refer to ''Welcome System'' in chapter 5.
Wireless
charging systemTo activate or deactivate the wireless charging system in the front seat.
For more details, refer to "Wireless cellular phone charging system" in
chapter 5.
Auto rear wiper
(in R)To activate or deactivate the Auto Rear Wiper function.If you move the
shift button from D to R when the front wiper operates, the rear wiper
will operate automatically. Then, if you move the shift button from R to
D, the rear wiper will stop.
Advanced anti-
theftTo activate or deactivate the Advanced Anti-Theft function.
Vehicle auto-
shut OffTo activate or deactivate the Vehicle Auto-Shut Off function.
Service interval[ 6 H U Y L F H L Q W H U Y D O
To activate or deactivate the service interval function.
[ $ G M X V W L Q W H U Y D O
If the service interval menu is activated, you may adjust the time and
distance.
[ 5 H V H W
To reset the service interval.
❈ The information provided may differ depending on which functions are applicable
to your vehicle.
Page 143 of 649
5
Wipers and washers ...................................................................................... 5-54Windscreen wipers .................................................................................................. 5-54
Windscreen washers ............................................................................................... 5-55
Rear window wiper and washer switch ................................................................. 5-56
Manual climate control system .................................................................... 5-57Heating and air conditioning .................................................................................. 5-58
System operation .................................................................................................... 5-62
System maintenance .............................................................................................. 5-64
Automatic climate control system ...............................................................5-66Automatic heating and air conditioning ................................................................ 5-67
Manual heating and air conditioning ..................................................................... 5-68
System operation ..................................................................................................... 5-72
System maintenance ............................................................................................... 5-75
Windscreen defrosting and defogging ......................................................... 5-77Manual climate control system ............................................................................... 5-77
Automatic climate control system ..........................................................................5-78
Auto defogging system (only for automatic climate control system) ..................5-79
Defroster .................................................................................................................. 5-80
Storage compartment .................................................................................. 5-82Centre console storage ........................................................................................... 5-82
Glove box ................................................................................................................. 5-83
Interior features ............................................................................................ 5-84Ashtray ..................................................................................................................... 5-84
Cup holder ............................................................................................................... 5-84
Sliding armrest ........................................................................................................ 5-85
Sunvisor ................................................................................................................... 5-85
Power outlet ............................................................................................................ 5-86
USB charger ............................................................................................................. 5-87
Wireless mobile phone charging system ............................................................... 5-87
Clock ........................................................................................................................ 5-90
Coat hook ................................................................................................................. 5-90
Floor mat anchor(s) .................................................................................................. 5-91
Luggage net (holder) ............................................................................................... 5-92
Cargo area cover ..................................................................................................... 5-92
Page 194 of 649
5-53
05

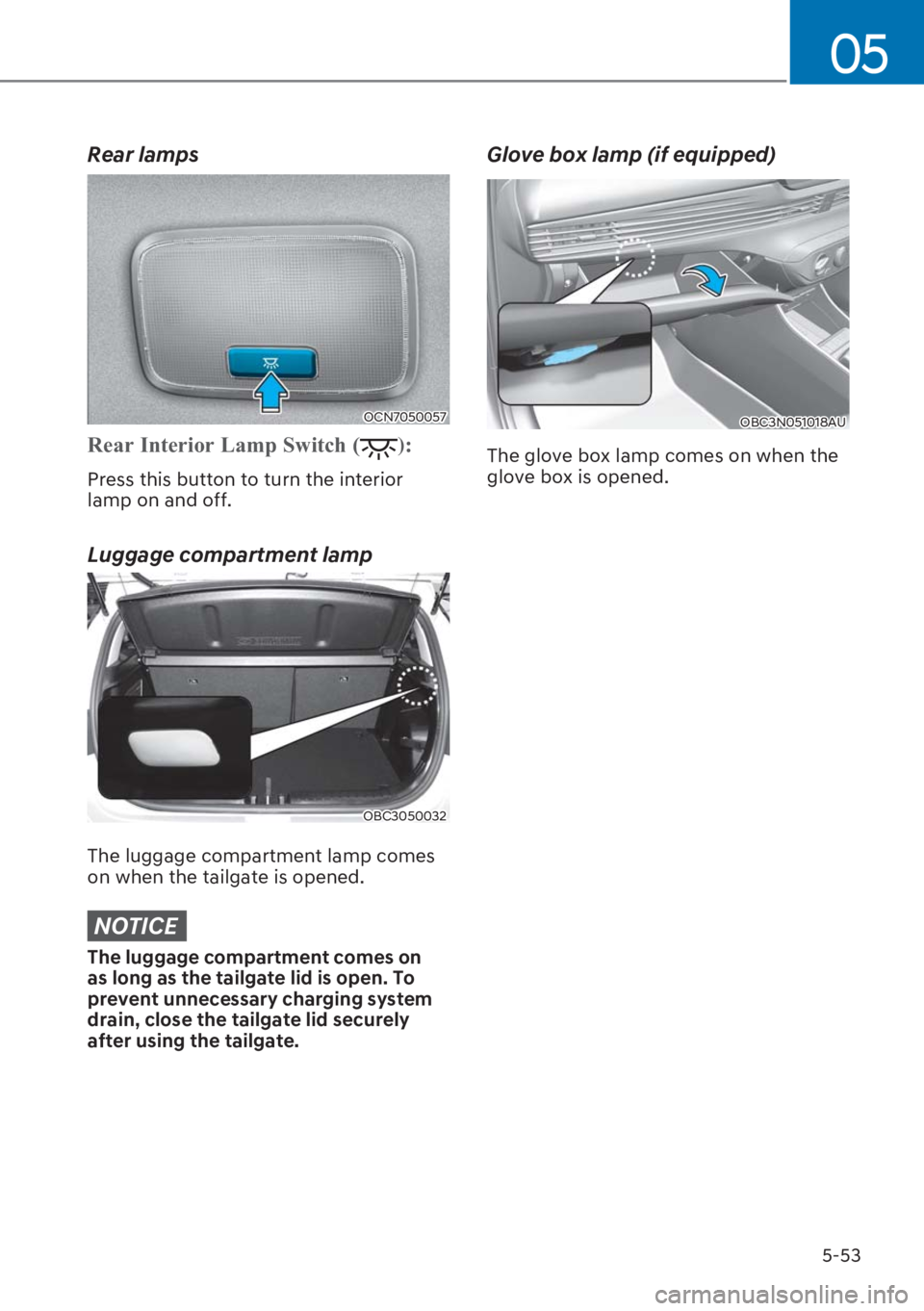

Rear lamps
OCN7050057
5 H D U , Q W H U L R U / D P S 6 Z L W F K ):
Press this button to turn the interior
lamp on and off.
Luggage compartment lamp
OBC3050032
The luggage compartment lamp comes
on when the tailgate is opened.
NOTICE
The luggage compartment comes on
as long as the tailgate lid is open. To
prevent unnecessary charging system
drain, close the tailgate lid securely
after using the tailgate.
Glove box lamp (if equipped)
OBC3N051018AU
The glove box lamp comes on when the
glove box is opened.
Page 228 of 649
5-87
05

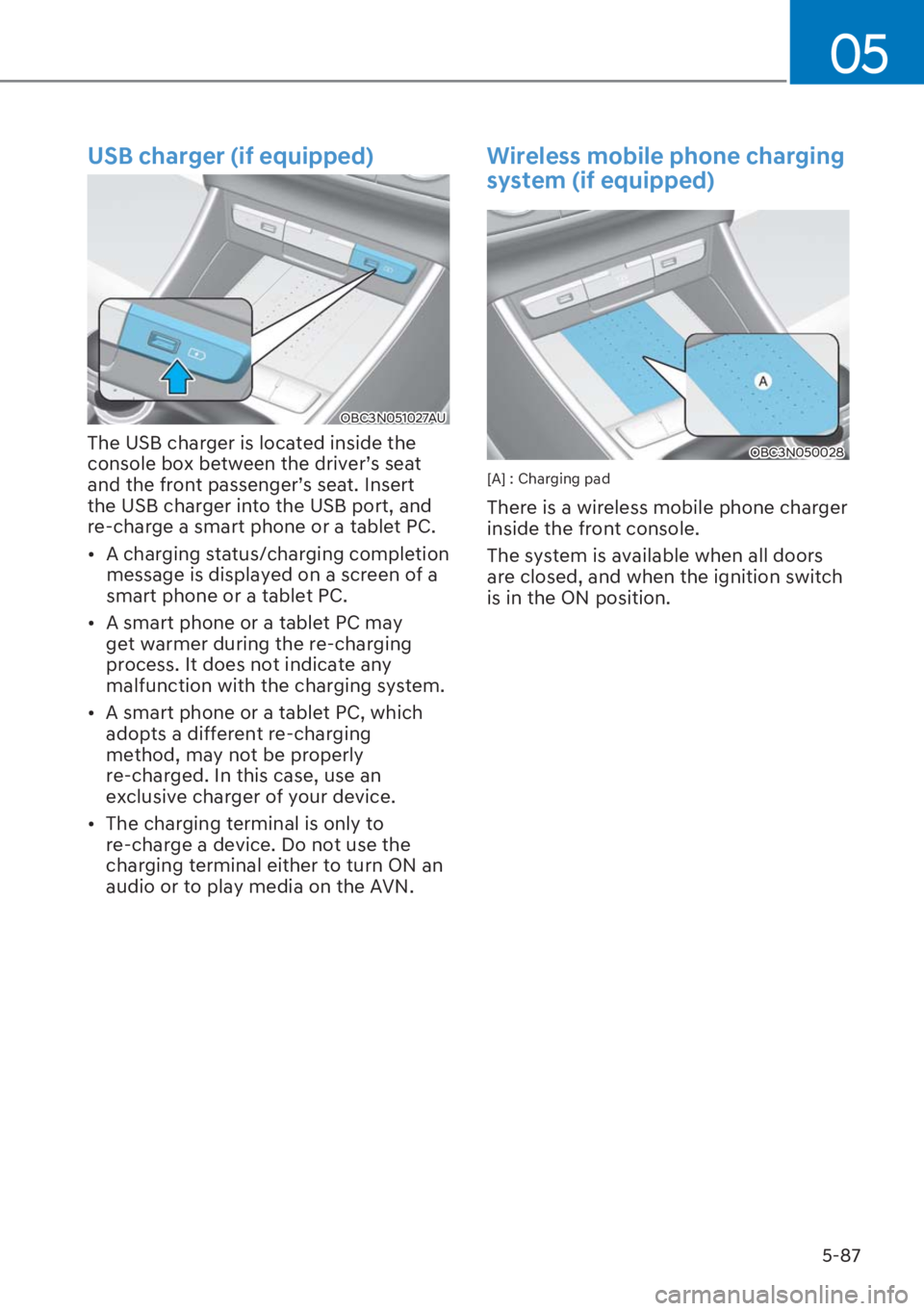

USB charger (if equipped)
OBC3N051027AU
The USB charger is located inside the
F R Q V R O H E R [ E H W Z H H Q W K H G U L Y H UT V V H D W
D Q G W K H I U R Q W S D V V H Q J H UT V V H D W , Q V H U W
the USB charger into the USB port, and
re-charge a smart phone or a tablet PC.
[ $ F K D U J L Q J V W D W X V F K D U J L Q J F R P S O H W L R Q
message is displayed on a screen of a
smart phone or a tablet PC.
[ $ V P D U W S K R Q H R U D W D E O H W 3 & P D \
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.
[ $ V P D U W S K R Q H R U D W D E O H W 3 & Z K L F K
adopts a different re-charging
method, may not be properly
re-charged. In this case, use an
exclusive charger of your device.
[ 7 K H F K D U J L Q J W H U P L Q D O L V R Q O \ W R
re-charge a device. Do not use the
charging terminal either to turn ON an
audio or to play media on the AVN.
Wireless mobile phone charging
system (if equipped)
OBC3N050028
[A] : Charging pad
There is a wireless mobile phone charger
inside the front console.
The system is available when all doors
are closed, and when the ignition switch
is in the ON position.
Page 229 of 649
5-88
Convenient features
To charge a mobile phone
The wireless mobile phone charging
system charges only the Qi-enabled
mobile phones (
). Read the label on
the mobile phone accessory cover or
Y L V L W \ R X U P R E L O H S K R Q H P D Q X I D F W X U H UT V
website to check whether your mobile
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled mobile
phone on the wireless charging unit.
1. Remove other items, including the
smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place
the mobile phone on the centre of
charging pad.
2. The indicator light is orange when
the mobile phone is charging. The
indicator light turns green when phone
charging is complete.
3. You can turn ON or OFF the wireless
charging function in the User Settings
mode on the instrument cluster. For
further information, refer to the “LCD
Display Modes” in this chapter 4.
If your mobile phone is not charging:
- Slightly change the position of the
mobile phone on the charging pad.
- Make sure the indicator light is orange.
The indicator light will blink orange for
10 seconds if there is a malfunction in
the wireless charging system.
In this case, temporarily stop the
charging process, and re-attempt to
wirelessly charge your mobile phone.
The system warns you with a message
on the LCD display if the mobile phone
is still on the wireless charging unit after
the engine is turned OFF and the front
door is opened.
) R U V R P H P D Q X I D F W X U H U VT P R E L O H S K R Q H V
the system may not warn you even
though the mobile phone is left on the
wireless charging unit. This is due to the
particular characteristic of the mobile
phone and not a malfunction of the
wireless charging.
Page 230 of 649
5-89
05
NOTICE
[ 7 K H Z L U H O H V V P R E L O H S K R Q H F K D U J L Q J
system may not support certain
mobile phones, which are not verified
for the Qi specification (
).
[ : K H Q S O D F L Q J \ R X U P R E L O H S K R Q H R Q
the charging mat, position the phone
in the middle of the mat for optimal
charging performance. If your mobile
phone is off to the side, the charging
rate may be less and in some cases
the mobile phone may experience
higher heat conduction.
[ , Q V R P H F D V H V W K H Z L U H O H V V F K D U J L Q J
may stop temporarily when the
5 H P R W H . H \ R U 6 P D U W . H \ L V X V H G
either when starting the vehicle or
locking/unlocking the doors, etc.
[ : K H Q F K D U J L Q J F H U W D L Q P R E L O H
phones, the charging indicator may
not change to green when the mobile
phone is fully charged.
[ 7 K H Z L U H O H V V F K D U J L Q J S U R F H V V P D \
temporarily stop, when temperature
abnormally increases inside the
wireless mobile phone charging
system. The wireless charging
process restarts, when temperature
falls to a certain level.
[ 7 K H Z L U H O H V V F K D U J L Q J S U R F H V V P D \
temporarily stop when there is
any metallic item, such as a coin,
between the wireless mobile phone
charging system and a mobile phone. [ : K H Q F K D U J L Q J V R P H P R E L O H S K R Q H V
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.
[ , I W K H P R E L O H S K R Q H K D V D W K L F N F R Y H U
the wireless charging may not be
possible.
[ , I W K H P R E L O H S K R Q H L V Q R W F R P S O H W H O \
contacting the charging pad, wireless
charging may not operate properly.
[ 6 R P H P D J Q H W L F L W H P V F U H G L W F D U G V
phone cards, passbook and tickets)
may be damaged whilst using the
wireless charging process.
[ : K H Q D Q \ P R E L O H S K R Q H Z L W K R X W
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the mobile phone in any way.
· Some mobile phones may not be
able to put on the charging pad due
to their size. In this case, wireless
charging may be limited.
i Information
, I W K H L J Q L W L R Q V Z L W F K L V L Q W K H / 2 & . 2 ) )
position, the charging also stops.
