Instrument cluster
LCD display modes
Modes Symbol Explanation
Trip
ComputerThis mode displays driving information such as the tripmeter,
fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By
Turn (TBT)
This mode displays the state of the navigation.
Driving
Assist
- Smart Cruise Control
- Drive Attention Warning
- Intelligent Speed Limit Warning
User
Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
- This mode displays warning messages related to the
lamp malfunction, etc.
- Tyre pressure information
The information provided may differ depending on which functions are applicable
to your vehicle.

4-27
04
Trip computer mode
OIK047124N
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) group
OIK047151N
This group displays the state of the
navigation.
Driving Assist mode
OBC3070041
6&&,6/$
This mode displays the state of Smart
Cruise Control, Intelligent Speed Limit
Assist.
For more details, refer to each system
information Section in chaptet 7.
OBC3070068
'ULYHU$WWHQWLRQ:DUQLQJ
LIHTXLSSHG
This group displays information related
to Driver Attention Warning.
For more details, refer to "Driver
Attention Warning (DAW)" in chapter 7.

4-28
Instrument cluster

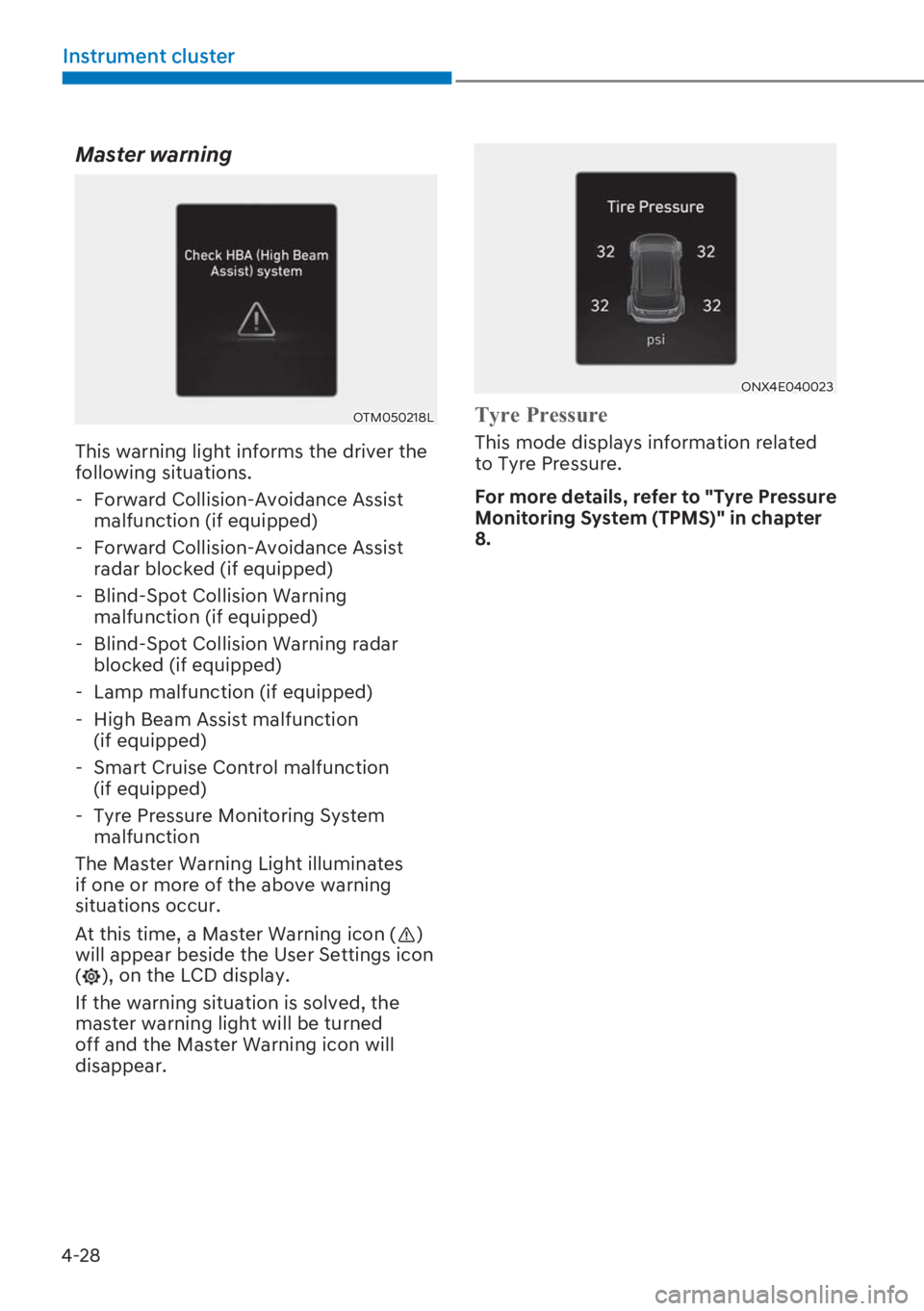

Master warning
OTM050218L
This warning light informs the driver the
following situations.
- Forward Collision-Avoidance Assist
malfunction (if equipped)
- Forward Collision-Avoidance Assist
radar blocked (if equipped)
- Blind-Spot Collision Warning
malfunction (if equipped)
- Blind-Spot Collision Warning radar
blocked (if equipped)
- Lamp malfunction (if equipped)
- High Beam Assist malfunction
(if equipped)
- Smart Cruise Control malfunction
(if equipped)
- Tyre Pressure Monitoring System
malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
ONX4E040023
7\UH3UHVVXUH
This mode displays information related
to Tyre Pressure.
For more details, refer to "Tyre Pressure
Monitoring System (TPMS)" in chapter
8.

4-29
04
User settings mode
(if equipped)
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. Cluster
3. Lights
4. Door
5. Convenience
6. Units
7. Language
8. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.
6KLIWWR3WRHGLWVHWWLQJV(QJDJH
SDUNLQJEUDNHWRHGLWVHWWLQJV
This warning message illuminates if
you try to select an item from the User
Settings mode whilst driving.

[$XWRPDWLFWUDQVPLVVLRQ,QWHOOLJHQW
variable transmission
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and
moving the shift level to P(Park).

[0DQXDOWUDQVPLVVLRQ
For your safety, change the User
Settings after engaging the parking
brake.
4XLFNJXLGH+HOS
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.

4-30
Instrument cluster
'ULYHU$VVLVWDQFH
ItemsExplanation
Drive
convenienceAuto highway speed control
To activate or deactivate the Auto highway speed Control.
For more details, refer to the ''Navigation-based Smart Cruise Control
(NSCC)'' in chapter 7.
Speed limitTo adjust the Speed Limit function.

[6SHHGOLPLWWROHUDQFH

[6SHHGOLPLWDVVLVW

[6/:6SHHG/LPLW:DUQLQJ

[2II
For more details, refer to the “Intelligent Speed Limit Assist (ISLA)” in
chapter 7.
Warning timingTo adjust the warning timing of the driver assistance system.

[1RUPDO/DWH
Warning volumeTo adjust the warning timing of the driver assistance system.

[+LJK0HGLXP/RZ2II
DAW (Drive
attention
warning)
[/HDGLQJYHKLFOHGHSDUWXUHDOHUW
To activate or deactivate the Leading vehicle departure alert.

[,QDWWHQWLYHGULYLQJZDUQLQJ
To activate or deactivate the Driver Attention Warning.
For more details, refer to the “Driver Attention Warning (DAW)” in
chapter 7.
Forward safetyTo adjust Forward Collision-Avoidance Assist function.

[$FWLYH$VVLVW

[:DUQLQJ2QO\

[2II
For more details, refer to the "Forward Collision-Avoidance Assist
(FCA)" in chapter 7.
Lane safetyTo adjust the Lane Keeping Assist function.

[/DQH.HHSLQJ$VVLVW

[/DQH'HSDUWXUH:DUQLQJ

[2II
For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.
Blind-spot
safetyTo activate or deactivate the Blind-Spot View Monitor.

[$FWLYH$VVLVW

[:DUQLQJ2QO\

[2II
For more details, refer to the "Blind-Spot View Moniter (BVM)" in
chapter 7.

4-31
04
ItemsExplanation

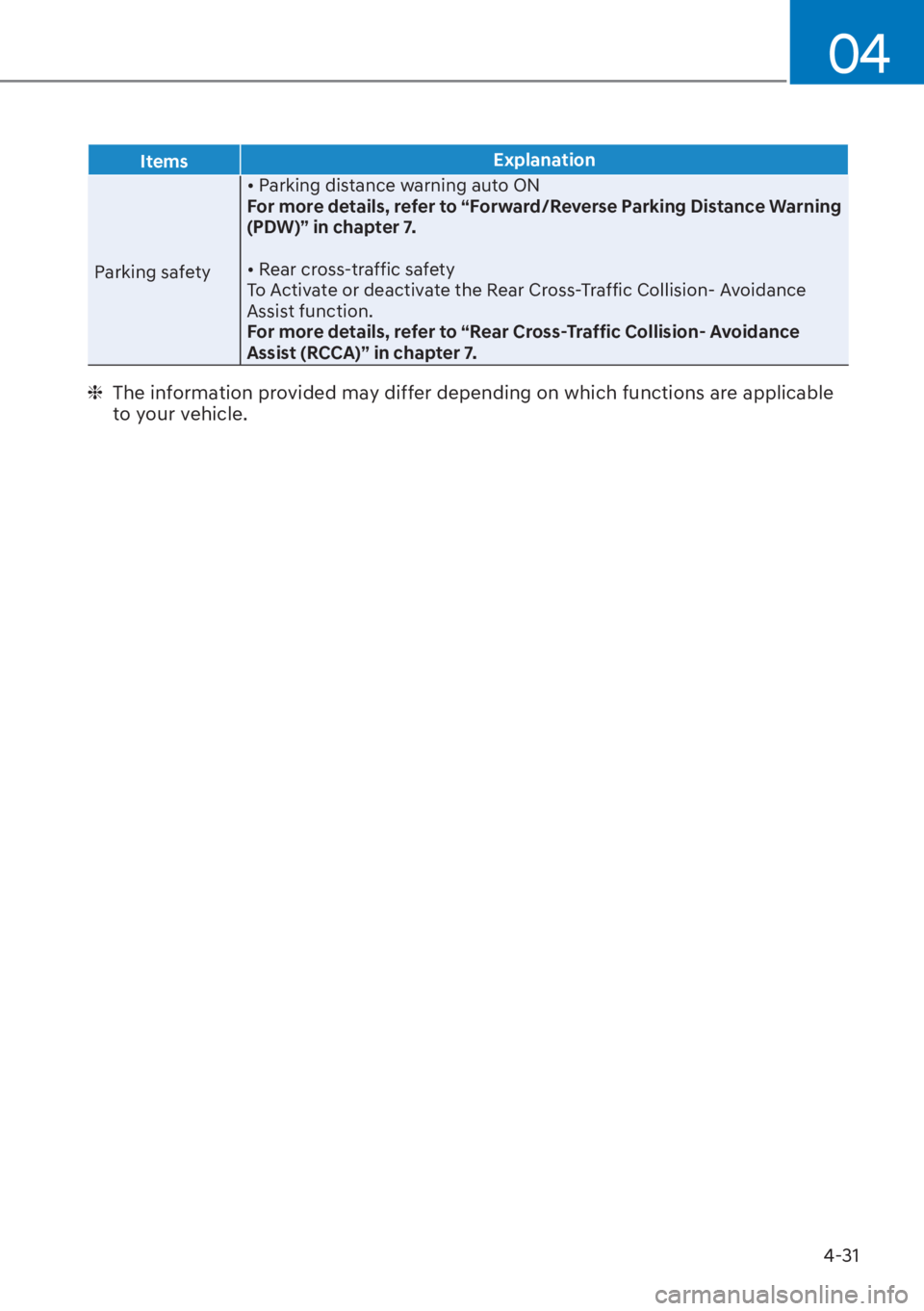

Parking safety
[3DUNLQJGLVWDQFHZDUQLQJDXWR21
For more details, refer to “Forward/Reverse Parking Distance Warning
(PDW)” in chapter 7.

[5HDUFURVVWUDIILFVDIHW\
To Activate or deactivate the Rear Cross-Traffic Collision- Avoidance
Assist function.
For more details, refer to “Rear Cross-Traffic Collision- Avoidance
Assist (RCCA)” in chapter 7.
❈ The information provided may differ depending on which functions are applicable
to your vehicle.

4-32
Instrument cluster
&OXVWHU
ItemsExplanation
Fuel economy
[$IWHUYHKLFOHUHVWDUW

[$IWHUUHIXHOLQJ

[$YHUDJH)XHO(FRQRP\
For more details, refer to "Trip Computer" in this chapter
Fuel economy
auto reset
[2II

[$WGULYLQJ

[$WUHIXHOOLQJ
For more details, refer to "Trip Computer" in this chapter
Wiper/Lights
displayTo activate or deactivate the Wiper/Light mode.When activated, the
LCD display shows the selected Wiper/Light mode whenever you
changed the mode.
Traffic signsTo set the traffic signs displayed.
Icy road warningTo activate or deactivate the icy road warning.
Welcome soundTo activate or deactivate the welcome sound.
Theme selectionYou can select the theme of the cluster.

[7\SH%&OXVWHU
Link to Drive Mode / Theme A / Theme B / Theme C / Theme D
/LJKWV
ItemsExplanation
IlluminationTo adjust the illumination level.

[/HYHOa
One touch turn
indicator
[2II7KHRQHWRXFKWXUQVLJQDOIXQFWLRQZLOOEHGHDFWLYDWHG

[)ODVKHV7KHWXUQVLJQDOLQGLFDWRUZLOOEOLQNRUWLPHVZKHQ
the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Ambient light
brightness
[2II

[/HYHO
HBA (High Beam
Assist)To activate or deactivate High Beam Assist. For more details, refer to
"High Beam Assist (HBA)" in chapter 5.
❈ The information provided may differ depending on which functions are applicable
to your vehicle.

4-33
04
'RRU
ItemsExplanation
Automatically
lock
[(QDEOHRQ6KLIW$OOGRRUVZLOOEHDXWRPDWLFDOO\ORFNHGLIWKHVKLIW
button is shifted from the P (Park) position to the R (Reverse), N
(Neutral), or D (Drive) position. (only when the engine is running.)

[(QDEOHRQ6SHHG$OOGRRUVZLOOEHDXWRPDWLFDOO\ORFNHGZKHQWKH
vehicle speed exceeds 9.3mph (15km/h).

[2II7KHDXWRGRRUORFNRSHUDWLRQZLOOEHGHDFWLYDWHG
Automatically
unlock
[2Q6KLIWWR3$OOGRRUVZLOOEHDXWRPDWLFDOO\XQORFNHGLIWKHVKLIW
button is shifted to the P (Park) position. (only when the engine is
running.)

[2QNH\RXW2QYHKLFOHRII$OOGRRUVZLOOEHDXWRPDWLFDOO\XQORFNHG
when the ignition key is removed from the ignition switch or the
Engine Start/Stop button is set to the OFF position.

[2II7KHDXWRGRRUXQORFNRSHUDWLRQZLOOEHFDQFHOOHG
&RQYHQLHQFH
ItemsExplanation
Rear occupant
alertTo activate or deactivate the Rear Occupant Alert.
For more details, refer to "Rear Occupant Alert (ROA) system" in
chapter 5.
Welcome mirror
[2QGRRUXQORFN7KHRXWVLGHUHDUYLHZPLUURUVDUHXQIROGHG
automatically when the doors are unlocked.

[2QGULYHUDSSURDFK7KHRXWVLGHUHDUYLHZPLUURUVDUHXQIROGHG
automatically when the vehicle is approached with the smart key.
For more details, refer to ''Welcome System'' in chapter 5.
Wireless
charging systemTo activate or deactivate the wireless charging system in the front seat.
For more details, refer to "Wireless cellular phone charging system" in
chapter 5.
Auto rear wiper
(in R)To activate or deactivate the Auto Rear Wiper function.If you move the
shift button from D to R when the front wiper operates, the rear wiper
will operate automatically. Then, if you move the shift button from R to
D, the rear wiper will stop.
Advanced anti-
theftTo activate or deactivate the Advanced Anti-Theft function.
Vehicle auto-
shut OffTo activate or deactivate the Vehicle Auto-Shut Off function.
Service interval
[6HUYLFHLQWHUYDO
To activate or deactivate the service interval function.

[$GMXVWLQWHUYDO
If the service interval menu is activated, you may adjust the time and
distance.

[5HVHW
To reset the service interval.
❈ The information provided may differ depending on which functions are applicable
to your vehicle.
