2023 HYUNDAI I20 Owners Manual

Introduction
Leaded (if equipped)
For some countries, your vehicle is designed to use leaded petrol. When you are going
to use leaded petrol, we recommend that you ask a HYUNDAI authorised repairer.
Octane rating of leaded petrol is same with unleaded one.
Petrol containing alcohol and methanol
Gasohol, a mixture of petrol and ethanol (also known as grain alcohol), and petrol or
gasohol containing methanol (also known as wood alcohol) are being marketed along
with or instead of leaded or unleaded petrol.
Do not use gasohol containing more than 10% ethanol, and do not use petrol or
gasohol containing any methanol. Either of these fuels may cause drivability problems
and damage to the fuel system, engine control system and emission control system.
Discontinue using gasohol of any kind if drivability problems occur.
Vehicle damage or driveability problems may not be covered by the manufacturer’s
warranty if they result from the use of:
1. Gasohol containing more than 10% ethanol.
2. Petrol or gasohol containing methanol.
3. Leaded fuel or leaded gasohol.
CAUTION
Never use gasohol which contains methanol. Discontinue use of any gasohol
product which impairs drivability.
Other fuels
Using fuel additives such as:
- Silicone fuel additive
- MMT (Magnanese, Mn) fuel additive
- Ferrocene (iron-based) fuel additive
- Other metallic-based fuel additives
may result in cylinder misfire, poor acceleration, engine stalling, damage to the
catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a
reduction in the overall life of the powertrain.
NOTICE
Damage to the fuel system or performance problem caused by the use of these
fuels may not be covered by your New Vehicle Limited Warranty.

01
Use of MTBE
HYUNDAI recommends avoiding fuels containing MTBE (Methyl Tertiary Butyl Ether)
over 15.0% vol. (Oxygen Content 2.7% weight) in your vehicle.
Fuel containing MTBE over 15.0% vol. (Oxygen Content 2.7% weight) may reduce
vehicle performance and produce vapour lock or hard starting.
CAUTION
Your New Vehicle Limited Warranty may not cover damage to the fuel system and
any performance problems that are caused by the use of fuels containing methanol
or fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen
Content 2.7% weight.)
Do not use methanol
Fuels containing methanol (wood alcohol) should not be used in your vehicle. This
type of fuel can reduce vehicle performance and damage components of the fuel
system, engine control system and emission control system.
Fuel Additives
HYUNDAI recommends that you use unleaded petrol which has an octane rating of
RON (Research Octane Number) 95 / AKI (Anti Knock Index) 91 or higher (for Europe)
or Octane Rating of RON (Research Octane Number) 91 / AKI (Anti-Knock Index) 87 or
higher (except Europe).
For customers who do not use good quality petrols including fuel additives
regularly, and have problems starting or the engine does not run smoothly, one
bottle of additive added to the fuel tank according to the maintenance schedule is
recommended.
Additives are available from your HYUNDAI authorised repairer along with information
on how to use them. Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in another country, be sure to:

[ 2EVHUYHDOOUHJXODWLRQVUHJDUGLQJUHJLVWUDWLRQDQGLQVXUDQFH

[ 'HWHUPLQHWKDWDFFHSWDEOHIXHOLVDYDLODEOH

Introduction
VEHICLE MODIFICATIONS

[ 7KLVYHKLFOHVKRXOGQRWEHPRGLILHG0RGLILFDWLRQRI\RXUYHKLFOHFRXOGDIIHFWLWV
performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may
not be covered under warranty.

[ ,I\RXXVHXQDXWKRULVHGHOHFWURQLFGHYLFHVLWPD\FDXVHWKHYHKLFOHWRRSHUDWH
abnormally, wire damage, battery discharge and fire. For your safety, we
recommend that you do not use unauthorised electronic devices.

[ )XHOHFRQRP\DQGHQJLQHSHUIRUPDQFHPD\YDU\GHSHQGLQJRQYHKLFOHEUHDNLQ
process and be stabilized after 6,000 km (4,000 miles). New engines may consume
more oil during the vehicle break-in period.
9(+,&/(%5($.

Exterior overview (I) ....................................................................................... 2-2
Exterior overview (II) ...................................................................................... 2-3
Interior overview ............................................................................................ 2-8
Instrument panel overview ..........................................................................2-10
Engine compartment .................................................................................... 2-12
Dimensions .................................................................................................... 2-15
Engine specification ..................................................................................... 2-15
Bulb wattage ................................................................................................. 2-16
Tyres and wheels ........................................................................................... 2-17
Air conditioning system ................................................................................2-18
Tyre load and speed capacity ......................................................................2-18
Gross vehicle weight..................................................................................... 2-19
Luggage volume ........................................................................................... 2-19
Recommended lubricants and capacities ................................................. 2-20
Recommended SAE viscosity number ................................................................. 2-22
Vehicle Identification Number (VIN) .......................................................... 2-23
Vehicle certification label ............................................................................ 2-23
Tyre specification and pressure label ......................................................... 2-24
Engine number ............................................................................................. 2-24
Air conditioner compressor label ............................................................... 2-25
Fuel label ...................................................................................................... 2-25
Declaration of conformity ........................................................................... 2-26
2. Vehicle information
2

2-2
Vehicle information

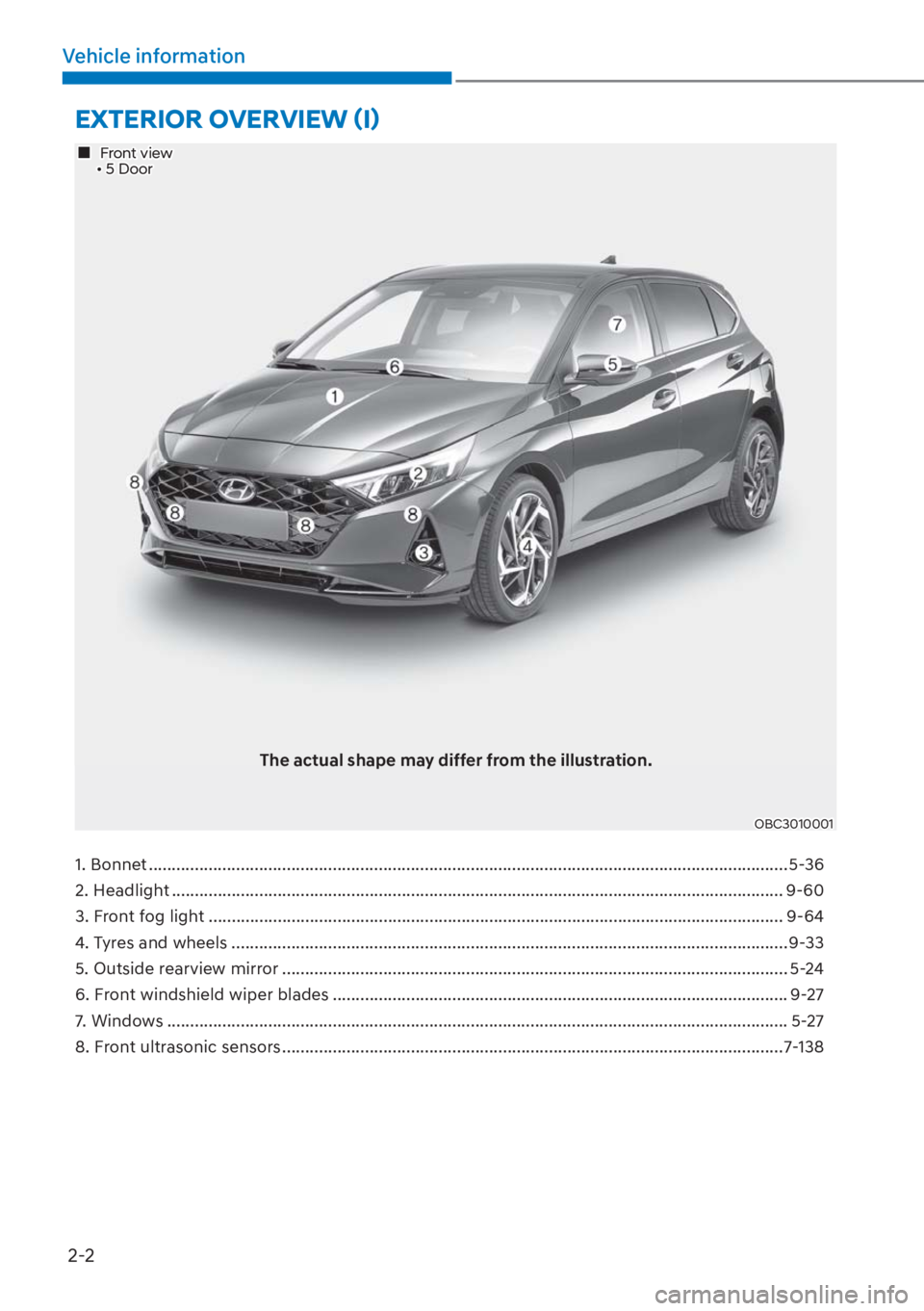

(;7(5,2529(59,(:

2-3
02
(;7(5,2529(59,(:

2-4
Vehicle information
1. Hood .............................................................................................................................................. 5-36
2. Headlight ..................................................................................................................................... 9-60
3. Front fog light ............................................................................................................................. 9-64
4. Tires and wheels .......................................................................................................................... 9-33
5. Outside rearview mirror .............................................................................................................. 5-24
6. Front windshield wiper blades ................................................................................................... 9-27
7. Windows ....................................................................................................................................... 5-27
8. Front ultrasonic sensors .............................................................................................................7-138
The actual shape may differ from the illustration.
OBC3TN011001
„Front view
[1OLQH

2-5
02
1. Antenna .........................................................................................................................................5-94
2. Doors..............................................................................................................................................5-13
3. Fuel filler door .............................................................................................................................. 5-39
4. Rear ultrasonic sensors ..............................................................................................................7-138
5. High mounted stop light ............................................................................................................. 9-77
6. Rear view camera ........................................................................................................................7-112
7. Rear window wiper blade ............................................................................................................9-28
8. Tailgate ......................................................................................................................................... 5-37
9. Rear fog light................................................................................................................................ 9-73
The actual shape may differ from the illustration.
OBC3TN011002
„Rear view
[1OLQH
