2023 HYUNDAI I20 Owners Manual

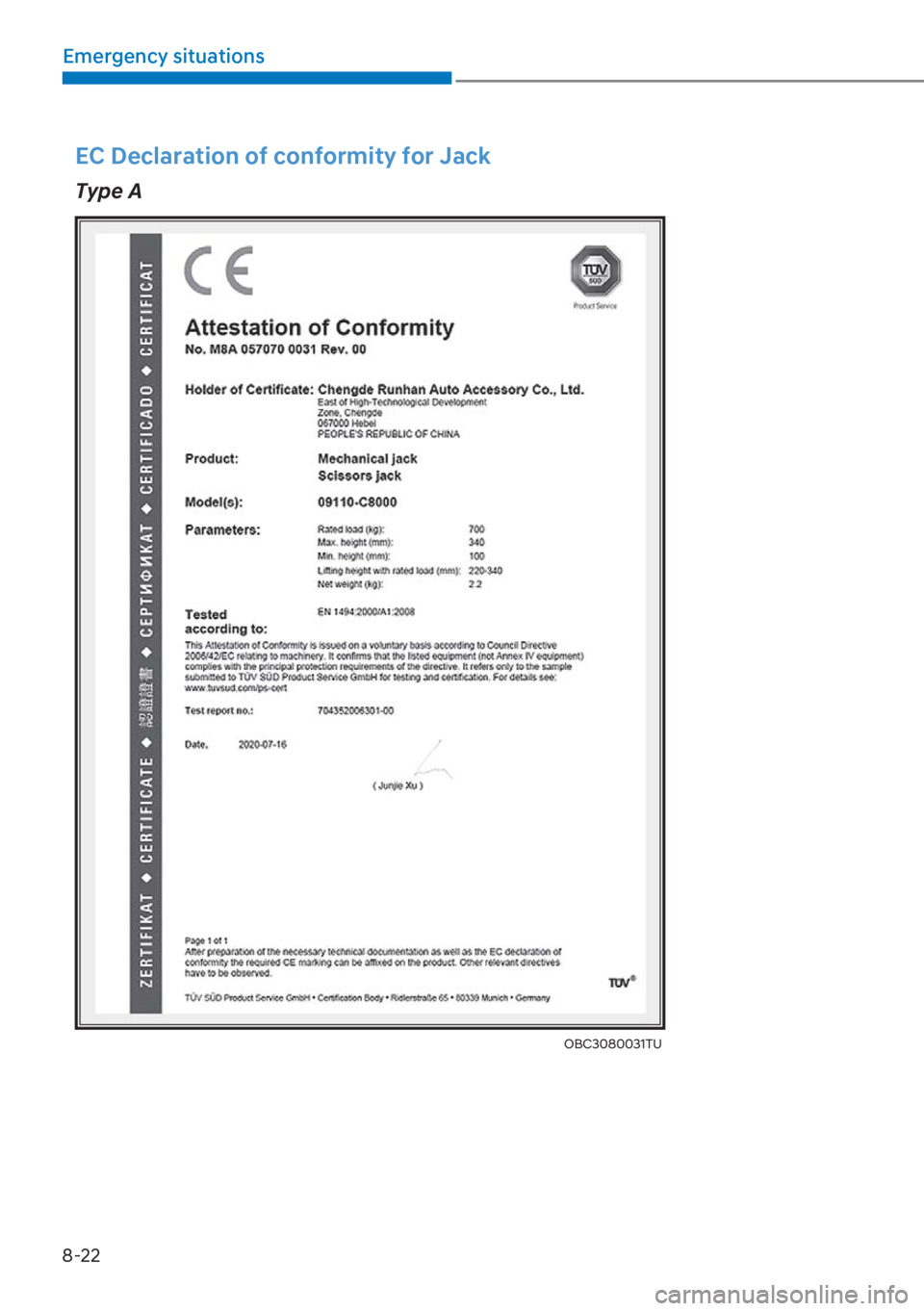

8-22
Emergency situations
EC Declaration of conformity for Jack
Type A
OBC3080031TU

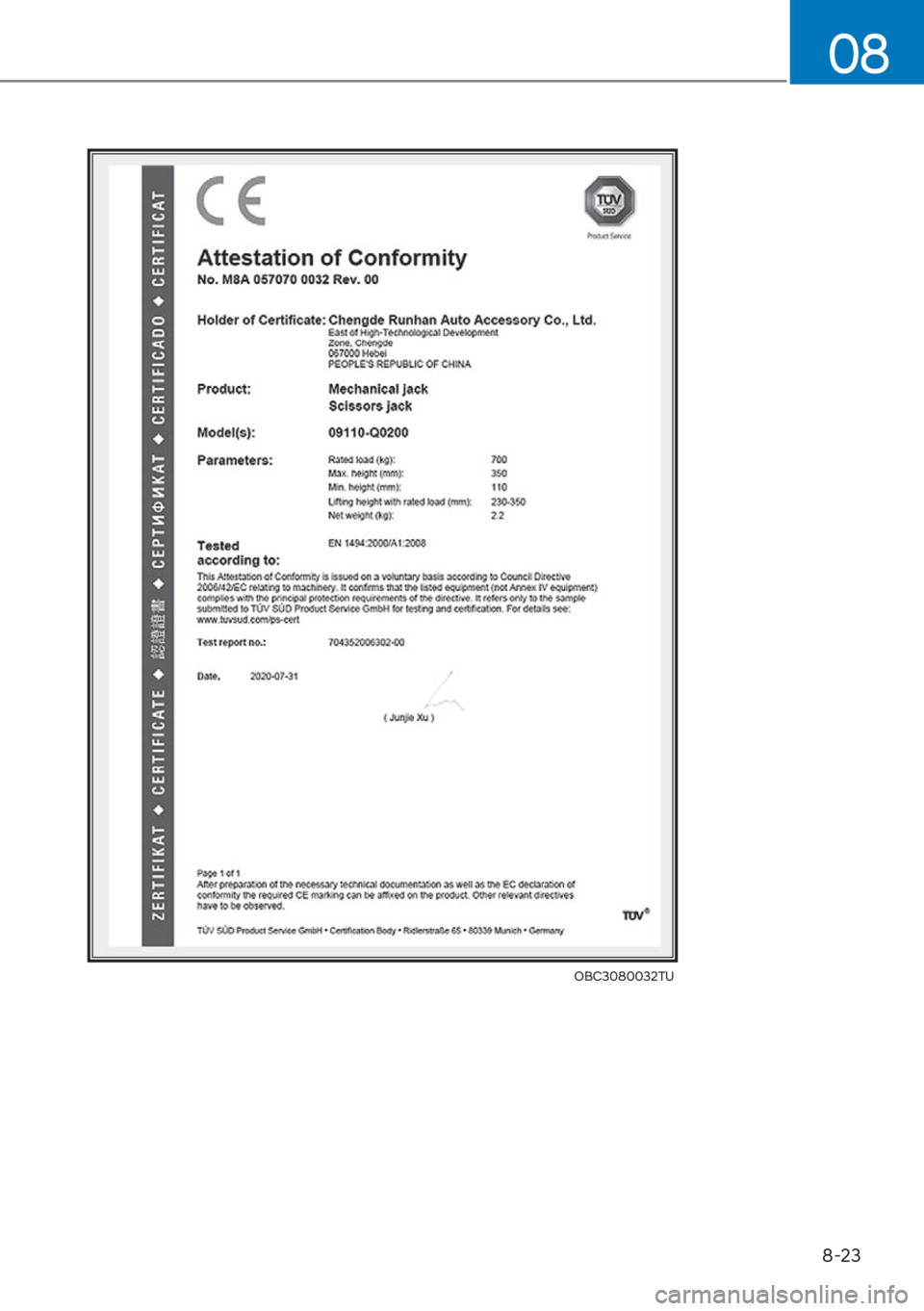

8-23
08
OBC3080032TU

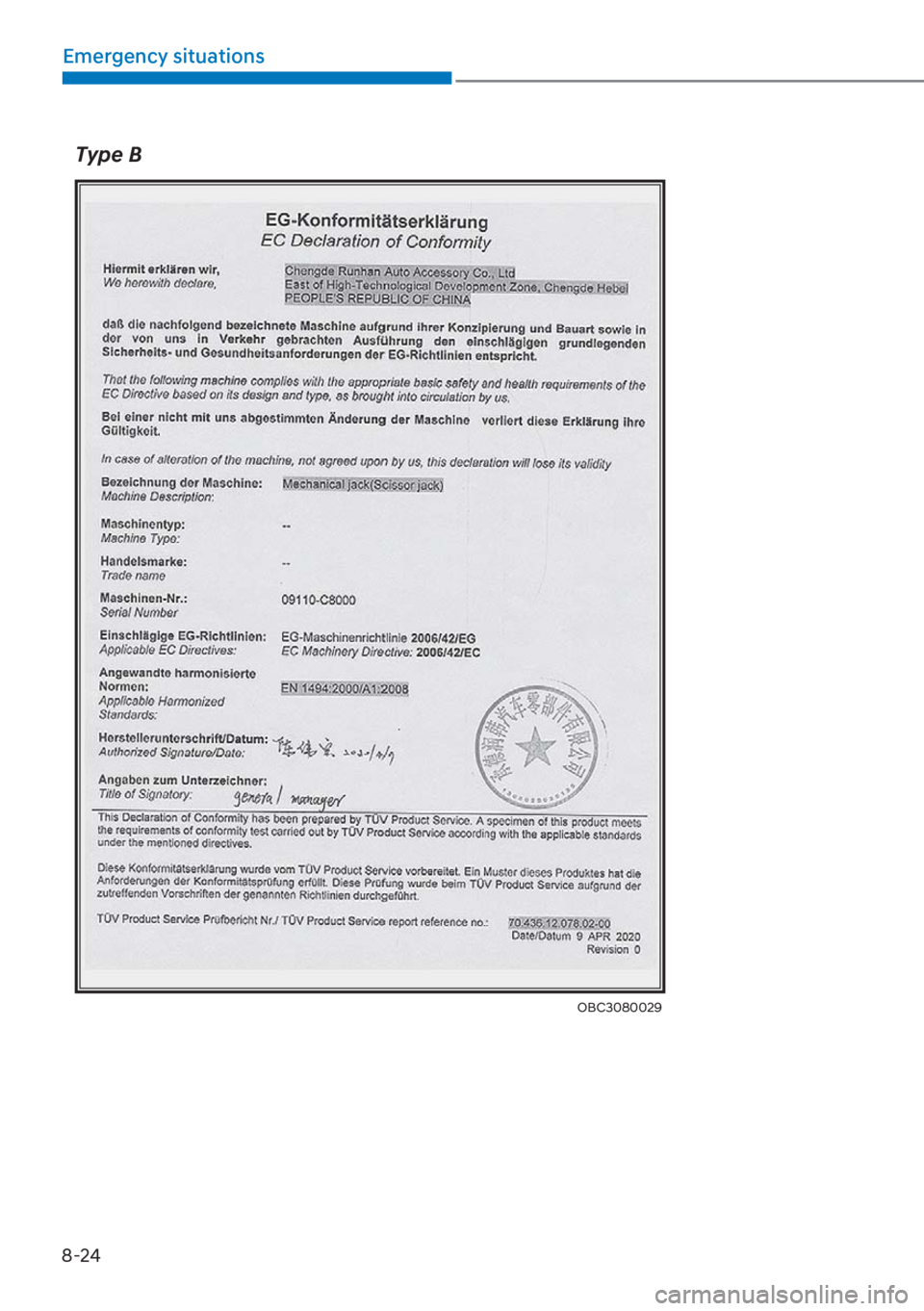

8-24
Emergency situations
Type B
OBC3080029

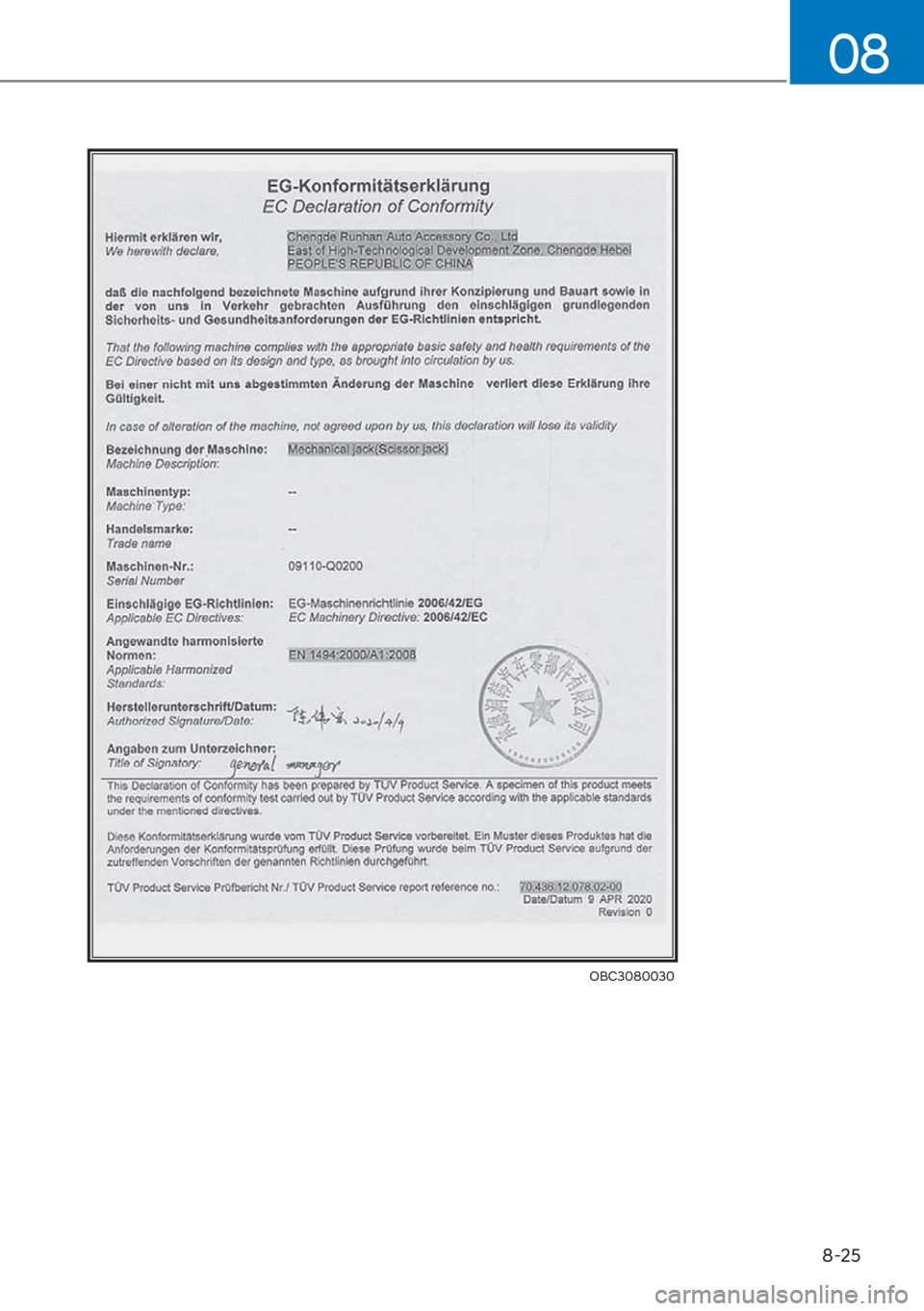

8-25
08
OBC3080030

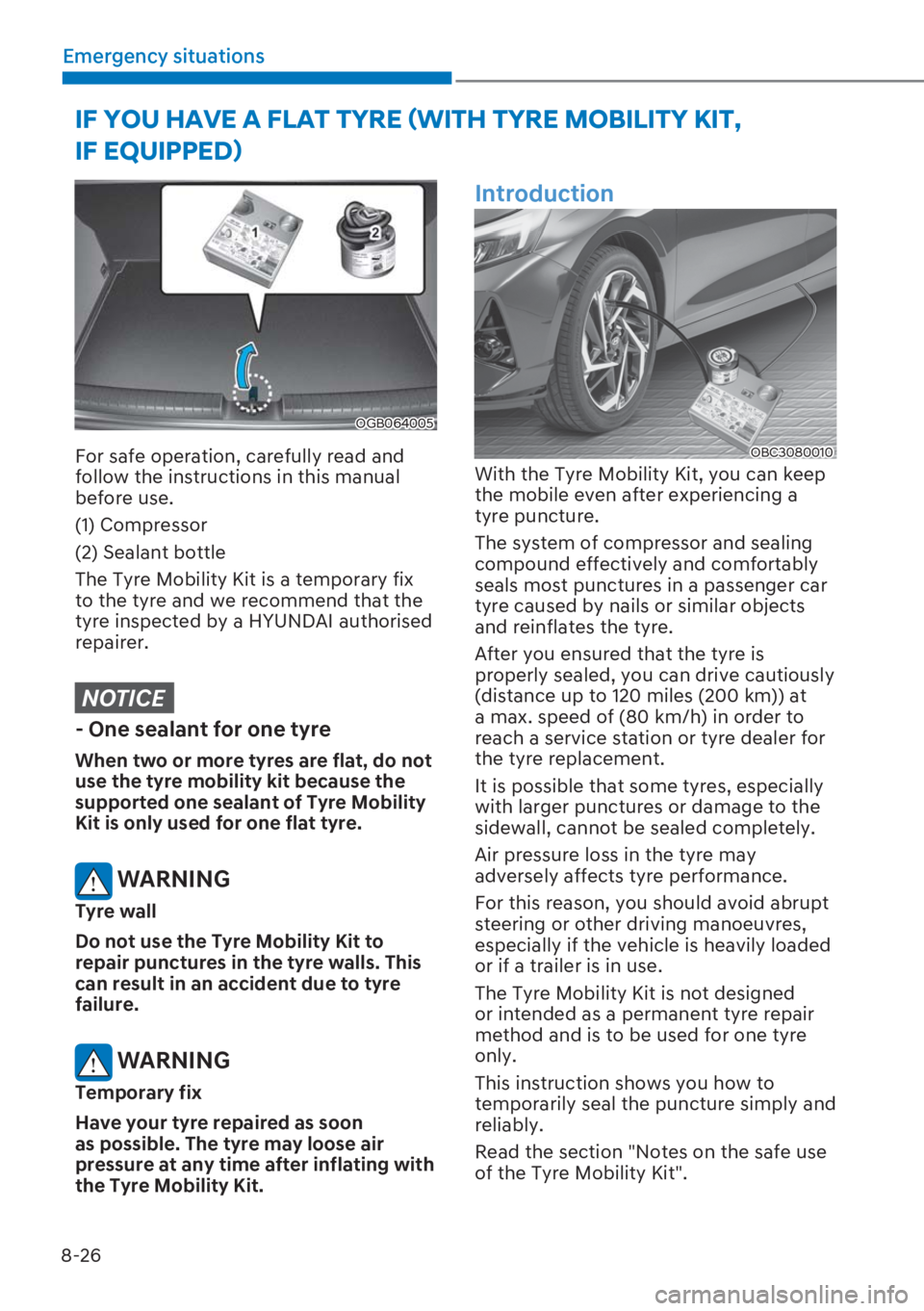

8-26
Emergency situations
,)<28+$9($)/$77<5(

8-27
08
Notes on the safe use of the
Tyre Mobility Kit

[Park your car at the side of the road
so that you can work with the Tyre
Mobility Kit away from moving traffic.

[To be sure your vehicle does not
move, even when you're on fairly level
ground, always set your parking brake.

[Only use the Tyre Mobility Kit for
sealing/inflation passenger car tyres.
Only punctured areas located within
the tread region of the tyre can be
sealed using the tyre mobility kit.

[Do not use on motorcycles, bicycles or
any other type of tyres.

[When the tyre and wheel are
damaged, do not use Tyre Mobility Kit
for your safety.

[Use of the Tyre Mobility Kit may not be
effective for tyre damage larger than
approximately 0.24 in (6 mm).
We recommend that you contact a
HYUNDAI authorised repairer.
[Do not use the Tyre Mobility Kit
if a tyre is severely damaged by
driving run flat or with insufficient air
pressure.

[Do not remove any foreign objects
such as nails or screws that have
penetrated the tyre.

[Provided the car is outdoors, leave the
engine running. Otherwise operating
the compressor may eventually drain
the car battery.

[Never leave the Tyre Mobility Kit
unattended whilst it is being used.

[Do not leave the compressor running
for more than 10 min. at a time or it
may overheat.

[Do not use the Tyre Mobility Kit if the
ambient temperature is below -22°F
(-30°C).

8-28
Emergency situations
Components of the Tyre Mobility Kit
OSK3068011L
1. Speed restriction label
2. Sealant bottle and label with speed restriction
3. Filling hose to wheel
4. Connectors and cable for the power outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7. On/off switch
8. Pressure gauge for displaying the tyre inflation pressure
9. Button for reducing the tire inflation pressure
10. Hose to connect compressor and sealant bottle or compressor and wheel
Connectors, cable and connection hose are stored in the compressor housing.

8-29
08
WARNING
Expired sealant
Do not use the Tyre sealant after
the sealant has expired (i.e. pasted
the expiration date on the sealant
container). This can increase the risk of
tyre failure.
WARNING
Sealant

[Keep out of reach of children.

[Avoid contact with eyes.

[Do not swallow.
Strictly follow the specified sequence,
otherwise the sealant may escape under
high pressure.
WARNING
To inflate tire pressure only (not with
flat tire),
Follow the instruction “Checking the
tire inflation pressure” provided in this
chapter.
Using the Tyre Mobility Kit
CAUTION
Detach the speed restriction label (1)
from the sealant bottle (2), and place
it in a highly visible place inside the
vehicle such as on the steering wheel to
remind the driver not to drive too fast.
OLMF064103
1. Shake the sealant bottle.
ODN8079019
2. Screw connection hose (10) onto the
connector of the sealant bottle.
3. Ensure that button (9) on the
compressor is not pressed.
4. Unscrew the valve cap from the valve
of the defective wheel and screw
filling hose (3) of the sealant bottle
onto the valve.
