2023 HYUNDAI I20 height

2-15
02
DIMENSIONS
ItemSmartstream G 1.0 T-GDi/
Smartstream G1.0 T-GDi
(48V) MHEVSmartstream
G1.2Petrol 1.4
Displacement
cc (cu. in) 998 (60.90) 1,197 (73.05) 1,368 (83.48)
Bore x Stroke
in. (mm)2.80x3.31
(71.0x84.0)2.80x2.98
(71.0x75.6)2.83x3.31
(72.0 x 84.0)
Firing order 1-2-3 1-3-4-2 1-3-4-2
No. of cylinders 3 4 4
ENGINE SPECIFICATION
Items5 Door N-line CUV
Overall length159.06 (4,040) 160.43 (4,075) 164.56 (4,180)
Overall width69.88 (1,775) 69.88 (1,775) 69.88 (1,775)
Overall height 57.09 (1,450) 57.28 (1,455)58.66(1,490)/
59.05(1,500)*
Front tread185/65R15 60.82 (1,545) - 61.06 (1,551)
195/55R16 60.59 (1,539) - 60.82 (1,545)
215/45R17 60.27 (1,531) 60.27 (1,531) -
205/55R17 - - 60.86 (1,546)
Rear tread 185/65R15 60.98 (1,549) - 61.29 (1,557)
195/55R16 60.75 (1,543) - 61.06 (1,551)
215/45R17 60.47 (1,536) 60.47 (1,536) -
205/55R17 - - 61.1 (1,552)
Wheelbase 101.57 (2,580)
in. (mm)

3-4
Safety system
Front seats
1. Forward and backward
2. Seatback angle
3. Seat cushion height*
4. Head restraint
5. Seat warmer*Rear seats
6. Head restraint (outboard and/or
centre*)
7. Seatback folding
8. Seat warmer*
* : if equipped
The actual feature in the vehicle may differ from the illustration.
OBC3030001R
SEATS
„ Passenger's Side
„ Driver's Side

„ Rear Seat

3-9
03
Seat cushion height
(for driver’s seat, if equipped)
OBC3030004R
To change the height of the seat
cushion:

[Push down the lever several times, to
lower the seat cushion.

[Pull up the lever several times, to raise
the seat cushion.
Seatback pocket (if equipped)
OAI3039033
The seatback pocket is provided on the
back of the front seatback.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.

3-12
Safety system
Head restraint
The vehicle’s front and rear seats
have adjustable head restraints. The
head restraints provide comfort for
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in
a rear impact collision.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your head
restraints:

[Always properly adjust the head
restraints for all passengers BEFORE
starting the vehicle.

[NEVER let anyone ride in a seat
with the head restraint removed or
reversed.

[
ODN8039067L
Adjust the head restraints so the
middle of the head restraints is at the
same height as the height of the top
of the eyes.

[NEVER adjust the head restraint
position of the driver’s seat when the
vehicle is in motion.

[Adjust the head restraint as close to
the passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.

[Make sure the head restraint locks
into position after adjusting it.
NOTICE
To prevent damage, NEVER hit or pull
on the head restraints.
CAUTION
When there is no occupant in the rear
seats, adjust the height of the head
restraint to the lowest position. The
rear seat head restraint can reduce the
visibility of the rear area.

3-13
03

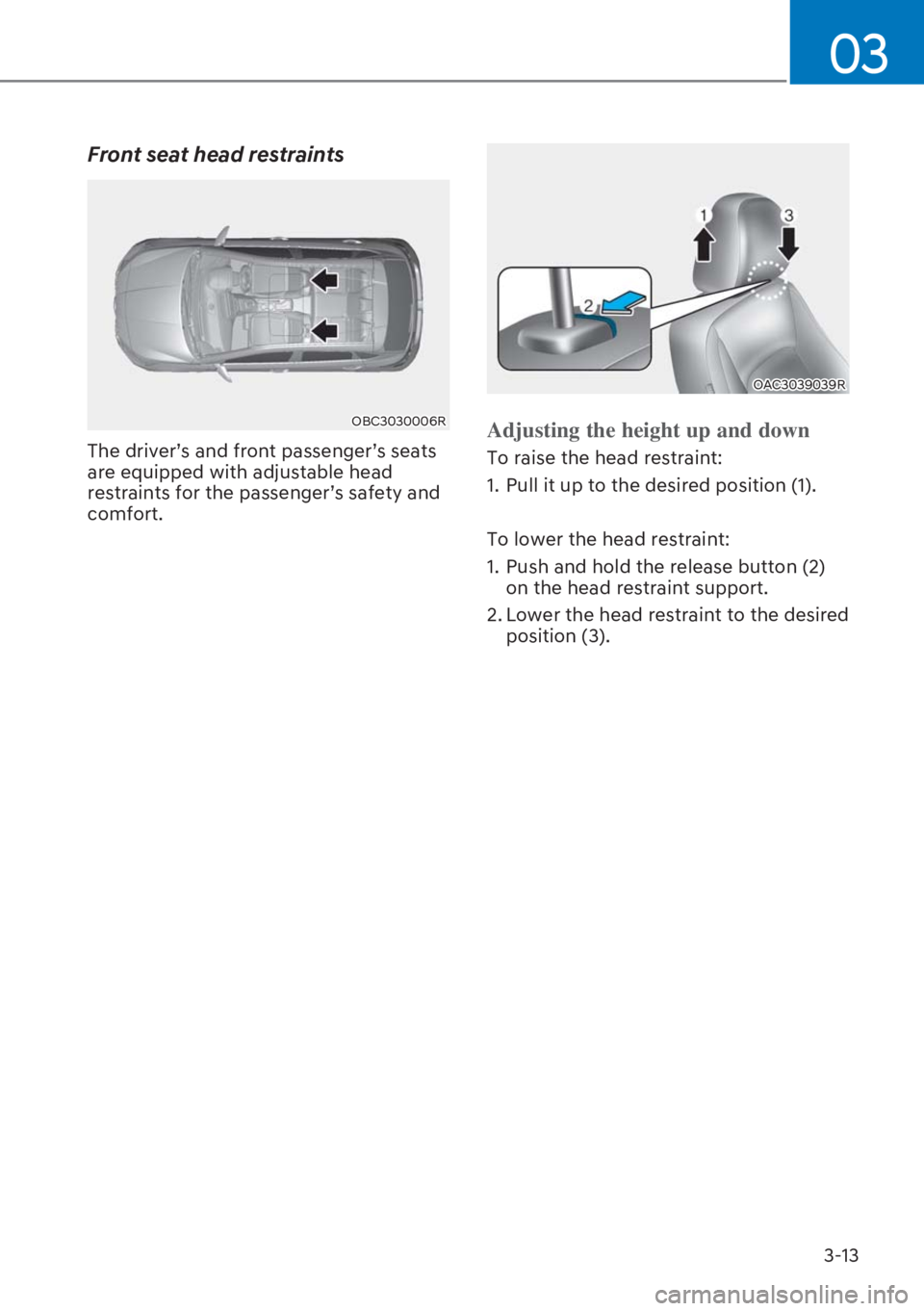

Front seat head restraints
OBC3030006R
The driver’s and front passenger’s seats
are equipped with adjustable head
restraints for the passenger’s safety and
comfort.
OAC3039039R
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the desired
position (3).

3-14
Safety system
OBC3030007R

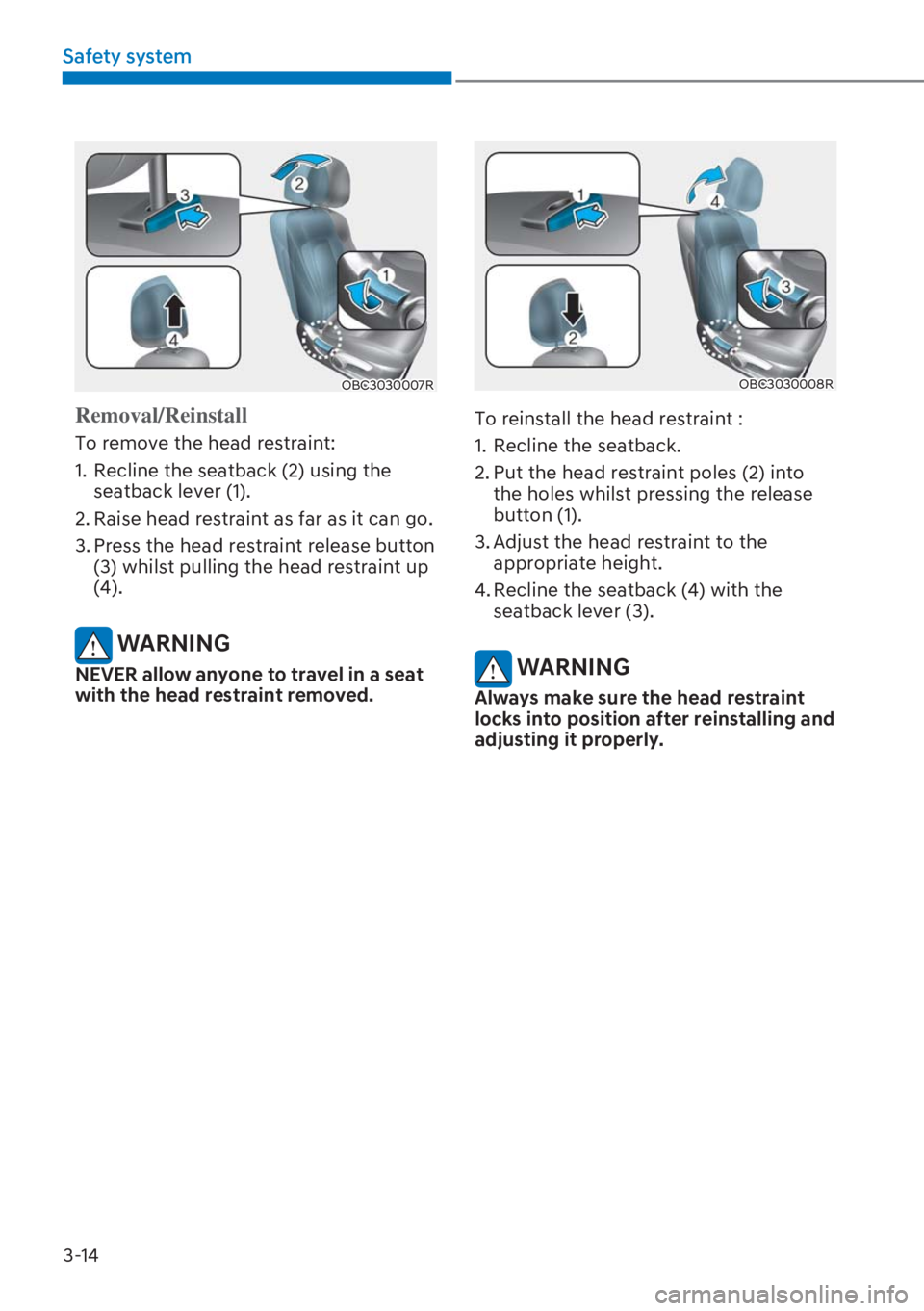

Removal/Reinstall
To remove the head restraint:
1. Recline the seatback (2) using the
seatback lever (1).
2. Raise head restraint as far as it can go.
3. Press the head restraint release button
(3) whilst pulling the head restraint up
(4).
WARNING
NEVER allow anyone to travel in a seat
with the head restraint removed.
OBC3030008R
To reinstall the head restraint :
1. Recline the seatback.
2. Put the head restraint poles (2) into
the holes whilst pressing the release
button (1).
3. Adjust the head restraint to the
appropriate height.
4. Recline the seatback (4) with the
seatback lever (3).
WARNING
Always make sure the head restraint
locks into position after reinstalling and
adjusting it properly.

3-15
03

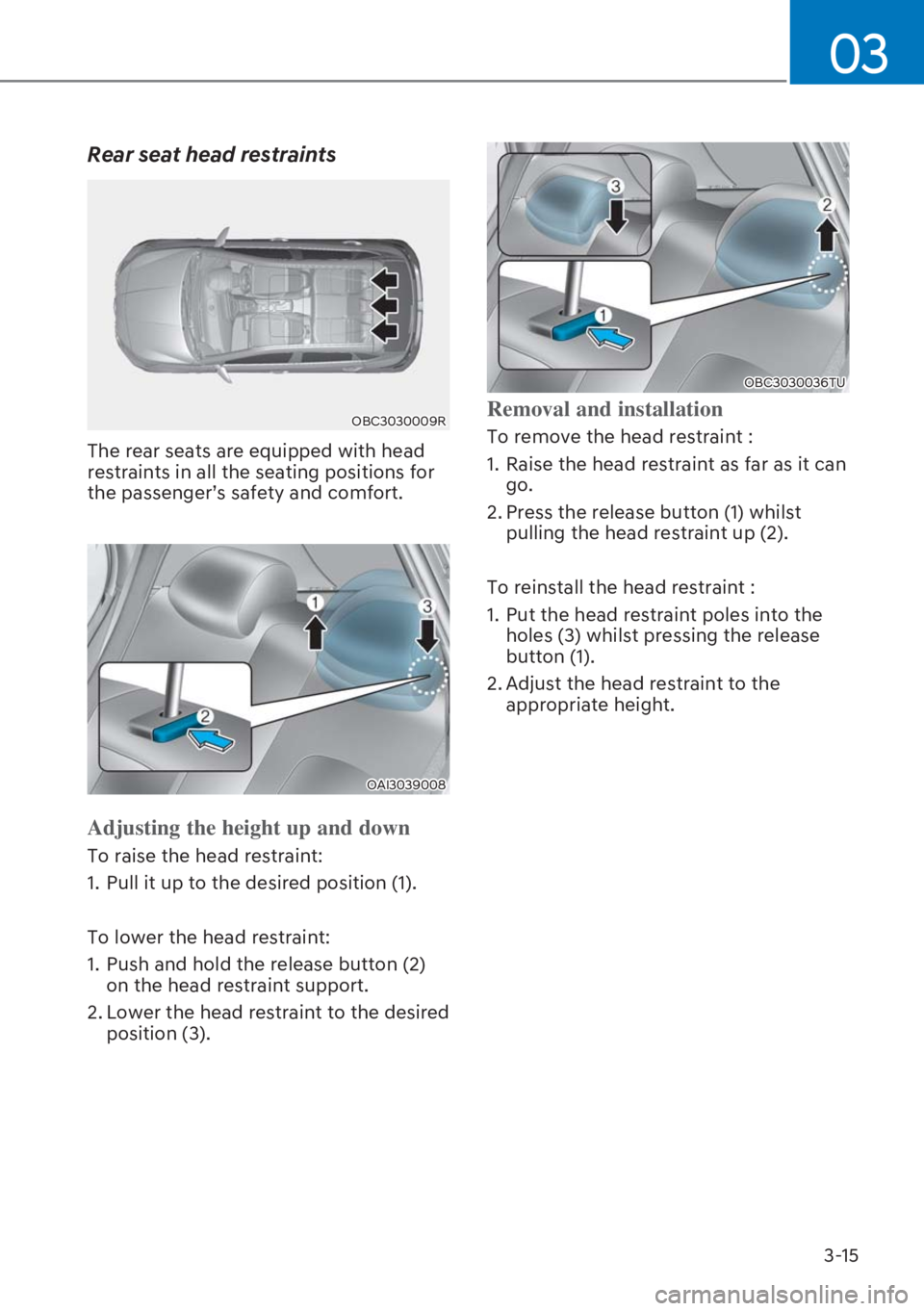

Rear seat head restraints
OBC3030009R
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
OAI3039008
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the desired
position (3).
OBC3030036TU
Removal and installation
To remove the head restraint :
1. Raise the head restraint as far as it can
go.
2. Press the release button (1) whilst
pulling the head restraint up (2).
To reinstall the head restraint :
1. Put the head restraint poles into the
holes (3) whilst pressing the release
button (1).
2. Adjust the head restraint to the
appropriate height.

3-23
03
WARNING
OTM038098R
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:

[Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it
fits snugly. This allows your strong
pelvic bones to absorb the force of
the crash, reducing the chance of
internal injuries.

[Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.

[Always position the shoulder belt
anchor into locked position at the
appropriate height.

[Never position the shoulder belt
across your neck or face.
OJS038070AU
7RUHOHDVH\RXUVHDWEHOW
Press the release button (1) in the locking
buckle.
When it is released, the belt should
automatically draw back into the
retractor. If this does not happen, check
the belt to be sure it is not twisted, then
try again.
