2023 HYUNDAI I20 Owners Manual

5-20
Convenient features
(OHFWULFSRZHUVWHHULQJ(36
The system assists you with steering
the vehicle. If the engine is off or if
the power steering system becomes
inoperative, the vehicle may still be
steered, but it will require increased
steering effort.
Also, the steering effort becomes
KHDYLHUDVWKHYHKLFOH
TVVSHHGLQFUHDVHV
DQGEHFRPHVOLJKWHUDVWKHYHKLFOH
TV
speed decreases for better control of the
steering wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, we recommend that
the system be checked by a HYUNDAI
authorised repairer.
NOTICE
,IWKH(OHFWULF3RZHU6WHHULQJ6\VWHP
does not operate normally, the
warning light (
) will illuminate on
the instrument cluster. The steering
wheel may become difficult to control
or operate. Take your vehicle to a
HYUNDAI authorised repairer and
have the system checked as soon as
possible.
i Information
7KHIROORZLQJV\PSWRPVPD\RFFXU
during normal vehicle operation:

5-21
05
Tilt steering / Telescope
steering (if equipped)
WARNING
Never adjust the steering wheel whilst
driving. You may lose steering control
and cause severe personal injury, death
or accidents.
i Information
After adjustment, sometimes the lock-
release lever may not lock the steering
wheel.
,WLVQRWDPDOIXQFWLRQ7KLVRFFXUVZKHQ
WZRJHDUVDUHQRWHQJDJHGFRUUHFWO\,Q
this case, adjust the steering wheel again
and then lock the steering wheel.
OBC3050007R
To change the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and height (3, if
equipped). Move the steering wheel,
so it points toward your chest, not
toward your face. Make sure you can
see the instrument panel warning
lights and gauges.
3. Pull up the lock-release lever to lock
the steering wheel in place.
Push the steering wheel both up and
down to be certain it is locked in
position.
CAUTION
Whilst adjusting the steering wheel
height, please do not push or pull it
hard since the fixture can be damaged.

5-22
Convenient features

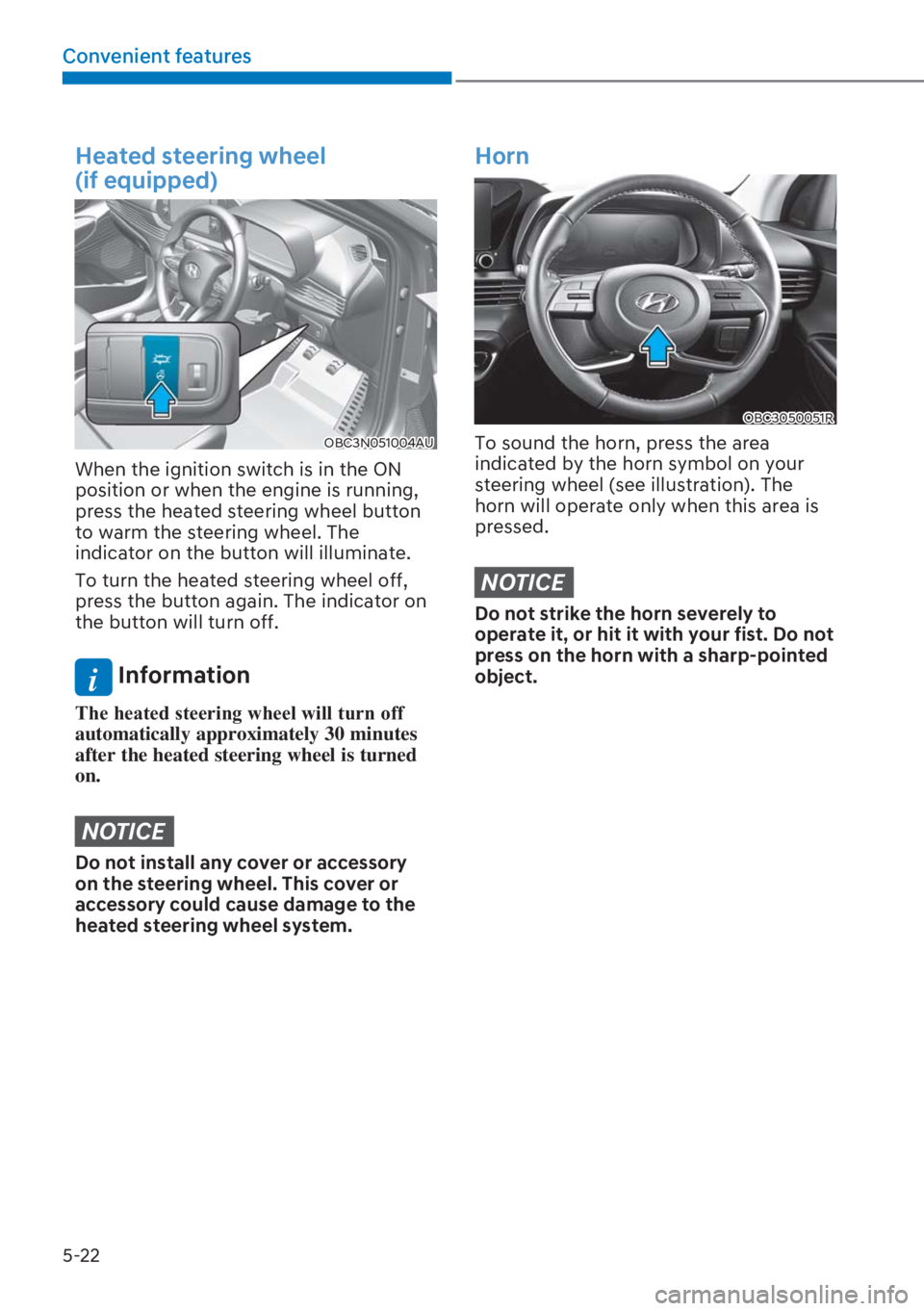

Heated steering wheel
(if equipped)
OBC3N051004AU
When the ignition switch is in the ON
position or when the engine is running,
press the heated steering wheel button
to warm the steering wheel. The
indicator on the button will illuminate.
To turn the heated steering wheel off,
press the button again. The indicator on
the button will turn off.
i Information
7KHKHDWHGVWHHULQJZKHHOZLOOWXUQRII
automatically approximately 30 minutes
after the heated steering wheel is turned
on.
NOTICE
Do not install any cover or accessory
on the steering wheel. This cover or
accessory could cause damage to the
heated steering wheel system.
Horn
OBC3050051R
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely to
operate it, or hit it with your fist. Do not
press on the horn with a sharp-pointed
object.

5-23
05
Inside rearview mirror
Before you start driving, adjust the
rearview mirror to the centre on the view
through the rear window.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in
the rear seat, cargo area, or behind
the rear head restraints which could
interfere with your vision through the
rear window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror whilst driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as that
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror
(if equipped)
OBC3050054[A] : Day, [B] : Night
Make this adjustment before you start
driving and whilst the day/night lever is
in the day position.
Pull the day/night lever towards you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
0,55256

5-24
Convenient features
Electric Chromic Mirror (ECM)
(if equipped)
OBC3050014
The electric rearview mirror
automatically controls the glare from the
headlamp of the vehicle behind you in
nighttime or low light driving conditions.
When the engine is running, the glare is
automatically controlled by the sensor
(1) mounted in the rearview mirror. The
sensor detects the light level around
the vehicle, and automatically adjusts
to control the headlamp glare from
vehicles behind you.
Whenever the shift button is placed in R
(Reverse), the mirror will automatically
go to the brightest setting in order to
LPSURYHWKHGULYHU
TVYLHZEHKLQGWKH
vehicle.
Outside rearview mirrors
OAI3059018
Be sure to adjust mirror angles before
driving.
Your vehicle is equipped with both left-
hand and right-hand outside rearview
mirrors.
The mirror heads can be folded to
prevent damage during an automatic car
wash or when passing through a narrow
street.
When the vehicle speed is over 9.3 mph
(15 km/h), the outside rearview mirror
will not fold.
WARNING

[ 7KHULJKWRXWVLGHUHDUYLHZPLUURU
is convex. In some countries, the
left outside rearview mirror is also
convex. Objects seen in the mirror
are closer than they appear.

[ 8VH\RXULQWHULRUUHDUYLHZPLUURURU
turn your head and look to determine
the actual distance of following
vehicles when changing lanes.
WARNING
Do not adjust or fold the outside
rearview mirrors whilst driving. This
may cause loss of vehicle control
resulting in an accident.

5-25
05
NOTICE

[ 'RQRWVFUDSHLFHRIIWKHPLUURUIDFH
this may damage the surface of the
glass.

[ ,IWKHPLUURULVMDPPHGZLWKLFHGR
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and allow
the ice to melt.
Adjusting the rearview mirror
OIB034041
0DQXDOW\SHLIHTXLSSHG
To adjust an outside mirror, move the
control lever.
OBC3050015R
Electric type (if equipped)
Move the lever (1) to the L (Left) or R
(Right) to select the rearview mirror you
would like to adjust.
Use the mirror adjustment control to
position the selected mirror up, down,
left or right.
NOTICE

[ 7KHPLUURUVVWRSPRYLQJZKHQ
they reach the maximum adjusting
angles, but the motor continues to
operate whilst the switch is pressed.
Do not press the switch longer
than necessary, the motor may be
damaged.

[ 'RQRWDWWHPSWWRDGMXVWWKHRXWVLGH
rearview mirror by hand or the motor
may be damaged.

5-26
Convenient features
Folding the outside rearview mirror
OAI3059020
0DQXDOW\SHLIHTXLSSHG
To fold the outside rearview mirror,
grasp the housing of the mirror and the
fold it toward the rear of the vehicle.
OBC3050016R
Electric type (if equipped)
The outside rearview mirror can be
folded or unfolded by pressing the
switch. When vehicle speed is over 9.3
mph (15 km/h), the outside rearview
mirror will not fold even though the
switch is pressed.
However, the outside rearview mirror
will unfold when the switch is pressed.

[If 'Convenience JWelcome mirror
JOn door unlock' is selected in
the User Settings mode on the LCD
display, the User Settings mode on the
LCD display, the outside mirror will
fold or unfold automatically as follows:
- The mirror will fold or unfold when
the door is locked or unlocked by the
smart key.
- The mirror will fold or unfold when
the door is locked or unlocked by the
button on the outside door handle.

[If 'Convenience JWelcome mirror
JOn door unlock' and 'Convenience
JWelcome mirror JOn driver
approach' is selected in the User
Settings mode.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
NOTICE
The electric type outside rearview
mirror operates even though the
LJQLWLRQVZLWFKLVLQWKH2))SRVLWLRQ
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary whilst
the engine is not running.
NOTICE
Do not fold the electric type outside
rearview mirror by hand. It could cause
motor failure.

5-27
05

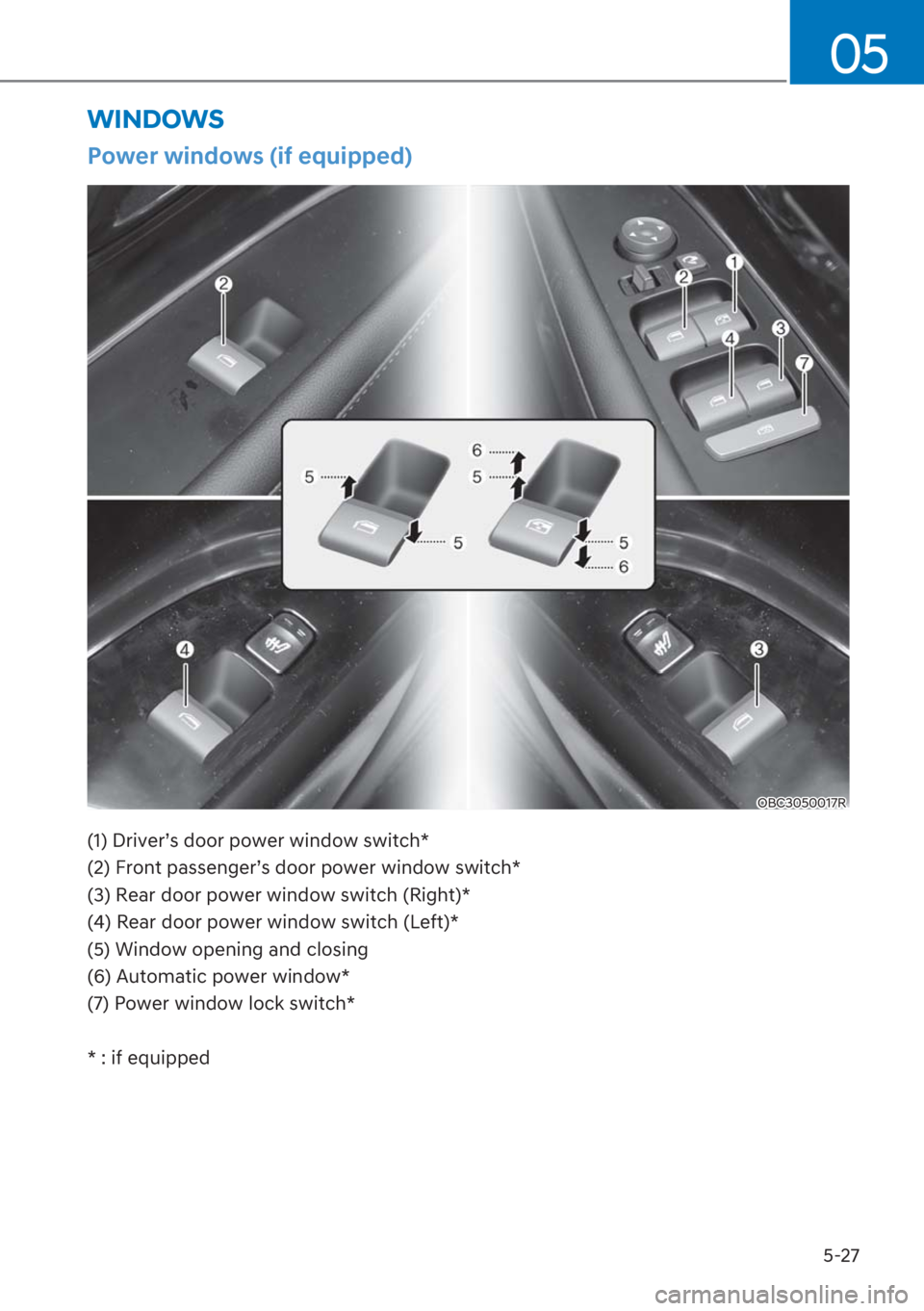

WINDOWS
3RZHUZLQGRZVLIHTXLSSHG
OBC3050017R
'ULYHU
TVGRRUSRZHUZLQGRZVZLWFK
)URQWSDVVHQJHU
TVGRRUSRZHUZLQGRZVZLWFK
5HDUGRRUSRZHUZLQGRZVZLWFK5LJKW
5HDUGRRUSRZHUZLQGRZVZLWFK/HIW
(5) Window opening and closing
$XWRPDWLFSRZHUZLQGRZ
3RZHUZLQGRZORFNVZLWFK

LIHTXLSSHG
