2023 HYUNDAI I20 Owners Manual

5-44
Convenient features
OAE046455L
To flash the high beam headlight, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
Turn signals and lane change
signals
OTLE045284
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A). To signal a lane change,
move the turn signal lever slightly and
hold it in position (B).
The lever will return to the OFF position
when released or when the turn is
completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned out
and will require replacement.
2QHWRXFKWXUQVLJQDOIXQFWLRQ
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from the
User Settings Mode on the LCD display.
)RUPRUHGHWDLOVUHIHUWR
U/&''LVSOD\
0RGHV
VLQFKDSWHU

5-45
05
Front fog light (if equipped)
OPDE046066
Fog lamps are used to provide improved
visibility when visibility is poor due to
fog, rain or snow, etc. Use the switch
next to the headlamp switch to turn the
fog lamps ON and OFF.
1. Turn on the position lamp.
2. Turn the light switch (1) to the front
fog lamp position.
3. To turn off the front fog lamp, turn
the light switch to the front fog lamp
position again or turn off the position
lamp.
NOTICE
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog lights
when visibility is poor.
Rear fog light
OPDE046064
To turn on the rear fog lamp:
Position the light switch in the position
lamp position, turn the light switch (1)
to the front fog lamp position, and then
turn the light switch (1) to the rear fog
lamp position.
To turn the rear fog lamps off, do one of
the following:

[Turn off the position light switch.

[Turn the light switch to the rear fog
lamp position again.

[When the light switch is in the position
lamp position, if you turn off the front
fog lamp, the rear fog lamp will also
turn off.

5-46
Convenient features
OAC3059027TU
Vehicle without front fog lamp
To turn on the rear fog lamp:
Position the light switch in the headlamp
position, and then turn the light switch
(1) to the rear fog lamp position.
To turn the rear fog lamps off, do one of
the following:

[Turn off the headlamp switch.

[Turn the light switch to the rear fog
lamp position again.
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
position lamp when the driver turns the
engine off and opens the driver-side
door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
If necessary, to keep the lamps on when
the engine is turned off, perform the
following:
1) Open the driver-side door.
2) Turn the position lamps OFF and ON
again using the light switch on the
steering column.
Headlamps delay function
(if equipped)
If you place the ignition switch in the
ACC or OFF position with the headlamps
ON, the headlamps (and/or position
lamps) remain on for about 5 minutes.
However, with the engine off if the
GULYHU
TVGRRULVRSHQHGDQGFORVHGWKH
headlamps (and/or position lamps) are
turned off after 15 seconds.
The headlamps (and/or position lamps)
can be turned off by pressing the lock
button on the remote key or smart
key twice or turning the light switch to
the OFF or AUTO position. However, if
you turn the light switch to the AUTO
position when it is dark outside, the
headlamps will not be turned off.

5-47
05
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlight
GHOD\IXQFWLRQGRHVQRWWXUQ2))
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
WXUQ2))WKHKHDGOLJKWVPDQXDOO\IURP
the headlight switch before exiting the
vehicle.
Daytime running light (DRL)
(if equipped)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
light OFF when:
1. The parking brake is applied.
2. The engine is turned off.
Headlight levelling device
OBC3050009R
To adjust the headlight beam level
according to the number of the
passengers and loading weight in the
luggage area, turn the beam levelling
switch.
The higher the number on the switch
position, the lower the headlight beam
level. Always keep the headlight beam
at the proper levelling position, or
headlights may dazzle other road users.
Listed below are examples of
appropriate switch settings for varying
loads. For loading conditions other than
those listed, adjust the switch position to
the most similar situation.
Loading conditionSwitch position
Driver only0
Driver + Front
passenger0
Full passengers
(including driver)1
Full passengers
(including driver) +
Maximum permissible
loading2
Driver + Maximum
permissible loading 3

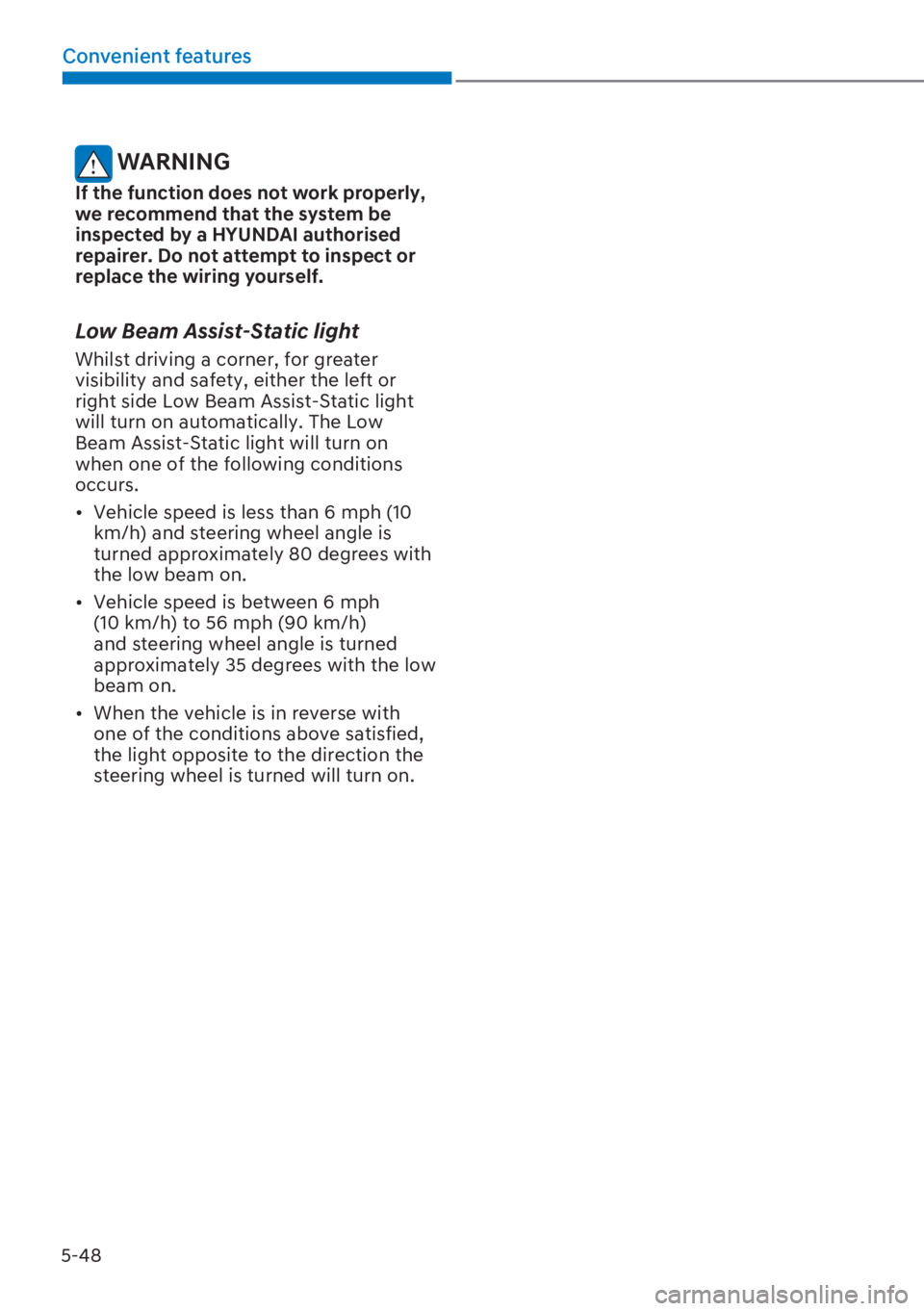

5-48
Convenient features
WARNING
If the function does not work properly,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer. Do not attempt to inspect or
replace the wiring yourself.
Low Beam Assist-Static light
Whilst driving a corner, for greater
visibility and safety, either the left or
right side Low Beam Assist-Static light
will turn on automatically. The Low
Beam Assist-Static light will turn on
when one of the following conditions
occurs.

[Vehicle speed is less than 6 mph (10
km/h) and steering wheel angle is
turned approximately 80 degrees with
the low beam on.

[Vehicle speed is between 6 mph
(10 km/h) to 56 mph (90 km/h)
and steering wheel angle is turned
approximately 35 degrees with the low
beam on.

[When the vehicle is in reverse with
one of the conditions above satisfied,
the light opposite to the direction the
steering wheel is turned will turn on.

5-49
05
+,*+%($0$66,67

5-50
Convenient features
- If the light switch is pushed away
when High Beam Assist is operating,
High Beam Assist will turn off.
- If the light switch is pulled towards
you when the high beam is off, the
high beam will turn on. When you let
go of the light switch, the lever will
move to the middle and the high beam
will turn off.
- If the light switch is pulled towards
you when the high beam is on by High
Beam Assist, and High Beam Assist
will turn off.
- If the light switch is placed to the
headlight position (
), High Beam
Assist will turn off and the low beam
will be on continuously.
When High Beam Assist is operating, the
high beam switches to low beam in the
following conditions.
- When the headlight of an on-coming
vehicle is detected.
- When the tail light of a vehicle in front
is detected.
- When the headlight or tail light of a
motorcycle or a bicycle is detected.
- When the surrounding ambient light is
bright enough that high beams are not
required.
- When streetlights or other lights are
detected.
- When the light switch is not in the
AUTO position.
- When High Beam Assist is off.
- When the vehicle speed is below 19
mph (30 km/h).
System malfunction and
limitations
System malfunction
OTM050218L
When High Beam Assist is not working
properly, the warning message will come
on for a few seconds. After the message
disappears, the master warning light
(
) will illuminate.
We recommend that you take your
vehicle to a HYUNDAI authorised
repairer and have the system checked.
CAUTION
The system may not operate normally if
any of the following conditions should
occur:
1. When the illumination from an
on-coming vehicle or a vehicle in
front is dim. Such examples may
include:

[When the headlights of an oncoming
vehicle or the tail lights of a vehicle
in front is covered with dust, snow,
or water

[When the headlights on an
RQFRPLQJYHKLFOHDUH2))EXWWKH
fog lights are ON)

5-51
05
2. When the front view camera is
adversely affected by an external
condition. Such examples may
include:

[When the vehicle’s headlights have
been damaged or not repaired
properly

[When the vehicle headlights are not
aimed properly

[When the vehicle is driven on a
narrow curved road or rough road

[When the vehicle is driven on an
uphill road or downhill road

[When only part of the vehicle in front
is visible on a crossroad or curved
road

[When there is a traffic light,
reflecting sign, flashing sign or mirror

[When the road conditions are bad
such as being wet or covered with
snow

[When a vehicle suddenly appears
from a curve

[When the vehicle is tilted from a flat
tyre or being towed

[ :KHQ/DQH.HHSLQJ$VVLVWV\VWHP
warning light illuminates

[When the light from the oncoming or
front vehicle is not detected because
of exhaust fume, smoke, fog, snow,
etc.

[When the front window is covered
with foreign matters such as ice,
dust, fog, or is damaged
3. When the forward visibility is poor.
Such examples may include:

[When the headlights of an oncoming
vehicle or a vehicle in front is not
detected due to poor outside
visibility (smog, smoke, dust, fog,
heavy rain, snow, etc.)

[When the windscreen visibility is
poor WARNING

[ 7KHIXQFWLRQPD\QRWZRUNDURXQG
seconds after starting the vehicle or
the initialization or rebooting of the
front view camera.

[ 'RQRWDWWHPSWWRGLVDVVHPEOH
the front view camera without the
assistance of a HYUNDAI authorised
repairer technician.
If the front view camera is removed
for any reason, the system may need
to be re-calibrated. We recommend
that the system be inspected by a
HYUNDAI authorised repairer.

[ ,IWKHZLQGVFUHHQRI\RXUYHKLFOH
is replaced, most likely the front
view camera will need to be
re-calibrated. If this occurs, have
your vehicle inspected and have the
system re-calibrated by a HYUNDAI
authorised repairer.

[ %HFDUHIXOWKDWZDWHUGRHVQ
TWJHWLQWR
front view camera unit and do not
remove or damage related parts of
High Beam Assist system.

[ 'RQRWSODFHREMHFWVRQWKHFUDVK
pad that reflect light such as mirrors,
white paper, etc. The system may
malfunction if sunlight is reflected.

[ $WWLPHV+LJK%HDP$VVLVWPD\
not work properly. The system is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[ :KHQWKHV\VWHPGRHVQRWRSHUDWH
normally, change the light position
manually between the high beam and
low beam.
