2023 HYUNDAI I20 Owners Manual

07
7-87
OBC3070031

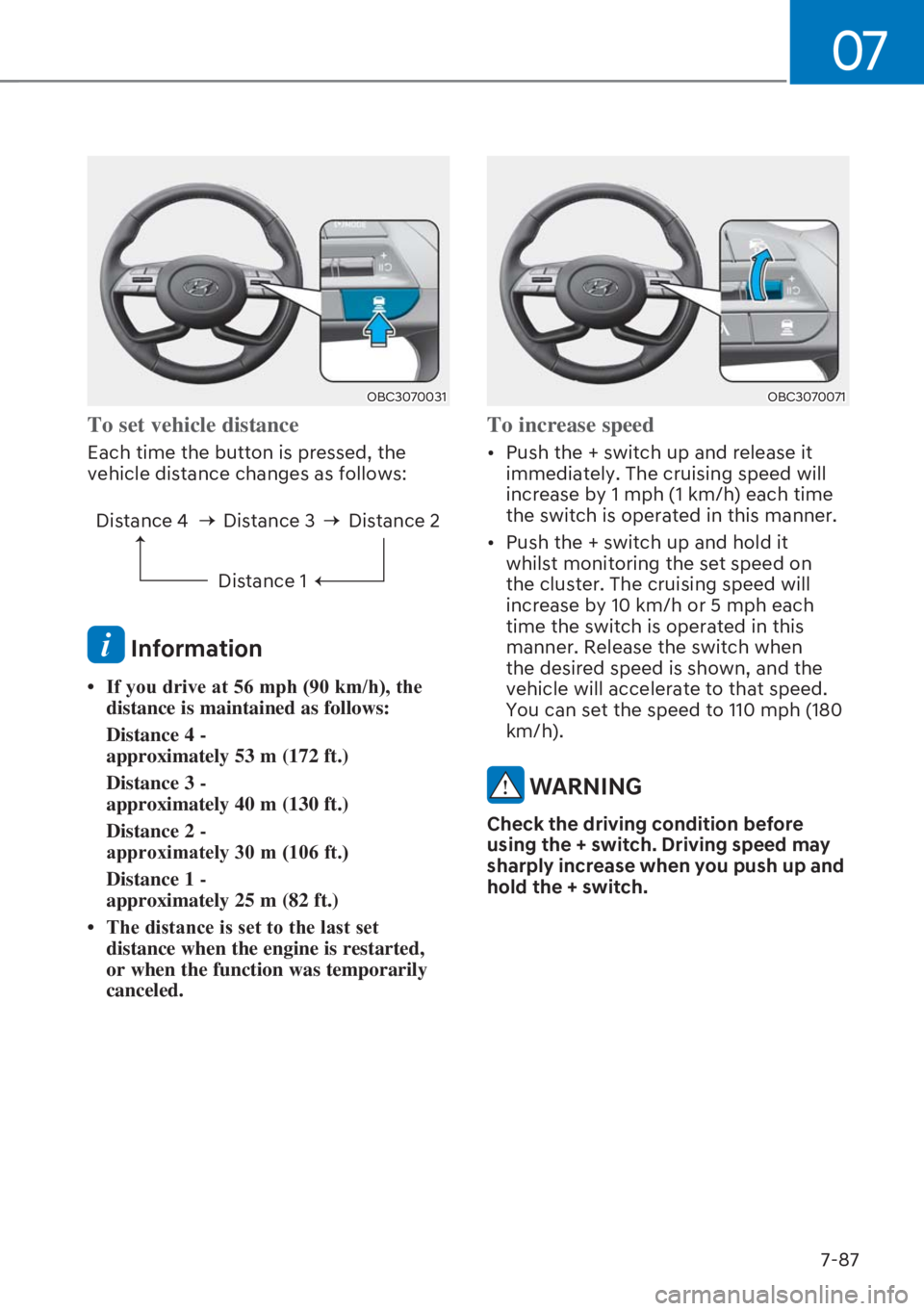

To set vehicle distance
Each time the button is pressed, the
vehicle distance changes as follows:
Distance 4 Distance 3
Distance 1Distance 2
Information

Driver assistance system
7-88
OBC3070072
To decrease speed

[Push the - switch down and release it
immediately. The cruising speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.

[Push the - switch down and hold it
whilst monitoring the set speed on
the cluster. The cruising speed will
decrease by 10 km/h or 5 mph each
time the switch is operated in this
manner.
Release the switch at the speed you
want to maintain. You can set the
speed to 20 mph (30 km/h).
OBC3070073
To temporarily cancel Smart Cruise
Control
Press the switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OBC3070074
To resume Smart Cruise Control
To resume Smart Cruise Control after
the function was canceled, push the +, -
or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle
speed will resume to the preset speed.
WARNING
Check the driving condition before
using the switch. Driving speed
may sharply increase or decrease when
you press the
switch.

07
7-89
OBC3070022
To turn off Smart Cruise Control
Press the Driving Assist button to turn
Smart Cruise Control system off.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Smart
Cruise Control. However, Manual Speed
Limit Assist will turn on.
Based on DRIVE MODE
Smart Cruise Control will change
acceleration based on the drive mode
selected from Drive Mode Integrated
Control system. Refer to the following
chart.
Drive mode Smart Cruise Comtrol
COMFORT Normal
ECO Slow
SPORT Fast
Information
For more details on drive mode, refer to
“Drive Mode Integrated Control System”
VHFWLRQLQFKDSWHU
„Type A
OTM070141L
„Type B
ONX4E070090
Warning volume
With the engine on, select ‘Driver
DVVLVWDQFH

Driver assistance system
7-90
Smart Cruise Control operation
Operating conditions
Smart Cruise Control will operate when
the following conditions are satisfied.
Basic function

[The gear is in D (Drive)

[ 7KHGULYHU
TVGRRULVFORVHG

[Parking brake is not applied

[Your vehicle speed is within the
operating speed range:

[5-110 mph (10~180 km/h)

[ESC (Electronic Stability Control), TCS
(Traction Control System) or ABS is on

[ESC (Electronic Stability Control), TCS
(Traction Control System) or ABS is not
controlling the vehicle

[Engine rpm is not in the red zone

[Forward Collision-Avoidance Assist
brake control is not operating
Overtaking Acceleration Assist
Overtaking Acceleration Assist will
operate when the turn signal indicator
is turned on to the left (left-hand drive)
or turned on to the right (right-hand
drive) whilst Smart Cruise Control is
operating, and the following conditions
are satisfied:

[Your vehicle speed is above 40 mph
(60 km/h)

[The hazard warning flasher is off

[A vehicle is detected in front of your
vehicle

[Deceleration is not needed to maintain
distance with the vehicle in front
WARNING

[When the turn signal indicator is
turned on to the left (left-hand drive)
or turned on to the right (right-
hand drive) whilst there is a vehicle
ahead, the vehicle may accelerate
temporarily. Pay attention to the road
conditions at all times.

[Regardless of your countries driving
direction, Overtaking Acceleration
Assist will operate when the
conditions are satisfied. When
using the function in countries with
different driving direction, always
check the road conditions at all
times.

07
7-91
Smart Cruise Control display
and control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to
“LCD Display Modes” section in chapter
4.
Smart Cruise Control will be displayed
as below depending on the status of the
function.
„“Driving Assist” screen unselected„"Driving Assist" screen selected
OBC3070033ROBC3070038R

[When operating
(1) Whether there is a vehicle ahead
and the selected distance level are
displayed.
(2) Set speed is displayed.
(3) Whether there is a vehicle ahead
and the target vehicle distance are
displayed.
OAC3069053R

[When temporarily canceled
(1)
indicator is displayed.
(2) The previous set speed is shaded.
Information

Driver assistance system
7-92

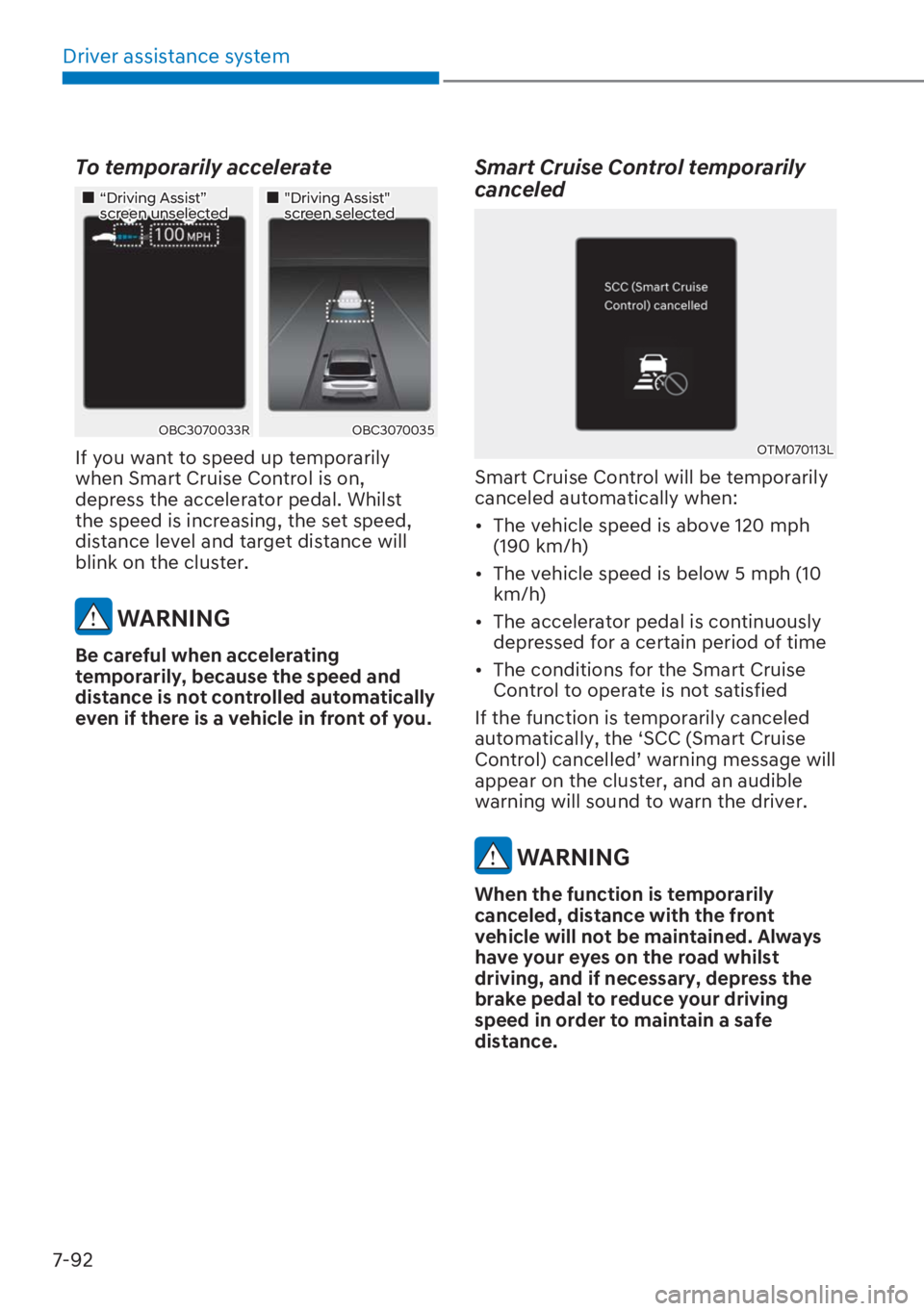

To temporarily accelerate
„“Driving Assist” screen unselected„"Driving Assist" screen selected
OBC3070033ROBC3070035
If you want to speed up temporarily
when Smart Cruise Control is on,
depress the accelerator pedal. Whilst
the speed is increasing, the set speed,
distance level and target distance will
blink on the cluster.
WARNING
Be careful when accelerating
temporarily, because the speed and
distance is not controlled automatically
even if there is a vehicle in front of you.
Smart Cruise Control temporarily
canceled
OTM070113L
Smart Cruise Control will be temporarily
canceled automatically when:

[The vehicle speed is above 120 mph
(190 km/h)

[The vehicle speed is below 5 mph (10
km/h)

[The accelerator pedal is continuously
depressed for a certain period of time

[The conditions for the Smart Cruise
Control to operate is not satisfied
If the function is temporarily canceled
automatically, the ‘SCC (Smart Cruise
&RQWUROFDQFHOOHG
TZDUQLQJPHVVDJHZLOO
appear on the cluster, and an audible
warning will sound to warn the driver.
WARNING
When the function is temporarily
canceled, distance with the front
vehicle will not be maintained. Always
have your eyes on the road whilst
driving, and if necessary, depress the
brake pedal to reduce your driving
speed in order to maintain a safe
distance.

07
7-93

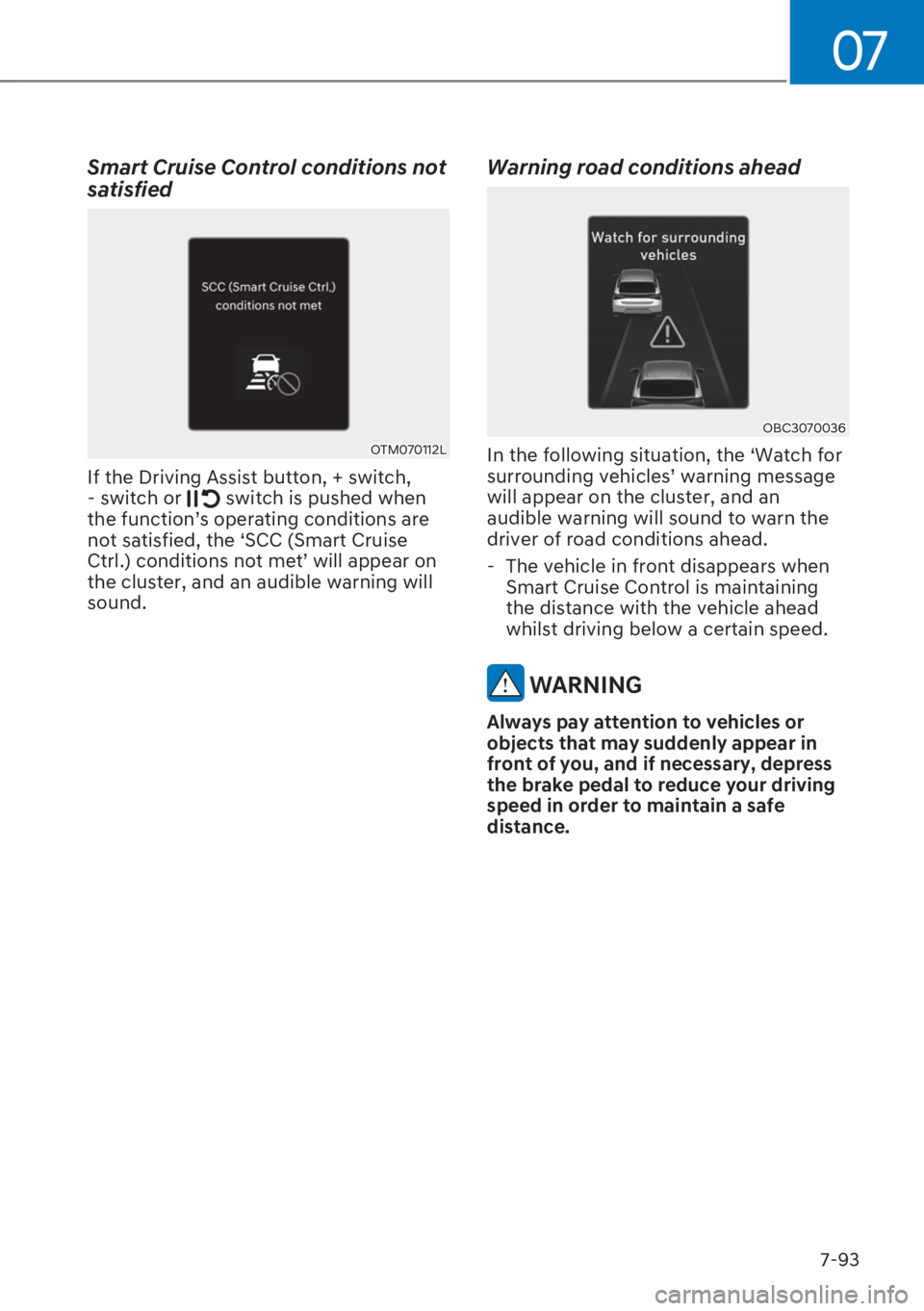

Smart Cruise Control conditions not
satisfied
OTM070112L
If the Driving Assist button, + switch,
- switch or switch is pushed when
WKHIXQFWLRQ
TVRSHUDWLQJFRQGLWLRQVDUH
not satisfied, the ‘SCC (Smart Cruise
&WUOFRQGLWLRQVQRWPHW
TZLOODSSHDURQ
the cluster, and an audible warning will
sound.
Warning road conditions ahead
OBC3070036
In the following situation, the ‘Watch for
VXUURXQGLQJYHKLFOHV
TZDUQLQJPHVVDJH
will appear on the cluster, and an
audible warning will sound to warn the
driver of road conditions ahead.
- The vehicle in front disappears when
Smart Cruise Control is maintaining
the distance with the vehicle ahead
whilst driving below a certain speed.
WARNING
Always pay attention to vehicles or
objects that may suddenly appear in
front of you, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.

Driver assistance system
7-94
Collision Warning
OBC3070002
Whilst Smart Cruise Control is operating,
when the collision risk with the vehicle
DKHDGLVKLJKWKH
S&ROOLVLRQZDUQLQJ
T
warning message will appear on the
cluster, and an audible warning will
sound to warn the driver. Always have
your eyes on the road whilst driving, and
if necessary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
WARNING
In the following situations, Smart
Cruise Control may not warn the driver
of a collision.
- The distance from the front vehicle is
near, or the vehicle speed of the front
vehicle is faster or similar with your
vehicle
- The speed of the front vehicle is very
slow or is at a standstill
- The accelerator pedal is depressed
right after Smart Cruise Control is
turned on
WARNING
Take the following precautions when
using Smart Cruise Control:

[Smart Cruise Control does not
substitute for proper and safe
driving. It is the responsibility of the
driver to always check the speed and
distance to the vehicle ahead.

[Smart Cruise Control may not
recognise unexpected and sudden
situations or complex driving
situations, so always pay attention to
driving conditions and control your
vehicle speed.

[Keep Smart Cruise Control off when
the function is not in use to avoid
inadvertently setting a speed.

[Do not open the door or leave the
vehicle when Smart Cruise Control
is operating, even if the vehicle is
stopped.

[Always be aware of the selected
speed and vehicle distance.

[Keep a safe distance according to
road conditions and vehicle speed.
If the vehicle distance is too close
during high-speed driving, a serious
collision may result.

[When maintaining distance with the
vehicle ahead, if the front vehicle
disappears, the function may
suddenly accelerate to the set speed.
Always be aware of unexpected and
sudden situations from occurring.

[Vehicle speed may decrease on an
upward slope and increase on a
downward slope.

[Always be aware of situations such as
when a vehicle cuts in suddenly.

[When you are towing a trailer or
another vehicle, we recommend that
Smart Cruise Control is turned off
due to safety reasons.

[Turn off Smart Cruise Control when
your vehicle is being towed.
