Additional instructions (messages)
When Parking Assist is operating, a
message may appear regardless of the
operating order. The messages will
appear according to the circumstances.
Follow the instructions provided whilst
using Parking Assist.
WARNING

[Always check surroundings for
pedestrians, animals or objects
before taking your foot off the brake
pedal.

[If the vehicle does not move even
though the brake pedal is not
depressed, check the surroundings
before depressing the accelerator
pedal.
Exit mode
„Parallel exit
[/HIWVLGH
[5LJKWVLGH
OTM048445L
Use Exit mode when the following
conditions are satisfied.

[There is enough space to move the
vehicle
Operating order
Exit mode operates in the following
order:
1. Getting ready for exit
2. Selecting exit mode and type
3. Checking space
4. Steering wheel control
5. Exiting complete

[Parking Assist will help you with
parallel exit.

Driver assistance system
7-160
OBC3070044R

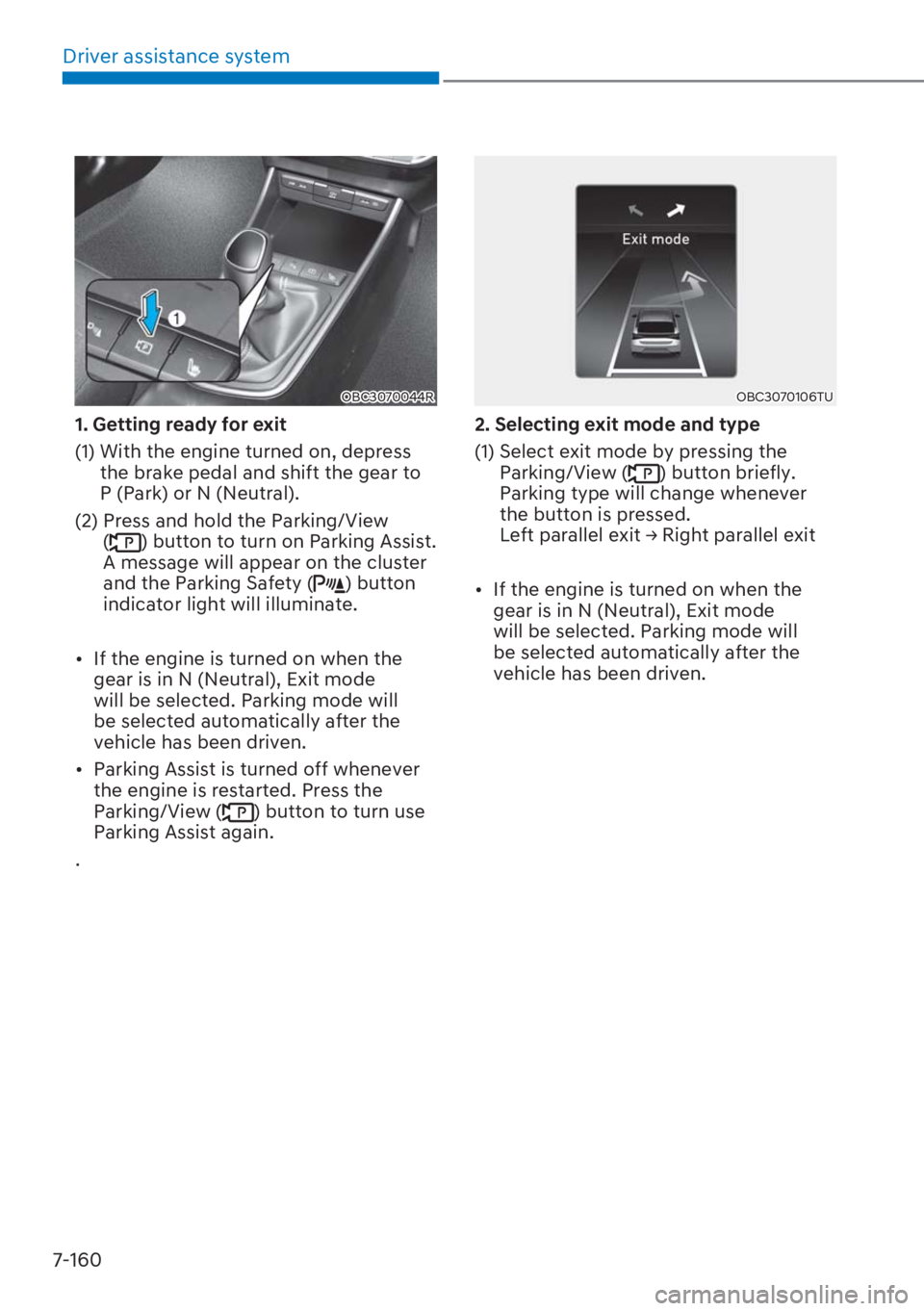

1. Getting ready for exit
(1) With the engine turned on, depress
the brake pedal and shift the gear to
P (Park) or N (Neutral).
(2) Press and hold the Parking/View
(
) button to turn on Parking Assist.
A message will appear on the cluster
and the Parking Safety (
) button
indicator light will illuminate.

[If the engine is turned on when the
gear is in N (Neutral), Exit mode
will be selected. Parking mode will
be selected automatically after the
vehicle has been driven.

[Parking Assist is turned off whenever
the engine is restarted. Press the
Parking/View (
) button to turn use
Parking Assist again.
.
OBC3070106TU
2. Selecting exit mode and type
(1) Select exit mode by pressing the
Parking/View (
) button briefly.
Parking type will change whenever
the button is pressed.
/HIWSDUDOOHOH[LW

07
7-161
OBC3070118TU
3. Checking space
(1) When the vehicle is parked parallel,
the vehicle sensors will detect the
distance from nearby objects and
check for space to exit.

[If the front or rear vehicle (or object) is
too near, the function will not be able
to search for space, and will turn off.

[Parking Assist may not be able to
search for space even if there is space
to leave, and the function may search
for a space that is not suitable for
the vehicle to leave in the following
circumstances:
- The ultrasonic sensor is frozen or
dirty
- There are objects located high or low
- There are pillars around the parking
space
- The parked vehicle has objects
attached to the bumper such as
bumper guard, trailer hitch, etc. OBC3070100TU/OBC3070102TU
OBC3070101TU/OBC3070099TU
4. Steering wheel control
(1) Shift the gear to D (Drive) or R
(Reverse) according to the message
on the cluster.
(2) Parking Assist will start to control the
steering wheel.
- If the steering wheel is held tight,
Parking Assist will be cancelled.
(3) Take your foot off the brake pedal
and drive forward or in reverse
according to the message on the
cluster.

Driver assistance system
7-162

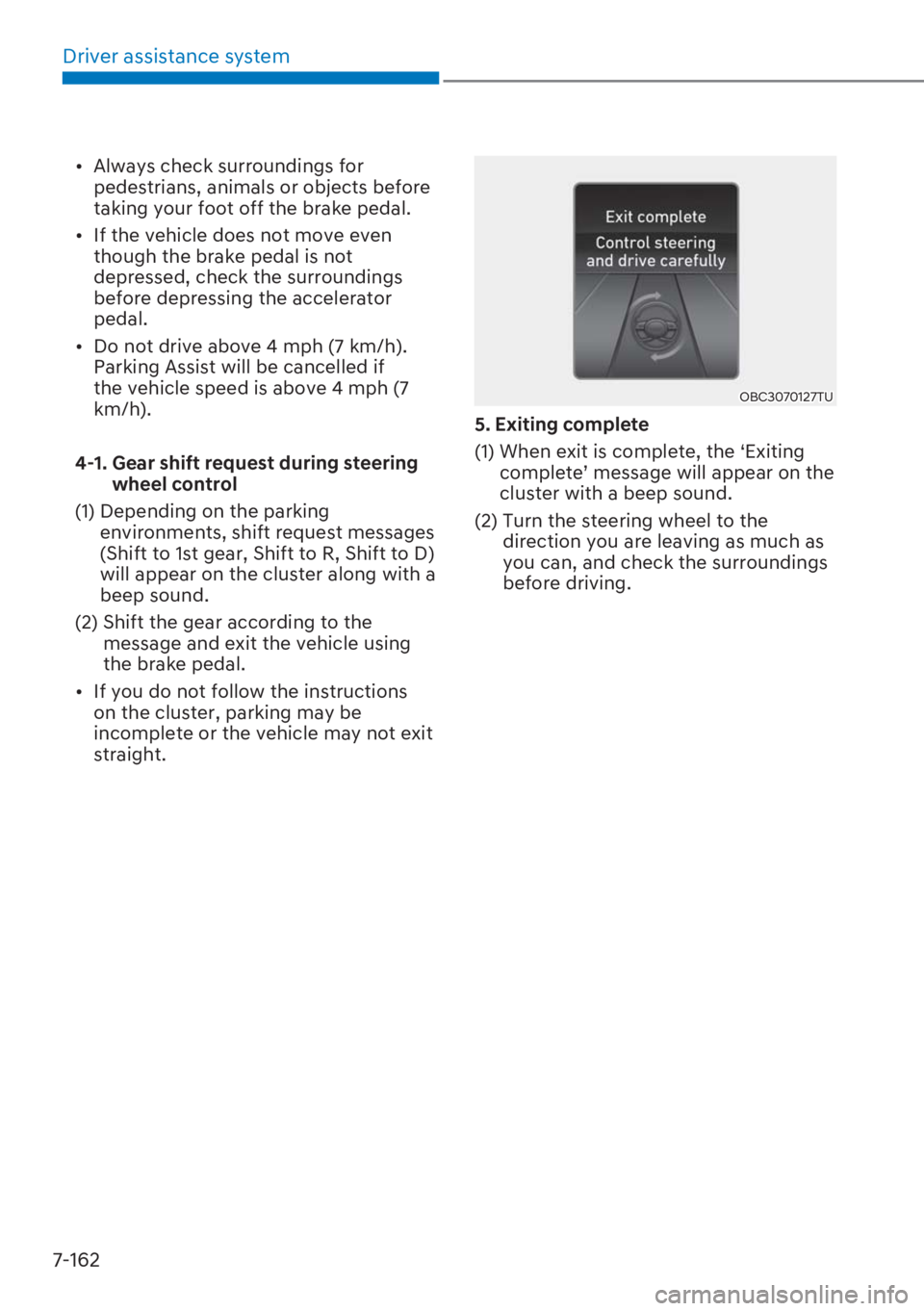

[Always check surroundings for
pedestrians, animals or objects before
taking your foot off the brake pedal.

[If the vehicle does not move even
though the brake pedal is not
depressed, check the surroundings
before depressing the accelerator
pedal.

[Do not drive above 4 mph (7 km/h).
Parking Assist will be cancelled if
the vehicle speed is above 4 mph (7
km/h).
4-1. Gear shift request during steering
wheel control
(1) Depending on the parking
environments, shift request messages
(Shift to 1st gear, Shift to R, Shift to D)
will appear on the cluster along with a
beep sound.
(2) Shift the gear according to the
message and exit the vehicle using
the brake pedal.

[If you do not follow the instructions
on the cluster, parking may be
incomplete or the vehicle may not exit
straight.

OBC3070127TU
5. Exiting complete
(1) When exit is complete, the ‘Exiting
FRPSOHWH
TPHVVDJHZLOODSSHDURQWKH
cluster with a beep sound.
(2) Turn the steering wheel to the
direction you are leaving as much as
you can, and check the surroundings
before driving.

07
7-163
How to turn off Exit mode whilst
operating

[Press the Parking/View () button or
Parking Safety () button.
Exit mode will cancel in the following
conditions:

[ When checking space to exit
- Shifting the gear to R (Reverse)
- The vehicle moves
- Not enough space to exit
- An object is detected within 2mm (79
in.) in the direction of exit
- The steering wheel, gearshift,
braking, and drive controls are not
working normally
- ABS, TCS or ESC system operates
due to slippery road conditions

[When the steering wheel is being
controlled
- The steering wheel is steered
- Approximately 6 minutes have
passed after the steering wheel has
been controlled
- The steering wheel, gearshift,
braking, and drive controls are not
working normally
- ABS, TCS or ESC system operates
due to slippery road conditions
OBC3070104TU
Additional instructions (messages)
When Parking Assist is operating, a
message may appear regardless of the
operating order. The messages will
appear according to the circumstances.
Follow the instructions provided whilst
using Parking Assist.
WARNING

[Always check surroundings for
pedestrians, animals or objects
before taking your foot off the brake
pedal.

[If the vehicle does not move even
though the brake pedal is not
depressed, check the surroundings
before depressing the accelerator
pedal.

[ If it is determined that the space is
too small when the vehicle is being
controlled to exit, Exit mode will be
canceled.

Driver assistance system
7-164
Parking Assist malfunction and
limitations
Parking Assist malfunction
OBC3070120TU
When Parking Assist is not working
properly, the ‘Check PA (Parking Assist)
V\VWHP
TZDUQLQJPHVVDJHZLOODSSHDURQ
the cluster. If the message appears, stop
using the function, and we recommend
that the function be inspected by a
HYUNDAI authorised repairer.
Limitations of Parking Assist
In the following circumstances, function
performance to park or exit the vehicle
may be limited or there may be a risk
of collision. Park or exit the vehicle
manually if necessary.

[An object is attached to the steering
wheel

[The vehicle is installed with a snow
chain, spare tyre or different size
wheel

[Tyre pressure is lower or higher than
the standard tyre pressure

[Your vehicle is loaded with cargo
longer or wider than your vehicle or a
trailer is connected to your vehicle

[There is a problem with the wheel
alignment

[Your vehicle is leaned severely to one
side

[Your vehicle is equipped with a trailer
hitch

[The license plate is installed differently
from the original location

[There is a person, animal or object
above or below the ultrasonic sensor
when Parking Assist is activated

[The parking space is curved or
diagonal

[There is an obstacle such as a person,
animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar etc.) near the parking space

07
7-165
[There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc. near the
parking space

[The road surface is bumpy (curbstone,
speed bump, etc.)

[The road is slippery

[The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.

[The parking space is Inclined

[There is heavy wind

[Operating the function on uneven
roads, gravel roads, bushes, etc.

[The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather

[The ultrasonic sensor is covered with
snow or water

[An object that generates ultrasonic
waves is nearby

[Wireless transmitters or mobile
phones are present near the sensor

[Your vehicle is affected by another
YHKLFOH
TV3DUNLQJ'LVWDQFH:DUQLQJ

[The sensor is mounted or positioned
incorrectly by an impact to the
bumper

[When the ultrasonic sensor cannot
detect the following objects:
- Sharp or slim objects such as ropes,
chains or small poles
- Objects smaller than 100 cm (40 in.)
in length and narrower than 14 cm (6
in.) in diameter
- Objects which tend to absorb sensor
frequency such as clothes, spongy
material or snowParking Assist may not operate normally
under the following circumstances:

[Parking on inclines
OBC3070082TU
Park manually when parking on
inclines.

[Parking in snow
OBC3070083TU
Snow may interfere with sensor
operation, or Parking Assist may
cancel if the road is slippery whilst
parking.

Driver assistance system
7-166

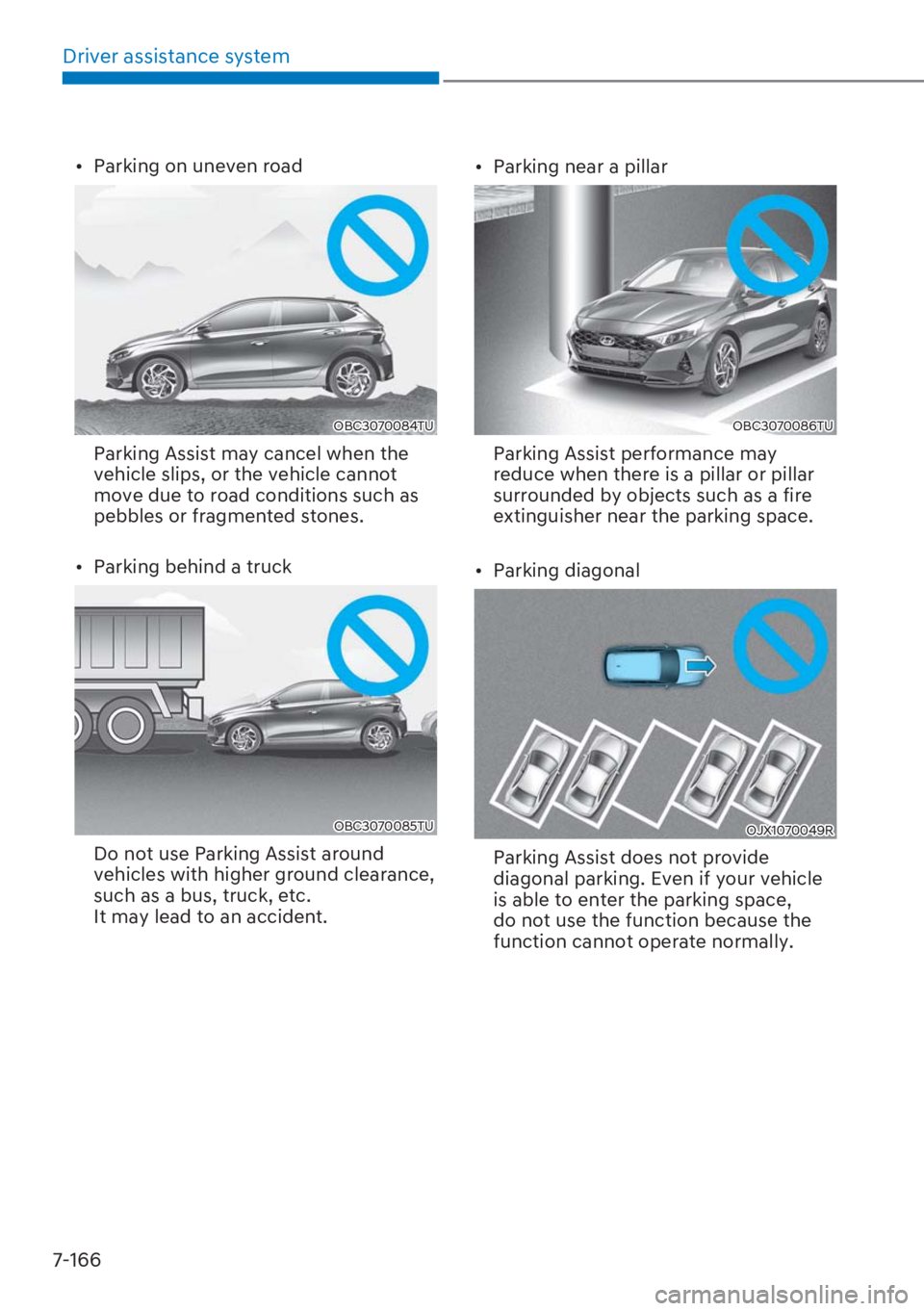

[Parking on uneven road
OBC3070084TU
Parking Assist may cancel when the
vehicle slips, or the vehicle cannot
move due to road conditions such as
pebbles or fragmented stones.

[Parking behind a truck
OBC3070085TU
Do not use Parking Assist around
vehicles with higher ground clearance,
such as a bus, truck, etc.
It may lead to an accident.
[Parking near a pillar
OBC3070086TU
Parking Assist performance may
reduce when there is a pillar or pillar
surrounded by objects such as a fire
extinguisher near the parking space.

[Parking diagonal
OJX1070049R
Parking Assist does not provide
diagonal parking. Even if your vehicle
is able to enter the parking space,
do not use the function because the
function cannot operate normally.
