6-72
Driving your vehicle
Ready to leave after parking on a
hill
1. With the shift lever to P (Park, for
Automatic transmission/Dual clutch
transmission vehicle) or neutral (for
Manual transmission vehicle), apply
your brakes and hold the brake pedal
down whilst you:

V Start your engine;

V Shift into gear; and

V Release the parking brake.
2. Slowly remove your foot from the
brake pedal.
3. Drive slowly until the trailer is clear of
the chocks.
4. Stop and have someone pick up and
store the chocks.
Maintenance when towing a
trailer
Your vehicle will need service more
often when you regularly pull a trailer.
Important items to pay particular
attention to include engine oil,
automatic transmission/dual clutch
transmission fluid, axle lubricant and
cooling system fluid. Brake condition
is another important item to frequently
check. If you’re trailering, it’s a good
idea to review these items before
you start your trip. Don’t forget to
also maintain your trailer and towbar.
Follow the maintenance schedule that
accompanied your trailer and check it
periodically. Preferably, conduct the
check at the start of each day’s driving.
Most importantly, all towbar nuts and
bolts should be tight.
NOTICE
To prevent vehicle damage:

V Due to higher load during trailer
usage, overheating might occur on
hot days or during uphill driving. If
the coolant gauge indicates over-
heating, switch off the air conditioner
and stop the vehicle in a safe area to
cool down the engine.

V When towing check Automatic
transmission/Dual clutch
transmission fluid more frequently.

V If your vehicle is not equipped with
an air conditioner, you should install
a condenser fan to improve engine
performance when towing a trailer.

6-73
06

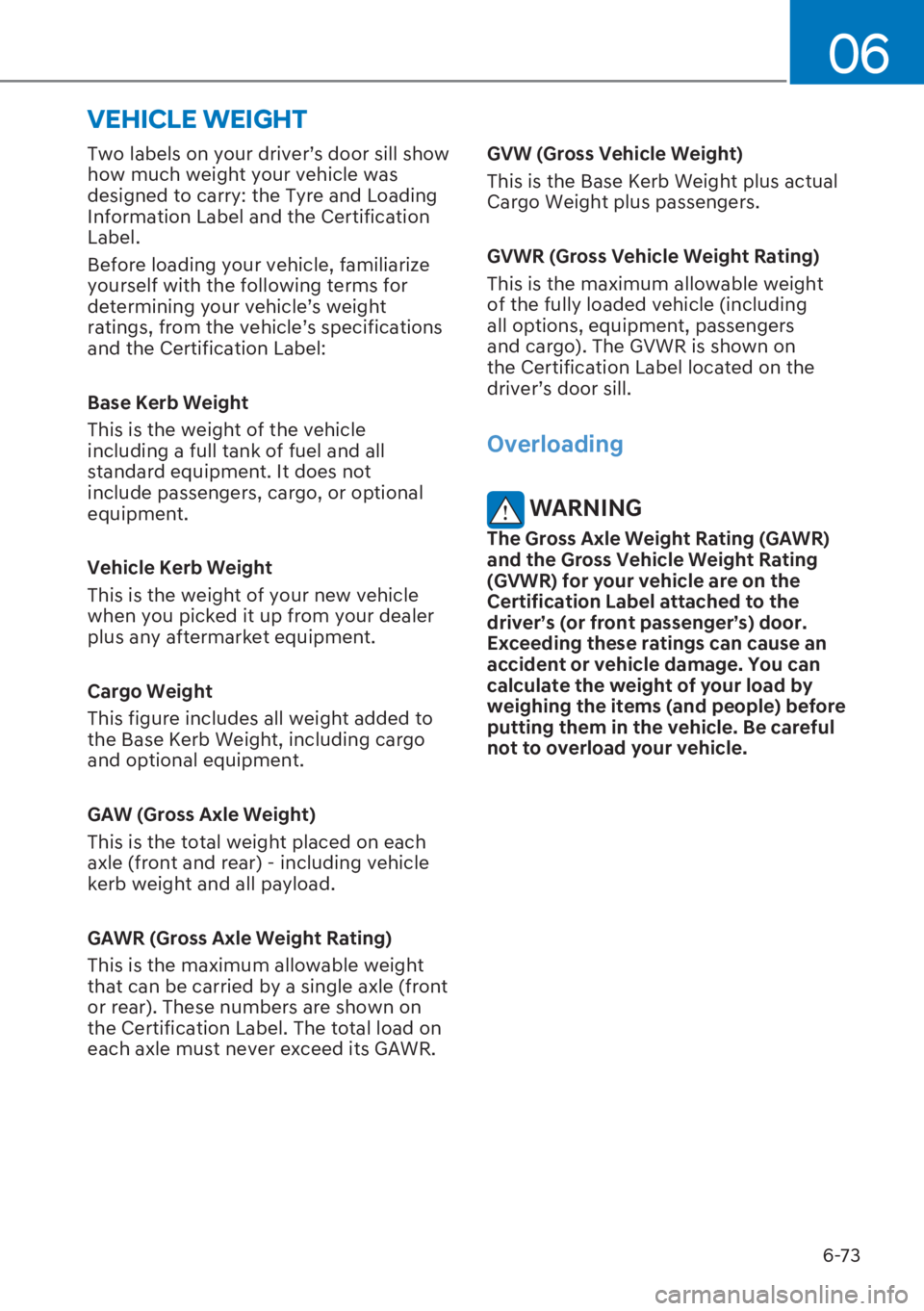

Two labels on your driver’s door sill show
how much weight your vehicle was
designed to carry: the Tyre and Loading
Information Label and the Certification
Label.
Before loading your vehicle, familiarize
yourself with the following terms for
determining your vehicle’s weight
ratings, from the vehicle’s specifications
and the Certification Label:
Base Kerb Weight
This is the weight of the vehicle
including a full tank of fuel and all
standard equipment. It does not
include passengers, cargo, or optional
equipment.
Vehicle Kerb Weight
This is the weight of your new vehicle
when you picked it up from your dealer
plus any aftermarket equipment.
Cargo Weight
This figure includes all weight added to
the Base Kerb Weight, including cargo
and optional equipment.
GAW (Gross Axle Weight)
This is the total weight placed on each
axle (front and rear) - including vehicle
kerb weight and all payload.
GAWR (Gross Axle Weight Rating)
This is the maximum allowable weight
that can be carried by a single axle (front
or rear). These numbers are shown on
the Certification Label. The total load on
each axle must never exceed its GAWR.GVW (Gross Vehicle Weight)
This is the Base Kerb Weight plus actual
Cargo Weight plus passengers.
GVWR (Gross Vehicle Weight Rating)
This is the maximum allowable weight
of the fully loaded vehicle (including
all options, equipment, passengers
and cargo). The GVWR is shown on
the Certification Label located on the
driver’s door sill.
Overloading
WARNING
The Gross Axle Weight Rating (GAWR)
and the Gross Vehicle Weight Rating
(GVWR) for your vehicle are on the
Certification Label attached to the
driver’s (or front passenger’s) door.
Exceeding these ratings can cause an
accident or vehicle damage. You can
calculate the weight of your load by
weighing the items (and people) before
putting them in the vehicle. Be careful
not to overload your vehicle.
VEHICLE WEIGHT

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (front view camera only) ..................... 7-2
Forward Collision–Avoidance Assist (FCA) (Sensor fusion) ................................... 7-15
Lane Keeping Assist (LKA) .......................................................................................7-30
Blind-Spot Collision Warning (BCW)....................................................................... 7-37
Blind-Spot Collision-Avoidance Assist (BCA) ......................................................... 7-47
Safe Exit Warning (SEW) ......................................................................................... 7-60
Manual Speed Limit Assist (MSLA) ........................................................................ 7-66
Intelligent Speed Limit Assist (ISLA) ....................................................................... 7-70
Driver Attention Warning (DAW) ............................................................................. 7-75
Driving ConvenienceCruise Control (CC) .................................................................................................. 7-81
Smart Cruise Control (SCC) .................................................................................... 7-85
Navigation-Based Smart Cruise Control (NSCC) .................................................. 7-101
Lane Following Assist (LFA) ................................................................................... 7-108
Parking SafetyRear View Monitor (RVM) ....................................................................................... 7-112
Rear Cross-Traffic Collision Warning (RCCW) ....................................................... 7-116
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)......................................... 7-124
Reverse Parking Distance Warning (PDW) ........................................................... 7-135
Forward/Reverse Parking Distance Warning (PDW) ............................................ 7-138
Reverse Parking Collision-Avoidance Assist (PCA) .............................................. 7-143
Parking Assist (PA) ................................................................................................... 7-151
Declaration of conformity ........................................................................... 7-168
7. Driver assistance system

Driver assistance system
7-2
Basic function
OTM070237
Forward Collision-Avoidance Assist is
designed to help detect and monitor
the vehicle ahead or help detect a
pedestrian or cyclist in the roadway
and warn the driver that a collision is
imminent with a warning message and
an audible warning, and if necessary,
apply emergency braking.
Detecting sensor
OBC3070001[1] : Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[NEVER disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.

[If the detecting sensor have been
replaced or repaired, we recommend
that you have your vehicle inspected
by a HYUNDAI authorised repairer.

[NEVER install any accessories or
stickers on the front windscreen, or
tint the front windscreen.

[Pay extreme caution to keep the
front view camera dry.

[NEVER place any reflective objects
(i.e. white paper, mirror) over the
dashboard. Any light reflection
may prevent the function from
functioning properly.
)25:$5'&2//,6,21

07
7-3
Forward Collision-Avoidance
Assist settings

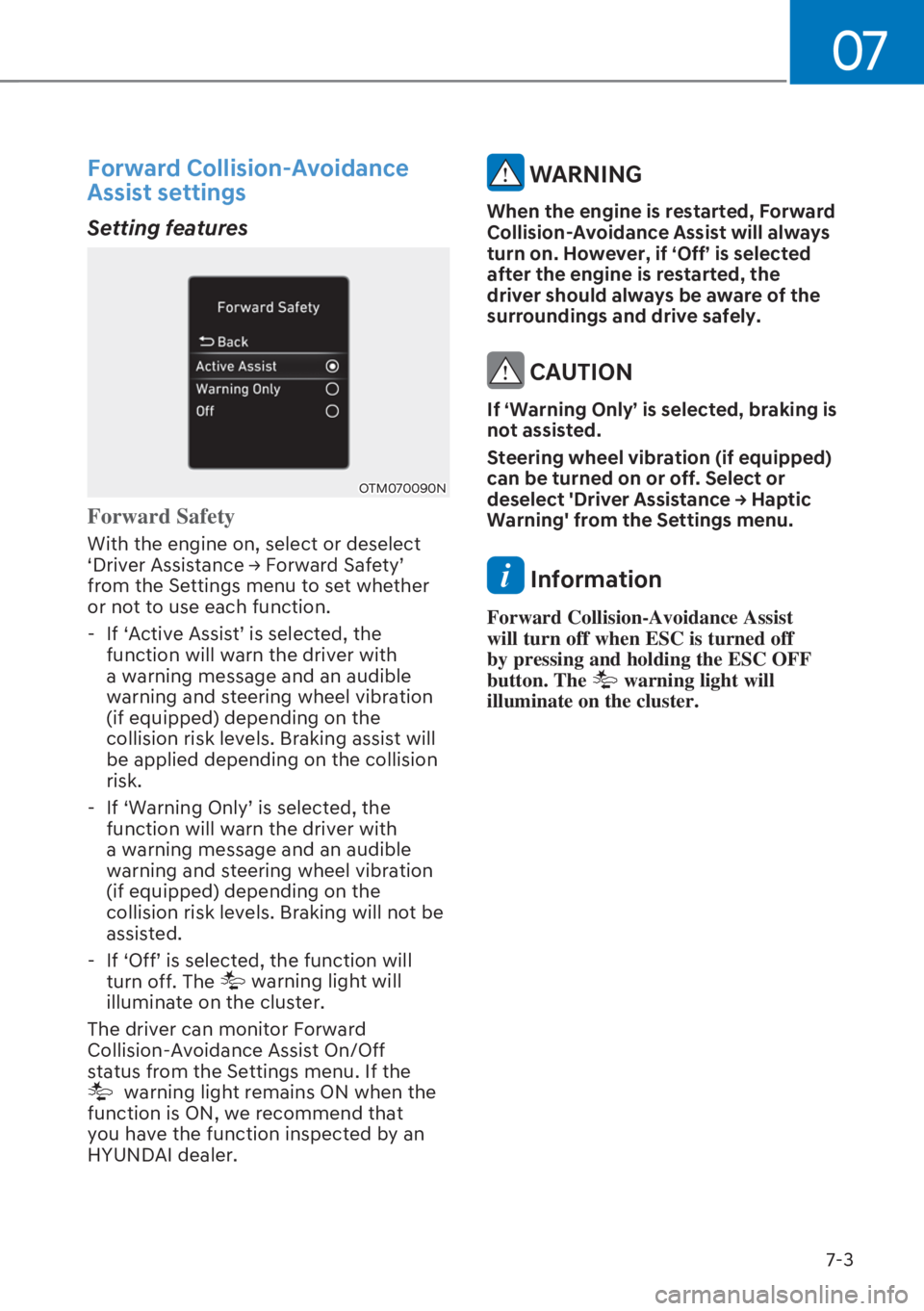

Setting features
OTM070090N
Forward Safety
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

Driver assistance system
7-4
OTM070140N

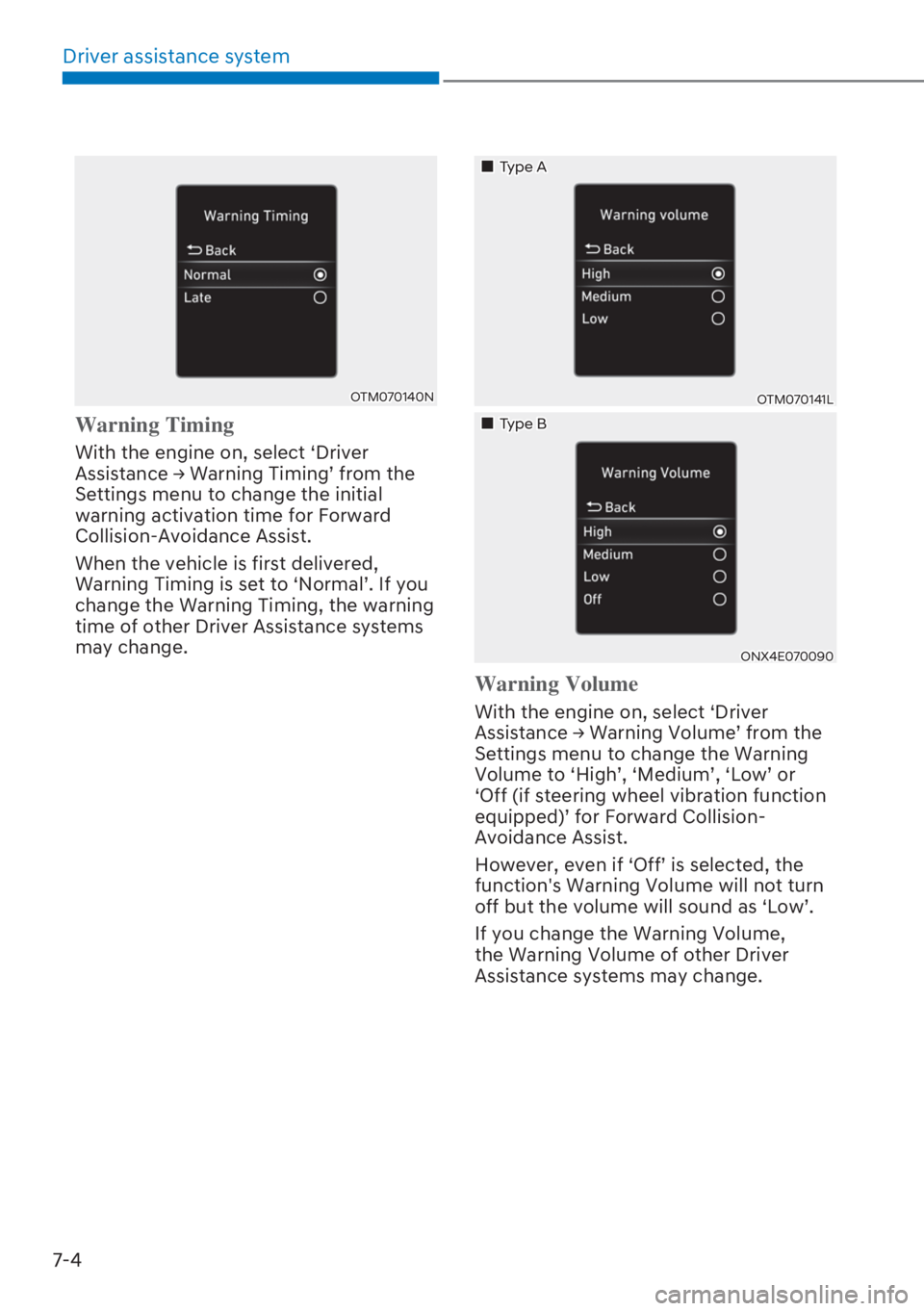

Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-5
CAUTION

[The setting of the Warning Timing
and Warning Volume applies to
all functions of Forward Collision-
Avoidance Assist.

[Even though, ‘Normal’ is selected for
Warning Timing if the front vehicle
suddenly stops the initial warning
activation time may seem late.

[Select ‘Late’ for Warning Timing
when traffic is light and when driving
speed is slow.
Information
If the engine is restarted, Warning Timing
and Warning Volume will maintain the
last setting.
Forward Collision-Avoidance
Assist operation
Basic function
Warning and control
The basic function of Forward Collision-
Avoidance Assist is to help warn and
control the vehicle depending on
FROOLVLRQOHYHO
S&ROOLVLRQ:DUQLQJ
T

S(PHUJHQF\%UDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
OBC3070002
Collision warning

[To warn the driver of a collision, the

S&ROOLVLRQ:DUQLQJ
TZDUQLQJPHVVDJH
will appear on the cluster and an
audible warning will sound and
the steering wheel will vibrate. (if
equipped)

[If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~112 mph (10~180
km/h).

[If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~50 mph (10~80
km/h).

[ ,I
S$FWLYH$VVLVW
TLVVHOHFWHGEUDNLQJ
may be assisted.

Driver assistance system
7-6
OBC3070003
Emergency braking

[To warn the driver that emergency
braking will occur, the ‘Emergency
%UDNLQJ
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster and an audible warning
will sound and the steering wheel will
vibrate. (if equipped).

[If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~37 mph (10~60
km/h).

[If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~37 mph (10~60
km/h).

[In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the vehicle, pedestrian
or cyclist ahead.
OBC3070004
Stopping vehicle and ending brake
control

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Forward Collision-Avoidance
Assist:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[With ‘Active Assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button for more than 3 seconds,
Forward Collision-Avoidance Assist
will turn off automatically. In this
case, the function cannot be set
from the Settings menu and the

warning light will illuminate on the
cluster which is normal. If ESC is
turned on by pressing the ESC OFF
button, Forward Collision-Avoidance
Assist will maintain the last setting.
