4-2
Instrument cluster
INSTRUMENT CLUSTER
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including Trip computer)
The actual cluster in the vehicle may differ from the illustration. For more details, refer to the
“Gauges and Meters” in this chapter.
OBC3040001R
„Type A

4-3
04
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. LCD display
The actual cluster in the vehicle may differ from the illustration. For more details, refer to the
“Gauges and Meters” in this chapter.
OBC3040036R
„Type B

4-4
Instrument cluster
Instrument cluster control
You can adjust the brightness of the
instrument panel illumination form the
User Settings Mode on the LCD display
when the ignition switch is on ('Lights
J Illumination’). When the vehicle’s
parking lights or headlamps are on,
interior switch illumination intensity and
mood lamps are also adjusted.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
WARNING
Never adjust the instrument cluster
whilst driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
vehicle damage.
OCN7040019L

[The brightness of the instrument panel
illumination is displayed.

[If the brightness reaches the
maximum or minimum level, an alarm
will sound.
WARNING
Never adjust the instrument cluster
whilst driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
vehicle damage.

4-5
04

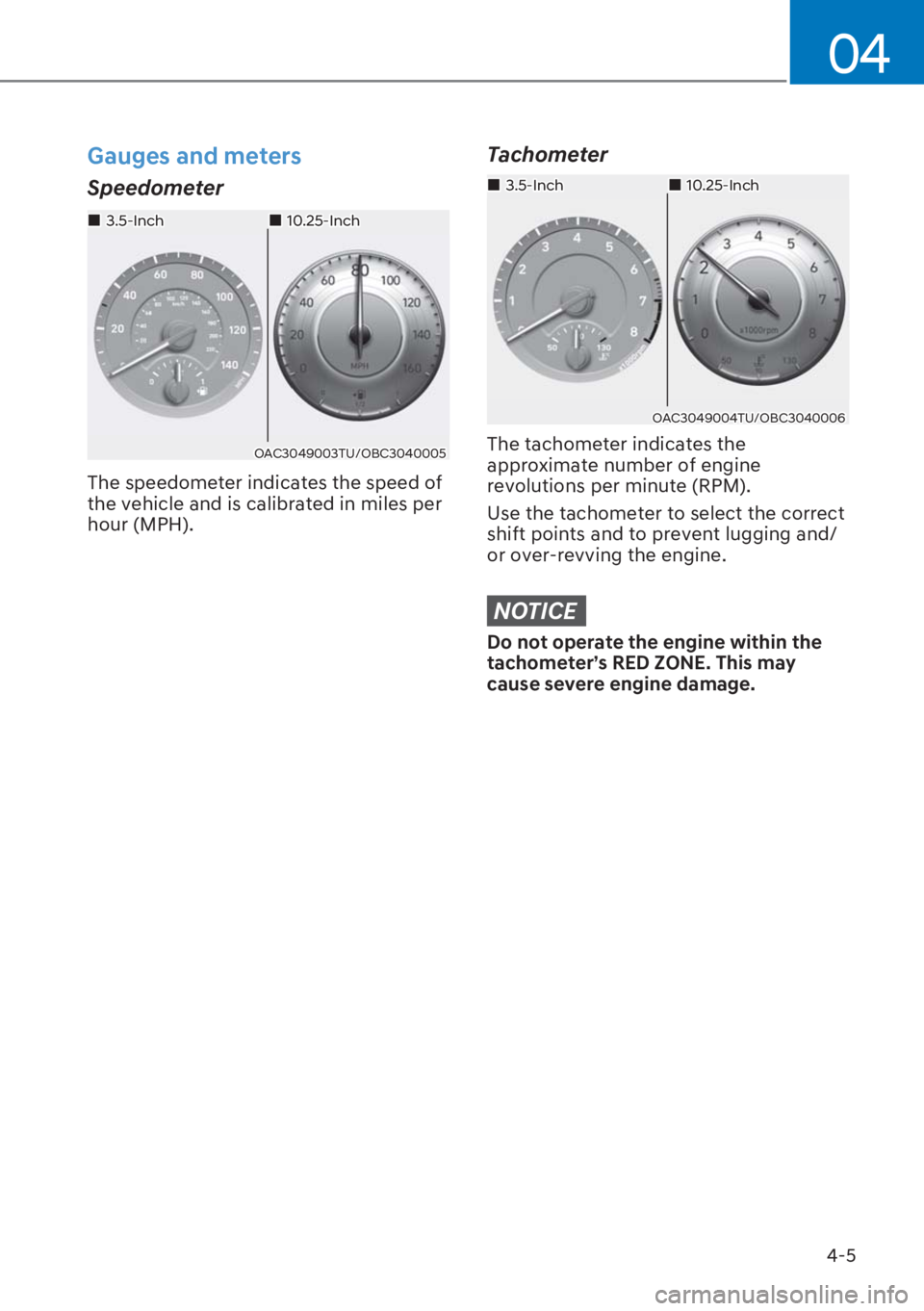

Gauges and meters
Speedometer
„3.5-Inch
OAC3049003TU/OBC3040005
„10.25-Inch
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (MPH).
Tachometer
„3.5-Inch
OAC3049004TU/OBC3040006
„10.25-Inch
The tachometer indicates the
approximate number of engine
revolutions per minute (RPM).
Use the tachometer to select the correct
shift points and to prevent lugging and/
or over-revving the engine.
NOTICE
Do not operate the engine within the
tachometer’s RED ZONE. This may
cause severe engine damage.

4-6
Instrument cluster
Engine Coolant Temperature Gauge
„3.5-Inch
OBC3040007/OBC3040008
„10.25-Inch
This gauge indicates the temperature
of the engine coolant when the ignition
switch is in the ON position.
NOTICE
If the gauge pointer moves beyond the
normal range area toward the “130”
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” in chapter 8.
WARNING
Never remove the radiator cap or
reservoir cap when the engine is hot.
The engine coolant is under pressure
and could cause severe burns. Wait
until the engine is cool before adding
coolant to the reservoir.
Fuel Gauge
„3.5-Inch
OBC3040009/OCN7040011L
„10.25-Inch
This gauge indicates the approximate
amount of fuel remaining in the fuel
tank.
i Information

4-7
04
Outside Temperature Gauge
„3.5-Inch
OBC3040003/OTM040013
„10.25-Inch
This gauge indicates the current outside
air temperatures either in Celsius (°C) or
Fahrenheit.
- Temperature range :
-40°C ~ 60°C (-40°F ~ 140°F)
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature(
there may be a slight delay before the
temperature changes.)
You can change the temperature unit
from the Settings menu in the Cluster.
Select:
- Setup J Unit J Temperature Unit
J °C/°F
For vehicles equipped with Automatic
Climate Control, you can also:
- Press the AUTO button whilst pressing
the OFF button on the climate control
unit for 3 seconds
Both the temperature unit on the cluster
LCD display and climate control screen
will change.
Odometer
„3.5-Inch
OPDE046141R/OBC3040030R
„10.25-Inch
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
Distance to empty
„3.5-Inch
OOS048469N/OBC3040031R
„10.25-Inch

[The distance to empty is the estimated
distance the vehicle can be driven
with the remaining fuel.

[If the estimated distance is below 1 mi.
(1 km), the trip computer will display
“---” as distance to empty.

4-8

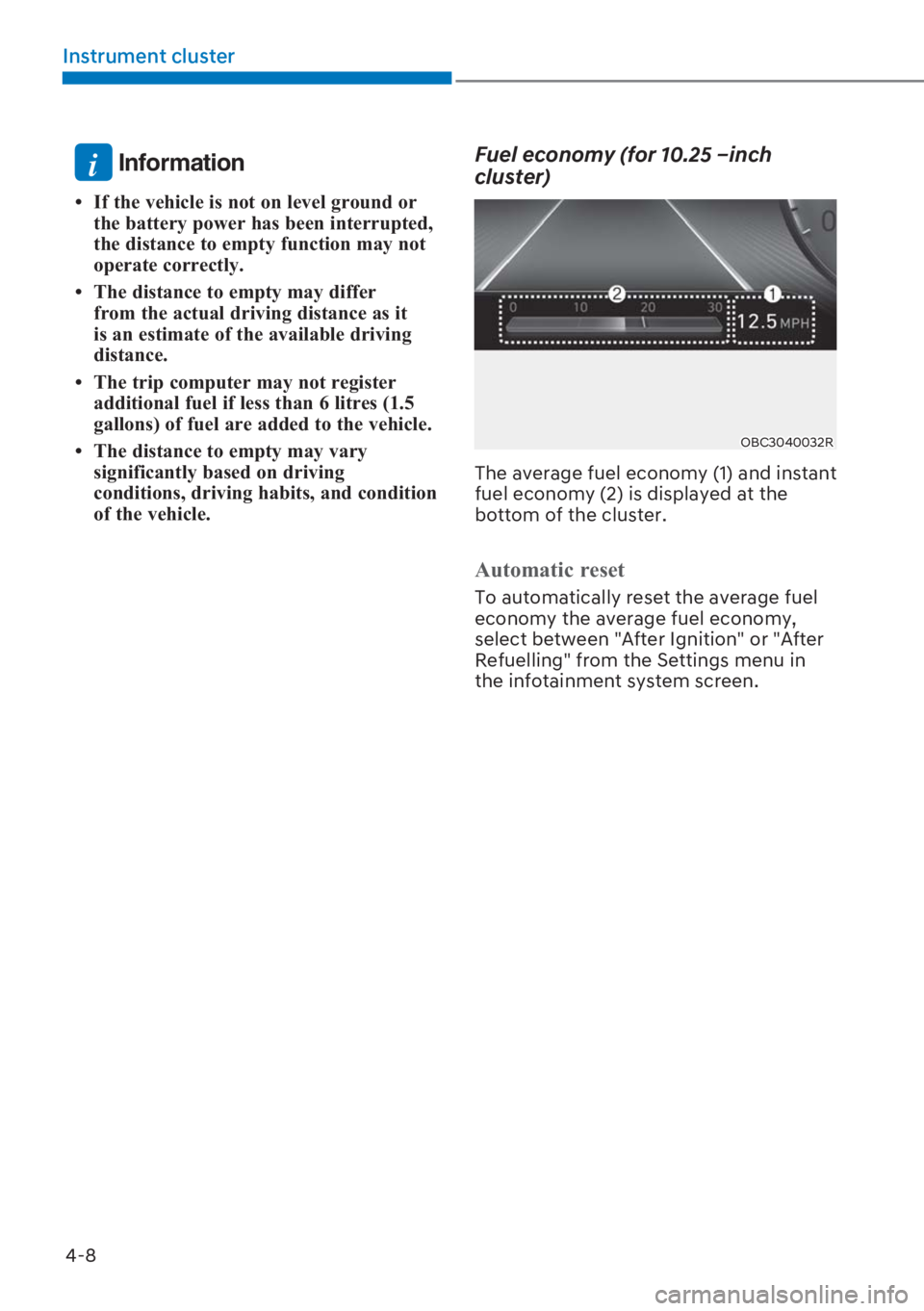

Instrument cluster
i Information

4-9
04
Transmission shift indicator
Manual transmission / Intelligent
variable transmission shift indicator
(if equipped)
OPDE046142
OBC3040033R
„3.5-Inch

„10.25-Inch
This indicator informs which gear is
recommended whilst driving, to save
fuel.

[6KLIWLQJXS▲2, ▲3, ▲4, ▲5, ▲6

[6KLIWLQJGRZQ▼1, ▼2, ▼3, ▼4, ▼5
For example
: Indicates that shifting up to the 3rd
gear is recommended (currently the
shift lever is in the 2nd or 1st gear).
: Indicates that shifting down to the
3rd gear is recommended (currently
the shift lever is in the 4th, 5th, or
6th gear).
When the system is not working
properly, the indicator is not displayed.
Automatic transmission shift
indicator (if equipped)
OTL045132
OBC3040034R
„3.5-Inch

„10.25-Inch
This indicator displays which automatic
transmission shift lever position is
selected.

[Park : P

[Reverse : R

[Neutral : N

[Drive : D

[Manual shift mode : 1, 2, 3, 4, 5, 6
